2
2Preparation
4
3

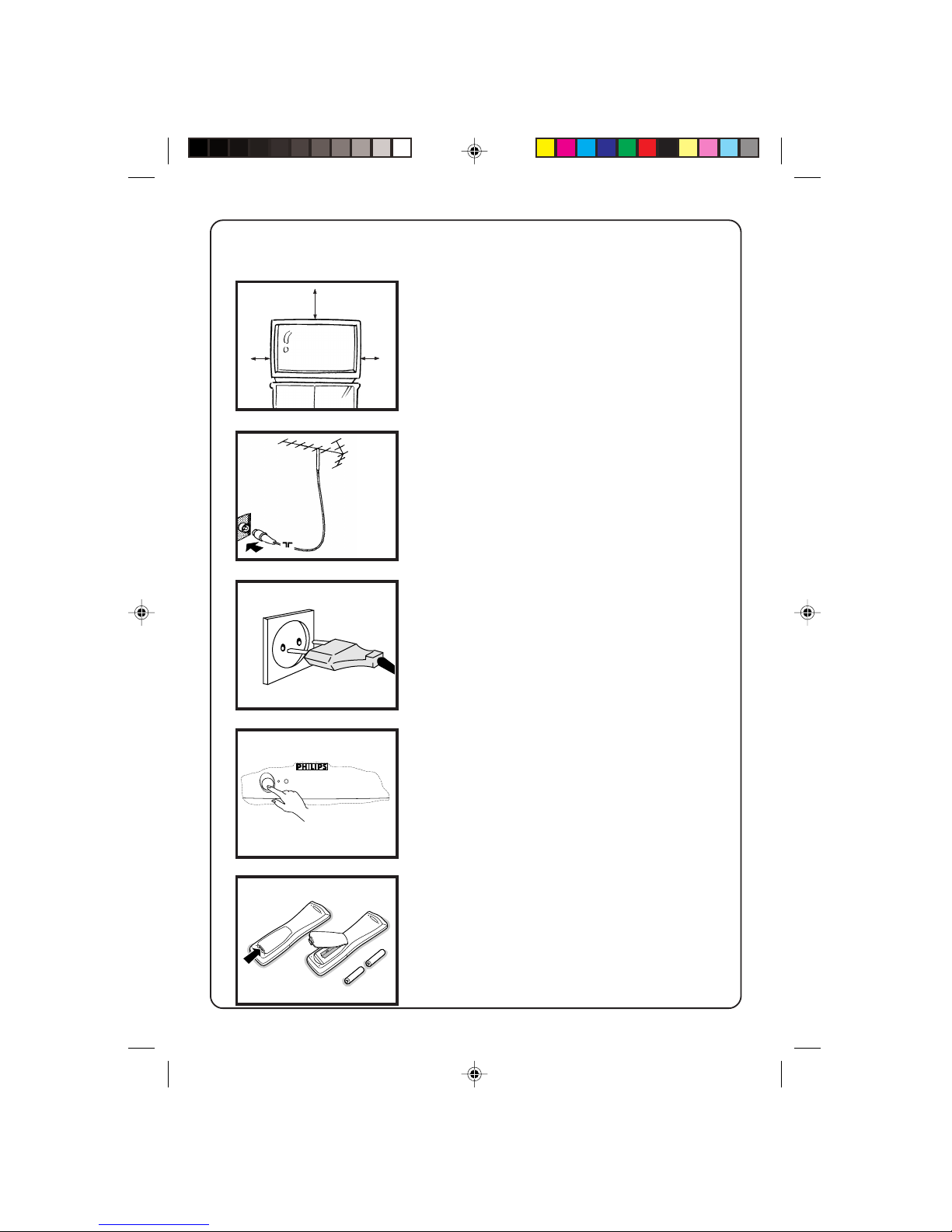

Installing the TV
4Place your TV set on a stable and strong
base.
4Leave at least a free space of 5 cm on both
sides and 10 cm from the top for good
ventilation of the TV set.
4Do not place anything on the TV set which
might damage it e.g. plants or heat sources.
Connecting the aerial
4Insert the aerial plug into the socket g at
the back of the TV.
Connecting the mains
4Insert the mains plug into the wall socket
and switch on.
Refer to the specification at the back of the
TV for the correct operating voltage.
(Picture is only a representation of the actual
plug and socket)
Switching on
4Press the on/off button at the front of the
TV to switch it on.
If the indicator is red, press either the digit,
channel, A/CH, AV or B key.
Installing the remote control
4Remove the cover at the back of the remote
control.
4Insert the correct type and size batteries
into the compartment, making sure that
they are the right way around.
10 cm
5 cm
5 cm
28241/p2-9 7/6/00, 3:10 PM2

3
3Useful Tips
4Avoid heat and
direct sunlight.
4Avoid direct
exposure to rain
or water.
4Never repair the TV yourself – get a skilled
personnel!
4DO NOT leave your TV on standby for a
prolonged period.
4Switch off your TV if not in use.
5This will allow the TV to be demagnetised,
giving good picture.
4Clean the TV’s screen with a slightly damp
soft cloth ONLY WHEN NECESSARY.
Note : Do not use abrasive solvent as it can
damage the screen’s coating.
28241/p2-9 7/6/00, 3:10 PM3

4
4Connecting peripheral equipment
VCR
VCD
1. Connect to AV sockets
You may choose to connect up AV1 in or
AV2 in or both.
4connect the corresponding sockets of the
equipment to that of the TV.
5to view the playback, select the first AV
channel (if connection is made to sockets
at AV1 in) or the second AV channel (if
connection is made to sockets at AV2 in).
Note: For mono equipment, connect to the
VIDEO and L sockets only.
2. Connect to S-Video sockets
If you have a S-Video equipment, connect to
the S-Video socket for better picture quality.
4connect the corresponding socket of the
equipment to that of the TV.
5to view the playback, select the Y/C
channel.
Note: If both the S-Video socket and the
Video socket of AV2 are connected, S-Video
input precedes the Video input
3. Connect to aerial socket
(only for VCR)
The playback on your VCR is considered a
TV channel by your TV if you connect via
the aerial socket. You must tune in to your
VCR’s test signal and assign a channel
number to it. Refer to your VCR’s instruction
manual for more details.
4connect the RF cable to the VCR’s “RF in”
and connect the “RF out” of the VCR
to the aerial socket of the TV.
4select the channel and tune in to to your
VCR’s signal.
5to view the playback, select the channel.
VCR
Laser disc
player
AV 2
in
Monitor
out
AV 1
in
S-VIDEO
AUDIO
VIDEO
L
R
OR
VIDEO 2
in
MONITOR
out
VIDEO 1
in
S-VIDEO
AUDIO
VIDEO
L
R
g
Ω75
OR

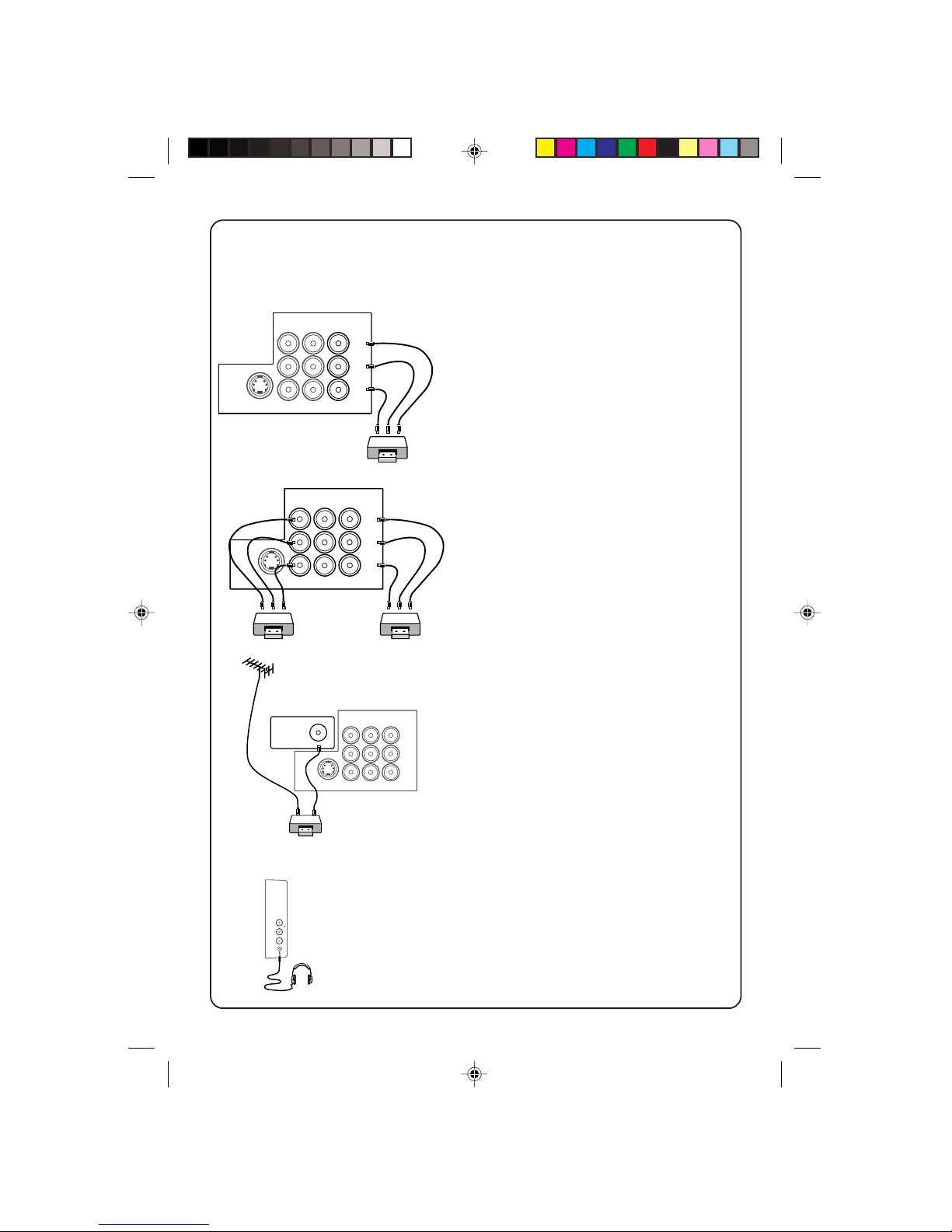

Equipment such as VCR, Laser disc player, VCD etc. could be connected to
the video and audio (AV) sockets at the back of the TV. Switch off the TV and
equipment before making any connection.
Connection for playback
AV 2
in
Monitor
out
AV 1
in
S-VIDEO
AUDIO
VIDEO
L
R
VCR
VCR
28241/p2-9 7/6/00, 3:10 PM4

5
5
…connecting peripheral equipment
AV 2
in
Monitor
out
AV 1
in
S-VIDEO
AUDIO
VIDEO
L
R
AV 2
in
Monitor
out
AV 1
in
S-VIDEO
AUDIO
VIDEO
L
R

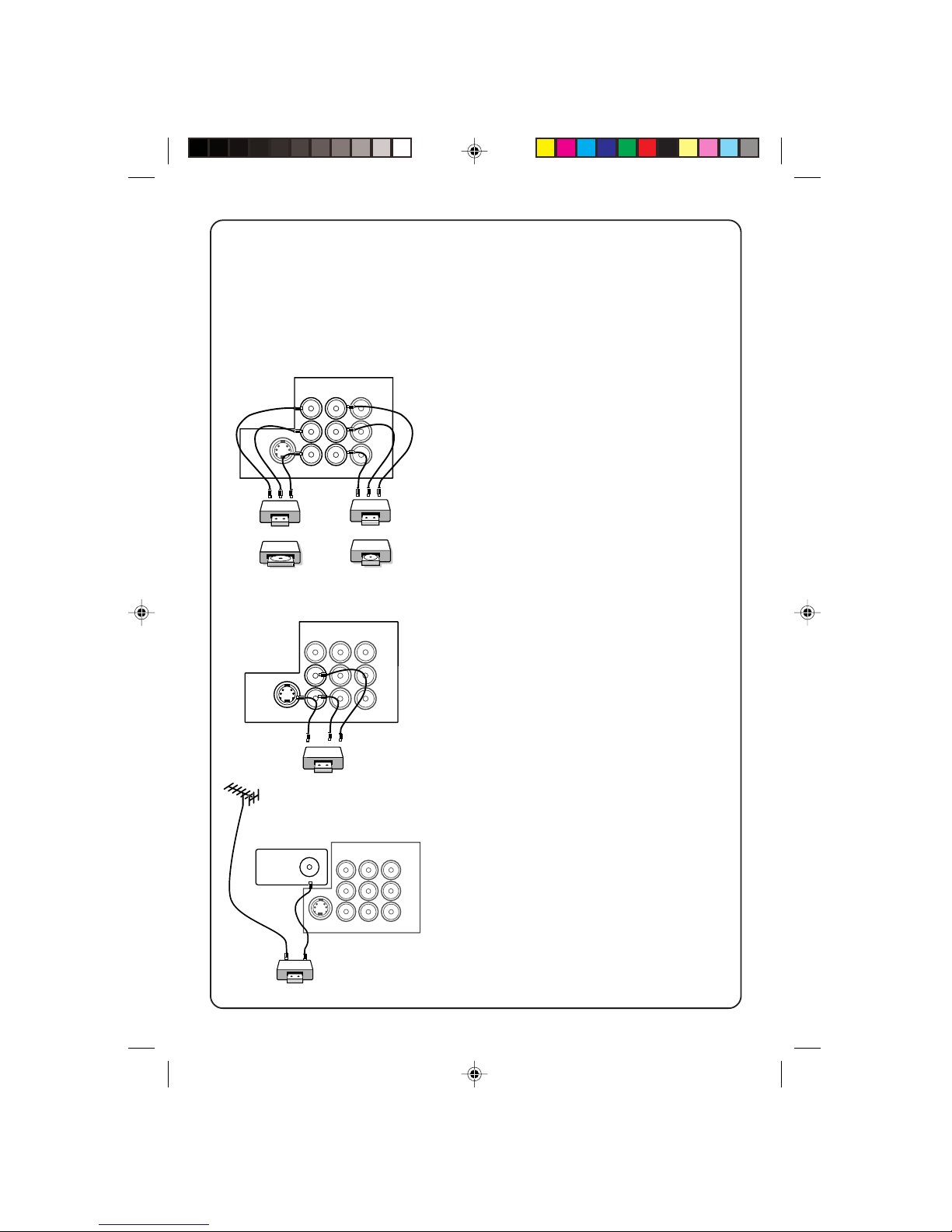

1. From the TV channel you are
watching
4connect the corresponding sockets of
the VCR to the sockets at MONITOR out.
Note: For mono equipment, connect to
the VIDEO and L sockets only.
2. From one VCR to another VCR
4connect the sockets of the VCR which
you wish to record from to the
corresponding sockets at either AV1 in
or AV2 in.
4connect the sockets of the receiving
VCR to the corresponding sockets at
MONITOR out.
Note: For mono equipment, connect to
the VIDEO and L sockets only.
3. From the TV antenna
4connect the RF cable to the VCR’s “RF
in”and the “RF out”of the VCR to the
aerial socket of the TV.
AV 2
in
Monitor
out
AV 1
in
S-VIDEO
AUDIO
VIDEO
L
R
g
‰75
VIDEO
in
AUDIO
L
R
n
Connection for headphones
4connect the headphones to the socket
at the side of the TV.
The headphones impedance must be
between 8 and 4000 ohms.
Connection for recording
VCR
VCR 1
VCR 2
VCR
Headphones
28241/p2-9 19/6/00, 8:52 AM5
