Philips 6002 Series User manual

Published by Yingqun.wen 6002 Quality Subject to modification
2017 © TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.
Platform Chassis name Model name
MSD6A638 6002 43PUT6002/56
6002
2017-Dec-8

1.Product inforamtion……….……………………………………………………………………………………3
2.Connections overview……..…..…..………………..…………………………………………………………6
3.Mechanical Instructions………………….…………………………………………………………………….7
Cable dressing (43" 6002 series)……………………………………………………………………7
A s s e m b l y / P a n e l R e m o v a l …… … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. Fac to ry Mo des …… … .. .. . .. . .... . ... .. ... .. . .. . .. . .. . ... . .. . ... .. ... .. . .. . .. . .. . ... . .. . ... .. ... .. . .. . .. . .. . ... . .. . 1 5
5.Software upgrading, Panel PN…...…….....................................………………………………………..16
6.Circuit Descriptions…..……………………….………………………………………………………………18
7.IC Data Sheet……...……………………………………………………………………………………….…..24
8.Circuit Diagrams……………...……………………………………………………………………………….28
Power board Circuit Diagrams …………………………… …………………………………………………28
Main board Circuit Diagrams …………………………… …………………………………………………29
9.Styling Sheet……………….…………………….……………………………………………………………..40
6 00 2 Se ri e s 43 " .. . . . .. . . . .. .. .. . . . . .. . . .. .. . .. . . . .. . . . .. .. .. . . . .. .. .. . . . . .. . . .. . .. .. . . . .. . . . .. .. .. . . . .. .. .. . . . . . 40

3
1. Product information
Product information is subject to change without notice.
For detailed product information，please visit www.philips.com/support
43PUT6002/56
Display Type
Diagonal screen size: 42.51inch
Display resolution: 3840 x 2160p
Input resolution
• 800 x 600p - 60 Hz
• 1024 x 768p - 60 Hz
• 1280 x 768p - 60 Hz
• 1360 x 765p - 60 Hz
• 1360 x 768p - 60 Hz
• 1280 x 1024p - 60 Hz
• 1920 x 1080p - 60 Hz23.5
Video formats
Resolution — Refresh rate
480i, 480p,576i, 576p,720p,1080i,1080p,3840x2160p 24/25/30/50/60Hz
Computer formats
Resolutions (amongst others)
• 720*400@70HZ
• 640*480@60HZ
• 800*600@60HZ
• 1024*768@60HZ
• 1360*768@60HZ
• 1280*720@60HZ
• 1280*960@60HZ
• 1280*1024@60HZ
• 1600*900@60HZ
• 1920*1080@60HZ
Dimensions and Weights
• without TV stand:
Width 969 mm - Height 567mm - Depth 83
mm - Weight 7.3 kg
• with TV stand:
Width 969mm - Height 629 mm - Depth 240
mm - Weight 7.5 kg
Connectivity
I/O port to be clearly indicated
TV*1
HDMI*3
Audio out*1
VGA*1
USB*2
AV IN*1 Coaxial out*1 RJ45*1
Playback YES
Component (HD/SD)@24p/50/60 (HD/SD)@24p/50/60
HDMI Number 3
HDMI 1 HDMI 2.0 /up to 4k@60hz
4:4:4 down
HDMI 2 HDMI 2.0 /up to 4k@60hz
4:4:4 down

4
HDMI 3 HDMI 2.0 /up to 4k@60hz
4:4:4 side
HDMI 4 NA
HDCP v2.2 (on HDMI 2.0 port) YES
HDMI ARC HDMI-2
PC input (VGA) VGA
AV （input）YES
Headphone N/A
Video and Audio out Audio out
Digital audio out (SPDIF)
co-axial/Optical Co-axial Out
RJ45 YES
DLNA/ Certification NA
WiFi 802.11 b/g/n; 1T1R ;
EasyLink (HDMI-CEC) YES
Antenna Tuner /Satellite tuner Antenna Tuner(down)
Wireless connections YES
Wi-Fi Band Concurrent 1T1R
Bluetooth for subwoofer/RC (do not claim commercially) N/A
MHL(Version ) HDMI -3 MHL3.0
Reception
• Image Codecs : JPEG
• Limitations :
– Maximum supported total bit rate for a media file is
30Mbps.
– Maximum supported video bit rate for a media file
is 20Mbps.
– MPEG-4 AVC (H.264) is supported up to High
Profile @ L4.1.
– VC-1 is supported up to Advanced Profile @ L3.
Wi-Fi Certified
This TV supports Miracast certified devices.
Supported media server software (DMS)
• You can use any DLNA V1.5 certified media server
software (DMS class).
• You can use the Philips TV Remote app (iOS and
Android) on mobile devices.
Performance may vary, depending on the capabilities
of the mobile device and the software used.
Sound
Mono/Stereo/Virtual Surround Mono/Stereo/Virtual Surround
Output Power (10% THD) RMS (RMS Watts) 16W
Speaker configuration 8Wx2
Speaker system (Number of on board Speakers ) 2.0
Speaker type built-in(normal)
Auto Volume Levelier / Auto Volume Levelier + N/A
Dolby Digital DecoderType(DD/DD+) DD

5
DTS Studio Sound N/A
DTS 2.0+ Digital out N/A
SPL (>= 84dB @ 2m) 78dB @ 2m
Acoustic frequence range
( 160~8K HZ<=16dB)
160~8K HZ<=16dB
Multimedia
Video Playback Formats MPEG-2/MPEG-4 /
H.264
H265-up to 4K
Subtitles Formats Support SRT、ASS
Music Playback Formats AC3，AAC-LC,HE-AAC,WMA
Picture Playback Formats JPEG、BMP、PNG
Pause TV/USB recording (PVR) YES
Time shift YES
PIP/POP NA
USB USB2.0(*2)
USB Harddisk Format (Power) FAT/NTFS (500mA)
Power
Power
• Mains power : AC 100-240V 50/60Hz
• Standby Energy Consumption:≤0.5W
• Ambient temperature : 5°C to 40°C

6
2. Connections Overview
Network
HDMI

7
3. Mechanical Instructions

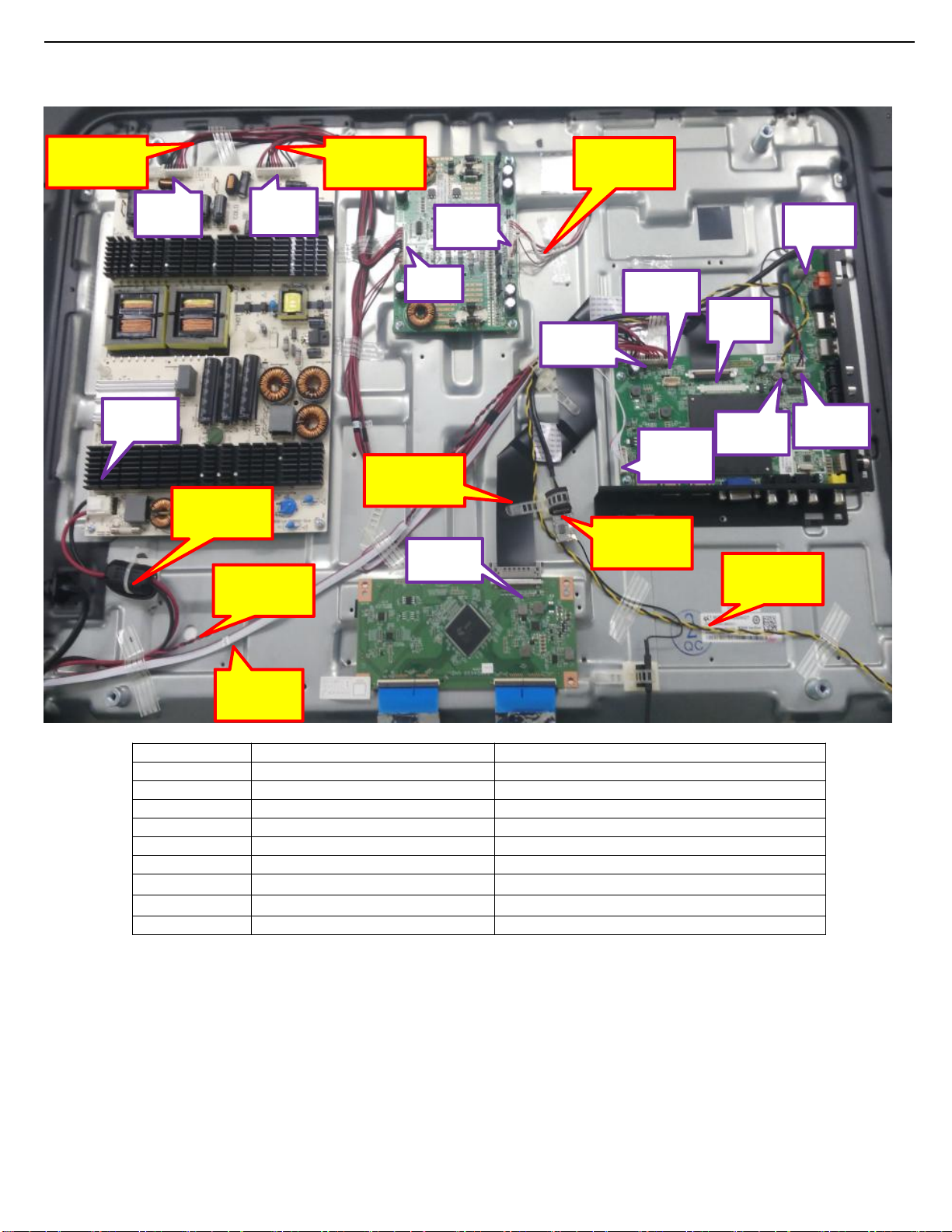

3.1 Cable dressing
Serial no
p
art descri
p
tion function
1 Back li
g
ht wire Connect to CN302
2 Power wire Connect to CN101
3 LVDS wire J455 to T-CON board
4 S
p
eaker wire CN210 to s
p
eaker
(y
ellow black wire
)
5 S
p
eaker wire CN202 to s
p
eaker
(
red black wire
)
6 two-terminal wire CN103 to IR board&LED
7 Supply line CN203、CN101 to supply main board
8 WIFI line CN207 to WIFI board
1
7
CN101
6
CN101
J455
5
CN203
4
CN207
3
CN103
8
CN102
CN302
2

8
CN103
3. Mechanical Instructions
3.1 Cable dressing
Serial no part description function
1 Back light wire Connect to CN3
2 Power wire Connect to PCN1
3 LVDS wire J455 to T-CON board (CN2)
4 Speaker wire CON203 to speaker (yellow black wire)
5 Speaker wire C0N201 to speaker (red black wire)
6 two-terminal wire CN103 to IR board&LED
7 Three port line C0N5、CN1、CN102 to control back light
8 Supply line CON4、CN101 to supply main board
9 WIFI line CN207 to WIFI board
Cable dressing( 43" 6002 series)
3.2 Assembly/Panel Removal
3.2.1 Stand removal
1. Remove the fixation screws [1] 4pcs, that secure the stand
2. Take the stand bracket out from the set.
2
6
CN101
8
PCN1
J455
5
CN1
7
4
1
CN207
3
C0N4
CN103
9
CN201
CN203
CN2
CN3
CON5
CN102

9

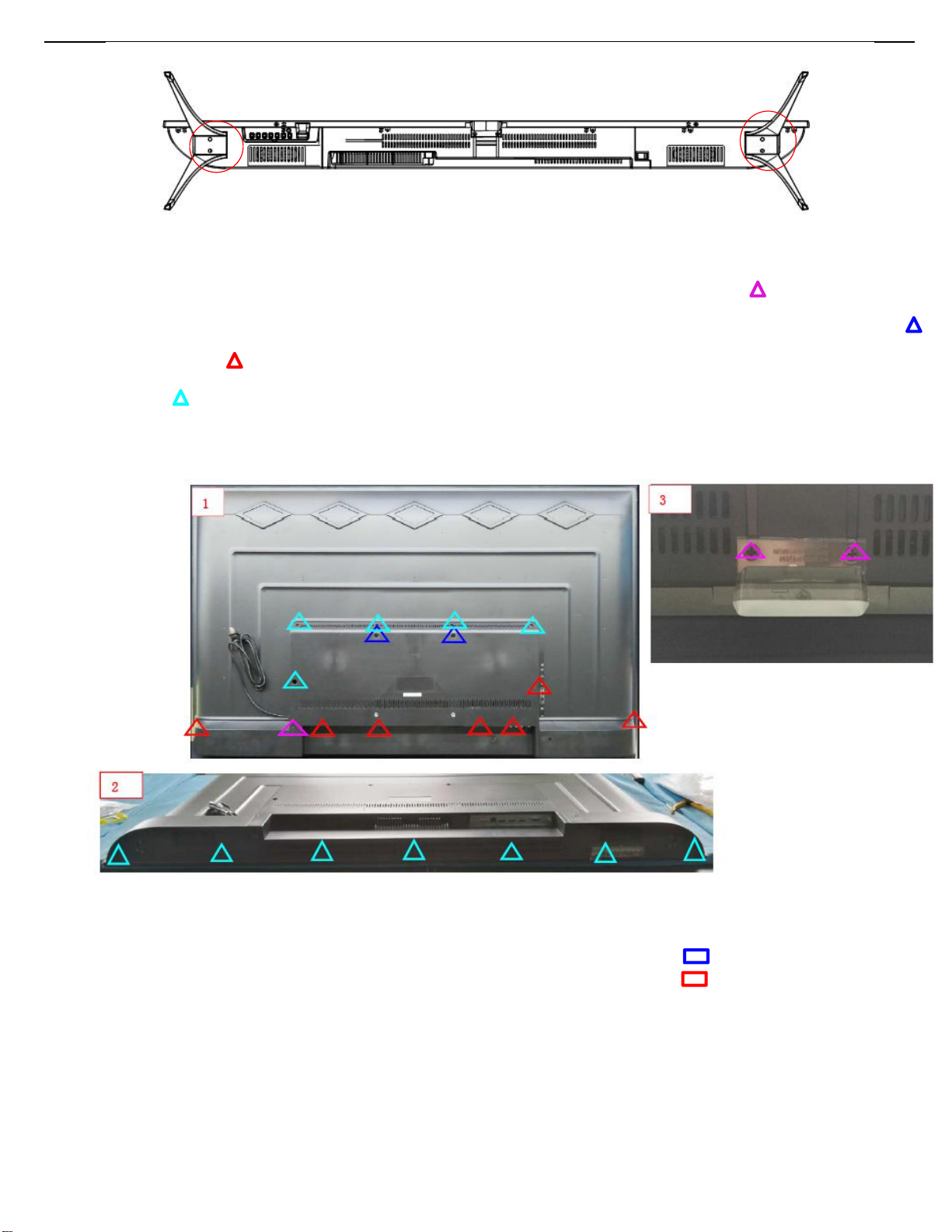

3.2.2 Disassemble back cover
1. Use electric screwdriver to disassemble Ф3×10mm screw,and put it at appointed position. Figure 1/3
2. Put removed decorative part at the appointed position
3. Use electric screwdriver to dismantle M6*25 P head black zinc plating machine screw,and put it at appointed position. Figure 1
4. Use electric screwdriver to disassembleΦ3×6 countersunk head black zinc plating machine screw, and put it at appointed
position. Figure 1
5. Use electric screwdriver to dismantle Ф3×5mm flat head black zinc plating machine screw,and put it at appointed position.
Figure 1
6. When dismantle back cover-M,dismantle the side with M/B interface firstly,prevent interface damaged
7. Put removed back cover-M at appointed position.After self-check OK,flow it into next station by foot switch
.
3.2.3 Disassemble tape/ aluminum foil
1. Tear off fiber tapes from the back plate and put them at appointed position,as Figure show.
2. Tear off aluminum foil from the back plate and put it at appointed position,as Figure show.
3. After self-check OK,flow it into next station by foot switch
11

10
3.2.4 Dismantle left/right back cover,key module
1. Use electric screwdriver to dismantle 2pcs Ф3×5mm flat head black zinc plating machine screws，and Put at the appointed
position. Figure 1
2. Unplug speaker wire and key wire from the socket of M/B,use cutting nippers to cut off cable tie on the back cover.Then take down rocker
switch from back
3. Take down speaker’s module from the speaker pillar on the left /right back cover, put them at the appointed position.
Take down key module from back cover,and then put removed back cover at appointed position
4. Use electric screwdriver to dismantle Φ3×5mm flat head and tail blue zinc plating self-tapping screw, and put them at the
appointed position. Figure 1
5. Split key module into keypad,key wire and button array,and put them at the appointed position.
6. After self-check OK,flow it into next station by foot switch

11
3.2.5 Disassemble wire
1. Unplug 2pin power cord from the connector of motherboard and put them at appointed position.
2. Exert appropriate force to unplug backlight wire from the backlight connector of power board.
3. Unplug screen-wire from the socket of driver board,unfasten the buckle of M/B,and unplug screen-wire and put it at appointed
position.
4. Exert appropriate force to unplug WIFI connecting wire vertically from B/M and WIFI board's connector,put it at appointed
position.
5. Exert appropriate force to unplug three-terminal wire from power board and motherboard's socket,and put them at appointed
position.
6. After self-check OK,flow it into next station by foot switch

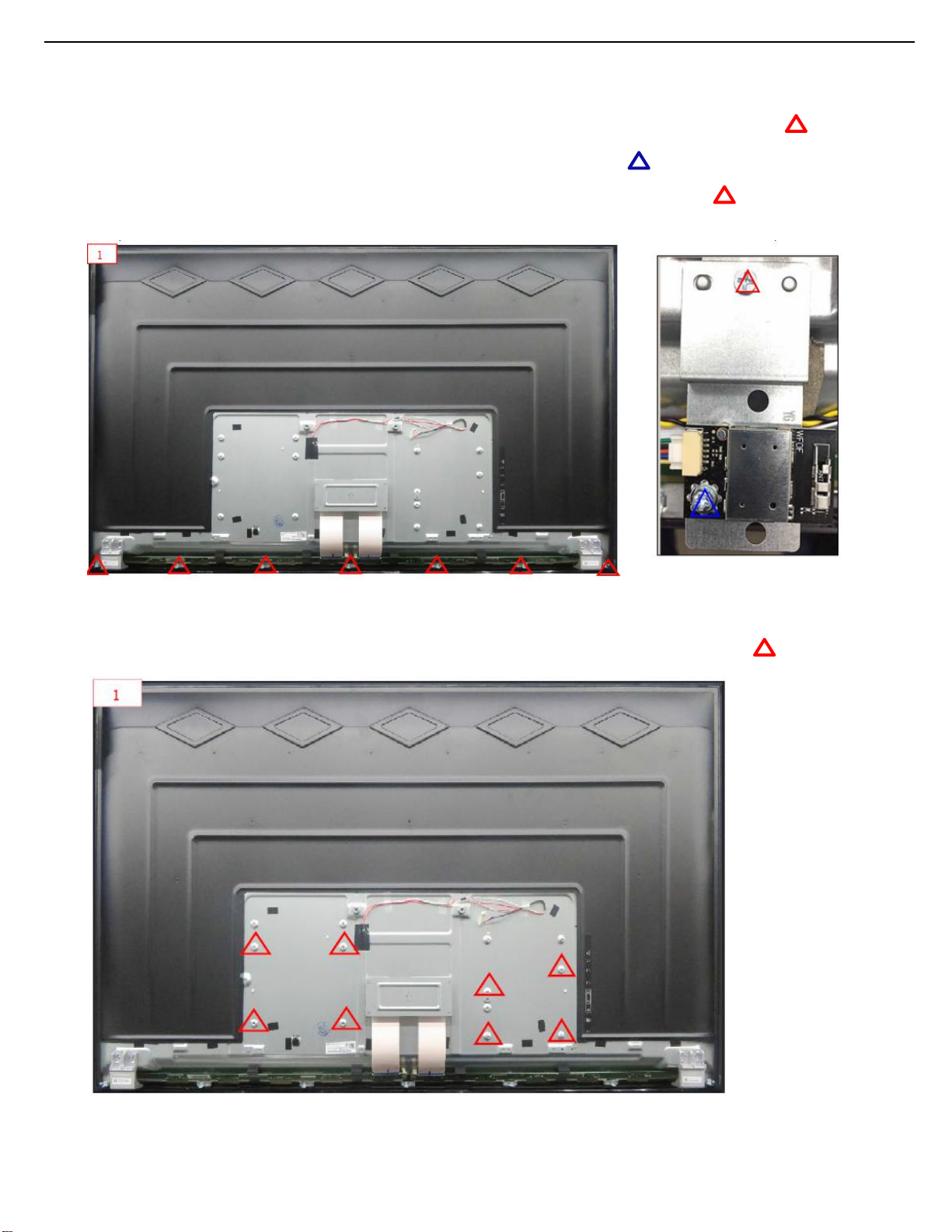

3.2.6 Disassemble IO baffle, mainboard,power board
1. Use electric screwdriver to disassemble 4pcs Ф3×3mm screws, and put them at appointed position.
2. Take down mainboard side baffle,lower baffle from back plate.
3. Use electric screwdriver to disassemble 7pcs M3×7mm screws，and put it at appointed position.
4. Use electric screwdriver to dismantle 1pcs Ф3×8mm screw and put them at appointed position
5. Take down mainboard module and put it at appointed position
4. Take down power board form back panel,and put it at appointed position
5. After self-check OK,flow it into next station by foot switch.

12
3.2.7 Disassemble base support
1. Use electric screwdriver to dismantle 8pcs Φ4×6mm from back plate and put it at appointed position.
2. Dismantle base support module from back plate and put it at appointed position
3. After self-check OK,flow it into next station by foot switch.

13
3.2.9 Dismantle lower bracket
1. Use electric screwdriver to dismantle 7pcs Ф3×3mm screws from back plate,and put it at appointed position.
2. Dismantle lower bracket from back plate and put it at appointed position.
3. Use electric screwdriver to dismantle 1pcs M3×7mm screw and put it at appointed.
4. Dismantle WIFI board and put it at appointed position.
5. Take electric screwdriver to dismantle 1pcs Ф3×3mm screws and put them at appointed position.
6. Dismantle WIFI bracket and put it at appointed position
7. After self-check OK,flow it into next station by foot switch
3.2.10 Disassemble hexagon stud
1. Use electric screwdriver to dismantle 8pcs Φ3×2.5×7mm screws,and put them at the appointed position.
2. After self-check OK,flow it into next station by foot switch

14
3.2.9 LCD Panel
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the keyboard control panel as described earlier.
4. Remove the stand bracket as described earlier.
5. Remove the IR/LED as described earlier.
6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.
7. Remove all other metal parts not belonging to the panel.
8. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.

15
4. Factory Mode
Press the following key sequence on a standard RC transmitter: “1999” directly followed by MENU,
Purpose
To perform extended alignments.
Primary menu Value,remark
Factory Reset(Press OK Key) Factory reset
Age mode(Press OK Key) Press OK Key
Channel presets(Press OK Key) Press OK Key
Power On Mode(Press left or right) Secondary/Direct/Memory
Mbott Update(Press OK Key) Press OK Key
Main Update(Press OK Key) Press OK Key
Write MAC address(Date Debug)
Data Debug(Press OK Key) Press OK Key
Other
Panel
PQ
Software Version
Power type
Barcoding
MAC address

16
5. Software Upgrading,Panel PN
Software Upgrading
5.1.1 Method 1: The following update is for .bin file.
1. Rename the file to “MstarUpgrade.bin”
2. Prepare a USB memory.
3. Copy the software to USB flash disk(root directory).
Method 1:4Press [menu+1999 ],enter the factory menu, Choose [main Updates], then press
5.Software update menu will pop up when press confirm key, then select “Yes” to confirm:
6. When the TV software is updated, the TV will turn on again automatically. Remove your USB flash drive.

17
5.1.2 Method 2：
Copy the software to USB flash disk ,Keep pressing VOL+ key on the machine panel, power on the machine, the standby light
flashes quickly after about 5 seconds, standby light extinguish and turn into lighting after about 3 minutes, means that the upgrade is
completed.
Caution：
①. When the machine Upgrading (U disk light flash), do not remove U disk or switch off the power, otherwise it will
destroy the software and lead can not upgrade.
②. The machine must be power off when inserted or pulled out U disk, to avoid U disk or damage the machine.
5.1 Panel PN
Press the following key sequence on a standard RC transmitter: “1999” directly followed by MENU, can see the panel type
information from factory menu, see the Panel PN from the configuration table
CTN_ALT BOM# Panel Type Panel PN
43PUT6002S/67 K430WDC2-LH260A1 7422-430LGK-3I5AC201-F

18
6. Circuit Descriptions
6.1 The 6002S is a new chassis launched in AP in 2016. The whole range is covered by MSD6A638 platform. The major deltas versus its
predecessor support DVB-C; DVB-T2, with also USB3.0,WIFI/multi-media, Video out
The 6002S chassis comes with the following stylings:
series 43PUT6002 /56
6.1.1 Implementation
Key components of this chassis are:
SCALER MSD6A638
EMMC THGBMDG5D1LBAIT 4GB FBGA
TUNER EUROPE MXL661
6.1.2 Block diagram

19

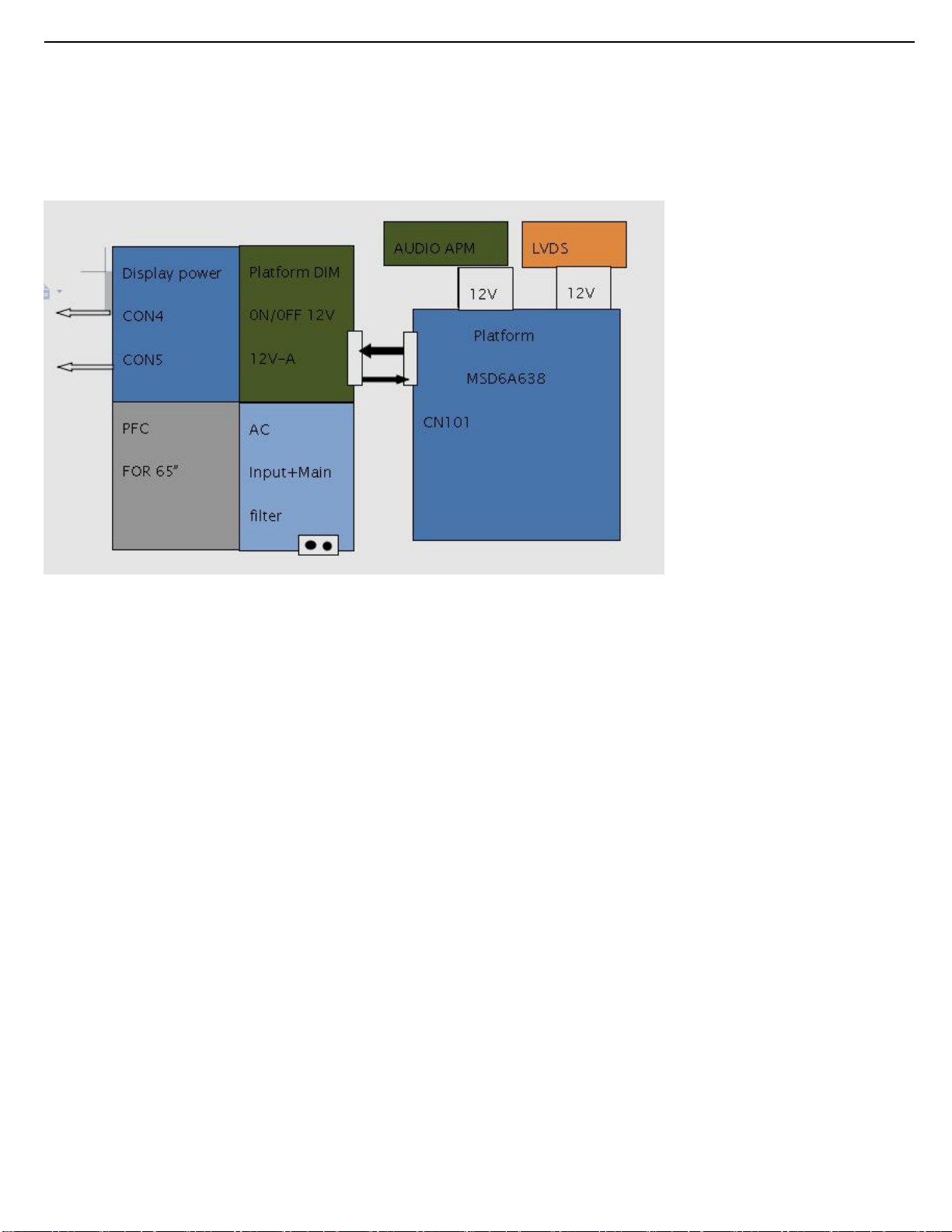

6.2 Power Supply
Power architecture of this platform.
6.2.1 Power Supply Unit
All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned,
unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available
in the regular market.
Consult the Philips Service web portal for the order codes of the boards.
Important delta’s with the platform are:
• New power architecture for LED backlight
• “Boost”-signal is now a PWM-signal + continuous variable
The control signals are:
• PS-ON
• Lamp “on/off”
• DIM (PWM) (not for PSDL)
In this manual, no detailed information is available because of design protection issues.
• +12 output (on-mode)
• +12V_audio (audio AMP power)
• Output to the display; in case of
- IPB: High voltage to the LCD panel
- PSL and PSLS (LED-driver outputs)
- PSDL (high frequent) AC-current.
6.2.2 Diversity
The diversity in power supply units is mainly determined by the diversity in displays.
The following displays can be distinguished:
• CCFL/EEFL backlight: power panel is conventional IPB
• LED backlight:
- side-view LED without scanning: PSL power panel
- side-view LED with scanning: PSLS power panel
- direct-view LED without 2D-dimming: PSL power panel
- direct-view LED with 2D-dimming: PSDL power panel.
PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight with 2D-dimming.

20
6.3 DC/DC Converters
The on-board DC/DC converters deliver the following voltages(depending on set execution):
• +5V, permanent voltage for the Stand-by Power system
• +3V3-STANDBY,voltage for IR/Key board
• +12V, input from the power supply for the panel common(active mode)
• +12V-AUDIO1 for the AUDIO AMP
• +1V8(AS1117-18))-EMMC, +V-EMMC-IO, voltage for EMMC when TV on
• +1V5-DDR, voltage for DDR in main chip
• TUNER_3V3(AS1117-33), supply voltage for tuner
• +5V-SW, input intermediate supply voltage for USB Power,-WIFI,voltage for WIFI
• +1.2VA_T2(MSH61110A1), +1.2V_T2 voltage for DTMB.
• +1V2A(MSH61110A), supply voltage for MSD6A638

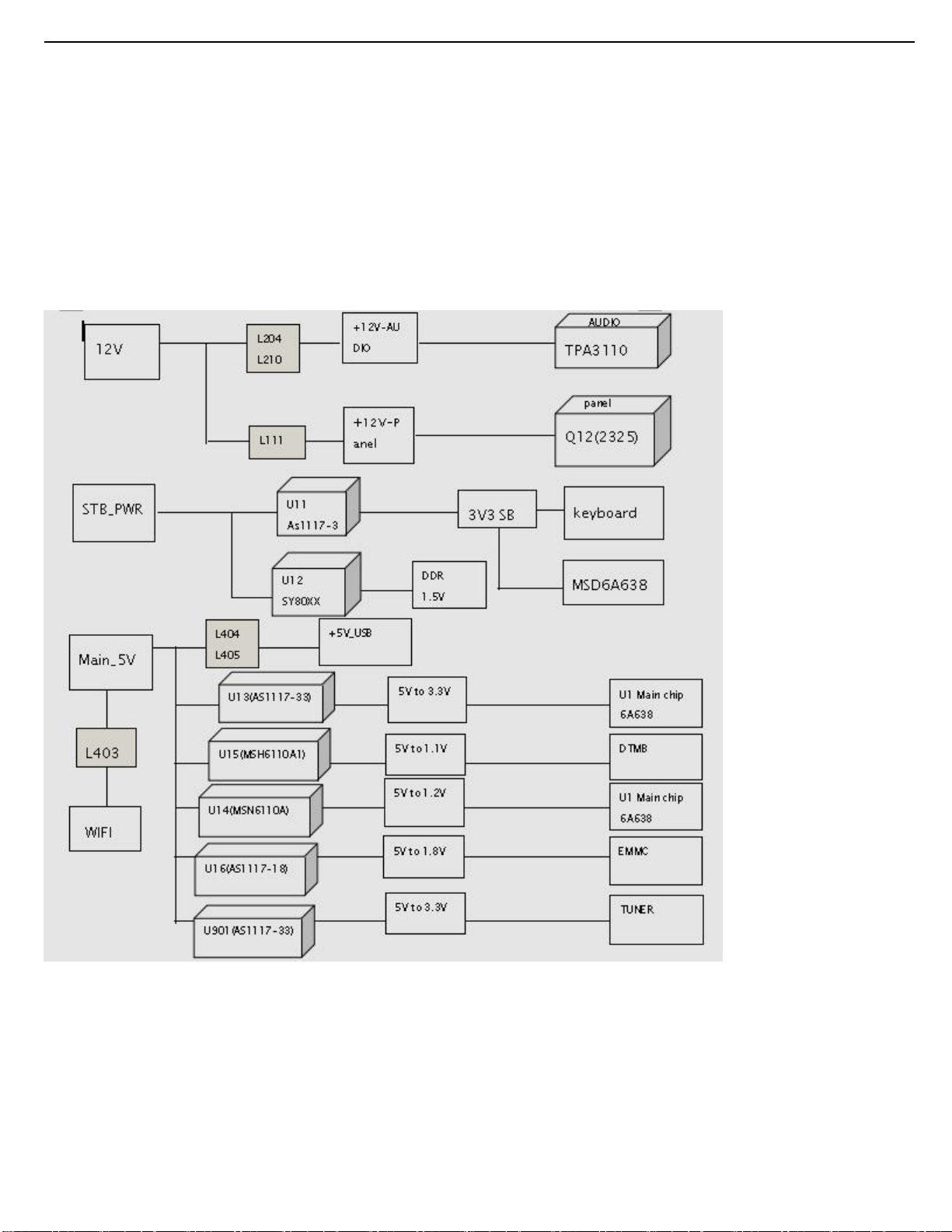

6.3.1 Power tree
