POWER PACK 1800
Installation Instruction
(Original installation instruction, translation)

POWER PACK 1800
88952 2.0 2
Foreword
Revisions
Version
Date
Changes
1.0
12/2017
2.0
01/2020
Ratings plate, Mountings plate,
EU Declaration of Conformity
adjusted
Disclaimer and exclusion of liability
DewertOkin is not responsible for damage resulting from:
 failure to observe these instructions,
 changes made to this product which have not been approved by DewertOkin, or
 the use of replacement parts which have not been approved or manufactured by DewertOkin.
 We reserve the right to make unannounced technical changes in the course of our continal
product improvement process!
Creation of a complete operating instruction manual for the entire end product
These instructions are only intended to be used by the end-product manufacturer. They should
not be given to the operator of the end product. The factual information contained within may
be used as a basis when creating the end-product manual.
The warning and danger notices are best suited for use in the end product's manual. However
it is not sufficient to simply follow these notices. You should also carry out an internal risk as-
sessment for your end product. This can then be used as the basis for the safety notices in
your manual.
These installation instructions do not contain all information required to safely operate the end
product. They only describe the installation and operation of the product as partially completed
machinery.
The instructions are intended for the technicians responsible for manufacturing an end product
and not for the operators of the end product.

POWER PACK 1800
3 88952 2.0
Table of Contents
Foreword 2
Revisions 2
Disclaimer and exclusion of liability 2
Creation of a complete operating instruction manual for the entire end product 2
Table of Contents 3
General 4
Conventions used 4
Warranty 4
Selection and qualification of personnel 4
Safety notices 5
Product identification 6
Description 7
Dimentions 8
Connection 10
Notes for packaging and transport 11
Storage 12
Charging periods during storage 12
Operation 13
Ambient conditions for operation, storage and transport 13
Charging the battery 14
Commissioning 14
Notes for operation 15
Acoustic warning signal 15
Deep-discharge protection 15
Optical charge level indicator 15
Cleaning and care 16
Disposal 16
Troubleshooting 16
EU Declaration of Conformity 17

POWER PACK 1800
88952 2.0 4
General
The manufacturer of the end product must create an operating manual for that end product.
The contents and especially the safety notices found in this document can be used in the op-
erating instructions for the end product.
Read attentively and follow this information carefully before handling the rechargeable batter-
ies. Keep this document in a safe place.
Be sure to follow the notices and information found on the battery and packaging.
Conventions used
Notices which do not relate to safety are indicated in these instructions with a triangle:
 Triangular notice symbol
Safety notice explanations
CAUTION
CAUTION against dangerous situation, risk of injury.
NOTICE
NOTICE is used to address practices which are not related to personal injury but may re-
sult in damage to the product or surroundings.
Warranty
Rechargeable batteries, by their nature, have a limited lifespan and are characterized by grad-
ual power loss over time. The normal depreciation and continual power loss exhibited by the
battery are not covered by any warranty claims.
Selection and qualification of personnel
The installation of the POWER PACK 1800 in the end product may only be performed by qual-
ified personnel.

POWER PACK 1800
5 88952 2.0
Safety notices
CAUTION
Leaking batteries present a health hazard!
 Leaking battery fluid can injure your skin or eyes.
 The fluid is harmful when touched or swallowed.
 If you come into contact with battery fluid, clean the affected area with water and con-
tact a doctor.
CAUTION
 If the housing or cable are damaged, the battery must be disposed immediately.
 Do not open or destroy the battery.
 Do not solder or weld at the battery or in the vicinity of the battery.
 Avoid contact with water.
 Use only by DewertOkin approved Chargers.
The POWER PACK 1800 should not be used:
 in any environment where combustible or explosive gases or vapours (e.g., anesthesiol-
ogy) may be present,
 in the proximity of open fires or other heat sources (such as furnaces, ovens or direct sun-
light),
 in any application that will be cleaned with an automated washing system,
 in a moist environment,
 outdoors,
 as a power source for toys or games.
The POWER PACK 1800 can be used by children of 8 years and older, persons with reduced
physical, sensory or mental capabilities, or persons with lack of experience or knowledge
when they are supervised or instructed concerning the safe use of the device and when they
understand the resulting risks. Do not allow children to play with this device. The cleaning and
user maintenance must not be carried out by children without supervision.
NOTICE
 Improper storage can reduce the performance of your battery or destroy it.

POWER PACK 1800
88952 2.0 6
Product identification
A ratings plate on each product specifies the exact name and serial number of the product. It
also states the technical specifications valid for that particular product.
 The ratings plate shown is an example; the specifications for your product may differ from
this illustration.

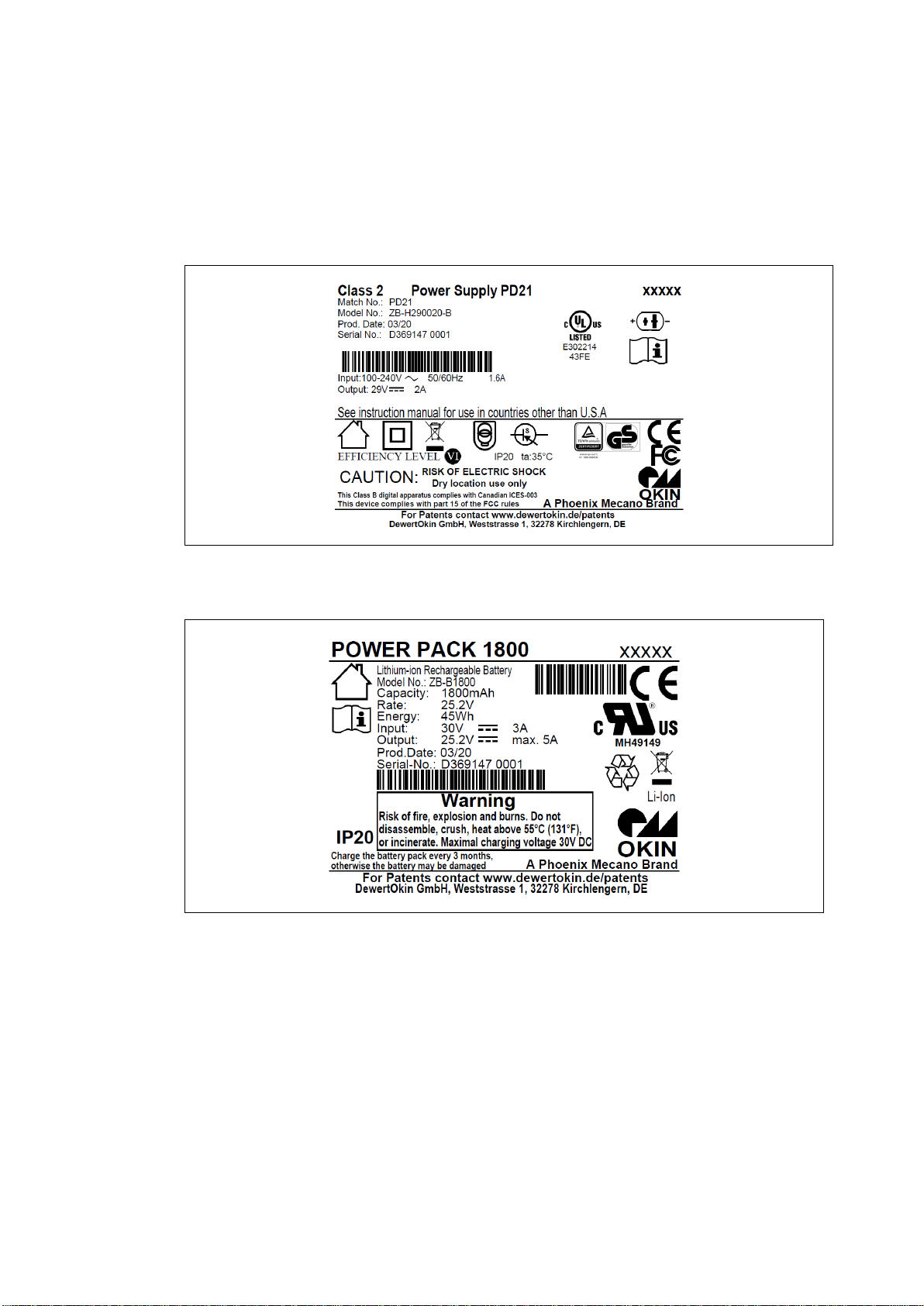

Fig.
1
: Ratings plate Power Supply PD21 (example)
Fig.
2
: Ratings plate POWER PACK 1800 (example)

POWER PACK 1800
7 88952 2.0
Description
POWER PACK 1800
The POWER PACK 1800 serves for mains independent power supply of electro motorical
adjustable applications. The POWER PACK 1800 has the following special features:
 The POWER PACK 1800 is used as a power supply at power failure.
 We reserve the right to make unannounced technical changes in the course of our contin-
ual product improvement process!
To charge the POWER PACK 1800 the POWER SUPPLY PD21 with the appropriate country
version is necessary.
Fig. 03: POWER PACK 1800
Important Features
 Very low self-discharge rate
 Short circuit proof
 Overcurrent switch off
 Deep-discharge protection
 Acoustic warning signal for low remaining charge
 Optical charge level indicator
 LED charge indicator: LED lights red – Accu is charging
LED lights green – Accu is fully charged
 Mounting plates
Technical data
 Lithium-Ion Accu (li-Ion)
 Capacity: 1800 mAh
 Energy: 45 Wh
 max. voltage 30 V DC
 Output voltage: 25.2 V DC
 max. output current 5 A
 Acoustic signal: ≤ 23 V
 Temperature range 0 °C – 40 °C
 Charging time approx. 5 - 8 h (depending on charging state)
 Low weight: approx. 550 g
 approx. 300 charging cycles (depending on usage and operational conditions)

POWER PACK 1800
88952 2.0 8
Power Supply PD21
Input: 100-240V AC, 50-60 Hz , 1,6 A
Output: 29 V DC, 2 A

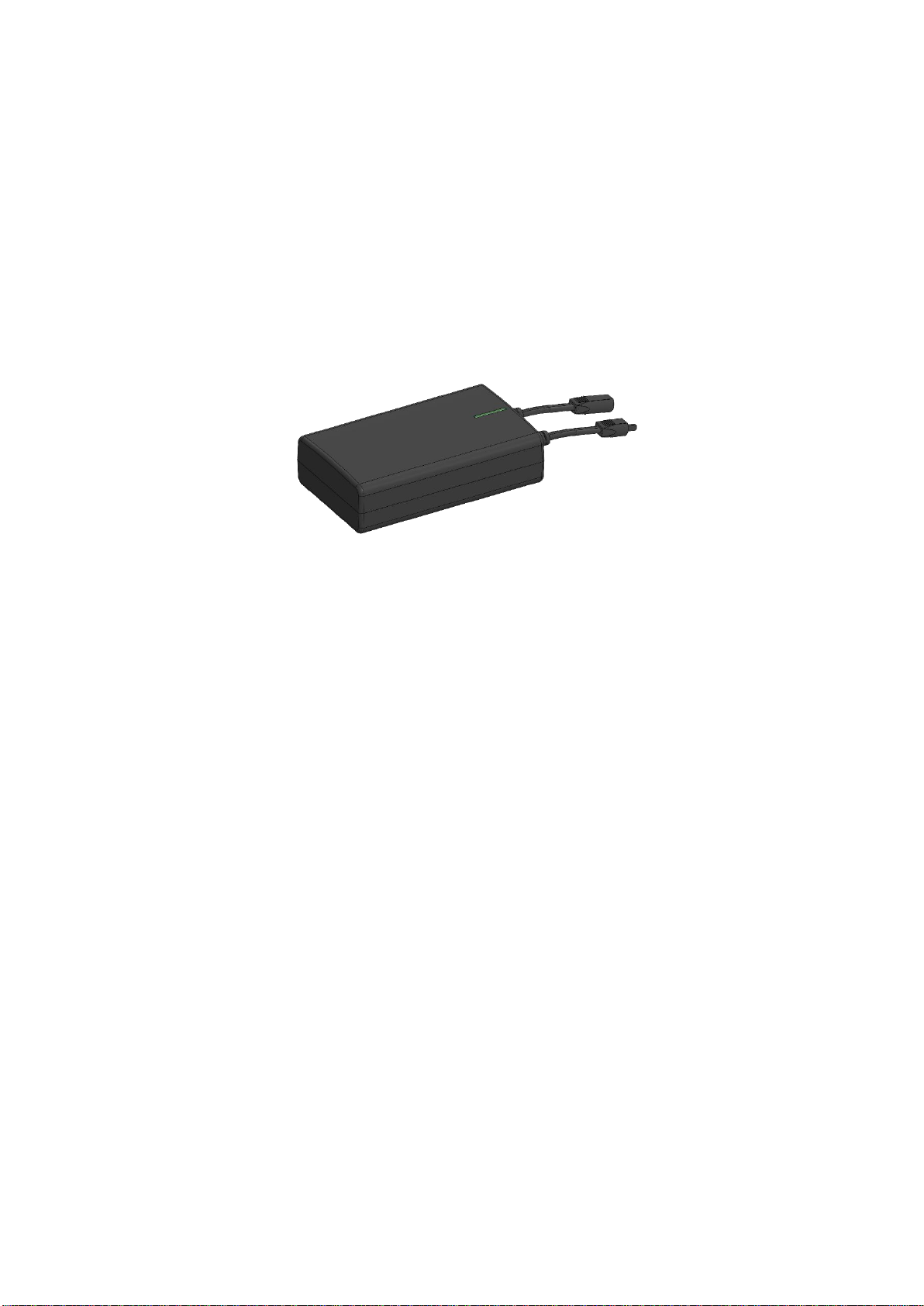

Fig. 04: Power Supply PD21
Warning:
For charging the POWER PACK 1800 must be used PD21 POWER SUPPLY!
Dimentions
POWER PACK 1800
Fig. 05: Dimentions of POWER PACK 1800

POWER PACK 1800
9 88952 2.0
Mounting plate (options)
1)

POWER PACK 1800
88952 2.0 10
Connection
As standard the POWER PACK 1300 is charged as needed with the PD21 POWER SUPPLY

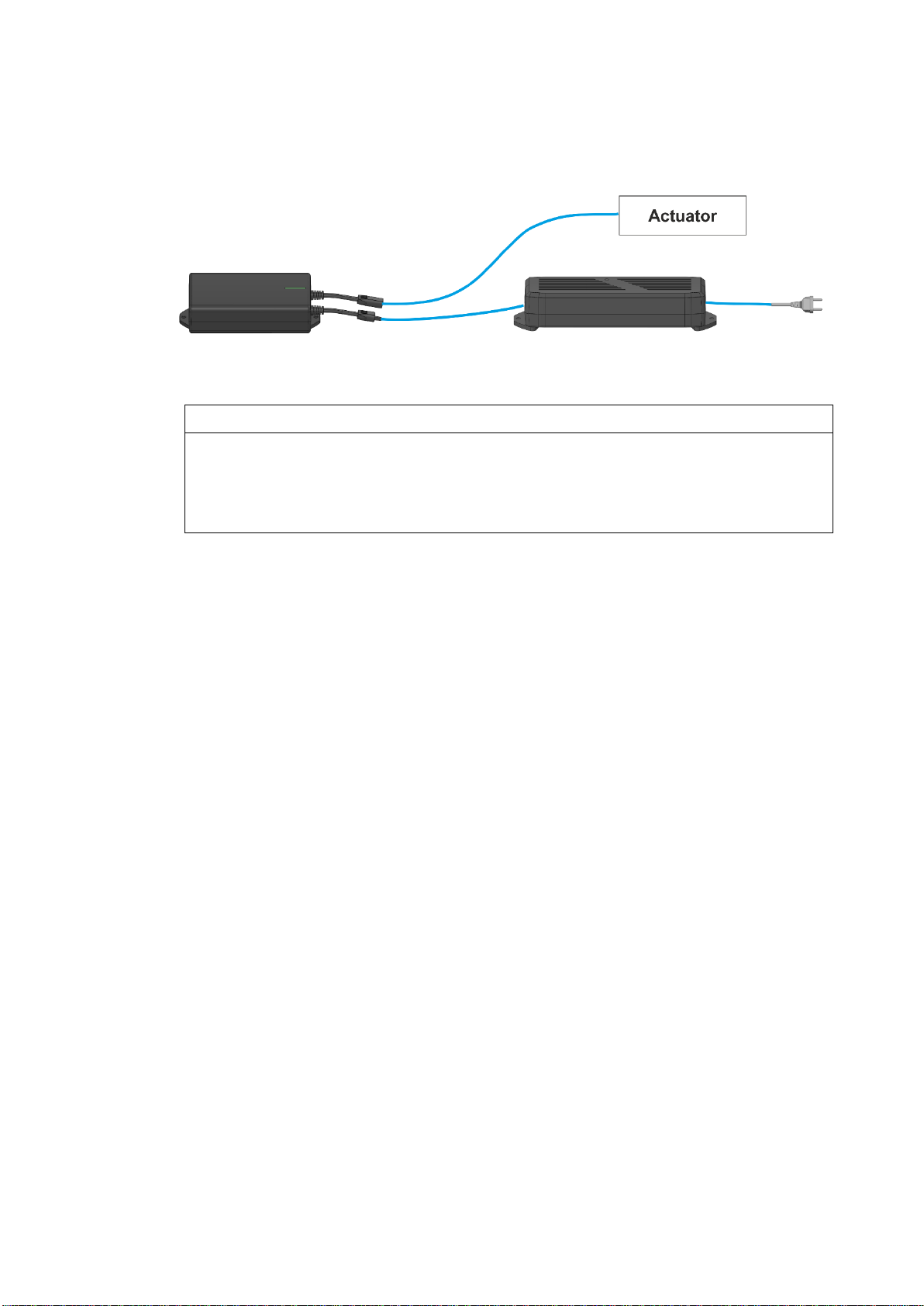

Fig. 06: Overview of charging
NOTICE
Should the POWER PACK 1800 be used in combination with operating elements that have
a power consumption at rest, such as touch sensors, RF-systems or Bluetooth-adapters it
perhaps must be charged more frequently.
Please contact your supplier/dealer!

POWER PACK 1800
11 88952 2.0
Notes for packaging and transport
CAUTION
Damaged POWER PACK 1800
A damaged POWER PACK 1800 must not be connected or taken into operation. Please
contact your sales partner/supplier immediately!
The POWER PACK 1300 is shipped ex works according to the applicable packaging regula-
tions. Take care when transporting, that the risk of falling or slipping is avoided. Before un-
packing, check the secondary packaging for damages.
To prevent injury please follow the safety instructions given in chapter 2, before you unpack
your product.
If the packaging is damaged or you note a damage after unpacking, please immediately re-
port.
In case of product return the following notes need to be observed:
When transporting Li-ion storage batteries the current regulations according to ADR for road
transport and/or IATA for air shipping must be observed.
Damaged storage batteries must be assessed case by case with respect to safe transport.
Please contact your sales dealer/supplier.
 Please consider the disposal notes in chapter „disposal“.

POWER PACK 1800
88952 2.0 12
Storage
CAUTION
The battery should be stored so that the battery terminals cannot short circuit each other
and so the terminals cannot be short circuited by any metal surroundings.
NOTICE
Rechargeable batteries must be charged at least six months after their production date or
charged immediately upon delivery and then after six months of storage. For some drive
systems, a minimal level of current may flow even when the drive is not being used. After a
prolonged period this can lead to a low charge status.
If the POWER PACK 1300 is discharged and not in use for a long time it can be damaged.
NOTICE
The battery may not be connected to a drive system or control unit in delivery or storage
condition!
The connection cable for the battery should be disconnected from the control unit or drive
as well as from mains supply if you are not planning to used the drive system for an ex-
tended period. It should then be reconnected before you plan to use the system. This will
prevent the battery from losing its charge in certain applications.
Do not store in direct sunlight.
Charging periods during storage
NOTICE
Following longer periods of storage, the batteries may need to be charged and discharged
several times so that performance reaches a peak.

POWER PACK 1800
13 88952 2.0
Operation
Type of check /
action
Explanation
Time interval
Recharging
To maintain battery performance
No longer than six months
after date of manufacture.
Recharging dur-
ing storage
Recharge during storage to maintain
battery performance capability
At least every six months.
Ambient conditions for operation, storage and transport
Transport / storage temperature: from 0°C to +55°C
Operating temperature: from 0°C to +40°C
Relative humidity: from 20% to 85%

POWER PACK 1800
88952 2.0 14
Charging the battery
NOTICE
Due to the chemical reactions the POWER PACK 1800 warms-up during charging.
If the POWER PACK 1800 should become really hot, the protective circuit is defective. In this
case remove all connection cables of the drive / control unit and check the unit (POWER
PACK 1800 and PD21 POWER SUPPLY) by an authorized technician or producer.
Do not set up the POWER PACK 1800 in bath- or shower rooms. The charger is not splash
proof.
Only recharge the POWER PACK 1800 at the temperatures given below:
Charging temperature: from +10°C to + 40°C
The POWER PACK 1800 deliver their full capacity after 5-10 charge and discharge cycles.
Exclusively use the PD21 POWER SUPPLY for charging the POWER PACK 1800 and make
your-self familiar with the operation of the device.
Charging time of the POWER PACK 1800 may take approx. 5 - 8 h.
The red LED flashes during the charging process. When the battery is fully charged, the elec-
tronics switch to standby and the LED lights green. The green LED switches off after the PD21
POWER SUPPLY has been disconnected from the POWER PACK 1800.
A green LED on the PD21 POWER SUPPLY indicates that it is connected to a power supply.
The system can be operated/moved while it is being charged.
Commissioning
NOTICE
Charge the POWER PACK 1800 completely before first use. This is necessary so that the
maximum capacity can be reached. When the green LED switches off, the POWER PACK
1800 is fully charged. The maximum battery capacity is now available.
NOTICE
Electrical components should be connected or disconnected only when the power supply
cord is unplugged.
The POWER PACK 1800 can then perform optimally when the product is being used at nor-
mal room temperatures from 18 °C to 25 °C. The operating temperature should never exceed
40 °C.
The acoustic low battery-warning built-in to the POWER PACK 1800 is only active when the
drive is moving!
It is possible that after long periods of storage, several cycles of charging and re-charging may
be required to restore the performance of the POWER PACK 100.
Connect the POWER PACK 1800 to the PD21 POWER SUPPLY ensuring the correct connec-
tion port is used. The plug should fit securely in place.
Connect the PD21 POWER SUPPLY to the socket. During charging lights the LED red. If the
charging cycle is complete and the PD21 POWER SUPPLY is disconnect from the socket the
LED goes out.

POWER PACK 1800
15 88952 2.0
Notes for operation
NOTICE
If you not use the drive system for an extended period, disconnect the POWER PACK
1800 from the control unit/drive system as well as from the mains supply. It should then be
re-connected if you plan to use the system. This will prevent the battery from losing its
charge in certain applications.
Acoustic warning signal
An acoustic warning signal indicates that the battery charge state is very low. The POWER
PACK 1800 must be charged.
Deep-discharge protection
The switch-off voltage of the POWER PACK 1800 is ≤ 22 V. If the actual voltage falls below
this level, the POWER PACK 1800 is disconnected from the system. If the battery voltage
rises back up over the switch-off level, then it will switch on again. Otherwise, the POWER
PACK 1800 will remain switched off.
Optical charge level indicator
Red LED:
If the charger is connected correctly, the red LED flashes and the POWER PACK 1800
charges. If the LED does not light up, check the connections. There may be a disconnection or
malfunction.
Green LED:
The green LED switches on when the POWER PACK 1800 is charged. It switches off when
the POWER PACK 1800 is discharged. The charging circuit switches to standby and the LED
goes out. If the battery voltage falls below a certain level, the charging process resumes and
the green LED lights up.

POWER PACK 1800
88952 2.0 16
Cleaning and care
The POWER PACK 1800 is maintenance free.
1 Be sure to unplug all connecting cables before you begin cleaning it!
2 Clean the POWER PACK 1800 as needed using a dry, antistatic cloth.
3 Be sure that you do not damage the connecting cables during the cleaning
NOTICE
Never clean the POWER PACK 1800 in an automated washing system or with a high-pres-
sure cleaner. Do not allow fluids to penetrate the lighting. Damage to the system could re-
sult.
Do not use a cleanser that contains benzene, alcohol or similar solvents.
Disposal
The POWER PACK 1800 consists of electronic components, cables and metal and plastic
parts. You should observe all corresponding national and regional environmental regulations
when disposing of the system.
The disposal of the end product is regulated in Germany by Elektro-G, internationally by the
EU Directive 2012/19/EC (WEEE), or by any applicable national laws and regulations.
The POWER PACK 1800 should not be disposed of
with normal household waste!
Troubleshooting
This chapter describes troubleshooting methods for fixing problems. If you experience an error
that is not listed in this table, please contact your supplier.
Problem
Possible cause
Solution
Handset or drive
system without
function
Handset or drive system defective
POWER PACK 1800 is discharged
Contact your supplier/dealer
Charge the POWER PACK
1800
Drives suddenly no
longer respond, no
movement takes
place
The unit's fuse may have been trig-
gered
A cable has been disconnected
(mains power or handset, slave
drive)
POWER PACK 1300 is discharged
Overload fuse has been triggered
Contact your supplier/dealer
Check the cables, if necessary
restore contact
Charge the POWER PACK
1300
Stop operating the system for 5
sec. and charge the POWER
PACK 1300

EG-Konformitätserklärung
EU Declaration of Conformity
Nach Anhang IV der EMV-Richtlinie 2014/30/EU In compliance with Appendix IV of the EMC-Directive
2014/30/EU
Nach Anhang IV der EU-Niederspannungsrichtlinie
2014/35/EU
In compliance with Appendix IV of the LVD-Directive
2014/35/EU
Nach Anhang VI der RoHS-Richtlinie 2011/65/EU
(inkl. Delegierte Richtlinie (EU) 2015/863) In compliance with Appendix VI of the EU RoHS
Directive 2011/65/EU
(incl. Commission delegated Directive (EU) 2015/863)
Der Hersteller The manufacturer
DewertOkin GmbH
Weststraße 1
32278 Kirchlengern
Deutschland - Germany
erklärt hiermit, dass das Produkt
declares that the following product
P2:(5 P$&. 1800
mit DewertOkin Antriebssystem / with DewertOkin drive system
mit DewertOkin Steuerungssystem / with DewertOkin control system
die Anforderungen folgender EG-Richtlinien erfüllt: meets the requirements of the following EU directives:
Richtlinie über elektromagnetische Verträglichkeit
2014/30/EU
Electromagnetic Compatibility Directive 2014/30/EU
Niederspannungsrichtlinie 2014/35/EU
Low Voltage Directive 2014/35/EU
DELEGIERTE RICHTLINIE (EU) 2015/863 DER
KOMMISSION vom 31. März 2015 zur Änderung von
Anhang II der Richtlinie 2011/65/EU des Euro-
päischen Parlaments und des Rates hinsichtlich der
Liste der Stoffe, die Beschränkungen unterliegen.
COMMISSION
DELEGATED DIRECTIVE (EU)
2015/863 of 31 March 2015 am ending Annex II to
Directive 2011/65/EU of the European Parliament
and of the Council as regards the list of restricted
substances.
Angewendete Normen Applied standards:
• EN 60950-1:2006/A1:2013
• EN 55014-1:2006/A1:2009/A2:2011
• EN 55014-2:1997/A1:2001/A2:2008
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• EN 62133:2013 (POWER PACK 1800)
Konstruktive Änderungen, die Auswirkungen auf die in
der Montageanleitung angegebenen technischen Daten
und den bestimmungsgemäßen Gebrauch haben, das
Produkt also wesentlich verändern, machen diese
Konformitätserklärung ungültig!
This declaration of conformity is no longer valid if
constructional changes are made which significantly
change the drive system (i.e., which influence the
technical specifications found in the instructions or the
intended use)!
Kirchlengern, Germany 14 January 2020 Dr.-Ing. Josef G. Groß
Geschäftsführer / Managing Director

DewertOkin GmbH
Weststraße 1
32278 Kirchlengern
Tel: [phone]
Fax: [phone]
http://www.dewertokin.de
[e-mail]
ID-No.: 88952
