Introduction
Thank you for your purchase of Photron’s high-speed camera system option, the “Micro Four Thirds
Lens Option for FASTCAM Multi” (referred to below as the option).
This manual contains the operating instructions and warnings necessary for using the option.
Before using the option, please read the entire manual.
If any part of this manual is unclear, contact Photron using the contact information printed at the back of
the manual.
After you finish reading the manual, store itin a safe place along with the warranty card and refer back to
it when necessary.
Manual Notation
The following icons and symbols are used in the explanations in this manual.
Icon/Symbol Description
This symbol indicates content that should always be read.
This symbol indicates instructions that should always be
followed when using the software, or things to be careful of
when using the software.
This symbol indicates supplementary items to be aware of
when using the system.
This symbol indicates the location of a reference.
This symbol indicates a space for you to make notes.
“ “
This symbol is used to indicate the names of items on a
screen, references, dialog names, and connectors.
［］This symbol is used to indicate menu names, and sub-menu
names.
Using the Manual
This section explains the layout of the manual. For other options, please refer to each manual
Introduction
The introduction explains the manual and safety precautions.
Chapter 1. Overview
This chapter gives an overview of the system and an explanation of its features.
Chapter 2. Functions
This chapter explains the system’s functions. Refer to the “Photron FASTCAM Viewer User’s Manual” for
additional details on using a PC to control the system.
Chapter 3. Specifications
This chapter explains the system’s specifications.
Chapter 4. Warranty
This chapter explains about the warranty.
Chapter 5. Contacting Photron
This chapter lists the contact information to use when contacting Photron if the system malfunctions or if a
portion of the manual is unclear.
Using the System Safely and Correctly
In order to prevent injury to yourself and others, and topreventdamage to property, carefully observe the
following safety precautions.
Photron has given its full attention to the safety of this system. However, the extent of damage and injury
potentially caused by ignoring the content of the safety precautions and using the system incorrectly is
explained next. Please pay careful attention to the content of the safety precautions when using the
system.
This symbol indicates actions that carry the risk that a person could receive a
serious injury.
This symbol indicates actions that carry the risk that a person could receive a
moderate injury, or that damage to physical property might occur.
The safety precautions to be observed are explained with the following symbols.
This symbol indicates actions that require caution.
This symbol indicates actions that are prohibited and must be avoided.
This symbol indicates actions that must always be performed.
Caution
Warning
■ Do not insert metallic objects inside, or pour liquids such as water on, the system.
Doing so can cause fire, electric shock, or malfunction from short circuit or heat.
■ Do not disassemble or modify the system.
There are high voltages inside the system that can cause electric shock.
■ When something is wrong with the system, unplug the Main Unit’s power cable immediately.
- When a foreign substance or liquid, such as metal or water, gets inside.
- When the outer case is broken or damaged, such as from a fall.
- When the system produces smoke, a strange smell, or strange sound.
Using the system in these conditions might cause a fire or electric shock.
Warning
■ Do not set the system in a location where the temperature gets unusually hot.
The trunk and inside of a car can get especially hot in summer.
Doing so can cause the outer case and internal components to deteriorate or cause a fire.
■ Do not place the system in a location prone to oily smoke or steam, or in a location with a lot of
humidity or dust.
Oil, moisture, and dust conduct electricity, which can cause a fire or electric shock.
■ Ambient temperature 0-45° C, humidity 85% RH or lower, maximum altitude 2,000m or lower.
In addition, if exceeding these limits, use in a condensation-free environment.
Doing so can cause malfunction.
■ Do not store the equipment in a location where the temperature goes below -20°C or higher
than 60°C. Also, prevent condensation from forming during shipment.
■ When shipping, remove the connecting cable and use the original packaging or a dedicated
carrying case.
Do not ship the equipment in an environment where the temperature goes below
-20°C or higher than 60°C. Also, prevent condensation from forming during shipment.
Caution
These symbols indicate that this product is not to be disposed of with your household
waste, according to the WEEE Directive (2012/19/EU
), the Battery Directive
(2013/56/EU) and/or your national laws implementing those Directives.
This product should be handed over to a designated collection point, e.g., on an
authorized one-for-
one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electroni
c equipment (EEE) and
batteries and accumulators. Improper handling of this type of waste could have a
possible impact on the environment and human health due to potentially hazardous
substances that are generally associated with EEE. Your cooperation in t
he correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about the recycling o
f this product, please contact your local city
office, waste authority, approved scheme or your household waste disposal service or
visit www.photron.com.
(EEA: Norway, Iceland and Liechtenstein)
European Union (and EEA) only
Table of Contents
Chapter 1. Overview 1
1.1. Product Overview and Features..............................................................................2
1.2. Components and Accessories.................................................................................3
1.2.1. Components................................................................................................3
1.2.2. Accessories/Options ...................................................................................3
1.3. Part Names..............................................................................................................4
1.3.1. Micro Four Thirds Lens Mount....................................................................4
1.3.2. Part Names.................................................................................................5
1.4. Installation................................................................................................................6
Chapter 2. Functions 9
2.1. Supported Lenses..................................................................................................10
2.2. Lens Control...........................................................................................................10
2.3. Flange-Back Adjustment Shims.............................................................................11
Chapter 3. Specifications 13
3.1. Specifications.........................................................................................................14
3.1.1. Product Specifications ..............................................................................14
3.1.2. General Specifications..............................................................................14
3.2. Dimensions............................................................................................................15
Chapter 4. Warranty 17
4.1. About the Warranty................................................................................................18
Chapter 5. Contacting Photron 19
5.1. Contact Information................................................................................................20
Chapter 1 Overview
1.1. Product Overview and Features
This product is a Micro Four Thirds lens control option for FASTCAM Multi Camera Head HS-01
(hereinafter referred to as HS-01).
Controller software “PFV” will allow you to control focus, aperture, and zoom of a Micro Four Thirds
lens remotely through the Gigabit Ethernet.
Micro Four Thirds Lens Option for FASTCAM Multi
2
1.2. Components and Accessories
1.2.1. Components
The system’s standard components are listed below. Remove the components from the
packaging and check them.
1. Micro Four Thirds Lens Option for FASTCAM Multi 1
2. Micro Four Thirds Lens Cap 1
3. Micro Four Thirds Lens Option for FASTCAM Multi
Hardware Manual (This manual) 1
4. Flange-back adjustment shims
(Thickness: 0.1mm, 0.15mm, 0.2mm, 0.3mm and 0.4mm) 1 each
•Screws are not bundled with this option. Use the screws which are attached on a Camera Head.
1.2.2. Accessories/Options
This product is attached to FASTCAM Multi camera head for actual operation. In addition, the
following optional items are offered for the FASTCAM Multi camera system (as of March 2015).
1. FASTCAM Multi Camera Head HS-01 type 750K-M (Monochrome) (102479)
2. FASTCAM Multi Camera Head HS-01 type 750K-C (Color) (102480)
3. FASTCAM Multi Camera Head HS-01 type 200K-M (Monochrome) (102829)
4. FASTCAM Multi Camera Head HS-01 type 200K-C (Color) (102830)
5. FASTCAM Multi Camera Cable 5m (102481)
6. FASTCAM Multi Camera Cable 10m (102482)
7. FASTCAM Multi LED Light Option (102483)
•Many more optional items (lenses and lighting devices) are available to choose from. For details,
ask your local sales representative or refer to “5.1. Contact Information”.
3 Micro Four Thirds Lens Option for FASTCAM Multi
Chapter 1 Overview
1.3. Part Names
For each of the system components.
- Do not expose to shock.
- Do not use in an area where flammable gas or dust is present.
- Do not disassemble or modify.
- Do not expose to liquids such as water.
- Do not subject to excessive force.
1.3.1. Micro Four Thirds Lens Mount
This lens mount is specialized for Micro Four Thirds system. Various Micro Four Thirds
specification lenses can be used with this lens mount.And the camera control software PFV can
control focus, iris and zoom* by remote. (*It depends on a lens specification.)

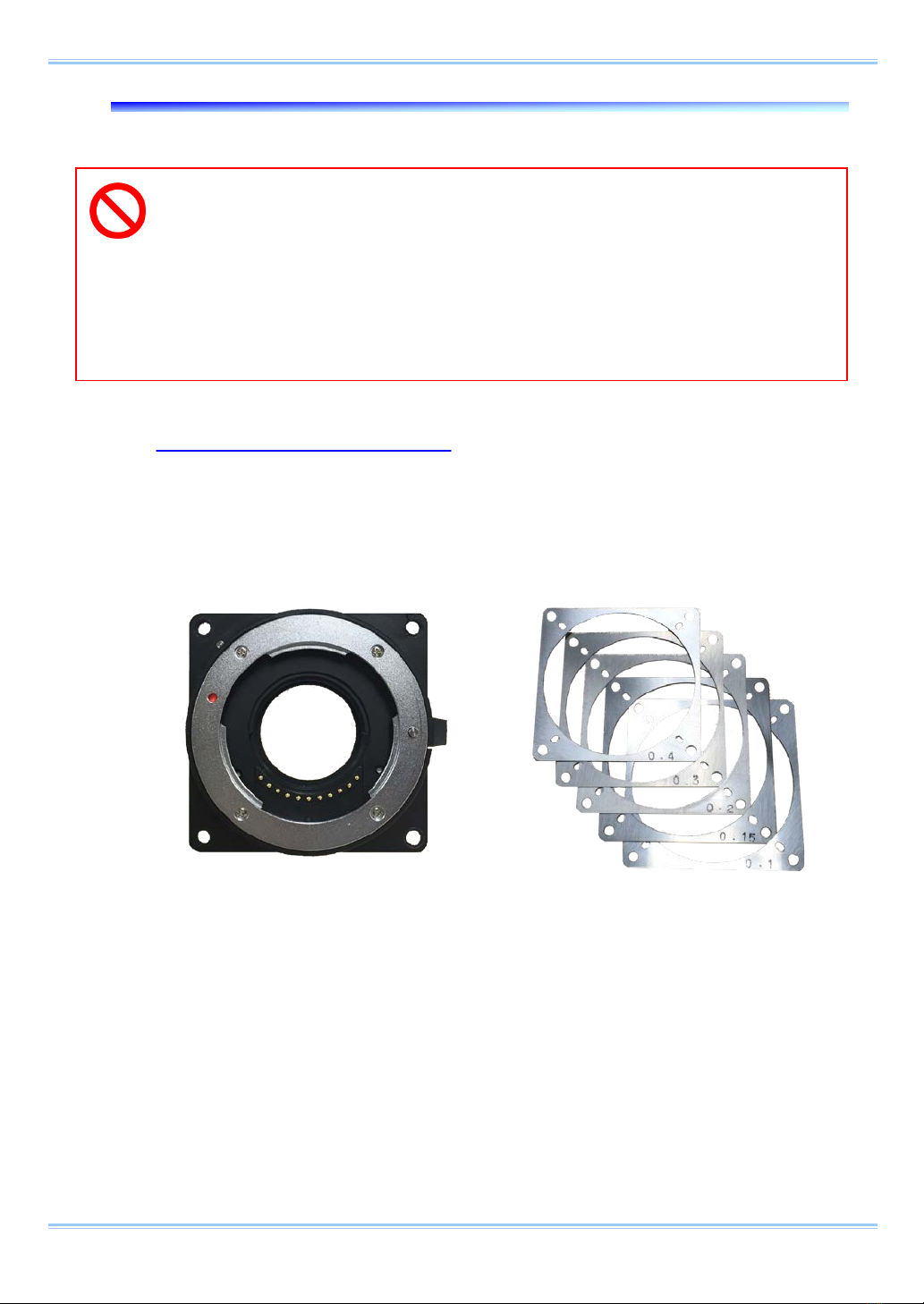

Micro Four Thirds Lens Mount Flange-back adjustment shims
Micro Four Thirds Lens Option for FASTCAM Multi
4
1.3.2. Part Names
Micro Four Thirds Lens Option for FASTCAM Multi
Micro Four Thirds Lens Mount
4x M3-6 Hex Socket Screws
(Included with Camera Head)
Flange-back adjustment shims
5 Micro Four Thirds Lens Option for FASTCAM Multi
Chapter 1 Overview
1.4. Installation
Install the lens mount option onto a camera head by following the procedure.
1. Make sure the camera cable is disconnected from the camera head.
2. If G type F mount of C mount is attached, remove it.
3. Remove the four M3 Hex Socket Cap screws by using the hexagonal wrench.
4. Remove the mount.
5. Insert the flange-back adjustment shims between the lens mount option and the camera
head HS-01.And then attach the mount on the camera head with matching a mount’s guide
pin and a camera head’s guide hole.
Flange-back adjustment shims
Guide Hole
Guide Pin
6
6. Fix the mount by the four screws.
It is the correct position that the lens lock release lever is right side with facing the sensor.
- Be sure to shut down the Main Unit before installing or removing the lens mount. If the lens
mount is installed or removed while the system is powered, an error will result.
- Do Not touch the electric contacts with bear hand. If they are touched, it will be a cause of fault.
Lens Lock Release Lever
7 Micro Four Thirds Lens Option for FASTCAM Multi
Chapter 1 Overview
8
Chapter 2 Functions
2.1. Supported Lenses
This option supports every lens which is satisfied Micro Four Thirds system’s specification.
2.2. Lens Control
PFV can control focus, iris and zoom* by remote. (* It depends on a lens specification.)
•For details, refer to “2.12.17. Lens Control” of “PFV3 User’s Manual”.
Reference
TM
10
Other manuals for FASTCAM Multi
3
Table of contents
Other Photron Camcorder manuals
