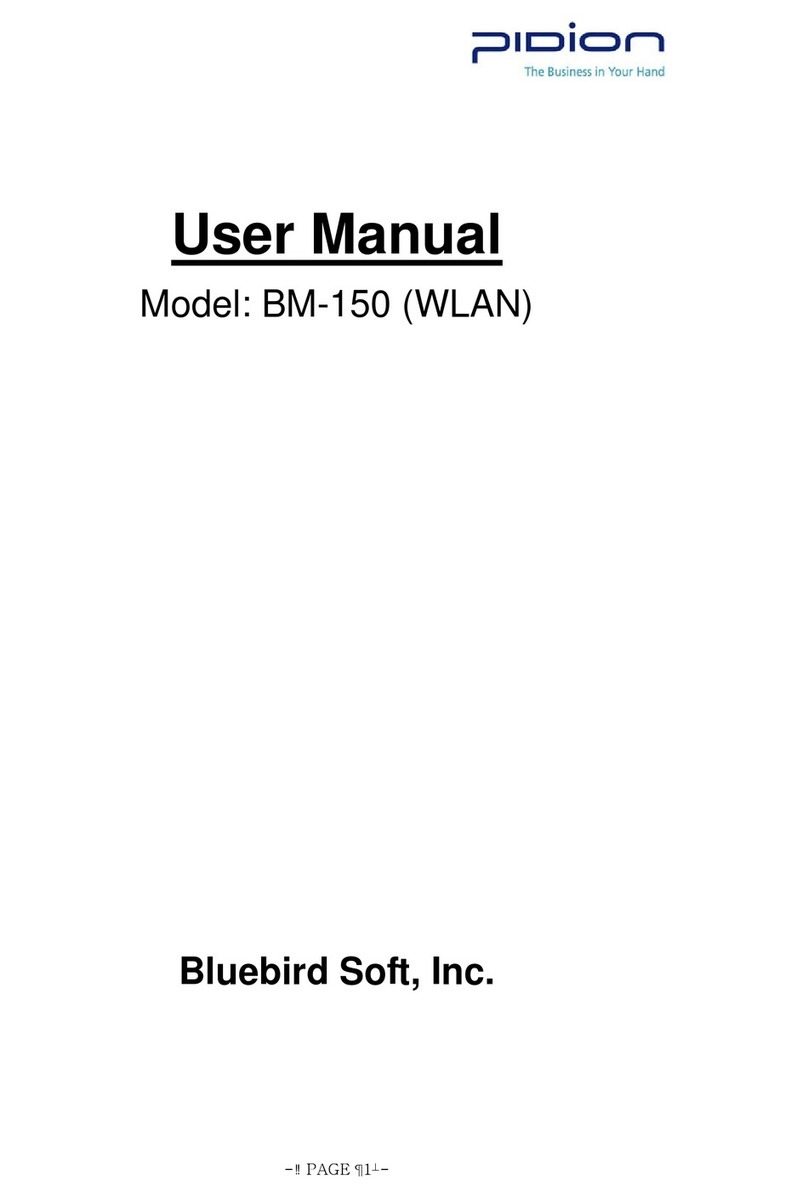

Pidion BM-150R series User manual

This manual is protected by Copyright Laws.
This manual has been produced by Bluebird Soft Inc. Please note that there may be editorial mistakes or possible omission of information.
Programs embedded in the product are legally protected. Unauthorized copying, transferring, or deletion is strictly prohibited.
There may be a few operational problems caused by the application environment, application program, or other surrounding machinery.
This product generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, it
may cause harmful interference to radio communications. Service related to human security is not provided as there may be a possibility of
confusion in the electric waves of the product.
This equipment(BM-150R GSM communication) has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
PIDION is a Leading Brand in the mobile industry. Bluebird Soft Inc. is a trusted global company which represents
high technology and is currently registered worldwide with its PIDION trademark legally protected by law.
Registered Trademark
Information to the User Changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment.

BM-150R
1
※The FCC certification of the BM-150R, for GSM or EVDO communication.
FCC RF EXPOSURE INFORMATION
WARNING! Read this information before using your phone
In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated
safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies
with the FCC guidelines and these international standards.
CAUTION : Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the
phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin,
a minor burn may result. Please contact your local dealer for replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body.
SAR compliance for body-worn operation is restricted to belt-chips, holsters or similar accessories that have no metalic component in the assembly.
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
BM-150R (GSM) Device(FCC ID: SS4BM150R) has also been tested against this SAR limit. The highest SAR value reported under this standard during product
certification for use at the ear 0.724 W/kg and when properly worn on the body is 1.27 W/kg.
BM-150R (1xEVDO) Device (FCC ID: SS4BM150RE) has also been tested against this SAR limit. The highest SAR value reported under this standard during
product certification For use at the ear 0.897 W/kg and when properly worn on the body is 1.21 W/kg.
WARNING
Any changes or modification not expressly approved by the party responsible could void the user's authority to operate the device.
BM 150R (GSM communication)
Your device conforms to European Union (EU) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications
equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 2.0
watts per kilogram.
During testing, the maximum SAR recorded for this model was 0.565 watts per kilogram. In normal use, the actual SAR is likely to be much lower, as the
device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when
possible, our device reduces your overall exposure to RF energy.
The Declaration of Conformity at the next page of this guide demonstrates your device’s compliance with the European Radio & Terminal
Telecommunications Equipment (R&TTE) directive.
Specific Absorption Rate (SAR) certification information

BM-150R
2BM-150R Series Manual 3
I hereby declare that the product.
Satisfies all the technical regulations applicable to the product
within the scope of Council
Directives 99/5/EC, 89/336/EEC, and 73/23/EEC:
All essential radio test suites have been carried out.
NOTIFIED BODY : EMCCert Dr.Rasek
- Address
Boelwiese 5, 91320 Ebermannstadt, Germany,
Identification Number: 0678
MANUFACTURER or AUTHORISED REPRESENTATIVE :
- Address
Bluebird Soft., Inc.
558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea
This declaration is issued under the sole responsibility of the
manufacturer and, if applicable, his authorized representative.
POINT OF CONTRACT:
Model
Type
BM-150R
PDA
Radio
EMC
Safety
Health
ETSI EN 301 511 / ETSI EN 300 328
ETSI EN 301 489-1/7/17, EN 55022, EN 55024
EN 60950-1
Council Rec. 99/519/EC
Company
Phone number
Fax number
Bluebird Soft., Inc.
[phone]
[phone]
BM 150R (GSM communication)
※The CE certification of the BM-150R for GSM communication.

BM-150R
2BM-150R Series Manual 3
I hereby declare that the product. MANUFACTURER or AUTHORISED REPRESENTATIVE :
- Address
Bluebird Soft., Inc.
558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea
This declaration is issued under the sole responsibility of the
manufacturer and, if applicable, his authorized representative.
POINT OF CONTRACT:
Satisfies all the technical regulations applicable to the product
within the scope of Council
Directives 99/5/EC, 89/336/EEC, and 73/23/EEC:
All essential radio test suites have been carried out.
NOTIFIED BODY : EMCCert Dr.Rasek
- Address
Boelwiese 5, 91320 Ebermannstadt, Germany,
Identification Number: 0678
Model
Type
BM-150R HSDPA
PDA
Radio
EMC
Safety
Health
ETSI EN 301 511 / ETSI EN 300 328
ETSI EN301 489-1/7/17/24
EN 60950-1
Council Rec. 99/519/EC EN50360
Company
Phone number
Fax number
Bluebird Soft., Inc.
[phone]
[phone]
BM 150R (HSDPA communication)
※The CE certification of the BM-150R for HSDPA communication.

BM-150R
4BM-150R Series Manual 5
Table of Contents
I. Getting Started
1. Activating Your Phone
2. Synchronize with ActiveSync
II. Understanding Your Phone
1. Features of Your Phone
2. What's in the box?
3. Closed View of Your Phone
4. Install/Remove the Battery
5. MiniSD Memory Card
6. Battery & LED status
III. Learning the Basics
1. Powering On/Off the Phone
2. Resetting Your Phone
3. Starting your PDA
4. Using the Stylus
5. Entering Text
IV. Using the Phone
1. Turning the Phone Functions On/Off
2. Phone Program
3. Calling and Receiving
4. Contacts
5
5
6
7
7
8
9
10
10
11
12
12
12
13
13
14
16
16
17
18
19
V. C a m e r a
1. Using the Camera
VII. Changing Your Settings
1. Personal Tab
2. System Tab
3. Connections Tab
VIII. Information
1. Safety Information
2. Troubleshooting
3. Customer Service
4. Service Center Information
Certification of Quality
Authenticity of Facts
20
20
21
21
23
26
29
29
30
31
32
34
35

BM-150R
4BM-150R Series Manual 5
Activating Your Phone1
The plug-in SIM card and its contents can be easily damaged by scratches or bending.
Use caution when inserting or removing the card and keep all SIM cards out of reach of children.
[Remove the Battery]
1. Push down using both thumbs
to remove battery cover.
2. Raise the battery by using the
groove on the lower part to
remove the battery.
[Insert the SIM Card]
Insert the SIM card with its gold
contacts face down.
Its cut off corner should match the
cut off corner in the slot.
[Remove the SIM Card]
To remove the SIM card, lightly
slide it away from slot.
[Install the Battery]
1. Put the battery in line with the
left part of the PDA and then
push the right part to lock.
2. Put the projected part of the
cover on top of the groove in
the back and then push carefully
with both thumbs.
I. Getting Started

BM-150R
6BM-150R Series Manual 7
I. Getting Started
Synchronize with ActiveSync2
1. Installing Microsoft ActiveSync on Your PC
Install the Microsoft ActiveSync from the supplied Getting Started CD.
You can also download the lat est version of ActiveSync f rom the Microsoft website .
2. Connecting the PDA to Your PC
After installation connect the PDA to the PC according to the following instructions:
1Connect the cable to the PC 2Turn on the PDA 3Connect the cable to the PDA
If connected properly, the wizard for the setup synchronization will start.
(If the connecting cable is moving or loose, it may cause an automatic stop of the Active Sync
or re-synchronization. Please re-connect the cable again.)
3. Setting up a Partner Relationship
s Standard Partner Relationship: Proceed according to the explanation of the wizard for
setting up synchronization.
- Besides standard functions, data such as favourites, address, schedule, work, and incoming
mail will all be synchronized with the latest information maintained.
s Guest Partner Relationship : Choose ‘Cancel‘ while proceeding with Wizard to set up
synchronization.
- Fundamental functions such as copying or transferring of data in between the PC and PDA,
program installation, and so forth may be used.
This is based on Microsoft ActiveSync 4.2 English Version. If you use a different version, it may differ from the
instructions of the manual.
You may download the most rec ent version from the Micros oft website in case you lose th e CD bundle.

Frequency : 88.1~107.9MHz
Antenna power : less 500uV/m @3m
Modulation type : F1D
Bluetooth 1.2 Class 2
SiRF lll Chip set
1.3M Pixel
MiniSD
1.1 Client / Host
1,230mAH Li-on or 2,460mAH (Option)
72(W) x 134(L) x 18.5(T) mm
IrDA Port, 24Pin Port
4º to 122ºF / -20º to 50ºC
1.2m concrete drop
Choosing Sound, Vibration or LED
BM-150R
6BM-150R Series Manual 7
Features of Your Phone1
Division
Quad Band (850/900/1800/1900 MHz)
GPRS Multislot Class 12, Class B, EDGE Multislot
Class 12
Single Band (Cellular, KPCS Band)
CDMA - EVDO
Single Band(2.1GHZ)
HSDPA
Frequency : Tx 1942.8 ~ 1977.2 MHz /
Rx 2132.8 ~ 2167.2 MHz
Frequency Accuracy :+-200Hz
Output power : 300mW
Select from the following.
GSM & WLAN(802.11b/g),
CDMA 1x & WLAN(802.11b/g),
CDMA 1x-EVDO & WLAN(802.11b/g)
HSDPA & WLAN(802.11b/g)
Frequency : 2,402MHz ~ 2,480MHz
Number of channels : 13
Antenna power : 10mW and less
Modulation type : G1D, D2D
Frequency : 2,402MHz ~ 2,480MHz
Number of channels : 79
Antenna power : 0.01mW and less
Modulation type : F1D
Intel PXA270 520MHz
Windows Mobile 5.0
RAM: 128MB, ROM: 256MB
Select from the following.
3.5" QVGA 240x320 Touch Screen
Specification
Bluetooth
GPS
Camera
Slot
USB
Battery
Dimension
Interface
Operation Temperature
Environment
Alarm & Notifications
sThe FCC ID SS4BM150R can only support GSM.
sThe GPRS/EDGE and WLAN can not be operated simultaneously .
sThe FCC ID SS4BM150RE can only support CDMA 1xEVDO.
sThe CDMA 1xEVDO and WLAN can not be operated simultaneously.
sThe BM-150R 1xEVDO does not support VOFI, VOWLAN.
II. Understanding Your Phone
WWAN
GSM
CDMA
(optional)
WLAN
Bluetooth
CPU
OS
Memory
Display
Communication
WCDMA
(optional)
FM Transmitter

BM-150R
8BM-150R Series Manual 9
What's in the box?2
[Main Body] [Stylus Pen]
[Standard Battery] [USB Cable]
[Adaptor]
[MS Companion CD]
[LCD Protect Film]
Thank you for purchasing a PIDION Product. Please make sure all the above components are included.
The pictures and photos in this manual may slightly differ due to model compositions.
(When purchasing extra accessories please go to your nearest dealer.)
II. Understanding Your Phone

BM-150R
8BM-150R Series Manual 9
Closed View of Your Phone3
Charging connector
Power
ON/OFF Key
Camera
Key
IrDA PORT
MiniSD
Card Slot
Camera
Battery
Cover
Radio
Function
LED
End Key
4-Way
Navigation
Key
Right Soft Key
Microphone
Send Key
OK Key
Receiver
Battery
Charge
LED
Left Soft Key
Headset
Jack
Hold/Unhold
Volume
Key
Speaker

BM-150R
10 BM-150R Series Manual 11
Install/Remove the Battery4
We strongly recommend that you use the adapter which was purchased with the product for charging the battery.
However, the 24 pin charger of an ordinary mobile phone may also be used to charge the PDA battery. (Due to the
characteristics of a standard charger, there may be small discharge of electricity despite the charger being fully charged.)
[Install the Battery]
1. Put the battery in line with the
left part of the PDA and then
push the right part to lock.
2. Put the projected part of the
cover on top of the groove in
the back and then push carefully
with both thumbs.
[Remove the Battery]
1. Push down using both thumbs
to remove the cover.
2. Raise the battery by using the
groove on the lower part to
remove the battery.
MiniSD Memory Card5
Make sure that the gold plate terminal of the memory card
is pointed towards the back when inserting into the MiniSD
slot. For removal push the exposed part of the memory
card. It will pop out.
sFrequent insertion/removal of the memory card,
or applying too much force to it, may cause the
product to malfunction.
sCard removal and turning the power off/on
using the memory card may result in loss of
data or cause the memory card and PDA to
malfunction.
sImportant data should always be saved on
the computer. The company will not take
any responsibility for the loss of data on this
product.
sIf the memory card cannot be removed easily,
instead of removing it with force, inquire to
the service center for its removal, or ask for an
exchange or refund of the product.
II. Understanding Your Phone

BM-150R
10 BM-150R Series Manual 11
Battery & LED status6
Charge on a connection
from the USB
Charge on a connection
to the Adapter
Maximum hours of use
when charged
Approximately 4 hours
Approximately 2 hours
Standby: 15 hours
Phone call: 5 hours 30 minutes
[ Hours for Charging & Use ] [ Safety Notice for Using the Battery ]
While Charging
After Charging
Red
Green
[ Battery Charge LED]
Division
In Use
Standby
Searching
WLAN
Blue
-
Bluetooth
Blue
-
-
Phone
Amber
Slowly Blink
Quickly Blink
[ Radio Function LED ]
If the battery is running low on power, a warning notice may appear on the monitor with a warning sound.
Charging and usage hours may differ from that of the manual, according to the user ‘ s application environment.
New batteries are not charged, therefore you must fully charge the battery before use.
s
Batteries are expendable products and with regular use over time
they will lose there ability to fully charge.
s
The battery may overheat from its application environment.
s
If the fully charged battery lasts only half the time from its
originally purchased state, you should purchase a new battery.
(Batteries have a 6 month period guarantee.)
s
The time that a battery may last may differ according to the
lighting of the monitor, temperature, length of its use, etc.
s
Battery exhaustion may be considerably faster in areas
where Bluetooth, wireless Internet, or phones cannot be used.
(Bluetooth, wireless Internet, and phone functions should be
turned off when these functions are not in use. This will help save
the battery.)
s
Leaving the battery on the re-charger after it has been recharged,
will not damage the battery.
s
If the cables to the main body are not properly connected, the
lights on the main body may not come on during the recharging
process. Always check and make sure that all cables are connected
properly.
s
Do not remove the battery while it is in use. This may result in
damage of data and the PDA may be initialized.
s
If the battery is not sufficiently charged, the PDA may turn off
while in use. Always check and make sure that the battery your
using has been sufficiently charged.

BM-150R
12 BM-150R Series Manual 13
Powering On/Off the Phone1Resetting Your Phone2
The power button is located on the right side of the
product.
The power button should be pressed shortly.
If the power button is pushed for more than 3 seconds,
the LCD Back Light will turn On/Off.
Even when the power is turned off, if the GSM modem
is turned on the PDA will also power on automatically so
you can answer the phone.
Power
Button
[Soft Reset]
Exemplary Situations
When memory conversion is not processed smoothly due to
long hours of program use, or when there is an unexpected
error resulting in a clash between programs, and so forth.
(This function is equivalent to rebooting the PC)
Process Method
Press the reset button located at the back of the body
using the Stylus Pen.
[Hard Reset] Holding SEND Key+OK Key for 5 seconds
after reset Button
Safety Precautions : All unsaved files will be lost
and programs currently in use will be shut down
when the screen is initialized.
Safety Precautions : All data will be lost and all
programs will be initialized as they were when
first purchased. Please note that all addresses,
schedules, and information saved in the memory
of the PDA will be lost when processing hard
reset.
Remove Battery Cover
Reset Button
III. Learning the Basics

BM-150R
12 BM-150R Series Manual 13
Starting your PDA3Using the Stylus4
If the cross mark is not accurately pressed, the same screen may appear repeatedly.
Please use only the Stylus Pen and refrain from using pins or sharp objects.
(Using sharp objects may cause damage to the LCD monitor.)
1. Turn the PDA power on.
2. Windows Mobile Logo will appear.
3. Touch the cross mark on the screen and follow it.
4. Proceed by following the instructions on the screen.
5. After finishing the setting, the ‘ today ‘ screen will
appear.
The provided Stylus pen may be used to directly process a
program and input information on the touch screen.
Pressing
This means using the Stylus pen by pressing it one time
to open, close, or cancel something. (This is equivalent to
pushing the right button of the mouse when using the
computer.)
Dragging
Upon choosing an item, you can select the area of the item
from the list by using the Stylus pen. (This is equivalent to
mouse drag when using the computer)
Pressing for a While/Few Seconds
If you want to see extra functions of the chosen item(s),
push the Stylus pen for a few seconds to see the pop-up
menu screen. (This is equivalent to clicking the right button
on the mouse when using the computer.)

BM-150R
14 BM-150R Series Manual 15
Entering Text5
III. Learning the Basics
There are five different character input methods
available.
They are:
1. Block Recognizer
2. Keyboard
3. Letter Recognizer
4. Transcriber
This input method uses the traditional writing area
box split in the middle.
The left side is used to write letters and the right
side is for number entry.
Symbols and common functions are located in
other smaller boxes located in the right of the
writing box area.
[ Selecting Text Input Mode ] [ Block Recognizer ]

BM-150R
14 BM-150R Series Manual 15
This input method displays an
on-screen keyboard that can be used
to input characters by tapping the
screen using the stylus pen.
This option allows you to enter text
using your own handwriting.
The screen is divided into three
different areas. A capital letter area,
small letter area, and a number area.
Characters are entered by printing
letters in each area. The character
is then analyzed and typed on the
screen automatically.
The transcriber option is similar
to the letter recognizer, except
instead of entering characters into a
designated area, you can enter entire
words and sentences using your own
handwriting.
Transcriber supports both printing
and cursive writing styles and then
automatically types the information
on the screen.
[ Keyboard ] [ Letter Recognizer ] [ Transcriber ]

BM-150R
16 BM-150R Series Manual 17
Turning the Phone Functions On/Off1
IV. Using the Phone
If the end key is pushed for more than 3
seconds, the Phone Functions will turn On/Off.
Touch this part or
select [Wireless Manager] from
[Start] [Settings] [Connections]
tabs
Touch this part to turn On/Off.
[ Using the Key ] [ Block Recognizer ]
Please refrain from using the phone while driving or walking. This is very dangerous and may be illegal in your country.
End Key

BM-150R
16 BM-150R Series Manual 17
Phone Program2
[ Key ] [ 'Today' screen ] ['Phone' screen ]
Method of Operation
1Press Send Key on the PDA.
2Touch [Phone] on the lower
part of the 'Today' screen.
Exit Method
3Press End Key on the PDA.
4Touch the [X] button on
the upper right part of the
'Phone' screen.
Please refrain from using the phone while driving or walking. This is very dangerous and may be illegal in your country.
13
2
4

BM-150R
18 BM-150R Series Manual 19
Calling and Receiving3
Calling
1. Call the number by using the PDA keypad input screen, and then press Send Key.
2. Push the [Talk] button by using the keypad on the screen.
Receiving
1. Press Send Key on the PDA.
2. Touch the [Answer] button on the lower left part of the screen.
Refuse Calls
- Touch the [Ignore] button on the lower right part of the screen to refuse a call.
(Pressing the volume controller on the left side of the PDA will only mute the bell.)
Finishing the Call
1. Press End Key on the PDA.
2. Touch the [Finish] button appearing on the phone screen.
Please refrain from using the phone while driving or walking. This is very dangerous and may be illegal in your country.
IV. Using the Phone
