Pinguino PAC 210 U User manual

1
OWNERS’ MANUAL
PAC 210 U Portable Windowless
Air-Conditioner

2
IMPORTANT INFORMATION
When using electrical appliances, basic safety precautions should
always be followed, including the following:
- Read all instructions.
- To protect against fire, electrical shock and personal injury, do not
immerse cord, plug or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or
near children.
- Do not operate with a damaged cord or plug, or after the appliance
malfunctions, or has been damaged in any manner. Return the
appliance to the nearest authorized service facility for examination,
repair or adjustment.
- The use of accessory attachments or spare parts not recommended
by the appliance manufacturer may result in fire, electrical shock or
personal injury.
- Do not use outdoors.
- Do not use the appliance for other than the intended use.
- Do not place any strain on the power cord. Avoid twisting and/or
tangling.
- Ensure that outlet vent of exhaust hose is kept debris-clear and
obstruction free.
- Ensure that ventilation holes on the rear of the machine and front
louvers are not blocked.
- The Pinguino should not be installed where the atmosphere could
contain combustible gases.
- Avoid using Pinguino in oily or sulphurous atmospheres or near
sources of heat.
- Wait at least 3 minutes before restarting, after the air-conditioner has
been switched off or the thermostat setting changed.
- Before moving the air-conditioner, empty water from collecting tray
(see instructions for drainage at page 13).
- Do not place hot or heavy objects on the appliance.
- Clean air filter every week (see instructions at page 13).
-Important: If you need to use an extension cord, please be sure to
use a heavy duty extension cord (minimum 14 gauge).
SAVE THESE INSTRUCTIONS

3
Dear user,
We thank you for purchasing the
Pinguino air-conditioner and
congratulate you on your wise choice.
For optimal results please read this
manual carefully before installing or
operating.
We know that the Pinguino will
maintain your environment pleasingly
comfortable at all times.
With best wishes
De Longhi S.p.A.
If you have any questions about the operation
or service of your Pinguino, please call our
toll-free service number 1-800-322-3848.
or visit our internet site:
www.delonghiusa.com
for general overlook of DeLonghi group visit:
www.delonghi.com

4
OPTIMUM OPERATING RANGE
ROOM TEMPERATURE 70°F - 90°F
ROOM HUMIDITY FACTOR
FREQUENCY
VOLTAGE
50% - 80% RH
POWER
SUPPLY
60 HZ
115V
see rating label
Dehumidification quotient (*)
SPECIFICATIONS
Power supply voltage V see rating label
60
see rating label
2
360 cu.m/h
97 (44)
221/31 (560)
30 (735)
159/16 (390)
Frequency Hz
Cooling capacity: (*)
Max. air flow capacity
Dimensions: width in. (mm)
height in. (mm)
depth in. (mm)
Net weight lb. (kg)
Fan speeds
A HE (High efficiency) system with low energy consumption has been installed on this appliance.
Such system needs about 4 minutes, once the appliance has been started, to produce cold air.
*Data according to pending standard testing procedures subject to review by the U.S. Dept. of
Energy.

5
Air outlet grid
Air filter
Air intake grid
Exhaust hose
Power cable comp.
Manually resettable red button
Castor
Castor stops
Water collecting tray
Timer cover
(to adjust the timer slide cover
sideways)

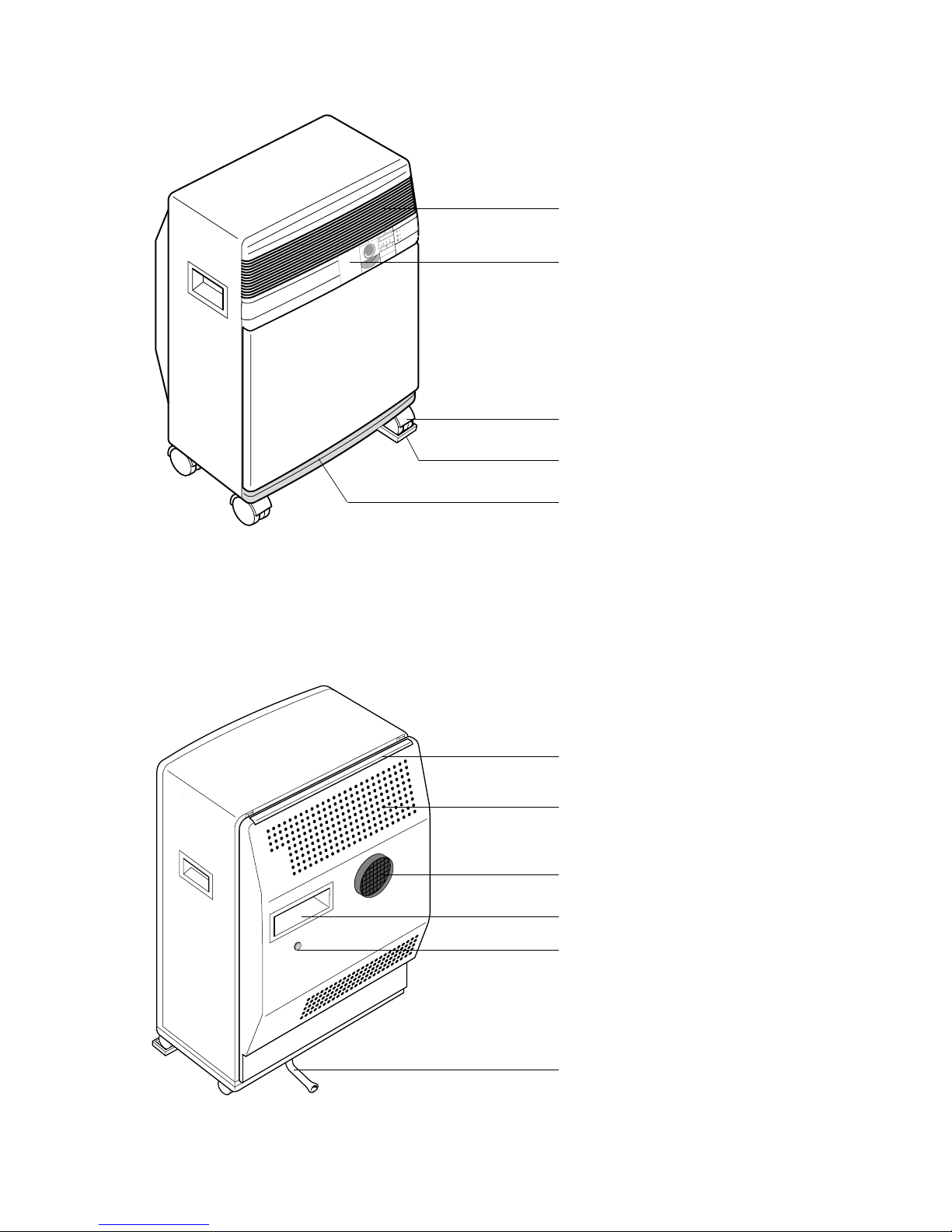

ILLUSTRATED MAIN FEATURES LIST
Water collecting tray drainage tube

6
ILLUSTRATED ACCESSORY LIST Table 1
DESCRIPTION SUPPLIED
Exhaust hose 1
Stopper + flange 1
Caster stop 2
Window nozzle 1
Adjustable window bracket 1
Suction disc 2
ACCESSORY CHECK
Check that all parts listed in Table 1 are included.

7
PERMANENT INSTALLATION
The Pinguino accessories include two sets of
flanges and stoppers, to be mounted in different
locations (two different rooms). Once installed,
these vents (flanges) are the only items needed for
using Pinguino.
Permanent installation outlet holes must be in an
exterior wall and opening diameter should not
exceed 3”1/2.
INSIDE OUTSIDE
3”1/2
A1
in a window pane
INSIDE OUTSIDE
3”1/2
A2
through the wooden base-
section of a door or window
;;
;;
;;
;;
;;
INSIDE OUTSIDE
A3
through the wall
3”1/2
1”
fig. 1
fig. 2 fig. 3
fig. 4
In case of fixed installation, air discharged
from rear hose has been extracted from the
room where the appliance is installed.
Check that the room (especially if small) is
not “air-tight”; a drop in pressure would
cause irregular functioning, which could
consequently activate reset switch. Air
entering through door and window cracks
is normally sufficient. If deemed, necessary
leave a door ajar (approx. 1 cm is enough).

8
TEMPORARY INSTALLATION
Note: In both cases (permanent and temporary installations) make sure that the Pinguino is
positioned on level ground. If necessary use the two caster stops for the front casters
This installation makes it easy
to use Pinguino in any room,
provided there is a window or
a door: it allows you to use the
Pinguino immediately.
Suction discs may be used to
keep window or door closed.
Pinguino is equipped with an
adjustable window bracket. If
you have a sash window,
place the bracket on the
window sill, extend the
bracket fully within the window
frame and lower the window
onto the bracket. Insert the
nozzle of the exhaust hose
into the slot, then connect the
hose to the air conditioner
(fig.7). Thanks to the wing nut,
it’s possible to use the window
bracket also for sliding
windows. Position the hole of the
bracket so to allow a correct
installation of the exhaust hose
(see the following instructions).
30 cm
SET UP INSTRUCTION
For permanent installation place the Pinguino near the outlet opening in wall or window (where it is
meant to be used). The diagram below shows the correct way to install the exhaust hose.
1) Water collects at this point 2) Bend this section 3) Bend this section
NO YES YES
fig. 5 fig. 6 fig. 7
fig. 8
window
bracket

9
- Doors and windows of room to be air-
conditioned are closed (with the
exception of temporary installation where
a partially opened window is necessary).
- Shade the room as far as possible from
direct sunlight by drawing curtains and/or
lowering blinds or shutters, for economical
and efficient air-cooling.
- Ensure that intake and outlet vents (fig. 2
and 3) are not blocked.
- Make sure there are no sources of heat in
the room.
FINAL CHECK
In order to obtain the maximum performance from your air-conditioner make sure that:
ELECTRICAL CONNECTION
Check that the power supply voltage is 115 V ~ 60 Hz.
Important: if you need to use and extension cord, please be sure to
use a heavy duty extension cord (minimum 14 gauge).
Before connecting the Pinguino to power supply, make sure that all
switches on the front control panel are in the OFF position.
Connect power cord found in storage compartment at rear of the
Pinguino. fig. 9
fig. 10
fig. 11
fig. 12 fig. 13
- Close the door.

10

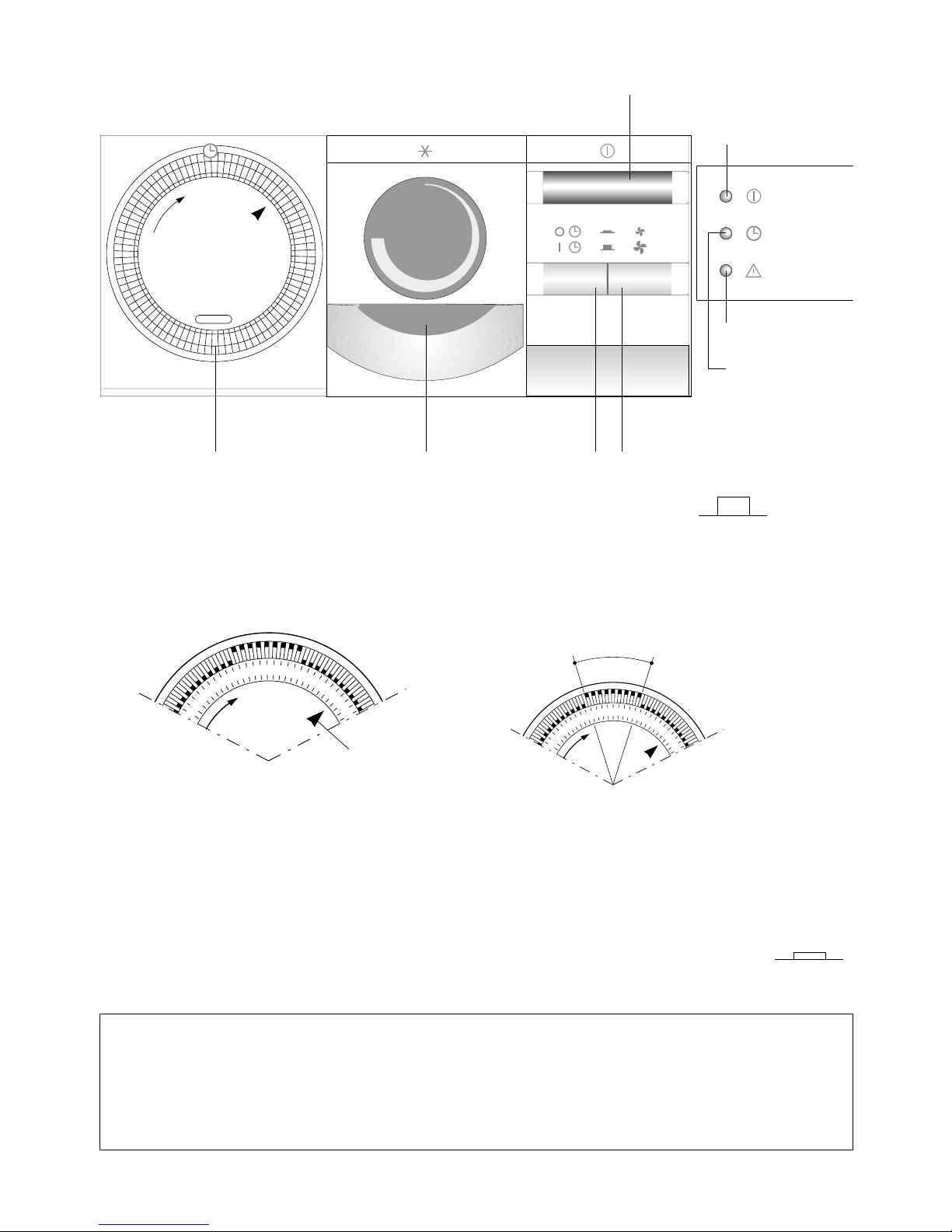

DESCRIPTION OF PINGUINO PAC 210 U CONTROLS
A
BC
ON/OFF button
ON/OFF pilot light
“Alarm”pilot light
Timer ON/OFF
pilot light
Selecting fan
speed button
Timer ON/OFF
buttonThermostatTimer notches
SETTING THE TIMER
The programmer/timer, like all clocks, must be
set to the exact time. If for example it is 4.00
p.m., turn the dial in a clockwise direction
(following the direction of the arrow) until the
number 4 is lined up with the arrow pointer (the
arrows indicates 4:00 p.m. approximately).
Note:Never turn the dial in an anti-clockwise
direction!
The timer is in effect, an electric clock and
works only if the plug is connected to the
power supply. Whenever the plug is
disconnected or there is a power failure, the
programmer stops (the clock is then “slow”)
and must be re-set.
The unit can be used in either programmed or
non-programmed mode.
PROGRAMMED MODE
1) Release B timer button.
2) Set the operating times by pushing out the
notches on the dial corresponding to the
period required (each notch represents 15
mins.).
3) Check that the timer indicates the correct
time (see instructions on setting).
4) Select the desired function as shown in the
chart overleaf.
The unit will now switch on and off each
day at the selected times.
Note: To override the programmed operating
times, simply press the ON/OFF key.
NON-PROGRAMMED MODE
1) B TIMER button must be pressed
2) Select the desired function as shown in the
chart on the following page.
11
9
4
10
arrow pointer
11
10
9
4
Funzionamento
Operating time
N.B: For technical reasons, the temperature is not expressed in degrees but by a line increasing
in thickness. We therefore recommend that when starting up the appliance, the thermostat
be turned to maximum (thick green line = maximum cold). When the desired temperature
has been reached, turn the thermostat slowly away from the maximum cooling position until
the appliance switches off. Leave the thermostat in this position. The air-conditioner is now
programmed to maintain the exact temperature at all times.
After switching the appliance off, wait at least 3 min. before switching on again.
eg. from 9 to 11 a.m.

11
HOW TO START UP THE CONDITIONER
(see control panel on the previous page)
Plug the appliance into the mains.
Select the “programmed”or “non
programmed”mode (see previous page)
Select the fan speed required pressing
“Fan speed”key C.
Key A ON/OFF
(conditioning) must
be released
Turn the thermostat
to Max. Cold.
Press key A
(ON/OFF).
ON/OFF signal lamp
(conditioning) will
come on.
The appliance comes on.
If not, refer to page 14.
To switch off the appliance, press key A
(ON/OFF main switch).
AIR-CONDITIONING

12

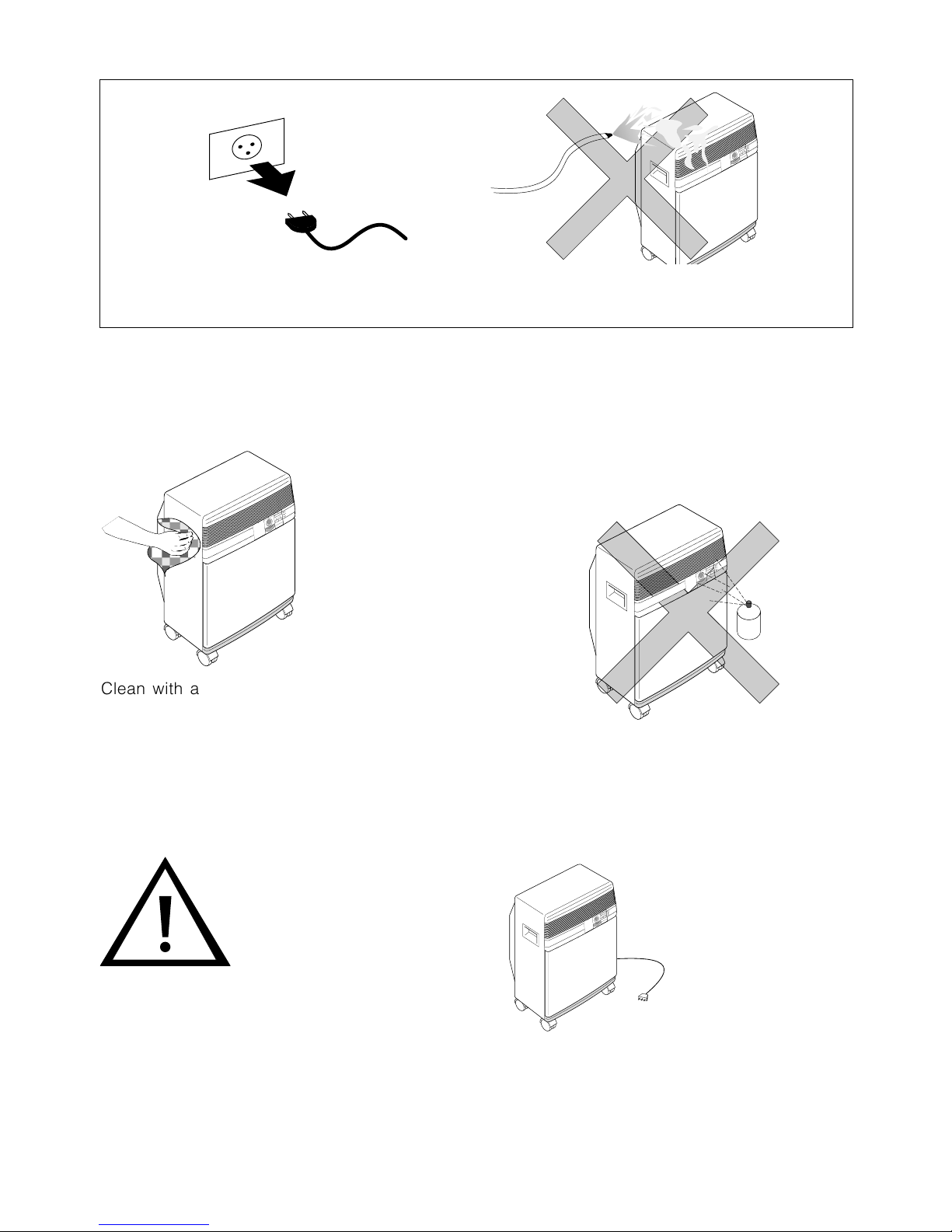

MAINTENANCE
PRECAUTIONS
During cleaning and normal maintenance operations
remember to disconnect plug. Under no circumstances should appliance be
washed with running water. Damage could be
caused to the electrical circuit.
CLEANING OF EXTERNAL HOUSING
;;
;;
QQ
QQ
¢¢
¢¢
Clean with a damp cloth and dry thoroughly
with a clean dry cloth.
Use only mild soap and water.
Do not use chemical cleaners.
CONTROLS AT THE BEGINNING OF THE SEASON
Carefully follow
installation procedure. Check for any defects in
power cord and plug.
fig. 14 fig. 15
fig. 16
fig. 17
fig. 18

13
AIR FILTER CLEANING
Maintenance of air filter
A clogged air filter reduces the quantity of
circulating air and the efficiency of the
appliance. Clean filter every week using a
vacuum cleaner.
Removal and replacement of air filter
Gently pull filter upwards.
Push down to replace.
Cleaning procedure
To remove dust deposited on filter, use a vacuum cleaner. If it is very dirty, soak in lukewarm water
and rinse thoroughly. The temperature of the water must be kept below 104°F. After washing, leave
filter to dry before replacing.
END OF SEASON OPERATIONS
1) Disconnect plug.
2) Remove plug from drainage tube to empty
water collecting tray.
3) Remove exhaust hose.
4) Clean filter and dry well before replacing.
5) Cover appliance with a polyethylene bag to
prevent dust from entering.
You can use the polyethylene bag included
into the packaging.
fig. 19
Remove dust with a
vacuum cleaner
Rinse with running
water
fig. 20
fig. 21
fig. 22
fig. 23

14
TROUBLESHOOTING
SYMPTOMS
The Pinguino does not
function:
The Pinguino does not
function
- function fault warning
light is on (page. 10 -
“Alarm” light)
After correcting problem,
press reset button (see
page. 5)
The Pinguino produces
cold air but room does
not maintain comfortable
temperature:
CAUSE SOLUTION
- power failure
- plug is disconnected
- ON/OFF switch is off
- Timer key is in STOP position
- insert plug
- switch on
- release the TIMER key
- exhaust hose blocked
- exhaust hose twisted or bent
- ventilation holes on the rear of
the machine or front louvers
blocked
- Check for obstruction of air
outlet vent
- eliminate irregularities
- remove obstacles to allow
proper airflow
- window open
- air exhaust hose has become
disconnected
- thermostat set too low
- air filter blocked
- close window
- re-insert exhaust hose
- set thermostat to higher
number
- clean filter
SERVICING
In case of malfunction turn off and disconnect the Pinguino from power outlet and contact our Service
Centre for qualified assistance, toll-free number 1-800-322-3848.

15
FOR UNITED STATES ONLY:
LIMITED WARRANTY
We warrant each DeLonghi AIR-CONDITIONER to be free from defects in material and
workmanship. Our obligation under this warranty is to provide one year parts and labor
free from purchase date, with an additional four (4) years on any part of the sealed system
consisting of the compressor, evaporator, condenser and factory connected refrigerant
tubing. This warranty shall apply only if the AIR-CONDITIONER is used in accordance with
the factory directions which accompany it, and on Alternating Current (AC) circuit. This
warranty is in lieu of all other warranties and representations, expressed or implied, and all
other obligations or liabilities on our part. We do not authorize any other person or
company to assume for us any liability in connection with the sale or use of our AIR-
CONDITIONER. This warranty shall not apply to assume for us any liability in connection
with the sale or use of our AIR-CONDITIONER. This warranty shall not apply to any AIR-
CONDITIONER which shall have been repaired or altered outside our factory nor shall it
apply to any AIR-CONDITIONER which has been subjected to misuse, negligence or
accidents. If repairs become necessary or spare parts are needed, please write to:
DeLonghi America Inc.
Park 80 West Plaza One, 4th floor
Saddle Brook NJ 07663
or call Service Tel. No 1-800-322-3848

16
