Pinnacle Spas PINNACLE PLUS PN 631 User manual

HOT TUB OWNER’S MANUAL
MODELS:
PINNACLE PLUS – PN 631, PN 741, PN 743,
PN 850, PN 855
LUXURY – LX 4000, DX 5000, LX 5000,
LX 8000, LX 9000, LX 11000
6101 45th St. N.
St. Petersburg, FL 33714
800.304.9684
www.PinnacleSpas.com
Part Number 7636
SKUs: (1001-1011)
Revised 5/11

Owner’s Information
Dealer:
Date Purchased: __________________________
Company: __________________________
Address: __________________________
Telephone: __________________________
Installer: Date Installed: __________________________
Company: __________________________
Address: __________________________
Telephone: __________________________
Hot Tub:
Date Delivered: __________________________
Model: __________________________
Color: __________________________
Serial Number: __________________________
Your unique hot tub serial number is located on a data plate outside the
cabinet at ground level directly below the topside control panel. When
calling for service, have your serial number in hand.

Page 1
For HELP, call 800.304.9684
P
P
Pi
i
in
n
nn
n
na
a
ac
c
cl
l
le
e
e
S
S
Sp
p
pa
a
as
s
s
H
H
Ho
o
ot
t
t
T
T
Tu
u
ub
b
b
O
O
Ow
w
wn
n
ne
e
er
r
r’
’
’s
s
s
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
T
T
Ta
a
ab
b
bl
l
le
e
e
o
o
of
f
f
C
C
Co
o
on
n
nt
t
te
e
en
n
nt
t
ts
s
s
Introduction.................................................................................. 2
Important Safety Information....................................................... 3
Location and Installation.............................................................. 7
Electrical Specifications............................................................... 9
Startup....................................................................................... 21
Topside Control ......................................................................... 26
Cover......................................................................................... 39
Water Management................................................................... 40
Frequently Asked Questions ..................................................... 41
Troubleshooting......................................................................... 44
Maintenance and Care.............................................................. 48
Shutdown / Winterizing.............................................................. 52
Glossary..................................................................................... 53
Specifications............................................................................. 54
Certificate of Verification............................................................ 65
Important: Pinnacle Spas is dedicated to offering you the best in customer
satisfaction and service. Be sure to read, complete, sign, and send in the
limited warranty card within 30 days of purchase to ensure you understand
what you are entitled to in terms of service. If you have any questions, you can
call our customer care center, at 800.304.9684.
Printed in the U.S.A.
Version 2.4 Revised 5/2011 Part Number 7636
Copyright © 2011, Pinnacle Spas. All rights reserved. No portion of this manual may be reproduced in any manner without
express written permission of Pinnacle Spas. Pinnacle Spas™and Thermazone™are trademarks of Pinnacle Spas. All
other brands, product names, company names, trade names, trademarks, and service marks used are the property of
their respective owners. Pinnacle Spas may make product modifications and enhancements. Specifications may change
without notice. International products may be configured differently to meet local electrical requirements. Dimensions are
approximate. Pinnacle Spas hot tubs are covered by U.S. Patent No. D573,261. Other patents pending.

Page 2
For HELP, call 800.304.9684
Introduction
Your choice of a Pinnacle Spas™hot tub indicates that you are devoted
to excellence. The management and staff appreciate your patronage and
takes pride in the tradition of quality hot tubs that our company
represents.
To properly acquaint yourself with your hot tub, we suggest that you take
time to read through this manual before hook up and operation. Doing so
will familiarize you with important operating and safety procedures,
thereby ensuring an enjoyable experience right from the start.
If you need any more information than this manual provides, feel free to
visit our Web site at www.PinnacleSpas.com or call our customer care
center, at 800.304.9684.
WARNING: This manual was written to ensure the proper use and
installation of your hot tub. Any modifications to the
procedures outlined in this manual may result in voiding
your warranty.
This manual and its contents are subject to change without notice.
Although we have prepared this manual as accurate as possible, we are
not liable for errors or omissions; loss, injury, or damages caused by
improper installation; or use of hot tub (improper or otherwise).
You new hot tub is made with quality synthetic cabinet materials.
Synthetic materials won’t fade and are nearly invulnerable to mold and
mildew. Where wood splits, cracks, and stains, synthetic materials stand
in timeless perfection.

Page 3
For HELP, call 800.304.9684
Important Safety Information
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Your physiological response to hot water depends on subjective factors such as
age, health, pregnant women, temperature sensitivities, chemical sensitivities,
and medical history. Always consult a physician before using a hot tub to
understand your particular tolerance and limitations.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING – To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
A wire connector is provided on this unit to connect a minimum 8 American Wire
Gauge (AWG) (8.4mm2) solid copper conductor between this unit and any metal
equipment, metal enclosures of electrical equipment, metal water pipe, or conduit
within 5 feet (1.5 m) of the unit.
* For cord connected / convertible units: Danger – Risk of injury.
Replace damaged cord, immediately. Do not bury cord. Connect to a grounded,
grounding type receptacle only.
** For units with GFCI: Warning – This product is provided with a ground-
fault circuit interrupter located in the main panel. The GFCI must be tested
before each spa use.
DANGERS
RISK OF ACCIDENTAL DROWNING: Extreme caution must be
exercised to prevent unauthorized access by children. To avoid
accidents, ensure that children cannot use this spa unless they are
supervised at all times. Always cover the hot tub and use safety
locks when it is not in use.
RISK OF INJURY: The suction fittings in this spa are sized to match
the specific water flow created by the pump. Should the need arise
to replace the suction fittings or the pump, be sure that the flow rates
are compatible. Never operate the spa if the suction fittings are
broken or missing. Never replace a suction fitting with one rated less
than the flow rate marked on the original suction fitting.
RISK OF ELECTRIC SHOCK: Install at least 5 feet (1.5 m) from all
metal surfaces. As an alternative, a spa may be installed within 5
feet of metal surfaces if each metal surface is permanently
connected by a minimum 8 AWG (8.4 mm2) solid copper conductor
to the wire connector on the terminal box that is provided for this
purpose.
RISK OF ELECTRIC SHOCK: Do not permit any electric appliance,
such as a light, telephone, radio or television, within 5 feet (1.5 m) of
a spa. Do not operate such an appliance from either inside the hot
tub or when you are wet, unless such appliances are built-in by the
manufacturer.

Page 4
For HELP, call 800.304.9684
WARNINGS
TO REDUCE THE RISK OF INJURY:
The water in a spa should never exceed 40˚C (104˚F).
Water temperatures between 38˚C (100˚F) and 40˚C
(104˚F) are considered safe for a healthy adult. Lower
water temperatures are recommended for young children
and when spa use exceeds 10 minutes.
Since excessive water temperatures have a high potential
for causing fetal damage during the early months of
pregnancy, pregnant or possible pregnant women should
limit spa water temperatures to 38˚C (100˚F).
Before entering a spa/hot tub, the user should measure the
water temperature since the tolerance of water temperature
regulating devices varies.
The use of alcohol, drugs or medication before or during
spa/hot tub use may lead to unconsciousness with the
possibility of drowning.
Obese persons and persons with a history of heart disease,
low or high blood pressure, circulatory system problems, or
diabetes should consult a physician before using a spa.
Persons using medication should consult a physician before
using a spa/hot tub since some medication may include
drowsiness while other medication may affect heart rate,
blood pressure and circulation.
Do not connect auxiliary components (such as headphones, cables,
and additional speakers) to the stereo (if equipped).
Do not use a hot tub immediately following strenuous exercise.
Do not use your hot tub alone.
Lock the cover on your hot tub when not in use.
Persons with infectious diseases should not use a hot tub.
Replace audio components only with identical components.
Do not leave the CD access door open on the stereo (if equipped).
Some types of hair dye can react with the sanitizers in your hot tub
water causing your hair to change color. Use at your own risk.
Water normally splashes out of a hot tub during typical use. Install
an adequate perimeter that provides sound footing.
Do not turn your hot tub on/off from a wall switch, ground fault circuit
interrupter, circuit breaker, fuse, or by plugging/unplugging it.
Remove all jewelry, metal, and watches from your person before
entering your hot tub.
Keep all breakables away from the hot tub area.
Maintain water balance in accordance with instructions.

Page 5
For HELP, call 800.304.9684
WARNING SIGN
Warning Sign Must Be Posted – The red
WARNING sign like the one shown is packed
with your new hot tub. This sign must be posted
in a prominent place in close proximity to the hot
tub installation site immediately upon completion
of hot tub installation.
Important: It is extremely important that this sign be permanently placed in clear
view of persons using the hot tub. Occasional hot tub users may not be aware of
some of the dangers hot water poses to pregnant women, small children,
seniors, and people under the influence of alcohol. If you did not receive a
warning sign or your sign has become damaged, please call your local dealer for
a replacement.
HYPERTHERMIA
To reduce the risk of injury, the water temperature in a hot tub should never
exceed 104˚F (40˚C). Water temperatures between 100˚F (38˚C) and 104˚F
(40˚C) are considered safe for a healthy adult. Lower water temperatures are
recommended for young children, senior citizens, persons with sensitivities, and
when hot tub use exceeds 10 minutes.
WATER TEMPERATURE IN EXCESS OF 100˚F (38˚C) MAY BE INJURIOUS
TO YOUR HEALTH.
Hyperthermia occurs when the internal temperature of the body reaches a level
several degrees above the normal body temperature of 98.6˚F (37˚C). The
symptoms of hyperthermia include drowsiness, lethargy, and an increase in the
internal temperature of the body. The effects of hyperthermia include:
Unawareness of impending hazard
Failure to perceive heat
Failure to recognize the need to exit hot tub
Physical inability to exit hot tub
Fetal damage in pregnant women
Unconsciousness and danger of drowning
If you sense any of the symptoms of hyperthermia, safely exit the hot tub
immediately.
SAVE THESE INSTRUCTIONS

Page 6
For HELP, call 800.304.9684
BASIC SAFETY GUIDELINES
Your hot tub is meant to be enjoyable, healthful, and relaxing. Below are some
basic safety guidelines to follow every time you use your hot tub.
Always check the temperature of your hot tub before entering. High water
temperatures can be hazardous to your health.
Persons suffering from heart disease, diabetes, high or low blood pressure,
and pregnant women should consult a doctor before using your hot tub.
Persons under the influence of medication, drugs, or alcohol should not be
allowed into your hot tub.
Remove all jewelry, metal, and watches from your person before entering
your hot tub.
Do not allow children to use your hot tub without continuous supervision of
an adult.
Do not use your hot tub alone.
Test the ground fault circuit interrupter (GFCI) breaker prior to using your hot
tub each time to ensure it operates properly.
Any electrical devices near your hot tub must be GFCI protected and out of
reach from inside the hot tub.
Keep all breakables away from the hot tub area.
Lock the cover on your hot tub when not in use.
Enter and exit the hot tub slowly. Wet surfaces can be slippery.
Prolonged immersion can be hazardous to your health.
Maintain water chemistry in accordance with manufacturer’s instructions.
The hot tub is not to be used by persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
FOR HOT TUBS EQUIPPED WITH AUDIO COMPONENTS
Audio components are optional and not available on all models.
WARNING: Prevent Electrocution: Do not connect any auxiliary
components – for example, cable, additional speakers,
headphones, etc., – to the system.
Caution: Risk of Electric Shock: Do not leave audio compartment door
open. Replace audio components only with identical components.

Page 7
For HELP, call 800.304.9684
Location and Installation
Proper planning is an important consideration when installing your new
hot tub. Site selection is a critical step and requires serious thought.
Planning ahead makes the installation process easier. The following
information is provided to assist you in site preparations.
1) Always comply with local building codes and obtain any necessary
permits. You may also need to consult with an engineer to address
your specific design needs.
2) Contact an electrician to assess your electrical needs, install wiring,
and assure a safe operation.
3) Position your hot tub with proper access to water, drainage, and
electricity.
4) Place your hot tub on a uniform solid, flat surface designed to
properly support its weight. For external installations, a 4-inch (10
cm) thick cement pad suffices. See page 8 for conduit entry locations
for your model hot tub.
5) For internal installations, check the load carrying capabilities of the
floor on which the hot tub will reside. Most homes meet the
requirement of 80 pounds per square foot.
6) Assure that your hot tub will fit into the space you have chosen and
the delivery route will accommodate its large size.
7) Provide adequate ventilation for the humidity created by your hot tub.
In most cases, a Hot Tub Hard Cover is sufficient.
8) Protect the pump and all equipment from the weather by ensuring
the cabinet panels are secure at all times.
9) Allow 36 inches (1 meter) of unobstructed access to all sides of your
hot tub for normal servicing. Your hot tub is not designed to be
recessed in the ground or in a deck.

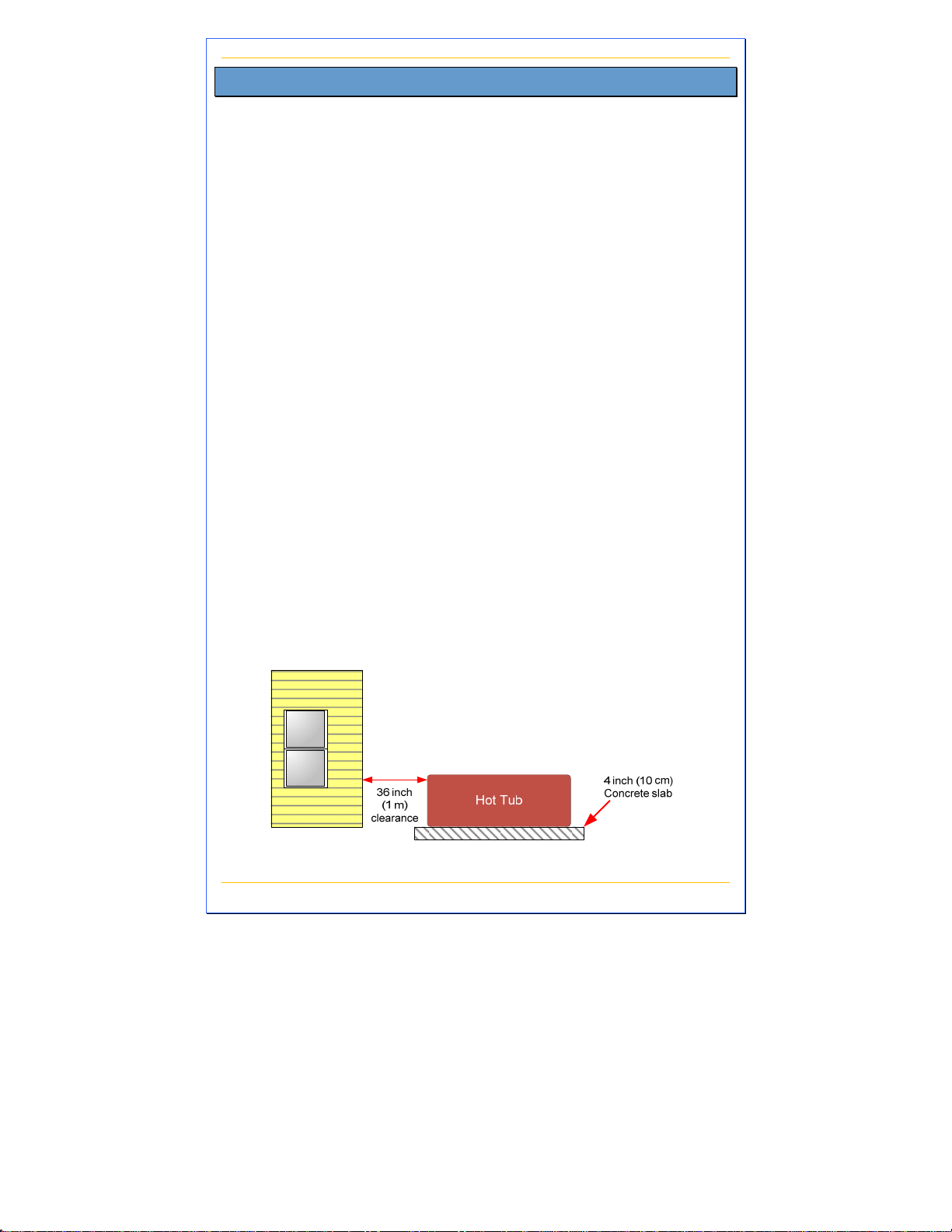

Figure 1 – Clearances and Support

Page 8
For HELP, call 800.304.9684
The following dimensions can be used to determine the proper location
of submerged conduits in concrete slab installations. All dimensions are
made from the outside of the hot tub’s frame with the access panels
removed. The topside control panel is shown at bottom of diagram for
reference.

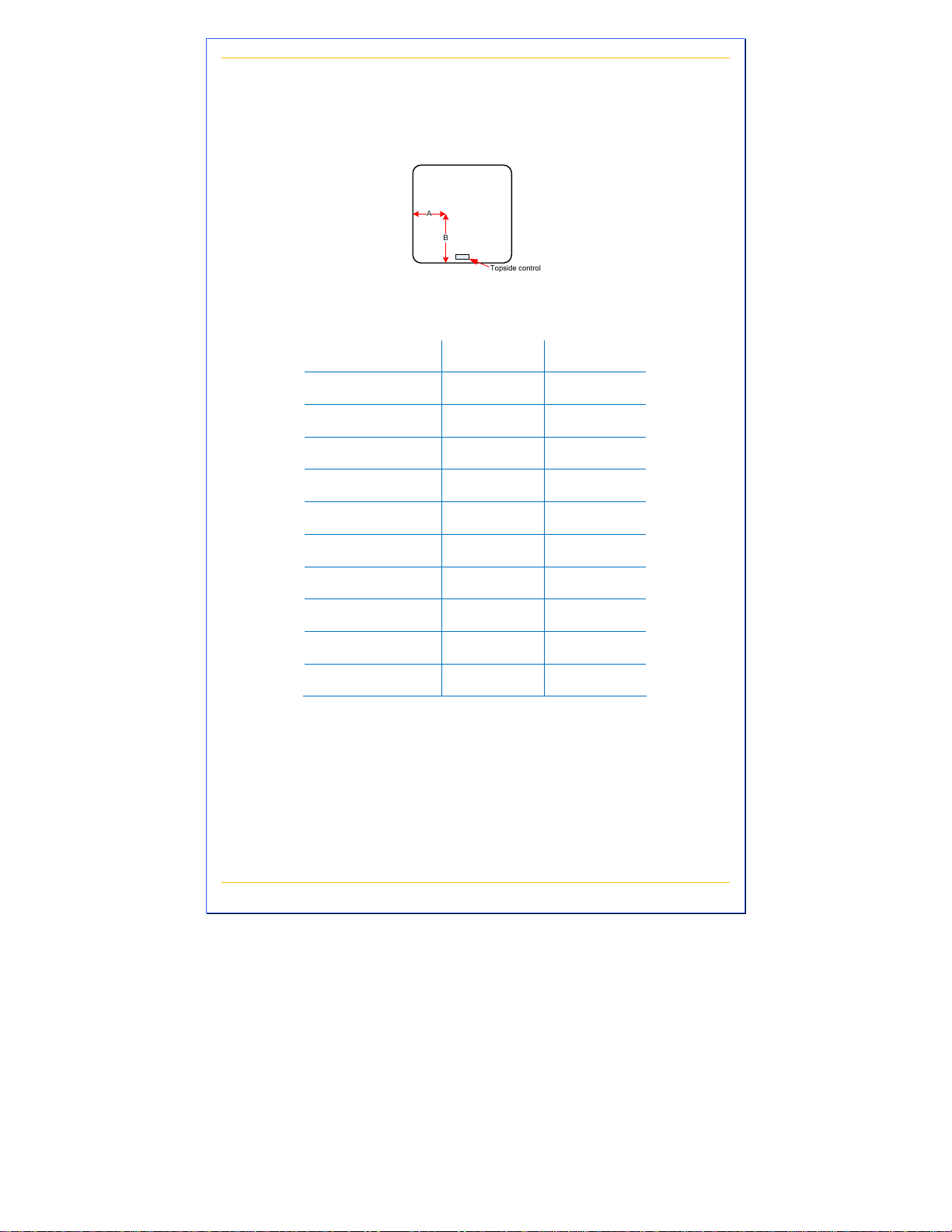

Figure 2 – Conduit Entry Location Reference Points
Model Dimension A Dimension B
LX 4000 (1006) 22” (56 cm) 22” (56 cm)
LX/DX 5000 (1004) 18” (46 cm) 11” (28 cm)
LX 8000 (1001B) 20” (51 cm) 13” (33 cm)
LX 9000 (1003) 20” (51 cm) 13” (33 cm)
LX 11000 (1002) 22” (56 cm) 12” (30 cm)
PN 631 (1011) 12” (30.5 cm) 9” (23 cm)
PN 741 (1007) 29” (73.5 cm) 15” (38 cm)
PN 743 (1009) 27” (68.5 cm) 13” (33 cm)
PN 850 (1008) 25” (63.5 cm) 13” (33 cm)
PN 855 (1010) 28” (71 cm) 14” (35.5 cm)
Table 1 – Conduit Entry Location Dimensions
10) Consider positioning your hot tub out of or adequately protecting it
from the wind. Just as people can get cold on cool/windy days so
can your hot tub. Windy environments can significantly increase
operating costs.
11) Consider using an insulating pad. In cold climates, the ground can
rob heat from the hot tub and increase your operating costs. Consider
using a suitable, outdoor insulating pad in such environments.

Page 9
For HELP, call 800.304.9684
Electrical Specifications
Important – Qualified and licensed electricians must perform all
electrical hookups. The following specifications must be followed in order
to ensure proper performance and safety.
WARNING: Starting an incorrectly wired hot tub could cause severe damage
to the mechanical equipment or even bodily harm. Have your
licensed electrician verify GFCI (or RCD) wiring with the
schematics on pages 10-20 prior to starting the hot tub or call
the technical support line at 800.304.9684.
Caution: Failure to abide by specifications listed may result in damage to the
equipment and will void the warranty.
All hot tubs must be wired with a 50 or 60 Amp breaker (or according to IEE wire
regulations for export models). Failure to do so will cause equipment damage
and will not be covered under your warranty. All hot tubs must be over current
protected with a built-in GFCI (or RCD for export models) in the service panel.
Model Volts
(V) Freq. (Hz) Rating (A) GFCI (A) Wire size from GFCI to Main Panel*† Equipment
Pack
LX 4000,
LX/DX 5000 240 60 40 50
6-3 plus ground (up to 130’)
4-3 plus ground (up to 230’)
2-3 plus ground (up to 360’)
VS515Z
LX 8000,
LX 9000,
LX 11000 240 60 48 60 “ VS510SZ
PN 631 240 60 40 50 “ IN.XE
PN 741, 743,
850, 855 240 60 48 60 “ IN.XE
Table 2 – Domestic Wire Size Chart
Model Volts (V) Rating (A) RCD (A) Wire size from RCD to Main PanelठEquipment Pack
LX 4000 -
LX 11000 220- 240 1x32 2x16 IEE Wire Regulation 3x4 mm2
5x1.5 mm2
GS510SZ
PN 631, 741,
743, 850, 855 “ “ “ “ IN.XE-CE
Table 3 – Export (Overseas) Wire Size Chart
*Wire size may need to be reduced at GFCI to fit into the breaker
†Solid copper
‡Wire size may need to be reduced at GFCI to fit into the breaker
§Solid copper

Page 10
For HELP, call 800.304.9684
WARNING: Disconnect the electrical power before servicing. Before
obtaining access to terminals, all supply circuits must be
disconnected.
Caution: Test the GFCI (or RCD) before each use.
Our hot tubs are certified by Intertek Testing, SNAa Ltd.
Ontario, Canada to CSA-C22.2 No. 218.1-M89 and
ANSI/UL 1563 standards.
Parts with extra low voltage not exceeding 12v must be inaccessible to a
person in the hot tub. Earthed appliances must be permanently
connected to fixed wiring. Parts incorporating electrical components,
except remote control devices, must be located or fixed so that they
cannot fall into the hot tub.
Means for disconnection must be used in fixed wiring in accordance with
wiring rules.
Important – To allow the 240V GFCI to function properly, connect the
white Neutral wire from the hot tub to the Neutral terminal on the GFCI
breaker, not the Neutral bus in the GFCI breaker box. An improperly
connected Neutral causes the GFCI breaker to trip.

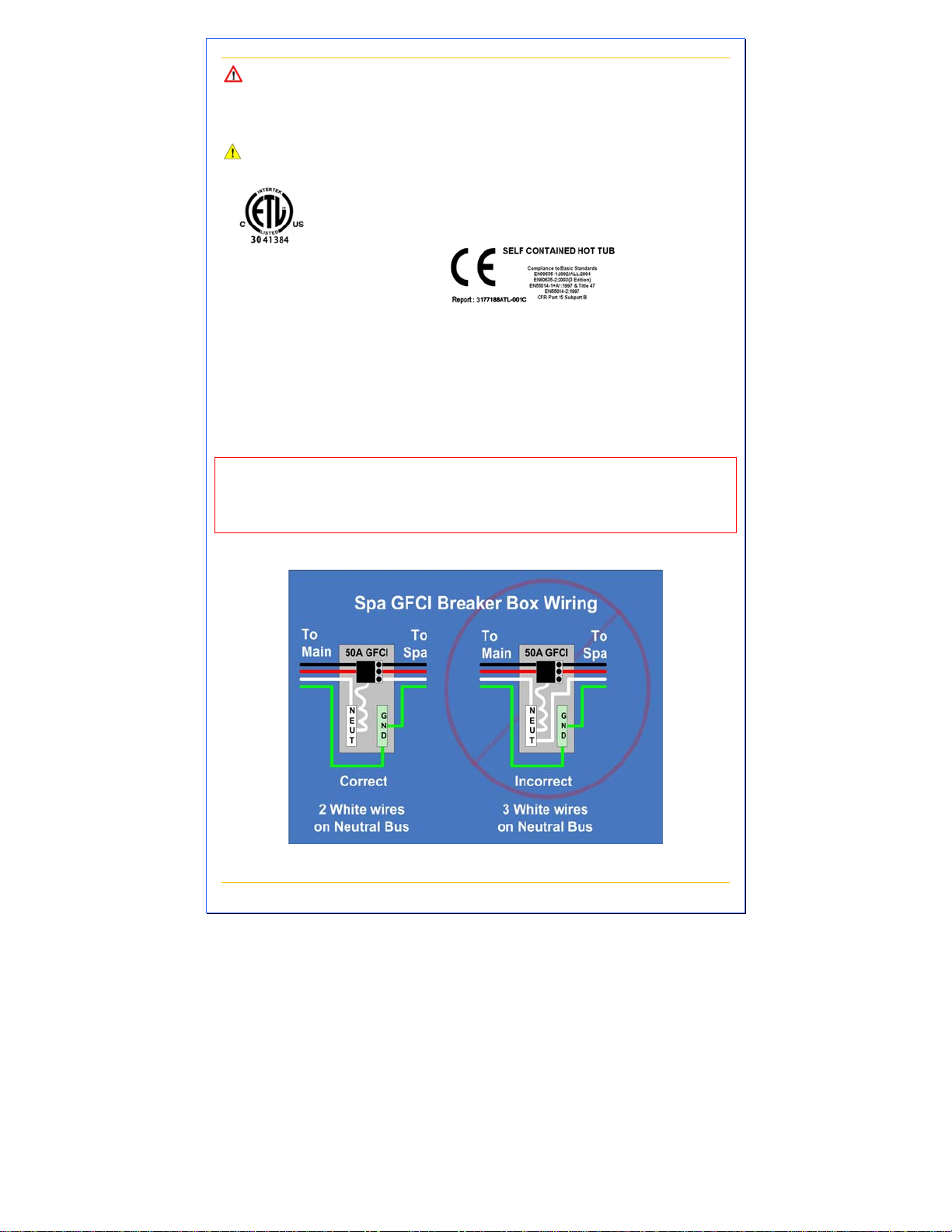

Figure 3 – GFCI Wiring

Page 11
For HELP, call 800.304.9684

Page 12
For HELP, call 800.304.9684

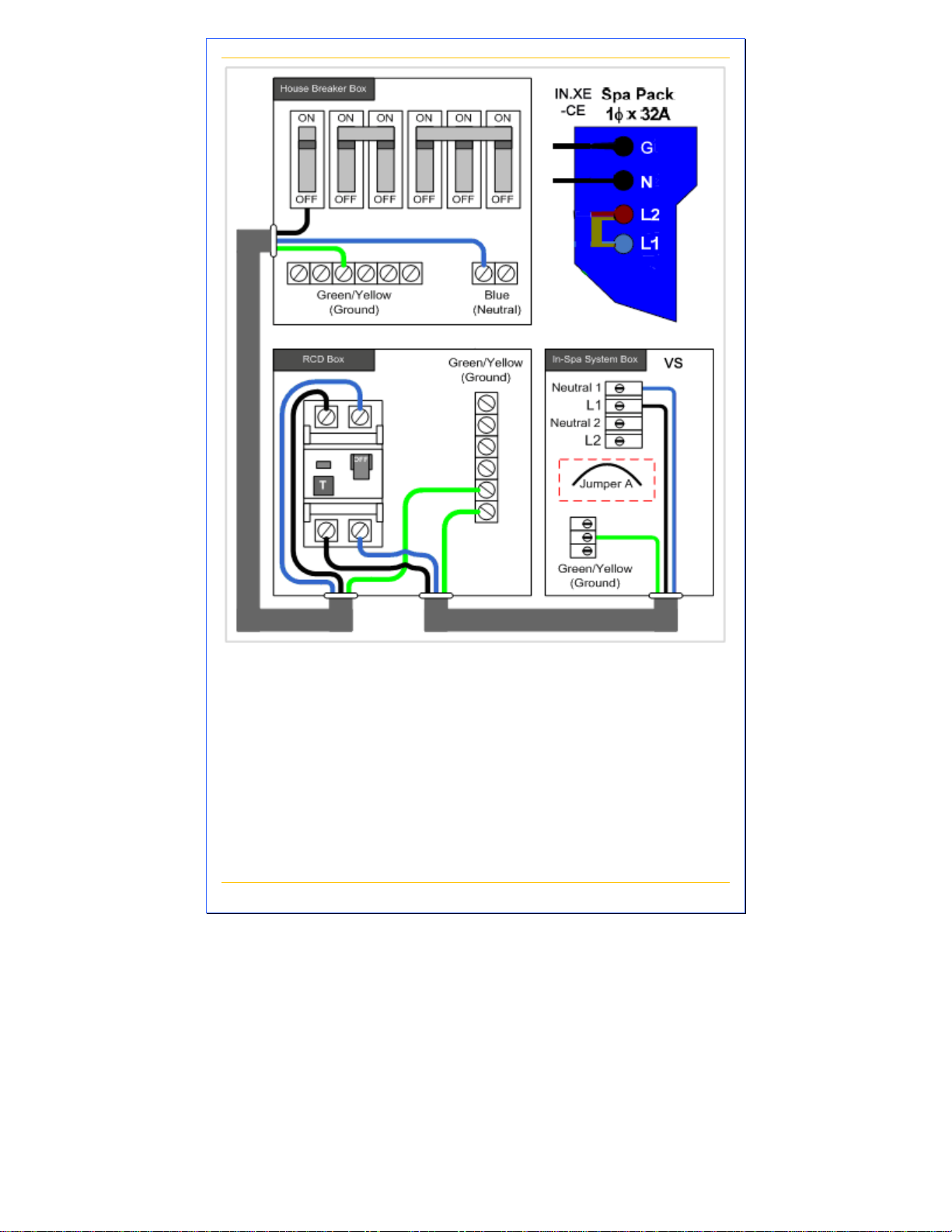

Figure 4 – European 1x32A Wiring Diagram
All wiring is 3x4mm2, solid copper
See wire size chart on page 9.
Note: Make sure that the DIP switches in the hot tub Pack are
properly set for 50Hz operation and Jumper A is in place.

Page 13
For HELP, call 800.304.9684
Figure 5 – European 2x16A Wiring Diagram
All wiring is 5x4mm2, solid copper
See wire size chart on page 9.
Note: Make sure that the DIP switches in the hot tub Pack are
properly set for 50Hz operation and Jumper A is
removed.

Page 14
For HELP, call 800.304.9684
Figure 7 – Domestic Wiring Diagram for LX 8000, LX 9000 and LX
11000 Models Single-phase 240V with VS510SZ Control Pack.
See wire size chart on page 9.

Page 15
For HELP, call 800.304.9684
Figure 8 – Board Diagram for LX 8000, LX 9000 and LX 11000 Models
Single-phase 240V Domestic version
Figure 9 – Panel Button Positions for LX 8000, LX 9000 and LX 11000
Models Single-phase 240V Domestic version
VL 700s

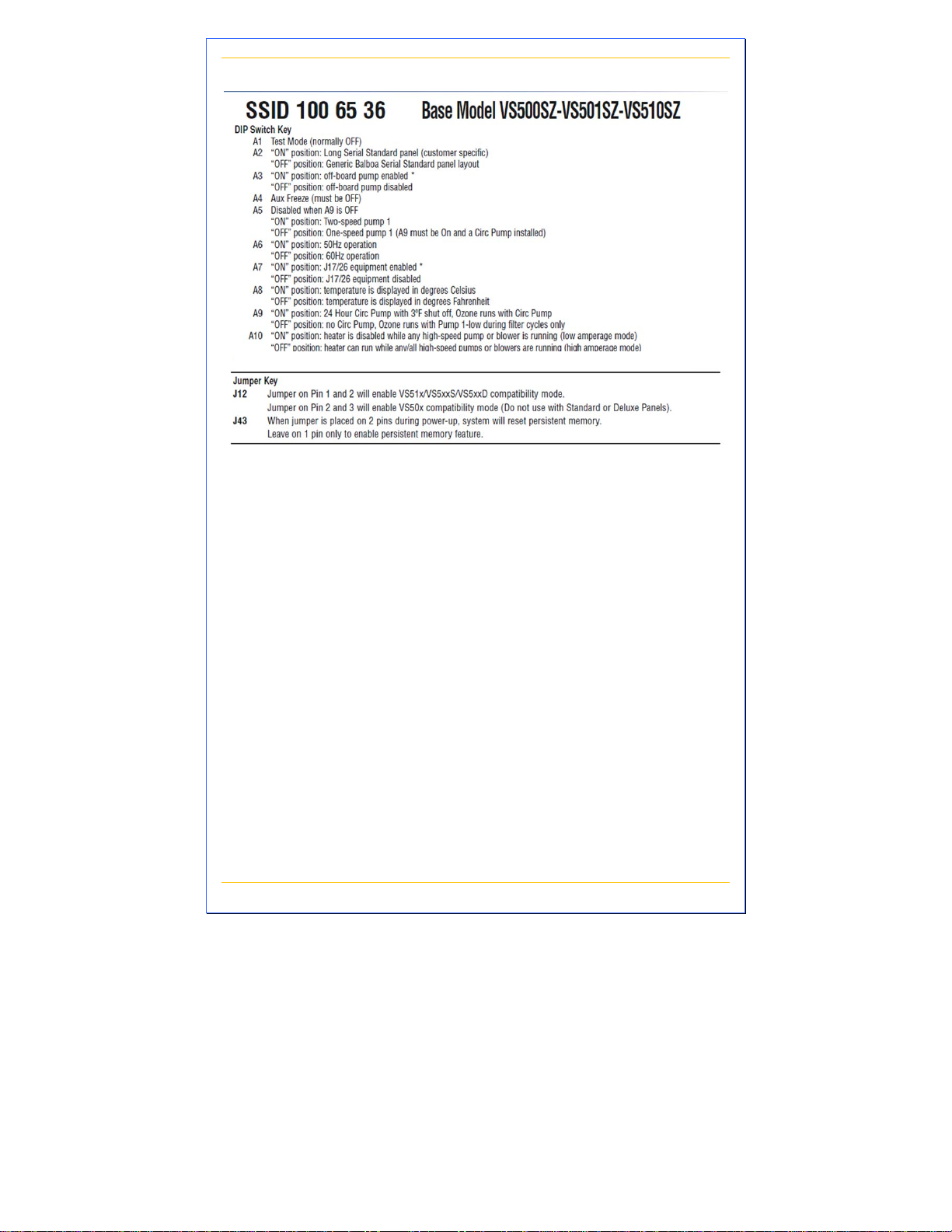

Page 16
For HELP, call 800.304.9684

Page 17
For HELP, call 800.304.9684
Figure 10 – Domestic Wiring Diagram for LX 4000 and LX/DX 5000
Models Single-phase 240V with VS515Z Control Pack.
(See wire size chart on Pg. 9.)

Page 18
For HELP, call 800.304.9684

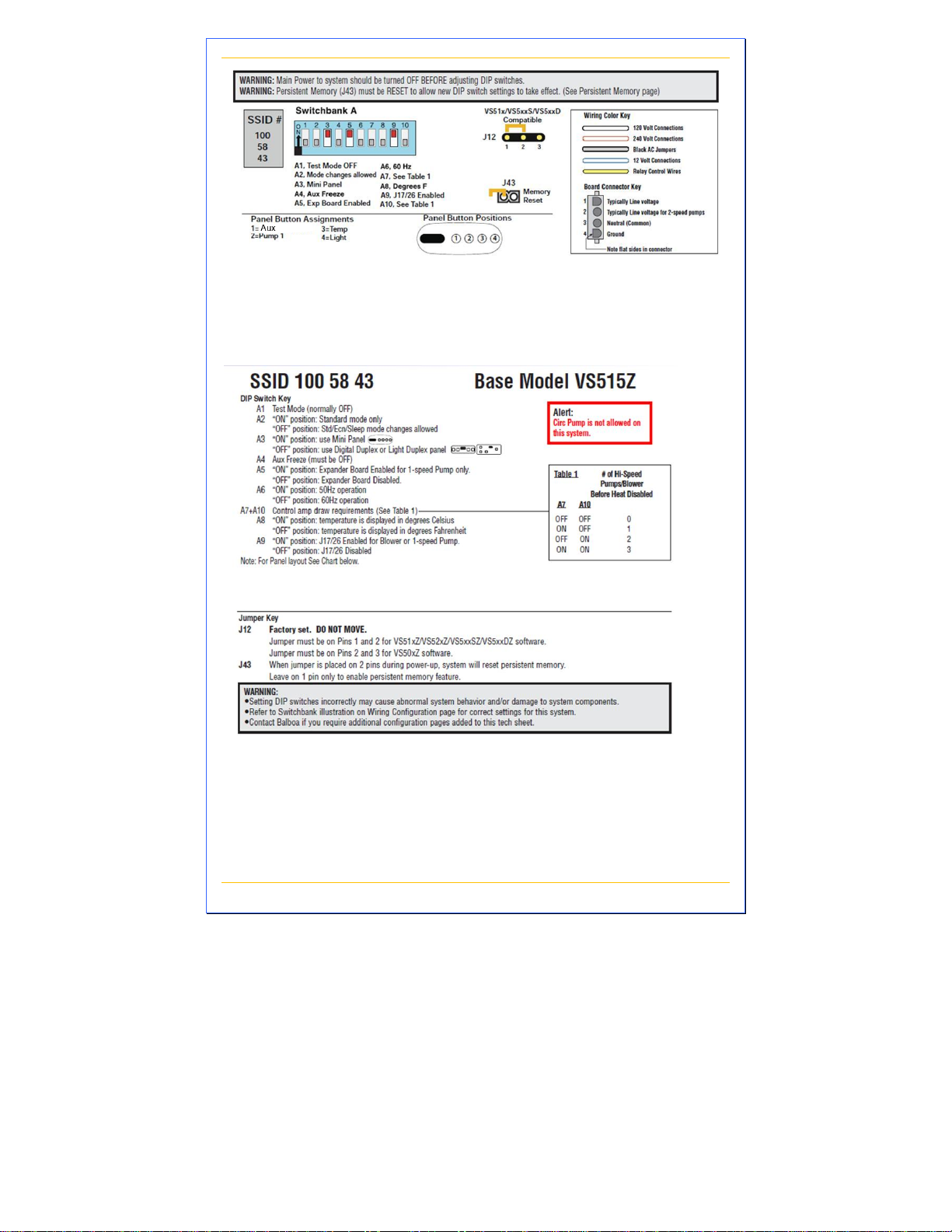

Figure 11 – Board Diagram for LX 4000 and LX/DX 5000 Models
Single-phase 240V Domestic version
