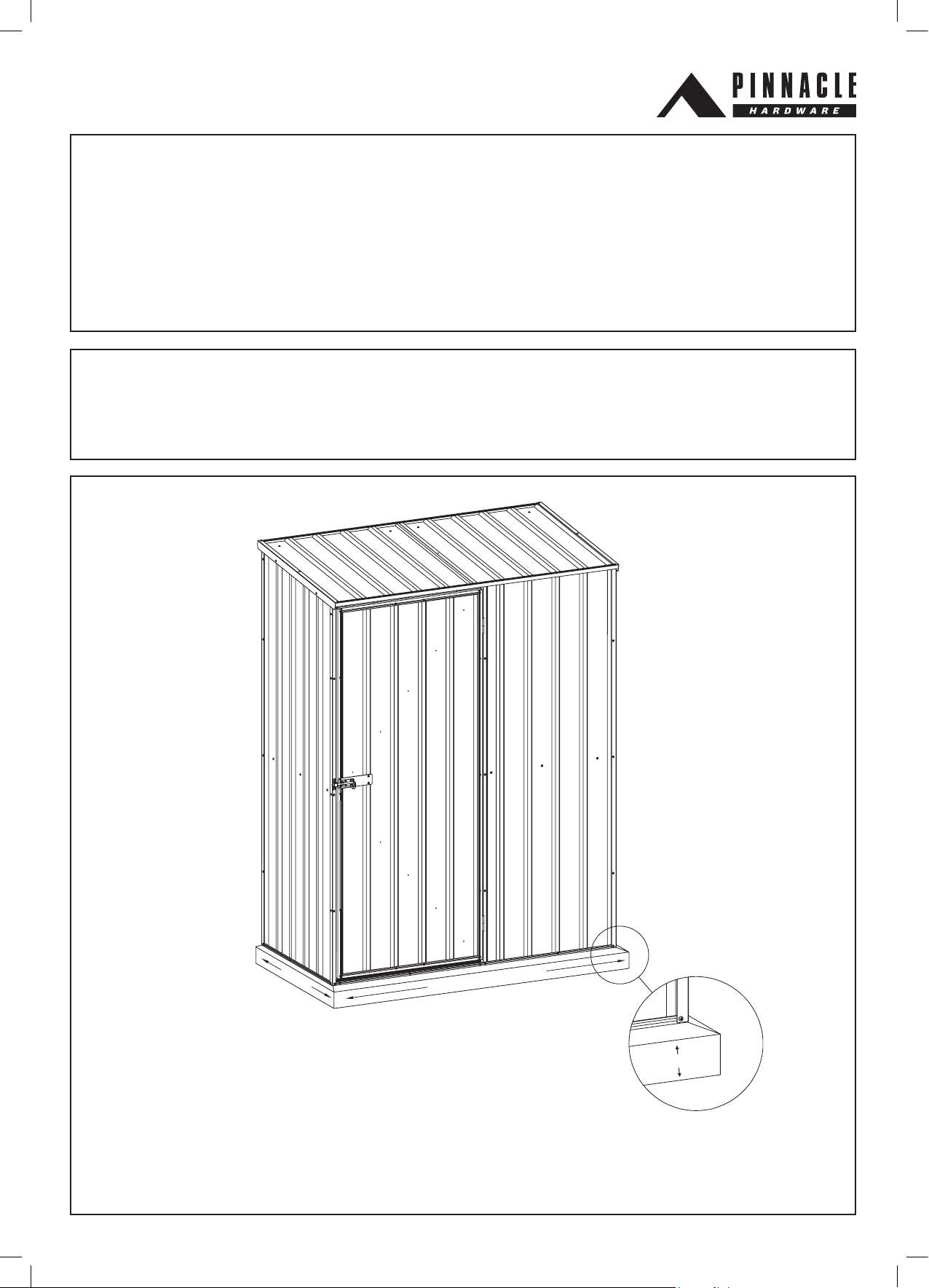

Pinnacle Skillion Series User manual

GARDENSHED
1.51W x 0.77D x 1.9Hm
Tools required: Drill, measuring tape, Phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw horses, 3mm
steel drill bit, 4mm steel drill bit and a 10mm masonry drill bit.
Assembly instructions
Skillion Series
Congratulations on purchasing your new Pinnacle garden shed. Before assembling, we recommend
you read the instructions thoroughly. Your new garden shed comes with pre-drilled holes to make
assembly quicker. We recommend you assemble it using a trestle table or sawhorses and planks.
This will ensure that you are working o the ground and make it easier for you.
Assembly of this shed is a two-person job and should not be attempted in windy conditions.
Check out our
shed building
tips on Youtube!
Australian Customers please contact Pinnacle Hardware on:
Claims Department contact number: 1800 349 776
Claims Department email: [email protected]
New Zealand Customers contact Harco (Harkness & Young) on:
Claims Department contact number: 09 276 4071
Claims Department email: [email protected]
AU: 1800 349 776
NZ: 09 276 4071
www.pinnacle.net.au

GARDENSHED1.51W x 0.77D x 1.9Hm
2

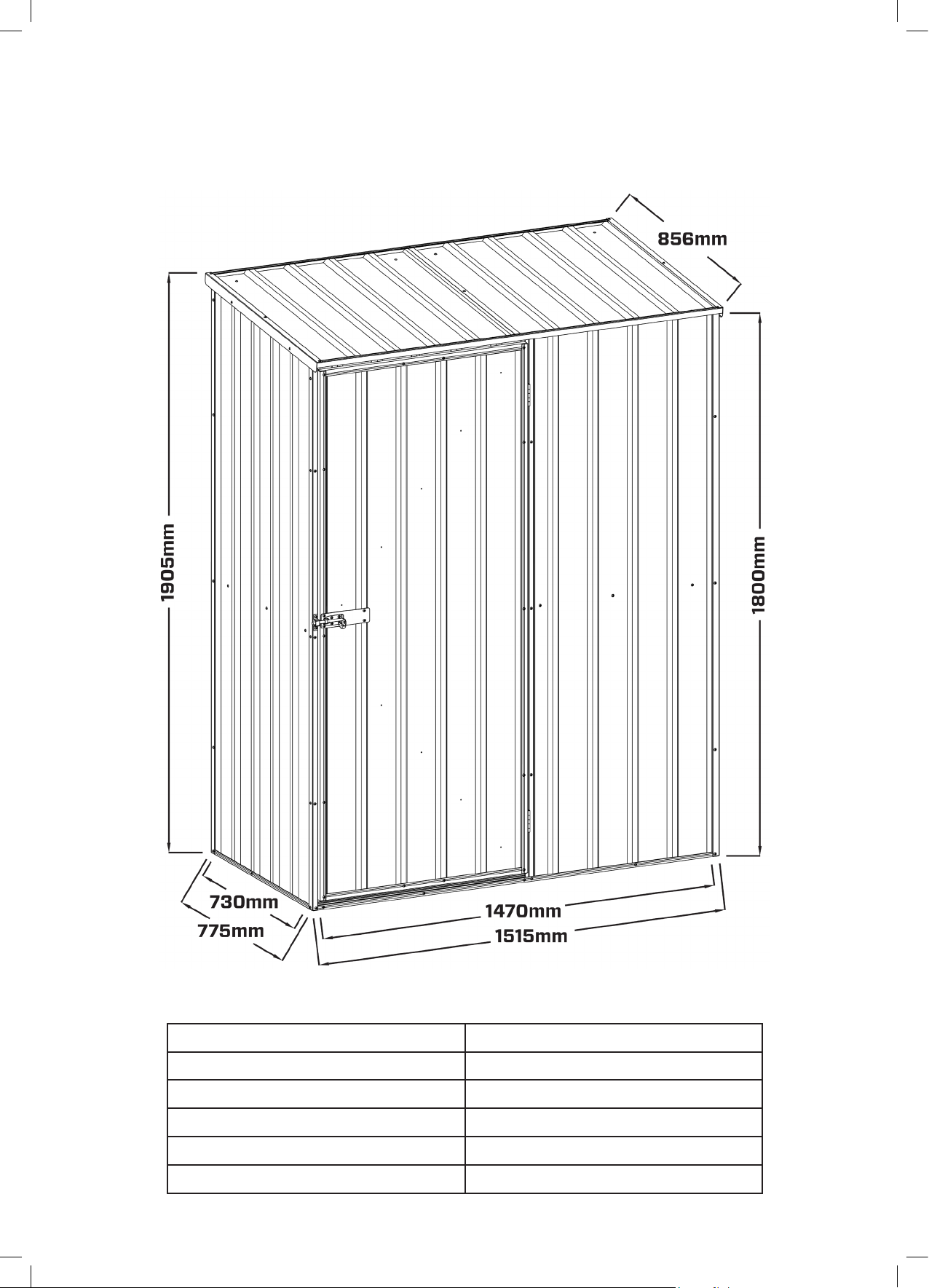

Outer base dimensions 1515 x 775 mm
Inner base dimensions 1470 x 730 mm
Wall height 1800 mm
Peak height 1905 mm
Roof width 856 mm
Door opening dimensions 1740 x 746 mm
Dimension overview:

Build your garden shed in 7 easy steps!
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the roof panels
Step 5: Assemble the front wall panel
Step 6: Assemble the front door
Step 7: Fit the panels together
Concrete slab: Please ensure that your site is level. It is recommended that your slab is
100mm thick and you use builder’s plastic and F52 reinforcing mesh. We recommend that
you make your slab 100mm bigger than the base dimensions of your garden shed. This will
allow for a 50mm edge around your garden shed. We recommend that you slope the 50mm
edges downward by 10mm so that rainwater can drain away from your garden shed.
WARNING: If you require a cyclonic kit for this shed please note, you will need to assemble the kit and shed together.
Warning: Do not assemble this shed on a windy day.
Warning: This shed must be fully assembled and anchored to a concrete slab using the supplied bolt down kit in one session/
day. The shed must not be left partly assembled.
Assembly recommendations: We recommend a minimum of two people are needed to assemble this shed.
CONCRETE SLAB:
100mm
1615mm
875mm

GARDENSHED1.51W x 0.77D x 1.9Hm
4
Picture Description Component Location Part
No. QTY Check
Sheet Sheet 1880x770mm Rear wall S83 2
Sheet Sheet 1800-1880x770mm
(right) Side wall S84 1
Sheet Sheet 1800-1880x770mm
(left) Side wall S85 1
Sheet Sheet 855x770mm Roof 3 2
Sheet Sheet 1800x708mm Front S86 1
Door Sheet Sheet 1745x770mm Door D18R 1
Channel Channel 1743mm Door M24 1
Channel Channel 1743mm Door M25 1
Channel Channel 768mm Door M26 2
Brace Brace 998mm Door U11 2
Channel Channel 1508mm Roof 20A 2
Channel Channel 1508mm Rear wall 20B 1
Step 1: Check all parts against the component list
Lay out all parts with number facing outwards and check o against parts list.

Picture Description Component Location Part
No. QTY Check
Channel Channel 1508mm Rear wall 20C 1
Channel Channel 1508mm Front 20D 1
Channel Channel 1508mm Front 20E 1
Channel Channel 768mm Side wall 21A 2
Channel Channel 768mm Side wall 21B 2
Channel Channel 775mm Front 23 1
Channel Channel 1458mm Rear wall 31 1
Channel Channel 718mm Side wall 32 2
Channel Channel 674mm Front 33R 1
Jamb Jamb 1798mm Front J3 1
Jamb Jamb 1798mm Front J5 1
Jamb Jamb 775mm Front 42 1
Brace Corner brace Corner Z37 1

GARDENSHED1.51W x 0.77D x 1.9Hm
6
Fittings part list:
Picture Component QTY Picture Component QTY
Self-tapping screws (10mm) 130 Self-tapping screws (16mm) 20
4 x 10mm Rivet 12 3 x 10mm Rivet 40
Pad bolt (Part 70) 1 Keeper (Part 71) 1
Bracket 8 5/16” x 19mm Hexagonal bolt 8
5/16” Hexagonal Nut 8 Mid wall brace bracket
(Part 72) 3
Self tapper safety cover 25 Channel safety cover
(L type) 1
Picture Description Component Location Part
No. QTY Check
Brace Corner brace Corner Z38 1
Brace Corner brace Corner Z39 1
Brace Corner brace Corner Z40 1
Lip Lip 856mm Roof 50 2
Brace Joining brace Door W 1

7

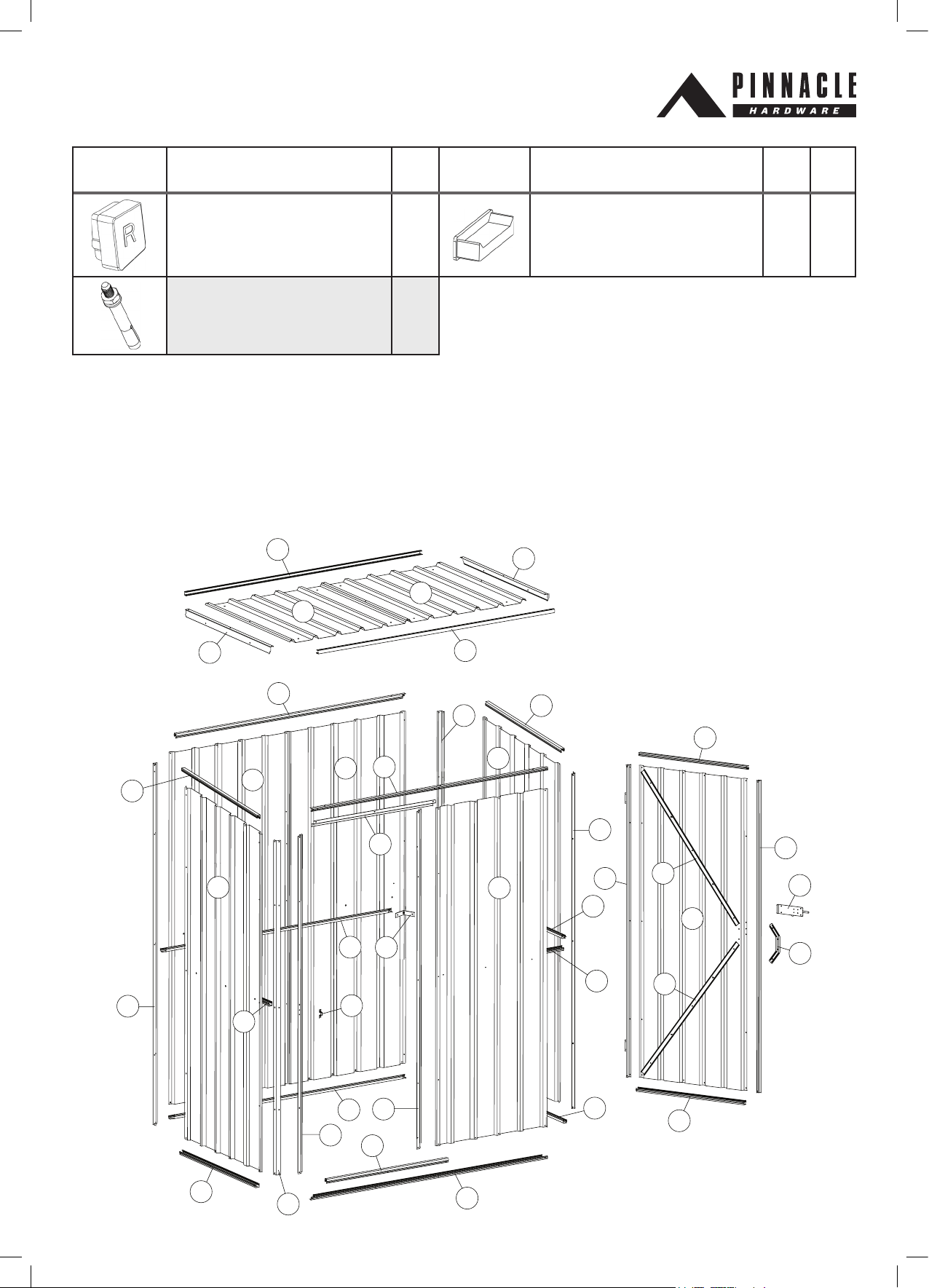

Garden shed overview:
Qty checking date: ____ / ____ / _____
Qty checking personal badge number: _______________
Signature: _________________________________________
In the unlikely event that you nd you are missing a part, Australian customers please contact Pinnacle on 1800 349 776. New Zealand
customers please contact Harco (Harkness & Young Ltd) on: 09 276 4071. A copy of proof of purchase may be requested.
71
3
3
20A
20B
20C
20D
20E
50
21A
42
J5
23
21B
21B
32
32
31
33R
20A
21A
50
72
Z37
Z38
Z39
Z40
S83
S83
S84
S85 S86
M25
M24
M26
M26
W
70
D18R
U11
U11
J3
Picture Component QTY Picture Component QTY
Channel safety cover
(R type) 1 Plastic stopper 4
Sleeve anchor bolt 8

GARDENSHED1.51W x 0.77D x 1.9Hm
8

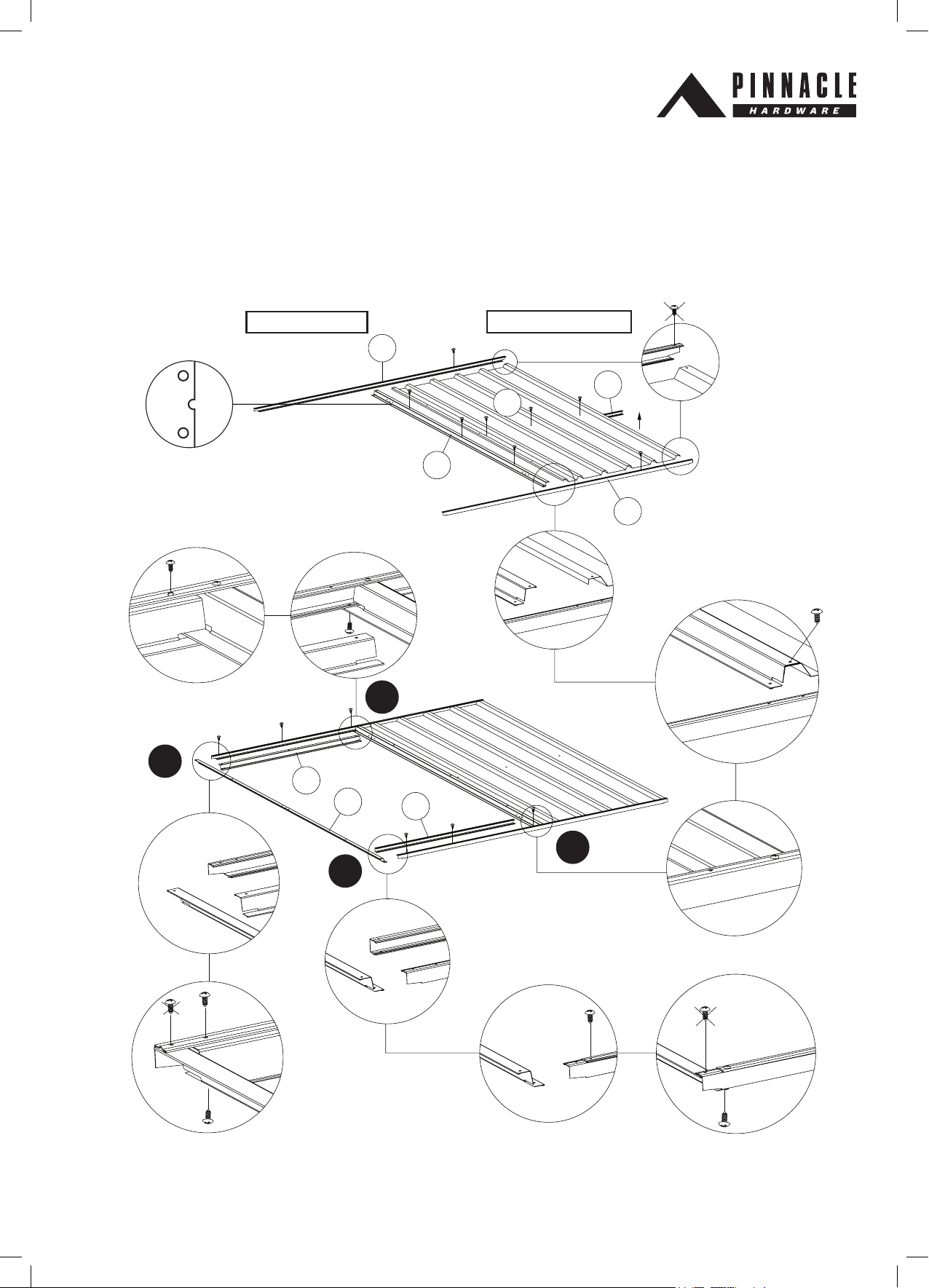

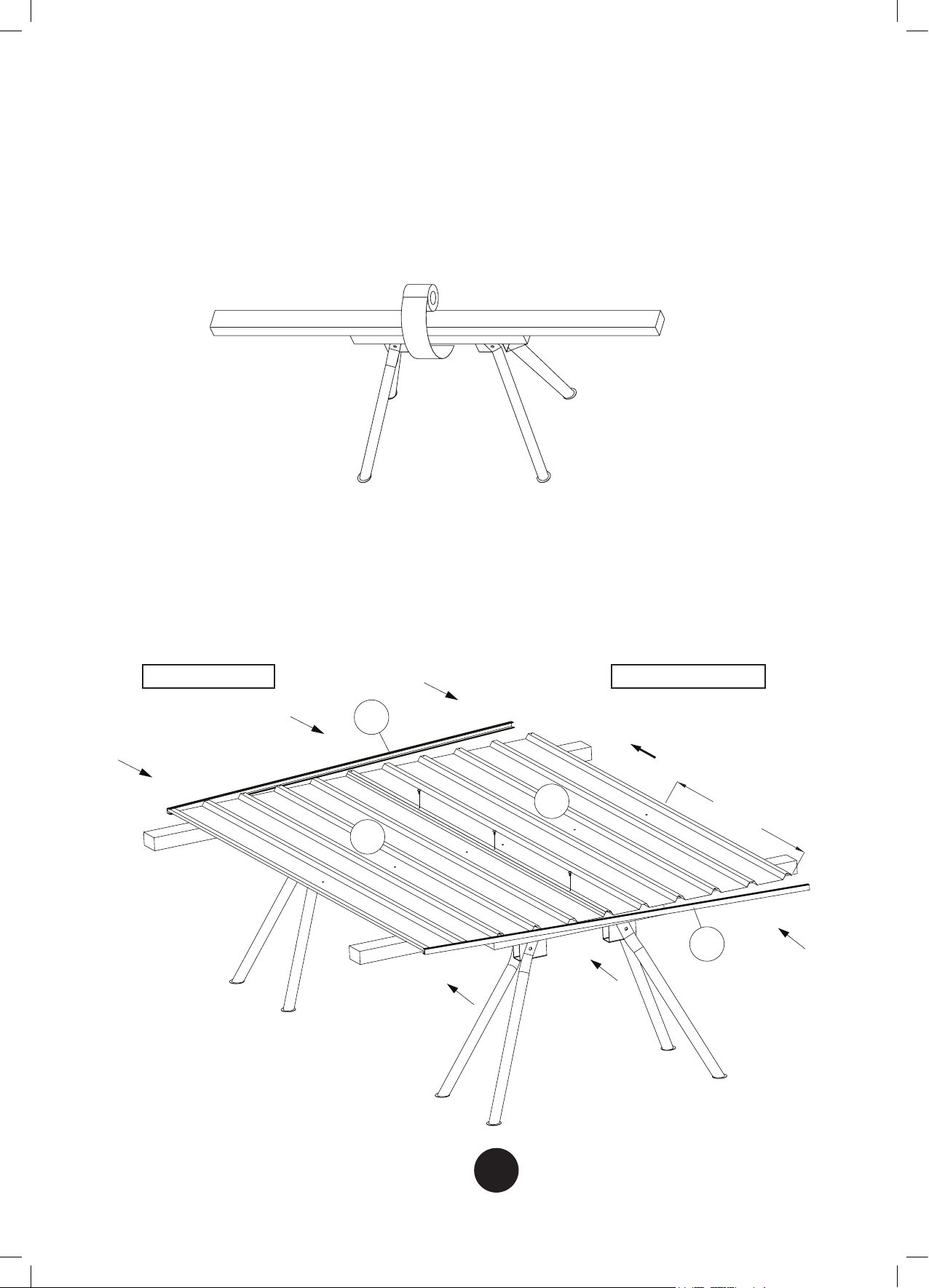

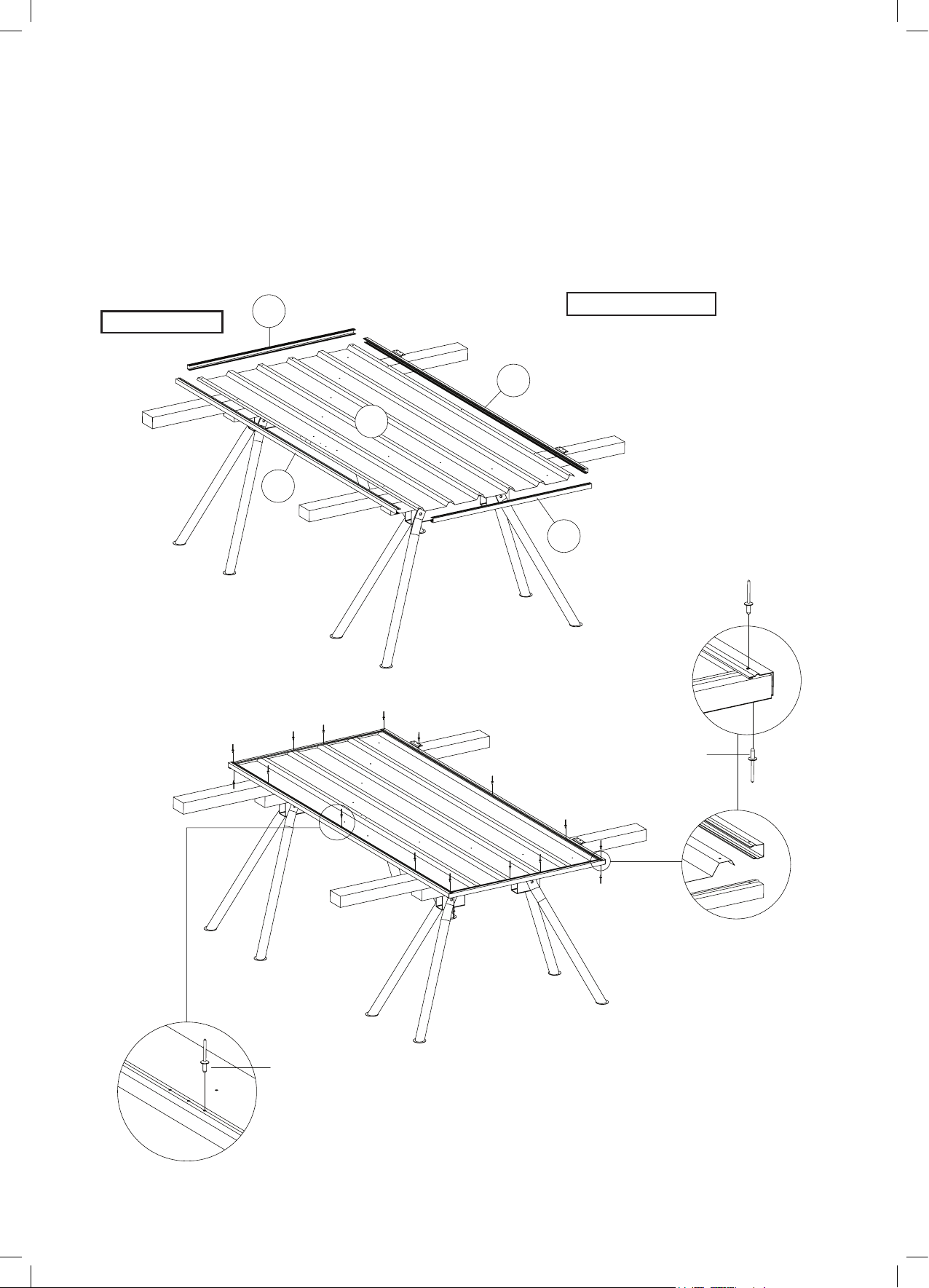

Step 2: Assemble the rear wall panels
You will nd it easier to assemble your shed using sawhorses with timber studs attached (timber needs to be the same length as the
shed (1.5m) or alternatively, a trestle table.
Place 2 x part S83 (Sheet) on your worktable and join them together with the self-tapping screws as per diagram below.
Now t part 20B (top channel) and 20C (bottom channel) to the sheeting by tapping it in (diagram A) or sliding it in (diagram B). Make
sure that the small lip of the channel is always facing out. This ensures rain water cannot build up inside your shed.
A
RIDGES FACING UP
A
ROOF TOP EDGE
S83
20C
20B
900mm
S83

9
Step 2: Assemble the rear wall panels (continued)
Now t part 31 (mid wall channel) to the sheeting and position it with the provided self-tapping screws. Please note the groove should face
downwards. Position the top and bottom channels with self-tapping screws as well. NOTE: All screws marked with a cross should not be
xed at this stage.
TIP: If panel and screw holes do not line up, try pulling panel to match up holes.
RIDGES FACING UP
B
ROOF TOP EDGE
S83
20C
20B
900mm
S83
RIDGES FACING UP
RIDGES FACING DOWN
ROOF TOP EDGE
20C
20B
31
31

GARDENSHED1.51W x 0.77D x 1.9Hm
10
Step 3: Assemble the side wall panels
Place part S84 (sheet) on your worktable and tap or slide in part 21A (top channel) and part 21B (bottom channel). Position and x
part 32 (mid wall channel) using the self-tapping screws ensuring this channel is facing down before xing. Fix part 21B (bottom
channel) with self-tapping screws but not part 21A (top channel) at this stage. Make sure the small lip of the channels is always facing
out. This ensures rain water cannot build up inside your shed. Repeat the same steps for part S85 (the other sidewall). NOTE: All
screws marked with a cross should not be xed at this stage.
ROOF TOP EDGE
RIDGES FACING UP
21B
21A
S84
32

11

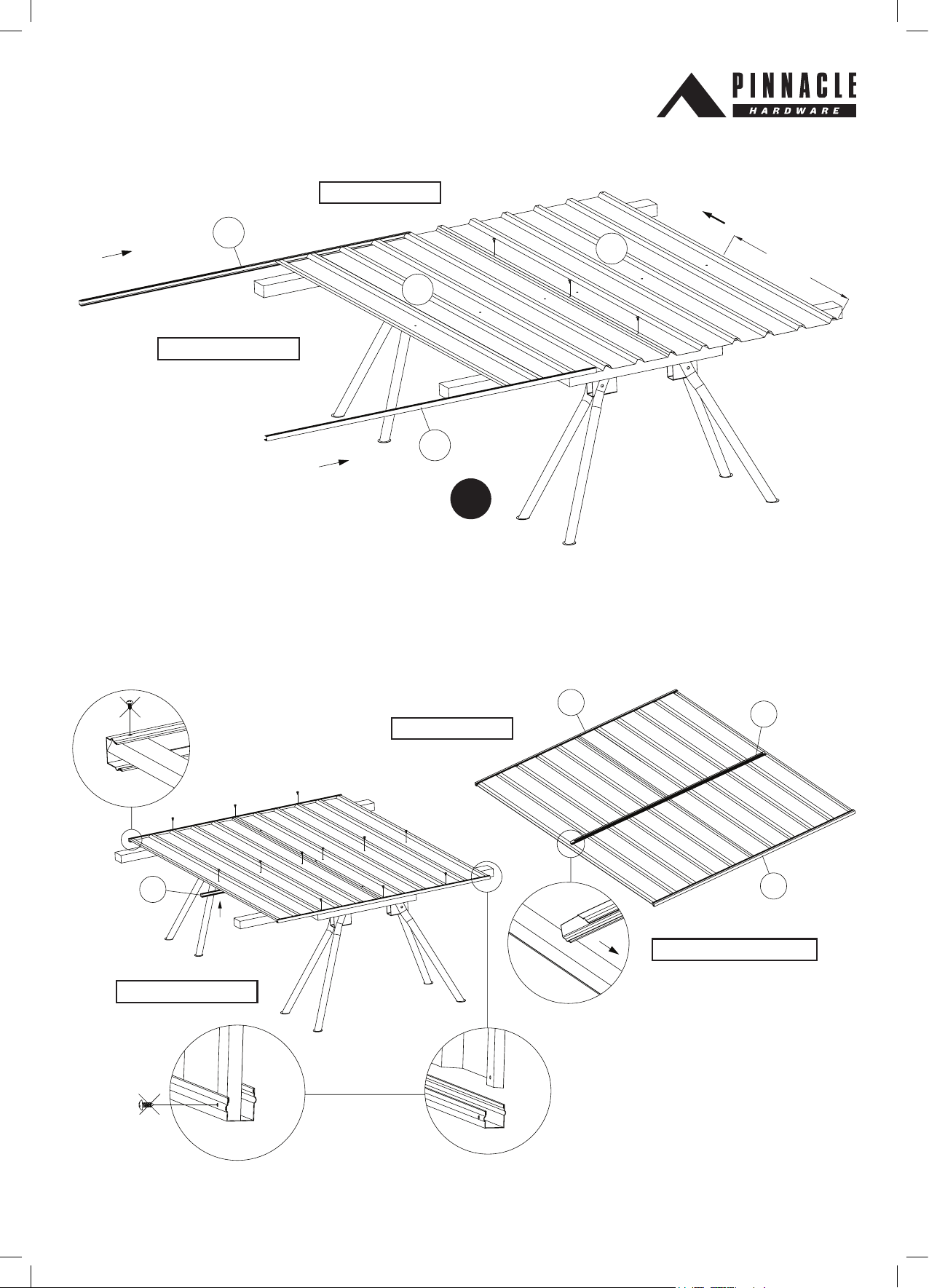

Step 4: Assemble the roof panel
Place 2 x part 3 (sheet) on your worktable and join together with the self-tapping screws as per the diagram below.
Now tap or slide 2 x part 20A (channels) onto the sheeting and x them to the top and bottom with self-tapping screws. Make sure
that the small lips on channels 20A are always facing out. This ensures rainwater cannot build up inside your shed.
3
3
20A
20A
50
50

GARDENSHED1.51W x 0.77D x 1.9Hm
12

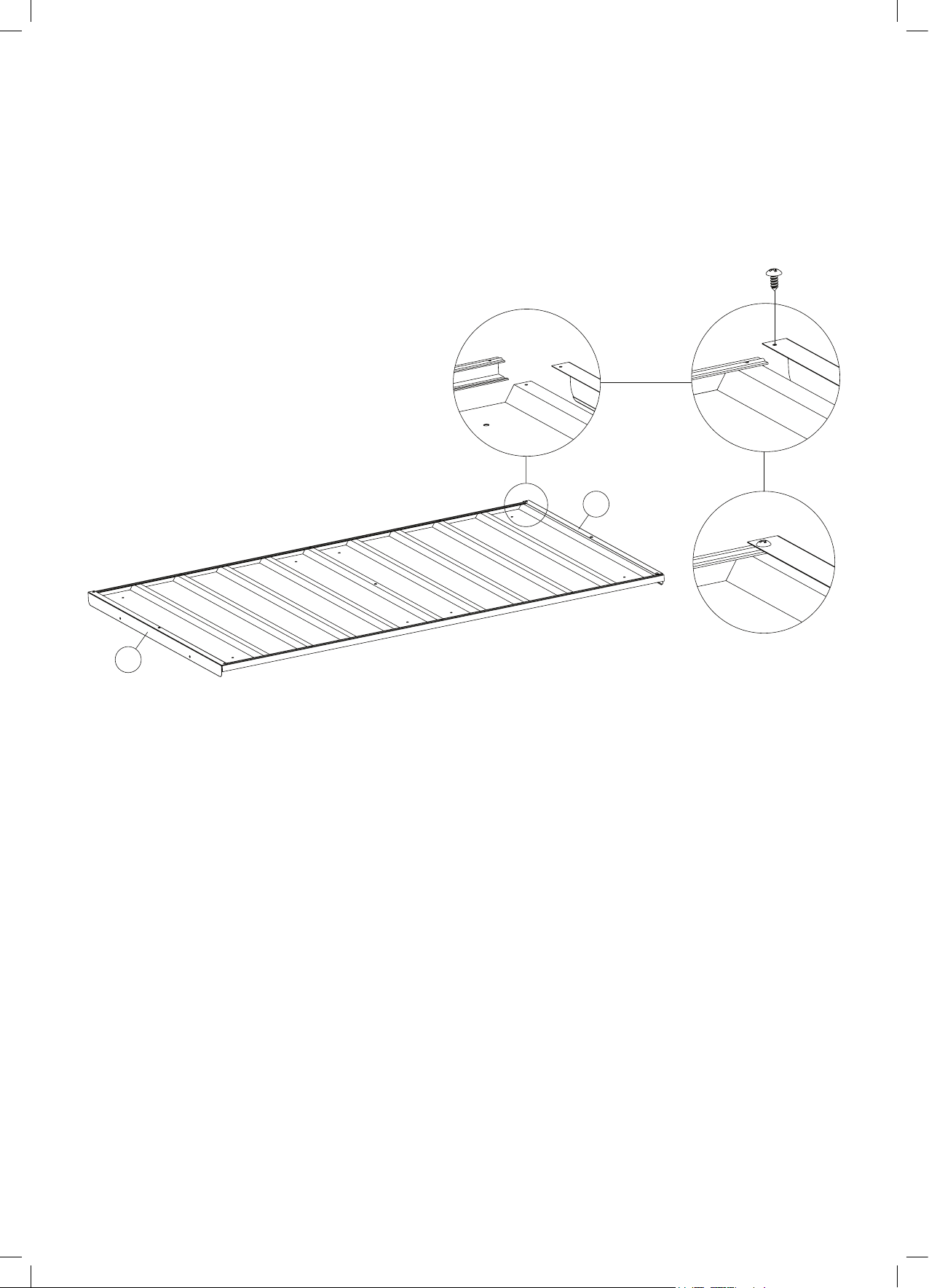

Step 4: Assemble the roof panel (continued)
Now t 2 x part 50 (side lips) to the sheeting and x them with self-tapping screws.
50
50

13
Step 5: Assemble the front wall panels
Place part S86 (sheet) on the worktable. Fit part 20D (top channel), part 20E (bottom channel), part J3 (jamb) (There are pre-drilled
holes for the next step on both parts S86 and J3 that must be aligned) and part 33R (mid wall channel) to the sheeting and x them
with self-tapping screws - except those marked with a cross. NOTE: Groove on mid-wall channel should be facing down when xed.
Make sure that the small lips on channels 20D and 20E are always facing out. This ensures rainwater cannot build up inside your shed.
Fit part J5 (jamb), part 42 (jamb) and part 23 (bottom channel) and x them with self-tapping screws - except those marked with a
cross. Make sure both joins (diagrams A and B) are xed the same followed by diagrams C and D.
B
C
D
A
RIDGES FACING UP
ROOF TOP EDGE
Note: Holes drilled in the edge of
this sheet are not a defect. They
are there to allow the door hinge
rivets clearance through this sheet.
42
20D
20E
J3
S86
J5
33R
23

GARDENSHED1.51W x 0.77D x 1.9Hm
14
Step 6: Assemble the front door
Place part D18R (door sheet) on the worktable. Fit 2 x part M26, part M24 and part M25 (channels) to the door with the provided
3.0 x 10mm rivets. Make sure that the small lips on channels M26 are always facing out. This ensures rainwater cannot build up
inside your shed.
RIDGES FACING UP
ROOF TOP EDGE
M26
M26
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS
D18R
M24
M25

15

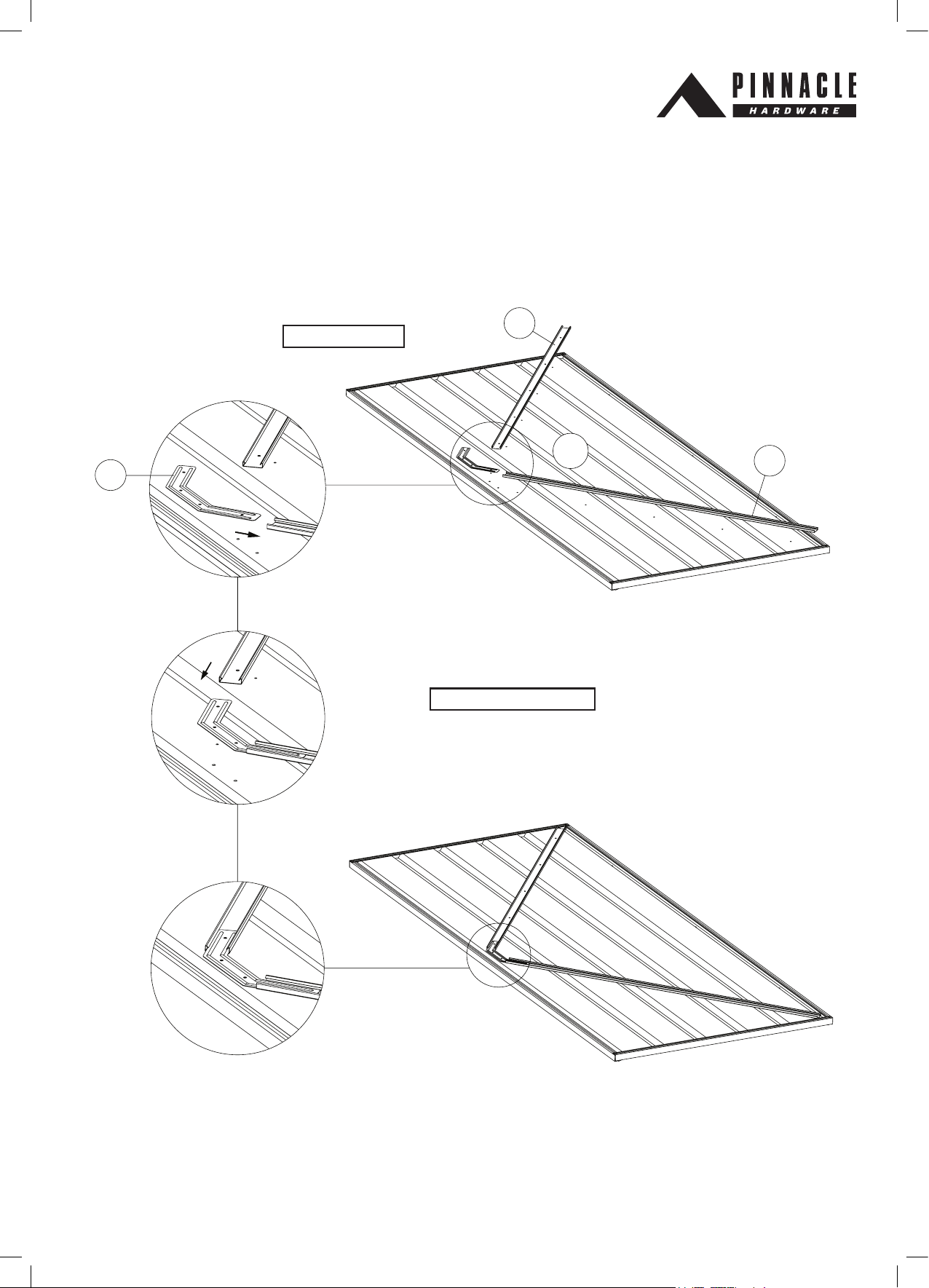

Step 6: Assemble the front door (continued)
Once channels are tted to both doors, align 2 x part U11 (brace) and part W (joining brace) with holes on the back of the door and
position temporarily with some tape or simply hold in place.
RIDGES FACING DOWN
ROOF TOP EDGE
D18R
W
BACK
U11
U11
BACK

GARDENSHED1.51W x 0.77D x 1.9Hm
16

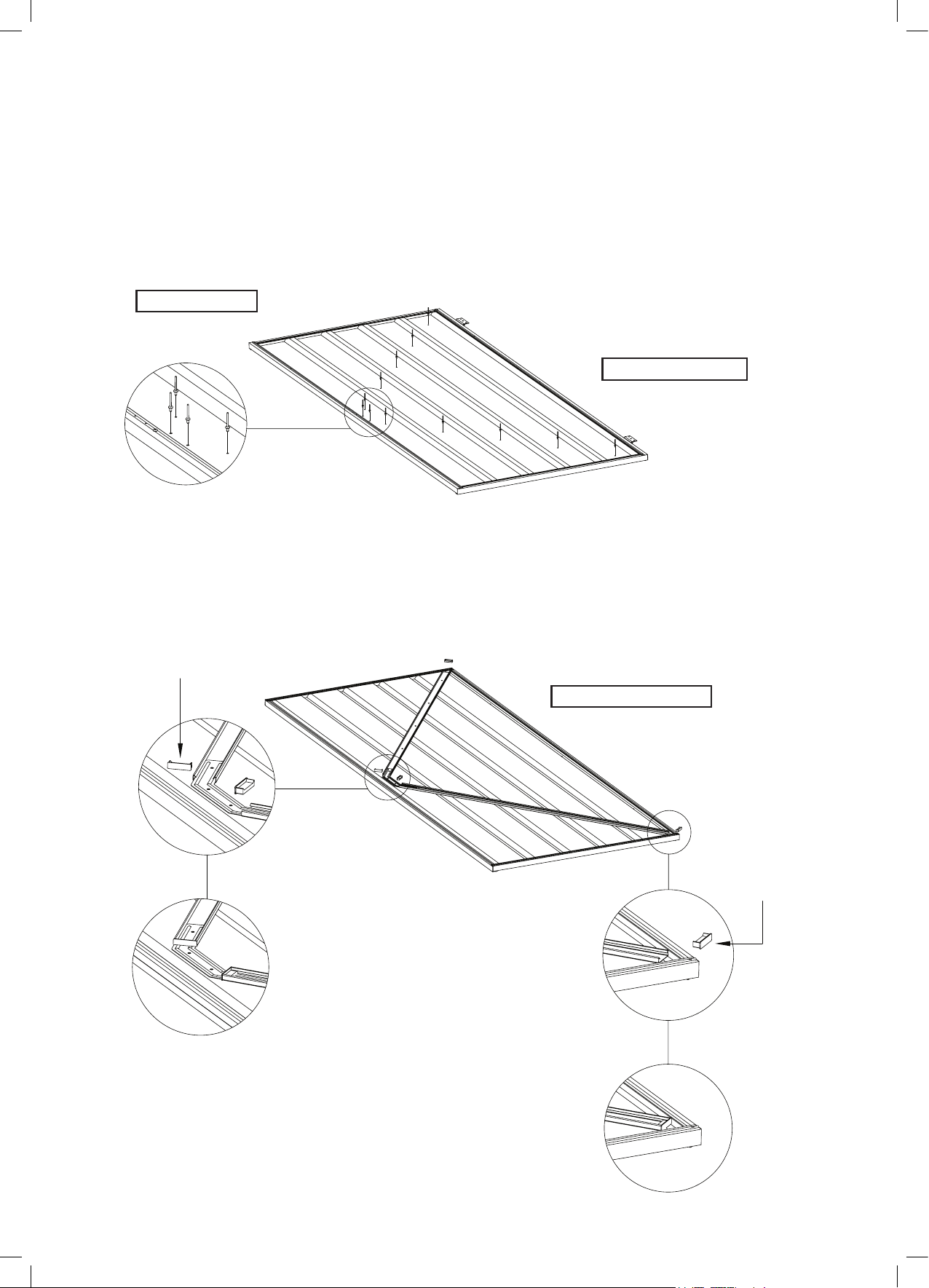

Step 6: Assemble the front door (continued)
Turn door over with bracing aligned with holes (make sure the ridges of the door are facing up) and x the bracing with the provided
3.0 x 10mm rivets through the front of the panel. Then turn door over and insert plastic stoppers at the ends of braces as shown
below. NOTE: When xing the bracing to door ensure you are riveting through the front panel as shown in the diagram below.
RIDGES FACING DOWN
RIDGES FACING UP
ROOF TOP EDGE
WHITE PLASTIC
STOPPER
WHITE PLASTIC STOPPER
FIX WITH 3.0MM RIVETS

17
Step 6: Assemble the front door (continued)
Fit part D18R (assembled door) to the front wall panel as per the diagram below. Use rivet gun to x the door using the pre-drilled
holes. Fix the pad bolt (but NOT its keeper at this stage) using the pre-drilled holes with the self-tapping screws (or rivets) provided.
AB
RIDGES FACING UP
ABFIX PAD BOLT WITH
3.0 X 10MM RIVETS
FIX DOOR HINGE WITH
4.0 X 10MM RIVETS
ROOF TOP EDGE
D18R
70
70

GARDENSHED1.51W x 0.77D x 1.9Hm
18

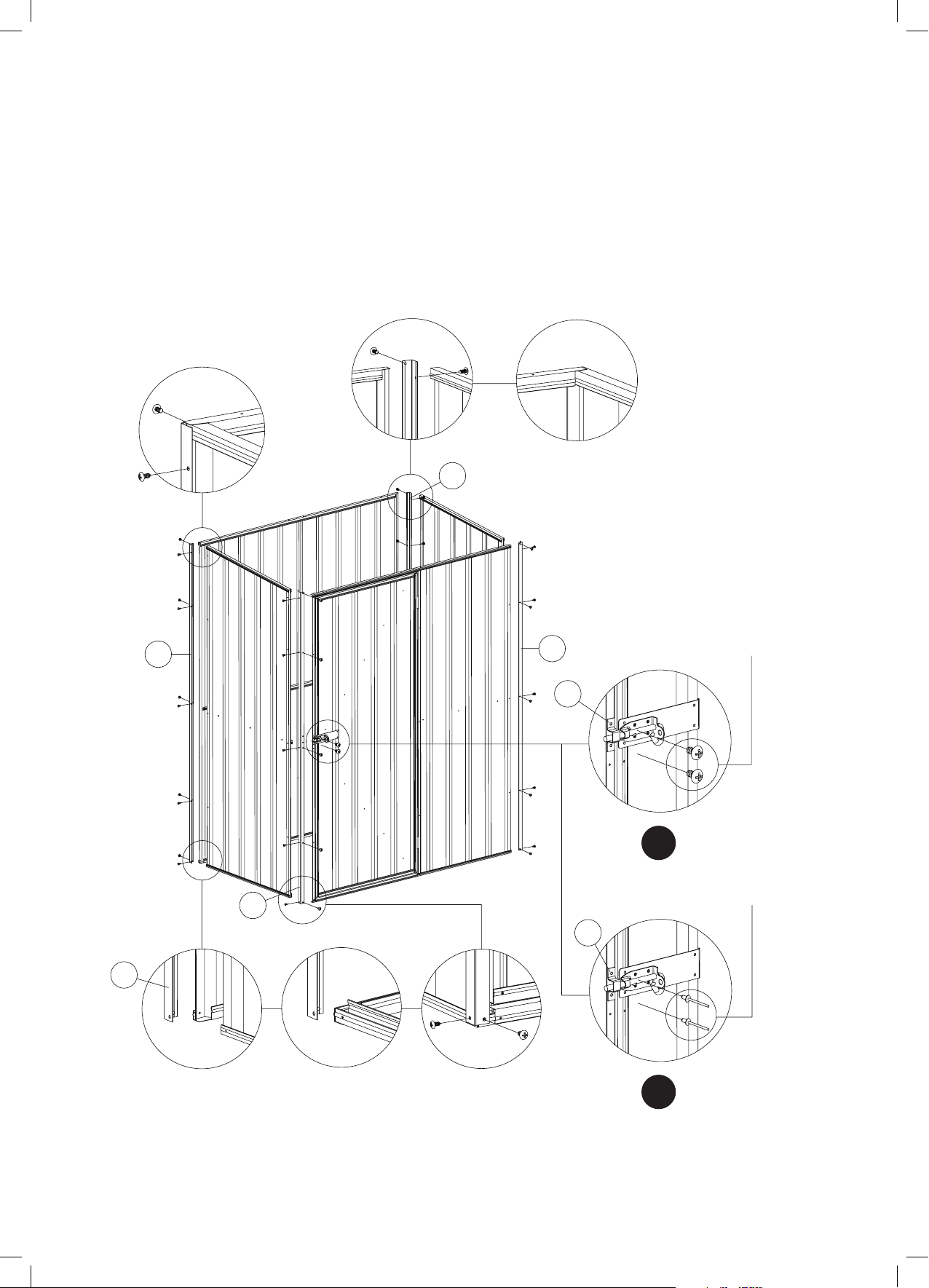

Step 7: Fit the panels together
Attach the two side walls to the back wall, then x the front wall followed by the roof. Fix all of these components together using
the provided self-tapping screws. Fix the pad bolt keeper with the provided 16mm self-tapping screws (diagram A) or using rivets
(diagram B) at this stage as well. Also attach parts Z37, Z38, Z39 and Z40 (corner brace) to each corner using the self-tapping screws
(diagram A) or using rivets (diagram B) provided.
A
B
A
B
71
FIX PADBOLT KEEPER
WITH 16mm SCREWS
FIX PADBOLT KEEPER
WITH 3.0 x 10MM RIVETS
71
Z37
Z38
Z39
Z40
Z37

19

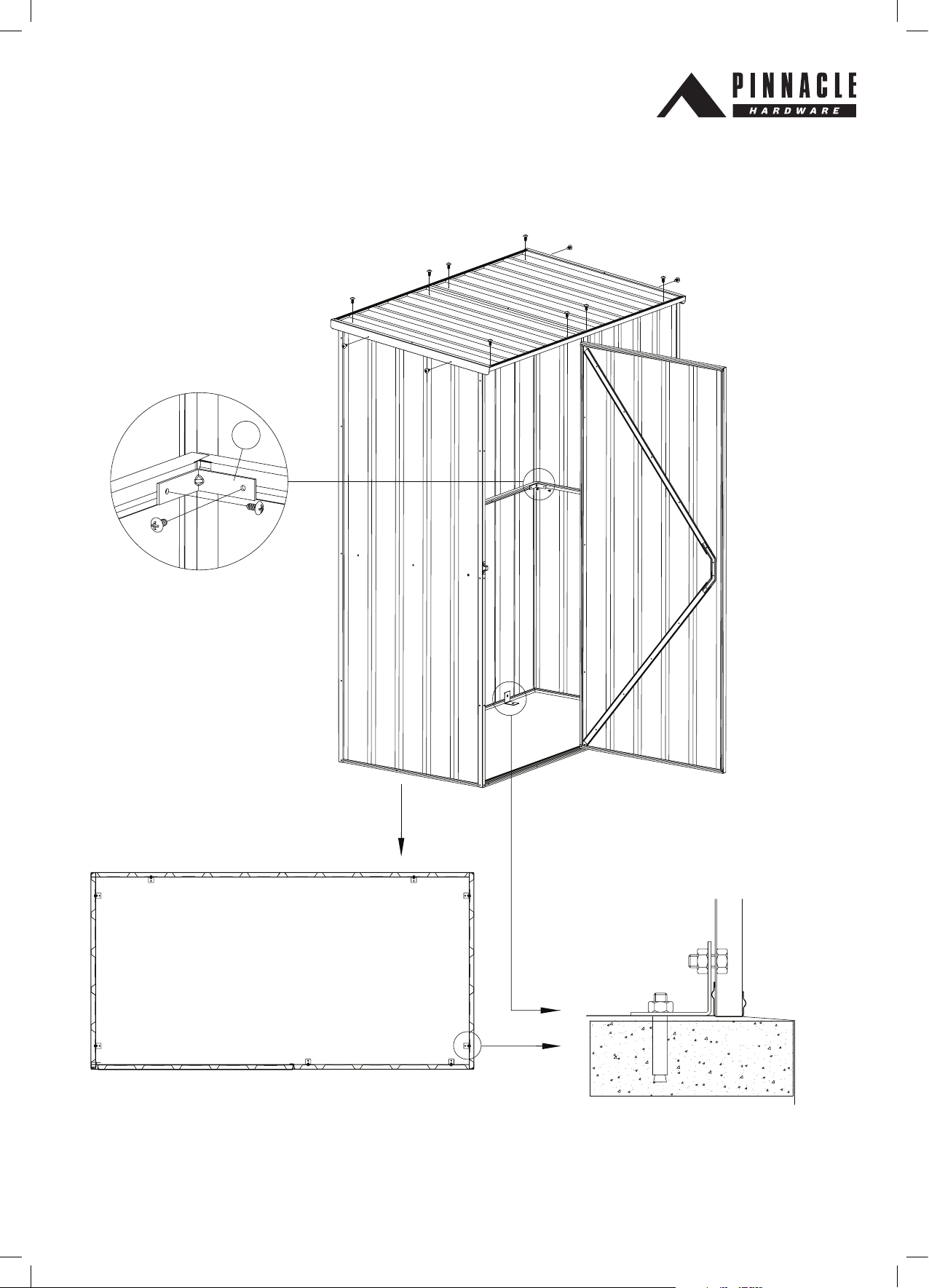

Step 7: Fit the panels together (continued)
Now t the bolt down kit as per the diagram below. Strengthen the mid wall braces by applying part 72 (mid wall brace bracket) on
each corner if necessary.
72
DOOR
SLEEVE ANCHOR
BOLT
STEEL ANGLE
SLAB
BOLT & NUT WALL SHEET

GARDENSHED1.51W x 0.77D x 1.9Hm
20

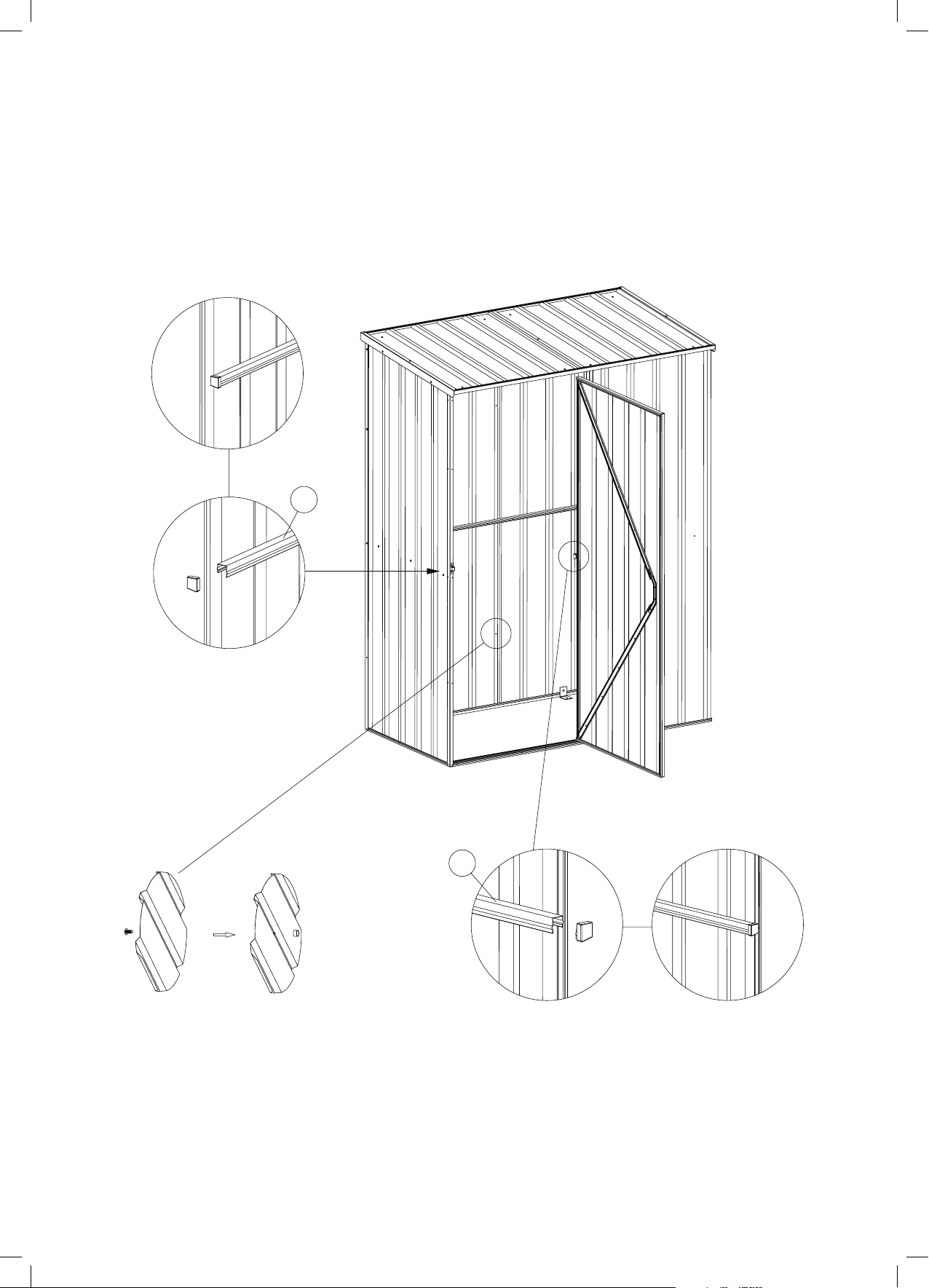

Step 7: Fit the panels together (continued)
For safety apply channel safety cover (L type) to part 32 (channel) and channel safety cover (R type) to 33R (channel). Also apply the
self-tapper covers to screw ends visible in the walls on the inside of the shed as per the diagram below.
32
33R
L
R
