Powered Subwoofer
Owner’s Manual
 2013 PINNACLE LOUDSPEAKERS

We congratulate and thank you for choosing a PINNACLE® subwoofer. Our subwoofers exemplify
the best in modern audio technology, and are designed to produce remarkable amounts of deep bass.
Please read this manual completely to ensure the best possible performance from your Home Theater or
sound system.
ISOLATION CONES:
If your subwoofer comes with Isolation Cones (feet) be sure to install them into the bottom of your
subwoofer cabinet. They are an important part of the performance of the product and will improve the
bass definition. If your subwoofer is bottom vented, you must install the isolation cones for the bottom
vent to operate properly.
With the cabinet on its side, simply screw the cones into their receptacles on the bottom of the
cabinet. Then, with the cabinet upright, adjust the cones individually as needed to level the cabinet.
PLACEMENT:
Recommended Subwoofer Placement:
a) Within a few inches of the room corner closest to your left or right front speaker (maximum low
bass output);
b) Within a few inches of the wall between your left and right front speakers (strong low bass output
with optimal blending to front speakers);
c) Near any other room corner or wall.
Other locations will provide varying degrees of low bass impact and blending with your front
speakers. We recommend listening to your system, with the subwoofer in different room positions, to
obtain a location with an optimum response.
If your subwoofer has a woofer on both the front & rear of the cabinet, be sure to leave at least an
inch between the rear woofer and your wall.
If you must place your subwoofer near baseboard heaters or forced hot air vents try to leave at
least 3” of clearance for proper ventilation. Do not place your subwoofer outdoors, or in any wet or
excessively damp environment.
Note: If you have an older, non-flat screen TV, please place your subwoofer far enough away from
your TV (approximately 2-3 feet) to avoid any color distortion caused by the subwoofer’s powerful
magnet(s). If you experience picture distortion, simply move the subwoofer away from the TV until the
picture becomes distortion free.
We also recommend keeping magnetic media such as audio/videotapes and computer disks at
least 2-3 feet away from your subwoofer to prevent damaging them.

CONNECTIONS:
Complete all wire connections in your Home Theater / sound system before plugging in your
subwoofer or turning on your receiver (amplifier).

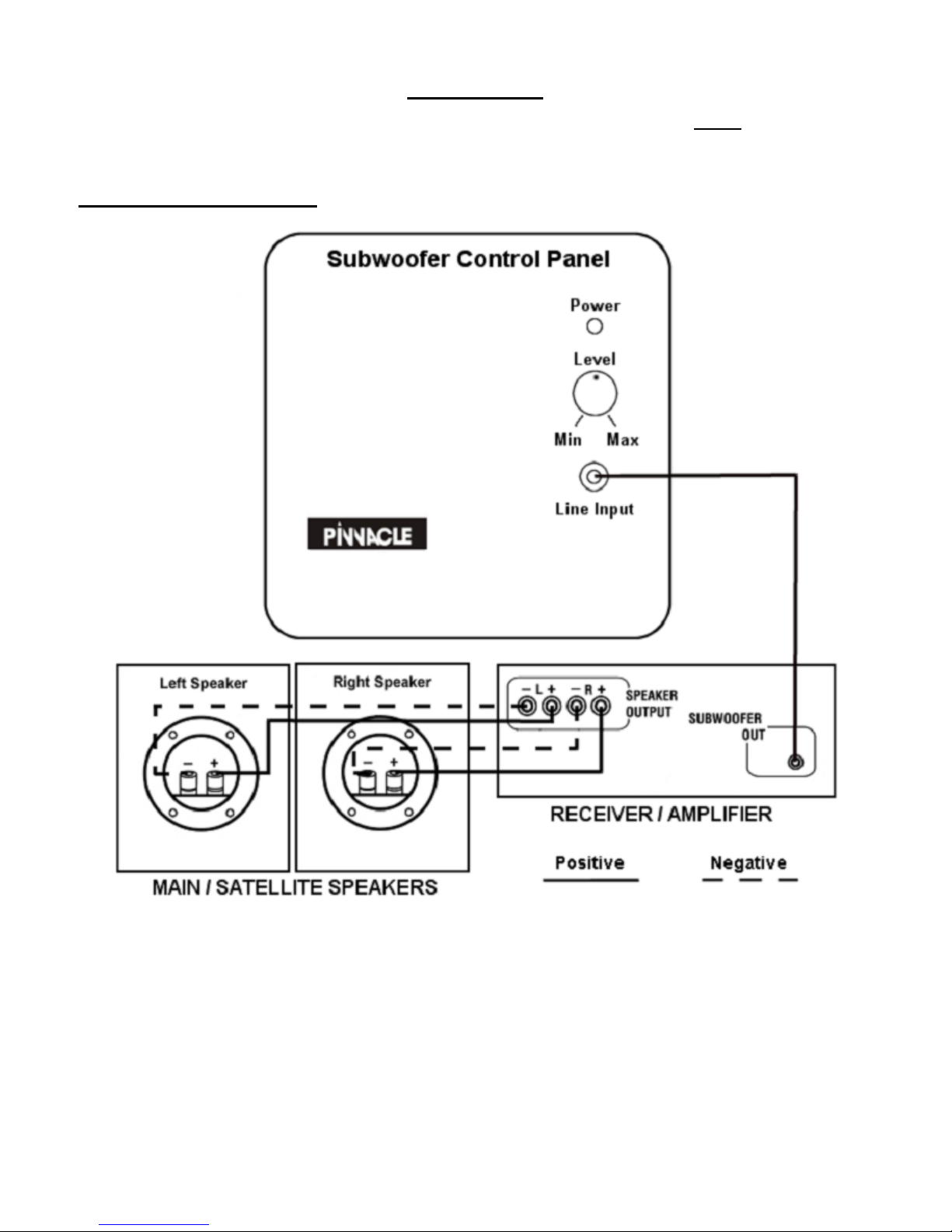

Connecting Your Subwoofer:
To connect your subwoofer your receiver must have a dedicated "subwoofer output" jack
(sometimes called Sub Out, Low Pass or LFE). Simply connect your subwoofer using a standard RCA
cable (the same kind of audio cable used to connect a CD player or tape deck, etc.) from your receiver’s
subwoofer output to the input on the subwoofer. Then, wire your left and right front speakers (and any
others) directly to your receiver’s speaker outputs. Please refer to the wiring diagram above for further
clarification.

POWER-UP AND CONTROL ADJUSTMENTS:
 With the VOLUME control at minimum (fully counter-clockwise) plug your subwoofer’s power cord into
any ordinary wall outlet. If for any reason you do not want your subwoofer on it can simply be turned
off either by unplugging it, or connecting its powercord to a switched power strip or outlet (found on
the back of some Home Theater receivers) or by using a remote controlled switched outlet.
 Please ensure that your receiver’s loudness control is off and that the bass tone control is in its
middle (flat or no boost) position. Now play some music with ample bass content. (The following
setup routine is best accomplished with one person seated in a normal listening position directing
another to adjust the controls for the best sound.)
 Adjust the VOLUME level on the subwoofer’s control panel so that the output level of the subwoofer is
satisfactory (relative to your front speakers). If either of your front speakers or subwoofer are not
functioning properly, please refer to the Troubleshooting section toward the end of this manual.
 If your receiver has an adjustable Subwoofer Crossover Setting, adjust the setting to determine what
position sounds best. This feature controls the output level of the mid and upper bass frequencies of
the subwoofer. A setting somewhere between ~60 and 120 Hz should work well for most systems.
 The best VOLUME level position will mostly be determined by your room acoustics, the mid and upper
bass frequency response characteristics of your front speakers, and your personal preferences. The
source material will also play a significant role as its bass level and qualities may vary considerably.
 After your initial adjustments you may want to go back and “tweak” these settings. Their effects are
acoustically interrelated. Re-adjusting them may be necessary to obtain optimal performance.
Generally, once you are satisfied with your subwoofer's settings, you can use your receiver’s tone,
equalizer, volume and subwoofer output level controls to optimize your whole system’s performance.

VERY IMPORTANT!
 If you have a Dolby Digital or DTS Home Theater system, make sure that you have correctly
configured your receiver's Bass Management System so that all of your speakers are
properly categorized as either SMALL or LARGE. This will ensure that all appropriate low
bass information is sent to your subwoofer. As a general rule, a speaker with an 8" or
greater diameter woofer may be considered LARGE. Conversely, a speaker with a woofer
less than 8" in diameter may be considered SMALL. Please note that the bass output of a
dual woofer speaker could be comparable to that of a larger single woofer speaker.
Example: A dual 6.5" woofer system would generally be considered LARGE since its woofer
area approximates that of a single 10" woofer system.
 If you have an older Dolby Pro-Logic Home Theater system, make sure that your receiver’s
center channel mode is in the NORMAL position. This will ensure that all low bass
information is sent to your subwoofer.
 With high volume levels of certain types of signals, your subwoofer may be audibly strained.
If you hear the subwoofer “breaking-up” or distorting, turn down the volume level.
 If you have any problems or questions, please contact your PINNACLE® dealer for further assistance.

TROUBLESHOOTING:
No Sound only from Subwoofer - Check the subwoofer's volume setting and all connections. If your
receiver has a subwoofer on/off or variable subwoofer output level control, ensure that the subwoofer
option it is turned on and that the output level is at maximum. Ensure that the center channel mode on
the receiver is in the NORMAL or SMALL position. Make sure that the subwoofer's RCA cable is
connected to the receiver's subwoofer output and not a subwoofer input or other jack. In the event that
the problem persists, refer to the TO OBTAIN SERVICE section of your warranty at the end of this
manual.
No Sound only from Left and Right Front Speakers - Check all connections. Ensure that your receiver’s
speaker channel A or B is switched on.
Too Little Bass - Check: subwoofer volume & receiver subwoofer output control settings; receiver
bass/loudness controls; program material; ensure that the center channel mode on the receiver is in the
NORMAL or SMALL position. If your receiver has a variable subwoofer output level control, ensure that
the output level is at maximum. Try moving the subwoofer further into a corner or towards the wall.
Too Much Bass - Check: subwoofer volume & receiver subwoofer output control settings; receiver
bass/loudness controls; program material; move subwoofer further out of corner or away from wall.
Hum: Check for faulty RCA connecting cable. Try to separate RCA cables from power cords (they can
induce hum into the system). If that doesn't work we recommend you turn off your subwoofer when it is
not in use. This is most easily accomplished by unplugging it, or connecting its powercord to a switched
power strip or outlet (found on the back of some Home Theater receivers), or by using a remote
controlled switched outlet.

LIMITED WARRANTY:
What Is Covered
Your Pinnacle® subwoofer features a limited warranty as follows. The subwoofer driver and all assembly
and construction aspects are covered by this warranty for a period of seven (7) years from the date of
original purchase. Your subwoofer amplifier is covered by this warranty for a period of two (2) year from
the date of original purchase. The warranty covers all necessary parts and labor to return the subwoofer
to proper working order. Cabinet surfaces, grille assembly, and other exterior parts subject to normal
wear and tear are not covered except where an inherent structural defect becomes evident.
Parts replacement and labor will be performed at the discretion of Pinnacle Loudspeakers and will be
provided free of charge unless (in the opinion of our service department, service representatives, or
engineering department) the system has failed due to abuse or negligent operation.
What Is Not Covered
This warranty will be void and no free services performed if we or any party acting as our agent
determines that the system has had any of its elements (amplifier, woofer, etc.) removed or tampered
with in any way whatsoever. Furthermore, if your subwoofer is not found to be defective a service charge
will be levied. In either case the minimum charge will be $30.00. An additional charge will be applicable
for same day service where possible and this charge will always be in effect even if the actual parts and
labor are covered by this warranty. Pinnacle Loudspeakers reserves the right to make the final
determination of whether or not the system has been damaged by abuse or negligent operation.
To Obtain Service
To obtain service under this warranty, contact us at [e-mail] or
[phone]. If you ship your subwoofer you are responsible for packing and shipping insurance. The
freight must be prepaid. We will, however, pay return freight charges on any returned subwoofer that
qualifies for in-warranty service. Sorry, we cannot accept any collect freight charges. You must include a
note, attached to the unit, with your name, phone number or email address, and return shipping address
(no Post Office boxes), indicating the nature of the problem you are experiencing. For warranty service
you must also include a copy of your sales receipt. YOU MUST FIRST CONTACT US FOR THE
CUSTOMER SERVICE SHIPPING ADDRESS IN YOUR AREA IF YOUR DEALER IS NOT EQUIPPED
FOR THIS SERVICE. Please be sure to pack any items you ship us carefully since we cannot be held
responsible for damages incurred during shipping.
This warranty may be transferred to a subsequent owner.
SAVE YOUR ORIGINAL SHIPPING CARTON AND PACKING MATERIALS, AS WELL AS THIS
WARRANTY AND YOUR SALES RECEIPT. YOU WILL NEED THEM TO OBTAIN SERVICE UNDER
THE PROVISIONS OF THIS LIMITED WARRANTY.
