Pioneer Avh-x5890bt User manual

Owner’s Manual

AVH-X5890BT

AVH-X4890DVD

AVH-X2890BT

AVH-X1890DVD

Monitor RDS AV Receiver

English

1< CRB4735-A >

English

Setting parental lock ......................................40

Displaying your DivX VOD registration

code..........................................................40

Displaying your DivX VOD deregistration

code..........................................................40

Automatic playback of DVDs ..........................40

Setting the video signal for the rear view

camera......................................................40

■Favourite menu................41

Creating a shortcut ........................................41

Selecting a shortcut .......................................41

Removing a shortcut ......................................41

■Common operations........41

Setting the time and date ...............................41

Setting the “Sound Retriever” function............42

Changing the wide screen mode....................42

■Other functions................42

Restoring this product to the default

settings .....................................................42

■Connection.......................43

Precautions....................................................43

Precautions before connecting the system.....43

Before installing this product..........................43

To prevent damage ........................................43

Notice for the blue/white lead .........................44

This product ...................................................44

Power cord.....................................................44

Speaker leads................................................44

Power amp (sold separately)..........................45

iPhone and smartphone.................................45

iPhone with Lightning connector ....................45

iPhone with 30-pin connector.........................46

Android device ...............................................46

Camera..........................................................46

External video component and the display.....47

■Installation .......................47

Precautions before installation.......................47

Before installing .............................................47

Installation notes............................................47

Installation using the screw holes on the side of

this product ...............................................48

Installing the microphone ...............................48

Mounting on the sun visor ..............................48

Installation on the steering column.................48

Adjusting the microphone angle.....................49

Thank you for buying this Pioneer product.

Please read through these instructions so you

will know how to operate your model properly.

After you have finished reading the instruc-

tions, keep this document in a safe place for

future reference.

Important

The screens shown in the examples may

differ from actual screens, which may be

changed without notice for performance and

function improvements.

■Precaution..........................4

Licence, Warranty Disclaimer & Limitation of

Liability........................................................4

Important safety information ............................4

To ensure safe driving......................................4

When using a display connected to V OUT ......5

To avoid battery exhaustion..............................5

Rear view camera ............................................5

Handling the USB connector............................5

In case of trouble..............................................5

Visit our website...............................................5

Protecting the LCD panel and screen...............5

Notes on internal memory................................5

About this manual ............................................5

Use and care of the remote control ..................6

■Basic operation..................6

Checking part names and functions.................6

Remote control ................................................7

Notes on using the LCD panel .........................7

Adjusting the LCD panel angle.........................7

Inserting/ejecting/connecting media.................7

On rst-time startup .........................................8

How to use the screens....................................9

Supported AV source.....................................10

Displaying the AV operation screen................10

Selecting a source .........................................10

Changing the display order of sources...........10

Using the touch panel ....................................10

■Registration and

connection of Bluetooth®

device ...............................11

Displaying the “Bluetooth” screen...................11

Registering your Bluetooth devices................11

Connecting a registered Bluetooth device

manually ...................................................11

Switching visibility ..........................................12

Entering the PIN code for Bluetooth wireless

connection ................................................12

Displaying the device information...................12

Clearing the Bluetooth memory......................12

Updating Bluetooth software..........................12

Displaying the Bluetooth software version......12

Switching the connected Bluetooth device.....12

■Hands-free phoning.........13

Displaying the Phone menu screen................13

Making a phone call .......................................13

Receiving a phone call...................................14

Minimising the dial conrmation screen .........14

Changing the phone settings .........................14

Using the voice recognition function (for

iPhone) .....................................................14

Setting phone book auto synchronisation ......14

Notes for hands-free phoning.........................15

■Setup for iPod / iPhone or

smartphone......................15

The basic ow of iPod / iPhone or smartphone

setup.........................................................15

Setting the device connection method............15

iPod compatibility ...........................................16

Android™device compatibility.........................16

Information on the connections and functions

for each device..........................................17

■Radio ................................18

Starting procedure .........................................18

Searching by PTY information........................18

Storing the strongest broadcast

frequencies ...............................................18

Displaying the “Radio settings” screen ...........18

Tuning into strong frequencies .......................18

Setting the FM or AM tuning step...................18

Setting the alternative frequency search ........19

Setting the Auto PI search..............................19

Limiting stations to regional programming......19

Receiving trafc announcements (TA)............19

Receiving news announcements....................19

Receiving alarm broadcasts...........................19

■Disc...................................19

Starting procedure .........................................21

Selecting les from the le name list ..............21

Switching the media le type..........................21

Searching for the part you want to play ..........21

Operating the DVD menu ...............................21

Switching the subtitle/audio language............21

Operating the DVD menu using touch panel

keys ..........................................................21

■Compressedles.............22

Starting procedure (for Disc)..........................24

Starting procedure (for USB)..........................24

Operations common to all le types ...............24

Audio le operations.......................................24

Still image le operations ...............................24

■iPod ..................................25

Connecting your iPod.....................................26

Starting procedure .........................................26

Selecting song or video sources from the

playlist screen ...........................................26

Using this product’s iPod function from your

iPod...........................................................26

Selecting a song from the list related to the

song currently playing (link search)...........26

■AppRadioMode ................27

Using AppRadioMode ....................................27

Using the audio mix function ..........................27

■Bluetooth audio player....28

Starting procedure .........................................28

Selecting les from the le name list ..............29

■AUX source ......................29

Starting procedure .........................................29

Setting the video signal..................................29

■AV input............................30

Starting procedure .........................................30

Setting the video signal..................................30

■MIXTRAX ..........................30

MIXTRAX operation .......................................30

MIXTRAX EZ operation..................................30

Displaying the “MIXTRAX Settings” screen ....31

Setting the ash pattern .................................31

■System settings ...............31

Displaying the “System” setting screen ..........31

Setting the steering wheel control ..................31

Setting Bluetooth audio source activation ......32

Setting the ever scroll.....................................32

Setting the beep tone.....................................32

Setting the auto audio mix function ................32

Setting the rear view camera..........................32

Setting the demo mode..................................32

Setting the keyboard language with the

application for iPhone................................32

Adjusting the response positions of the touch

panel (touch panel calibration)..................33

Setting the dimmer.........................................33

Adjusting the picture ......................................33

Displaying the rmware version .....................34

Displaying the open source licences..............34

Updating rmware..........................................34

■Audio adjustments ..........34

Displaying the “Audio” setting screen .............34

Using fader/balance adjustment.....................34

Switching sound muting/attenuation ..............34

Adjusting source levels ..................................35

Using the auto level control ............................35

Adjusting loudness.........................................35

Setting the subwoofer output..........................35

Adjusting the cutoff frequency value ..............35

Switching the rear speaker output..................35

Using BASS Boost .........................................35

Selecting the listening position.......................35

Adjusting the speaker output levels nely.......36

Adjusting the time alignment..........................36

Switching the time alignment preset...............36

Using the equaliser ........................................36

Adjusting the equaliser curve automatically

(Auto EQ)..................................................37

Saving the sound settings..............................38

Loading the sound settings ............................38

■Theme menu ....................38

Selecting the background display...................38

Setting the illumination colour ........................38

Selecting the theme colour.............................39

Selecting the clock image ..............................39

■Setting up the video

player................................39

Setting the top-priority languages ..................39

Setting the angle icon display.........................39

Setting the aspect ratio ..................................39

2< CRB4735-A >< CRB4735-A >

Contents

Setting parental lock ......................................40

Displaying your DivX VOD registration

code..........................................................40

Displaying your DivX VOD deregistration

code..........................................................40

Automatic playback of DVDs ..........................40

Setting the video signal for the rear view

camera......................................................40

■Favourite menu................41

Creating a shortcut ........................................41

Selecting a shortcut .......................................41

Removing a shortcut ......................................41

■Common operations........41

Setting the time and date ...............................41

Setting the “Sound Retriever” function............42

Changing the wide screen mode....................42

■Other functions................42

Restoring this product to the default

settings .....................................................42

■Connection.......................43

Precautions....................................................43

Precautions before connecting the system.....43

Before installing this product..........................43

To prevent damage ........................................43

Notice for the blue/white lead .........................44

This product ...................................................44

Power cord.....................................................44

Speaker leads................................................44

Power amp (sold separately)..........................45

iPhone and smartphone.................................45

iPhone with Lightning connector ....................45

iPhone with 30-pin connector.........................46

Android device ...............................................46

Camera..........................................................46

External video component and the display.....47

■Installation .......................47

Precautions before installation.......................47

Before installing .............................................47

Installation notes............................................47

Installation using the screw holes on the side of

this product ...............................................48

Installing the microphone ...............................48

Mounting on the sun visor ..............................48

Installation on the steering column.................48

Adjusting the microphone angle.....................49

■Appendix ..........................49

Troubleshooting .............................................49

Error messages .............................................50

Handling and care of discs.............................51

Playable discs ................................................52

Detailed information for playable media .........52

Bluetooth .......................................................55

WMA..............................................................55

FLAC..............................................................55

DivX ...............................................................55

AAC ...............................................................55

Android™........................................................55

Detailed information regarding connected iPod

devices......................................................55

Using app-based connected content..............56

Notice regarding video viewing ......................56

Notice regarding DVD-Video viewing .............56

Notice regarding MP3 le usage ....................56

Using the LCD screen correctly......................56

Displaying the “System” setting screen ..........31

Setting the steering wheel control ..................31

Setting Bluetooth audio source activation ......32

Setting the ever scroll.....................................32

Setting the beep tone.....................................32

Setting the auto audio mix function ................32

Setting the rear view camera..........................32

Setting the demo mode..................................32

Setting the keyboard language with the

application for iPhone................................32

Adjusting the response positions of the touch

panel (touch panel calibration)..................33

Setting the dimmer.........................................33

Adjusting the picture ......................................33

Displaying the rmware version .....................34

Displaying the open source licences..............34

Updating rmware..........................................34

■Audio adjustments ..........34

Displaying the “Audio” setting screen .............34

Using fader/balance adjustment.....................34

Switching sound muting/attenuation ..............34

Adjusting source levels ..................................35

Using the auto level control ............................35

Adjusting loudness.........................................35

Setting the subwoofer output..........................35

Adjusting the cutoff frequency value ..............35

Switching the rear speaker output..................35

Using BASS Boost .........................................35

Selecting the listening position.......................35

Adjusting the speaker output levels nely.......36

Adjusting the time alignment..........................36

Switching the time alignment preset...............36

Using the equaliser ........................................36

Adjusting the equaliser curve automatically

(Auto EQ)..................................................37

Saving the sound settings..............................38

Loading the sound settings ............................38

■Theme menu ....................38

Selecting the background display...................38

Setting the illumination colour ........................38

Selecting the theme colour.............................39

Selecting the clock image ..............................39

■Setting up the video

player................................39

Setting the top-priority languages ..................39

Setting the angle icon display.........................39

Setting the aspect ratio ..................................39

< CRB4735-A >

Contents

If you attempt to watch video image while driving, the warning

“Viewing of front seat video source while driving is strictly

prohibited.” will appear on the screen. To watch video image

on this display, stop the vehicle in a safe place and apply the

handbrake. Please keep the brake pedal pushed down before

releasing the handbrake.

When using a display con-

nected to V OUT

The video output terminal (V OUT) is for connection of a display

to enable passengers in the rear seats to watch video images.

WARNING

NEVER install the rear display in a location that enables the

driver to watch video images while driving.

To avoid battery exhaustion

Be sure to run the vehicle engine while using this product. Using

this product without running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an

ACC wire or circuitry available.

Rear view camera

With an optional rear view camera, you are able to use this

product as an aid to keep an eye on trailers, or backing into a

tight parking spot.

WARNING

SCREEN IMAGE MAY APPEAR REVERSED.

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE

REAR VIEW CAMERA. OTHER USE MAY RESULT IN

INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep

an eye on the trailers, or while backing up. Do not use this

function for entertainment purposes.

Handling the USB connector

CAUTION

To prevent data loss and damage to the storage device,

never remove it from this product while data is being

CAUTION

This product is a Class 1 laser product classified under the

Safety of laser products, IEC 60825-1:2007, and contains a

class 1M laser module. To ensure continued safety, do not

remove any covers or attempt to gain access to the inside of

the product. Refer all servicing to qualified personnel.

CAUTION—CLASS 1M VISIBLE AND INVISIBLE

LASER RADIATION WHEN OPEN, DO NOT VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS.

Licence, Warranty Disclaimer &

Limitation of Liability

SAFETY PROVISIONS

Disclaimer

THE WARRANTIES SET FORTH IN PIONEER’S LIMITED

WARRANTY ARE THE ONLY WARRANTIES MADE BY PIONEER

OR ANY OF ITS LICENSORS, AS APPLICABLE. PIONEER

AND ITS LICENSORS EXPRESSLY DISCLAIM ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE.

Limitation of Liability

TO THE MAXIMUM EXTENT PERMISSIBLE UNDER

APPLICABLE LAW, NEITHER PIONEER NOR ITS LICENSORS

WILL BE LIABLE TO YOU OR TO ANY OTHER PARTY FOR

ANY INDIRECT, CONSEQUENTIAL, INCIDENTAL, PUNITIVE,

OR SPECIAL DAMAGES, REGARDLESS OF THE FORM OF

ACTION, WHETHER IN CONTRACT OR IN TORT, INCLUDING

NEGLIGENCE, EVEN IF SUCH PARTIES HAVE BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMISSIBLE UNDER APPLICABLE

LAW, PIONEER’S, OR ITS LICENSORS’, TOTAL LIABILITY OF

ANY KIND ARISING OUT OF OR RELATED TO YOUR USE

OF THE PRODUCTS, INCLUDING, BUT NOT LIMITED TO,

ANY WARRANTY CLAIMS, OR ANY CLAIMS FOR PROPERTY

DAMAGE, DEATH OR DISABILITY, REGARDLESS OF THE

FORUM AND REGARDLESS OF WHETHER ANY ACTION

OR CLAIM IS BASED ON CONTRACT, TORT, (INCLUDING

NEGLIGENCE), STRICT PRODUCT LIABILITY, OR ANY OTHER

LEGAL THEORY, WILL NOT EXCEED ONE THOUSAND DOLLARS

(USD$1 000).

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION

OF DAMAGES OR LIMITATION OF LIABILITY, SO THE ABOVE

EXCLUSIONS OR LIMITATIONS, TO THE EXTENT PROHIBITED

BY APPLICABLE LAW, MAY NOT APPLY TO YOU. YOUR SPECIFIC

RIGHTS MAY VARY FROM JURISDICTION TO JURISDICTION.

Important safety information

WARNING

Do not attempt to install or service this product by yourself.

Installation or servicing of this product by persons without

training and experience in electronic equipment and

automotive accessories may be dangerous and could

expose you to the risk of electric shock, injury or other

hazards.

Do not allow this product to come into contact with liquids.

Electrical shock could result. Also, damage to the product,

smoke, and overheating could result from contact with

liquids.

If liquid or foreign matter should get inside this product,

park your vehicle in a safe place, turn the ignition switch

off (ACC OFF) immediately and consult your dealer or the

nearest authorised Pioneer Service Station. Do not use this

product in this condition because doing so may result in a

fire, electric shock, or other failure.

If you notice smoke, a strange noise or odour from this

product, or any other abnormal signs on the LCD screen,

turn off the power immediately and consult your dealer or

the nearest authorised Pioneer Service Station. Using this

product in this condition may result in permanent damage

to the system.

Do not disassemble or modify this product, as there

are high-voltage components inside which may cause

an electric shock. Be sure to consult your dealer or the

nearest authorised Pioneer Service Station for internal

inspection, adjustments or repairs.

Before using this product, be sure to read and fully understand

the following safety information:

Do not operate this product, any applications, or the rear

view camera option (if purchased) if doing so will divert your

attention in any way from the safe operation of your vehicle.

Always observe safe driving rules and follow all existing

traffic regulations. If you experience difficulty in operating

this product or reading the display, park your vehicle in a

safe location and apply the handbrake before making the

necessary adjustments.

Never set the volume of this product so high that you cannot

hear outside traffic and emergency vehicles.

To promote safety, certain functions are disabled unless the

vehicle is stopped and/or the handbrake is applied.

Keep this manual handy as a reference for operating proce-

dures and safety information.

Do not install this product where it may (i) obstruct the

driver’s vision, (ii) impair the performance of any of the

vehicle’s operating systems or safety features, including air

bags or hazard lamp buttons or (iii) impair the driver’s ability

to safely operate the vehicle.

Please remember to fasten your seat belt at all times while

operating your vehicle. If you are ever in an accident, your

injuries can be considerably more severe if your seat belt is

not properly buckled.

Never use headphones while driving.

To ensure safe driving

WARNING

LIGHT GREEN LEAD AT POWER CONNECTOR

IS DESIGNED TO DETECT PARKED STATUS

AND MUST BE CONNECTED TO THE POWER

SUPPLY SIDE OF THE PARKING BRAKE SWITCH.

IMPROPER CONNECTION OR USE OF THIS LEAD

MAY VIOLATE APPLICABLE LAW AND MAY RESULT

IN SERIOUS INJURY OR DAMAGE.

Do not take any steps to tamper with or disable the

handbrake interlock system which is in place for

your protection. Tampering with or disabling the

handbrake interlock system could result in serious

injury or death.

To avoid the risk of damage and injury and the

potential violation of applicable laws, this product is

not for use with a video image that is visible to the

driver.

In some countries the viewing of video image on a display

inside a vehicle even by persons other than the driver may

be illegal. Where such regulations apply, they must be

obeyed.

Precaution

4< CRB4735-A >< CRB4735-A >

Precaution Precaution

If you attempt to watch video image while driving, the warning

“Viewing of front seat video source while driving is strictly

prohibited.” will appear on the screen. To watch video image

on this display, stop the vehicle in a safe place and apply the

handbrake. Please keep the brake pedal pushed down before

releasing the handbrake.

When using a display con-

nected to V OUT

The video output terminal (V OUT) is for connection of a display

to enable passengers in the rear seats to watch video images.

WARNING

NEVER install the rear display in a location that enables the

driver to watch video images while driving.

To avoid battery exhaustion

Be sure to run the vehicle engine while using this product. Using

this product without running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an

ACC wire or circuitry available.

Rear view camera

With an optional rear view camera, you are able to use this

product as an aid to keep an eye on trailers, or backing into a

tight parking spot.

WARNING

SCREEN IMAGE MAY APPEAR REVERSED.

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE

REAR VIEW CAMERA. OTHER USE MAY RESULT IN

INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep

an eye on the trailers, or while backing up. Do not use this

function for entertainment purposes.

Handling the USB connector

CAUTION

To prevent data loss and damage to the storage device,

never remove it from this product while data is being

transferred.

Pioneer cannot guarantee compatibility with all USB mass

storage devices and assumes no responsibility for any loss

of data on media players, iPhone, smartphone, or other

devices while using this product.

In case of trouble

Should this product fail to operate properly, contact your dealer

or nearest authorised Pioneer Service Station.

Visit our website

Visit us at the following site:

http://www.pioneer-india.in

We offer the latest information about PIONEER

CORPORATION on our website.

Pioneer regularly provides software updates to further

improve it’s products. Please check the support section of

the Pioneer website for all available software updates.

Protecting the LCD panel and

screen

Do not expose the LCD screen to direct sunlight when this

product is not used. This may result in LCD screen malfunc-

tion due to the resulting high temperatures.

When using a mobile phone, keep the aerial of the mobile

phone away from the LCD screen to prevent disruption of the

video in the form of spots, coloured stripes, etc.

To protect the LCD screen from damage, be sure to touch the

touch panel keys only with your finger and do so gently.

Notes on internal memory

Before removing the vehicle battery

Some of the settings and recorded contents will not be reset.

Data subject to erasure

The information is erased by disconnecting the yellow lead from

the battery (or removing the battery itself).

Some of the settings and recorded contents will not be reset.

Resetting the microprocessor

CAUTION

Pressing the RESET button resets settings and recorded

contents to the factory settings.

Do not perform this operation when a device is connected

to this product.

Some of the settings and recorded contents will not be

reset.

The microprocessor must be reset under the following

conditions:

Prior to using this product for the first time after installation.

If this product fails to operate properly.

If there appears to be problems with the operation of the

system.

If your vehicle position is shown on the map with a signifi-

cant positioning error.

1 Turn the ignition switch OFF.

2 Press the RESET button with a pen tip or other

pointed implement.

Refer to Checking part names and functions on page 6

Settings and recorded contents are reset to the factory settings.

About this manual

This manual uses diagrams of actual screens to describe opera-

tions. However, the screens on some units may not match those

shown in this manual depending on the model used.

Meanings of Symbols Used in This

Manual

X0000BT

This indicates model name that are supported

the described operations.

This indicates to touch an appropriate soft key

on the touch screen.

HOLD

This indicates to touch and hold an appropriate

soft key on the touch screen.

This indicates that there is a reference or

supplementary for the key or screen.

Do not operate this product, any applications, or the rear

view camera option (if purchased) if doing so will divert your

attention in any way from the safe operation of your vehicle.

Always observe safe driving rules and follow all existing

traffic regulations. If you experience difficulty in operating

this product or reading the display, park your vehicle in a

safe location and apply the handbrake before making the

necessary adjustments.

Never set the volume of this product so high that you cannot

hear outside traffic and emergency vehicles.

To promote safety, certain functions are disabled unless the

vehicle is stopped and/or the handbrake is applied.

Keep this manual handy as a reference for operating proce-

dures and safety information.

Do not install this product where it may (i) obstruct the

driver’s vision, (ii) impair the performance of any of the

vehicle’s operating systems or safety features, including air

bags or hazard lamp buttons or (iii) impair the driver’s ability

to safely operate the vehicle.

Please remember to fasten your seat belt at all times while

operating your vehicle. If you are ever in an accident, your

injuries can be considerably more severe if your seat belt is

not properly buckled.

Never use headphones while driving.

To ensure safe driving

WARNING

LIGHT GREEN LEAD AT POWER CONNECTOR

IS DESIGNED TO DETECT PARKED STATUS

AND MUST BE CONNECTED TO THE POWER

SUPPLY SIDE OF THE PARKING BRAKE SWITCH.

IMPROPER CONNECTION OR USE OF THIS LEAD

MAY VIOLATE APPLICABLE LAW AND MAY RESULT

IN SERIOUS INJURY OR DAMAGE.

Do not take any steps to tamper with or disable the

handbrake interlock system which is in place for

your protection. Tampering with or disabling the

handbrake interlock system could result in serious

injury or death.

To avoid the risk of damage and injury and the

potential violation of applicable laws, this product is

not for use with a video image that is visible to the

driver.

In some countries the viewing of video image on a display

inside a vehicle even by persons other than the driver may

be illegal. Where such regulations apply, they must be

obeyed.

< CRB4735-A >

Precaution Precaution

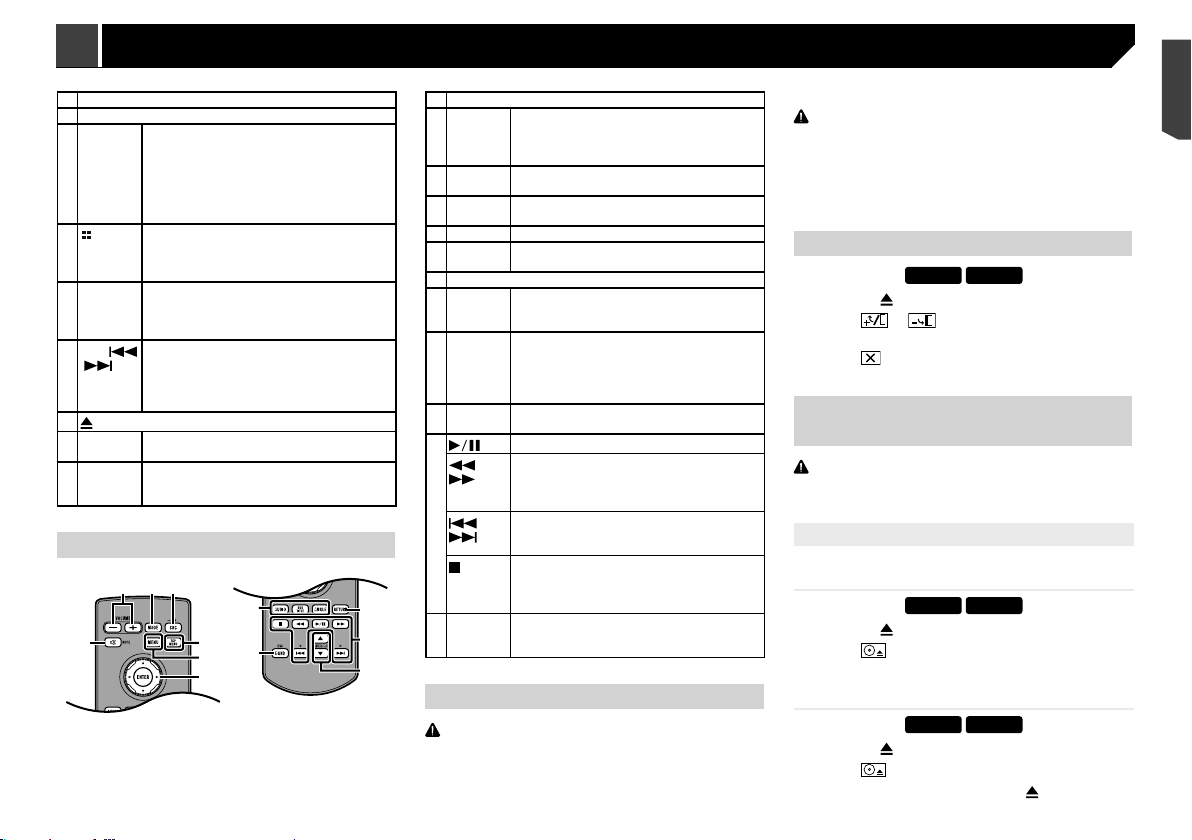

1LCD screen

2Volume (+/–) button

3DISP

button

On the AV operation screen, press to turn the

display off.

On the Application screen or navigation mode,

press to display the side control bar. Press and

hold to turn the display off.

pWhen the display is turned off, touch the

screen to revert to the original screen.

4button Press and hold to activate the voice recognition

function.

Refer toUsing the voice recognition func-

tion (for iPhone) on page 14

5MODE

button

Press to switch between the Application screen

and the AV operation screen.

Press and hold to switch to the camera view

mode.

6TRK (

/ )

button

Press to return to the previous track (chapter)

or go to the next track (chapter).

Press and hold to perform fast reverse or fast

forwards.

Press to answer or end a call.

7button

8RESET

button

Refer to Resetting the microprocessor on

page 5

9Disc-

slot

Refer to Inserting and ejecting a disc on

page 7

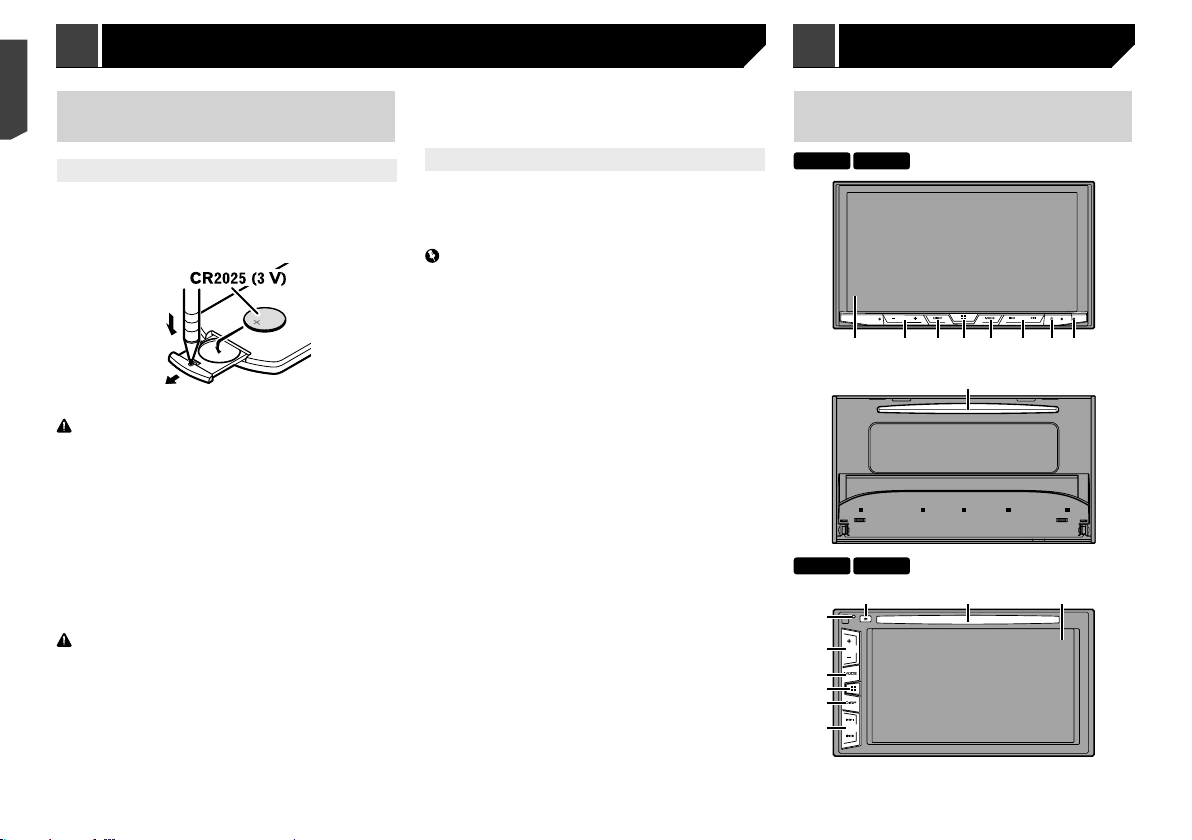

Remote control

123

Use and care of the remote

control

Installing the battery

Slide the tray on the back of the remote control out and insert the

battery with the plus (+) and minus (–) poles aligned properly.

When using for the first time, pull out the film protruding

from the tray.

WARNING

Do not ingest the battery, Chemical Burn Hazard.

This product, including the supplied remote control,

contains a coin/button cell battery. If the coin/button cell

battery is swallowed, it can cause severe internal burns in

just two hours and can lead to death.

Keep new or used batteries out of the reach of children.

If the battery is swallowed or placed inside any part of the

body, consult a doctor immediately.

If the battery compartment does not close securely, stop

using the product and keep it away from children.

Batteries (battery pack or batteries installed) must not be

exposed to excessive heat such as sunshine, fire or the

like.

CAUTION

Remove the battery if the remote control is not used for a

month or longer.

There is a danger of explosion if the battery is incorrectly

replaced. Replace only with the same or equivalent type.

Do not handle the battery with metallic tools.

Do not store the battery with metallic objects.

If the battery leaks, wipe the remote control completely

clean and install a new battery.

When disposing of used batteries, comply with

governmental regulations or environmental public

institutions’ rules that apply in your country/area.

“Perchlorate Material – special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable

to California, U.S.A.)”

Using the remote control

Point the remote control in the direction of the front panel to

operate.

The remote control may not function properly in direct

sunlight.

Important

Do not store the remote control in high temperatures or

direct sunlight.

Do not let the remote control fall onto the floor, where it

may become jammed under the brake or accelerator.

Checking part names and

functions

X5890BT

X4890DVD

123 4 5678

X2890BT

X1890DVD

97 1

Basic operation

6< CRB4735-A >< CRB4735-A >

Precaution Basic operation Basic operation

1LCD screen

2Volume (+/–) button

3DISP

button

On the AV operation screen, press to turn the

display off.

On the Application screen or navigation mode,

press to display the side control bar. Press and

hold to turn the display off.

pWhen the display is turned off, touch the

screen to revert to the original screen.

4button Press and hold to activate the voice recognition

function.

Refer toUsing the voice recognition func-

tion (for iPhone) on page 14

5MODE

button

Press to switch between the Application screen

and the AV operation screen.

Press and hold to switch to the camera view

mode.

6TRK (

/ )

button

Press to return to the previous track (chapter)

or go to the next track (chapter).

Press and hold to perform fast reverse or fast

forwards.

Press to answer or end a call.

7button

8RESET

button

Refer to Resetting the microprocessor on

page 5

9Disc-

slot

Refer to Inserting and ejecting a disc on

page 7

Remote control

123

1Volume (+/–)

2MODE Press to switch between the Application screen

and the AV operation screen.

Press and hold to switch to the camera view

mode.

3SRC Press to cycle through all the available sources.

Press and hold to turn the source off.

4TOP

Returns to the top menu during DVD playback.

5MENU Displays the DVD menu during DVD playback.

6Thumb

pad

Selects a menu on the DVD menu.

7MUTE

8AUDIO

SUBTITLE

ANGLE

Changes the audio language, subtitle language

or viewing angle during DVD playback.

9BAND/

ESC

Selects the tuner band when tuner is selected

as a source.

Cancels the control mode of functions.

Switches between media file types when

playing the data of Disc, USB.

10 RETURN Returns to the specified point and begins

playback from there.

11 Pauses or resumes playback.

or For audio: Press and hold to perform fast

reverse or fast forwards.

For video: Press to perform fast reverse or fast

forwards.

or Press to return to the previous track (chapter)

or go to the next track (chapter).

Press to answer or end a call.

Stops playback.

If you resume playback, playback will start from

the point where you stopped. Touch the key

again to stop playback completely.

12 FOLDER/P.

Selects the next or previous disc or folder.

Recalls radio station frequencies assigned to

preset channel keys.

Notes on using the LCD panel

WARNING

Keep hands and fingers clear of this product when

opening, closing, or adjusting the LCD panel. Be especially

cautious of children’s hands and fingers.

Do not use with the LCD panel left open. It may result in

injury in the event of an accident.

CAUTION

Do not open or close the LCD panel by force. It may cause

a malfunction.

Do not operate this product until the LCD panel has

completely opened or closed. The LCD panel may stop at

that angle for safety.

Do not place a glass or can on the open LCD panel.

Adjusting the LCD panel angle

X5890BT

X4890DVD

1 Press the button.

2 Touch or to adjust the angle of the

LCD panel.

3 Touch .

Returns to the previous screen.

Inserting/ejecting/connecting

media

CAUTION

Do not insert anything other than a disc into the disc-loading

slot.

Inserting and ejecting a disc

Inserting a disc

X5890BT

X4890DVD

1 Press the button.

2 Touch to open the LCD panel.

3 Insert a disc into the disc-loading slot.

Ejecting a disc

X5890BT

X4890DVD

1 Press the button.

2 Touch to open the LCD panel.

3 Remove the disc, and press the button.

Checking part names and

functions

X5890BT

X4890DVD

123 4 5678

X2890BT

X1890DVD

97 1

Basic operation

< CRB4735-A >

Basic operation Basic operation

How to use the screens

Phone Book

abcdefghi

ABC

abcdefghi...

4821

Abcdefg Abcdefg Abcdefg Abcdefg Abcdefg

6/10

Month/Date d/m/y

12hour 24hour

m/d/yy/m/d

10 620162148

Time Format

iPod

4821

Abcdefghi

ABCPops

99999/99999

9999’99” -9999’99”

6/10

Source Select

4821

Abcdefg Abcdefg

6/10

4821

6/10

iPod

Disc AUXiPod

Bluetooth

Audio

Radio

4821

6/10

Radio

Camera

View SourceOFF PowerOFF

System

Top menu screen

Time and date setting screen

Setting menu screen

AV operation screen

Phone menu screen

AV source selection screen

Application operation screen

Application menu screen

favourite source iconsRecent application icons

You can control the iPhone or

smartphone applications directly

on this product.

Depending on the connection

method, the "smartphone setup"

screen is displayed.

Inserting a disc

X2890BT

X1890DVD

1 Insert a disc into the disc-loading slot.

Ejecting a disc

X2890BT

X1890DVD

1 Press button to eject a disc.

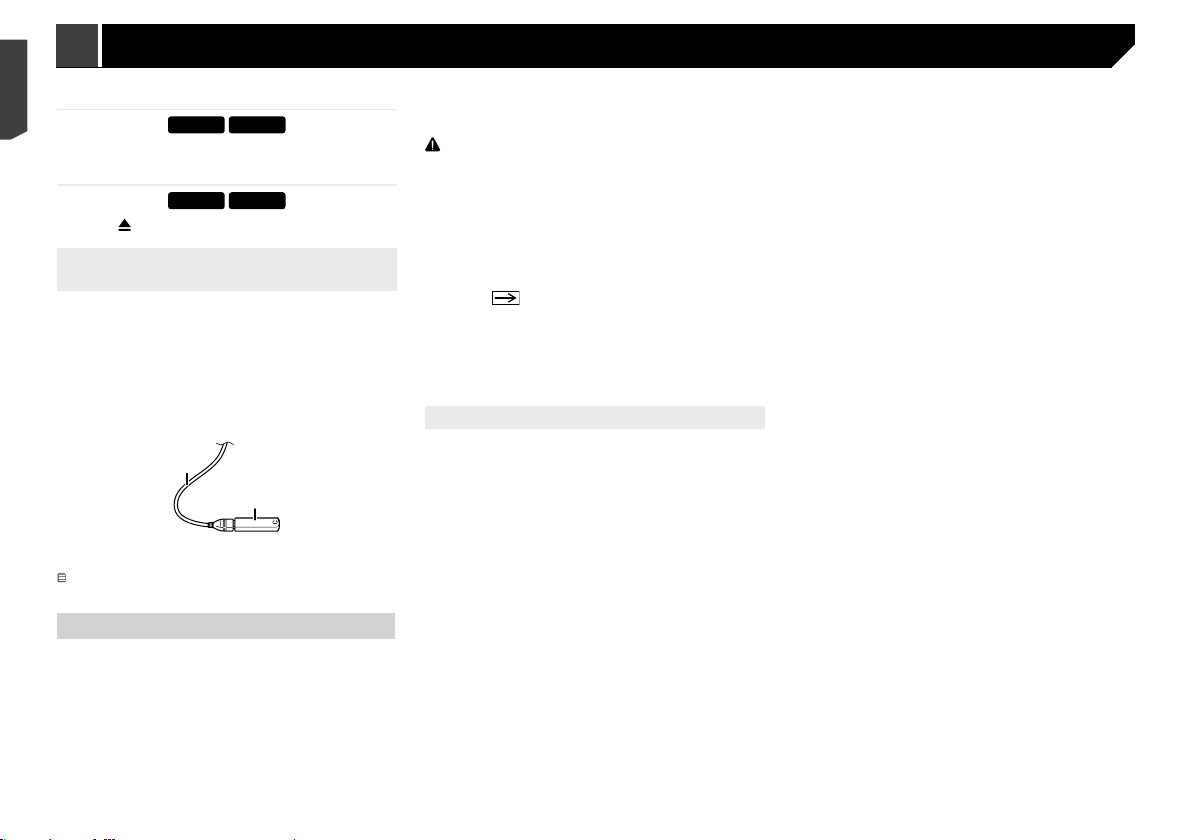

Plugging and unplugging a USB stor-

age device

pThis product may not achieve optimum performance with

some USB storage devices.

pConnection via a USB hub is not possible.

pA USB cable is required for connection.

1 Pull out the plug from the USB port of the USB

cable.

2 Plug a USB storage device into the USB cable.

1USB cable

2USB storage device

Check that no data is being accessed before pulling out the

USB storage device.

On rst-time startup

1 Start the engine to boot up the system.

The “Speaker Mode Settings” screen appears.

pFrom the second time on, the screen shown will differ

depending on the previous conditions.

2 Touch the speaker modes.

Standard Mode

4-speaker system with front and rear speakers, or a

6-speaker system with front and rear speakers and

subwoofers.

Network Mode

3-way system with a high range speaker, middle range

speaker and subwoofer (low range speaker) for reproduction

of high, middle and low frequencies (bands).

WARNING

Do not use the unit in standard mode when a speaker system

for 3-way network mode is connected to this unit. This may

cause damage to the speakers.

3 Touch [OK].

The “Smartphone Setup” screen appears.

4 Touch the item.

Refer to Information on the connections and functions for

each device on page 17

5 Touch .

The top menu screen appears.

pOnce the speaker mode is set, the setting cannot be

changed unless this product is restored to the default

settings. Restore the default settings to change the speaker

mode setting.

Refer to Restoring the default settings on page 42

Switching the speaker mode

To change the speaker mode, you need to restore this product to

the default settings.

1 Restore the default setting.

Refer to Restoring the default settings on page 42

8< CRB4735-A >< CRB4735-A >

Basic operation Basic operation

How to use the screens

Phone Book

abcdefghi

ABC

abcdefghi...

4821

Abcdefg Abcdefg Abcdefg Abcdefg Abcdefg

6/10

Month/Date d/m/y

12hour 24hour

m/d/yy/m/d

10 620162148

Time Format

iPod

4821

Abcdefghi

ABCPops

99999/99999

9999’99” -9999’99”

6/10

Source Select

4821

Abcdefg Abcdefg

6/10

4821

6/10

iPod

Disc AUXiPod

Bluetooth

Audio

Radio

4821

6/10

Radio

Camera

View SourceOFF PowerOFF

System

Top menu screen

Time and date setting screen

Setting menu screen

AV operation screen

Phone menu screen

AV source selection screen

Application operation screen

Application menu screen

favourite source iconsRecent application icons

You can control the iPhone or

smartphone applications directly

on this product.

Depending on the connection

method, the "smartphone setup"

screen is displayed.

9< CRB4735-A >

Basic operation Basic operation

2Appears when all characters are not displayed on the display

area.

If you touch the key, the rest are scrolled for display.

3Appears when items cannot be displayed on a single page.

Drag the slider bar or the list to view any hidden items.

Operating the time bar

9999’99” -9999’99”

1You can change the playback point by dragging the key.

pPlayback time corresponding to the position of the key is

displayed while dragging the key.

Switching the operation panel

1 Touch .

The hidden function keys appears.

pThis key does not appear for some AV sources.

The top menu screen of this manual is the screen

when using the AppRadioMode. The items displayed

on the screen may vary depending on the connecting

device or mode. When you connect an iPhone via

Bluetooth wireless technology or a smartphone via

USB cable, “Smartphone Setup” screen appears by

touching [APPS].

By pressing the button on any screen you can

display the Top menu screen.

When you connect the external navigation system to

this unit, the navigation mode key is displayed at the

left bottom of the display.

By pressing the MODE button you can switch

between the Application screen and the AV operation

screen.

If you select “Power OFF”, you can turn off almost all

functions. The “Power OFF” mode is released in the

following cases:

An incoming call is received.

A rear view camera image is input when the

vehicle back up.

A button on this product is pressed.

The ignition switch is turned off (ACC OFF), then

turned on (ACC ON).

Supported AV source

You can play or use the following sources with this product.

Radio

CD

ROM (compressed audio files)

DVD-Video

USB

The following sources can be played back or used by connecting

an auxiliary device.

iPod

Bluetooth audio (AVH-X5890BT) (AVH-X2890BT)

AV input (AV)

AUX

Displaying the AV operation

screen

1 Press .

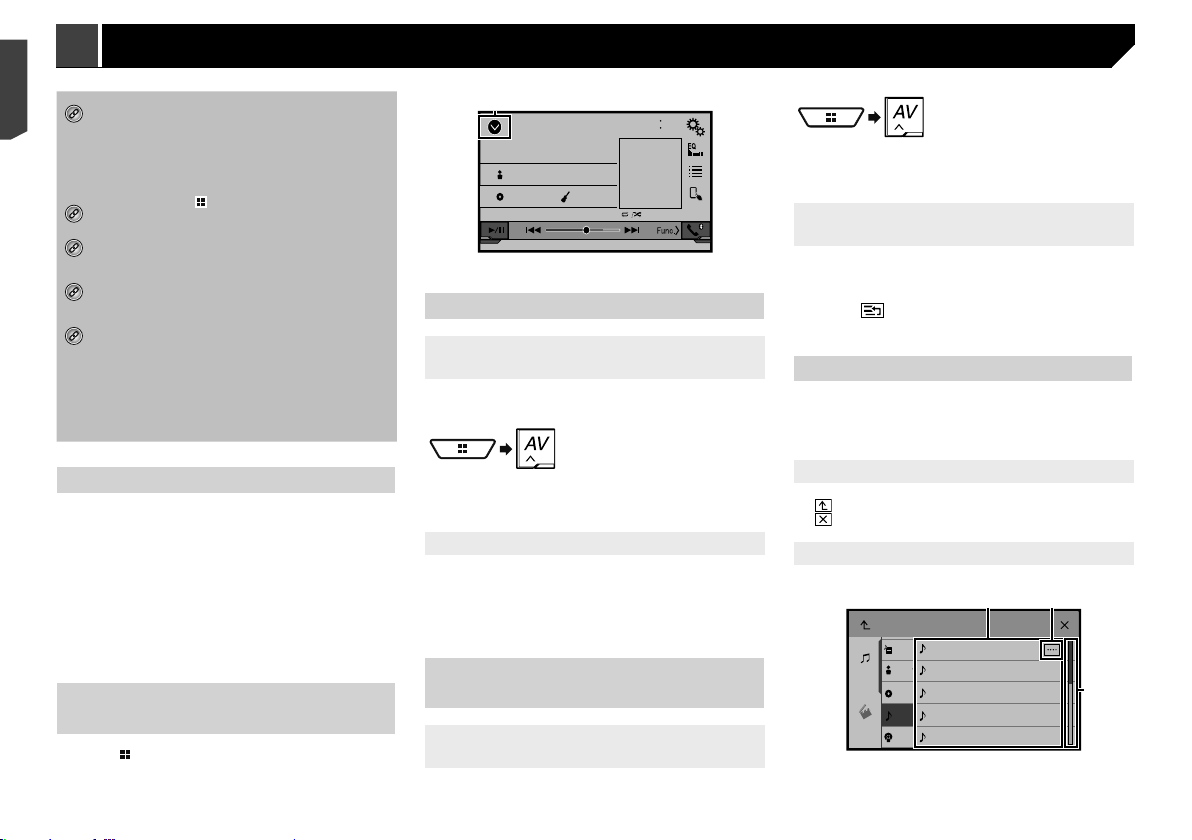

2 Touch the AV operation key.

The AV operation screen appears.

iPod

4821

Abcdefghi

ABCPops

99999/99999

9999’99” -9999’99”

6/10

1Displays the source list.

Selecting a source

Source on the AV source selection

screen

1 Display the “AV source selection” screen.

2 Touch the source icon.

pWhen you select “Source OFF”, the AV source is turned off.

Source on the source list

1 Display the source list.

Refer to Displaying the AV operation screen on page 10

2 Touch the source key.

pWhen you select “Source OFF”, the AV source is turned off.

Changing the display order of

sources

Changing the display order of source

icons

1 Display the “AV source selection” screen.

2 Touch and hold a source icon, and drag the icon

to the desired position.

Changing the display order of source

keys

1 Display the source list.

Refer to Displaying the AV operation screen on page 10

2 Touch .

3 Drag the source key to the desired position.

Using the touch panel

You can operate this product by touching the keys on the screen

directly with your fingers.

pTo protect the LCD screen from damage, be sure to touch the

screen only with your finger gently.

Common touch panel keys

: Returns to the previous screen.

: Closes the screen.

Operating list screens

Playlist

Music

Video

Artist

Alburm

Songs

Podcast

Songs

abcdefghi

1 2

1Touching an item on the list allows you to narrow down the

options and proceed to the next operation.

10 < CRB4735-A >< CRB4735-A >

Basic operation Basic operation

2Appears when all characters are not displayed on the display

area.

If you touch the key, the rest are scrolled for display.

3Appears when items cannot be displayed on a single page.

Drag the slider bar or the list to view any hidden items.

Operating the time bar

9999’99” -9999’99”

1You can change the playback point by dragging the key.

pPlayback time corresponding to the position of the key is

displayed while dragging the key.

Switching the operation panel

1 Touch .

The hidden function keys appears.

pThis key does not appear for some AV sources.

X5890BT

X2890BT

Displaying the “Bluetooth”

screen

1 Press .

2 Touch , and then .

The “Bluetooth” screen appears.

Registering your Bluetooth

devices

pIf three devices are already paired, “Memory Full” is dis-

played. Delete a paired device first.

Refer to Deleting a registered device on page 11

1 Activate the Bluetooth wireless technology on

your devices.

2 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

3 Touch [Connection].

4 Touch .

The system searches for Bluetooth devices waiting for a connec-

tion and displays them in the list if a device is found.

5 Touch the Bluetooth device name.

After the device is successfully registered, a Bluetooth connec-

tion is established by the system. Once the connection is estab-

lished, the device name is displayed on the list.

pIf your device supports SSP (Secure Simple Pairing), a six-

digit number appears on the display of this product. Touch

[Yes] to pair the device.

pThe Bluetooth connection can be also made by detecting

this product from the Bluetooth device. Before registration,

make sure that “Visibility” in the “Bluetooth” menu is set

to “On”. For details on a Bluetooth device operations, refer

to the operating instructions supplied with the Bluetooth

device.

Refer to Switching visibility on page 12

pTwo mobile phones can be connected to this product at the

same time.

Refer to Switching the connected Bluetooth device on page

pIf you try to connect an unconnected mobile phone while two

mobile phones are already connected, the first one of the

two connected mobile phones will be disconnected and the

unconnected mobile phone will be connected instead.

Setting Bluetooth device auto

connection

This function connects the last connected Bluetooth device to

this product automatically as soon as the two devices are less

than a few metres apart.

The default setting is “On”.

pIf two Bluetooth devices were connected the last time, the

two devices are connected to this product automatically in

the order that they are registered in the device list.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Auto Connect] to switch “On” or “Off”.

Deleting a registered device

CAUTION

Never turn this product off while the paired Bluetooth device

is being deleted.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Connection].

3 Touch .

Connecting a registered

Bluetooth device manually

Connect the Bluetooth device manually in the following cases:

Two or more Bluetooth devices are registered, and you want

to manually select the device to be used.

You want to reconnect a disconnected Bluetooth device.

Connection cannot be established automatically for some

reason.

1 Activate the Bluetooth wireless technology on

your devices.

Registration and connection of Bluetooth®device

2 Touch and hold a source icon, and drag the icon

to the desired position.

Changing the display order of source

keys

1 Display the source list.

Refer to Displaying the AV operation screen on page 10

2 Touch .

3 Drag the source key to the desired position.

Using the touch panel

You can operate this product by touching the keys on the screen

directly with your fingers.

pTo protect the LCD screen from damage, be sure to touch the

screen only with your finger gently.

Common touch panel keys

: Returns to the previous screen.

: Closes the screen.

Operating list screens

Playlist

Music

Video

Artist

Alburm

Songs

Podcast

Songs

abcdefghi

1 2

1Touching an item on the list allows you to narrow down the

options and proceed to the next operation.

< CRB4735-A >

Basic operation Basic operation Registration and connection of

Bluetooth®device

X5890BT

X2890BT

Phone Book

abcdefghi

ABC

abcdefghi...

Switches the search language to

English or system language.

Synchronizes the contacts on this

product's phone book with the

contacts on your phone manually.

Switches to the preset dial screen.

Refer to Using the preset dial lists on page 13

Switches to the phone book list.

Refer to Calling a number in the phone book on

page 13

Switches to the missed, received and dialled call lists.

Refer to Dialling from the history on page 13

Switches the mode to enter the phone number

directly.

Refer to Direct dialling on page 13

Hands-free phoning

2 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

3 Touch [Connection].

4 Touch the name of the device.

pTo disconnect the device, touch the name of the connected

device in the list.

Switching visibility

This function sets whether or not to make this product visible to

the other device.

The default setting is “On”.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Visibility] to switch “On” or “Off”.

Entering the PIN code for

Bluetooth wireless connection

To connect your Bluetooth device to this product, you need to

enter a PIN code.

You can change the PIN code with this function.

pThe default PIN code is “0000”.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [PIN Code Input].

3 Touch [0] to [9] to input the pin code (up to

8 -digits).

4 Touch .

Displaying the device

information

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Device Information].

The device name and address of the Bluetooth device on this

product are displayed.

Clearing the Bluetooth memory

pThis setting is available only when you stop your vehicle in a

safe place and apply the handbrake.

CAUTION

Never turn this product off while the Bluetooth memory is

being cleared.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Bluetooth Memory Clear].

3 Touch [Clear].

The confirmation screen appears.

Updating Bluetooth software

This function is used to update this product with the latest

Bluetooth software. For details on Bluetooth software and updat-

ing, refer to our website.

pThe source is turned off and the Bluetooth connection is

disconnected before the process starts.

pThis setting is available only when you stop your vehicle in a

safe place and apply the handbrake.

pYou need to store the version update file to the USB storage

device in advance.

CAUTION

Never turn this product off and never disconnect the phone

while the software is being updated.

1 Connect the USB storage device stored the

version update file to this unit.

Refer to Plugging and unplugging a USB storage device on

page 8

2 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

3 Touch [BT Software Update].

4 Touch [Start].

Follow the on-screen instructions to finish updating the

Bluetooth software.

Displaying the Bluetooth soft-

ware version

If this product fails to operate properly, you may need to consult

your dealer for repair.

In such cases, perform the following procedure to check the

software version on this unit.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Bluetooth Version Information].

The version of this product’s Bluetooth module appears.

Switching the connected

Bluetooth device

After registering and connecting the Bluetooth devices to this

product, you can switch among the devices using the switch

devices key in the phone function and some audio sources.

pYou can register up to three Bluetooth devices on this

product.

Refer to Registering your Bluetooth devices on page 11

pYou can connect one of the registered devices to this prod-

uct. In cases where the registered device is equipped with

a phone function, a total of two devices can be connected

at the same time when using the phone function. If two of

the three registered devices are already connected, you can

connect the remaining third device to use the audio function

only from the switch devices key on the audio source screen.

pThe icon for the mobile phone currently being used is dis-

played on the “Phone menu” screen. If you connect two

mobile phones to this product at the same time, you can

switch between the mobile phones using the switch devices

key. The contents of the phone menu are memorised for

each connected mobile phone.

Refer to Hands-free phoning on page 13

pThe switch devices key will appear for some audio sources.

The audio source may automatically switch to another

source depending on the selected device.

12 < CRB4735-A >< CRB4735-A >

Registration and connection of Bluetooth®device Hands-free phoning

X5890BT

X2890BT

Phone Book

abcdefghi

ABC

abcdefghi...

Switches the search language to

English or system language.

Synchronizes the contacts on this

product's phone book with the

contacts on your phone manually.

Switches to the preset dial screen.

Refer to Using the preset dial lists on page 13

Switches to the phone book list.

Refer to Calling a number in the phone book on

page 13

Switches to the missed, received and dialled call lists.

Refer to Dialling from the history on page 13

Switches the mode to enter the phone number

directly.

Refer to Direct dialling on page 13

Switches to the voice recognition function (for

iPhone).

Refer to Using the voice recognition function (for

iPhone) on page 14

If you connect two mobile phones to this product at

the same time, you can switch between the mobile

phones using the switch devices key. The following

items are displayed on the key.

Name of the current mobile phone

List number of the current mobile phone

Battery status of the current mobile phone

Reception status of the current mobile phone

Refer to Switching the connected Bluetooth device

on page 12

CAUTION

For your safety, avoid talking on the phone as much as

possible while driving.

To use this function you need to connect your mobile phone to

this product via Bluetooth in advance.

Refer to Registration and connection of Bluetooth®device on

page 11

Displaying the Phone menu

screen

1 Press .

2 Touch .

The Phone menu screen appears.

Making a phone call

You can make a phone call in many different ways.

Direct dialling

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

2 Touch .

3 Touch the number keys to enter the phone

number.

4 Touch to make a call.

5 Touch to end the call.

pYou may hear a noise when you hang up the phone.

Calling a number in the phone book

pThe contacts on your phone will be automatically transferred

to this product.

p“Visibility” of the “Bluetooth” screen should be on.

Refer to Switching visibility on page 12

pIf two mobile phones are automatically connected to this

product with the Bluetooth device auto connect function, the

phone book of the second phone is displayed.

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

2 Touch .

3 Touch the desired name on the list.

4 Touch the phone number.

The dial screen appears and dialling starts.

5 Touch to end the call.

Dialling from the history

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

2 Touch .

3 Touch the item to switch the history list.

The following items are available:

: Received call list

: Dialled call list

: Missed call list

4 Touch the desired entry on the list to make a

call.

The dial screen appears and dialling starts.

5 Touch to end the call.

Using the preset dial lists

Registering a phone number

You can easily store up to six phone numbers per device as

presets.

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

Hands-free phoning

In such cases, perform the following procedure to check the

software version on this unit.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Bluetooth Version Information].

The version of this product’s Bluetooth module appears.

Switching the connected

Bluetooth device

After registering and connecting the Bluetooth devices to this

product, you can switch among the devices using the switch

devices key in the phone function and some audio sources.

pYou can register up to three Bluetooth devices on this

product.

Refer to Registering your Bluetooth devices on page 11

pYou can connect one of the registered devices to this prod-

uct. In cases where the registered device is equipped with

a phone function, a total of two devices can be connected

at the same time when using the phone function. If two of

the three registered devices are already connected, you can

connect the remaining third device to use the audio function

only from the switch devices key on the audio source screen.

pThe icon for the mobile phone currently being used is dis-

played on the “Phone menu” screen. If you connect two

mobile phones to this product at the same time, you can

switch between the mobile phones using the switch devices

key. The contents of the phone menu are memorised for

each connected mobile phone.

Refer to Hands-free phoning on page 13

pThe switch devices key will appear for some audio sources.

The audio source may automatically switch to another

source depending on the selected device.

< CRB4735-A >

Registration and connection of Bluetooth®device Hands-free phoning

2 Touch [Phone Book Auto Synchronize] to

switch “On” or “Off”.

Notes for hands-free phoning

General notes

Connection to all mobile phones featuring Bluetooth wire-

less technology is not guaranteed.

The line-of-sight distance between this product and your

mobile phone must be 10 metres or less when sending and

receiving voice and data via Bluetooth technology.

With some mobile phones, the ring sound may not be output

from the speakers.

If private mode is selected on the mobile phone, hands-free

phoning may be disabled.

Registration and connection

Mobile phone operations vary depending on the type of

mobile phone. Refer to the instruction manual that came

with your mobile phone for detailed instructions.

When phone book transfer does not work, disconnect your

phone and then perform pairing again from your phone to

this product.

Making and receiving calls

You may hear a noise in the following situations:

— When you answer the phone using the button on the

phone.

— When the person on the other end of the line hangs up the

phone.

If the person on the other end of the line cannot hear the

conversation due to an echo, decrease the volume level for

hands-free phoning.

With some mobile phones, even after you press the accept

button on the mobile phone when a call comes in, hands-

free phoning may not be performed.

The registered name will appear if the phone number is

already registered in the phone book. When one phone

number is registered under different names, only the phone

number will be displayed.

The received call and the dialled number histories

You cannot make a call to the entry of an unknown user (no

phone number) in the received call history.

If calls are made by operating your mobile phone, no history

data will be recorded in this product.

Phone book transfers

If there are more than 1 000 phone book entries on your

mobile phone, not all entries may download completely.

Depending on the phone, this product may not display the

phone book correctly.

2 Touch or .

On the “Phone Book” screen, touch the desired name to display

the contact’s phone number.

3 Touch .

Dialling from the preset dial list

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

2 Touch .

3 Touch the desired item.

The dial screen appears and dialling starts.

Receiving a phone call

pWhen two phones are connected at the same time, if an

incoming call is received on the second phone while you are

talking on the first phone, the dial confirmation screen for

the second phone will be displayed.

1 Touch to answer the call.

If you touch while getting a call waiting, you

can switch to the talking person.

Touch to reject the call.

2 Touch to end the call.

Minimising the dial conrma-

tion screen

pThe dial confirmation screen cannot be minimised on the AV

operation screen.

pAV sources cannot be selected even if the dial confirmation

screen is minimised while talking on the phone or receiving

an incoming call.

1 Touch .

Touch to display the dial confirmation screen

again.

Changing the phone settings

Setting auto answering

You can select whether or not to answer a call automatically.

The default setting is “Off”.

pEven if an incoming call is received on the other connected

phone while you are talking on the phone, the incoming call

will not be answered automatically.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Auto Answer] to switch “On” or “Off”.

Switching the ring tone

You can select whether or not to use this product’s ring tone.

The default setting is “On”.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Ring Tone] to switch “On” or “Off”.

Inverting names in the phone book

You can use this function to change the order of the first and last

names in the phone book.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

2 Touch [Invert Name].

Setting the private mode

During a conversation, you can switch to private mode (talk

directly on your mobile phone).

1 Touch or to turn private mode on or

off.

pIf two mobile phones are connected to this product and the

first phone is set to private mode, you can receive incoming

calls on the second phone while maintaining the call in

progress on the first phone.

pWhen two mobile phones are connected to this product and

private mode of the first phone is turned off, if an incoming

call on the second phone is answered while a call is in

progress on the first phone or while dialling or receiving a

call on the first phone, the call, dialling, or receiving on the

first phone is ended.

Adjusting the other party’s listening

volume

This product can be adjusted to the other party’s listening

volume.

1 Touch to switch between the three vol-

ume levels.

pSettings can be stored for each device.

Using the voice recognition

function (for iPhone)

By connecting your iPhone to this product, you can use the voice

recognition function (Siri Eyes Free Mode) on this product.

pWhen an iPhone running iOS 6.1 or higher is used, Siri Eyes

Free Mode is available with this product.

pIn this chapter, iPhone and iPod touch will be referred to as

“iPhone”.

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

2 Touch .

The voice recognition function launches and the voice control

screen appears.

pYou can also launch the voice recognition function by press-

ing and holding .

pIf two mobile phones are automatically connected to this

product with the Bluetooth device auto connect function, the

voice recognition function (Siri Eyes Free Mode) will be set

on the second phone.

pIf you want to use the voice recognition function (Siri Eyes

Free Mode) on another connected iPhone, touch 123

to switch to the other iPhone. The iPhone that you switch to

will be set as the current device.

Setting phone book auto

synchronisation

You can select whether or not to synchronise the the phone book

with the contacts on your phone automatically when you con-

nect the phone to this product.

The default setting is “Off”.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

14 < CRB4735-A >< CRB4735-A >

Hands-free phoning Hands-free phoning

2 Touch [Phone Book Auto Synchronize] to

switch “On” or “Off”.

Notes for hands-free phoning

General notes

Connection to all mobile phones featuring Bluetooth wire-

less technology is not guaranteed.

The line-of-sight distance between this product and your

mobile phone must be 10 metres or less when sending and

receiving voice and data via Bluetooth technology.

With some mobile phones, the ring sound may not be output

from the speakers.

If private mode is selected on the mobile phone, hands-free

phoning may be disabled.

Registration and connection

Mobile phone operations vary depending on the type of

mobile phone. Refer to the instruction manual that came

with your mobile phone for detailed instructions.

When phone book transfer does not work, disconnect your

phone and then perform pairing again from your phone to

this product.

Making and receiving calls

You may hear a noise in the following situations:

— When you answer the phone using the button on the

phone.

— When the person on the other end of the line hangs up the

phone.

If the person on the other end of the line cannot hear the

conversation due to an echo, decrease the volume level for

hands-free phoning.

With some mobile phones, even after you press the accept

button on the mobile phone when a call comes in, hands-

free phoning may not be performed.

The registered name will appear if the phone number is

already registered in the phone book. When one phone

number is registered under different names, only the phone

number will be displayed.

The received call and the dialled number histories

You cannot make a call to the entry of an unknown user (no

phone number) in the received call history.

If calls are made by operating your mobile phone, no history

data will be recorded in this product.

Phone book transfers

If there are more than 1 000 phone book entries on your

mobile phone, not all entries may download completely.

Depending on the phone, this product may not display the

phone book correctly.

If the phone book in the phone contains image data, the

phone book may not be transferred correctly.

Depending on the mobile phone, phone book transfer may

not be available.

When using an iPod / iPhone or a smartphone with this product,

configure the settings of this product according to the device to

be connected.

This section describes the settings required for each device.

The basic ow of iPod / iPhone

or smartphone setup

1Select the method for connecting your device.

Refer to Setting the device connection method on page

2Connect your device to this product.

Refer to Connection on page 43

3If necessary, connect your device to this product via

Bluetooth connection.

Refer to Registration and connection of Bluetooth®device

on page 11

Setting the device connection

method

To use the application for iPhone or smartphone on this product,

select the method for connecting your device.

Settings are required according to the connected device.

1 Display the “System” setting screen.

2 Touch [Input/Output settings].

3 Touch [Smartphone Setup].

4 Touch the following settings.

Device: Select the device to be connected.

Connection / Application: Select the connection method.

Refer to Information on the connections and functions for

each device on page 17

The setting will change after the following processes are

automatically executed.

— The source is turned off.

Setup for iPod / iPhone or smartphone

Adjusting the other party’s listening

volume

This product can be adjusted to the other party’s listening

volume.

1 Touch to switch between the three vol-

ume levels.

pSettings can be stored for each device.

Using the voice recognition

function (for iPhone)

By connecting your iPhone to this product, you can use the voice

recognition function (Siri Eyes Free Mode) on this product.

pWhen an iPhone running iOS 6.1 or higher is used, Siri Eyes

Free Mode is available with this product.

pIn this chapter, iPhone and iPod touch will be referred to as

“iPhone”.

1 Display the “Phone menu” screen.

Refer to Displaying the Phone menu screen on page 13

2 Touch .

The voice recognition function launches and the voice control

screen appears.

pYou can also launch the voice recognition function by press-

ing and holding .

pIf two mobile phones are automatically connected to this

product with the Bluetooth device auto connect function, the

voice recognition function (Siri Eyes Free Mode) will be set

on the second phone.

pIf you want to use the voice recognition function (Siri Eyes

Free Mode) on another connected iPhone, touch

123

to switch to the other iPhone. The iPhone that you switch to

will be set as the current device.

Setting phone book auto

synchronisation

You can select whether or not to synchronise the the phone book

with the contacts on your phone automatically when you con-

nect the phone to this product.

The default setting is “Off”.

1 Display the “Bluetooth” screen.

Refer to Displaying the “Bluetooth” screen on page 11

< CRB4735-A >

Hands-free phoning Hands-free phoning Setup for iPod

/ iPhone or

smartphone

Information on the connections and functions for each device

The settings and cables required for connecting each device, and the available sources are as follows.

iPod / iPhone with a 30-pin connector

Device connection method When connecting via Bluetooth

(AVH-X5890BT) (AVH-X2890BT)

When connecting via CD-IU201V (sold

separately)

When connecting via CD-IU51 (sold

separately)

Smartphone Setup Device iPhone / iPod iPhone / iPod iPhone / iPod

Connection Wireless via BT USB USB

Bluetooth connection Bluetooth connection is required. — —

Available sources iPod (audio) 

iPod (video) ——

iPod / iPhone with a Lightning connector

Device connection method When connecting via Bluetooth

(AVH-X5890BT) (AVH-X2890BT)

When connecting via CD-IU52 (sold separately)

Smartphone Setup Device iPhone / iPod iPhone / iPod

Connection Wireless via BT USB

Bluetooth connection Bluetooth connection is required. —

Available sources iPod (audio)  

iPod (video) — —

AppRadioMode —

Android device

Device connection method When connecting via CD-MU200 (sold separately)

Smartphone Setup Device Others

Application AppRadioMode

Bluetooth connection —

Available sources AppRadioMode 

When “Application” of “Smartphone Setup” is set to “AppRadioMode”.

— AppRadioMode is exited.

— The smartphone connection (USB and Bluetooth) is

disconnected.

iPod compatibility

This product supports only the following iPod models and iPod

software versions. Others may not work correctly.

iPhone 4, 4s, 5, 5c, 5s, 6, 6 Plus: iOS 7.0 or later.

iPhone 3GS: iOS 6.0.1

iPod touch (4th, 5th generation): iOS 6.0.1

iPod touch (3rd generation): iOS 5.1.1

iPod touch (2nd generation): iOS 4.2.1

iPod classic 160GB (2009): Ver. 2.0.4

iPod classic 160GB (2008): Ver. 2.0.1

iPod classic 80GB: Ver. 1.1.2

iPod nano (7th generation)

iPod nano (6th generation): Ver. 1.2

iPod nano (5th generation): Ver. 1.0.2

iPod nano (4th generation): Ver. 1.0.4

iPod nano (3rd generation): Ver. 1.1.3

pYou can connect and control an iPod compatible with this

product by using separately sold connector cables.

pOperation methods may vary depending on the iPod model

and the software version.

pDepending on the software version of the iPod, it may not be

compatible with this product.

For details about iPod compatibility with this product, refer to the

information on our website.

This manual applies to the following iPod models.

iPod with 30-pin connector

iPhone 3GS, 4, 4s

iPod touch 2nd, 3rd, 4th generation

iPod classic 80GB, 160GB

iPod nano 3rd, 4th, 5th, 6th generation

iPod with Lightning connector

iPhone 6, 6 Plus

iPhone 5, 5c, 5s

iPod touch 5th generation

iPod nano 7th generation

Android™device compatibility

pOperation methods may vary depending on the Android

device and the software version of the Android OS.

pDepending on the version of the Android OS, it may not be

compatible with this product.

pCompatibility with all Android devices is not guaranteed.

For details about Android device compatibility with this product,

refer to the information on our website.

16 < CRB4735-A >< CRB4735-A >

Setup for iPod / iPhone or smartphone Setup for iPod / iPhone or smartphone

Information on the connections and functions for each device

The settings and cables required for connecting each device, and the available sources are as follows.

iPod / iPhone with a 30-pin connector

Device connection method When connecting via Bluetooth

(AVH-X5890BT) (AVH-X2890BT)

When connecting via CD-IU201V (sold

separately)

When connecting via CD-IU51 (sold

separately)

Smartphone Setup Device iPhone / iPod iPhone / iPod iPhone / iPod

Connection Wireless via BT USB USB

Bluetooth connection Bluetooth connection is required. — —

Available sources iPod (audio) 

iPod (video) ——

iPod / iPhone with a Lightning connector

Device connection method When connecting via Bluetooth

(AVH-X5890BT) (AVH-X2890BT)

When connecting via CD-IU52 (sold separately)

Smartphone Setup Device iPhone / iPod iPhone / iPod

Connection Wireless via BT USB

Bluetooth connection Bluetooth connection is required. —

Available sources iPod (audio)  

iPod (video) — —

AppRadioMode —

Android device

Device connection method When connecting via CD-MU200 (sold separately)

Smartphone Setup Device Others

Application AppRadioMode

Bluetooth connection —

Available sources AppRadioMode 

When “Application” of “Smartphone Setup” is set to “AppRadioMode”.

17< CRB4735-A >

Setup for iPod / iPhone or smartphone Setup for iPod / iPhone or smartphone

FM Step

100kHz(default)

50kHz

AM Step

9kHz (default)

10kHz

Setting the alternative fre-

quency search

When the tuner cannot get a good reception, tunes to another

broadcast station that supports the same programme in the

current network.

The default setting is “Off”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Alternative FREQ] to switch “On” or

“Off”.

Setting the Auto PI search

When you switch to the broadcast station containing RDS data,

searches for the same PI (Programme Identification) code broad-

cast station from all frequency band automatically.

The default setting is “Off”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Auto PI] to switch “On” or “Off”.

pEven if you set to “Off”, the PI search is automatically per-

formed when the tuner cannot get a good reception.

Limiting stations to regional

programming

You can switch whether the area code is checked during the

auto PI search.

The default setting is “On”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Regional] to switch “On” or “Off”.

Radio

4821

6/10

AMFM1

Abcdefghi

000.00

MHz

Abcdefghi

Selects the FM1, FM2, FM3

or AM band.

Performs manual tuning.

Performs seek tuning or

non stop seek tuning.

Releasing the key in a few seconds, skips

to the nearest station from the current

frequency.

Keeping holding the key for a long

seconds, performs non stop seek tuning.

Displays the preset channel list.

Select an item on the list ("1" to "6")

to switch to the preset channel.

Recalls the preset channel

stored to a key from memory.

Stores the current broadcast

frequency to a key.

HOLD

Searches for a broadcast by PTY information.

Refer to Searching by PTY information on page

pBy pressing or , you can also switch the preset

channels.

pBy pressing and hold or and release, you can

also perform seek tuning.

pBy keeping touching and holding or , you can perform

non stop seek tuning. Touch again to cancel.

Starting procedure

1 Display the “AV source selection” screen.

2 Touch [Radio].

The “Radio” screen appears.

Searching by PTY information

You can tune into a station using PTY (Programme Type

Identification) information.

pThis function is available when the FM tuner is selected.

1 Touch .

2 Touch or to select the item.

The following items are available:

News&Info (default), Popular, Classics, Others.

3 Touch to start searching.

If you touch [Cancel], the searching process is

cancelled.

Storing the strongest broadcast

frequencies

The BSM (best stations memory) function automatically stores

the six strongest broadcast frequencies under the preset tuning

keys “1” to “6”.

pStoring broadcast frequencies with BSM may replace those

you have already saved.

pPreviously stored broadcast frequencies may remain stored

if the number of frequencies stored has not reached the

limit.

1 Touch .

2 Touch to begin a search.

While the message is displayed, the six strongest broadcast

frequencies will be stored under the preset tuning keys in order

of their signal strength.

If you touch [Cancel], the storage process is

cancelled.

Displaying the “Radio settings”

screen

1 Display the “System” setting screen.

2 Touch [AV Source Settings].

3 Touch [Radio settings].

Tuning into strong frequencies

pThis setting is available only when “Radio” is selected as the

source.

Local seek tuning allows you to only tune into those radio sta-

tions with sufficiently strong signals.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Local].

3 Touch the item.

Off (default):

Turns the seek tuning setting off.

Level1 to Level4:

Sets the level of sensitivity for FM to Level1 to Level4 (for

AM Level1 or Level2).

pThe FM “Level4” (AM “Level2”) setting allows reception of

only stations with the strongest signals.

Setting the FM or AM tuning

step

You can switch the seek tuning step for the FM band, and the

seek/manual tuning step for the AM band.

pFor the FM band, the manual tuning step is fixed to 50 kHz.

1 Turn the source off.

Refer to Selecting a source on page 10

2 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

3 Touch [FM Step] or [AM Step] to switch the

tuning step.

The following items are available for each setting:

Radio

18 < CRB4735-A >< CRB4735-A >

Radio Radio

FM Step

100kHz(default)

50kHz

AM Step

9kHz (default)

10kHz

Setting the alternative fre-

quency search

When the tuner cannot get a good reception, tunes to another

broadcast station that supports the same programme in the

current network.

The default setting is “Off”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Alternative FREQ] to switch “On” or

“Off”.

Setting the Auto PI search

When you switch to the broadcast station containing RDS data,

searches for the same PI (Programme Identification) code broad-

cast station from all frequency band automatically.

The default setting is “Off”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Auto PI] to switch “On” or “Off”.

pEven if you set to “Off”, the PI search is automatically per-

formed when the tuner cannot get a good reception.

Limiting stations to regional

programming

You can switch whether the area code is checked during the

auto PI search.

The default setting is “On”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Regional] to switch “On” or “Off”.

Receiving trafc announce-

ments (TA)

The traffic announcement can be received from the last selected

frequency, interrupting the other sources.

The default setting is “Off”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [TA Interrupt] to switch “On” or “Off”.

Receiving news announcements

The news can be received from the last selected frequency,

interrupting the other sources.

The default setting is “Off”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [News Interrupt] to switch “On” or “Off”.

Receiving alarm broadcasts

The alarm broadcast can be received from the last selected

frequency, interrupting the other sources.

The default setting is “On”.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Alarm Interrupt] to switch “On” or

“Off”.

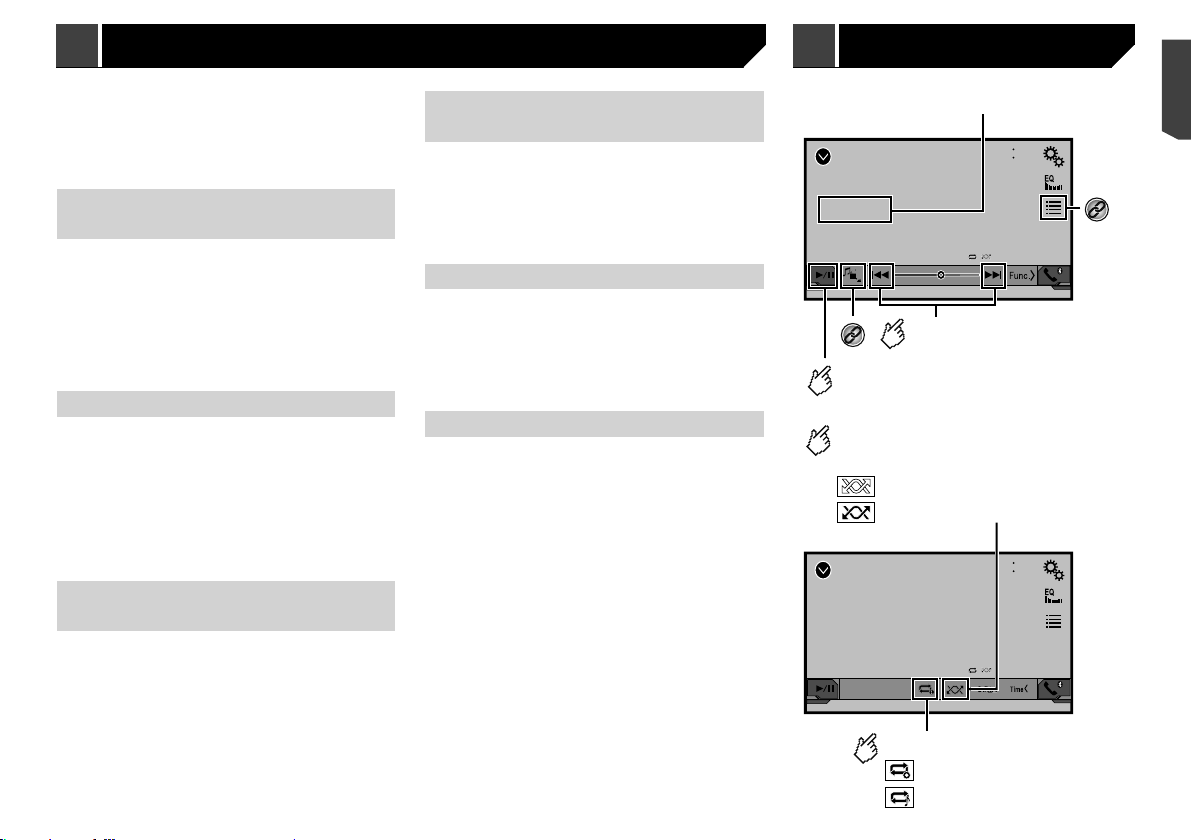

4821

ẂTrack 99

9999’99” -9999’99”

Pause

6/10

Track number indicator

Skips files forward

or backward.

Switches between playback

and pause.

Audio source screen

4821

ẂTrack 99

6/10

Audio source screen

Plays files in random order.

: Does not play tracks in random order.

: Plays all tracks in random order.

Sets a repeat play range.

: Repeats the current disc.

: Repeats the current track.

This function is available for music CD.

Disc

Displaying the “Radio settings”

screen

1 Display the “System” setting screen.

2 Touch [AV Source Settings].

3 Touch [Radio settings].

Tuning into strong frequencies

pThis setting is available only when “Radio” is selected as the

source.

Local seek tuning allows you to only tune into those radio sta-

tions with sufficiently strong signals.

1 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

2 Touch [Local].

3 Touch the item.

Off (default):

Turns the seek tuning setting off.

Level1 to Level4:

Sets the level of sensitivity for FM to Level1 to Level4 (for

AM Level1 or Level2).

pThe FM “Level4” (AM “Level2”) setting allows reception of

only stations with the strongest signals.

Setting the FM or AM tuning

step

You can switch the seek tuning step for the FM band, and the

seek/manual tuning step for the AM band.

pFor the FM band, the manual tuning step is fixed to 50 kHz.

1 Turn the source off.

Refer to Selecting a source on page 10

2 Display the “Radio settings” screen.

Refer to Displaying the “Radio settings” screen on page 18

3 Touch [FM Step] or [AM Step] to switch the

tuning step.

The following items are available for each setting:

< CRB4735-A >

Radio Radio Disc

Switches the subtitle/audio language.

Refer to Switching the subtitle/audio language on

page 21

Displays the DVD menu keypad.

Refer to Operating the DVD menu using touch

panel keys on page 21

pBy pressing or , you can also skip files/chapters

forwards or backwards.

pBy pressing and holding or , you can also perform

fast reverse or fast forwards.

pIf a Video-CD with PBC On is being played, appears.

pYou can set the screen size for the video image.

Refer to Common operations on page 41

Starting procedure

You can play a normal music CD, Video-CD or DVD-Video using

the built-in drive of this product.

CAUTION

For safety reasons, video images cannot be viewed while your

vehicle is in motion. To view video images, stop in a safe place

and apply the handbrake.

1 Insert the disc.

The source changes and then playback will start.

Refer to Inserting and ejecting a disc on page 7

pIf the disc is already set, select [Disc] as the playing source.

Selecting les from the le

name list

1 Touch .

2 Touch a track on the list to play back.

Switching the media le type

When playing a digital media containing a mixture of various

media file types you can switch between media file types to play.

1 Touch .

2 Touch the item.

Music:

Switches the media file type to music (compressed audio).

Video:

Switches the media file type to video.

CD-DA:

DVD

4821

Stop

99 99

9999’99” -9999’99”

OFFFull 01

Pause

6/10

ᵫᶓᶊᶒᶇᴾᶁᶆ

ᵏᵍᵐ

ᵫᵮᵣᵥᵋᵟ ᵒᵖᶉᵦᶘᴾᵏᵔᶀᶇᶒ

Video source screen 1

Performs fast reverse

or fast forward.

Touch again to change play back

the speed.

Stops playback.

Performs frame-by-frame playback.

HOLD

Performs slow-motion playback.

Each time you touch it changes

the speed in four steps in the following

order: 1/16 →1/8 →1/4 →1/2

Hides the touch panel keys.

To display again the keys,

touch anywhere on the screen.

DVD

4821

Stop

99 99

9999’99” -9999’99”

L+R

Pause

6/10

ᵫᶓᶊᶒᶇᴾᶁᶆ

ᵐᵍᵐ

ᵫᵮᵣᵥᵋᵟ ᵒᵖᶉᵦᶘᴾᵏᵔᶀᶇᶒ

ᵰᶃᶒᶓᶐᶌ

Video source screen 2

Selects the audio output from

[L+R], [Left], [Right], [Mix].

This function is available for Video-CDs

and DVDs recorded with LPCM audio.

Changes the viewing

angle (Multi-angle).

This function is available for DVDs

featuring multi-angle recordings.

Sets a repeat play range.

: Repeats all files.

: Repeats the current chapter.

: Repeats the current title.

DVD

4821

Stop

99 99

9999’99” -9999’99”

L+R

Pause

6/10

ᵫᶓᶊᶒᶇᴾᶁᶆ

ᵐᵍᵐ

ᵫᵮᵣᵥᵋᵟ ᵒᵖᶉᵦᶘᴾᵏᵔᶀᶇᶒ

ᵰᶃᶒᶓᶐᶌ

Video source screen 2

Resumes playback (Bookmark).

This function is available for DVD-Video.

You can memorise one point as a

Bookmark for a disc (up to five discs).

To clear the bookmark on the disc,

touch and hold this key.

Returns and begins playback from

the specified point.

This function is available for DVD-Video

and Video-CDs featuring PBC (playback

control).

Selects a track from the list.

Refer to Selecting files from the file name list on

page 21

Switches the media file type.

Refer to Switching the media file type on page

Searches for the part you want to play.

Refer to Searching for the part you want to play on

page 21

Displays the DVD menu.

Refer to Operating the DVD menu on page 21

20 < CRB4735-A >< CRB4735-A >
