Pioneer DEH-1350B User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZA. DEC. 2000 Printed in Japan
ORDER NO.
CRT2593
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-1350B X1M/ES
Service
Manual
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
DEH-1350/X1M/ES CRT2559
CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

DEH-1350B
EXPLODED VIEWS AND PARTS LIST
PACKING(Page 2)
-PACKING SECTION PARTS LIST * : Non spare part
Part No.
Mark No. Symbol and Description DEH-1350/X1M/ES DEH-1350B/X1M/ES
11-2 Owner’s Manual CRD3281 CRD3407
11-3 Installation Manual CRD3283 CRD3408
12 Carton CHG4157 CHG4317
13 Contain Box CHL4157 CHL4317
16 Case Assy Not used CXB3520
ELECTRICAL PARTS LIST(Page 32)
-KEYBOARD UNIT
Part No.
Symbol and Description DEH-1350/X1M/ES DEH-1350B/X1M/ES
D 1701 LED SML210PT SML210VT
D 1702 LED SML210PT SML210VT
D 1703 LED SML210PT SML210VT
D 1704 LED SML210PT SML210VT
D 1705 LED SML210PT SML210VT
D 1706 LED SML210PT SML210VT
D 1707 LED SML210PT SML210VT
D 1708 LED SML210PT SML210VT
IL 1801 Lamp 14V 40mA CEL1651 CEL1662
IL 1802 Lamp 14V 40mA CEL1651 CEL1662
LCD CAW1633 CAW1688
R 1708 RS1/16S151J RS1/16S181J
R 1710 RS1/16S151J RS1/16S181J
R 1712 RS1/16S151J RS1/16S181J

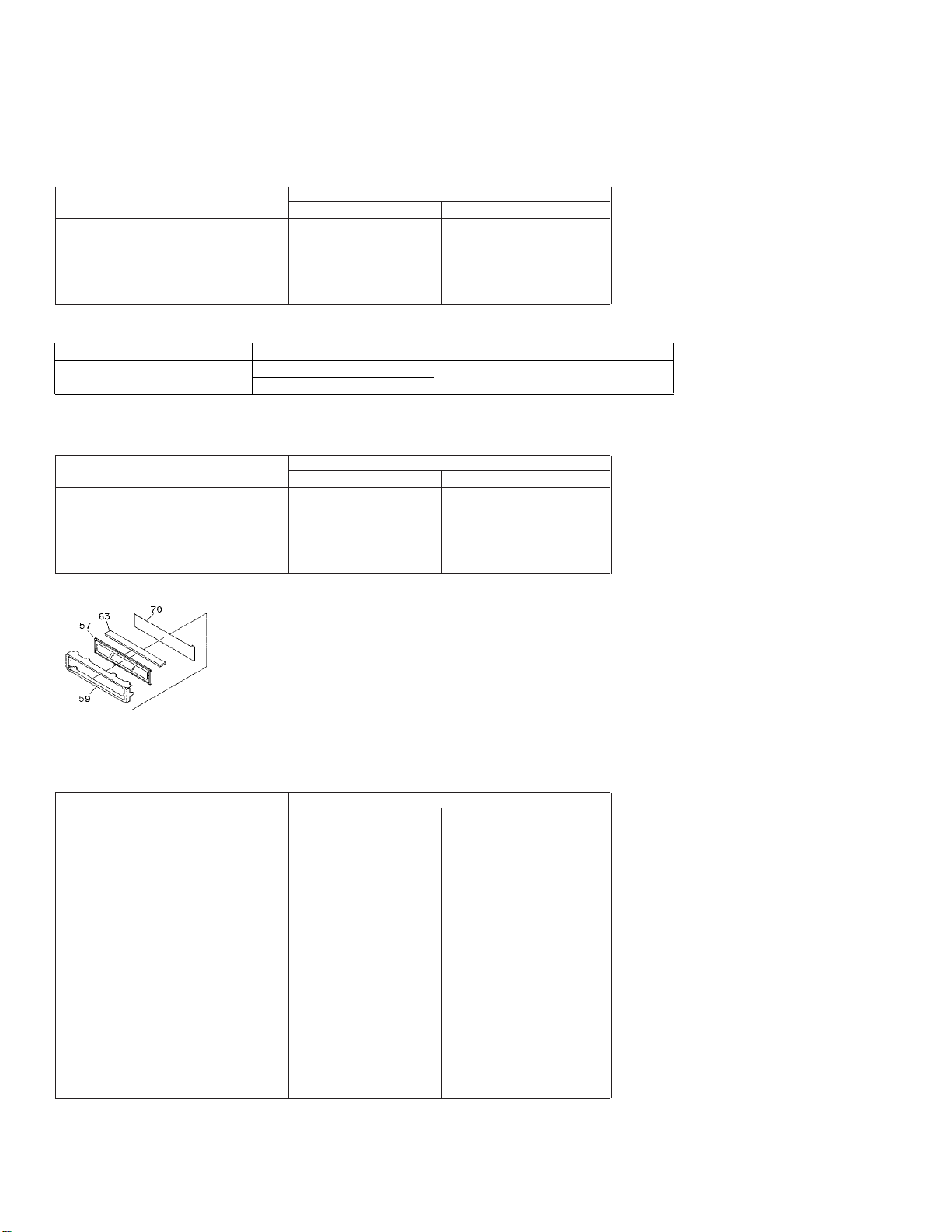

EXTERIOR(Page 4)
-EXTERIOR SECTION PARTS LIST
Part No.
Mark No. Symbol and Description DEH-1350/X1M/ES DEH-1350B/X1M/ES
45 Detach Grille Assy CXB6150 CXB7395
56 Keyboard Unit CWM7307 CWM7795
57 LCD CAW1633 CAW1688
65 Grille Unit CXB7186 CXB7288
70 Sheet Not used CNM7294
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-1350B/X1M/ES CRD3407 English, Spanish, Portuguese(B)
CRD3408

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZA. OCT. 2000 Printed in Japan
ORDER NO.
CRT2559
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-2350 X1M/ES
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .....8
4. PCB CONNECTION DIAGRAM ................................24
5. ELECTRICAL PARTS LIST ........................................32
6. ADJUSTMENT..........................................................35
7. GENERAL INFORMATION .......................................39
7.1 DIAGNOSIS ........................................................39
7.1.1 TEST MODE ..............................................39
7.1.2 DISASSEMBLY .........................................42
7.1.3 CONNECTOR FUNCTION DESCRIPTION .......46
7.2 PARTS .................................................................47
7.2.1 IC................................................................47
7.2.2 DISPLAY ....................................................54
7.3 OPERATIONAL FLOW CHART...........................55
8. OPERATIONS AND SPECIFICATIONS.....................56
DEH-1350 X1M/ES
DEH-2350/X1M/ES
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

2
DEH-2350,1350
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 42).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 37).
1. SAFETY INFORMATION
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
14
1
16
10
12
13
15
11
5
9
2
8
7
6
4
3
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.

3
DEH-2350,1350
1 Cord Assy CDE6468
2 Spring CBH1650
3 Screw CBA1002
* 4 Polyethylene Bag CEG-127
5 Screw CRZ50P090FMC
6 Screw TRZ50P080FMC
* 7 Polyethylene Bag CEG-158
8 Handle CNC5395
9 Bush CNV3930
10 Polyethylene Bag CEG-162
11-1 •••••
11-2 Owner’s Manual CRD3281
11-3 Installation Manual CRD3283
12 Carton See Contrast table(2)
13 Contain Box See Contrast table(2)
14 Protector CHP2346
15 Protector CHP2347
16 Case Assy See Contrast table(2)
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
Part No.
Mark No. Symbol and Description DEH-2350/X1M/ES DEH-1350/X1M/ES
12 Carton CHG4150 CHG4157
13 Contain Box CHL4150 CHL4157
16 Case Assy CXB3520 Not used
(2) CONTRAST TABLE
DEH-2350/X1M/ES and DEH-1350/X1M/ES are constructed the same except for the following:
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-2350/X1M/ES CRD3281 English, Spanish, Portuguese(B),
DEH-1350/X1M/ES CRD3283 Chinese, Arabic

4
DEH-2350,1350
2.2 EXTERIOR
B
A

5
DEH-2350,1350
1 Tuner Amp Unit See Contrast table(2)
2 Screw ASZ26P080FMC
3 Screw BPZ26P080FMC
4 Screw BSZ26P160FMC
5 FM/AM Tuner Unit CWE1563
6 Holder CNC8815
7 Pin Jack(CN301) CKB1041
8 Terminal(CN403) CKF1059
9 Plug(CN901) CKM1330
10 Connector(CN601) CKS3581
11 Connector(CN605) CKS3838
12 Antenna Jack(CN402) CKX1056
13 Holder CNC8041
14 Holder CNC8043
15 Holder CNC9128
16 Heat Sink CNR1589
17 Button CAC4836
18 Spring CBH1835
19 Spring CBH2208
20 •••••
21 Screw BSZ26P060FMC
22 Screw BSZ30P060FMC
23 Screw BSZ30P120FMC
24 Cable CDE6160
25 Cord Assy CDE6468
26 Fuse(10A) CEK1136
27 CD Mechanism Module(S8.1) CXK5203
28 Holder CNC5704
29 Cover CNC9127
30 Cushion CNM5210
31 Insulator CNM6224
32 Insulator CNM6386
33 Panel CNS6344
34 Spring CBH2367
35 Bracket CNC6791
36 Holder CNC8042
37 Cover CNM6276
38 Panel CNS5355
39 Arm CNV4692
40 Arm CNV4728
41 Arm CNV5576
42 Screw IMS20P030FZK
43 Case Unit CXB4033
44 Chassis Unit CXB4625
45 Detach Grille Assy See Contrast table(2)
46 Screw BPZ20P100FZK
47 Button(DETACH) CAC5789
48 Button(+/-, EQ, LD) CAC6821
49 Button(1-6, CLK) CAC6822
50 Button(A, B) CAC6823
51 Button(EJECT/BSM) CAC6824
52 Button(CROSS) CAC6825
53 Button(SOURCE) CAC6851
54 Spring CBH2210
55 Cover CNS6114
56 Keyboard Unit See Contrast table(2)
57 LCD See Contrast table(2)
58 Connector(CN1801) CKS3580
59 Holder CNC9078
60 Sheet CNM7057
61 Lighting Conductor CNV6475
62 Lighting Conductor CNV6476
63 Rubber CNV6477
64 Rubber CNV6478
65 Grille Unit See Contrast table(2)
66 Holder Unit CXB6681
67 Screw ISS26P055FUC
68 IC(IC302) PAL006A
69 Transistor(Q904, 981) 2SD2396
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
Part No.
Mark No. Symbol and Description DEH-2350/X1M/ES DEH-1350/X1M/ES
1 Tuner Amp Unit CWM7293 CWM7297
45 Detach Grille Assy CXB6146 CXB6150
56 Keyboard Unit CWM7303 CWM7307
57 LCD CAW1606 CAW1633
65 Grille Unit CXB7182 CXB7186
(2) CONTRAST TABLE
DEH-2350/X1M/ES and DEH-1350/X1M/ES are constructed the same except for the following:

6
DEH-2350,1350

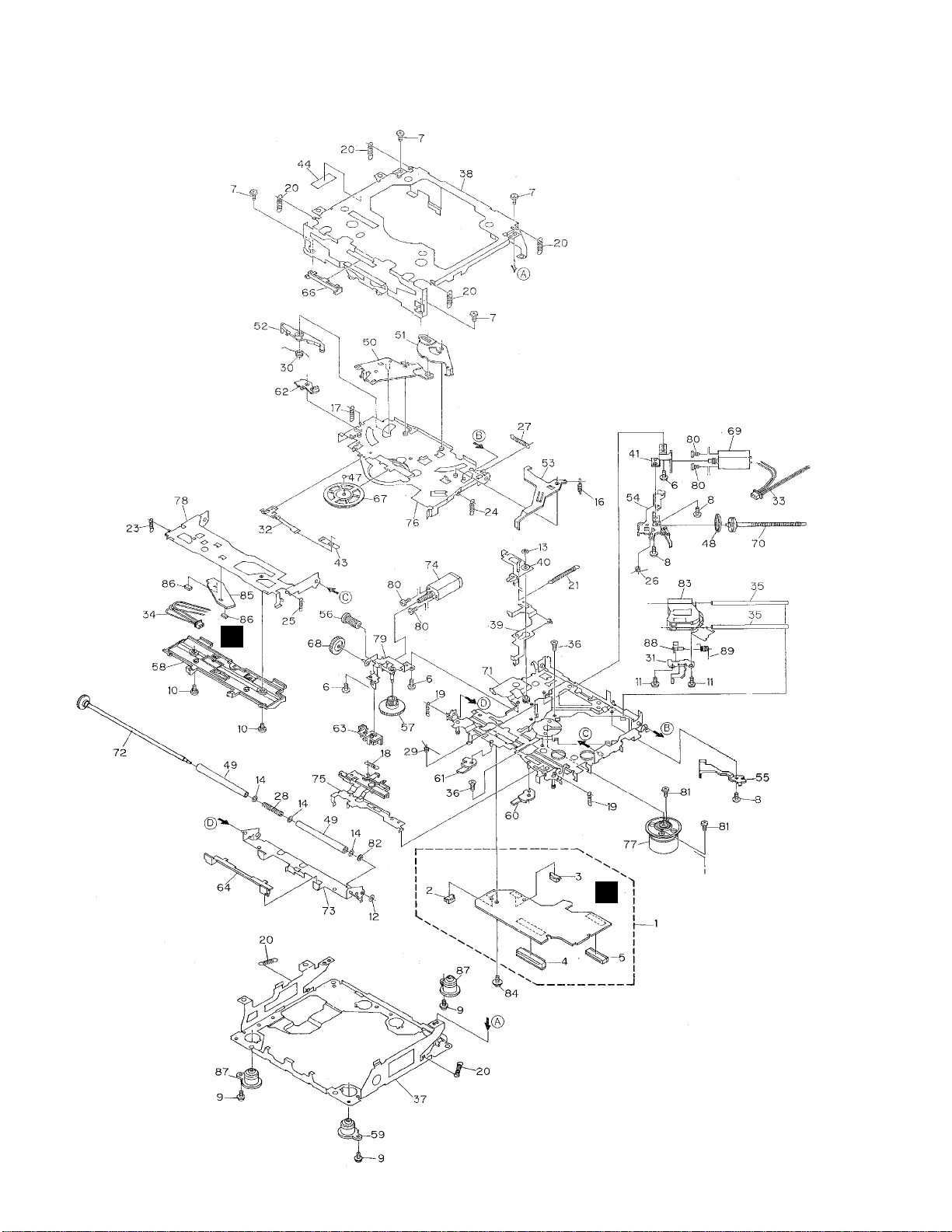

2.3 CD MECHANISM MODULE
C
D

7
DEH-2350,1350
Mark No. Description Part No. Mark No. Description Part No.
1 Control Unit CWX2411
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2773
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FMC
7 Screw BSZ20P040FMC
8 Screw(M2x3) CBA1077
9 Screw(M2x5) EBA1028
10 Screw CBA1243
11 Screw(M2x4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
15 •••••
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2314
19 Spring CBH2110
20 Spring CBH2282
21 Spring CBH2318
22 •••••
23 Spring CBH2324
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2377
29 Spring CBH2260
30 Spring CBH2262
31 Bracket CNC8568
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3894
36 Screw(M2.6x6) CBA1458
37 Frame CNC8565
38 Frame CNC8749
39 Lever CNC9265
40 Arm CNC8663
41 Bracket CNC8567
42 •••••
43 Spacer CNM3315
44 Sheet CNM6659
45 •••••
46 •••••
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV6037
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV6272
59 Damper CNV6174
60 Arm CNV6096
61 Arm CNV6031
62 Arm CNV6211
63 Guide CNV6012
64 Guide CNV5510
65 •••••
66 Guide CNV5751
67 Clamper CNV6013
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB5892
71 Chassis Unit CXB4797
72 Gear Unit CXB4728
73 Arm Unit CXB5753
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB4730
76 Arm Unit CXB4731
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB4732
79 Bracket Unit CXB4795
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE20FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
87 Damper CNV6175
88 Rack CNV6014
89 Spring CBH2315
-CD MECHANISM MODULE SECTION PARTS LIST

8
DEH-2350,1350
1234
1234
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

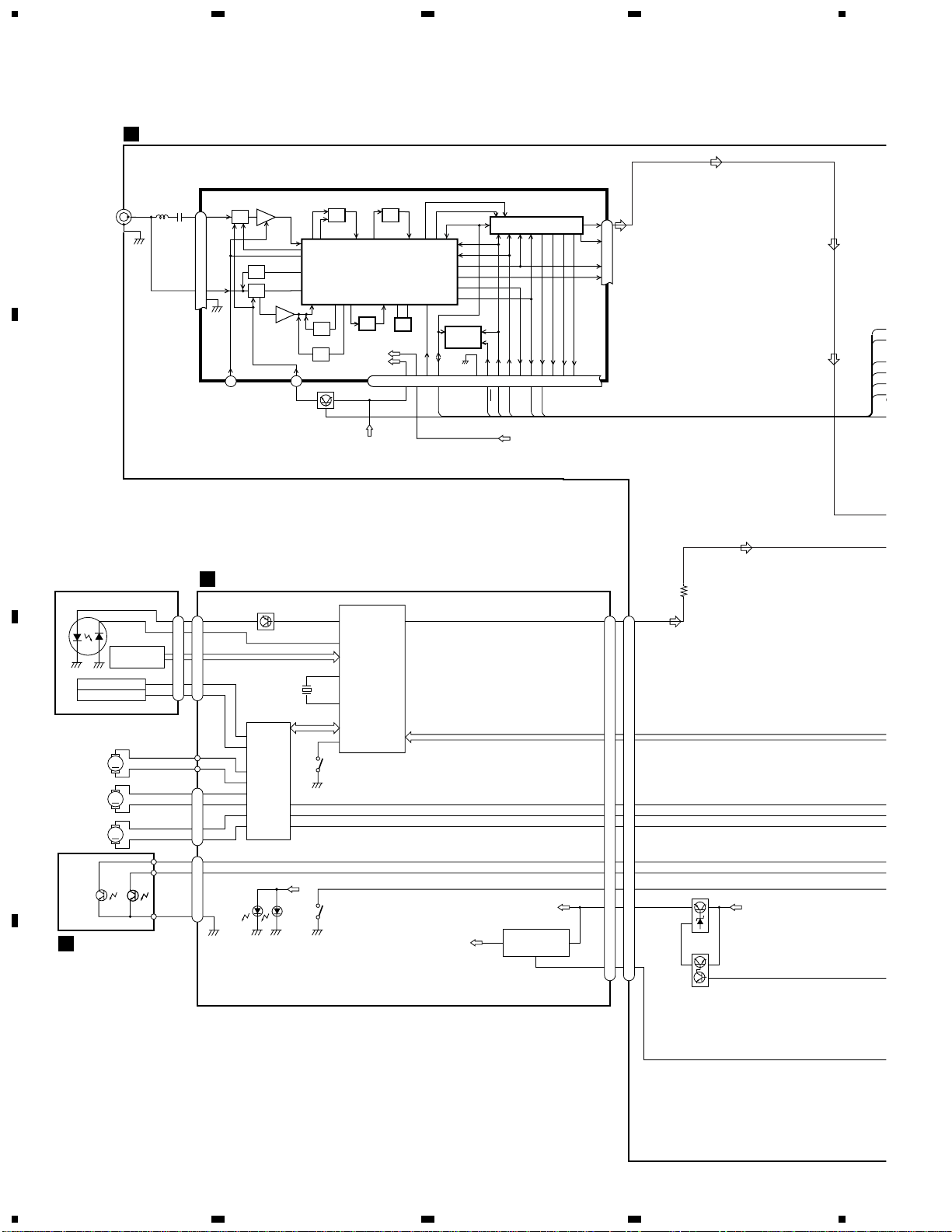

3.1 BLOCK DIAGRAM
M
M
M
LD MD
HOLOGRAM
UNIT
FOCUS ACT
TRACKING ACT
LD+
MD
FO+
TO+
14
5
4
3
SPINDLE
MOTOR
CARRIAGE
MOTOR
LOADING
MOTOR
1
2
3
4
3
1
2
SELECT
SENSE
DISC SENSE
D
CN801
CN802
D802 D801
VD
S802
CLAMP
6
5
11
22
23
21
1
28
21
CDLOAD
CDEJET
CONT
EJTSNS
DSCSNS
CLAMP
CD5VON
VDCONT
VDD IC 701
BA05SFP IN
+5V REGULATOR
24
1
VD
Q981
Q982
B.U
ANTENNA CN402
A
LOCL
Q411
VCC VDD
PCE2
PCK
PCE1
SL
SD
PDIO
C
Q101
CN101
FOP
TOP
A+C/F
B+D/E
98 LD L_OUT
PD
HOME
97
24
23
39
X201
TD/FD
SD/MD
RF-AMP, DSP,
SERVO, DAC
IC 201
UPD63711GC
16 CN701 CN605
17
1
8
24
CDL
IC 301
BA5985FM
S801
HOME
12
16
18
11
14
13
10
9
SOP
TOP
FOP
SOM
COP
COM
LOP
LOM
FWD
REV
MUTE
CD DRIVER
718
19
20
14
3
2
4
CLAMP
DINC
EJTD
CDLOAD
EJET
CONT
PDIO
TUNER AMP UNIT
CONTROL UNIT
PICKUP UNIT(SERVICE)(P8)
PHOTO UNIT(S8)
4
VD
CD5VON
IC 3
EEPROM
FM/AM TUNER UNIT
28
27
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51 CF52 CF53
IC1
MIXER, IF AMP, DET.
6
21
18
LDET
COMP
22
25 10 14 12 15 16 8 13 2 3 4
CF202
VDD
VCC
DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2
IC 2 FM MPX
AMANT
FMANT
ATT
ATT
AMRF
FMRF
IMG ADJ
RF ADJ
X901
10.25MHz
ANT ADJ
LOCL
23
LOCH
AMDET
MPXREF 41kHz
AM 2ND IF
450kHz
19
CREQ
11
DGND
1
STIND
L ch
5
R ch
924
NC
FMLOCL
20177
NC NC WC
26 RFGND

9
DEH-2350,1350
5678
5678
D
C
B
A
KYDT
DPDT
KEY CONT.
LCD DRIVER
IC 1801
PD6340A
3
4
5
3
4
5
KEY MATRIX
SD
SL
PCE
PCK
TUNPCE2
PDO
LOCL
IN2_L
IN3_L
6
76
14
13
48
12
57
2
3
SYSTEM
CONTROLLER
IC 601(1/2)
PE5196A
VST
VCK
VDT
B.U
VDD Q903 B.U BACKUP
FL—
FL+
RL—
RL+
ACC
2
1
9
11
10
12
4
E.VOL
FIE/EQ
IC 301
PML003AM
SYSTEM
CONTROLLER
IC 601(2/2)
PE5196A
ASENS 63
BSENS 64
SYSPW 42
MUTE 44
KYDT 8
DPDT 9
RESET 60
SWVDD 41
Frontout_L 10
Rearout_L 11
POWER AMP
IC 302
PAL006A
14
12
22 4
5
3
21
23
FL
MUTE STBY 25
B.REM
RL
B.U
bsens
asens
Q902
Q351 MUTE
Q350
BKEYBOARD UNIT
CN1801
CN601
LCD
22 23
X1801
20
18
Q650
RESET
IC 602
S—80834ANY VDD
12
SYSPW
GND
5
B.REM
FUSE
10A
CD5VON
31
34
23
80
79
27
22
35
VDCONT
CLAMP
DSCSNS
EJTSNS
CDLOAD
CDEJET
CONT
PDI
11
PDIO
VST/ VCK/ VDT
Q901
VDD
VDD
VLCD
56
10
CN901
Q346
CN301 REAR L CH
Q363
BACK UP
FL–
FL+
RL–
RL+
B.REM
ACC
GND

10
DEH-2350,1350
1234
1234
D
C
B
A

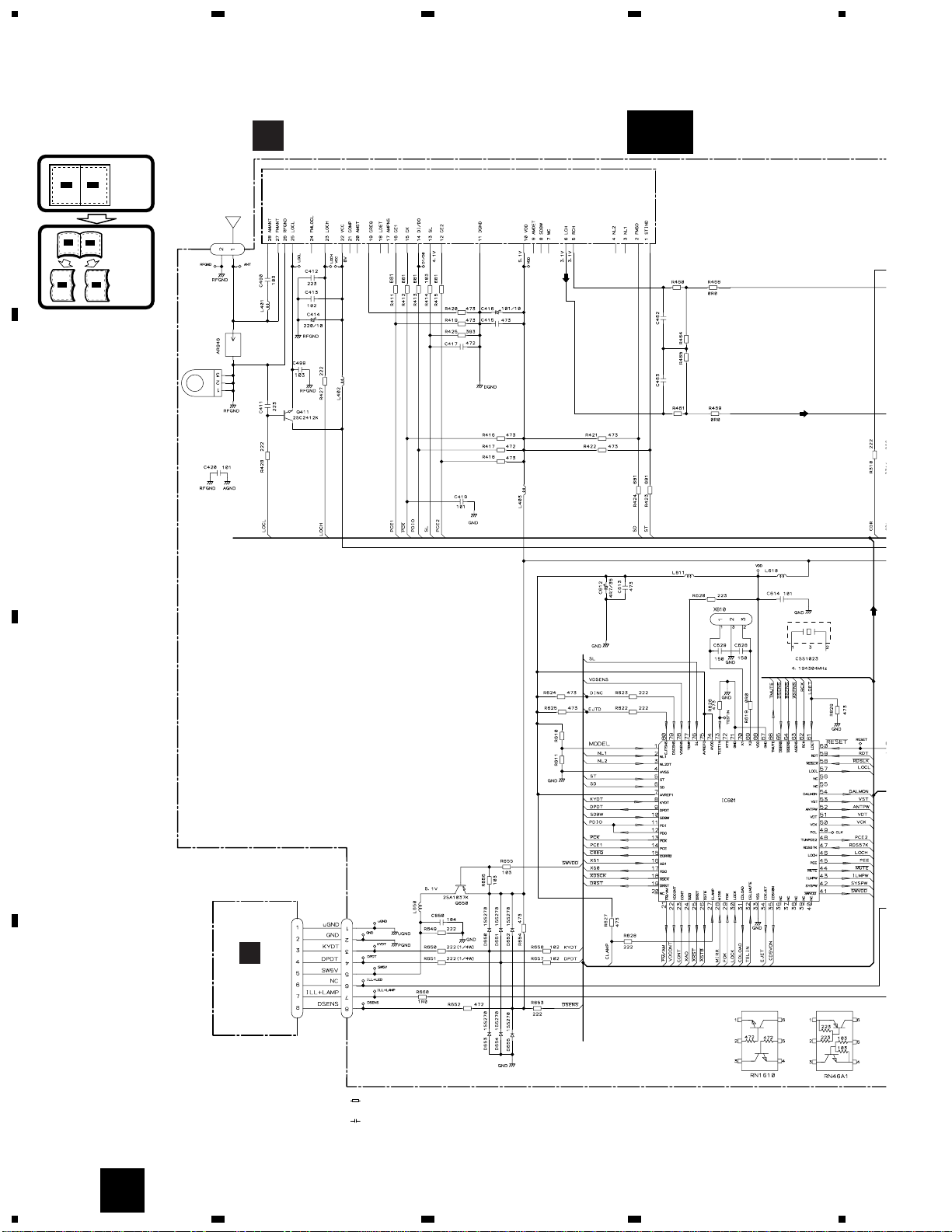

3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-a
A-a
A-b
A-b
A-b
A-b
A-a
A-a
Large size
SCH diagram
Guide page
Detailed page
A
DSP-201M-S00B
183
162 162
183
272
272
273 203
PE5196A
CN601
CN403
CN402
FM(100%):-19.5dBs
AM(30%):-30dBs
SYSTEM CONTROLLER
For resistors and capacitors in the circuit diagrams, their resistance values or
capacitance values are expressed in codes:
Ex. *Resistors
Code Practical value
123 12k ohms
103 10k ohms
*Capacitors
Code Practical value
103 0.01µF
101/10 100µF/10V
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
KEYBOARD
UNIT
B
FM/AM TUNER UNIT
A-a
TUNER AMP UNIT
A

11

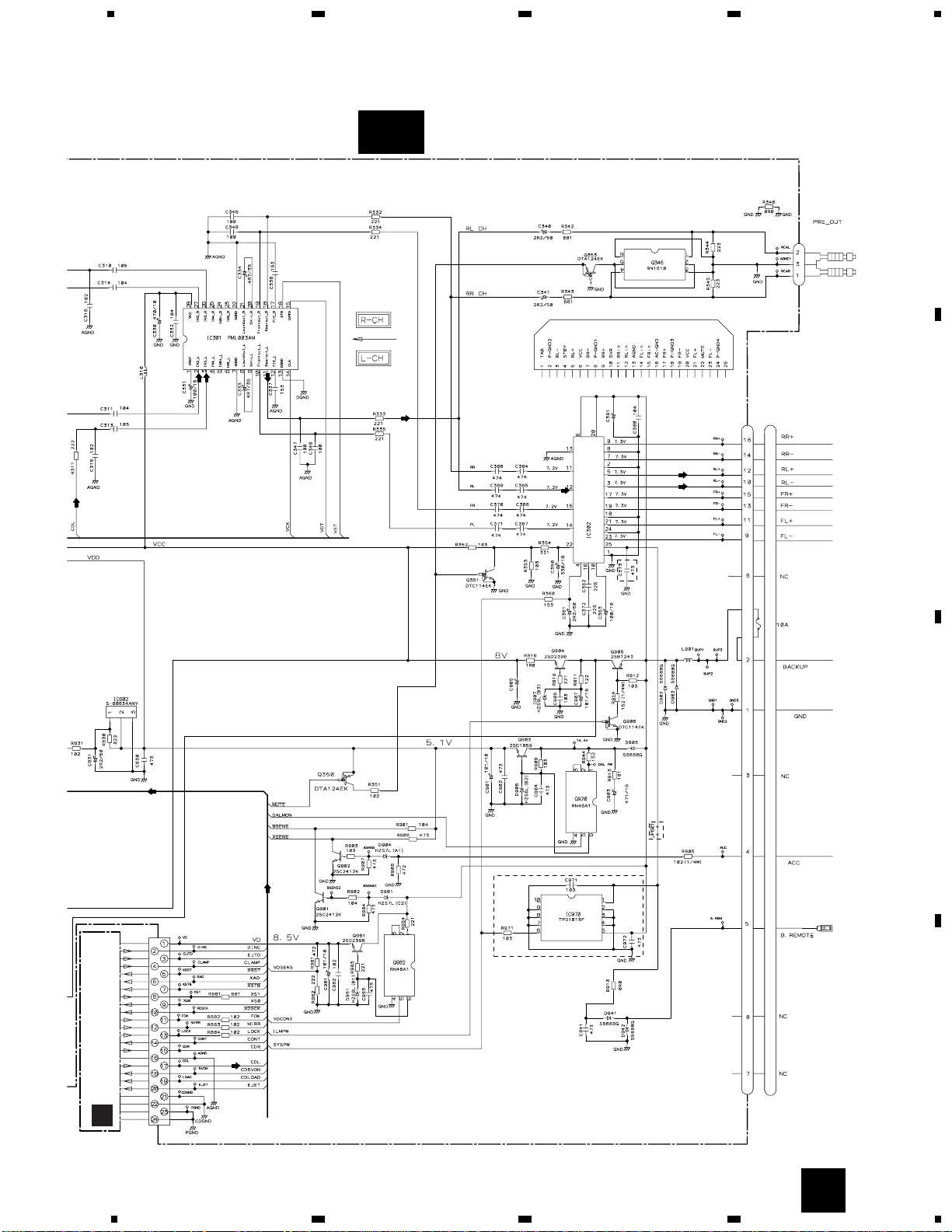

DEH-2350,1350
5678
5678
D
C
B
A
A
332/16
B.REM(DEH-2350/X1M/ES) NC(DEH-1350/X1M/ES)
Pin 25 :
PAL006A(DEH-2350/X1M/ES) TDA7386(DEH-1350/X1M/ES)
600µH
331/16
CN901
CN301
CN605
CEK1136
>
(DEH-2350/X1M/ES)
(DEH-2350/X1M/ES)
(DEH-1350/X1M/ES)
FM(100%):+3.6dBs
AM(30%):-6.9dBs
CD:+10.2dBs
FM(100%):+29.6dBs
AM(30%):+19.1dBs
CD:+36.2dBs
CD:+4.1dBs
CD:+9.4dBs
RESET
E.VOL
FIE/EQ
POWER AMP
A.SENS
B.SENS
CONTROL UNIT
C
A-b

12
DEH-2350,1350
1234
1234
D
C
B
A
A-a
A-a A-b
1
DSP-201M-S00B
183
162 162
183
272 272
CN403 CN402
FM(100%):-19.5dBs AM(30%):-30dBs
FM/AM TUNER UNIT
TUNER AMP UNIT
A

13
DEH-2350,1350
5678
5678
D
C
B
A
A-a
A-a A-b
273 203
PE5196A
CN601
SYSTEM CONTROLLER
RESE
For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01µF 101/10 100µF/10V
The >mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
KEYBOARD
UNIT
B
CONTROL UNIT
C
2

14
DEH-2350,1350
1234
1234
D
C
B
A
A-a A-b
A-b
332/16
B.REM(DEH-2350/X1M/ES)
NC(DEH-1350/X1M/ES)
Pin 25 :
PAL006A(DEH-2350/X1M/ES)
TDA7386(DEH-1350/X1M/ES)
600µH
CN901
CN301
CEK1136 >
(DEH-2350/X1M/ES)
FM(100%):+3.6dBs AM(30%):-6.9dBs CD:+10.2dBs
FM(100%):+29.6dBs AM(30%):+19.1dBs CD:+36.2dBs
CD:+9.4dBs
E.VOL FIE/EQ
POWER AMP
1

15
DEH-2350,1350
5678
5678
D
C
B
A
A-b
A-a A-b
600µH
331/16
CN605
CEK1136
(DEH-2350/X1M/ES)
(DEH-1350/X1M/ES)
CD:+4.1dBs
RESET
A.SENS B.SENS
CONTROL UNIT
C
2

16
DEH-2350,1350
1234
1234
D
C
B
A
3.3 KEYBOARD UNIT
KEYBOARD UNIT
LCD CAW1606(DEH-2350/X1M/ES), CAW1633(DEH-1350/X1
LCD DRIVER
KEY CONTROLLER
B
B

17
DEH-2350,1350
5678
5678
D
C
B
A
ACN601
50/X1M/ES)
IL1801, 1802:CEL1651(14V 40mA)
R1708, 1710, 1712:151
D1701-1708:SML210PT
CLK
BSM
EQ
LOUD
B

DEH-2350,1350
1234
1234
D
C
B
A
BA05SFP
(SERVICE)(P8)
PICKUP UNIT
PHOTO UNIT(S8)
CONTROL UNIT
SPINDLE MOTOR
Q2 CPT230SX-TUQ1 CPT230SX-TU
M3 CXB2562
CARRIAGE MOTOR
M1 CXB2190
M2 CXB2195
LOADING MOTOR
RF-AMP, SE
5V REGULATOR
CD DRIVER
CN101
CN802
CN801
CL203IRXTU CL203IRXTU
3.4 CD MECHANISM MODULE
D
D
C
18 C
