Pioneer Elite PRO-950HD User manual

The highest expression of sight and sound comes only from a passion for accuracy.
The new line of Elite KURO plasma televisions is a testament to that passion and the
result is the most remarkable high-definition experience available today.
ELITE PLasma TEchnoLogy
New cell structure with improved crystal emissive layer redesigned for
a more intense black with added detail
New lter with enhanced contrast in bright environments
New ASIC video processing and scaling for the ultimate in Standard-
Denition and High-Denition video performance
New fully-integrated bottom speaker with integrated digital amplier
for improved clarity and accuracy of sound
ELITE PLasma FEaTurEs
New Optimum Video Mode with optical light sensor for automated
adjustment of picture in both varying light conditions and by program
content such as movies, news, sports, etc.
New Pure Cinema Smooth Film Motion mode to eliminate motion
jutter in 3:2 Pulldown (60Hz) providing natural even playback of
content created on lm
New 4 Independent HDMI 1.3 inputs with HDMI-CEC control and the
ability to accept 1080p 24/60Hz signal
New Room Light Sensor
Advanced PureCinema with 3:3 Pulldown (72Hz) for accurate
playback of lm content
Fully integrated ATSC and Dual NTSC Tuners with CableCARD™ Slot
Home Media Gallery – offering a multimedia experience to enjoy
movies, music and photos through an existing home network
ISFccc Calibration Ready for professional customization of plasma
picture according to personal preferences for contrast, tint, color as
well as room conditions for both day and nighttime viewing. Includes:
New Independent Gamma Control (R / G / B) for heightened color
calibration
V-Chip Parental Control
TV Guide On Screen® Interactive Program Guide (ver. 9)1
Remote Control – Illuminated / Preset Mode / Learning Mode
›
›
›
›
›
›
›
›
›
›
›
›
–
›
›
›
ELITE PIcTurE sETTIngs
A/V Selection Memory – 9 options for viewing preferences:
Optimum / Dynamic / Standard / PURE / Movie / Game / User /
ISF-Day / ISF-Night (PC input: only Standard & User)
Aspect Ratio Control – 5 positions: Wide / Zoom / Cinema / Full / 4:3
Advanced Picture-in-Picture (4 positions), Picture-side-Picture for use with
Home Media Gallery & Broadcast (3 positions) and Still Picture capability
After-Image Reduction Function
Seamless Orbiter (Off / On)
Auto Size (Off / Natural / Wide-Zoom)
Side Mask Detection (Off / On)
Side Mask Brightness (Fixed / Auto)
Video Pattern (White Bar)
Game Control Preference (AV Selection only) (Off / On)
Fine Tune Setting for ultimate picture control of color temperature,
noise reduction and color management
Intelligent Mode (Off / On)
New Room Light Sensor (Off / On)
homE mEdIa gaLLEry
IP Network Compatibility Designed to DLNA Guidelines: Enables a
link with a networked PC to share content via Ethernet connection,
including movies (even HD movie content), music and photos.
Microsoft PlaysForSure™ Protected Content: No-hassle playback of
Microsoft PlaysForSure audio or video content downloaded from the
web and stored on personal computers, via an existing home network
system.
2
Supported Formats:
Video: WMV9, MPEG1, MPEG2-PS, MPEG2-TS, MPEG-ASP
Audio: LPCM, MP3, WMA, WMA9 PRO, AC3, AAC, WAV
Photos: JPG, TIF, PNG, BMP, GIF
›
›
›
›
–
–
–
–
–
–
›
›
›
›
›
›
–
–
–
High-Denition Resolution (1024 x 768)
42” Diagonal / 16:9 Wide-Screen
Aspect Ratio
Ability to Accept 480i / 480p / 720p /
1080i / 1080p (24Hz/60Hz) Signals
Deep, Intense Blacks for
Unmatched Contrast
Ability to Fine-tune Multiple Picture &
Video Settings
4 Independent HDMI® Inputs
Home Media Gallery1
Anti-glare / Reective Filter
Subwoofer Output
›
›
›
›
›
›
›
›
›
E
Exclusive ELITE Feature
E
E
E
E
E
E
E
PRO-950HD
42-Inch High-Definition
ELITE®Flat Panel Television
Simulated Screen

As an optional service through an Elite dealer (for a fee), you can have a
trained ISF professional calibrate the plasma using the built-in ISFccc feature.
1
The TV Guide On Screen interactive program guide provides listings for
cable-ready, cable box, and digital cable services as well as over-the-air
broadcast. It does not provide listings for satellite.
2
Previously existing or new home network, Microsoft Windows
®
XP, and
Microsoft Windows
®
Media Connect software (Free for licensed users of
Microsoft Windows
®
operating system through Windows
®
Updates) required
for all Home Media Gallery features. For best results use wired connection.
High-Definition Television (HDTV): HDTV refers to a complete product/system
with the following minimum performance attributes:
Receiver: Receives ATSC terrestrial digital transmissions and decodes all
ATSC Table 3 video formats.
Display Scanning Format: Has active vertical scanning lines of 720
progressive (720p), 1,080 interlaced (1,080i) or higher.
Aspect Ratio: Capable of displaying a 16:9 image.
Audio: Receives and reproduces, and/or outputs Dolby Digital audio
(Consumer Electronics Association, August 2000).
Plasma Display Systems display images consisting of hundreds of thousands
of minute pixels (light emitting cells), and there is a possibility that some
pixels may be inactive, flashing or continually illuminated.
Plasma Display Systems are made of glass; be sure to secure it from dam-
age from impact.
Plasma Display Systems, while in use, may generate some functional
sounds, for example: fan motor noise, and electrical circuit humming/glass
panel buzzing.
All phosphor-based display systems (CRT Television Systems - both direct
view and projection televisions - as well as plasma display systems) may
develop image retention, sometimes called burn-in if permanent. Recom-
mended guidelines are as follows:
Do not display still images for long periods (such as fixed images from
PC or TV game equipment, and/or time of day indicator or channel logo
display).
Do not display content in the 4:3 aspect ratio (black or gray bars on left and
right side of content) or letter-box content (black bars above and below of
content) for extended periods of time, or use either of these viewing modes
repeatedly within a short period of time.This Plasma Display System is
equipped with multiple wide-screen viewing modes; use one of these
screen modes to fill the entire screen with content.
Displaying dark images after displaying still images for a period of time
may cause image retention. In most cases, the image retention can be
corrected by displaying bright images for a similar period of time. However,
if your Plasma Display System displays still images for additional long
periods of time, image retention may be irreparable.
Plasma Display Systems emit slight amounts of IR (Infrared) emission
through luminous discharge technology. This IR emission is not harmful to
living organisms, but may interfere with the operation of remote controls
for other equipment, or cause static in equipment using IR signals (such as
cordless headphones or cordless microphones).
PIONEER, ELITE, and the Pioneer and Elite logos are registered trademarks of
Pioneer Corporation.
CableCARD™ is a trademark of Cable Television Laboratories, Inc.
HDMI and the HDMI logo are registered trademarks of HDMI Licensing, LLC.
SRS WOW, SRS, TruBass and FOCUS and the symbol are trademarks
of SRS Labs, Inc.
In the United States, TV Guide and other related marks are registered marks
of Gemstar-TV Guide International, Inc. and/or one of its affiliates.
ISFccc is a trademark of Imaging Science Foundation, Inc.
DLNA, DLNA CERTIFIED and the DLNA logo are trademarks and/or service
marks of Digital Living Network Alliance.
The Playsforsure logo, Windows Media and the Windows logo are trademarks
or registered trademarks of Microsoft Corporation in the United States and/or
other countries.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
SimplayHD and the SimplayHD logo are registered trademarks of Simplay
Labs, LLC.
Specifications and design subject to modification without notice.
© 2007 Pioneer Electronics (USA) Inc.
sound TEchnoLogy
New 17 Watt Stereo Digital Amplier w/TruBass 2-Way Stereo
Speakers
SRS® WOW / FOCUS / TruBass Surround Sound Audio
carTon dImEnsIons
(W x H x D): 46-1/4” x 33-1/16” x 14-1/4”
Weight: 86.4 lbs.
uPc
012562865003

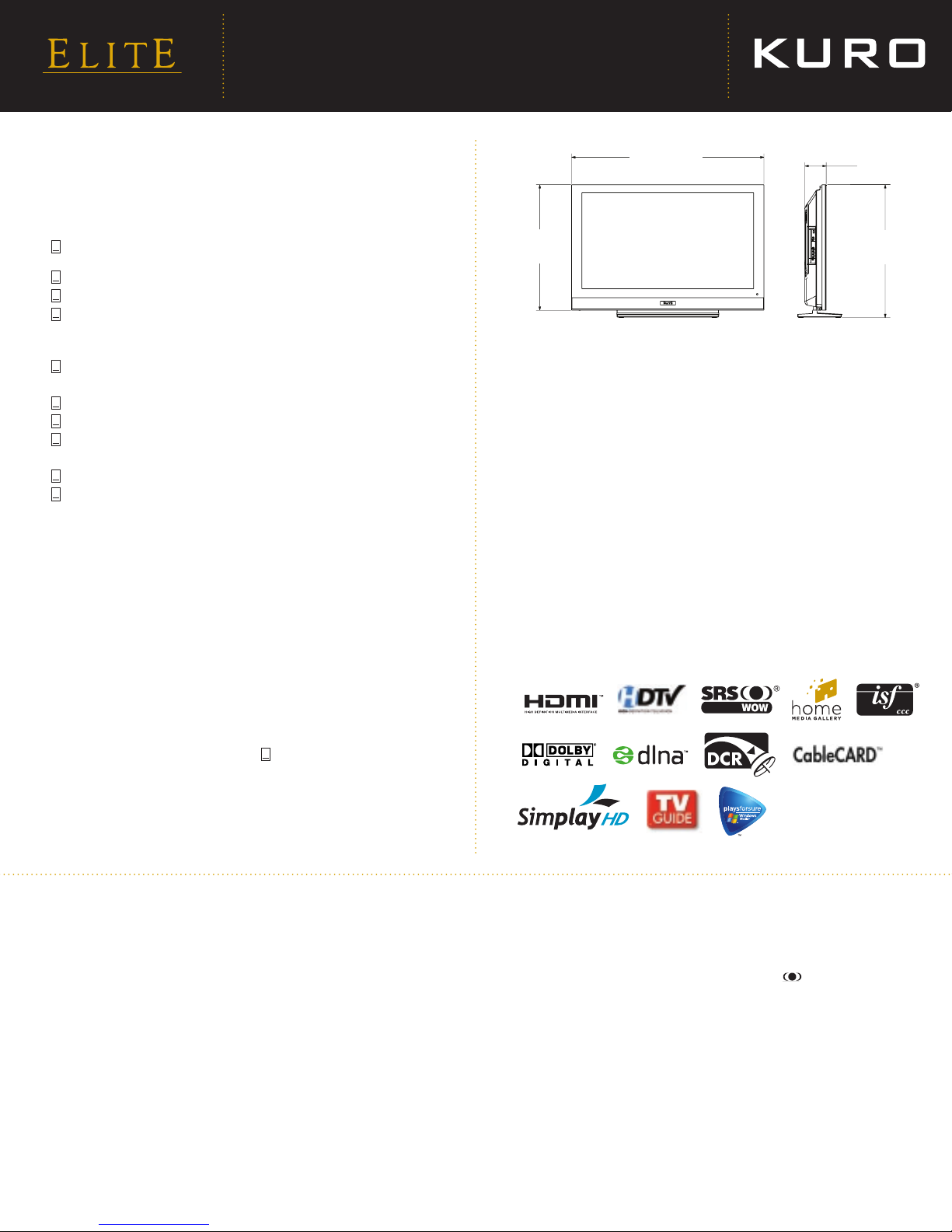

ProducT dImEnsIons
Panel (W x H x D): 40-15/16” x 26-3/4” x 4-1/2”
Panel Weight: 66.9 lbs.
InTEgraTEd TEchnoLogIEs
›
›
›
›
›
›
›
ELITE VIdEo ProcEssIng
TEchnoLogy
Picture Detail Settings – DRE (Off / High / Mid / Low), Black Level
(Off / On), ACL (Off / On), Enhance Mode (1 / 2 / 3) and Gamma
(1 / 2 / 3)
Color Temperature Adjustment – 5 settings (High / Mid-High /
Mid / Mid-Low / Low)
Color Temperature Manual Adjustment
Color Management
Color Space (1 / 2)
3 Digital Noise Reduction – 3 settings (High / Mid / Low)
Field Noise Reduction (Off / High / Mid / Low)
MPEG Noise Reduction
Block Noise Reduction
Block Noise Reduction Activation (Off / On)
Mosquito Noise Effect
Mosquito Noise Reduction (Off / On)
Tuner Noise Reduction
3 DYC (1 / 2 / 3)
I-P Mode
Digital CTI – Color Transient Improver (On / Off)
Natural Resize
Natural Enhancer
Digital Chroma Decoder (10-bit)
ELITE VIdEo & audIo
connEcTIVITy
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
E
E
E
E
E
E
E
E
E
E
PRO-950HD
42-Inch High-Definition ELITE®
Flat Panel Television
Inputs
4 Independent HDMI 1.3
(w/PC support,
2 w/analog audio)
2 Component
3 Composite
1 S-Video
Antenna A & B
USB (Mass Storage Class)
PC
LAN (10/100 Base-T
Ethernet)
›
–
–
–
–
–
–
–
–
Outputs
Optical Digital Audio
(Dolby Digital/PCM)
Audio
Monitor Audio LR
Subwoofer
SR+
IR Repeater
Headphone
›
–
–
–
–
–
–
–
E
40-15/16”
26-3/4”
4-1/2”
28-5/16”
