Pioneer MVH-AV299BT User manual

Owner’s Manual
MVH-AV299BT
MVH-AV199
RDS AV RECEIVER
English
< QRB3685-A >
English

2
Thank you for buying this Pioneer product.
Please read through these instructions so you
will know how to operate your model properly.
After you have finished reading the instruc-
tions, keep this document in a safe place for
future reference.
Important
The screens shown in the examples may
differ from actual screens, which may be
changed without notice for performance and
function improvements.
■Precaution..........................3
Important safety information ............................3
To ensure safe driving......................................3
When using a display connected to V OUT ......3
To avoid battery exhaustion..............................3
Rear view camera ............................................3
Handling the USB connector............................3
In case of trouble..............................................4
Visit our website...............................................4
Protecting the LCD panel and screen...............4
Notes on internal memory................................4
About this manual ............................................4
Use and care of the remote control ..................4
■Basic operation..................5
Checking part names and functions.................5
Remote control ................................................5
Plugging and unplugging a USB storage
device .........................................................6
On rst-time startup .........................................6
How to use the screens....................................7
Supported AV source.......................................8
Selecting a source ...........................................8
Using the touch panel ......................................8
■Registration and
connection of Bluetooth
device .................................8
Displaying the “Bluetooth” screen.....................8
Registering your Bluetooth devices..................8
Connecting a registered Bluetooth device
manually .....................................................9
Switching visibility ............................................9
Entering the PIN code for Bluetooth wireless
connection ..................................................9
Displaying the device information.....................9
Clearing the Bluetooth memory........................9
Updating Bluetooth software............................9
Displaying the Bluetooth software version........9
■Hands-free phoning.........10
Displaying the Phone menu screen................10
Making a phone call .......................................10
Receiving a phone call...................................10
Changing the phone settings .........................11
Notes for hands-free phoning.........................11
■Radio ................................12
Starting procedure .........................................12
Searching by PTY information........................12
Storing the strongest broadcast frequencies..12
Displaying the “Radio settings” screen ...........12
Tuning into strong frequencies .......................12
Setting the FM or AM tuning step...................12
Setting the alternative frequency search ........13
Setting the Auto PI search..............................13
Limiting stations to regional programming......13
Receiving trafc announcements (TA)............13
Receiving news announcements....................13
Receiving alarm broadcasts...........................13
■Compressed audio les ..13
Starting procedure .........................................14
Selecting les from the le name list ..............14
Switching the media le type..........................14
■Compressed video les ..14
Starting procedure .........................................15
Selecting les from the le name list ..............15
■Still image les ................15
Starting procedure .........................................16
Selecting les from the le name list ..............16
Setting the slideshow interval.........................16
■Bluetooth audio player....16
Starting procedure .........................................17
Selecting les from the le name list ..............17
■AUX source ......................17
Starting procedure .........................................17
Setting the video signal..................................17
■System settings ...............18
Displaying the “System” setting screen ..........18
Setting the steering wheel control ..................18
Activating the Bluetooth audio source ............18
Setting the ever scroll.....................................18
Setting the rear view camera..........................18
Setting the camera for Rear View mode .........18
Selecting the system language ......................19
Setting the beep sound ..................................19
Adjusting the response positions of the touch
panel (touch panel calibration)..................19
Setting the dimmer.........................................19
Adjusting the picture ......................................19
■Audio adjustments ..........20
Displaying the “Audio” setting screen .............20
Using fader/balance adjustment.....................20
Using balance adjustment..............................20
Adjusting source levels ..................................20
Adjusting loudness.........................................20
Using the subwoofer output............................20
Adjusting the subwoofer settings....................21
Switching the rear speaker output..................21
Switching the RCA rear output.......................21
Boosting the bass ..........................................21
Setting the high pass lter..............................21
Using the equaliser ........................................21
■Theme menu ....................22
Selecting the theme colour.............................22
■Favourite menu................22
Creating a shortcut ........................................22
Selecting a shortcut .......................................22
Removing a shortcut ......................................22
■Common operations........22
Setting the time and date ...............................22
Changing the wide screen mode....................23
■Other functions................23
Setting the video signal for the rear view
camera......................................................23
Resetting various settings/Restoring this
product to the default settings ...................23
■Connection.......................24
Precautions....................................................24
Precautions before connecting the system.....24
Before installing this product..........................24
To prevent damage ........................................24
Notice for the blue/white lead .........................25
This product ...................................................25
Power cord.....................................................25
Speaker leads................................................25
Power amp (sold separately)..........................26
Camera..........................................................26
External video component and the display.....27
■Installation .......................27
Precautions before installation.......................27
Before installing .............................................27
Installation notes............................................28
Installation using the screw holes on the side of
this product ...............................................28

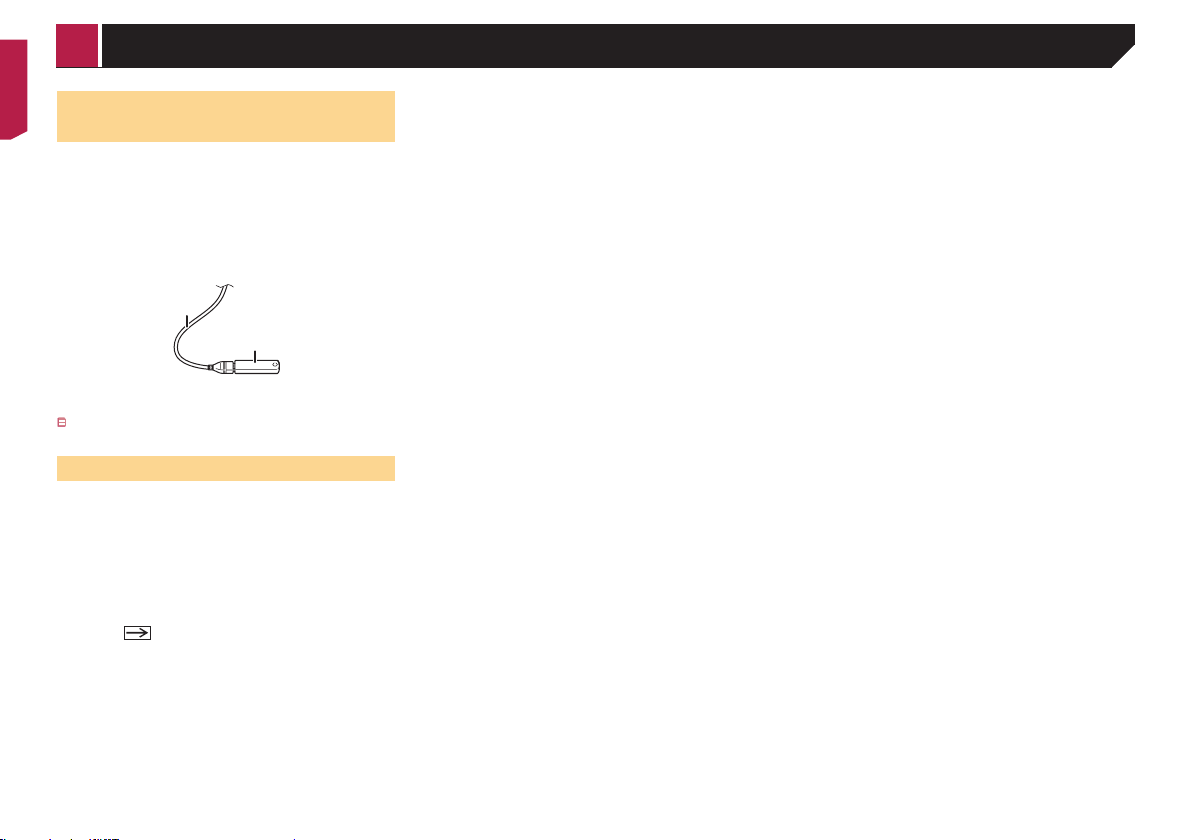

Installing the microphone ...............................28
Mounting on the sun visor ..............................28
Installation on the steering column.................29
Adjusting the microphone angle.....................29
■Appendix ..........................29
Troubleshooting .............................................29
Error messages .............................................30
Detailed information for playable media .........30
Copyright and trademark notice .....................31
Bluetooth .......................................................32
WMA..............................................................32
AAC ...............................................................32
Notice regarding video viewing ......................32
Notice regarding MP3 le usage ....................32
Using the LCD screen correctly......................32
Specications.................................................32
< QRB3685-A >
Contents

3
Important safety information
WARNING
Do not ingest the battery, Chemical Burn Hazard
(The remote control supplied with) This product contains
a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours
and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using
the product and keep it away from children.
If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
WARNING
Do not attempt to install or service this product by yourself.
Installation or servicing of this product by persons without
training and experience in electronic equipment and
automotive accessories may be dangerous and could
expose you to the risk of electric shock, injury or other
hazards.
Do not allow this product to come into contact with liquids.
Electrical shock could result. Also, damage to the product,
smoke, and overheating could result from contact with
liquids.
If liquid or foreign matter should get inside this product,
park your vehicle in a safe place, turn the ignition switch
off (ACC OFF) immediately and consult your dealer or the
nearest authorised Pioneer Service Station. Do not use this
product in this condition because doing so may result in a
fire, electric shock, or other failure.
If you notice smoke, a strange noise or odour from this
product, or any other abnormal signs on the LCD screen,
turn off the power immediately and consult your dealer or
the nearest authorised Pioneer Service Station. Using this
product in this condition may result in permanent damage
to the system.
Do not disassemble or modify this product, as there
are high-voltage components inside which may cause
an electric shock. Be sure to consult your dealer or the
nearest authorised Pioneer Service Station for internal
inspection, adjustments or repairs.
Before using this product, be sure to read and fully understand
the following safety information:
Do not operate this product, any applications, or the rear
view camera option (if purchased) if doing so will divert your
attention in any way from the safe operation of your vehicle.
Always observe safe driving rules and follow all existing
traffic regulations. If you experience difficulty in operating
this product or reading the display, park your vehicle in a
safe location and apply the handbrake before making the
necessary adjustments.
Never set the volume of this product so high that you cannot
hear outside traffic and emergency vehicles.
To promote safety, certain functions are disabled unless the
vehicle is stopped and/or the handbrake is applied.
Keep this manual handy as a reference for operating proce-
dures and safety information.
Do not install this product where it may (i) obstruct the
driver’s vision, (ii) impair the performance of any of the
vehicle’s operating systems or safety features, including air
bags or hazard lamp buttons or (iii) impair the driver’s ability
to safely operate the vehicle.
Please remember to fasten your seat belt at all times while
operating your vehicle. If you are ever in an accident, your
injuries can be considerably more severe if your seat belt is
not properly buckled.
Never use headphones while driving.
CAUTION
This product is evaluated in moderate and tropical climate
condition under the Audio, video and similar electronic
apparatus - Safety requirements, IEC 60065.
To ensure safe driving
WARNING
LIGHT GREEN LEAD AT POWER CONNECTOR
IS DESIGNED TO DETECT PARKED STATUS
AND MUST BE CONNECTED TO THE POWER
SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS LEAD
MAY VIOLATE APPLICABLE LAW AND MAY RESULT
IN SERIOUS INJURY OR DAMAGE.
Do not take any steps to tamper with or disable the
handbrake interlock system which is in place for
your protection. Tampering with or disabling the
handbrake interlock system could result in serious
injury or death.
To avoid the risk of damage and injury and the
potential violation of applicable laws, this product is
not for use with a video image that is visible to the
driver.
In some countries the viewing of video image on a display
inside a vehicle even by persons other than the driver may
be illegal. Where such regulations apply, they must be
obeyed.
If you attempt to watch video image while driving, the warning
“Viewing of front seat video source while driving is strictly
prohibited.” will appear on the screen. To watch video image
on this display, stop the vehicle in a safe place and apply the
handbrake. Please keep the brake pedal pushed down before
releasing the handbrake.
When using a display con-
nected to V OUT
The video output terminal (V OUT) is for connection of a display
to enable passengers in the rear seats to watch video images.
WARNING
NEVER install the rear display in a location that enables the
driver to watch video images while driving.
To avoid battery exhaustion
Be sure to run the vehicle engine while using this product. Using
this product without running the engine can drain the battery.
WARNING
Do not install this product in a vehicle that does not have an
ACC wire or circuitry available.
Rear view camera
With an optional rear view camera, you are able to use this
product as an aid to keep an eye on trailers, or backing into a
tight parking spot.
WARNING
SCREEN IMAGE MAY APPEAR REVERSED.
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE
REAR VIEW CAMERA. OTHER USE MAY RESULT IN
INJURY OR DAMAGE.
CAUTION
The rear view mode is to use this product as an aid to keep
an eye on the trailers, or while backing up. Do not use this
function for entertainment purposes.
Handling the USB connector
CAUTION
To prevent data loss and damage to the storage device,
never remove it from this product while data is being
transferred.
Precaution
< QRB3685-A >
Precaution

4
Pioneer cannot guarantee compatibility with all USB mass
storage devices and assumes no responsibility for any loss
of data on media players, iPhone, smartphone, or other
devices while using this product.
In case of trouble
Should this product fail to operate properly, contact your dealer
or nearest authorized Pioneer Service Station.
Visit our website
Visit us at the following site:
http://www.pioneer-india.in
We offer the latest information about PIONEER
CORPORATION on our website.
Pioneer regularly provides software updates to further
improve it’s products. Please check the support section of
the Pioneer website for all available software updates.
Protecting the LCD panel and
screen
Do not expose the LCD screen to direct sunlight when this
product is not used. This may result in LCD screen malfunc-
tion due to the resulting high temperatures.
When using a mobile phone, keep the aerial of the mobile
phone away from the LCD screen to prevent disruption of the
video in the form of spots, coloured stripes, etc.
To protect the LCD screen from damage, be sure to touch the
touch panel keys only with your finger and do so gently.
Notes on internal memory
Before removing the vehicle battery
Some of the settings and recorded contents will not be reset.
Data subject to erasure
The information is erased by disconnecting the yellow lead from
the battery (or removing the battery itself).
Some of the settings and recorded contents will not be reset.
Resetting the microprocessor
CAUTION
Pressing the RESET button resets settings and recorded
contents to the factory settings.
Do not perform this operation when a device is connected
to this product.
Some of the settings and recorded contents will not be
reset.
The microprocessor must be reset under the following
conditions:
Prior to using this product for the first time after installation.
If this product fails to operate properly.
If there appears to be problems with the operation of the
system.
If your vehicle position is shown on the map with a signifi-
cant positioning error.
1 Turn the ignition switch OFF.
2 Press the RESET button with a pen tip or other
pointed implement.
Checking part names and functions on page 5
Settings and recorded contents are reset to the factory settings.
About this manual
This manual uses diagrams of actual screens to describe opera-
tions. However, the screens on some units may not match those
shown in this manual depending on the model used.
Meanings of Symbols Used in This
Manual
This indicates to touch an appropriate soft key
on the touch screen.
HOLD
This indicates to touch and hold an appropriate
soft key on the touch screen.
This indicates that there is a reference or
supplementary for the key or screen.
Use and care of the remote
control
Installing the battery
Slide the tray on the back of the remote control out and insert the
battery with the plus (+) and minus (–) poles aligned properly.
When using for the first time, pull out the film protruding
from the tray.
WARNING
Keep the battery out of the reach of children. Should the
battery be swallowed, consult a doctor immediately.
Batteries (battery pack or batteries installed) must not be
exposed to excessive heat such as sunshine, fire or the
like.
CAUTION
Remove the battery if the remote control is not used for a
month or longer.
There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or equivalent type.
Do not handle the battery with metallic tools.
Do not store the battery with metallic objects.
If the battery leaks, wipe the remote control completely
clean and install a new battery.
When disposing of used batteries, comply with
governmental regulations or environmental public
institutions’ rules that apply in your country/area.
“Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable
to California, U.S.A.)”
< QRB3685-A >
Precaution

5
Using the remote control
Point the remote control in the direction of the front panel to
operate.
The remote control may not function properly in direct
sunlight.
Important
Do not store the remote control in high temperatures or
direct sunlight.
Do not let the remote control fall onto the floor, where it
may become jammed under the brake or accelerator.
Checking part names and
functions
3
6
5
4
7
2
1
1LCD screen
2RESET
button
Resetting the microprocessor on page 4
3Volume (+/–) button
4MUTE
button
Press to switch the mute setting to on or off.
5button Press to switch the display between the top
menu screen and the current source screen.
6DISP
button
Press to turn the display on or off.
7TRK (
/ )
button
Performs manual seek tuning, fast forwards,
reverse and track search controls.
Press to answer or end a call.
Remote control
6
4
a
b
c
123
7
8
9
5
1Volume (+/–)
2MODE Press to turn the display on or off.
3SRC Press to cycle through all the available sources.
Press and hold to turn the source off.
4TOP
MENU
Not used.
5MENU Not used.
6Thumb
pad
Not used.
7MUTE Press to switch the mute setting to on or off.
8AUDIO
SUBTITLE
ANGLE
Not used.
9BAND Selects the tuner band when tuner is selected
as a source.
Cancels the control mode of functions.
10 Return Returns to the specified point and begins
playback from there.
11 Pauses or resumes playback.
or For audio: Press and hold to perform fast
reverse or fast forwards.
For video: Press to perform fast reverse or fast
forwards.
or Press to return to the previous track (chapter)
or go to the next track (chapter).
Stops playback.
If you resume playback, playback will start from
the point where you stopped. Touch the key
again to stop playback completely.
12 FOLDER/P.
CH
Selects the next or previous folder.
Recalls radio station frequencies assigned to
preset channel keys.
Basic operation
< QRB3685-A >
Precaution Basic operation

6
Plugging and unplugging a USB
storage device
pThis product may not achieve optimum performance with
some USB storage devices.
pConnection via a USB hub is not possible.
pA USB cable is required for connection.
1 Pull out the plug from the USB port of the USB
cable.
2 Plug a USB storage device into the USB cable.
2
1
1USB cable
2USB storage device
Check that no data is being accessed before pulling out the
USB storage device.
On rst-time startup
1 Start the engine to boot up the system.
After a short pause, the splash screen comes on for a few
seconds.
The “Select Program Language” screen appears.
pFrom the second time on, the screen shown will differ
depending on the previous conditions.
2 Touch the language that you want to use on
screen.
3 Touch .
The top menu screen appears.
< QRB3685-A >
Basic operation

7
How to use the screens
4821
6/10
Radio
RadioPhone Book
abcdefghi
abcdefghi
abcdefghi
abcdefghi
abcdefghi
3ABC
A
System
Bluetooth
Audio AUX Rear View OFF
Month/Date
12hour 24hour
10 620162148
Time Format
d/m/y m/d/y
USB
Top menu screen
Time and date setting screen
Setting menu screen
Phone menu screen
AV source icons
Current source
By pressing the button on any screen you can display the
Top menu screen.
< QRB3685-A >
Basic operation

8
Supported AV source
You can play or use the following sources with this product.
Radio
The following sources can be played back or used by connecting
an auxiliary device.
USB
Bluetooth audio (MVH-AV299BT)
AUX
Selecting a source
Source on the Top menu screen
1 Press .
2 Touch the source icon you want to select.
pWhen you select “OFF”, the AV source is turned off.
Source on the source list
1 Display the source list.

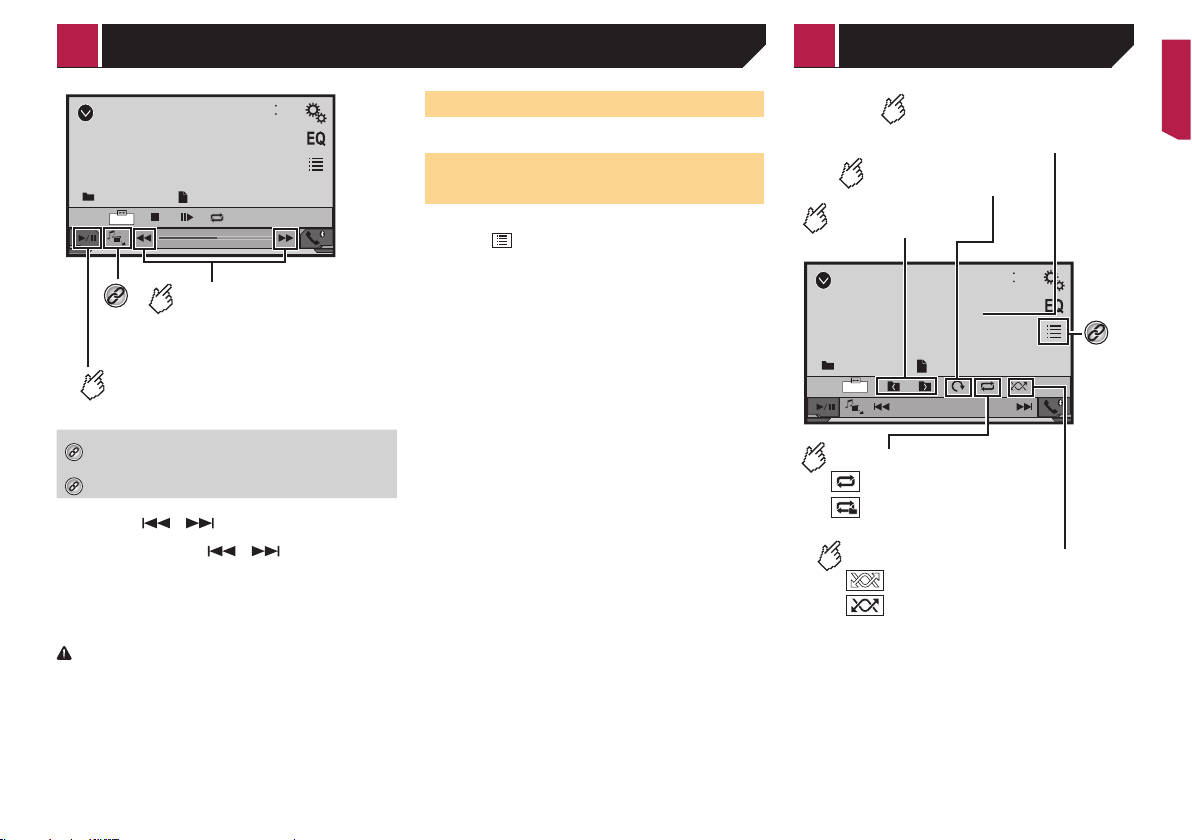

USB
4821
6/10
Abcdefghi
Abcdefghi
ABC
9999’99” -9999’99”
1
1Displays the source list.
2 Touch the source key you want to select.
pWhen you select “OFF”, the AV source is turned off.
Using the touch panel
You can operate this product by touching the keys on the screen
directly with your fingers.
pTo protect the LCD screen from damage, be sure to touch the
screen only with your finger gently.
Using the common touch panel keys
: Returns to the previous screen.
: Closes the screen.
Operating list screens
ROOT
abcdefghi
abcdefghi
abcdefghi
abcdefghi
abcdefghi



1Touching an item on the list allows you to narrow down the
options and proceed to the next operation.
2Appears when all characters are not displayed on the display
area.
If you touch the key, the rest are scrolled for display.
3Appears when items cannot be displayed on a single page.
Touch or to view any hidden items.
Operating the time bar
9999’99” -9999’99”
1
1You can change the playback point by dragging the key.
Switching the operation panel
1 : Switches the operation panel of AV
sources.
This key is not available on all sources.
AV299BT
Displaying the “Bluetooth”
screen
1 Press .
2 Touch , and then .
The “Bluetooth” screen appears.
Registering your Bluetooth
devices
pIf three devices are already paired, “Memory Full” is dis-
played. Delete a paired device first.
Deleting a registered device on page 9
1 Activate the Bluetooth wireless technology on
your devices.
2 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
3 Touch [Connection].
4 Touch .
The system searches for Bluetooth devices waiting for a connec-
tion and displays them in the list if a device is found.
5 Touch the Bluetooth device name you want to
register.
pIf your device supports SSP (Secure Simple Pairing), a six-
digit number appears on the display of this product. Touch
[Yes ] to pair the device.
pOnce the connection is established, the device name is
displayed. Touch the device name to disconnect.
After the device is successfully registered, a Bluetooth
connection is established from the system.
pThe Bluetooth connection can be also made by detecting
this product from the Bluetooth device. Before registration,
make sure that “Visibility” in the “Bluetooth” menu is set
to “On”. For details on a Bluetooth device operations, refer
to the operating instructions supplied with the Bluetooth
device.
Registration and
connection of
Bluetooth device
< QRB3685-A >
Basic operation

9
Switching visibility on page 9
Connecting to a Bluetooth device
automatically
This function connects the last connected Bluetooth device to
this product automatically as soon as the two devices are less
than a few metres apart.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Auto Connect] to switch “On” (default)
or “Off”.
Deleting a registered device
CAUTION
Never turn this product off while the paired Bluetooth device
is being deleted.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Connection].
3 Touch .
Connecting a registered
Bluetooth device manually
Connect the Bluetooth device manually in the following cases:
Two or more Bluetooth devices are registered, and you want
to manually select the device to be used.
You want to reconnect a disconnected Bluetooth device.
Connection cannot be established automatically for some
reason.
1 Activate the Bluetooth wireless technology on
your devices.
2 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
3 Touch [Connection].
4 Touch the name of the device that you want to
connect.
Switching visibility
This function sets whether or not to make this product visible to
the other device.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Visibility] to switch “On” (default) or
“Off”.
Entering the PIN code for
Bluetooth wireless connection
To connect your Bluetooth device to this product, you need to
enter a PIN code.
You can change the PIN code with this function.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [PIN Code Input].
3 Touch [0] to [9] to input the pin code (up to
8 -digits).
4 Touch .
pThe default PIN code is “0000”.
Displaying the device
information
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Device Information].
The device name and address of the Bluetooth device and this
product are displayed.
Clearing the Bluetooth memory
pThis setting is available only when you stop your vehicle in a
safe place and apply the handbrake.
CAUTION
Never turn this product off while the Bluetooth memory is
being cleared.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Bluetooth Memory Clear].
3 Touch [Clear].
The confirmation screen appears.
Updating Bluetooth software
This function is used to update this product with the latest
Bluetooth software. For details on Bluetooth software and updat-
ing, refer to our website.
pThe source is turned off and the Bluetooth connection is
disconnected before the process starts.
pThis setting is available only when you stop your vehicle in a
safe place and apply the handbrake.
pYou need to store the version up file to the USB storage
device in advance.
CAUTION
Never turn this product off and never disconnect the phone
while the software is being updated.
1 Connect the USB storage device stored the
version update file to this unit.
Plugging and unplugging a USB storage device on page 6
2 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
3 Touch [BT Software Update].
4 Touch [Start].
Follow the on-screen instructions to finish updating the
Bluetooth software.
Displaying the Bluetooth soft-
ware version
If this product fails to operate properly, you may need to consult
your dealer for repair.
In such cases, perform the following procedure to check the
software version on this unit.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [BT Version Info.].
The version of this product’s Bluetooth module appears.
< QRB3685-A >
Registration and connection of Bluetooth device

10
AV299BT
Phone Book
abcdefghi
abcdefghi
abcdefghi
abcdefghi
abcdefghi
3ABC
A
Bluetooth telephone
connected indicator
Reception status of
the mobile phone
*2
*3
*1
*4
The device number of the
connected device is displayed.
Battery status of
the mobile phone
Switches to the initial search.
*1
Displays the preset dial screen.
Using the preset dial lists on page 10
*2
Switches to the phone book list.
Calling a number in the phone book on page 10
*3
Switches to the missed, received and dialled call lists.
Dialling from the history on page 10
*4
Switches the mode to enter the phone number
directly.
Direct dialling on page 10
CAUTION
For your safety, avoid talking on the phone as much as
possible while driving.
To use this function you need to connect your mobile phone to
this product via Bluetooth in advance.
Registration and connection of Bluetooth device on page 8
Displaying the Phone menu
screen
1 Press .
2 Touch .
The Phone menu screen appears.
Making a phone call
You can make a phone call in many different ways.
Direct dialling
1 Display the “Phone menu” screen.
Displaying the Phone menu screen on page 10
2 Touch .
3 Touch the number keys to enter the phone
number.
4 Touch to make a call.
5 Touch to end the call.
pYou may hear a noise when you hang up the phone.
Calling a number in the phone book
pThe contacts on your phone will be automatically transferred
to this product.
p“Visibility” of the “Bluetooth” screen should be on.
Switching visibility on page 9
1 Display the “Phone menu” screen.
Displaying the Phone menu screen on page 10
2 Touch .
3 Touch the desired name on the list.
4 Touch the phone number you want to dial.
The dial screen appears and dialling starts.
5 Touch to end the call.
Dialling from the history
1 Display the “Phone menu” screen.
Displaying the Phone menu screen on page 10
2 Touch .
3 Touch the item to switch the history list.
The following items are available:
: Received call list
: Dialled call list
: Missed call list
4 Touch the desired entry on the list to make a
call.
The dial screen appears and dialling starts.
5 Touch to end the call.
Using the preset dial lists
Registering a phone number
You can easily store up to six phone numbers per device as
presets.
1 Display the “Phone menu” screen.
Displaying the Phone menu screen on page 10
2 Touch or .
On the “Phone Book” screen, touch the desired name.
3 Touch .
Dialling from the preset dial list
1 Display the “Phone menu” screen.
Displaying the Phone menu screen on page 10
2 Touch .
3 Touch the desired item you want to dial.
The dial screen appears and dialling starts.
4 Touch to end the call.
Receiving a phone call
1 Touch to answer the call.
If you touch while getting a call waiting, you
can switch to the talking person.
Touch to reject the call.
2 Touch to end the call.
Hands-free phoning
< QRB3685-A >

11
Changing the phone settings
Answering a call automatically
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Auto Answer] to switch “On” or “Off”
(default).
Switching the ring tone
You can select whether or not to use this product’s ring tone.
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Ring Tone] to switch “On” (default) or
“Off”.
Inverting names in the phone book
1 Display the “Bluetooth” screen.
Displaying the “Bluetooth” screen on page 8
2 Touch [Invert Name].
Setting the private mode
During a conversation, you can switch to private mode (talk
directly on your mobile phone).
1 Touch or to turn private mode on or
off.
Adjusting the other party’s listening
volume
This product can be adjusted to the other party’s listening
volume.
1 Touch to switch between the three vol-
ume levels.
Notes for hands-free phoning
General notes
Connection to all mobile phones featuring Bluetooth wire-
less technology is not guaranteed.
The line-of-sight distance between this product and your
mobile phone must be 10 metres or less when sending and
receiving voice and data via Bluetooth technology.
With some mobile phones, the ring sound may not be output
from the speakers.
If private mode is selected on the mobile phone, hands-free
phoning may be disabled.
Registration and connection
Mobile phone operations vary depending on the type of
mobile phone. Refer to the instruction manual that came
with your mobile phone for detailed instructions.
When phone book transfer does not work, disconnect your
phone and then perform pairing again from your phone to
this product.
Making and receiving calls
You may hear a noise in the following situations:
— When you answer the phone using the button on the
phone.
— When the person on the other end of the line hangs up the
phone.
If the person on the other end of the line cannot hear the
conversation due to an echo, decrease the volume level for
hands-free phoning.
With some mobile phones, even after you press the accept
button on the mobile phone when a call comes in, hands-
free phoning may not be performed.
The registered name will appear if the phone number is
already registered in the phone book. When one phone
number is registered under different names, only the phone
number will be displayed.
The received call and the dialled number histories
You cannot make a call to the entry of an unknown user (no
phone number) in the received call history.
If calls are made by operating your mobile phone, no history
data will be recorded in this product.
Phone book transfers
If there are more than 1 000 phone book entries on your
mobile phone, not all entries may download completely.
Depending on the phone, this product may not display the
phone book correctly.
If the phone book in the phone contains image data, the
phone book may not be transferred correctly.
Depending on the mobile phone, phone book transfer may
not be available.
< QRB3685-A >
Hands-free phoning

12
Radio
4821
1
2
3
4
5
6
6/10
AMFM1
Abcdefghi
Abcdefghi
000.00 MHz
Abcdefghi
Selects the FM1, FM2, FM3
or AM band.
Performs manual tuning.
Performs seek tuning or
non stop seek tuning.
Displays the preset channel list.
Select an item on the list ("1" to "6")
to switch to the preset channel.
Recalls the preset channel
stored to a key from memory.
Stores the current broadcast
frequency to a key.
HOLD
HOLD
Releasing the key in a few seconds, skips
to the nearest station from the current
frequency. If you touch again while the
system is searching, cancels seek tuning
and performs manual tuning.
Keeping holding the key for a long
seconds, performs non stop seek tuning.
Searches for a broadcast by PTY information.
Searching by PTY information on page 12
pBy pressing or , you can also switch the preset
channels.
pBy pressing and hold or and release, you can
also perform seek tuning.
pBy keeping pressing and holding or , you can
perform non stop seek tuning. If you press again, non stop
seek tuning is cancelled and the preset channel is switched.
Starting procedure
1 Press .
2 Touch [Radio].
The “Radio” screen appears.
Searching by PTY information
You can tune into a station using PTY (Programme Type
Identification) information.
1 Touch .
2 Touch or to select the item.
The following items are available:
News&Info (default), Popular, Classics, Others.
3 Touch to start searching.
If you touch [Cancel], the searching process is
cancelled.
Storing the strongest broadcast
frequencies
The BSM (best stations memory) function automatically stores
the six strongest broadcast frequencies under the preset tuning
keys “1” to “6”.
pStoring broadcast frequencies with BSM may replace those
you have already saved.
pPreviously stored broadcast frequencies may remain stored
if the number of frequencies stored has not reached the
limit.
1 Touch .
2 Touch to begin a search.
While the message is displayed, the six strongest broadcast
frequencies will be stored under the preset tuning keys in order
of their signal strength.
If you touch [Cancel], the storage process is
cancelled.
Displaying the “Radio settings”
screen
1 Press .
2 Touch , and then .
3 Touch [AV Source Settings].
4 Touch [Radio settings].
Tuning into strong frequencies
pYou can use this function when “Radio” is selected as the
source.
Local seek tuning allows you to only tune into those radio sta-
tions with sufficiently strong signals.
1 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
2 Touch [Local].
3 Touch the item you want to set.
Off (default):
Turns the seek tuning setting off.
Level1 to Level4:
Sets the level of sensitivity for FM to Level1 to Level4 (for
AM Level1 or Level2).
pThe FM “Level4” (AM “Level2”) setting allows reception of
only stations with the strongest signals.
Setting the FM or AM tuning
step
You can switch the tuning step for FM or AM band.
pFor FM band, the seek tuning step is fixed to 50 kHz.
pThe tuning step remains at 50 kHz during manual tuning.
1 Turn the source off.
Source on the Top menu screen on page 8
2 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
3 Touch [FM Step] or [AM Step] to switch the
tuning step.
The following items are available for each setting:
FM Step
100kHz(default)
50kHz
Radio
< QRB3685-A >

13
AM Step
9kHz (default)
10kHz
Setting the alternative fre-
quency search
When the tuner cannot get a good reception, tunes to another
broadcast station that supports the same programme in the
current network.
1 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
2 Touch [Alternative FREQ] to switch “On” or
“Off” (default).
Setting the Auto PI search
When you switch to the broadcast station containing RDS data,
searches for the same PI (Programme Identification) code broad-
cast station from all frequency band automatically.
1 Turn the source off.
Source on the Top menu screen on page 8
2 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
3 Touch [Auto PI] to switch “On” or “Off”
(default).
pEven if you set to “Off”, the PI search is automatically per-
formed when the tuner cannot get a good reception.
Limiting stations to regional
programming
You can switch whether the area code is checked during the
auto PI search.
1 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
2 Touch [Regional] to switch “On” (default) or
“Off”.
Receiving trafc announce-
ments (TA)
The traffic announcement can be received from the last selected
frequency, interrupting the other sources.
1 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
2 Touch [TA Interrupt] to switch “On” or “Off”
(default).
Receiving news announcements
The news can be received from the last selected frequency,
interrupting the other sources.
1 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
2 Touch [News Interrupt] to switch “On” or “Off”
(default).
Receiving alarm broadcasts
The alarm broadcast can be received from the last selected
frequency, interrupting the other sources.
1 Display the “Radio settings” screen.
Displaying the “Radio settings” screen on page 12
2 Touch [Alarm Interrupt] to switch “On”
(default) or “Off”.
USB
4821
6/10
Abcdefghi
Abcdefghi
ABC
9999’99” -9999’99”
*1
Skips files forward
or backward.
Switches between playback
and pause.
*2
Playback screen 1
Switches the current music
information display.
Displays the artwork when the file
with the artwork is being played.
The artwork file type needs to be JPEG,
and the file size should be less than 99 KB.
Compressed
audio les
< QRB3685-A >
Radio

14
USB
4821
6/10
Abcdefghi
Abcdefghi
ABC
Plays files in random order.
: Does not play files in random order
.
: Plays all files within the repeat
range in random order.
Sets a repeat play range.
: Repeats all files.
: Repeats the current file.
: Repeats the current folder.
Selects the previous folder
or the next folder.
Playback screen 2
*1
Selects a file from the list.
Selecting files from the file name list on page 14
*2
Switches the media file type.
Switching the media file type on page 14
pBy pressing or , you can also skip files forwards or
backwards.
pBy pressing and holding or , you can perform fast
reverse or fast forwards.
You can play compressed audio files stored in a USB storage
device.
Media compatibility chart on page 31
Starting procedure
1 Press .
2 Plug the USB storage device.
Plugging and unplugging a USB storage device on page 6
3 Touch [USB].
pPlay back is performed in order of folder numbers. Folders
are skipped if they contain no playable files.
Selecting les from the le
name list
You can find files or folders to play back using the file name or
folder name list.
1 Touch .
2 Touch a file on the list to play back.
pFiles are played back in file number order.
Switching the media le type
When playing a digital media containing a mixture of various
media file types you can switch between media file types to play.
1 Touch .
2 Touch the item you want to set.
Music:
Switches the media file type to music (compressed audio).
Video:
Switches the media file type to video.
Photo:
Switches the media file type to still image (JPEG or BMP
data).
USB
4821
Stop
9999’99” -9999’99”
Full
Pause
6/10
Abcdefghi Abcdefghi
Stops playback.
*1
Performs frame-by-frame playback.
Performs slow-motion playback.
Hides the touch panel keys.
To display again the keys,
touch anywhere on the screen.
Sets a repeat play range.
: Repeats all les.
: Repeats the current le.
: Repeats the current folder.
HOLD
Compressed
video les
< QRB3685-A >
Compressed audio les

15
USB
4821
Stop
9999’99” -9999’99”
Full
Pause
6/10
Abcdefghi Abcdefghi
Touch again to change the
playback speed.
Performs fast reverse
or fast forward.
*2
Switches between
playback and pause.
*1
Selects a file from the list.
Selecting files from the file name list on page 15
*2
Switches the media file type.
Switching the media file type on page 14
pBy pressing or , you can also skip files forwards or
backwards.
pBy pressing and holding or , you can perform fast
reverse or fast forwards.
pChanging the wide screen mode.
Common operations on page 22
You can play compressed video files stored in a USB storage
device.
Media compatibility chart on page 31
CAUTION
For safety reasons, video images cannot be viewed while your
vehicle is in motion. To view video images, stop in a safe place
and apply the handbrake.
Starting procedure
Compressed audio files on page 13
Selecting les from the le
name list
You can select files to view using the file name list.
1 Touch .
2 Touch a file on the list to play back.
pFiles are played back in file number order and folders are
skipped when they contain no files.
Touch the playback sign of the thumbnail to
preview the file.
USB
4821
Abcdefghi Abcdefghi
6/10
Full
*1
Sets a repeat play range.
: Repeats all les.
: Repeats the current folder.
Plays les in random order.
: Does not play les in random order.
: Plays all les in the current repeat
play range in random order.
Selects the previous
or next folder.
Rotates the displayed
picture 90° clockwise.
Hides the touch panel keys.
To display again the keys,
touch anywhere on the screen.
Still image les
< QRB3685-A >
Compressed video les

16
USB
4821
Abcdefghi Abcdefghi
6/10
Full
Skips les forward
or backward.
Switches between
playback and pause.
*2
*1
Selects a file from the list.
Selecting files from the file name list on page 16
*2
Switches the media file type.
Switching the media file type on page 14
pBy pressing or , you can also skip files forwards or
backwards.
pBy pressing and holding or , you can search 10
files at a time. If the file currently being played is the first or
last file in the folder, the search is not performed.
pChanging the wide screen mode.
Common operations on page 22
You can view still images stored in an USB storage device.
Media compatibility chart on page 31
Starting procedure
Compressed audio files on page 13
Selecting les from the le
name list
You can select files to view using the file name list.
1 Touch .
2 Touch a file on the list to play back.
pTouching a folder on the list shows its contents. You can play
a file on the list by touching it.
Setting the slideshow interval
JPEG or BMP files can be viewed as a slideshow on this product.
In this setting, the interval between each image can be set.
pThis setting is available during playback of the JPEG or BMP
files.
1 Display the “Video Setup” screen.
2 Touch [Time Per Photo Slide].
3 Touch the item you want to set.
The following items are available:
“10sec” (default), “5sec”, “15sec”, “Manual”.
AV299BT
Bluetooth
9999
9999’99” -9999’99”
4821
6/10
Abcdefghi
Abcdefghi
ABC
Playback screen 1
Skips files forward or backward.
Track number indicator
You cannot use this function while
the audio is played back.
Bluetooth
9999
4821
6/10
Abcdefghi
Abcdefghi
ABC
Plays files in random order.
Playback screen
2
Sets a repeat play range.
Switches between playback
and pause.
Bluetooth audio
player
< QRB3685-A >
Still image les

17
Selects a file from the list.
Selecting files from the file name list on page 17
pBy pressing the or button, you can also skip files
forwards or backwards.
pBy pressing and hold the or button, you can also
perform fast reverse or fast forwards.
pBefore using the Bluetooth audio player, register and con-
nect the device to this product.
Registering your Bluetooth devices on page 8
pDepending on the Bluetooth device connected to this prod-
uct, the available operations with this product may be limited
or differ from the descriptions in this manual.
pWhile you are listening to songs on your Bluetooth device,
please refrain from operating the phone function as much as
possible. If you try operating, the signal may cause noise for
song playback.
pWhen you are talking on the Bluetooth device connected to
this product via Bluetooth, it may pause playback.
Starting procedure
1 Display the “System” setting screen.
2 Touch [AV Source Settings].
3 Confirm that “Bluetooth Audio” is turned on.
4 Press .
5 Touch [Bluetooth Audio].
Selecting les from the le
name list
pThis function may not be available depending on some
Bluetooth device.
1 Touch .
2 Touch a file or a folder on the list to play back.
AUX
4821
Full
6/10
Switches between the screen to
operate video les and that to
operate music les.
Hides the touch panel keys.
To display again the keys,
touch anywhere on the screen.
pis only available when there are both audio and video
files on the auxiliary equipment.
pA Mini-jack AV cable (CD-RM10) (sold separately) is required
for connection.
External video component and the display on page 27
CAUTION
For safety reasons, video images cannot be viewed while your
vehicle is in motion. To view video images, stop in a safe place
and apply the handbrake.
Starting procedure
You can display the video image output by the device connected
to video input.
1 Display the “System” setting screen.
2 Confirm that “AUX Input” is turned on.
3 Press .
4 Touch [AUX].
The image is displayed on the screen.
Setting the video signal
When you connect this product to an AUX equipment, select the
suitable video signal setting.
pYou can operate this function only for the video signal input
into the AUX input.
1 Display the “Video Setup” screen.
2 Touch [Video Signal Setting].
3 Touch [AUX].
4 Touch the item you want to set.
The following items are available:
Auto (default), PAL, NTSC, PAL-M, PAL-N, SECAM.
AUX source
< QRB3685-A >
Bluetooth audio
player

18
Displaying the “System” set-
ting screen
1 Press .
2 Touch , and then .
The “System” setting screen appears.
Setting the steering wheel
control
You can set the steering wheel control on the display via a wired
remote cable.
Power cord on page 25
pThis setting is available only when you stop your vehicle in a
safe place and apply the handbrake.
pThis setting is available when turn all the sources off.
This setting is required for using the steering wheel remote
control function.
pYou can set a function key to more than one steering wheel
key.
pYou can set only one function key to a steering wheel key.
pIf you make a mistake after connecting this product with the
supplied wired remote cable, please reset it.
pIf this function does not work correctly, contact your dealer
or an authorised Pioneer Service Station.
pWhen you start to set, all the default key settings is automati-
cally cleared.
For steering wheel control adapter
for Pioneer users
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Steering Wheel Control].
3 Touch [With Adapter].
4 Touch [OK].
Registering function to each key
manually
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Steering Wheel Control].
3 Touch [No Adapter].
4 Touch the item to select the brand of your
vehicle.
5 Touch the item to set.
Follow the on-screen instructions to register the function setting.
If you touch [Clear], all the settings is cleared.
Activating the Bluetooth audio
source
AV299BT
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [AV Source Settings].
3 Touch [Bluetooth Audio] to switch “On”
(default) or “Off”.
Setting the ever scroll
When “Ever Scroll” is set to “On”, the recorded text information
scrolls continuously in the display while the vehicle is stopped.
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Ever Scroll] to switch “On” or “Off”
(default).
Setting the rear view camera
A separately sold rear view camera (e.g. ND-BC8) is required
for utilising the rear view camera function. (For details, consult
your dealer.)
Rear view camera
This product features a function that automatically switches to
the full-screen image of the rear view camera installed on your
vehicle, when the gearstick is in the REVERSE (R) position.
Camera for Rear View mode
Rear View can be displayed at all times. Please note that with
this setting, the camera image is not resized to fit, and that a
portion of what is seen by the camera is not viewable.
CAUTION
Pioneer recommends the use of a camera which outputs
mirror reversed images, otherwise the screen image may
appear reversed.
pImmediately verify whether the display changes to a
rear view camera image when the gearstick is moved to
REVERSE (R) from another position.
pWhen the screen changes to full-screen rear view camera
image during normal driving, switch to the opposite setting
in “Camera Polarity”.
pIf you touch while the camera image is displayed, the
displayed image will turn off temporarily.
Setting rear view camera activation
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Camera Settings].
3 Touch [Back Camera Input] to switch “On” or
“Off” (default).
Setting the polarity of the rear view
camera
pThis function is available when “Back Camera Input” is
“On”.
Setting rear view camera activation on page 18
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Camera Settings].
3 Touch [Camera Polarity].
Battery (default):
The polarity of the connected lead is positive.
Ground:
The polarity of the connected lead is negative.
Setting the camera for Rear
View mode
1 Press .
2 Touch [Rear View].
pTo set the rear view camera for Rear View mode, set “Back
Camera Input” to “On”.
System settings
< QRB3685-A >

19
Setting rear view camera activation on page 18
Selecting the system language
If the embedded language and the selected language setting
are not the same, text information may not display properly.
Some characters may not be displayed properly.
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [System Language].
3 Touch the language that you want to use.
Setting the beep sound
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Beep Tone] to switch “On”(default) or
“Off”.
Adjusting the response posi-
tions of the touch panel (touch
panel calibration)
If you feel that the touch panel keys on the screen deviate from
the actual positions that respond to your touch, adjust the
response positions of the touch panel screen.
pThis setting is available only when you stop your vehicle in a
safe place and apply the handbrake.
pDo not use sharp pointed tools such as a ballpoint or
mechanical pen, which could damage the screen.
pDo not turn off the engine while saving the adjusted position
data.
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Touch Panel Calibration].
3 Touch [Yes].
4 Touch four corners of the screen along the
arrows.
5 Press .
The adjustment results are saved.
6 Press once again.
Proceed to 16-point adjustment.
7 Gently touch the centre of the “+” mark dis-
played on the screen.
The target indicates the order.
When you press , the previous adjustment posi-
tion returns.
When you press and hold , the adjustment is
cancelled.
8 Press and hold .
The adjustment results are saved.
Setting the dimmer
Setting the dimmer trigger
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Dimmer Settings].
3 Touch [Dimmer Trigger].
4 Touch the item.
Auto (default):
Switches the dimmer to on or off automatically according to
your vehicle’s headlight turning on or off.
Manual:
Switches the dimmer to on or off manually.
Time:
Switches the dimmer to on or off at the time you adjusted.
Setting the dimmer duration in day
or night
pYou can use this function when “Dimmer Trigger” is set to
“Manual”.
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Dimmer Settings].
3 Touch [Day/Night] to switch the following
items.
Day (default):
Turns the dimmer manually to off.
Night:
Turns the dimmer manually to on.
Setting the dimmer duration
optional
You can adjust the time that the dimmer is turned on or off.
pYou can use this function when “Dimmer Trigger” is set to
“Time”.
pThis setting is available only when you stop your vehicle in a
safe place and apply the handbrake.
1 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
2 Touch [Dimmer Settings].
3 Touch [Dimmer Duration].
The “Duration Setting” screen appears.
4 Touch the time display to activate the adjust-
ment mode.
5 Touch the graph to set the dimmer duration.
You can also set the dimmer duration touching
or .
Each touch of or moves the cursor back-
wards or forwards in the 15 minute width.
The default setting is 18:00-6:00 (6:00 PM-6:00
AM).
When the cursors are placed on the same point,
the dimmer available time is 0 hours.
When the cursor for off time setting is placed on
the left end and the cursor for on time setting is
placed on the right end, the dimmer available
time is 0 hours.
When the cursor for on time setting is placed on
the left end and the cursor for off time setting is
placed on the right end, the dimmer available
time is 24 hours.
The time display of the dimmer duration adjusting
bar is depending on the clock display setting.
Setting the time and date on page 22
Adjusting the picture
You can adjust the picture for each source and rear view camera.
< QRB3685-A >
System settings

20
CAUTION
For safety reasons, you cannot use some of these functions
while your vehicle is in motion. To enable these functions, you
must stop in a safe place and apply the handbrake. Refer to
Important Information for the User (a separate manual).
1 Display the screen you wish to adjust.
2 Display the “System” setting screen.
Displaying the “System” setting screen on page 18
3 Touch [Picture Adjustment].
4 Touch the item to select the function to be
adjusted.
Brightness:
Adjusts the black intensity. (–24 to +24)
Contrast:
Adjusts the contrast. (–24 to +24)
Color:
Adjusts the colour saturation. (–24 to +24)
Hue:
Adjusts the tone of colour (which colour is emphasised, red
or green). (–24 to +24)
Dimmer:
Adjusts the brightness of the display. (+1 to +48)
With some pictures, you cannot adjust Hue and
Color.
When you touch [Rear View], the mode changes
to the picture adjustment for rear view. By touch-
ing [Source], you can return to the picture adjust-
ment for AV source.
5 Touch , , , to adjust.
The adjustments of “Brightness”, “Contrast”
and “Dimmer” are stored separately when your
vehicle’s headlights are off (daytime) and on
(nighttime).
“Brightness” and “Contrast” are switched auto-
matically depending on whether the vehicle’s
headlights are on or off.
“Dimmer” can be changed the setting or the time
to switch it to on or off.
Setting the dimmer on page 19
The setting contents can be memorised
separately.
Displaying the “Audio” setting
screen
1 Press .
2 Touch , and then .
The “Audio” setting screen appears.
Using fader/balance adjustment
pThis function is available when “Rear Speaker Output” is
set to “Full”, and “Preout” is set to “Rear”.
1 Display the “Audio” setting screen.
Displaying the “Audio” setting screen on page 20
2 Touch [Fader/Balance].
3 Touch or to adjust the front/rear speaker
balance.
4 Touch or to adjust the left/right speaker
balance.
p“Front15” to “Rear15” is displayed as the front/rear speaker
balance moves from the front to rear.
p“Left15” to “Right15” is displayed as the left/right speaker
balance moves from the left to right.
pThe default setting is “F/R 0 L/R 0”.
You can also set the fader/balance by touching
the point on the displayed table.
Using balance adjustment
pThis function is available when “Rear Speaker Output” and
“Preout” are set to “Subwoofer Settings”.
1 Display the “Audio” setting screen.
Displaying the “Audio” setting screen on page 20
2 Touch [Balance].
3 Touch or to adjust the left/right speaker
balance.
p“Left15” to “Right15” is displayed as the left/right speaker
balance moves from the left to right.
pThe default setting is “L/R 0”.
You can also set the fader/balance by dragging
the point on the displayed table.
Adjusting source levels
SLA (source level adjustment) lets you adjust the volume level of
each source to prevent radical changes in volume when switch-
ing between sources.
pSettings are based on the FM tuner volume level, which
remains unchanged.
pThis function is not available when the FM tuner is selected
as the AV source.
1 Compare the FM tuner volume level with the
level of the source you want to adjust.
2 Display the “Audio” setting screen.
Displaying the “Audio” setting screen on page 20
3 Touch [Source Level Adjuster].
4 Touch or to adjust the source volume.
pIf you directly touch the area where the cursor can be moved,
the SLA setting will be changed to the value of the touched
point.
p“+4” to “–4” is displayed as the source volume is increased
or decreased.
pThe default setting is “0”.
Adjusting loudness
This function compensates for deficiencies in the low-frequency
and high-frequency ranges at low volume.
pThis function is not available while you make or receive a call
using the hands-free function.
1 Display the “Audio” setting screen.
Displaying the “Audio” setting screen on page 20
2 Touch [Loudness].
3 Touch the item.
The following items are available:
Off (default), Low, Mid, High.
Using the subwoofer output
This product is equipped with a subwoofer output mechanism,
which can be turned on or off.
1 Display the “Audio” setting screen.
Displaying the “Audio” setting screen on page 20
2 Touch [Subwoofer] to switch “On” (default) or
“Off”.
Audio adjustments
< QRB3685-A >
System settings
