Pittsburgh Automotive 64499 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 18f
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2018 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assem bly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 64499
Specifications
Maximum Weight Capacity 275 lb
IMPORTANT SAFETY INFORMATION
Assembly Precautions
1. Assemble only according to these instructions.
Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and
heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the
influence of alcohol, drugs or medication.
6. Weight capacity and other product capabilities apply
to properly and completely assembled product only.
Use Precautions
1. This product is not a toy. Do not allow
children to play with or near this item.
2. Use as intended only.
3. Inspect before every use; do not use
if parts are loose or damaged.
4. Do not exceed weight capacity of 275 lb.
Be aware of dynamic loading! Sudden
dropping into the seat may briefly create
excess load causing product failure.
5. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. When not in use, this product must be
stored in a dry location to inhibit rust.
7. When servicing, use only identical replacement parts.
8. Do not use the seat as a step stool.
9. During use, do not place your feet or legs inside
the Large Rings or Legs. The exposed Bolt
threads may scratch or catch on clothing.
10. The warnings, cautions, and instructions discussed
in this instruction manual cannot cover all possible
conditions and situations that may occur. It must
be understood by the operator that common sense
and caution are factors which cannot be built into
this product, but must be supplied by the operator.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 3For technical questions, please call 1-888-866-5797.Item 64499
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
NOTE: When assembling the leg/base section of the
Stool, all of the Bolts should have their heads facing
outside, with all of the Nuts on the inside of the frame.
NOTE: The Stool should be assembled and
used on a flat, level, dry surface. Refer to the
Assembly Diagram during assembly.
1. Attach a Leg (11) to the Bracket aligning the
holes. Slide the Connector Cover (6) all the way
down to secure the Leg (11) into a groove. Insert
a Long Bolt (5) through the aligned hole.
2. Hold Long Bolt (5) in place and turn the Bracket
over so the threads of the Bolt are facing
up. Place the Connector Plate (10) through
the Bolt and fasten with Locking Nut (8).
3. Repeat for all four Legs. Finger tighten Nuts.
4. Turn the Stool over onto its four Legs.
5. Place the Large Ring (12) INSIDE all four
Legs (11) and align the holes. Insert a Bolt (9)
through each aligned hole and fasten with
Locking Nut (8). Finger tighten Nuts.
6. Place the Small Ring (7) OUTSIDE all four
Legs (11) and align the holes. Insert a Bolt (9)
through each aligned hole and fasten with
Locking Nut (8). Finger tighten Nuts.
7. Once both Rings are attached, go back and
completely tighten all Nuts on
Rings (7, 12), Legs (11), Connector Cover (6) and
Connector Plate (10). Make sure the Connector
Cover grooves are pushed down around each Leg.
8. Slide the Hydraulic Cylinder (4) into the Bracket
with its spindle facing up. See diagram below.
9. Place the Seat (2) over the Hydraulic Cylinder (4) and
press down firmly so its metal plate attaches to the
Cylinder spindle. Ensure it is secure to the Cylinder.
10. Place the two Back Supports (3)
onto the back of the Seat (2).
NOTE; The Supports can only be inserted
from one direction. Loosen the two knobs
under the Seat before inserting. Retighten the
knobs after Back Rest (1) is adjusted.
11. Slide the Back Rest (1) on the Back Supports (3).
NOTE: The push buttons must be pressed
before the Back Rest will slide all the way
down. When aligned, the buttons will pop out
of the holes locking the Back Rest in place.
12. Go back and completely tighten all fasteners.

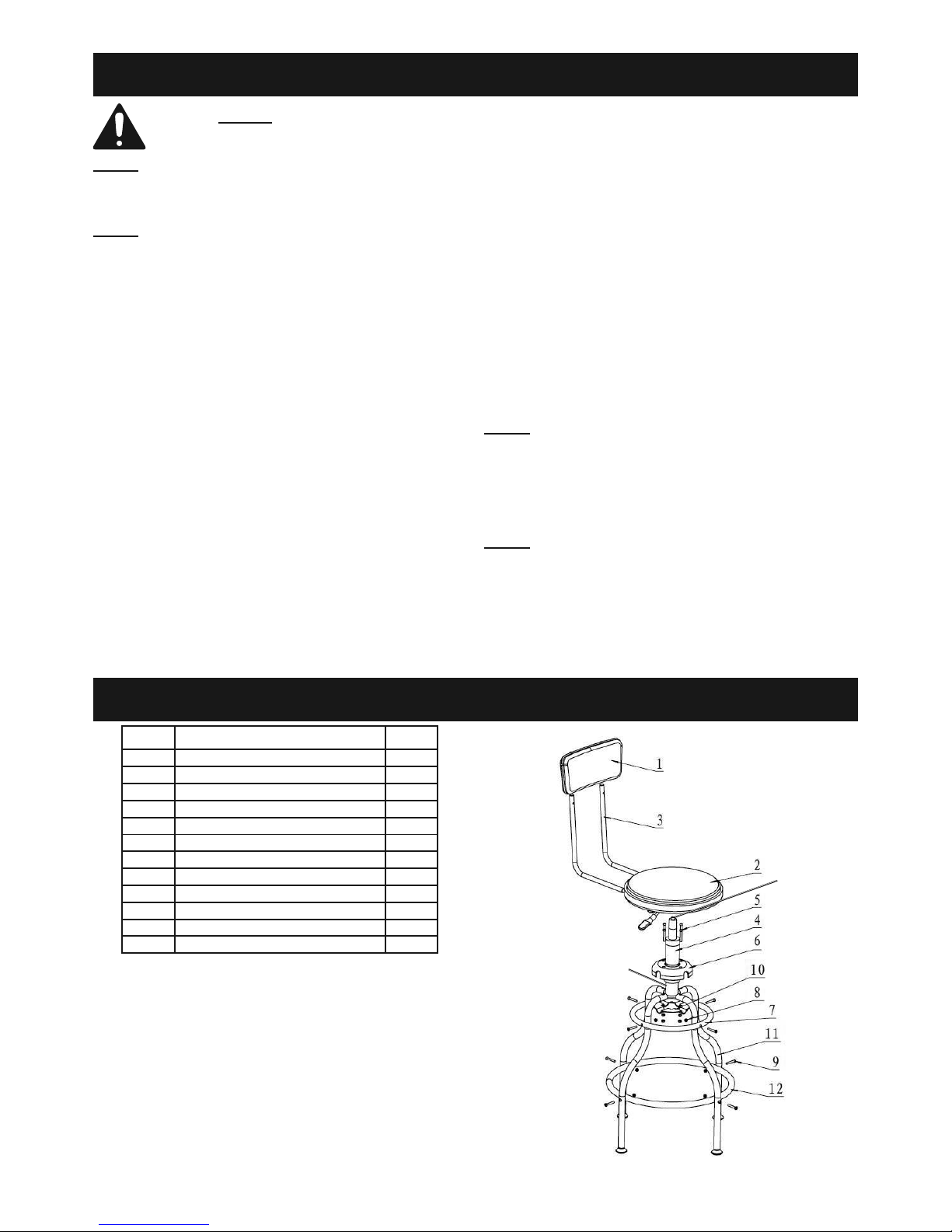

Parts List and Assembly Diagram
Part Description Qty
1 Back Rest 1
2 Seat 1
3 Back Support 2
4 Hydraulic Cylinder 1
5 Long Bolt M6 4
6 Connector Cover 1
7 Small Ring 1
8 M6 Locking Nut 12
9 Bolt M6 8
10 Connector Plate 1
11 Leg 4
12 Large Ring 1
Page 6 of 9
Parts Diagram
Parts List
Part Number Item Description Qty.
1 Back support 1
2 Seat 1
3 “L” shaped support 2
4 Hydraulic cylinder 1
5 Hex bolt M6 4
6 Connector 1
7 Ring 1
8 M6 locking nut 12
9 Bolt M6 8
10 Connector plate 1
11 Legs 4
12 Ring 1
Bracket
Spindle

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Record Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
