Pixel AFXSM-5 User manual

AFXSM-6 / AFXSM-5
AM / FM / Satellite Radio Antenna Kit
Installaon Instrucons
This kit is designed to permit the recepon and mulplexing on a single RG-6 cable of:
· Satellite radio signals at 2.33 GHz (either Sirius or XM or both simultaneously)
· FM Radio (88 -108 MHz)
· AM radio (500 KHz to 1.7 MHz)
· HD Radio signals in the AM and FM bands
· Over-the-air TV signals (with the addion of two MB-2 spliers and any standard TV antenna.
· These items are not included and must be purchased separately)
Important installaon instrucons:
· Do not exceed 300 feet of cable between the antennas and the radios without addional amplificaon (Model MBA-12 or
Model SBA-1).
· Make sure the red lead of the coax-to-twin lead AM radio adapter is connected to the terminal on the receiver marked anten-
na and the black lead is connected to the terminal marked Ground on the AM antenna connecon block.
· Weather-proof all outdoor connectors to prevent moisture ingress. Cover any unused outdoor signal ports.
Supplied Accessories
QTY Included Items for AFXSM-5 or AFXSM-6
1 Satellite Radio Antenna either PRO-600 or PRO-500
(Not pictured)
1 Lot Mounng Hardware for Satellite Antenna
1 Model AFS-1 AM / FM / XM Signal Combiner
2 F-71 F-male to F-male coupler
1 3  F-female to SMB plug cable
2 3  F-male RG-6 Cable
2 20 dB Aenuator
1 Model AFHD-4 AM/FM Antenna
1 Lot Mounng Hardware for AM/FM Antenna
1 Model AFST-1 AM / FM / XM Signal Splier
2 10 dB Aenuator
1 F-female to DIN Adapter
1 Twin Lead AM Radio Antenna Adapter
1 Weather Boot
2 Ground Lug and Star Washer
1 SBA-1 Inline Amplifier
1 DCT-100 Impedence Terminator
1 COAXSEAL
Pixel Technologies, Inc. | www.pixelsatradio.com | [e-mail] | [phone] | Page 1

Wiring Diagram
Mul-Band Antenna Kit - Model AFXSM-5 or Model AFXSM-6
** Line amplifier (Model MBA-12) and splier (Model MBS-4) available
for longer cable runs and mulple receiver applicaons.
Pixel Technologies, Inc. | www.pixelsatradio.com | [e-mail] | [phone] | Page 2

Antenna Installaon
The images below show the antenna installaon to a mounng pole (any pole up to 2” OD). The antenna can also be mounted to
any flat surface. For best results the antenna should be mounted outdoors. The AM/FM antenna should be mounted as high in the
air as praccal above the roof line and not parallel to the side of a building or parallel (within 3 feet) of any metal objects such a
drain guers, aluminum siding or HVAC ducts.
Pixel Technologies, Inc. | www.pixelsatradio.com | [e-mail] | [phone] | Page 3

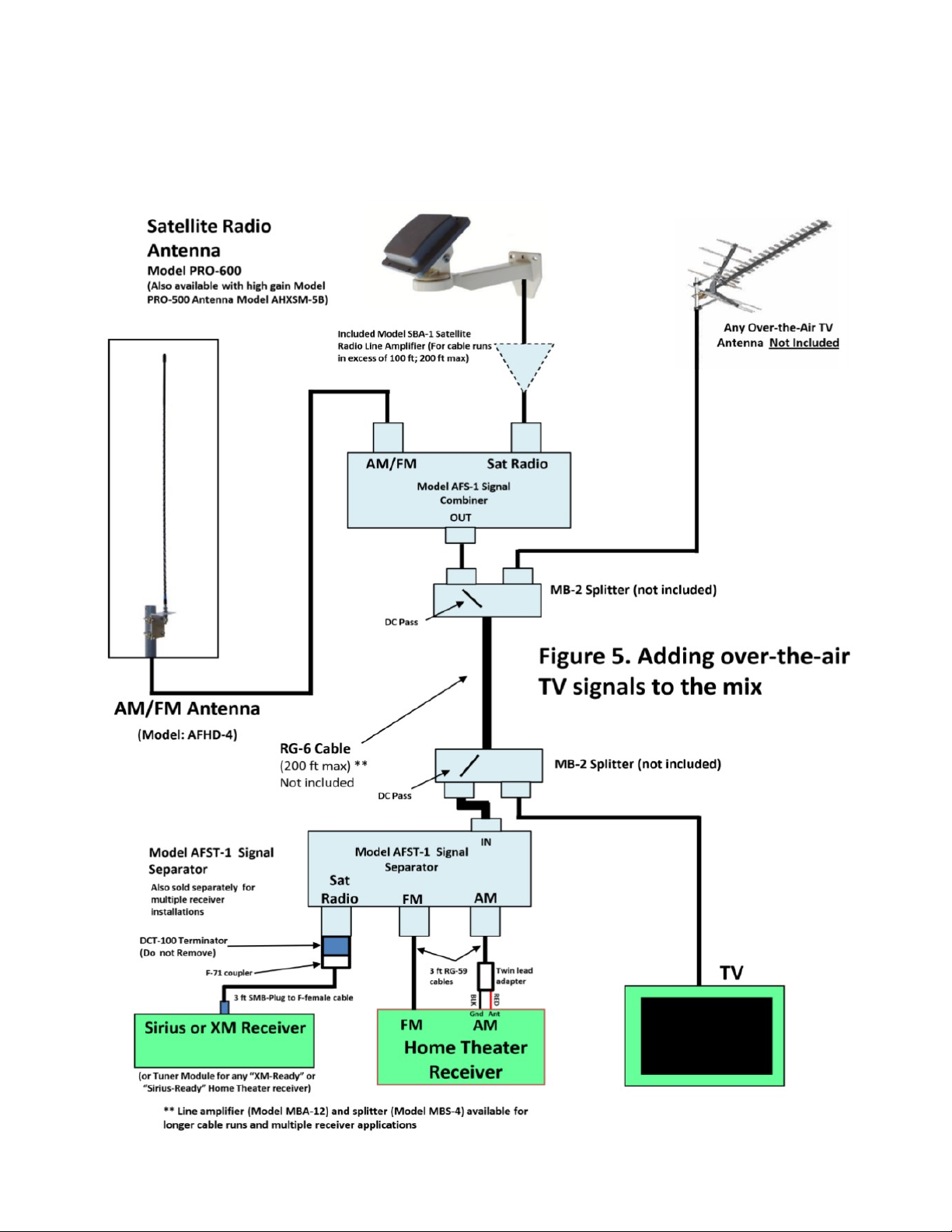

Mul-Band Antenna Installaon with Over-the-air Antenna
The image below shows the wiring diagram that should be used to add over-the-air broadcast TV signals to the mix of AM/FM and
Satellite Radio signals. In this configuraon do not exceed a total cable run from the antennas to the receivers of 200  without
adding addional line amplifiers.
Pixel Technologies, Inc. | www.pixelsatradio.com | [e-mail] | [phone] | Page 4
