PiXORD 3GR-431P User manual

PiXORD 3GR-431P User Manual
1

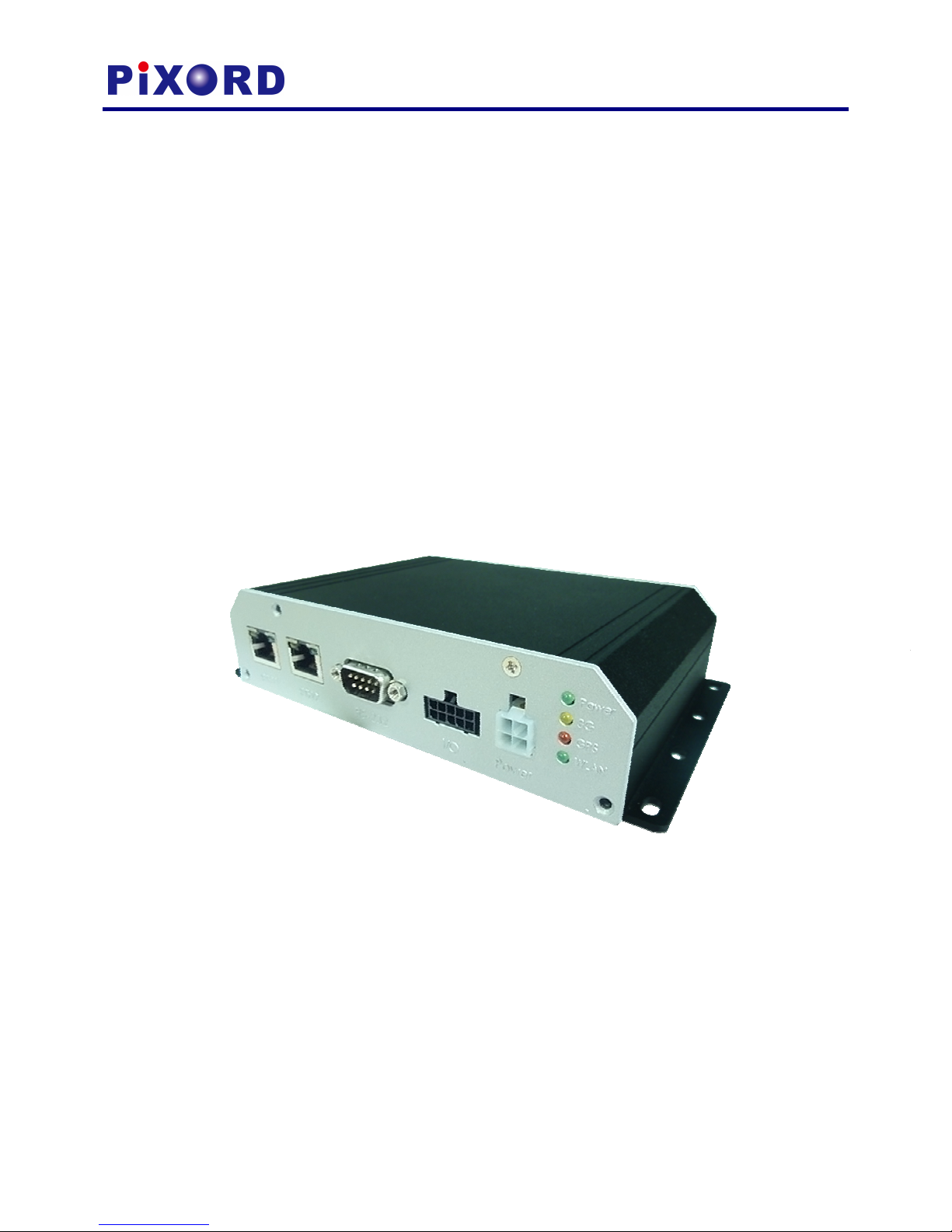

3GR-431P
User’s Manual
Vehicle 3G Wi-Fi Router
Version: 1.1
Date: 11/30/ 01

PiXORD 3GR-431P User Manual
2
Notices
This user manual is intended for administrators and users of the PiXORD 3GR-431P Vehicle 3G i-Fi Router,
including instructions for using and managing the router on your network. The use of surveillance devices
may be prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such
devices is legal before installing this unit for its intended use.
Before the Vehicle 3G iFi Router is installed, all the safety and operating instructions should be carefully
read and followed to avoid damage due to faulty assembly and installation. This also ensures the product is
used properly as intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the 3G i-Fi Router are vulnerable.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power connection with wet
hands
Risk of short circuit, electric shock or fire
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit
To reduce the risk of electric shock, do not remove the Cover or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could damage this
equipment. Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
All work related to the installation of this product should be made by qualified service
personnel or system installers.

PiXORD 3GR-431P User Manual
3
Liability PiXORD Corporation
reserves the right to make corrections, modifications, enhancements, improvements, and other changes to
its products and services at any time and to discontinue any product or service without notice. Customers
should obtain the latest relevant information before placing orders and should verify that such information
is current and complete. All products are sold subject to PiXORD Corporation’s terms and conditions of sale
supplied at the time of order acknowledgment.
PiXORD is not responsible or liable for the resale of its products with statements different from or beyond
the specification/parameters stated by PiXORD. Customers are responsible for their applications using
PiXORD products. To minimize the risks associated with customer applications, customers should provide
adequate operating safeguards. PiXORD is under no obligation to provide any further technical support
service or product/software alteration beyond PiXORD's representation.
PiXORD products are not authorized for use in safety-critical applications where a failure of the PiXORD
product would cause severe personal injury or death, unless officers of the parties have executed an
agreement specifically governing such use.
Reproduction of PiXORD information or datasheets with alteration is an unfair and deceptive business
practice. PiXORD is not responsible or liable for any such statements.
Every care has been taken of this manual. If there are any inaccuracies or omissions, please inform your
local office. PiXORD Corporation cannot be held responsible for any typographical or technical errors.
PiXORD Corporation is not liable or responsible for incidental or damages caused by mishandling.
Trademarks
All names used in this manual for hardware and software are probably registered trademarks of respective
companies. PiXORD is a registered trademark of PiXORD Corporation. All rights reserved.

PiXORD 3GR-431P User Manual
4
Table of Contents
Chapter 1. Introduction ..................................................................................................................................... 7
Chapter 2. Installation ....................................................................................................................................... 8
Chapter 3. Operation Mode ............................................................................................................................ 15
3.1 Bridge ................................................................................................................................................. 15
3.2 Gateway ............................................................................................................................................. 16
3.3 AP Client ............................................................................................................................................ 17
Chapter 4. Internet setting .............................................................................................................................. 19
4.1 AN ( ide Area Network) ............................................................................................................... 19
4.2 LAN (Local Area Network).................................................................................................................. 19
4.3 DHCP Client List ................................................................................................................................. 21
4.4 VPN Passthrough ............................................................................................................................... 21
4.4 Static Routing Settings ....................................................................................................................... 22
Chapter 5. ireless Settings ............................................................................................................................ 24
5.1 Basic ireless Settings ...................................................................................................................... 24
5.2 Advanced ireless Settings ............................................................................................................... 25
5.3 ireless Security ............................................................................................................................... 27
5.4 Station List ......................................................................................................................................... 28
5.5 ireless Statistics .............................................................................................................................. 29
Chapter 6. Firewall........................................................................................................................................... 30
6.1 MAC/IP/Port Filtering ........................................................................................................................ 30
6.2 Port Forwarding ................................................................................................................................. 31

PiXORD 3GR-431P User Manual
5
6.2.1 Port Forwarding ...................................................................................................................... 31
6.2.2 Virtual Servers ........................................................................................................................ 32
6.3 DMZ ................................................................................................................................................... 33
6.4 System Security ................................................................................................................................. 34
6.5 Content Filtering ................................................................................................................................ 35
6.5.1 eb Content Filtering ............................................................................................................ 35
6.5.2 eb URL Filtering ................................................................................................................... 36
6.5.3 eb Host Filtering .................................................................................................................. 36
Chapter 7. Administration ............................................................................................................................... 37
7.1 Management ..................................................................................................................................... 37
7.1.1 Administrator settings ............................................................................................................ 37
7.1.2 NTP setting ............................................................................................................................. 37
7.1.2 DDNS ....................................................................................................................................... 37
7.2 Upgrade Firmware ............................................................................................................................. 38
7.3 Setting Management ......................................................................................................................... 38
7.4 Status ................................................................................................................................................. 39
7.5 Statistics ............................................................................................................................................. 40
7.6 System Log ......................................................................................................................................... 41
Chapter 8. Mobile 3G Management ................................................................................................................ 43
8.1 Mobile 3G Status ............................................................................................................................... 43
8.2 Mobile 3G Protection ........................................................................................................................ 43
8.2.1 PIN Code Settings ................................................................................................................... 43

PiXORD 3GR-431P User Manual
6
8.2.2 PIN Code Settings ................................................................................................................... 44
8.2.3 PIN Code Change Settings ...................................................................................................... 44
8.2.4 PUK Code Settings .................................................................................................................. 44
Chapter 9. GPS Management .......................................................................................................................... 46
9.1 GPS Status .......................................................................................................................................... 46
9.2 GPS Settings ....................................................................................................................................... 46
Appendix. FAQ ................................................................................................................................................. 47

PiXORD 3GR-431P User Manual
7
Chapter 1. Introduction
Pixord 3GR-431P is an 802.11n ireless and 3G Router. It comes equipped with two 10/100 Base-T
Ethernet ports and a 3G connection for mobile connectivity. The 3GR-431P is available to install on
transportation, passengers can use the laptop or smart phone via i-Fi to browse the Internet. The
Ethernet port is also available to connect an IP camera or other Ethernet IP devices for various applications.
Features
Support Bridge, Gateway, and AP Client mode
DHCP Server
VPN Passthrough
Support IEEE 802.11b/g/n
Firewall
DDNS
User-Friendly eb GUI
Application
3GR-431P Vehicle 3G i-Fi Router is a 3G + GPS + 802.11n (2T2R) wireless router for all IP network
application.

PiXORD 3GR-431P User Manual
8
Chapter 2. Installation
Front panel
All supported interfaces in the front panel and indicated LED position.
Rear panel
The 3GR-431P supported SMA connecters in the rear panel.
LED description
LED Color Mode Description
power Green
On Power on
Off Power off
3G Amber
On Internet is ready
Off Internet is not ready
Blink Signal Searching
GPS Red
On GPS connection is established
Off GPS connection is not established
Blink Signal Searching
LAN
Green
On The i-Fi is ready and enabled

PiXORD 3GR-431P User Manual
9
Off The i-Fi is not ready or disabled
Blink Data transmitting or receiving over LAN
ETH1/ETH2
Green
On An Ethernet Link is established
Off An Ethernet Link is not established
Blink Data transmitting or receiving over LAN
Interface detail function
Power connecter:
Pin
Color Function
1 Black GND
2 Red Battery
3 N/A
N/A
4 Yellow ACC
Pin Function

PiXORD 3GR-431P User Manual
10
I/O Port:
RS-232 interface:
1 Left Turn Signal Light
2 Right Turn Signal Light
3 Reversing Light
4 System Reserved
5 System Reserved
6 System Reserved
7 5V
8 System Reserved
9 GND
10 GND
Pin 1 2 3 4 5 6 7 8 9
Function
NC TXD RXD NC GND NC NC NC 5V

PiXORD 3GR-431P User Manual
11
Accessories
3G Antenna GPS Antenna i-Fi Antenna Power Cord I/O Cord
Power Adapter DC Jack to Mini Fit Screws CD QIG
(DC12V/1A) Power Connector
Hardware Installation
Step1. Please remove screws from front
Step2. Open the upper case.

PiXORD 3GR-431P User Manual
12
Step3. Insert the SIM card.
NOTE: Please pull and push the socket with caution.
Step4. Connect power adapter, DC Jack to Mini Fit, and antennas.

PiXORD 3GR-431P User Manual
13

PiXORD 3GR-431P User Manual
14
Getting connection with the device
Step1. Power on the router. Connect your PC to LAN port with RJ-45 cable.
Step2. Please open your browser (ex. IE) and type in default IP (http://10.10.10.1) on URL column.
Step3. Type in the default username/ password (admin/ admin), then enter the page.
The default operation mode will be “Gateway mode”
Step4. Please setup 3G on AN page. (Left menu > Internet Settings > AN)
Type in APN and dial number provided by service providers.
Step5. On the AN page, enter username/ password if required. (Optional)
Step6. Type in PIN code settings if required. (Optional)
(Left Menu > Mobile 3G Management > Mobile 3G Protection)

PiXORD 3GR-431P User Manual
15
Chapter 3. Operation Mode
3.1 Bridge
Step1. Select Bridge mode and Enable AP Client
Step2. Click OK
Step3. Click AP Client Setting

PiXORD 3GR-431P User Manual
16
Step4. Configure the settings of AP that you want to connect.
Note: The AP and 3GR-431P’s channel should be the same.

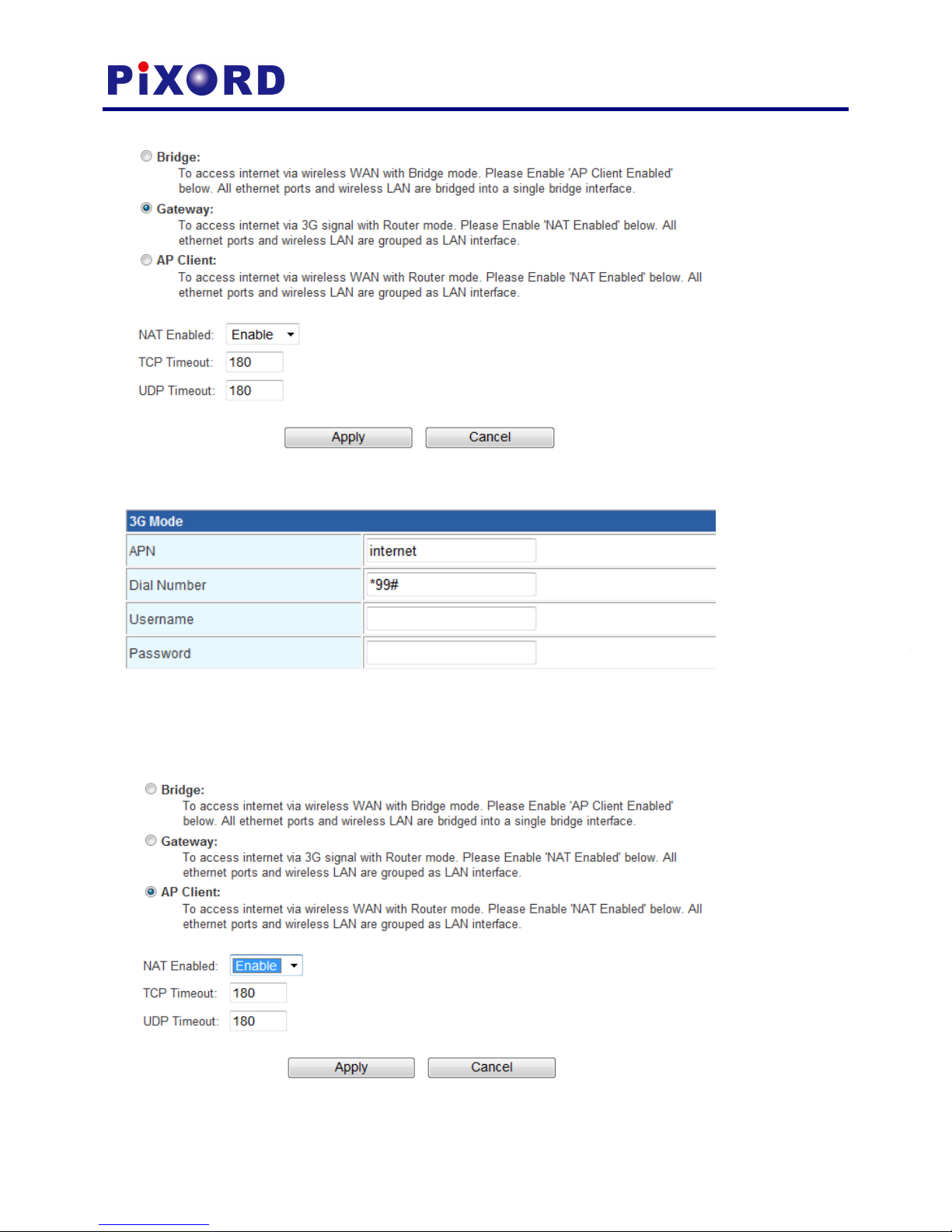

3.2 Gateway
Step1. Select Gateway mode (default mode)

PiXORD 3GR-431P User Manual
17
Step2. Go to Left menu > Internet Settings > AN to Configure 3G connection

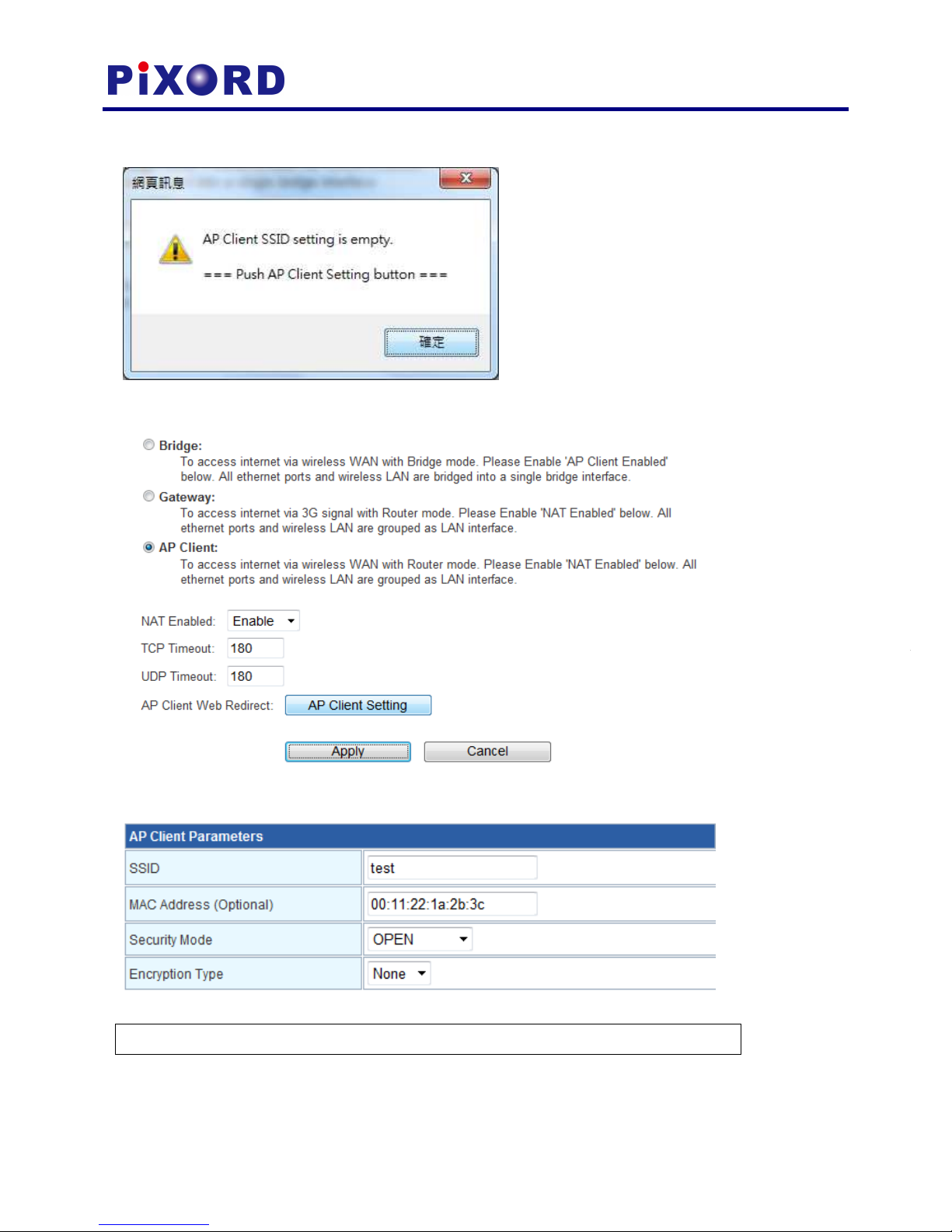

3.3 AP Client
Step1. Select AP Client mode and enable NAT

PiXORD 3GR-431P User Manual
18
Step2. Click OK.
Step3. Click AP Client Setting
Step4. Configure the settings of AP that you want to connect
Note: The AP and 3GR-431P’s channel should be the same.

PiXORD 3GR-431P User Manual
19
Chapter 4. Internet setting

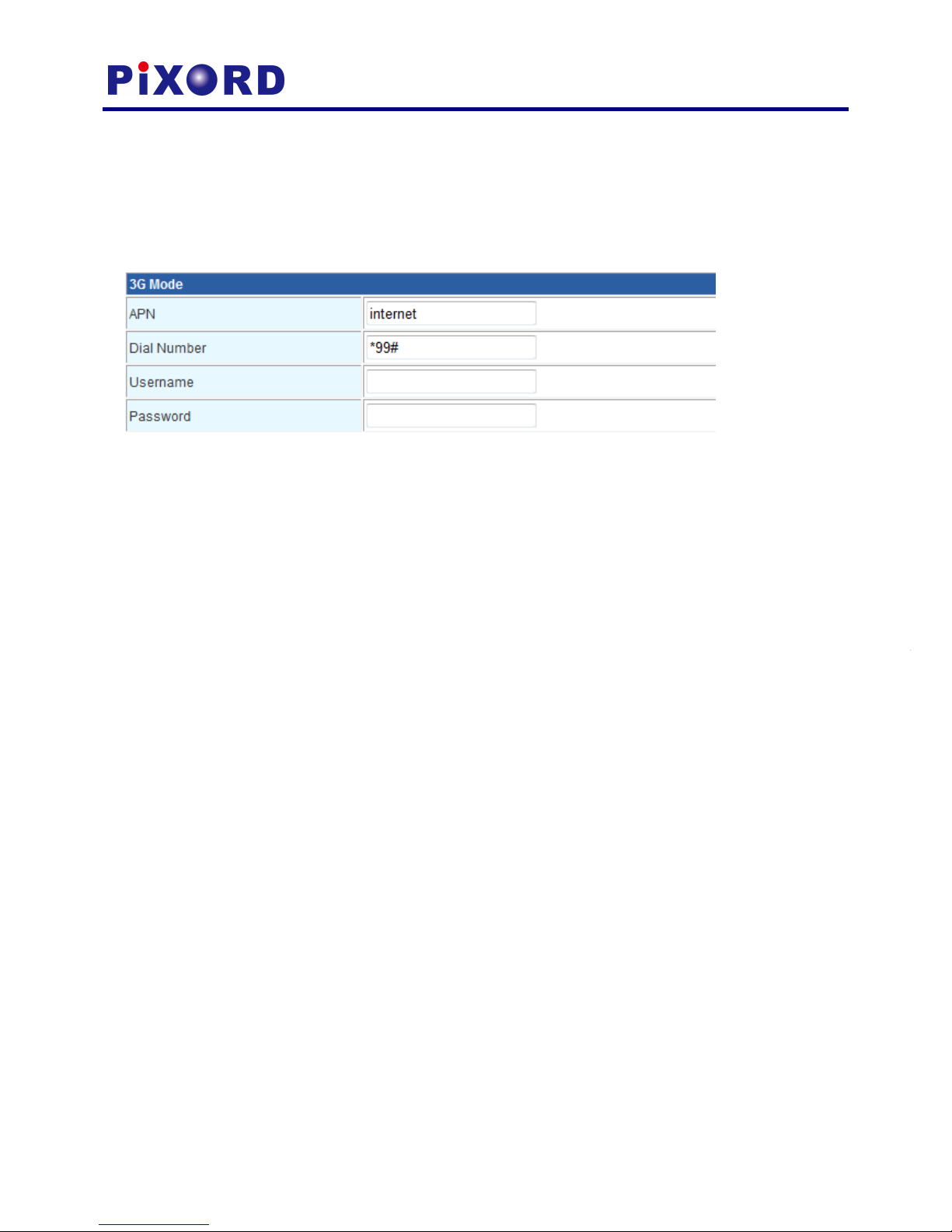

4.1 WAN Wide Area Network)
You may choose different connection type suitable for your environment. Besides, you may also configure
parameters according to the selected connection type.
APN- An APN is similar to a URL on the , it is what the unit makes a GPRS / UMTS call. The service
provider is able to attach anything to an APN to create a data connection. Requirements for APN
assignment varies between different service providers. Most service providers have an internet portal
which they connect a DHCP Server to, giving you access to the internet i.e. Some 3G operators use the APN
‘internet’ for their portal. The default value of APN is “internet”.
Username- Enter the username provided by your service provider.
Password- Enter the password provided by your service provider.

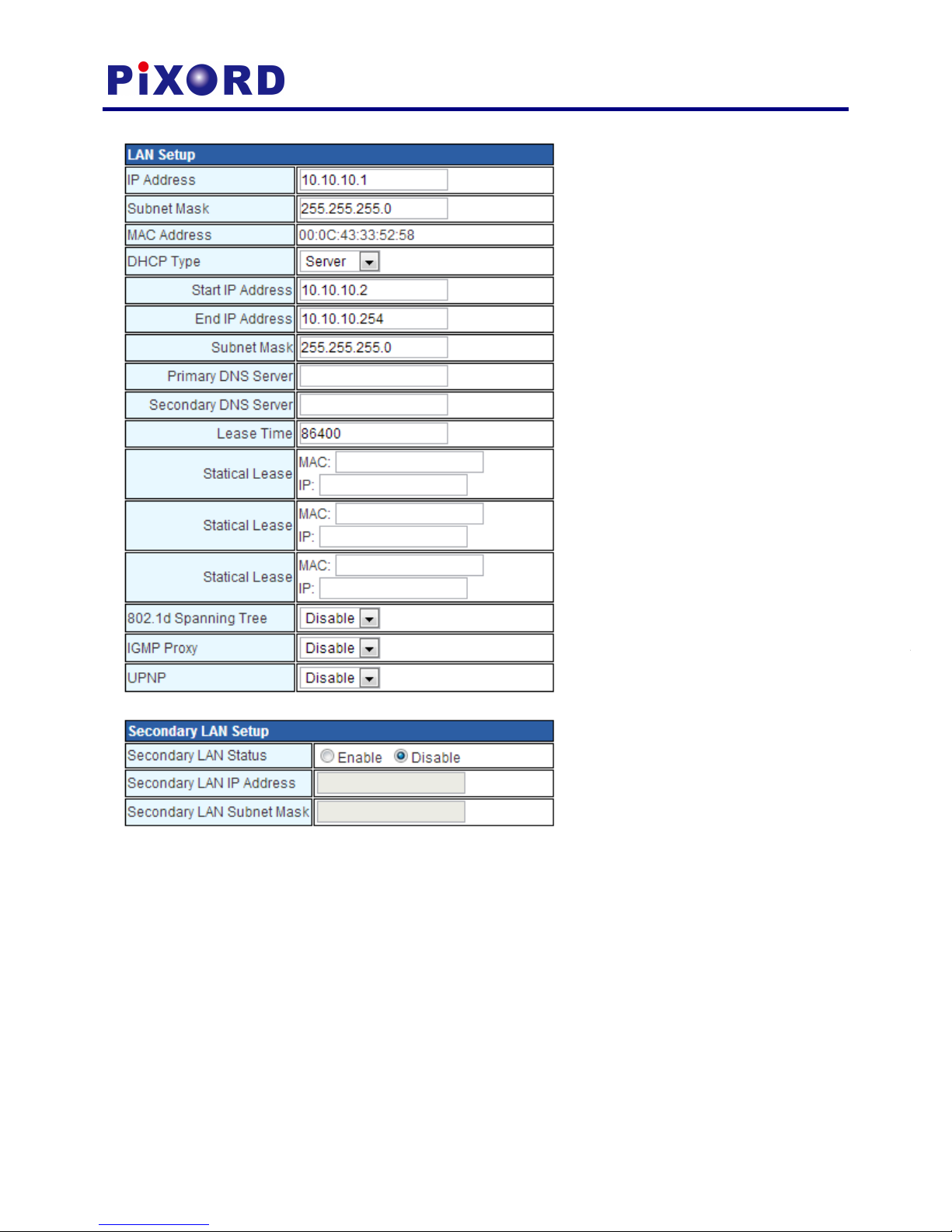

4.2 LAN Local Area Network)
A Local Area Network (LAN) is a shared communication system to which many computers are attached and
is limited to the immediate area, usually the same building or floor of a building.

PiXORD 3GR-431P User Manual
20
IP Address- Displays the primary IP address being used by the Local (LAN) port of the Router. The default is
10.10.10.1
Subnet Mask- Displays the IP Subnet Mask being used by the Local (LAN) port of the router. Default is
255.255.255.0
DHCP- The DHCP server "leases" out address for specific times (Time To Live) to the various hosts. If a host
does not use a given address for some period of time, that IP address can then be assigned to another
machine. hen assignments are made or changed, the DHCP server must update the information in the
DNS server.
