USER MANUAL

PowerPac 5002

AMPLIFIER

✔powerful 2-Channel Amplifier „Handmade in Germany“

✔impressive output power (2 x 2500 Watt at 4Ohm)

✔Dual-Monoblock-Construction - 2 separated Powerblocks

✔Input- and Peaklimiter

✔audiophile sound & light weight

USER MANUAL PowerPac 5002

Table of content

Chapter Page

Introduction 3

Safety instructions and intended usage 3

Transport and storage 4

Guarantee terms and conditions 4

Product description 4

Scope of delivery , technical data overview 5

Detailed product description 5

Technical data detailed 6

Construction and control interface 7

Mains connection 8

Usage on a mains power generator, XLR- and speaker connection 9

Installation 10

Connection examples 11

Safety during operation, maintenance, disposal, Impressum 14

Introduction

Congratulations on purchasing a PL-AUDIO product! Your investment in the PL-AUDIO brand guaranteed quality and

products "Made in Germany", excellent functionality, an almost unbeatable price / performance ratio, as well as

direct and uncomplicated customer service.

We created this manual to ensure an easy start with your newly purchased product. Before you start using your new

product please read this manual carefully and keep it at your hands for future reference

Safety instructions and intended usage

In order to enjoy your device for a long time please make sure to follow the informations noted hereunder:

•The device complies with the necessary directives of the EU and therefore it carries a CE mark.

•This device left our factory in perfect technical condition. In order to ensure safe opereation, the user must

absolutely observe the following safety and warning notices:

•The devicve is supplied with dangerous mains voltage (>50 Volt AC). Therefore

never intervene on the device on yourself! There is a risk of electric shock!

Connection cables has to be protected against crushing, tensile load and bending.

Cables and wires are to be laid or secured in such a way that no one can trip over it

or may fall.

•Use the device only for the applications recommended by PL-AUDIO or which can be found in this manual. In the

event of improper use any warranty claims become obsolet and void.

•Use the device only indoor and protect it against dripping and splashing water, high humidity, heat and direct

sunlight.

•Do not place any objects filled with liquids, such as drinking water glasses,…, on the product.

•The heat generated by the amlipier modules must be dissipated by technical forced ventilation. The built in fan

switches on at a device temperature exceeding 60 and switches of at a device temperature of 40 degrees. For

this reason, do not cover the ventilation openings on the housing under any circumstances. The device exhausts

the warm air through the front grille.

•Do not put the device into operation and immediately pull the power plug of the device out of the socket:

1. if there is visible damage to a device or to the power cord,

2. if after a crash or compartable mishandling there is a suspicion of a defect,

3. if malfunctions occur.

•In any case, send the devices back to PL-AUDIO for inspection / repair. Please send any devices in sufficient outer

packaging to the PL-AUDIO production site. You can find this on the website www.pl-audio.de. Transport damage

due to insufficient packaging on the part of the sender cannot be claimed. A corresponding pre-registration of a

claim with a precise description of the fault - so that the devices sent in are correctly assigned - is inevitable.

•Never pull the power plug out of the socket by just pulling on the cable, always take hold of the power plug.

•Only use a dry, soft cloth for cleaning; never water or chemicals.

When using compressed air please pay attention to lubricant-free

compressed air and keep a minimum distance of 20 cm to the

individual parts.

USER MANUAL PowerPac 5002

Transport and storage

Secure and smart handling of our products helps you to keep the value of your device. In addition to this you

benefit for a longer time from the quality of your product.

For this reason, we ask you to note the following information in relation to above mentioned content point:

It is essential to install the device in a –ideally shock-absorbing –19“-Flightcase, to protect the device from

transport- and handling damage. Please note that these flight cases are not the proper housing for shipping with

parcel services. Please ensure that there is sufficient air ventilation when installed. Make sure to handle the device

as gently as possible during transport. We recommend to transport the unit in a horizontal position as shown on

the cover (page 1). Always store the device at a minimum temperatrure of 05° Celsius with low humidity and

without large temperature fluctuations. Avoid to expose the device to permanent direct sunlight.

Guarantee terms and conditions

PL-AUDIO gives its customers a manufacturer's guarantee of 5 years on the PowerPac 5002 product. This

guarantee is retained even if the product is resold within the EU and Switzerland. The guarantee period begins with

the purchase from an authorized sales or distribution partner or directly ex works. Please keep the original invoice.

This must be submitted for the submission and acceptance of any warranty claims. This manual is an essential part

of the product. Devices without a serial number (illegible or removed serial numbers) cannot be accepted under

any guarantee.

PL-AUDIO disclaims liability for transport damage, rough handling and / or incorrect use, external manipulation on

and inside the housing, unauthorized repair attempts, faulty mains voltage or mains connection, operation of the

amplifier below the minimum ohmic value specified in the operating instructions, effects of moisture, massive

contamination from dust, incorrect operation of emergency power systems (power generators, UPS systems, ...)

and faulty feeds into the device. Furthermore, PL-AUDIO does not recognize any warranty or guarantee claims for

any direct or indirect damage caused by installation, configuration, manipulation or storage of the specified

software and its components.

Devices which are covered under the guarantee conditions must be sent back to PL-AUDIO after prior notification.

Please send the devices in sufficient outer packaging (ideally in the original packaging) to the PL-AUDIO production

site. You can find this on the website www.pl-audio.de. Please note that any service manipulation can lead to data

errors or complete data loss on the device sent in. Data errors and / or data loss are not covered by warranty or

guarantee. You should therefore save your presets several times on different storage media in the course of the

configuration in your own interest.

In the event of any claim, no guarantee or subsidiary liability is assumed for upstream / downstream products

Individual goodwill decisions on the part of PL-AUDIO are always related to the respective individual case and in no

case represent an acknowledgment of any defects. In a recognized warranty case, PL-AUDIO decides on repair or

replacement at its own discretion.

Product short description

The PowerPac, low weight and top performance

Our digital 2-channel-amplifier „handmade in Germany“ is the optimum extension to our amps with built in digital

signal processor PowerPac 4004 DSP and PowerPac 6004 DSP.It can also be sourced by any other controler or

speaker management system.

With its 2 x 2.5 kW, the PowerPac 5002 offers the highest performance for all professional applications. In addition

to the common sound reinforcement tasks, this 2-channel amplifier is suitable for the most powerful bass

reproduction at live events, trade fairs, theaters and demanding fixed installations, as well as for DJs, bands and

rental companies. We have also attached great importance to the proven, high-quality protection and operating

circuits. The essentials: high performance at a fantastic price.

USER MANUAL PowerPac 5002

Scope of delivery

Beside the PowerPac 5002 you can find following components included:

•Mains cable with PowerCon®-male connector. Only use this cable without any manipulation on the cable itself.

Technische Daten Übersicht

Product detailed description

The PowerPac 5002 comes with two identical amplifier blocks with separate power supplies. Thanks to the high

class operation- and protection circuits the PowerPac 5002 offers –beside the audiophile presence and impressive

output power of 2 x 2.500Watt –the well known and outstanding performance and operation reliability like the

whole PowerPac-Series from PL-AUDIO. The clear structured connection board backside offers - beside the

Speakon®-Speaker connectors (double: one connector wired on Pin 1+/1- and the other connector wired 2+/2-) –

XLR signal pass through for signal forwarding to additional components, allowing the comfortable set-up of high-

powered multi channel systems.

2-CHANNEL CLASS D AMPLIFIER: 2 X 2500 W INPUTLIMITER AND PEAKLIMITER

Inrush current limitation Protection circuit against switching transients

Intelligent mains fuse protection Low voltage and high voltage protection

DC –protection of the outputs automatic temperatur control

Very quiet fan High damping factor >1000 ( 8 Ohm, 1Khz)

Very low distortion factor:

THD+N less than 0,05% (20 Hz –20 Khz)

Signal to noise rate:

Less than 120 db (20 Hz –20 Khz)

Wide-range power supply with automatic voltage

detection and automatic switch 120V –265V 2 HE aluminium housing

Weight: just 7,3 kg Installation depth of 410 mm

Powercon In –out 2 x On-/Off-Switch on the front

2 x XLR in and out 2 x Speakon out

2x 2,5 KW modular setup and

2 separate power supplies

USER MANUAL PowerPac 5002

Technical data (detailed)

Temperature

range

Environment

tempereature

5°C bis +40°C not condensing!

Fan switch on

temperature

°C

Fan switch off

temperature

°C

Output power

reduction

°C

Temperature

–Emergency shut down

°C

Colling

concept

Air, back

to front, 1-speed

Fan

80mm, 30cbm/h, 35db(A)

Protection

circuits

True

-RMS Compressor & Limiter for all Inputs and Outputs

Switch On and Switch Off

-Delay of Outputs

ICL

Inrush Current Limiter

Intelligent

current limitation prevents the triggering of fuses

Peak

current Limiter on the speaker outputs

-Protection on the speaker outputs

High

frequency protection on the outputs (>30kHz, 2Sek)

Temperature

observation with output power reduction by overheating

Voltage

range

Automatic

voltage detection

AC Range 1 / 120V

85V

- 138V AC (US-Voltage)

AC Range 2 / 230V

170V

- 265V AC (Europe-Voltage)

Frequency

range

45Hz

–65Hz

Power

consumption at 230V

Standby

6 Watt / 0,026A

Idle

2 x 27Watt = 54Watt / 0,24A

Rated

power consumption (without reactive current)

2 x 340Watt = 680Watt / 2,95A (Ch1+2 8Ω)

2 x 420Watt= 840Watt/ 3,65A (Ch1+2 4Ω)

Maximum

2400 Watt / 10,43A

Switch on

peak voltage @230V

32,5A

Switch on

peak voltage @115V

17,0A

Measurements

Width

482mm (19“)

Heigth

89mm (2HE)

–with rubber feets 92mm

Depth

410mm

–with operation controls 430mm

Weight

7,3 kg

Output Power 8Ω @ 1% THD+N 1kHz

1 1550W 8Ω

2 1550W 8Ω

Output Power 4Ω @ 1% THD+N 1kHz

1 2500W 4Ω

22500W 4Ω

Amplification

factor

1 32dB

2 32dB

Amplifier

-Technology Class D

= Amplifier ON –operation ready with no Input/Output-signal

USER MANUAL PowerPac 5002

Construction and control interface

Following elements are located on the front side of the device (from left to right):

Following connectors and elements are located on the backside of the unit (from left to right):

Nr.

Element

Mains switch (

for each amplifier module)

Control

-LED Power ON for each amplifier module

Input

Gain Control

Signal

-LED

Signal:

-24dB to -6dB

Red

Clip/Limiter

Control

-LED Mains connected (lights up if min. one amplifier module is switched on)

Nr.

Element

XLR Input

symmetric signal

XLR Out

symmetric signal (signal pass through

Ground

-Lift-Switch

Air

ventilation fan (warm air is exhausted through the front)

Speakon

® female connector (connecvtion 1+/1-)

Speakon

® female connector (connection 2+/2-)

Mains

connector 16A Powercon® IN

Blind

cover (for optional discrete mains connection of Amplifier module 2 with Powercon® IN

6 5 4 3 1 2 3 1 2 4 5 6 7 8

1 2 3 4 5 4 3 2 1

USER MANUAL PowerPac 5002

Mains connection

The device may only be connected to an electrical installation that complies with the VDE regulations DIN VDE 0100.

The electrical installation must be equipped with a residual current circuit breaker (RCD) with> 30mA rated residual

current.

The devicve is supplied with dangerous mains voltage (>50 Volt AC). Therefore never intervene on the device on

yourself! There is a risk of electric shock! Connection cables has to be protected against crushing, tensile load and

bending. Cables and wires are to be laid or secured in such a way that no one can trip over it or may fall.

Damaged Mains-Power cables must not be used and should immediately be rendered unusable against further use,

e.g. cut off both plugs.

The device is powered by a Neutrik Powercon® connector. In contrast to a plug-in device (such as a safety plug), the

Powercon® plug-in connection must not be plugged in or disconnected under load and also not under voltage! The

consequences are stuck or burned-out contacts and the resulting loose contacts lead to failures or even destruction

of the electronics or even the risk of fire. You should therefore only switch the device ON or OFF using the

2-pole power switch.

The mains plug may only be connected to an earthed safety socket with the associated mains connection cable. If

extension cables are used, it must be ensured that the wire cross-section is dimensioned and approved for the

power supply required for the device! Make sure that the mains voltage of the socket corresponds to the permissible

voltage values in this manual.

The power supply of the amplifier is equipped with an intelligent mains voltage detection. It allows worldwide

operation on all power grids. After switching on, the electronics check the mains voltage and switches the power

pack to the correct voltage range 115V AC or 230V AC.

If a three-phase current generator is used at events on which the device is to be operated, the correct mains

voltage must be checked before connecting the amplifier! In the event of faulty three-phase power supplies without

a neutral conductor, a so-called neutral point shift can result in up to 400Volt being applied to the protective

contact sockets. This overvoltage leads to the destruction of the electronics in the amplifier.

The device has a blind cover (8) over the existing Powercon®-IN (see page 7, item 7). This is provided for the optional

possibility of discrete power supply of the second output stage block via a second Powercon® IN. In the original

delivery condition, the two separate amplifier blocks are supplied with power via the lower located Powercon® IN.

This option of redundant power supply for both amplifier blocks can be retrofitted at the factory if required, and

thus enables the amplifier blocks to be operated on different current phases (e.g. block 1 to L1, block 2 to L2, ...).

Best option is to connect the PowerPac 5002 to its own circuit with a 16A fuse (characteristic curve C). Please refer

to the technical data for the power consumption in the different operating states. The control LED on the front next

to the respective gain control serves to check the switching status of each individual block (page 7, upper figure,

number 2). The central control LED (number 5) lights up as soon as at least one block is switched on.

The device corresponds to protection class 1.

In the event of a thunderstorm or danger, pull the power plug out of the socket immediately.

To avoid ground loops, we recommend using symmetrical signal routing and the power distribution in the so-called

star point earthing, which means, all ground connections meet at one single point.

Never interrupt the contact to the protective conductor (e.g. by cutting off the protective conductor, disconnecting

the connection to the protective conductor through insulation, etc.), because in the event of a defect this increases

the risk of a electric shock over the metal housing.

USER MANUAL PowerPac 5002

Power generator operation

If the amplifier is operated on a power generator, this is done at your own risk!

Extensive precautionary measures must be taken before connecting and operating your device on a power

generator:

•Use only high-quality, generously dimensioned power generators

•perPowerPacat least 3kVA rated power

•If possible, switch on an under / overvoltage shutdown, this should be at U min.200VAC undervoltage and

U max. 250VAC overvoltage!

•Always load three-phase generators equally to avoid unbalanced loads, e.g. PowerPac 1 on L1, PowerPac 2

on L2, PowerPac 3 on L3

•Load the generator permanently with a stable base load in order to absorb voltage fluctuations. e.g. 1000W

halogen lamp, electric heater etc.

XLR connection

XLR inputs can be connected both balanced and unbalanced. Symmetrical cables are to be preferred, as they

provide better protection against external interferences on long cable routes. The inputs Input A and Input B can

be controlled with signals up to + 24dBu. The user has the option of further processing the fed-in XLR signals via

the XLR Out socket, e.g. in another PowerPac. Pay attention to the following assignment of the XLR connection.

Speaker connection

Before loudspeakers are connected to the Speakon® outputs of the PowerPac 5002, reduce the output level of the

upstream components to the lowest possible value (e.g. fader down or left stop; ) in order to reduce/avoid any

unwanted and possibly damaging noises in the connected loudspeakers. Also turn the gain controls on the front to

the left. Make absolutely sure that any upstream crossover or any upstream limiter is set correctly. Due to the high

output power of the PowerPac 5002, non complete or incorrect settings can damage the connected loudspeakers

due to overload!

The Speakon® sockets (7, black) on the back of the device (page 7, lower picture) are intended for

the loudspeaker cabling. The upper sockets transmit the signal via pins 1 + / 1- on the Speakon®

connector, while the lower sockets transmit the signal via pins 2 + / 2 + on the Speakon® connector.

With the system cabling from PL-AUDIO (also from numerous other manufacturers), only a single 4-pin Speakon®

cable is laid between the power amplifier and a sub / top combination to each side of the system. With PL-AUDIO,

pins 1 + / 1- are wired for the tops, pins 2 + / 2- for the bass.

When connecting the system using prefabricated connection panels, patchbays or adapter plugs / adapters,

make sure that the signals are correctly assigned to the correct components! This is of top importance when

using the PowerPac 5002 for wiring bi-amp systems. Special care must be taken, as possible incorrect cabling can

quickly lead to the destruction of the mid-range or high-frequency driver!

Important notice: Do never load the output channels with less than 4Ω!

USER MANUAL PowerPac 5002

Shield

Input Output

To connect a XLR-connection with non-symmetrical

Signal, Pin 1 and Pin 2 must be bridged.

Speakon® connector

Backside

Speaker connection

Example: 2x 8Ω speaker, parallel connected results 4Ω

2x 16Ω speaker, parallel connectedresults 8Ω

Damages on the amplifier modules or other electric circuits due to overload or to low nominal impedance are

not covered by any warranty or guarantee!

Installation

Please note that if the device is cold and transported into a warm environment, condensation will form inside the

device. To avoid damage and malfunctions due to condensation / moisture, let the device acclimatise first.

To avoid unpleasant and possibly damaging noises in the loudspeakers, always switch the individual components

on in the direction of the signal path. So first the player, then the mixer and only at the end the power amplifiers.

When switching off, just proceed in reverse order.

Each block of the PowerPac 5002 has a ground lift switch for each power amplifier block on the rear of the device

(see page 7, figure 3 below). This is used to be able to separate the ground loops with potential hum loops in the

case of multiple earthing. However, it can also lead to a deterioration in existing hum loops and grounding by

means of a ground lift switch. If so, you just have to try it out here. Should the signal deteriorate in spite of star-

shaped cabling and grounding by means of a ground lift switch, we recommend that you redo the XLR cabling.

After switching on the device, a self-test and initialization are carried out. The fan runs up once for approx. 4

seconds. During the start-up process, the loudspeaker outputs of the power amplifier are muted and are

activated automatically as soon as the power amplifier is ready for operation. This protective circuit

prevents unpleasant "cracking" noises in the loudspeakers.

The amplifier is ready for operation approx. 10 seconds after switching on and the front control LEDs (page 7,

upper figure, number 2) on each power amplifier block and the central control LED (number 5) light up green.

ATTENTION: The power amplifier has a gain control on the front panel for each power amplifier block! To be on

the safe side, turn it all the way to the left BEFORE switching on.

When you have made all connections, turn the two gain controls on the front panel slowly to the desired value or

the desired volume to the right with the signal being played softly. If you do not hear an output signal on the

connected loudspeakers, check the cabling again before turning the level up any further. In any case, avoid the

limiter LED lighting up continuously (page 7, upper figure, number 4). This not only leads to a loss of sound, but can

also damage connected speakers!

The PowerPac 5002 offers the user numerous possible uses:

Each output stage has 1 output channel with 2500W/4Ω per amplifier block. This power is made available at the

Speakon sockets® in black (wiring 1 + / 1- above or 2 + / 2- below).

This means that several configurations can be operated per power amplifier block (see examples below):

•up to 2 subwoofers á 8 ohms (via upstream crossover or crossover in the subwoofer)

•Up to 2 fullrange tops with built-in crossover of 8 ohms in full range operation

•Up to two monitors or front fill loudspeakers with built-in crossover of 8 ohms in full-range operation

•many other combinations (e.g. multi-room or multi-speaker applications) in which the sum of the nominal

impedance per power amplifier channel does not fall below 4 ohms.

If you connect an 8Ω loudspeaker to the output of the PowerPac 5002, it receives 1250W into 8Ω. If you

add another loudspeaker á 8Ω, the impedance is reduced to 4Ω. The 2500W (which are available at 4Ω) are

now divided between both speakers, and each speaker receives 1250W at 8Ω.

Calculation example: (1250W 8Ω + 1250W 8Ω = 2500W 4Ω)

The following examples give a brief overview of the various configuration options.

In order to avoid an overload of your amplifier connect only ONE Speakon®-connector (either the above or the

lower one) with your speakers. Never run speaker configurations with a lower nominal impedance than 4Ohm!

USER MANUAL PowerPac 5002

Connection example stereo fullrange to passive fullrange tops:

Mixing console

XLR L/R

Speakon®

2-pol

Speakon®

2-pol

Signal flow (from mixing console to speakers):

XLR Out L/R mixing console to Input A/B on the PowerPac 5002

Speakon® Block 1 to Fullrange-Topteil L (1+/1-)

Speakon® Block 2 to Fullrange-Topteil R (1+/1-)

XLR Thru A/B for additional components eg amplifier, active speakers,…

PowerPac 5002

Fullrange R

w. integrated

X-Over und

min. 8Ohm

In the example above, the PowerPac 5002 supplies up to two tops (or monitors) with an integrated crossover and a

nominal impedance of 8 ohms (2500W) per amplifier block. The signal assignment to the midrange and tweeter in

the tops / monitors is done by a crossover built into the tops / monitors. In the example above, the Thru A / B could

be passed on to a further power amplifier with connected loudspeakers or active loudspeakers. In this case, please

note that the signal is looped through directly without any level adjustments or EQ-ing.

Eg. to additional amplifier for eg

sidefill or front fill or to active

speakers

XLR

USER MANUAL PowerPac 5002

Fullrange L

w. integrated

X-Over and

min. 8Ohm

Fullrange L

w. integrated

X-Over and

min. 8Ohm

Fullrange R

w. integrated

X-Over und

min. 8Ohm

Connection example amping for subwoofer:

Mischpult

Fullrange Top

BiAmp

eg BananaArray

XLR L/R

Speakon®

4-pol

XLR XLR

Speakon®

4-pol

Speakon®

4-pol

Signal flow (from mixing console to speakers):

XLR L/ROut mixing console to Input A/B of a PowerPac 6004 DSP

Interlink connection PowerPac 6004 DSP

DSP Out Channel 1 of Block 1&2 to Input A/B PowerPac 5002

Speakon® PowerPac 5002 (2+/2-) to Subwoofer (Block 1 & 2)

XLR-Thru A/B to another subwoofer amplifier

Fullrange Top

BiAmp

eg BananaArray

Subwoofer

eg B2, B2-15,

B18T,…

Subwoofer

eg. B2, B2-15,

B18T,…

Amplifier with built

in digital signal

processor, e.g.

PowerPac 6004 DSP

or (digital) crossover

PowerPac 5002

Speakon®

4-pol

Here the PowerPac 5002 controls up to two subwoofers with at least 8 ohms (or one subwoofer with 4 ohms) per

amplifier block, via the lower Speakon sockets® with circuitry 2 + / 2- (circuitry of the subwoofer depends on the

manufacturer; it may be necessary to connect to the upper Speakon sockets® with circuitry 1+ / 1- ). In the example

above, the input signal (low pass), processed in terms of frequency, comes from the DSP outputs of a PowerPac

6004 DSP, which takes over the full signal management in this example. However, this signal may also come from a

crossover network or a separate, dedicated output on the mixer (mono sub out, subgroup, matrix output, etc.). The

Thru A / B XLR output can be fed to another subwoofer amplifier or active subwoofers with the same signal

requirement.

Eg. Signal passed through

to another amplifier for

subwoofers or active

woofers (same signal

configuration)

XLR

USER MANUAL PowerPac 5002

Mixing console

Connection example stereo fullrange to subwoofer with integrated crossover and passive fullrange Tops:

Mixing console

XLR L/R

Speakon®

2-pol

Speakon®

2-pol

Signal flow (from mixing console to speakers):

XLR Out L/R mixing console to Input A/B In @ PowerPac 5002

Speakon® Block 1 to Subwoofer L (1+/1-)

Subwoofer L to Fullrange-Topteil L (1+/1-)

Speakon® Block 2 to Fullrange-Topteil R (1+/1-)

Subwoofer R to Fullrange-Topteil R (1+/1-)

XLR Thru A/B to additional components, eg amplifier, active speakers,…

PowerPac 5002

In the example mentioned above, the PowerPac 5002 takes over the supply of a subwoofer with integrated

crossover and 8Ohm and a top part with integrated crossover and 8Ohm (2500W) per power amplifier block. The

signal assignment to the subwoofer as well as the midrange and tweeter in the tops is handled by a passive

crossover built into the subwoofer and the tops / monitors. In the example above, the Thru A / B could be passed

on to another power amplifier with connected loudspeakers or active loudspeakers. In this case, please note that

the signal is looped through directly without any level adjustments oir EQing.

Eg. to additional amplifier for eg

sidefill or front fill or to active

speakers

XLR

Subwoofer R

w. integr.

X-Over and

min. 8Ohm

USER MANUAL PowerPac 5002

Fullrange R

w. integrated

X-Over und

min. 8Ohm

Fullrange L

w. integrated

X-Over und

min. 8Ohm

Subwoofer R

w. integr.

X-Over and

min. 8Ohm

Safety during operation

The PowerPac 5002 carries a CE-Mark. According to the applicable accident preventation regulations, an annual

VDE 0702 test must be carried out. Furthermore, the device has - in accordance with the ordinance of industrial

safety –to be categorized in a company-specific risk assessment and be registered in a company specific document.

For all other countries, pay attention to the local applicable ordinances, test regulations and test intervals.

Keep the manual of this product freely available for all users of the product.

Maintenance

The PowerPac 5002 is almost maintenance-free. However, keep the unit free of dust so that the necessary cooling air

can circulate properly. There are no user-serviceable componments inside the PowerPac 5002.

Leave necessary maintainance work, such as cleaning with compressed air, to qualified specialists.

The following applies to all work in the device: Before opening the housing pull the power plug!!!

Please note that unauthorised opening of the housing automatically invalidates the warranty!

Disposal

According to the national electrical and electronic equipment law - ElektroG, PL-AUDIO is a German manufacturer

and EAR-registered (Registration office for waste electrical and electronic equipment register).

The registration number of PL-AUDIO in Germany is WEEE - Reg. No. DE 68629698.

Please do not dispose any PL-Audio products with household, residual or bulky waste or give them to the public

collection points for disposal. PL-AUDIO products are professional electrical devices, so-called business-to-business

products (B2B). Old devices will be taken back by us and through our contract company Electrocycling GmbH, Land-

strasse 91, 38644 Goslar, disposed professionally and in a resource-saving manner sent to the collection of

recyclable materials. We have therefore marked all devices affected by the ElektroG with the crossed-out garbage

can. This symbol indicates that it must not be disposed of with household waste. But also not known signed older

PL-AUDIO products, the disposal of which the owner would be responsible for, we are happy to take for disposal.

To implement our obligations from the Packaging Ordinance, we have joined us to the dual system - EKO-PUNKT.

Impressum

USER MANUAL PowerPac 5002

This manual is the sole and unrestricted intellectual property of PL-AUDIO GmbH & Co KG based in D-57482

Wenden. All originatorrights and copyrights are held by PL-AUDIO GmbH & Co KG. A duplication fulfillment

(printing or copying or electronic) of this manual - even in part - requires our express written consent. Errors,

typesetting and printing errors reserved. The operating steps listed in this manual apply only finally for the device

named in the manual and cannot be transferred to other devices - even in sequences or in the same way. When

using the device described in the manual, be sure to observe the corresponding, locally applicable legal

requirements and legal framework. For any direct and indirect damage to people, structural facilities (mobile and

immobile) or other equipment or tangible or intangible property due to non-observance of the specifications or

operating steps of the previous, no liability whatsoever is accepted. Speakon® and PowerCon® are registered

Trademark of Neutrik AG, Im alten Ried 143, 9494 Schaan, Liechtenstein. All information in this document is based

on the documents, functions, information and safety regulations for the individual components of this device or

the current status of the technique, available at the time of publication. PL-AUDIO reserves the right to make

adjustments (within the framework of the statutory provisions) Improvements in product quality are useful at any

time and without prior notice.

Table of contents

Other PL-AUDIO Amplifier manuals

PL-AUDIO

PL-AUDIO D6K4 User manual

PL-AUDIO

PL-AUDIO PowerPac 4004 DSP User manual

PL-AUDIO

PL-AUDIO MiniPac 2004 DSP User manual

PL-AUDIO

PL-AUDIO PowerPac 4003 DSP User manual

Popular Amplifier manuals by other brands

Dynacord

Dynacord SL 900 owner's manual

NAD

NAD C165BEE owner's manual

Sony

Sony TA-N55ES Service manual

Panasonic

Panasonic Minas-LIQI Series Technical reference

Outline

Outline NEWTON operating manual

Pass Laboratories

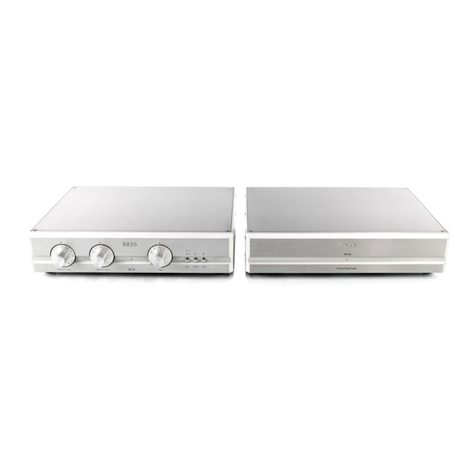

Pass Laboratories XP-25 owner's manual

Sanway Audio

Sanway Audio HT-10QR manual

Focusrite

Focusrite OctoPre MkII Dynamic user manual

Directed Electronics

Directed Electronics 550.6 owner's manual

AUDIO TELEX

AUDIO TELEX SA120B brochure

axing

axing BVS 15-67 Operation instructions

Rotel

Rotel RC-1082 Technical manual

BRUEL & KJAER

BRUEL & KJAER 6302 instruction manual

Televes

Televes 5605 manual

NAIM

NAIM NAC-N 172 XS quick start guide

Harley Benton

Harley Benton Harley Benton GPA-400 user manual

Fender

Fender Frontman 15B Service manual

Yamaha

Yamaha P2050 operating manual

PL-AUDIO PowerPac 5002 User manual

Popular Amplifier manuals by other brands
