Planet Networking & Communication ICA-W3250V User manual

VERIFY THE CONTENTS INSIDE THE BOX
The package should contain the following items plus Full HD Outdoor IR Wireless IP Camera. If any item
is missing or damaged, please contact the seller immediately
Quick Installation Guide x 1 User’s Manual CD-ROM x 1 Power Adapter x 1
Screw Package x 1 Rubber Cover x 1 Antenna x 1
Female to Female RJ45 Connector x 1
Step 1: Hardware Overview

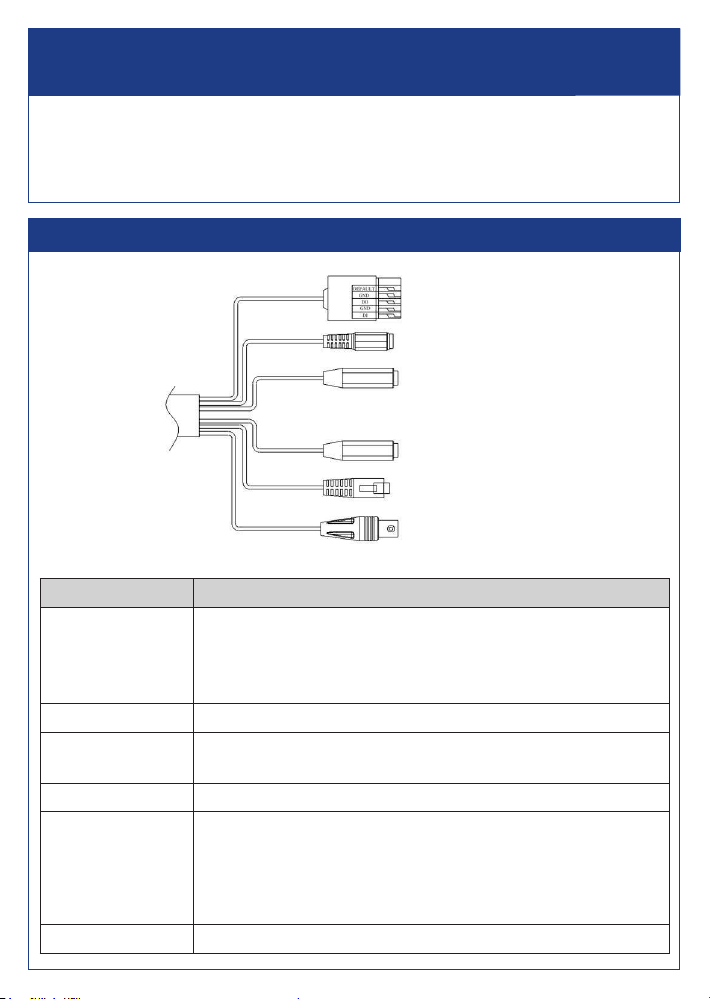

I / O
DC 12V
AUDIO OUT (Green)
AUDIO IN (Pink)
ETHERNET RJ45
TV VIDEO OUT
Interface Description
I/O
I/O terminal connector is used for such functions as motion detection, event
triggering, and alarm alert. It provides the interface to I/O terminal.
1) GND (Ground): Initial status is LOW
2) DI (Digital Input): Max. 50mA, 5V DC
3) DO (Digital Output): 5V DC
Input Power 12V DC.
Audio Out (Green) Connect a loud speaker to the network camera. This is for voice alert and
two-way audio.
Audio in (Pink) Connect a microphone to the network camera.
Ethernet RJ45
Connect to PC or hub/switch.
For connecting to 10BASE-T Ethernet or 100BASE-TX Fast Ethernet
cable, this Ethernet port built N-Way protocol can detect or negotiate the
transmission speed of the network automatically. Please use CAT-5 cable to
connect the Network Camera to a 100Mbps Fast Ethernet network switch or
hub.
TV Video Out Connect BNC connector to a TV.
Step 2: Installation
1. You can use 3-axis bracket to adjust the angle of camera. Please lock the screws tightly to x the
angle after adjusting.
ROTATION: 360˚
TILT: 180˚
PAN: 360˚
Note
Please take note of the cable situation. Avoid excessive distortions in the cable;
otherwise, it will cause malfunction.

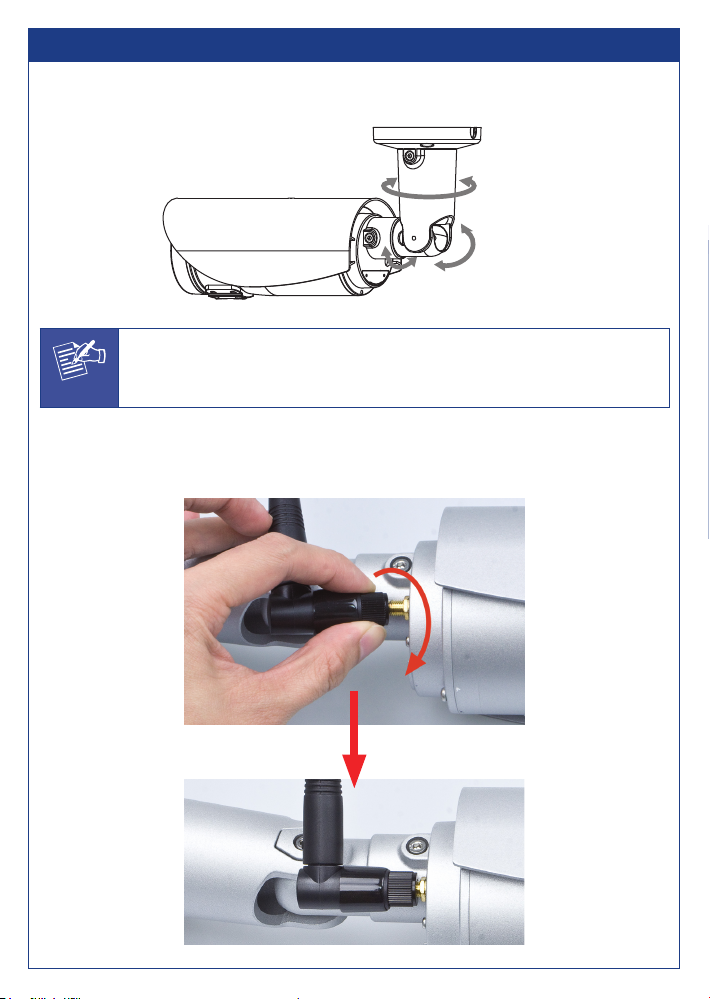

2. Installing the antenna:
a. Plug the Antenna into the connector. Turn the lock nut to the right until it is totally locked.
Do not bend or try to straighten the antenna bar.

VERIFY THE CONTENTS INSIDE THE BOX
The package should contain the following items plus Full HD Outdoor IR Wireless IP Camera. If any item
is missing or damaged, please contact the seller immediately
Quick Installation Guide x 1 User’s Manual CD-ROM x 1 Power Adapter x 1
Screw Package x 1 Rubber Cover x 1 Antenna x 1
Female to Female RJ45 Connector x 1
Step 1: Hardware Overview
I / O
DC 12V
AUDIO OUT (Green)
AUDIO IN (Pink)
ETHERNET RJ45
TV VIDEO OUT
Interface Description
I/O
I/O terminal connector is used for such functions as motion detection, event
triggering, and alarm alert. It provides the interface to I/O terminal.
1) GND (Ground): Initial status is LOW
2) DI (Digital Input): Max. 50mA, 5V DC
3) DO (Digital Output): 5V DC
Input Power 12V DC.
Audio Out (Green) Connect a loud speaker to the network camera. This is for voice alert and
two-way audio.
Audio in (Pink) Connect a microphone to the network camera.
Ethernet RJ45
Connect to PC or hub/switch.
For connecting to 10BASE-T Ethernet or 100BASE-TX Fast Ethernet
cable, this Ethernet port built N-Way protocol can detect or negotiate the
transmission speed of the network automatically. Please use CAT-5 cable to
connect the Network Camera to a 100Mbps Fast Ethernet network switch or
hub.
TV Video Out Connect BNC connector to a TV.
Step 2: Installation
1. You can use 3-axis bracket to adjust the angle of camera. Please lock the screws tightly to x the
angle after adjusting.
ROTATION: 360˚
TILT: 180˚
PAN: 360˚
Note
Please take note of the cable situation. Avoid excessive distortions in the cable;
otherwise, it will cause malfunction.
2. Installing the antenna:
a. Plug the Antenna into the connector. Turn the lock nut to the right until it is totally locked.
Do not bend or try to straighten the antenna bar.

VERIFY THE CONTENTS INSIDE THE BOX
The package should contain the following items plus Full HD Outdoor IR Wireless IP Camera. If any item
is missing or damaged, please contact the seller immediately
Quick Installation Guide x 1 User’s Manual CD-ROM x 1 Power Adapter x 1
Screw Package x 1 Rubber Cover x 1 Antenna x 1
Female to Female RJ45 Connector x 1
Step 1: Hardware Overview
I / O
DC 12V
AUDIO OUT (Green)
AUDIO IN (Pink)
ETHERNET RJ45
TV VIDEO OUT
Interface Description
I/O
I/O terminal connector is used for such functions as motion detection, event
triggering, and alarm alert. It provides the interface to I/O terminal.
1) GND (Ground): Initial status is LOW
2) DI (Digital Input): Max. 50mA, 5V DC
3) DO (Digital Output): 5V DC
Input Power 12V DC.
Audio Out (Green) Connect a loud speaker to the network camera. This is for voice alert and
two-way audio.
Audio in (Pink) Connect a microphone to the network camera.
Ethernet RJ45
Connect to PC or hub/switch.
For connecting to 10BASE-T Ethernet or 100BASE-TX Fast Ethernet
cable, this Ethernet port built N-Way protocol can detect or negotiate the
transmission speed of the network automatically. Please use CAT-5 cable to
connect the Network Camera to a 100Mbps Fast Ethernet network switch or
hub.
TV Video Out Connect BNC connector to a TV.
Step 2: Installation
1. You can use 3-axis bracket to adjust the angle of camera. Please lock the screws tightly to x the
angle after adjusting.
ROTATION: 360˚
TILT: 180˚
PAN: 360˚
Note
Please take note of the cable situation. Avoid excessive distortions in the cable;
otherwise, it will cause malfunction.
2. Installing the antenna:
a. Plug the Antenna into the connector. Turn the lock nut to the right until it is totally locked.
Do not bend or try to straighten the antenna bar.

6. For the waterproof reason, if you install a Micro SD card, please turn and lock the screws on the
Micro SD card lid tightly and make sure it’s sealed.
Screw them tightly
Note
Be aware the waterproof rubber, improper placement or missing the rubber will cause
seal malfunction.

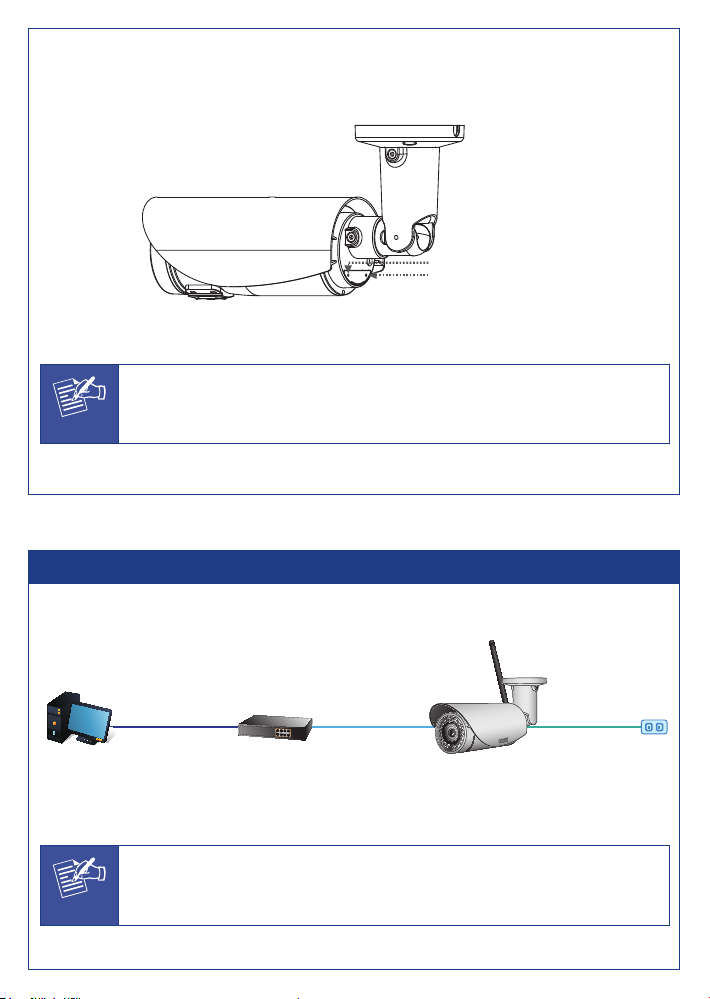

Step 3: Connecting Network and AC Adapter Power
User PC
(192.168.0.X)
Ethernet Switch
ICA-W3250V
Note
Use the power adapter shipped with the unit to ensure correct functionality.

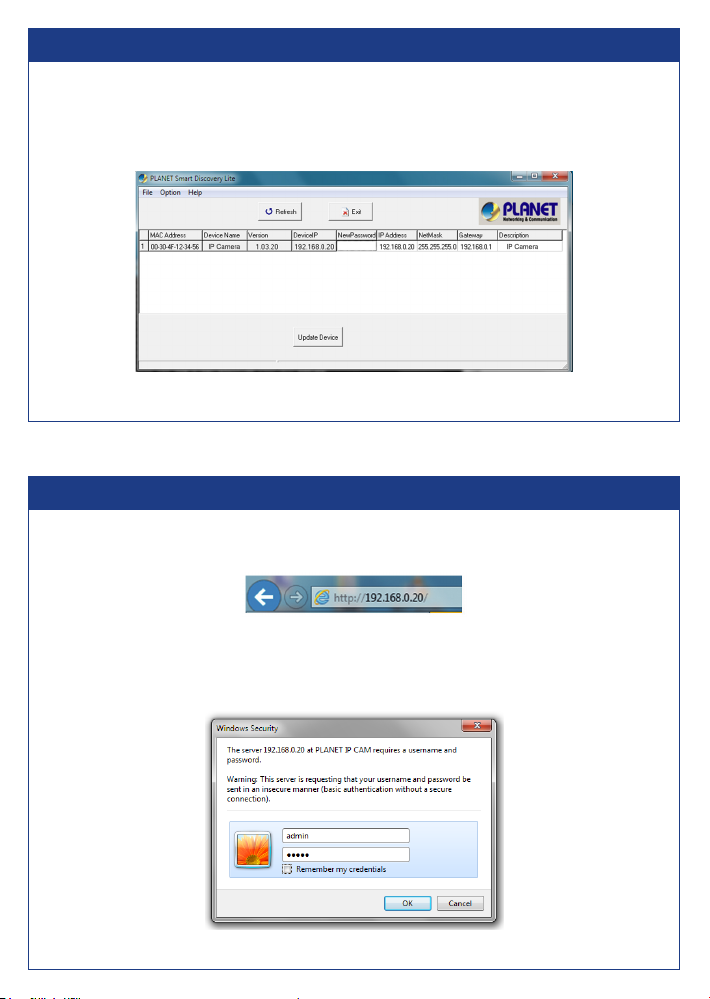

Step 4: Running Installer Utility to Locate the IP Camera
Insert the CD-ROM supplied in the product package and the CD will automatically run the
installation. If not, please click the Smart Discovery Lite utility hyperlink to install.
After the camera utility is launched, all cameras found in your local area network will be displayed.
Step 5: Opening the Dialog Box for Further Conguration
 SelecttheIPCamerayouwanttocongureandinputitsIPaddressintothebrowsersearchbar.
The IP Camera will be connected via Web browser automatically; the IP Camera will prompt for
logon user name and password. Please enter admin as the default user name and password.

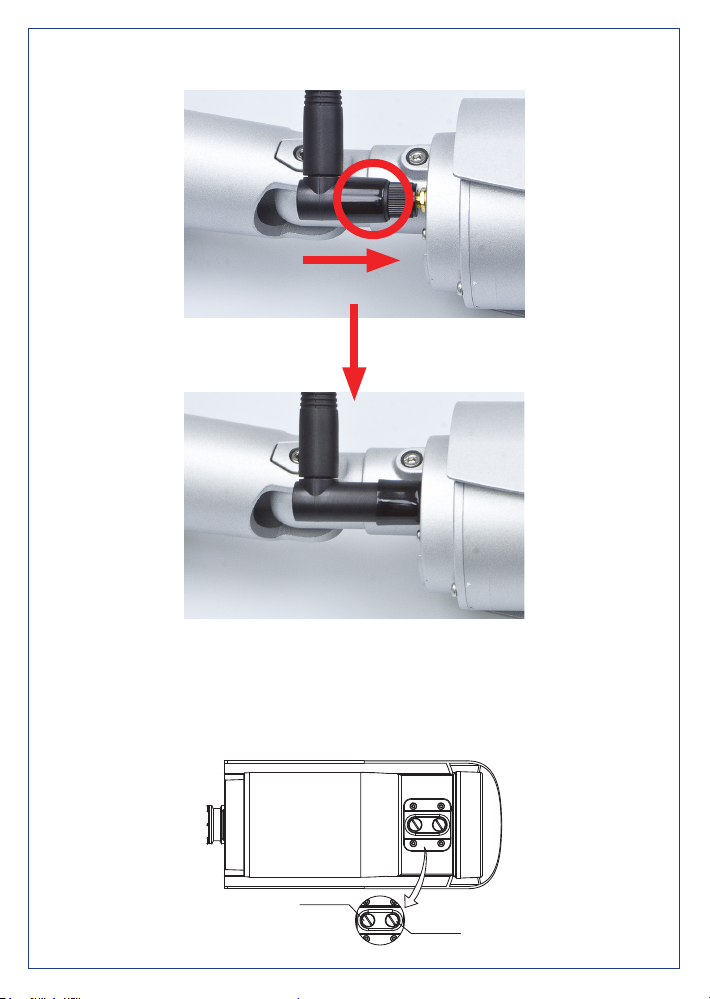

b. Push the Rubber Cover until it could totally cover the antenna connector. It is helpful to prevent
water.
3. Plug the Ethernet cable into RJ45 connector (LAN port).
4. Connect Video BNC connector to a TV set if necessary (to check camera viewing angle and focus).
5. This IP camera is equipped with an external vari-focal lens controller. Please adjust “ZOOM” and then
“FOCUS” as shown in the following picture until the image gets clear.
ZOOM FOCUS
 When the device is logged on for the rst time, the browser will prompt a message; please click
“Allow” to install controls.
Note
If IE9 or higher version browser is used, it is suggested that the PLANET camera Web
link should be added as a trusted site.
Step 6: (Option) Wireless Connection
If you want connect the camera to the Wi-Fi AP, please refer the Chapter 3. Web-based
Management of user manual.
Appendix A: Default Setting
Default DHCP Client On
Default IP Address 192.168.0.20 – if DHCP does not exist in the network
Default Login User Name admin
Default Login Password admin
Search Tools Smart Discovery Lite
Further Conguration
Fordetailedconguration,pleasecheckuser’smanualonthebundledCD.
If you have any other question, please contact the dealer where you purchased this product or you can
contact PLANET directly at the following email address: [e-mail]
