Plasma Cool ACW600C User manual

Portable Air Conditioner
Model ACW600C
Owner’s Manual
It is important that you read these instructions before using your new purchase and
we strongly recommend that you keep them in a safe place for future reference.
Innovative AutoDrain NanoMist Technology
Patent Pending

Table of Contents
ThankYou! ………………………………………………………………………1
Safety Instructions …………………………………………………………… 1-2
Specifications ……………………………………………………………………3
Parts ……………………………………………………………………………4
Positioning ………………………………………………………………………5
Control Panel ……………………………………………………………………6
Remote Control …………………………………………………………………7
Multi Protective Function ………………………………………………………8
Emptying the Water Container …………………………………………………9
Cleaning ……………………………………………………………………… 10
Troubleshooting ……………………………………………………………… 11
Warranty……………………………………………………………………… 12

1
Read this entire instruction manual before use.
Please keep your receipt and the unit’s original box for a warranty return.
Thank You!
IMPORTANT!
•The unit is designed for indoor operation.
•The unit is not designed to cool server rooms, sun rooms, or a room generating constant high levels of heat.
•Rating: This unit must be connected to a 115V/60Hz grounded outlet.
•The installation must be in accordance with regulations of the country where the unit is used.
If you are in any doubt about the electrical installation, have it checked and if necessary modi�ed by a
quali�ed electrician.
•Never connect the unit to an electrical outlet using an extension cord.
If an outlet is not available, one should be installed by a licensed electrician.
•The air conditioner is safe. However, as with any electrical appliance, use it with care.
•Keep out of the reach of children.
•Do not clean the unit by spraying it or immersing it in water.
•Do not insert any object into the openings of the unit.
•Disconnect the unit from the outlet before cleaning the unit or any of its components.
WARNING!
•Never operate this appliance if it has a damaged cord or plug.
•Do not lead the cord over sharp edges.
•A damaged supply cord should be replaced by the manufacturer,
its service agent or a quali�ed person in order to avoid a hazard.
•Any service other than regular cleaning or �lter replacement should be performed by an authorized
service representative. Failure to do so could result in a loss of warranty.
•See warranty page to read about warranty requirements, procedure, and instructions.
Safety Instructions
Thank you for purchasing an Arbaco Portable Air Conditioner. Arbaco is a leading brand in indoor
air treatment. We would like you to enjoy the many bene�ts this unit offers, so please read this
manual carefully and take full advantage of the many advanced features that your Arbaco Portable Air
Conditioner offers you.
Arbaco has specialized in complete indoor environment control, manufacturing world-class air
conditioners, dehumidi�ers and air puri�ers with innovative technology.
In designing these advanced products, we have listened carefully to our customers and have passed
their views on to our research and development laboratories.
We wish you many years of enjoyable use.
After reading this manual, please keep it in a safe place for future reference.

2
IMPORTANT:
The first time that you use the unit, please ensure that it has been standing in an
upright position for at least 2 hours before it is switched on. The AC unit must always be stored
and transported upright. The unit is not to be used in temperatures under 41°F or over 95°F.
Safety Instructions
Reminder:
Unit Contains R410A. Waste electrical products must not be disposed of with household
waste. This product should be taken to your local recycling center for safe treatment.
Close to a heat source
Inside unit exposed to the
weather outdoors
In a permanent very humid
environment
If the power cable wires
are frayed or cut
When small children may
be left unattended
Do Not Connect the unit
to extension cord.
Where the power cable
may be damaged
On a slope or uneven
surface
Where it may be damaged
by chemicals
Where there is a risk of
interference by foreign objects
This products is not made
for DIY repair
If there is a risk of liquid
falling on the unit
Do not use your air conditioner:

3
Specifications
Model ACW600C
Cooling Capacity 12,000 BTU/h
Cooling/Heating
Power Consumption / Current 1000W / 9.7A
Moisture Removal in Cooling mode 61 pints/day
Power Supply 110-120V/60Hz
Refrigerant R410A
Compressor Rotary
Fan Speed 3 Speeds
Thermostat 64ºF - 80ºF
Ambient Temperature Range
for Operation 60ºF - 105ºF
Timer 1-24 hour Timer
Dimensions 18.5"W x 33.1"H x 13"D
Weight 71 lbs.
The cooling capacity of the unit may be affected by the height of your ceiling, quality of your insulation, or
number of windows in your room. There is no current testing statute for portable air conditioning products in
the United States, yet we have made every effort to design engineer a superior quality portable air conditioning
unit that effectively and efficiently cools select areas of the home or office.
These portable air conditioning units are designed engineered to provide supplemental air conditioning.
To gain a better understanding of the performance capabilities of your new ACW portable AC unit, you can visit
us online at: www.americancomfort.com/portableacdisclaimer

4
Parts
Caster
Front
Cover
Back SideFront Side
Check packing accessories and read your user’s manual to learn how to use them.
Top Cover
Handle
Upper
Filter frame
Exhaust
Connector
Power
Cord
Location
Lower
Filter Frame
Rubber Plug
Plug Cap
Power
Supply
Cord
Control
Panel
Air
Outlet
Exhaust
Hose
Slide Bar
Connector
Remote
Control
Adjustable
Slide Bar
Foam strip Spiral Water Pipe
with Connector

5
Put spiral water
pipe into hot air
�exible hose.
Connect the
female half of the
quick connector
at the end of the
spiral water pipe
to the male part
in the hot air
outlet pipe.
Turn the
connector
90 degrees
clockwise until it
is locked in place.
Assemble the
hot air hose on
the unit.
Clip on the
water atomizer
at the end of
the spiral pipe
to the holder.
Unfold �exible
hose with attached
hose adapter
connector, and
snap into
Window Slide Bar.
AutoDrain NanoMist Technology™Assembly
2
3
6
8
4
5
7
1Attach Window
Slide Bar
Connector to
Exhaust Hose by
twisting as shown.
Only
Required For
Disassembly.
In order to
unlock the quick
connector, push
the tab and turn
the connector
counter-
clockwise.

6
Positioning
Installing Exhaust Hose to Window Slide Bar
Note: The window kit is only designed to be installed with sliding windows or doors.
The window kit is not designed or to be used with casement style windows.
Step 1:
Measure your window kit according to the dimensions of your sliding window. If in case the unit is larger than
your required dimensions, it can be cut using a saw or power tool of the sort. If the unit is too short for your
opening, you can order an additional window kit from our online store to extend it.
Step 2:
Screw slide bar connector into exhaust hose �rst, then spin the exhaust hose into the air outlet located at the
rear of the unit (counter-clockwise) (Figure B).
Step 3:
Insert slide bar connector into adjustable slide bar. Extend the Slide Bar length to match the
width of the window (vertically or horizontally), and then tighten the screw to hold the length of the slide bar
(Figure D). Make sure the adjustable slide bar �ts snug in your window and stays in place.
Proceed to close and lock your window on the Slide Bar to secure in place (Figure C).
IMPORTANT
The �exible hose can be extended from 10.63" to 59" for mounting
We recommend that you keep the hose as short as possible to minimize possible loss back in the room.
This length has been designed especially according to the speci�cations of the air conditioner.
Do not use an extension or exchange for a different hose as that may lead to malfunctioning.
The exhaust air must �ow freely. Any blockage can lead to overheating of the air conditioner.
Handle with care to prevent any kink or bend in the exhaust hose.
This unit can easily be moved from one room to another. In doing, so keep this in mind:
• The air conditioner must stand upright on an even surface.
•Do not position near bath, sink, or other permanent, wet or damp area.
• Keep unit at least 18" from wall, curtains, draperies, or heat sources to insure adequate air circulation.
Assembling the Outer Adaptor
Align the two halves of the Outer Adaptor
and gently snap together (Figure A).
Note: To prevent damage, do not use excessive pressure.
Exhaust
Hose Slide Bar
Connector
Figure C
Figure A
Figure B

Control Panel
7
When plug in, follow the start music, unit is in standby status. Digital screen will indicate
temperature (Range: 41º-95ºF), if temperature above 95º, screen will show “H”, if below 41º,
indicate “L”.
ON/OFF BUTTON: When press this button, model will be in cooling mode (Setting temperature
75º), high speed fan. Press again, unit will shut off and play shut off music.
MODE BUTTON: Press this key to choose Cooling, Fan, and Dehumidifying Mode.
FAN BUTTON:
a. Under cooling mode: HIGH FAN - MIDDLE FAN - LOW FAN
b. Under fan model: same as cooling mode
c. Under dehumidifying mode, fan is working in low speed
d. If switch between cooling and fan, fan speed won’t change.
TIMER BUTTON:
Press once, TIMER icon �ashes, “88” area indicates 24:00; you can set your time with UP and
DOWN buttons. You can set auto shut off time when the unit is running, you can also set auto
running time when the unit is off. When you �nish ing the setting, icon will continue �ashing until
the current time is right the setting time. If set again, history record will be cleared.
UP AND DOWN BUTTONS:
Set temperature and timer. Under cooling , temperature range is 64º~86º, press Up and Down
buttons together can exchange to:
SLEEPING KEY:
Under cooling or heating mode, press the key can make unit into sleeping mode, LCD will show
the Sleeping Icon, press again to cancel Sleeping mode.
SWING BUTTON:
Press this key to start auto swing function, press again to cancel.
MIGHTINESS KEY:
Press this key to choose mightiness function:
You can get cooling effect quickly only under cooling mode.
Timer
langiSpU
Receptor
SwingDisplay AreaMode
ffO/nOnwoD
Fan Speed ssenithgiMgnipeelS

8

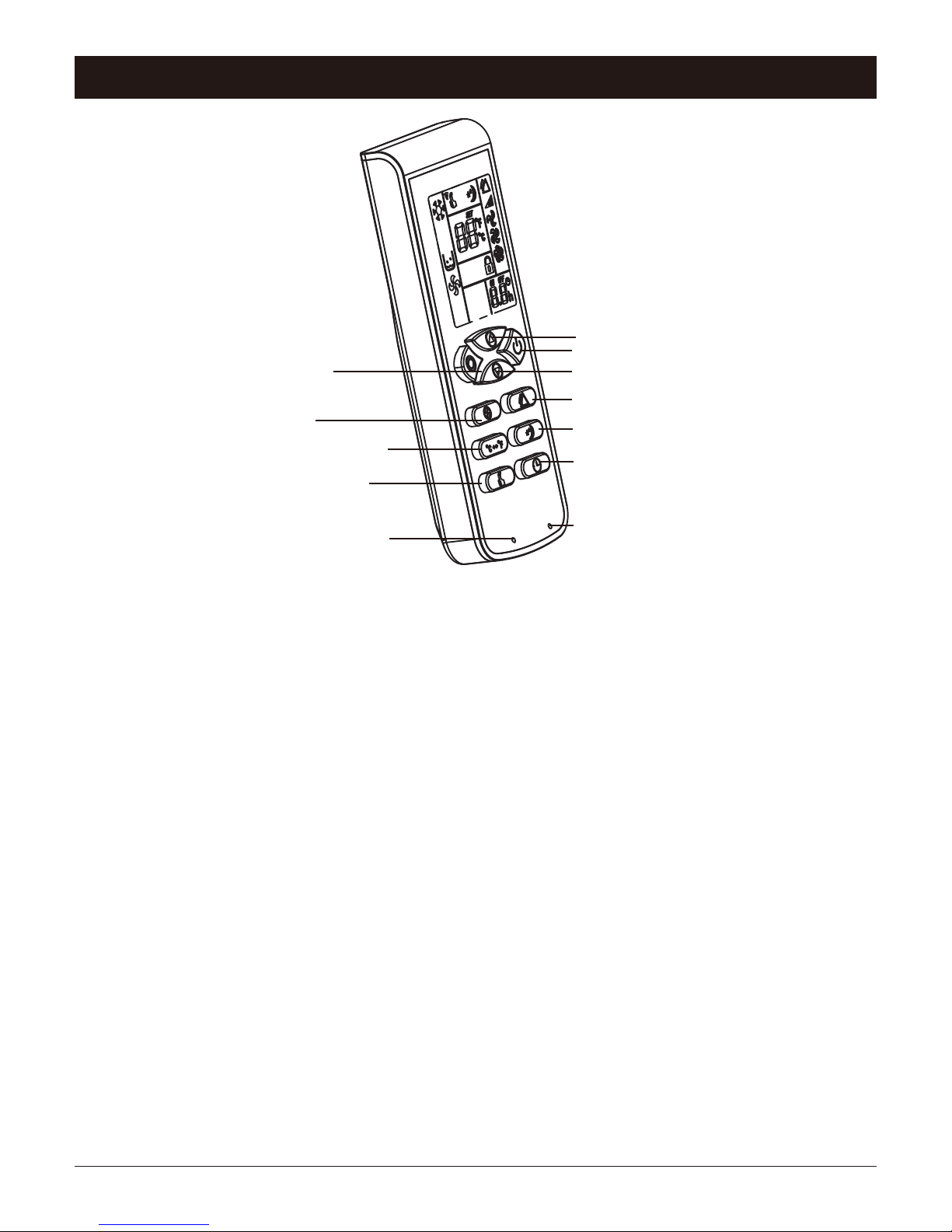

Remote Control
Power
Down
Swing
Sleeping
Timer
Reset
Mode
Up
Fan
Temperature
Mightiness
Keypad Lock
1. POWER: Press this key to turn on/off the button.
2. MODE: Press this key to choose cooling, dehumidifying, fan
3. UP: Press this key to turn up temperature or adjust time.
4. DOWN: Press this key to turn down temperature or adjust time.
5. FAN: Press this key to set low/middle/high fan speed.
6. SWING: Press this key to control swing function.
7. TEMPERATURE: Press this key to choose Celcius or Fahrenheit.
8. SLEEPING:
Only under cooling or heating function. Press this key to enable this function.
9. TIMER:
Press this key to set time. Within 5 hours, time interval is half hour; from 5 hours to
24 hours, time interval is 1 hour. Once set number will �ash 5 times as con�rmation.
10. MIGHTINESS: Under cooling mode, press this key to achieve maximum output.
11. KEYPAD LOCK:
Once set, press this key to lock all the button, as the screen will show image: Press
this key again to unlock(This function can prevent kid control the unite) .
12. RESET: Press this key to reset remote control, default setting is cooling mode and
high speed fan, auto swing.
