WALL AIR CONDITIONERS SPLIT TYPE  MIRAI W
User manual
Content
PRECAUTIONS ................................................................................................................................................ 3
Wymagania powierzchni użytkowej........................................................................................................................................... 4
Room area reguests for air conditioner with Refrigerants R32 ......................................................................................... 4
Safety rules and recommendations for the installer ............................................................................................................5
Safety rules and prohibitions ........................................................................................................................................................7
PART 1. AIR CONDITIONER CONSTRUCTION .............................................................................................. 8
Indoor unit............................................................................................................................................................................................8
Outdoor unit........................................................................................................................................................................................8
Indicators ..............................................................................................................................................................................................8
PART 2. OPERATING THE DEVICE ................................................................................................................. 9
Special features...................................................................................................................................................................................9
Operating range.................................................................................................................................................................................9
SMART Eye funciton........................................................................................................................................................................10
Manual operation of the device .................................................................................................................................................11
Adjusting the air ow direction..................................................................................................................................................12
The way the air conditioner works ............................................................................................................................................13
PART 3. SERVICE OPERATIONS ................................................................................................................... 14
Activities before starting the service ........................................................................................................................................14
Cleaning the device and lters ...................................................................................................................................................15
Filter replacement............................................................................................................................................................................15
Preparation for a long period of inactivity and pre-season checks...............................................................................16
Pre-season control...........................................................................................................................................................................16
PART 4. TROUBLESHOOTING...................................................................................................................... 17
Symptoms that do not indicate device failure......................................................................................................................17
Possible malfunctions ....................................................................................................................................................................19
PART 5. REMOTE CONTROL OPERATION ................................................................................................... 20
Technical Specications.................................................................................................................................................................20
Description of operation...............................................................................................................................................................20
Indicators on the display...............................................................................................................................................................22
PART 6. WIRED CONTROLLER SUPPORT....................................................................................................23
Technical Specications.................................................................................................................................................................23
A description of the action...........................................................................................................................................................23
Dimensions ........................................................................................................................................................................................25
Connection diagram.......................................................................................................................................................................25
installation..........................................................................................................................................................................................26

3User manual
Split wall air conditioner - MIRAI W
PRECAUTIONS
Read the following if you use the device in European countries:
The device can not be operated by children over 7 years old, disabled people and oraz people without
experience and knowledge. Instructions should include a description of the correct and safe handling of the
device and oraz information about possible dangers. Children should not play with the device. Cleaning and
servicing should be carried out by authorized persons.
UTILIZATION:
Do not dispose of this product together with unsorted municipal waste.
It’s necessary to transfer this type of waste for special processing.
It’s illegal to throw the device together with other household waste.
There are several ways to get rid of this type of equipment:w
A. The city organizes electronic waste collection, you can pass the device without the cost.
B. When you buy a new device the seller will accept the old device without any fees.
C. Manufacturer will take the product from buyer produkt without charging it with costs.
D. Products of this type, contains valuable elements, it can be sold sprzedane on purchase of metals.
Throwing the device ,,on wild”exposes you to the risk of losing your health. Dangerous substances from the
device can penetrate to groundwater screating a danger of getting through to people’s food chain.
WARNING
Only qualied personnel should install and service the equipment. The installation, starting up, and
servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specic
knowledge and training. Improperly installed, adjusted or altered equipment by an unqualied person
could result in death or serious injury. When working on the equipment, observe all precautions in the
literature and on the tags, stickers, and labels that are attached to the equipment.

4User manual
Split wall air conditioner - MIRAI W
SAFETY PRECAUTIONS
1. INTRODUCTION TO REFRIGERANTS R32
The refrigerants used for air conditioners are environmentally friendly hydrocarbons R32. The two kinds of
refrigerants are combustible and odorless. Moreover, they can bum and explode under certain condition. How-
ever, there will be no risk of buming and explosion if you comply with the following table to install your air
conditioner in a room with an appropriate area and use it correctly.
Compared with ordinary refrigerants, Refrigerants R32 is environmentally friendly and do not destroy the
ozone sphere and that their values of greenhouse eect are also very low.
2. ROOM AREA REGUESTS FOR AIR CONDITIONER WITH REFRIGERANTS R32
Refrigerants Capac i ty (Btu) Room Area
R32
9K Above 4 m2
12K Above 4 m2
18K Above 15 m2
22K/24K Above 25 m2
WARNINGS
• Please read the manual before installation, using, maintenance.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by
the manufacturer.
• Do not pierce or bum the appliance.
• The appliance shall be stored in a room without continuously operating sources (for example: open
ames, an operating ignition gas appliance or an operating electric heater.)
• Please contact the nearest after-sale service center when maintenance is necessary. At the time of
maintenance, the maintenance personnel must strictly comply with the Operation Manual provided by
the corresponding manufacturer and any non-professional is prohibited to maintain the air conditioner.
• It is necessary to comply with the provisions of gas-related national laws and regulations.
• It is necessary to clear away the refrigerant in the system when maintaining or scrapping an air
conditioner.
WARNING
Risk of re/ammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE
Read the user manual, installation manual and
service manual carefully before installing or
operating your new air conditioning unit.

5User manual
Split wall air conditioner - MIRAI W
SAFETY PRECAUTIONS
3. SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER
CAUTIONS
• Read this guide before installing and using the
appliance.
• Make sure that the base of the outdoor unit is
rmly xed.
• Carry out a test cycle after installing the air co-
nditioner and record the operating data.
• Check that the socket is suitable for the plug,
otherwise have the socket changed.
• The appliance must be installed in accordance
with applicable national regulations.
• Before accessing the terminals , all the power
circuits must be disconnected from the power
supply.
• During the installation of the indoor and
outdoor units the access to the working area
should be forbidden to children. Unforeseeable
accidents could happen.
• The user must protect the indoor unit with a
fuse of suitable capacity for the maximum in-
put current or with another overload protection
device.
• The ratings of the fuse installed in the built
incontrol unit are T 5A / 250V
• The air conditioner must be installed by
professional or qualied persons.
• Check that air cannot enter the refrigerant sys-
tem and check for refrigerant leaks when mo-
ving the air conditioner.
• Ensure that the mains voltage corresponds to
that stamped on the rating plate . Keep the sw-
itch or power plug clean. Insert the power plug
correctly and rmly into the socket, thereby
avoiding the risk of electric shock or re due to
insucient contact.
• If the appliance gives o smoke or there is a
smell of burning, immediately cut o the power
supply and contact the Service Centre.
• The appliance must be tted with means for
disconnection from the supply mains having
a contact separation in all poles that pro vide
full disconnection under overvoltage category
III conditions, and these means must be
incorporated in the xed wiring in accordance
with the wiring rules.
• Do not install the appliance at a distance of
less than 50 cm from inammable substances
(alcohol, etc.) Or from pressurised containers
(e.g. spray cans).
• If the appliance is used in areas without the
possibility of ventilation, precautions must be
taken to prevent any leaks of refrigerant gas
from remaining in the environment and creat-
ing a danger of re
• The packaging materials are recyclable and
should be disposed of in the separate waste
bins . Take the air conditioner at the end of its
useful life to a special waste collection centre
for disposal.
• Only use the air conditioner as instructed in this
booklet. These instructions are not intended to
cover every possible condition and situation.
As with any electrical household appliance,
common sense and caution are therefore
always recommended for installation, operation
and maintenance.
• Do not try to install the conditioner alone
always contact specialized technical personnel.
• The aps must be directed downwards in the
heating mode and upwards in the cooling
mode.
• Selecting the most suitable temperature can
prevent damage to the appliance.
• Do not pull out the plug to switch o the app-
liance when it is in operation, since this could
create a spark and cause a re, etc.

6User manual
Split wall air conditioner - MIRAI W
SAFETY PRECAUTIONS
CAUTIONS
• This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Unhook the automatic switch if you foresee not
to use the device for a long time. The airow
direction must be properly adjusted.
• Cleaning and maintenance must be carried out
by specialised technical personnel. In any case
disconnect the appliance from the mains elect-
ricity supply before carrying out any cleaning or
maintenance.
• This appliance has been made for air conditi-
oning domestic environments and must not be
used for any other purpose , such as for drying
clothes, cooling food, etc.
• Rave repairs carried out only by an authoris-
ed Service Centre of the manufacturer . Inco-
rrect repair could expose the user to the risk of
electric shock, etc.
• The user is responsible for having the appliance
installed by a qualied technician, who must
check that it is earthed in accordance with curr-
ent legislation and insert a thermomagnetic cir-
cuit breaker.
• The batteries in remote controller must be
recycled or disposed of properly. Disposal of
Scrap Batteries Please discard the batteries
as sorted municipal was te at the accessible
collection point.
• Always use the appliance with the air lter
mounted . The use of the conditioner without
air lter could cause an excessive accumulation
of dust or waste on the inner parts of the device
with possible subsequent failures.
• Never remain directly exposed to the ow of
cold air for a long time. The direct and prolo-
nged exposition to cold air could be dangerous
for your health .Particular care should be taken
in the rooms where there are children , old or
sick people.

7User manual
Split wall air conditioner - MIRAI W
SAFETY PRECAUTIONS
CAUTION: Risk of re/ammable material
CAUTIONS
• In no way alter the characteristics of the appli-
ance.
• Do not leave windows or doors open for long
when tje air conditioner is operating.
• Do not climb onto or place any objects on the
outdoor unit.
• Do not bend , tug or compress the power cord
since this could damage it. Electrical shocks or
re are probably due to a damaged power cord.
Specialised technical personnel only must repl-
ace a damaged power cord.
• Do not touch the appliance when barefoot or
parts of the body are wet or damp.
• Do not climb onto or place any heavy or hot
objects on top of the appliance.
• Do not obstruct the air inlet or outlet of the
in door or the outdoor unit. The obstruction
of these openings causes a reduction in the
operative eciency of the conditioner with
possible consequent failures or damages.
• Do not install the appliance in environments
where the air could contain gas , oil or sulphur
or near sources of heat.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• A long direct exposition to the ow of cold air of
the conditioner could have negative eects on
plants and animals.
• Do not put the conditioner in contact with
water. The electrical insulation could be
damaged and thus causing electrocution.
• Do not direct the airow onto plants or animals.
• Never insert a stick or similar object into the
appliance. It could cause injury.

8User manual
Split wall air conditioner - MIRAI W
PART 1. AIR CONDITIONER CONSTRUCTION
1. AIR CONDITIONER COMPONENTS
REMEMBER
All the drawings in this manual are of illustrative nature.
The actual front panel and display of the indoor unit you have
purchased may dier from what you see in the picture. The
general outline of the device shape is as shown in the gure.
Indicators
Temperature indicator
Displays the temperature value set while the air
conditioner is operating.
In the event of a failure, it displays the appropriate
error code.
ECO indicator
Displays that the ECO function is turned on (some
models)
Wireless operation indicator
Displays information about the possibility of using
the wireless function (some models)
Usage indicator
Displays energy consumption information in active
mode (some models)
10
Panel display
12
3
4
5
7
6
8
9

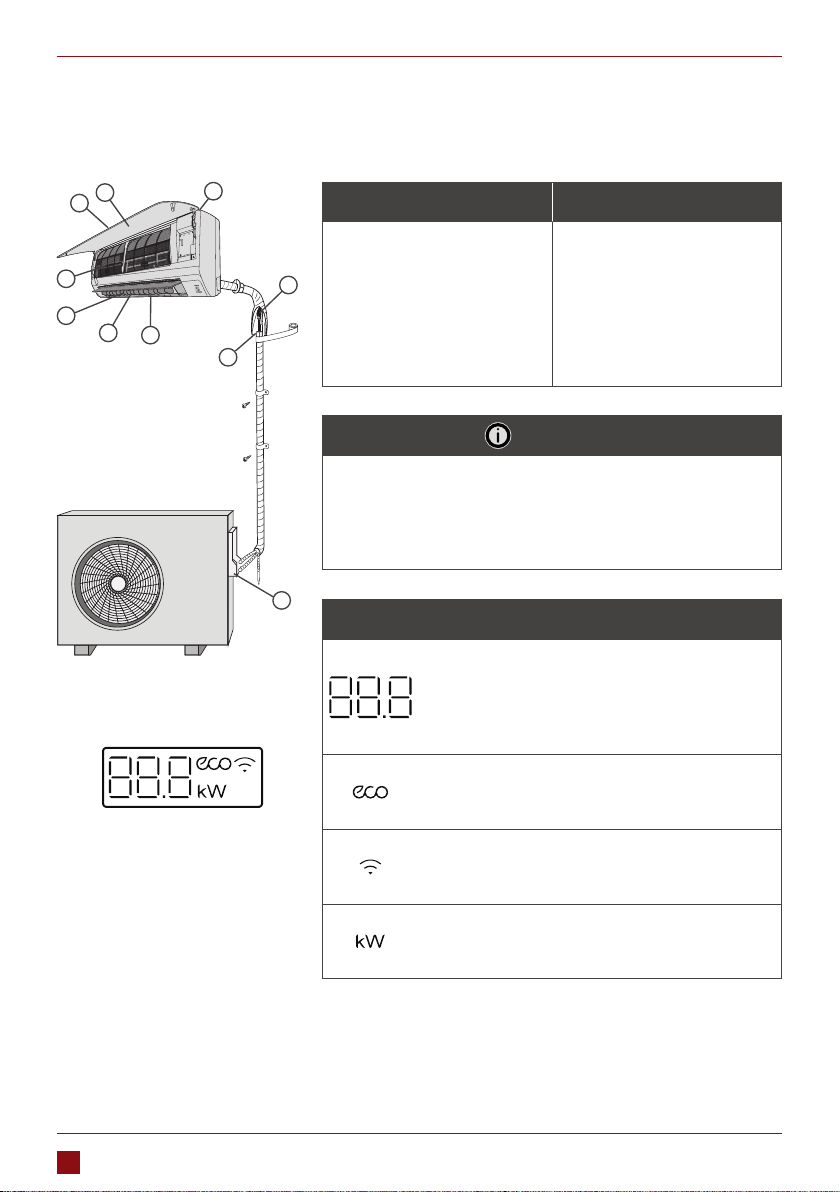

Indoor unit Outdoor unit
1. Front panel
2. An air inlet
3. Air lter
4. Air outlet
5. Horizontal air ow grille
6. Vertical blinds (inside)
7. Display
8. Connection pipe
9. Line
10. Shut-o valve

9User manual
Split wall air conditioner - MIRAI W
PART 2. OPERATING THE DEVICE
1. SPECIAL FEATURES
Refrigerant leak detection function
With this new function, the detection of refrigerant leakage by the outdoor unit will be alerted by the
appearance of the„EC” symbol on the display screen and the LEDs ashing.
Louver position memory function (optional)
This function allows you to remember the opening angle of the blind within the safe range. If the louver
position is outside this range, the device will remember the safety angle limit value.
When the manual control button is pressed or the power cord plug is pulled out and reinserted into the mains
socket, the blinds will revert to the standard setting.
We recommend not to set a low opening angle of the louvers as this may cause condensation and water
dripping from the surface of the air conditioner.
Self cleaning function (optional)
• When the heating unit is turned o, the unit will automatically clean the evaporator and keep it clean until
the next operation.
• Diagram of how the device works during self-cleaning: Fan mode (FAN), fan speed - low (LOW) - heating
mode (HEAT), fan speed - low (cooling & heating units only) - fan mode - stop - o (OFF).
REMEMBER:
• The self-cleaning function can only be activated when the appliance is in cooling (AUTO COOL or FORCED
COOL) and DRY mode.
• It is recommended to run the unit in cooling mode for at least half an hour before activating the function.
Running the self-cleaning function will cancel the timer settings.
• If you press the SELF CLEAN button while cleaning the appliance, the unit will turn o.
Mold prevention function (optional)
• After turning o the unit working in COOL, DRY or AUTO (COOL) mode, the air conditioner will continue
working for 7-10 minutes (depending on the model) at low fan speed. The unit working in HEAT mode
after turning o will work for 30 seconds with low fan speed. Such behavior of the device will allow its
interior to dry out of the condensate formed and prevent the growth of mold.
• Do not restart the unit while the anti-mold function is active and the air conditioner is not turned o
completely.
2. OPERATING RANGE
Cooling mode Heating mode Drying mode
Temperature in room 16°C~32°C 0°C~30°C 10°C~32°C
Temperature outside -15°C~50°C -30°C~30°C 0°C~50°C
Mode
Temperature

10 User manual
Split wall air conditioner - MIRAI W
PART 2. OPERATING THE DEVICE
REMEMBER
1. The device will achieve the highest eciency in the above temperature ranges. If the air conditioner
operates at temperatures outside the above mentioned range, some safety functions may be
activated, causing the device to operate unnaturally.
2. If the air conditioner is used for a long time in an environment with high humidity (exceeding 80%),
water droplets may drip. In this situation, it is recommended to set the maximum opening angle of the
vertical blinds (vertically to the oor) and start the fan at high speed (HIGH).

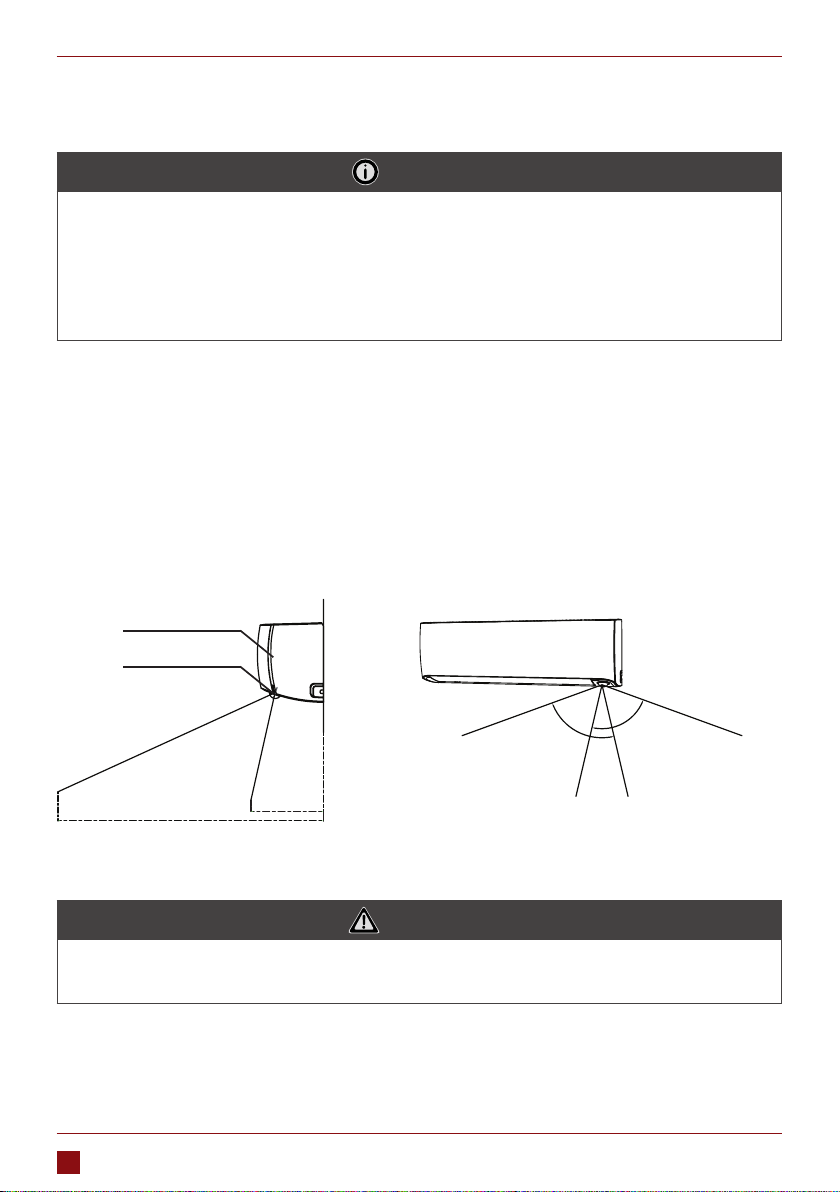

3. SMART EYE FUNCITON
Wall
Air conditioner
Smart Eye
8m 1m
Monitored area
Left (75°±10° ) Right (75°±10° )
Middle
(30°±10° )
When the unit is turned on, press the smart eye button on the wireless controller to select the airow method
that follows the person or the airow method avoids the person in the room.
The intelligent eye can detect the activity of the person in the room and adjust the horizontal angle of the air
ow to implement air ow that follows the person or air ow avoiding the person in the room.
ATTENTION
The smart eye function is available to one person in the monitored area. If the SWING button on the
wireless controller is pressed, this function will be automatically stopped.
