Plus CaptureBoard C-12S User manual
Captureboard
C-12S/C-12W
SERVICE MANUAL
CONTENTS
1. COMPLIANCE OF SAFE REPAIR ............................... 1
1-1. Cautions during Product Movement ..........................1
1-2. Cautions during disassembling and assembling........1
2. SPECIFICATIONS ........................................................ 2
2-1.Product Specifications ................................................ 2
3. EQUIPMENT CONNECTIONS ..................................... 3
4. LOCATION OF PARTS AND SPECIFICATIONS ......... 4
4-1. Location of Parts and Controls ..................................4
4-2. Operation Panel of Main Unit.....................................6
4-3. Error Display .............................................................. 7
5. SETTING THE TIME..................................................... 9
6. FUNCTION SETTING ................................................... 11
6-1. Basic Setting Operations ........................................... 11
6-2. Table of Function Numbers, Selected
Modes and Lamp Statuses ........................................ 12
6-3. Factory Defaults......................................................... 13
6-4.Updating the Internal Program of a Main Set ............. 13
7. INSTALLATION OF THE SOFTWARE......................... 15
7-1. Check Prior to Installation .......................................... 15
7-2. Installation of the Captureboard Soft ......................... 15
7-3. Uninstallation of the Captureboard Soft ..................... 17
8. TEST AND ADJUSTMENT FUNCTIONS ..................... 18
9.
NAMES AND FUNCTIONS OF THE MENU AND
THE SUPERIMPOSED IMAGE DISPLAY SCREEN
......... 19
9-1. Menu .......................................................................... 19
9-2. Superimposed Image Display Screen ....................... 21
9-3. Superimposing Captured Images .............................. 22
9-4. Fine Adjustment of the Captured Image ....................26
9-5. Settings ...................................................................... 27
9-6. Hardware Setup ......................................................... 28
10. TROUBLE SHOOTING............................................... 31
11. DISASSEMBLY AND ASSEMBLY.............................. 32
11-1.Tools Required .......................................................... 32
11-2.Caution...................................................................... 32
11-3.Disassembly andAssembly Procedures ................... 32
11-4.Disassembly and Assembly ...................................... 33
12. CONNECTION TO THE SET...................................... 38
12-1. Connecting the main unit and printer ....................... 38
12-2. Mounting the AC adapter box to the printer table .... 39
12-3. Wiring the cables in the cable cover ........................ 40
13. ADJUSTMENT............................................................ 42
13-1. CCD Adjustment ...................................................... 42
13-2. Calibration Procedure .............................................. 47
13-3. Tension Adjustment of Timing Belt........................... 49
14. CABLE AND CABLE connection ............................ 50
15. PARTS LIST .............................................................. 51
1. Overall configuration ..................................................... 51
2. Frame Cover Section .................................................... 53
3. Sheet Frame Section .................................................... 55
4. Board Frame Section .................................................... 57
5. Accessories Section ...................................................... 58
6. Carton & Packing .......................................................... 60
7. M-11-T........................................................................... 62
8. Screws & Washers........................................................ 64
16. REVISION HISTORY .................................................. 65
1
1. COMPLIANCE OF SAFE REPAIR
Be sure to read this Service Manual before providing services. In the PLUS captureboard, full consideration is
taken to ensure the safety for a fire, electric shock, injury, harmful radiation, and sub2stance. Therefore, observe
the notice described in this Service Manual so that the safety is kept when providing services. Moreover, be sure
to observe the notice described in the Instruction Manual.
Pay attention to the following during service inspection.
1-1. Cautions during Product Movement
• It is necessary to remove the products when making the service of products put on the wall. At that time, hold
the products by two or more persons to prevent the products from dropping or a person from falling down.
1-2. Cautions during Disassembling and Assembling
1. This equipment contains parts under high voltage. When doing repairs, make sure that power plug is pulled
out to insure safety.
2. Make sure that parts, screws and wiring, etc. are returned to their original positions. Tube, tape and other
insulation materials have been used for safety reasons. The internal wiring has been designed to avoid
direct contact with hot parts or parts under high voltage when using clamps or other tools.
3. The parts used in this device have special safety features such as flame-resistance and anti-voltage proper-
ties. When replacing parts, always use parts supplied from the factory.
4.After finishing operations make sure that all parts and wires have been returned to their original position and
that there has been no deterioration of the area around the location that was worked on.
2
2. SPECIFICATIONS
2-1. Product Specifications
BOARD TYPE (Model name)
Form Installation method
External dimensions
(T-shaped legs*1)
Main unit weight
T-shaped legs weight
Board Panel Size
Effective reading size
Number of Pages
Paging
Drive method
Reading method
Reading illumination
Light source
Reading resolution
Reading time
Memory Type
Compatible FAT types
File format
Interface
Control panel Control buttons
LED Indicators
Display
Added functions
Clock
PC connection
Power supply AC power adapter
Operating Temperature
conditions Humidity
Recording Printer interface
section
Miscellaneous Ruled lines
Miscellaneous
Standard (C-12S) Wide (C-12W)
Self-standing (T-shaped legs), or wall mounting
W1470 ✕D700 ✕H1970 (Max) mm W1970 ✕D700 ✕H1970 (Max) mm
31 kg (excluding printer) 35 kg (excluding printer)
9.6 kg
H920 ✕W1300 mm H920 ✕W1800 mm
H900 ✕W1280 mm H900 ✕W1780 mm
2
Endless in one direction (Horizontal scrolling)
Sheet movement
CCD sensor reduction optical system
RGB LED
Main scanning direction (vertical sheet surface) 2.4 dots/mm (60 dpi or equivalent)
Sub scanning direction (horizontal sheet surface) 2.4 dots/mm (60 dpi or equivalent)
Black & white: approx. 15 s Black & white: approx. 20 s
Color: approx. 23 s Color: approx. 31 s
USB Flash memory*2
FAT 12, 16, 32
PNG, JPEG and PDF format
USB1.1 or USB2.0 full-speed mode*3
ON/Standby, + , -, Print, Save, Reprint, Color, Density, Feed/Stop
Density, Color
7-Segment (Status of PC connection, Error # ),
Used for the timestamp and for file dating properties
(Includes backup battery for when there is a loss of power)
Transfer of sheet surface image data via USB (TWAIN supported)
Input : AC100 - 240V/50 - 60 Hz, Max 1.5A
Output : DC24 V, 2.71 A
10 - 35°C
30 - 85% (No condensation)
USB1.1 or USB2.0 full-speed mode*3compliant printers are supported
None
Special markers (black, red, blue,and green)
Remarks
*1: The height is adjustable at 1770, 1870 and 1970 mm.
*2: A USB memory is not included in the package.
*3: Does not correspond with, High-speed mode.
•
Please note that for quality improvement purposes, specifications and design subject to change without prior notice.
•This machine contains eParts of the eSOL, Co.,Ltd.
•Depending on the product, the printer and T-shaped legs (stand) will be available separately.
3
3. CONNECTION TO THE COMPUTER
Note:
* Do not connect this machine to the personal computer before installing the software.
* Do not connect more than one Captureboard to one personal computer.
DC-24V
PRINTER PC
To the RGB input
connector of the
projector
Captureboard
USB cable supplied with the unit
Projector
Personal Computer
USB
Monitor Output
RGB Input
To the PC dedicated
USB port (Type B)
To the personal computer
USB port (Type A)
To the RGB output (Display)
connector of the personal
computer
4
4. NAMES OF THE PARTS AND SPECIFICATIONS
4-1. Names of the Parts
Front panel of main unit
Frame cover
Main unit
Sheet
Use the dedicated markers to
draw or write on the sheet.
Or,
project the image of the personal
computer with the projector.
Control panel
Pen tray
Stand*
1
This stand supports the captureboard.
Effective aea
The area that can be copied is
the gray area of the diagram.
Note:
•
It might not be possible to print
or memory to USB/
personal
computer any portions that
are written outside effective
area.
Effective area
approx. 10 mm
approx. 10 mm
approx. 10 mm
approx. 10 mm
Printer table
The printer* is placed here.
AC adapter box
Store the AC power adapters of the
captureboard and printer here.
5
NAME OF THE PARTS AND SPECIFICATIONS

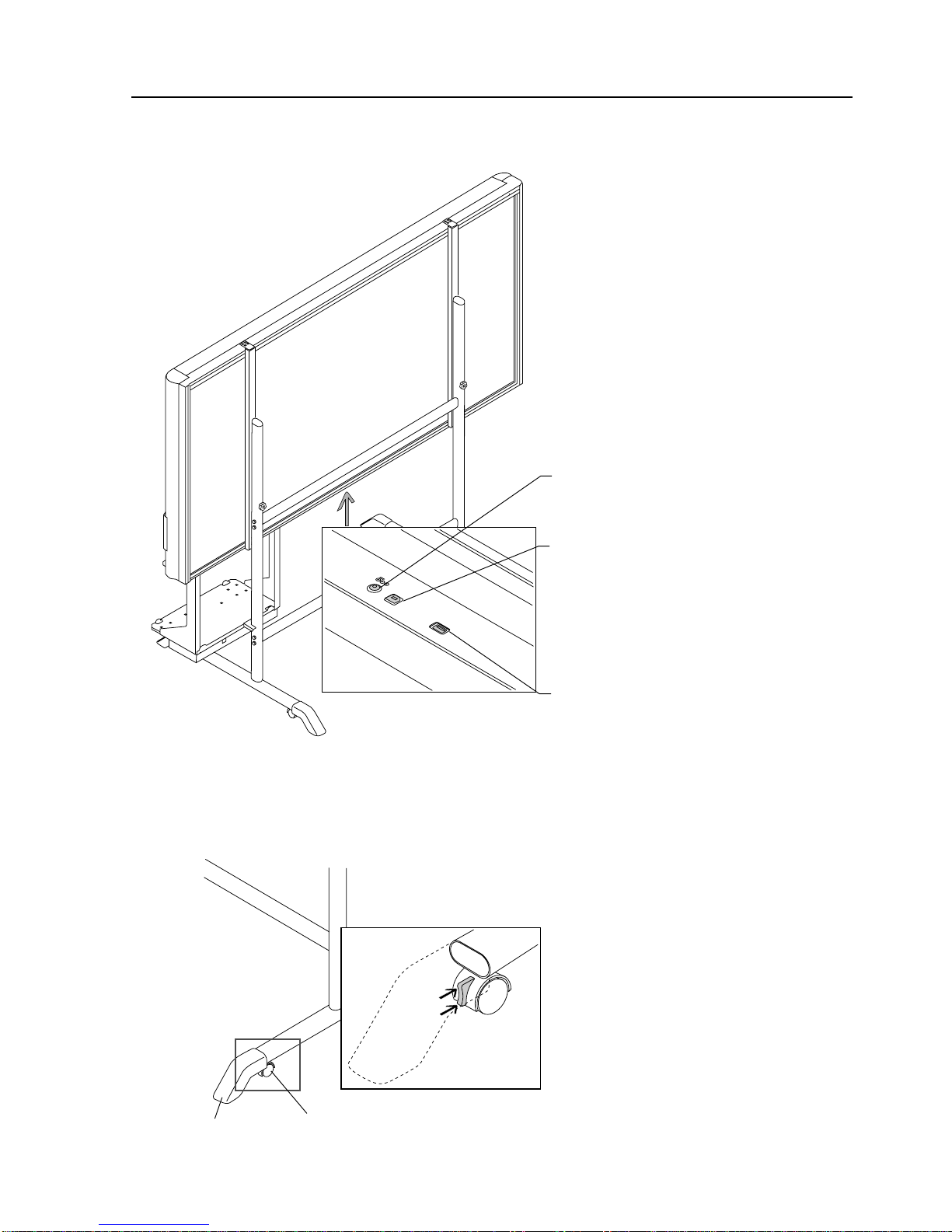

Back panel of main unit
PRINTER
PC
DC-24V
DC input connector
Connect this with the DC plug end of the AC
power adapter.(Only connect the supplied AC
power adapter; nothing else.)
Personal computer (PC) dedicated
USB port (Type B)
Connect this with the USB port (type A) of the
PC.
Special software can be used to transfer image
data directly to the computer and set the
copyboard's operating environment. To use
t
hese functions, first install the drivers and
s
oftware on the included CD-ROM onto the
computer.
Printer connector (USB port Type A)
Connect this with the USB connector of the printer .
(The printer connector is dedicated for use with
a printer; use it only with a printer.)
The connector is located on the bottom
surface of the main unit. The diagram
view is seen from the bottom.
Locking and unlocking the casters of the stand
Lock the casters with the stopper after setup. To move the unit,
remove the stabilizers and release the caster stopper.
Press the bottom of the stopper to lock. Press the top to unlock.
Lock
Caster
Stabilizer
Unlock
6
NAME OF THE PARTS AND SPECIFICATIONS

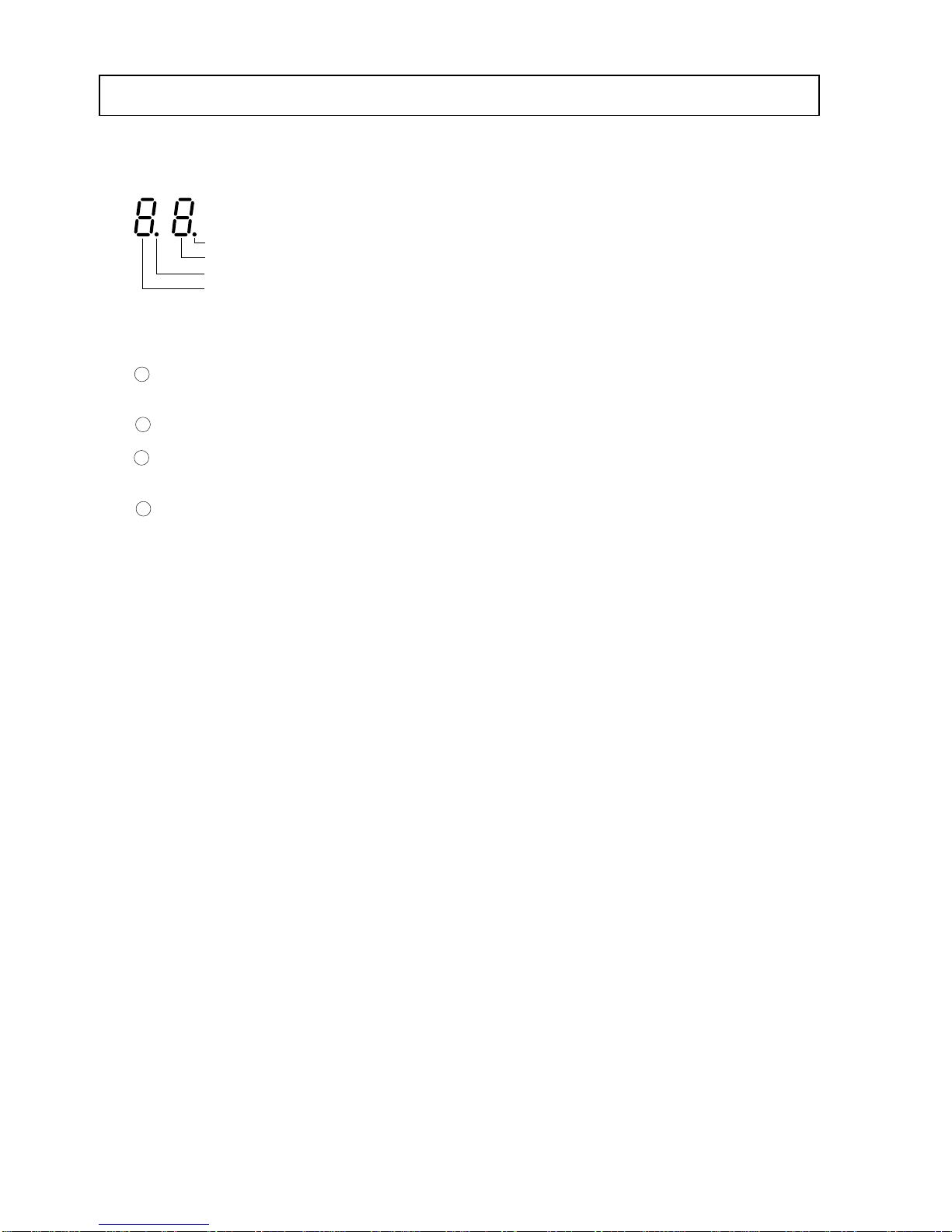

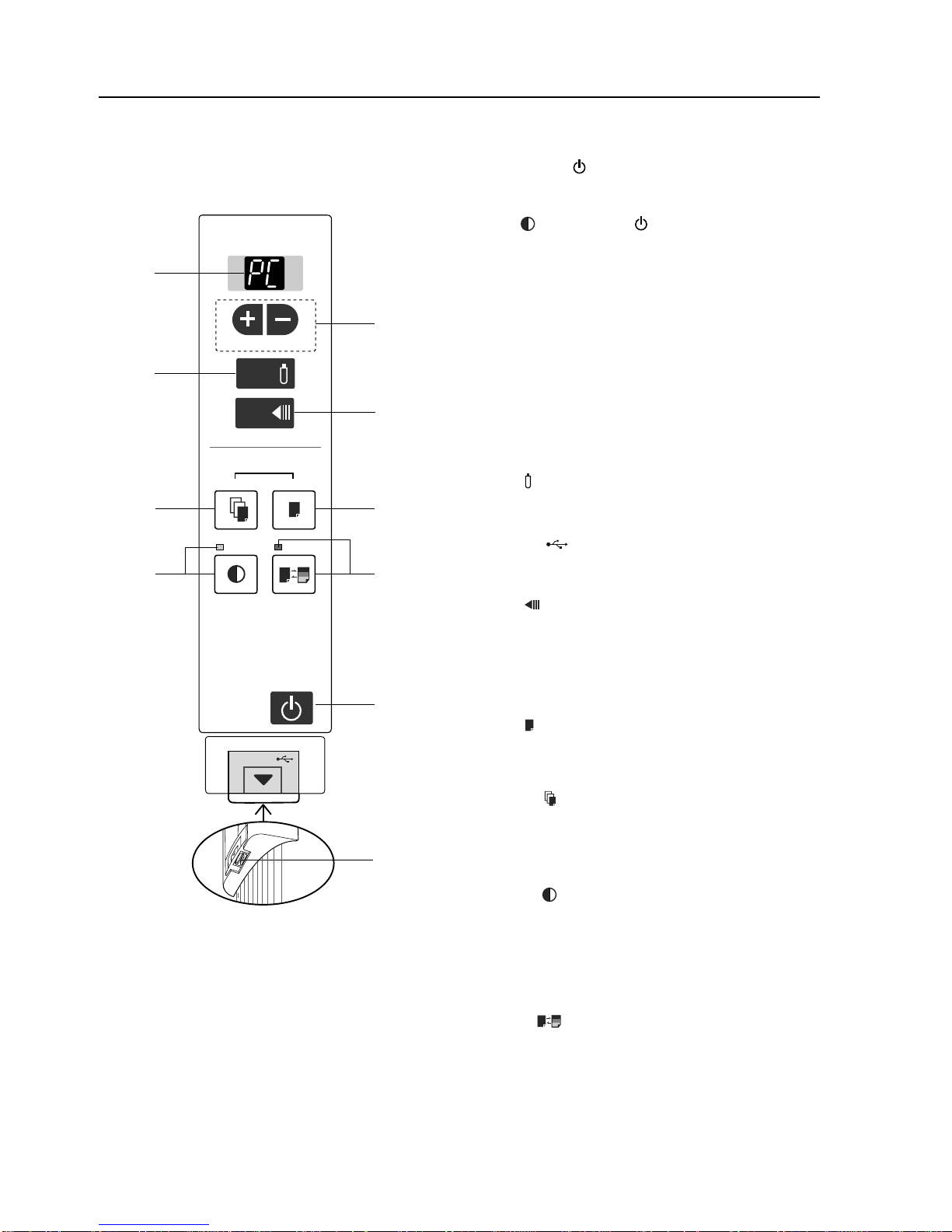

4-2. Operation Panel of Main Unit
6
5
7
4
10
1
9
8
3
2
C-12
Time Setting
Reprint
Density
2 Display window
Displays the connection status between the Capture-
board and the computer, the operational status of USB
memory storage, and error information on a 7-segment
LED.
“PC” is displayed when the Captureboard is connected
with a personal computer. Note that “OP”is displayed
when the Captureboard is not connected with a personal
computer.
When pressing a button, please press the center area
(i.e., the round and protruding portion). The button may
not work if it is pressed on a corner.
Feed
Save
Color
ON/
Standby
MEMORY
Printer Print
3 Save button (USB memory storage)
Moves a one-screen portion of sheet and reads it, then
stores the data on a USB memory.
4 Memory port (USB portType A)
Saves in commercially-available USB memory images
that have been read by the Captureboard.
1 ON/Standby button
Turns the captureyboard’s power on and off (standby
mode).
The function settings can be made by pressing the
Density and ON/Standby buttons simultaneously.
Note:
If the Erase Reminder function has been set, the sheet
moves to the surface that has not yet been erased before
the power turns off *1.
*1 Depending on the usage method, the Erase
Reminder function may not operate properly.
5 Feed button
Scrolls the sheet one screen portion left, then stops
automatically.
6+ / - buttons (Time Setting)
Press the + button or the - button and perform the setting
of the date/time.
7 Print button
Moves the sheet one screen portion and reads it, and
prints the image.
* Used only when there is a printer connection.
8 Reprint button
Prints the previously printed sheet surface one more
time.(The sheet does not move.)
The density and the color/monochrome selection cannot
be changed.
* Used only when there is a printer connection.
9 Density button
Selects the copying density, either “standard” or “dark”.
This function will be effective at time of printing, USB
memory storage, and personal computer storage.
Density mode lamp
When "dark" is selected, the density mode display ind-
icator will light green.This is enabled during USB mem-
ory storage, personal computer storage, or printing.
10 Color button
Selects whether to print (or store in memory) in “color” or
“black & white”.
Color mode lamp
The color mode indicator lights green when “color” is
selected.
*
In accordance with the printer function when a printer
is connected.
7
NAME OF THE PARTS AND SPECIFICATIONS
4-3. Error Display
If any of the following flashing indications appear in the display window
of the control panel, please check the matters described below.
Error display number
Printer not connected
No printing paper
Printer problem
USB Memory
not recognized
USB Memory storage
problem
Reading problem
System error
Page detection error
Security protection
Restrict color mode
USB memory not
connected
When the “USB” letter is flowing...
Warning that disconnection of
USB memory
has been forgotten
USB Memory is full
An unsupported
printer is connected
No Calibration data
Time setting error
Problem and Solution
•Is the printer cable connected?
• Is power being supplied to the printer?
•
When the printer uses an AC power adapter,
is the cable disconnected somewhere?
•Has paper been set in the printer?
•
Is the printer error indicator flashing (or lit)?
•Is the USB memory unformatted.
•Is a USB memory that is not supported
by the captureboard being used?
•
Is the USB memory device plugged in fully?
•Is the USB memory damaged?
• An error occurred during USB memory
storage.
•There is a lighting fault of the reading
light source, or a read signal error.
•There is a memory or internal fault.
•The pages are not being properly
detected.
•You have attempted to use a function
disabled by the security settings.
•Setting for disabling printing/storing in
the color mode.
•USB memory device is not plugged into
the main unit.
• Did you press the ON/Standby button
while the USB memory device was
plugged into the main unit?
• There is no available space.
• A printer that is not supported by the
captureboard has been connected.
•This is the state in which calibration data
is not written.
• An error has arisen when setting the time.
•Connect the printer properly and
switch on the printer power.
•Turn the power of the printer off and
then on again, and load the printer
with A4 paper.
•Read the printer instruction manual.
•This unit supports the FAT and FAT 32
formats. Perform the formatting with
the personal computer.
• Please see our home page for infor-
mation about USB memories that can
be used with the captureboard.
( http://www.plus-vision.com )
• Please check the operation with a
personal computer.
• Please perform USB memory storage
again.
• Do not insert or remove the USB
memory during processing.
• Unplug the power plug from the
power outlet and then plug it in again.
• Unplug the power plug from the
power outlet and then plug it in again.
• Unplug the power plug from the
power outlet and then plug it in again.
•The settings can be changed using
the exclusive software. For details,
contact your nearby PLUS Vision
sales office, dealer or store.
•Can be changed in the captureboard’s
“Function Settings”.
• Plug the USB memory device into the
USB port.
•AUSB memory device is plugged into
the main unit. When the USB memory
device is disconnected, the power will
be switched off and the unit will enter
the standby mode.
• Please delete unnecessary data using
a personal computer.
• Press the ON/Standby button and
switch off the power. When a record is
required, switch on the power and
save to USB memory.
•Perform calibration.
• When the ON/Standby button is
pressed, the display switches to “c1”.
Start the setting over from the year.
C-12
Time Setting
8
NAME OF THE PARTS AND SPECIFICATIONS
Printing in the same ratio as the sheet surface (Model C-12W)
Model C-12W is the wide type Captureboard which will compress printing in the horizontal direction resulting in crowded
printing of the A4 or LETTER size sheet; for example, a circle will become an ellipse. To print in the same aspect ratio as
a drawn diagram, the compression mode will be changed (to suit the paper size according to the sheet surface image).
The factory default setting is the horizontal compression mode.
Check that the power is turned on (that the display window is lit).
1. While pressing in the Density button, press the ON/
Standby button to switch to the function settings
mode.
"F1" appears on the display window.
2. Press the + or – button (the display switches each time
one of the buttons is pressed) to display "F4", then
press the Seve button to finalize.
When "F4" is displayed, the captureboard is in the printing
ratio setting mode.
3.
Press the Feed button to select the equal ratio mode.
Check that the lamps are lit or off as indicated at " Lamps when the
captureboard is set to print in equal ratio" above, then press the Save
button to finalize. The dot next to the "F4" dot flashes for several seconds.
•To restore the captureboard to print with the image condensed in the horizontal
direction, switch the mode so that the lamps are as indicated at "Lamps when
the captureboard is set to condense the image in the horizontal direction", then
press the Save button.
This completes the setting. Press the ON/Standby button to return to the
normal mode.
Lamps when the captureboard is set to con-
dense the image in the horizontal direction:
Color mode lamp: Off
Density mode lamp: Lit
Lamps when the captureboard is set to print
in equal ratio:
Color mode lamp: Lit
Density mode lamp: Off
Time Setting
Density ON/
Standby
ON/
Standby
Forward Reverse
Dot flashes for several
seconds
Density
Density
Color
Color
Feed
Save
Save
9
5. SETTING THE TIME
(First 2 digits) (Last 2 digits)
Year Month Day Hour Minute
1 Press the ON/Standby button to switch on the power.
The LED of the display window will light and the power will be
switched on.
2 Press the + or – button and change to “Time Setting”
The LED of the display window will light and display " ".
Overview of the Operation
1 Switch to "Time setting"
Press the + or - button.
2 Display the day and hour setting mode
Setting mode information indicated in the display window
3 Set the date and time of the setting mode
One press of the + or the - button will enable the settings to be mode.
Press the + or - button and make the adjustment.
4 Press the Print button to confirm
There is a change to the next setting mode.
Repeat steps 4 and 5 to set the current time.
5 Completion
To quit the time setting mode, press the Print button.
* Pressing the ON/Standby button during operations 2 to 4 will cancel the
incomplete settings and return to the time prior to starting the settings.
Preparation: Connect the copyboard's AC power plug to a wall power outlet.
Example: Set the time to 2:16 pm, November 8, 2008 (2008.11.08 14:16).
Set the copyboard's clock properly. The date and time are printed in the header/footer when printing and recorded in the
file data when saving the file.
C-12
Time Setting
Time Setting
Reprint
Density
Feed
Save
Color
ON/
Standby
ON/
Standby
MEMORY
Printer Print
10
SETTING THE TIME

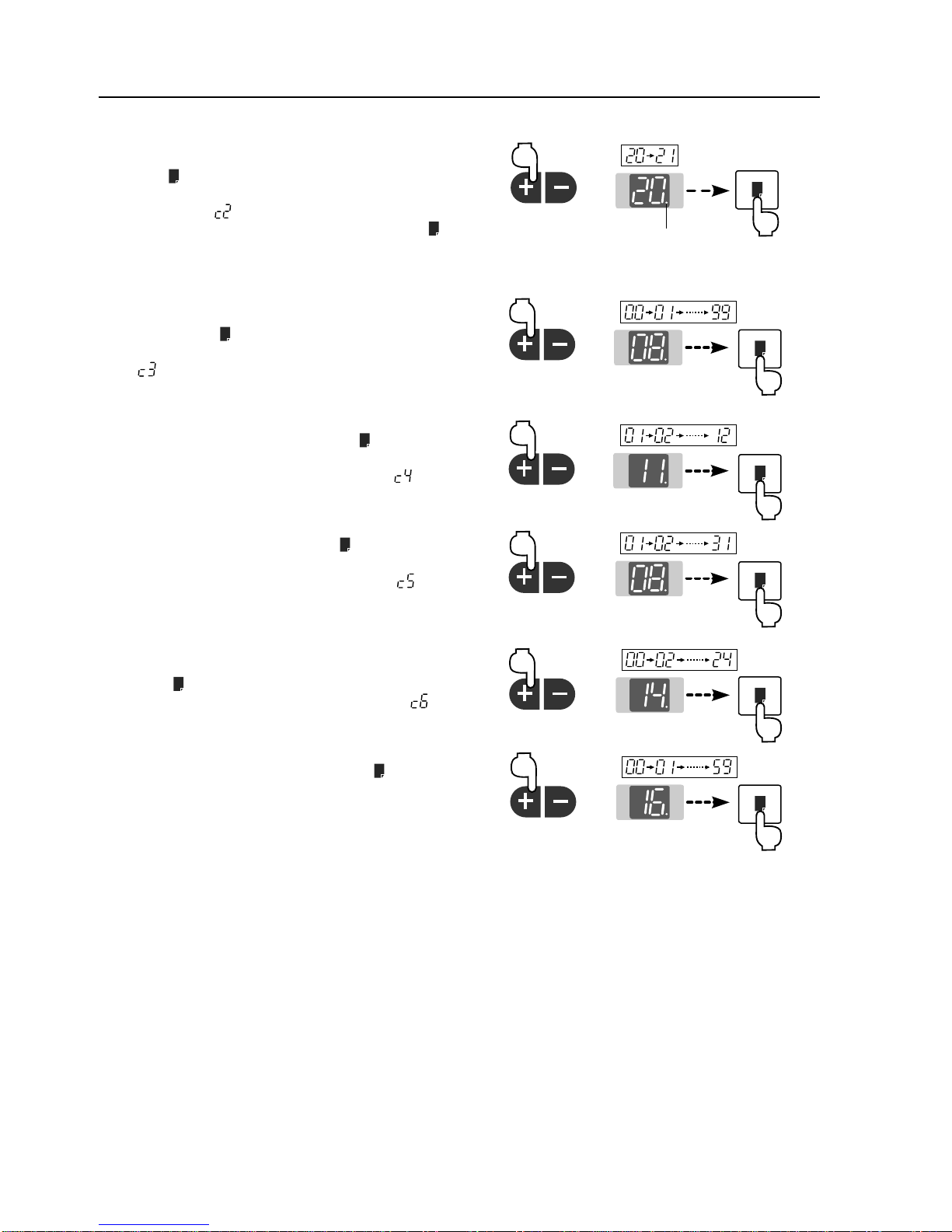

3 Press the + button or the - button, select 20
(the first 2 digits of the year), and press the
Print button to finalize.
There will be a change to the “last 2 digits of the year”
setting mode ( display).
• The factory default setting is 20. Pressing the Print
button in this condition will result in a change to the
“last 2 digits of the year” setting mode.
4 Press the + button or the - button, select 08
(the last 2 digits of the year), and press the
Print button to finalize.
There will be a change to the “month” setting mode
( display).
5 Press the + button or the - button, select 11
(the month), and press the Print button to
finalize.
There will be a change to the “day” setting mode
( display).
6 Press the + button or the - button, select 08
(the day), and press the Print button to
finalize.
There will be a change to the “hour” setting mode
( display).
7 Press the + button or the - button, select 14
(the hour of the 24-hour display), and press the
Print button to finalize.
There will be a change to the “minute” setting mode
(
display).
8 Press the + button or the - button, select 16
(the minutes), and press the Print button to
finalize.
The display will change to being lit steadily.
This completes the time setting.
The dot will flash while
making settings.
Time Setting
Time Setting
Time Setting
Time Setting
Time Setting
Time Setting
Print
Print
Print
Print
Print
Print
11
6. FUNCTION SETTING
1 Switching to the function settings mode
Press and hold in the Density button, then press the ON/Standby
button.
"F1" appears on the display window.
2 Selecting the function number
Press the + or - button to display the desired function number
(the number changes each time one of the buttons is pressed),
then press the Save button to finalize.
See the "Table of Function Numbers, Selected Modes and Lamp Statuses"
on the following page.
3 Selecting the function's setting
Press the Feed button to select the function's setting,
then press the Save button to finalize.
When finalized, the dot next to the function number ("F3." for example)
flashes for several seconds.
• When the Feed button is pressed, the selected mode is indicated by
whether the Density mode and Color mode lamps are on or off. For details,
see the "Table of Function Numbers, Selected Modes and Lamp Statuses".
• Function number "F1" is not used.Nothing will happen when the
Feed button is pressed.
4 Quitting the function settings mode
Press the ON/Standby button to return to the normal mode.
The display window returns to the normal mode ("OP" or "PC").
The captureboard includes such advanced functions as the Erase Reminder function that can be set directly using the
operation buttons on the captureboard. The advanced functions can also be set from the function settings in the "TOOLBOX"
menu installed in a computer (See the separate "Software Operation Manual".)
6-1. Basic Setting Operations
• Check that the power is turned on (that the display window is lit).
•
When in the Function Settings mode, the captureboard returns to the normal
mode if no button is operated for 10 seconds.
Ex.: Lamp statuses when selecting the Erase Reminder function's mode
When "Enable" is selected:
Color: Unlit
Density: Lit
When "Disable" is selected:
Color: Lit
Density: Unlit
Dot flashes for several
seconds
Forward / Reverse
Density
Color
ON/
Standby
ON/
Standby
Density
Color
Density
Save
Save
Feed
12
FUNCTION SETTING
6-2. Table of Function Numbers, Selected Modes and Lamp Status
When at step 2 under “Basic Setting Operations” on the previous page, display the number of the function you
want to set on the display window.
At step 3, check whether the lamps are lit or off as indicated for the desired mode.
Function number
（Display window）
Color mode
lamp
Density
mode lamp
Function name Description of function Selected
mode
Time setting See page 9
Setting of the date and time for the time
stamp
Header/footer Setting of the time stamp written
when saving:By factory default
Header/footer data output:: Original
editing *1
Erase reminder
Sheet rear surface erase reminder
function
Printing ratio Setting of images aspect ratio when
printing (Model M-12W)
Data rate Setting of rate for images stored in the
memory and images transferred to the
computer (Model M-12W)
Paper size Setting of printing paper size
Resolution Setting of resolution for images stored in
the memory and images transferred to
the computer
Image format Setting of format of images stored on
the USB memory device
Restrict color
mode
Setting for disabling printing/storing in the
color mode
Test print Print copyboard's pre-stored test pattern
Factory reset Reset all the settings to their factory
defaults
Disable
Density
Unlit Color
Lit
Enable
Density
Lit Color
Unlit
Disable
Density
Unlit Color
Lit
Enable
Density
Lit Color
Unlit
Compressed
horizontally Density
Unlit Color
Lit
Equal ratio
Letter
Disable
High
JPEG
PNG
PDF
Density
Lit Color
Unlit
Density
Unlit Color
Lit
Equal ratio
Density
Lit Color
Unlit
Density
Unlit Color
Lit
Density
Lit Color
Unlit
Density
Unlit Color
Lit
Density
Unlit Color
Lit
Density
Unlit Color
Lit
Color
Lit
Density
Lit Color
Unlit
Density
Lit Color
Unlit
Density
Lit
Density
Lit
Color
Unlit
★
★
Standard ★
★
Enable★
★
A4 ★
Compressed
horizontally
★
★: Factory defaults.
*1) For instructions on editing the header/footer, see the "Software Operation Manual ".
13
FUNCTION SETTING
6-3. Factory Defaults
The "Settings" menu of the "PLUS TOOLBOX" software in the included CD-ROM can be used to change the
copyboard's settings.
For setting instructions, see the separate "Software Operating Instructions". Below are the setting items and
factory defaults.
*The date/time stamp can be displayed at the user's discretion as part of the header/footer data.
Upon shipment from the factory, only the time stamp is displayed.
Setting item Description Factory default
Color Scanning color mode Color/Black & White Black & White
Density Scanning density Standard/Dark Standard
Date/time setting Set of the date and time for the time stamp
Japan Standard Time
File Format
Sets the format of the images stored on the USB memory device.
PNG
JPEG/PNG/DF
Paper Size A4/Letter A4
Aspect Ratio Sets the aspect ratio for printed images. Match Paper Size
Original Image/Match Paper Size
Erase Reminder Sheet rear surface erase reminder function: Disable/Enable Disable
Restrict color mode Setting for disabling printing/storing in the color mode Disable
Selection of resolution for images stored in the memory and
Resolution images transferred to the computer : Standard Standard
Standard : 1/2 the vertical/horizontal size of the scanned image
High : 1/1 the vertical/horizontal size of the scanned image
Header/footer (date/ Upon shipment from factory :
time stamp) Writing of date/time when printing/storing : Enabled/Disabled Enabled
Original editing : Header/footer data output *
[Program updating during use of PC]
Equipment required (including software)
• Program file for C-12
• PC main set (USB terminal 1.1 or more: Software C-12 series PLUS TOOLBOX has been installed.)
• USB cable
1. Save a program file (example: c12_01_00) for C-12 in PC.
2. Display the main menu of software “PLUS TOOLBOX” in PC.
3. Pull out the power plug when the power plug of the main set is connected to the wall outlet.
4. Connect the power plug of the main set to the wall outlet while pressing and holding the “Feed” button.
5. “UP” blinks on the display window.
6. Click [Open file] and display the screen for opening a file.
7. Display an update file for C-12, select a file (example: C:XXXX.c12_01_00.mot), and click the [Open] button.
8. Click the [Update] button and start the updating of an internal program.
During program rewrite: The display window rotates during display. (Time required: Approx. two minutes)
9
.
Updating is completed when “AA” blinks on the display window. Click [Close] on the PC screen display for
termination.
10.
Pull out the AC adaptor of the C-12 main set once, insert the AC adaptor again, and press the “Power” button
of the C-12 main set.
* Do not turn off the power during write operation.
* The indication on the display window may vary depending on the program version or IPL version of the main set.
6-4. Updating the Internal Program of a Main Set
Update an internal program from PC using software PLUS TOOLBOX or update a program using USB memory.
Rewrite a program in the procedure below using PC or USB flash memory (hereinafter referred to as USB
memory).
c12XX_XX.mot. Major version: XX/Minor version: XX
Example: c12_01_00.mot
•Connect PC, in which software PLUS TOOLBOX was installed, using a USB cable when updating the internal
program of this set from PC.
14
FUNCTION SETTING
[Program updating during use of USB memory]
Equipment required (including software)
• Program file for C-12
• USB memory
1. Save a program (c12_01_00) in the route of USB memory.
2. Press the “Power” button of the C-12 main set to turn on the power and insert the USB memory into the USB
memory port.
3. The USB memory is recognized, a file is automatically detected, and the current software version shown on
the display blinks during updating. Display example: “01” ...
4. A program is updated when you press the “Save” button of the C-12 main set. (During program rewrite: The
display window blinks during display.)
5. A new program version is shown on the display when update is completed. Display example: “01”
6. Remove the USB memory and press the “Power” button of the C-12 main set to turn off the power.
7. Pull out the AC adaptor of the C-12 main set once, insert the AC adaptor again, and press the “Power” button
of the C-12 main set.
*Do not turn off the power during updating operation.
•Segment display “E.E.”: Indicates the state in which no sheet length and white level data exist.
In this case, perform calibration.
15
When “Install Software” on the included CD-ROM’s menu is clicked, the “PLUS TOOLBOX”, TWAIN driver and
USB driver are installed.
7-1. Check Prior to Installation
1. Check whether your personal computer satisfies the operating environment.
2. Check that your personal computer is not currently connected to this machine via USB.
3. At the time of installation, install withAdministrator rights (i.e., a user having administrator rights) for Windows
2000, or with a Computer Administrator rights (account) for Windows XP/Vista.
4. Close all other applications that are running.
7-2. Installation of the PLUS TOOLBOX

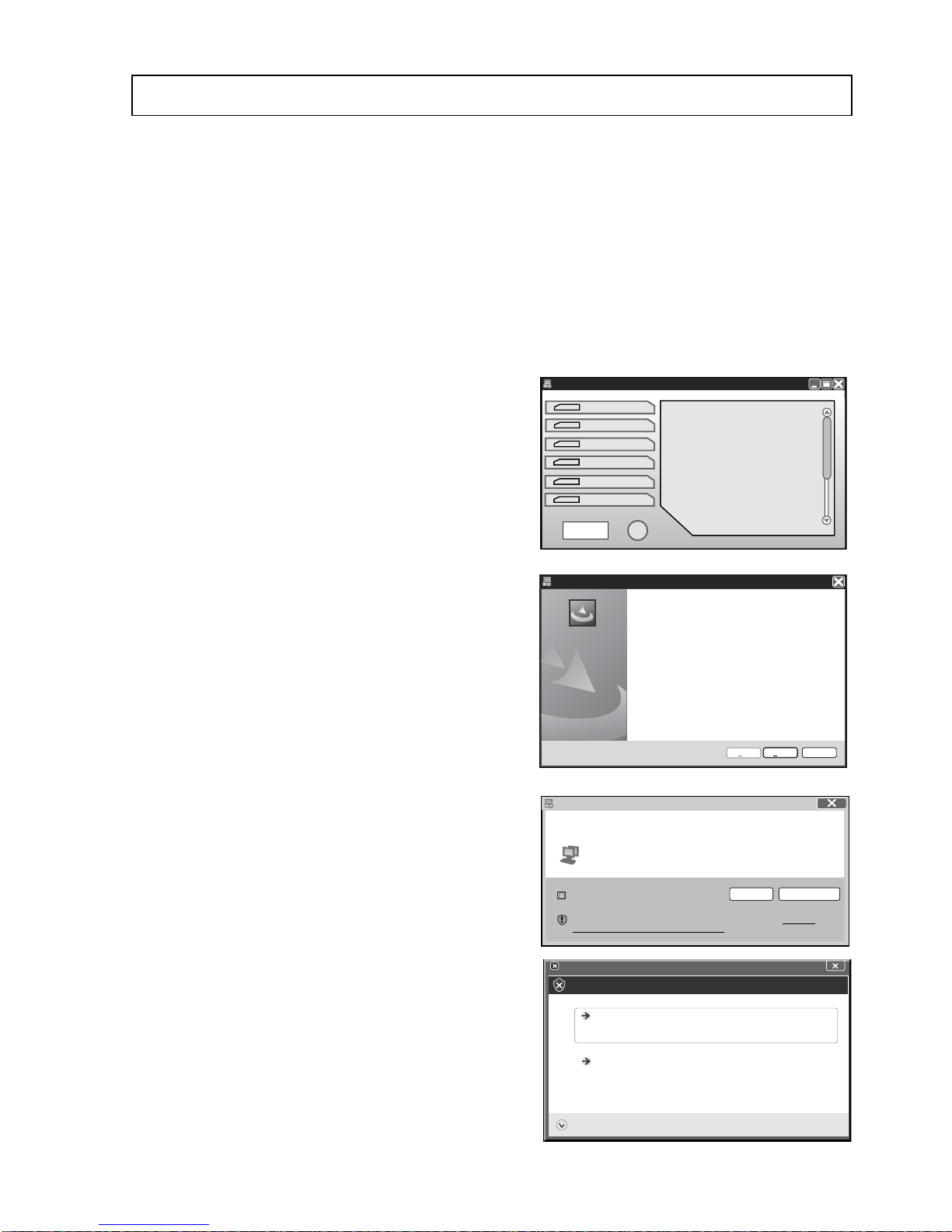

1Insert the supplied CD-ROM into the CD-ROM drive
of the personal computer.
The menu screen will be displayed automatically.
If the menu screen is not displayed automatically,
double click
CD-ROM icon and double click “autorun.exe”.
2Click “Installation of Software”.
The installer will start.
3Follow the instructions of the installer and start the
installation.
The PLUS TOOLBOX, the TWAIN driver, the USB
driver, and the Setup Utility will be installed at the same
time.
7. INSTALLATION OF THE SOFTWARE
Note:
*The Windows Security dialog box will be displayed
with Windows Vista.
Select “Install this driver software (I)”.
*When using Windows Vista, each time the installer is
started, the User Account Control dialog box is dis-
played.
Select “Continue” and continue with the installation.
WindowsSecurity
Wouldyouliketoinstallthisdevicesoftware?
Name:JungoJungo
Publisher:JungoLTD
Always trust software from "Jungo LTD".
You should only install driver software from publishers you trust. How can I
decide which device software is safe to install?
Don't Install
Install
PLUSTOOLBOX-InstallShieldWizard
WelcometotheInstallShieldWizardforPLUS
TOOLBOX
TheInstallShield(R)WizardwillinstallPLUSTOOLBOXonyour
computer,Tocontinue,diskNext.
Cancel
Next
<Back>
WARNING:Thisprogramisprotectedbycopyrightlaw
andinternationaltreaties.
C-12SericeSetupLauncher
Thankyouforyourpurchasingof
PLUSproduct
TheCD-ROMcontainsfollowing
softwareandanelectronicmanual
*Installation
1)PLUSTOOLBOX
2)TWAINDriver
3)USBDriver
*C-12SeriesUsersManual
(PDFformat)
*PLUSTOOLBOXSoftwareManual
Welcome
InstalationofSoftware
User'sManual
AcrobatReader
SoftwareManual
BrowseCD
Copyright&Usage
?
PLUS
WindowsSecurity
Windowscan'tverifythepublisherofthisdriversoftware
Don'tinstallthisdriversoftware
Youshouldcheckyoumanufacture'swebsiteforupdateddriver
softwareforyourdevice.
Installthisdriversoftwareanyway
Onlyinstalldriversoftwareobtainedfromyourmanufacture'swebsiteor
disc,Unsignedsoftwarefromothersourcesmayharmyourcomputeror
stealinformation.
Seedetails
16
INSTALLATION OF THE SOFTWARE
4Click “Finish”.
The “Installer Information Dialog Box” will be displayed.
Click “Yes (Y)” and restart the personal computer.
When this software is installed in the personal com-
puter for the first time, continue to make the following
connections and operations.
■Installing the USB Driver
The USB driver is installed in the computer with the installer, but this does not complete association with the USB
port. In order to use PLUS TOOLBOX, install using the procedure described below with the Captureboard con-
nected.

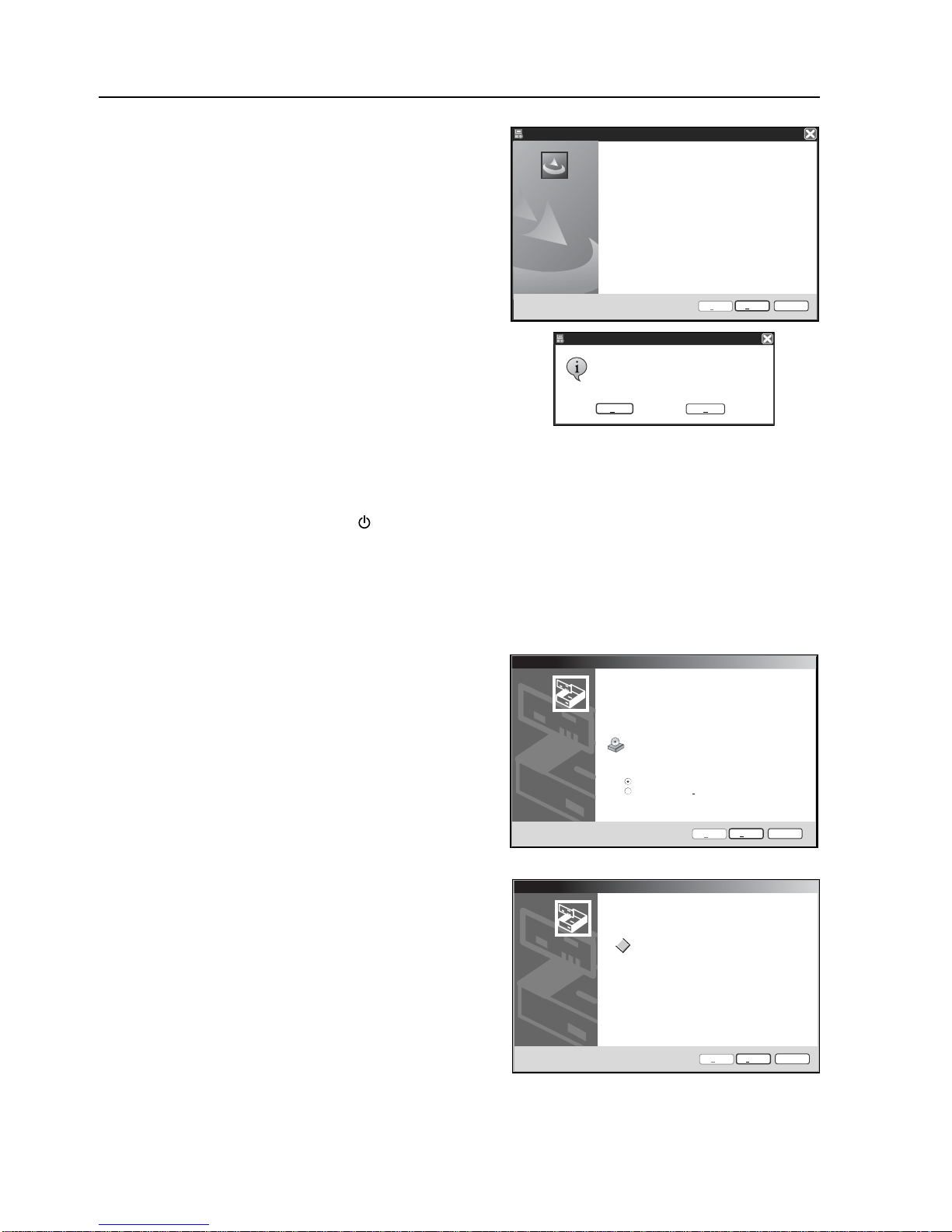

Preparation 1. Press the ON/Standby button of the captureboard to turn on the power.
2. Use a USB cable to connect the USB port of the personal computer with the PC dedicated
USB port of the captureboard.
The New Hardware Search Wizard will be displayed.
Install according to the New Hardware Search Wizard.
1Select “Install Software Automatically (Recom-
mended) (T)” and click “Next (N)” (when using Win-
dows XP).
Start the installation of the USB driver.
Note:
*Installation will be completed automatically with
Windows 2000/Windows Vista.
PLUSTOOLBOX-InstallShieldWizard
Cancel
Finish
<Back>
InstallShieldWizardCompleted
TheInstallShieldWizardhassuccessfullyinstalled
PLUSTOOLBOX,ClickFinishtoexitthewizard.
PLUSTOOLNOXInstallerInformation
Youmustrestartyoursystemfortheconfiguration
changesmadetoPLUSTOOLBOXtotakeeffect.
ClickYestorestartnoworNoifyouplantorestart
later.
No
Yes
2Click “Finish”.
This software can now be used.
FoundNewHardwareWizard
IfyourhardwarecamewithaninstallationCD
orfloppydisk,insertitnow.
Installthesoftwareautomatically[Recommended]
Installfromalistorspecificlocation[Advanced]
ClickNexttocontinue.
Cancel
Next>
<Back>
Thiswizardhelpsyouinstallsoftwarefor:
PLUSCopyboard
Whatdoyouwantthewizardtodo?
FoundNewHardwareWizard
Thewizardhasfinishedinstallingthesoftwarefor:
PLUSCopyboard
［ClickFinishtoclosethewizard
CompletingtheFoundNew
HardwareWizard
Cancel
Finish
<Back>
17
INSTALLATION OF THE SOFTWARE
7-3. Uninstallation of the PLUS TOOLBOX
1Selecting [Start] →→
→→
→[Control Panel] will display the Control Panel screen.
Check that your personal computer and the captureboard are not currently connected by USB.
2Double click “Add or Remove Programs or Applications” (this will differ depending on the OS) to
display the “Add or Remove Programs Properties” screen.
3Select PLUS TOOLBOX from among the list displayed and click [Change / Remove] to display the Add
or Remove wizard screen.
4Selecting the [Remove] radio button of the wizard and clicking [Next] will start the uninstallation.
Note:
*“Add or Remove Programs” will be displayed for Windows XP/Vista.
*When using Windows Vista, each time the uninstaller is started, the User Account Control dialog box is
displayed.
Select “Continue” and continue with the uninstallation.
18
8. TEST AND ADJUSTMENT FUNCTIONS
8-1. Test and Adjustment Functions
The specifications for inspection and the calibration program are described below.
1) Seven-segment display specifications.
2) To shift to the test/adjustment mode, press the “+” and “-” buttons simultaneously in the sleep mode and
then press the Power button.
The numeric LED display is <AP>.
3) Shift to each test mode by the button operation below.
1 Printer test mode <4. SPC> (*1)
A test print is made from the printer connected to a copy board when you press the Feed/Stop button
and then the print button during button operation.
2 Calibration mode start <2. SPC> (*1)
Calibration is executed when you press the Print button during button operation.
3 CCD adjustment mode <6. SPC) (*1)
An RGB adjustment mode sequence is performed (LED lights in red during CCD adjustment) when you
press the additional Reprint button during button operation.
4 Program version display & Internal Information write. <1.SPC>
The major version of a program is displayed when you press the “-” button once.
The minor version of a program is displayed when you press the “-” button second.
Indicates an error occurring in the test mode. (Lights : Error)
Progress number in the test mode
Indicates the whole test mode.(Lights :Test mode)
A signal of a test mode.
Other manuals for CaptureBoard C-12S
1
This manual suits for next models
3
Table of contents
