BenQ PointWrite PT20 User manual

PointWrite User Manual
PT20 V1.00

2
Table of contents
Shipping Contents........ 3
Product Overview........ 4
About Touch Module .............................4
Dimensions ................................................5
Preparation for Setup.. 6
Environment Condition...........................6
Surface Condition.....................................7
Projector Requirements........................10
Touch Module Installation....................11
Driver Installation...................................13
Connection...............................................14
Configuration
Setting ........................16
Alignment
Instructions.................17
Alignment View.......................................17
Adjustment for Touch Module
Laser Curtain...........................................18
PointWrite
Calibration..................21
Specifications..............22

Shipping Contents 3
Shipping Contents
The PointWrite touch module is a touch transmitter for the BenQ
PointWrite interactive projector. To use the touch module, please find the
standard accessories below and follow this manual.

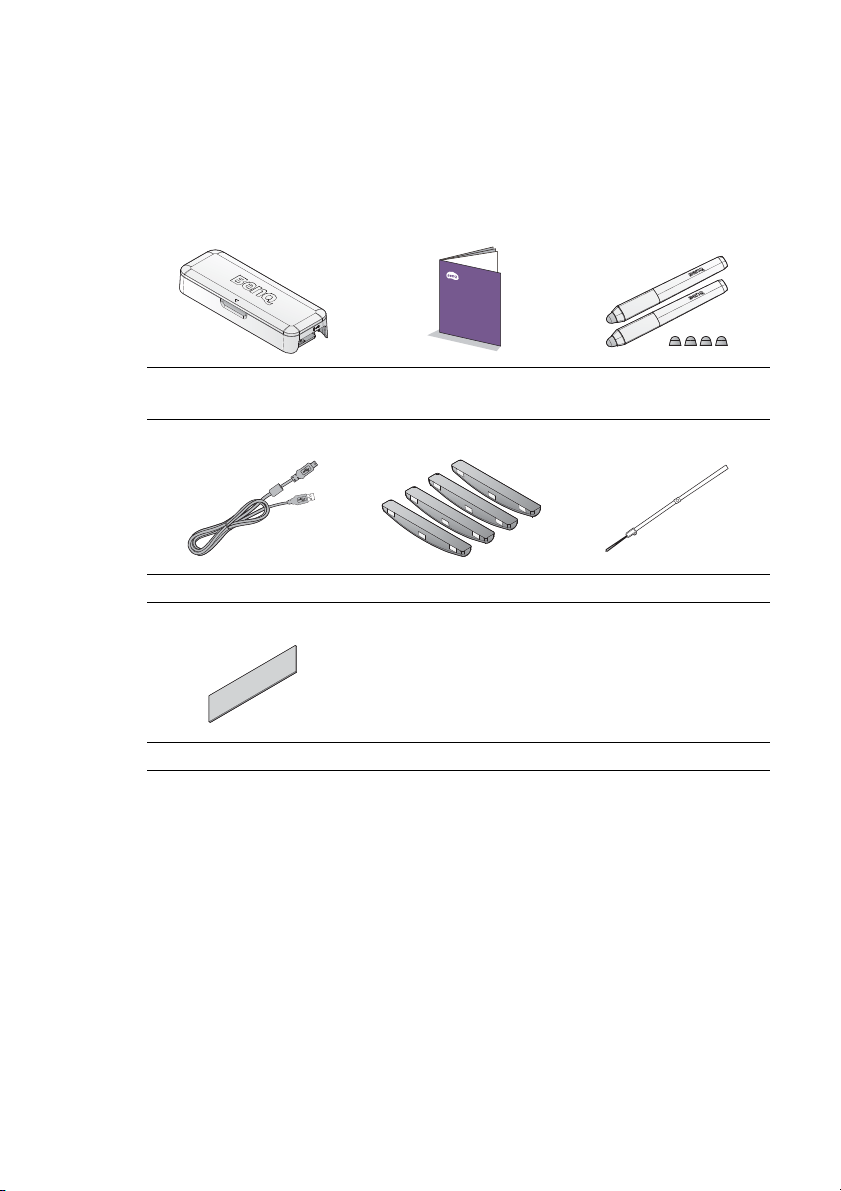

1. PointWrite Touch Module
2. Quick Start Guide: Shortcut of how to use the PointWrite touch
solution.
3. Dummy pen with pen nibs: 2 extra pen nibs for dummy pen.
4. Mini USB Cable: Connect to supply power to the touch module.
5. Alignment masks: For laser curtain alignment.
6. Wrist strip x 2
7. Tape x 2
123
PointWrite Touch
Module Quick manual Dummy pen with pen nibs x 2
456
Mini USB cable Alignment masks Wrist strip x 2
7
Tape x 2
PointWrite User Manual
----
V1.00

Shipping Contents4

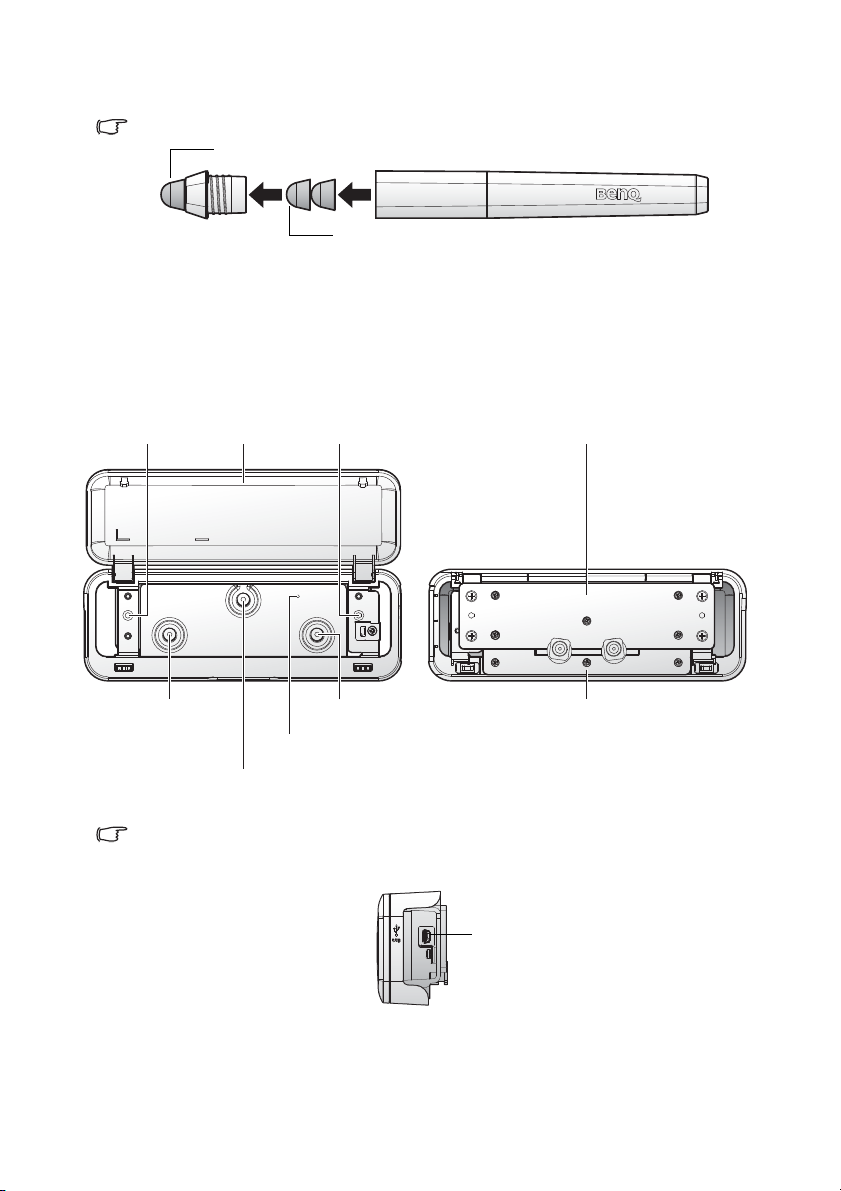

About Dummy Pen
When replacing the pen nib on the dummy pen, take it from the dummy pen.
Product Overview
About Touch Module
Green LED: normal; orange LED: abnormal.
Right View
For better touch performance, keep the pen nib clean.
When replacing the pen nib, take it
from the dummy pen.
Front View Rear View
Cover
Top screw
Left screw Right screw
Attach tape area
Touch module head
Mounting hole Mounting hole
LED indicator
USB port

Shipping Contents 5

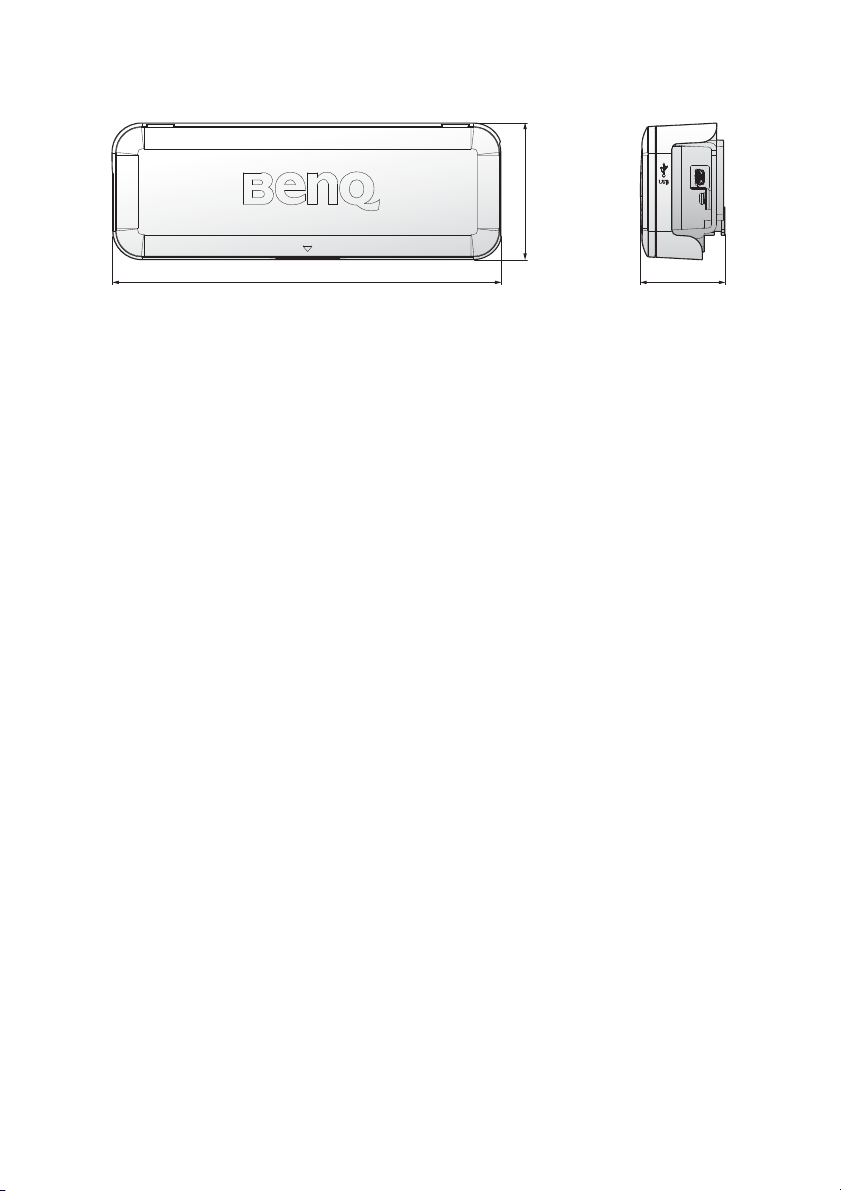

Dimensions
198.9 mm
69.6 mm
42.1 mm

Preparation for Setup6
Preparation for Setup
Environment Condition
The touch module functions with an PointWrite interactive projector for
scalable finger touch functionality, transforming any flat surface into a virtual
interactive whiteboard.
For optimal finger touch quality, follow these guidelines:
1. Close all window curtains.
2. Select a projection area away from direct sunlight to prevent writing
interference.
3. Keep infrared devices, such as: infrared microphones, away from the
front side of the screen to prevent interference.
4. Remove accessories, such as: watches or necklaces, with a reflective
surface to prevent interference.
Touch area
Touch area Touch area

Preparation for Setup 7
Surface Condition
Optimal finger touch quality is dependent on the selected surface condition.
You can attach the touch module on a wall surface or existing board. It is
important to choose a smooth and flat surface area free of protrusions.
In the event of a projection surface not conducive to finger touch
functionality, select the PointWrite pen as the pointing method for the
classroom.
Selecting a Wall Surface
• Select a wall that is straight and flat, without any protruding objects on it.
• Writing directly on the wall with the pen can damage the wall. Test the
wall surface by writing on it with the dummy pen before you install the
touch module.
Using on the Wall Surface
Consider the following factors when selecting a wall surface to project your
image onto:

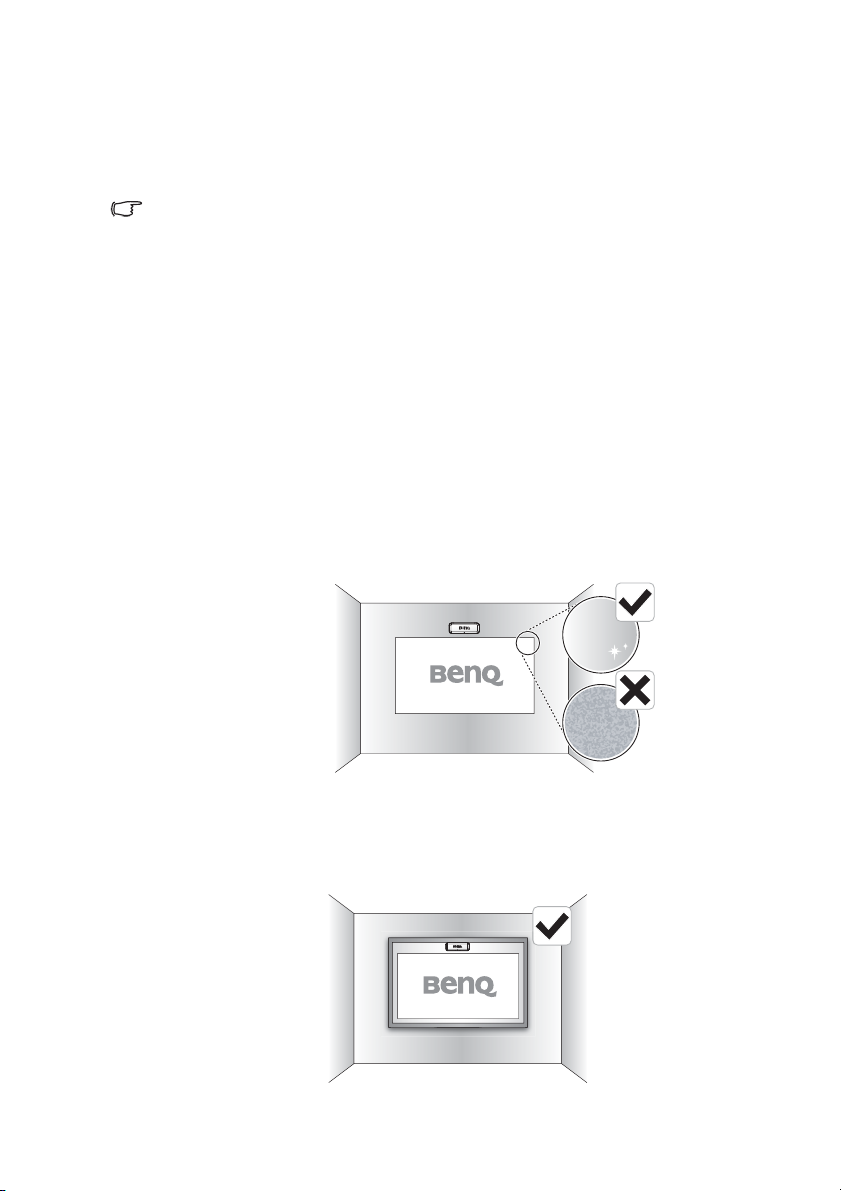

• Project on a smooth, semi-gloss painted surface to reduce glare from the
projector, to achieve optimal touch quality and to reduce wear on the pen
nib.
Using on a Dry-erase Board
• Attach a dry-erase board to the wall if you’re projecting on a textured
surface. A dry-erase board is a flat surface that works well with your
interactive projector and allows you to write smoothly in digital ink.

Preparation for Setup8

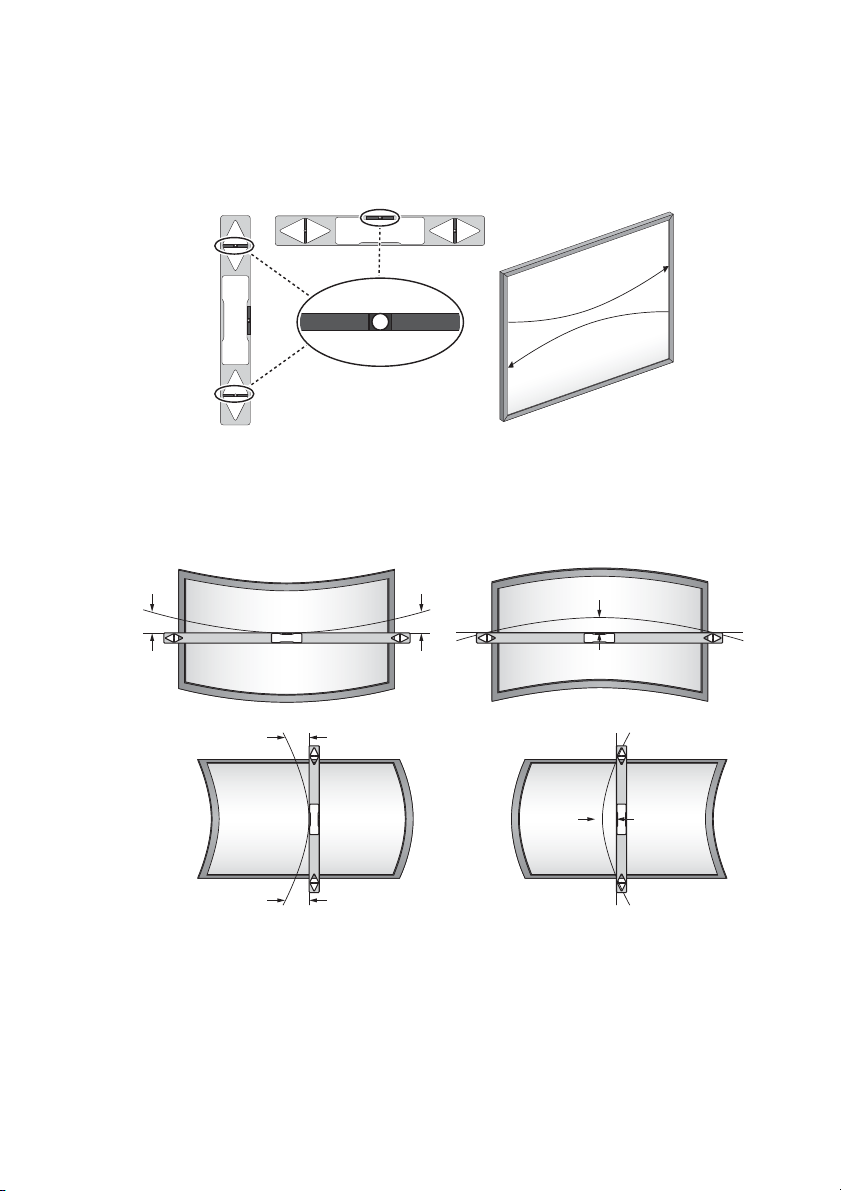

Measuring the Flatness of the Surface
1. Place a six-foot carpenter’s level horizontally across the projection area
(board).
2. Locate the point on the level furthest away from the projection area.
3. Measure the surface flatness on both sides of the projection area.
• Overall finger touch performance is influenced by the flatness of the
projection surface.
• A flatness variance of 2mm in any direction ensures optimal finger touch
performance.
< 2 mm <2 mm
< 2 mm < 2 mm

Preparation for Setup 9
Surface Obstructions

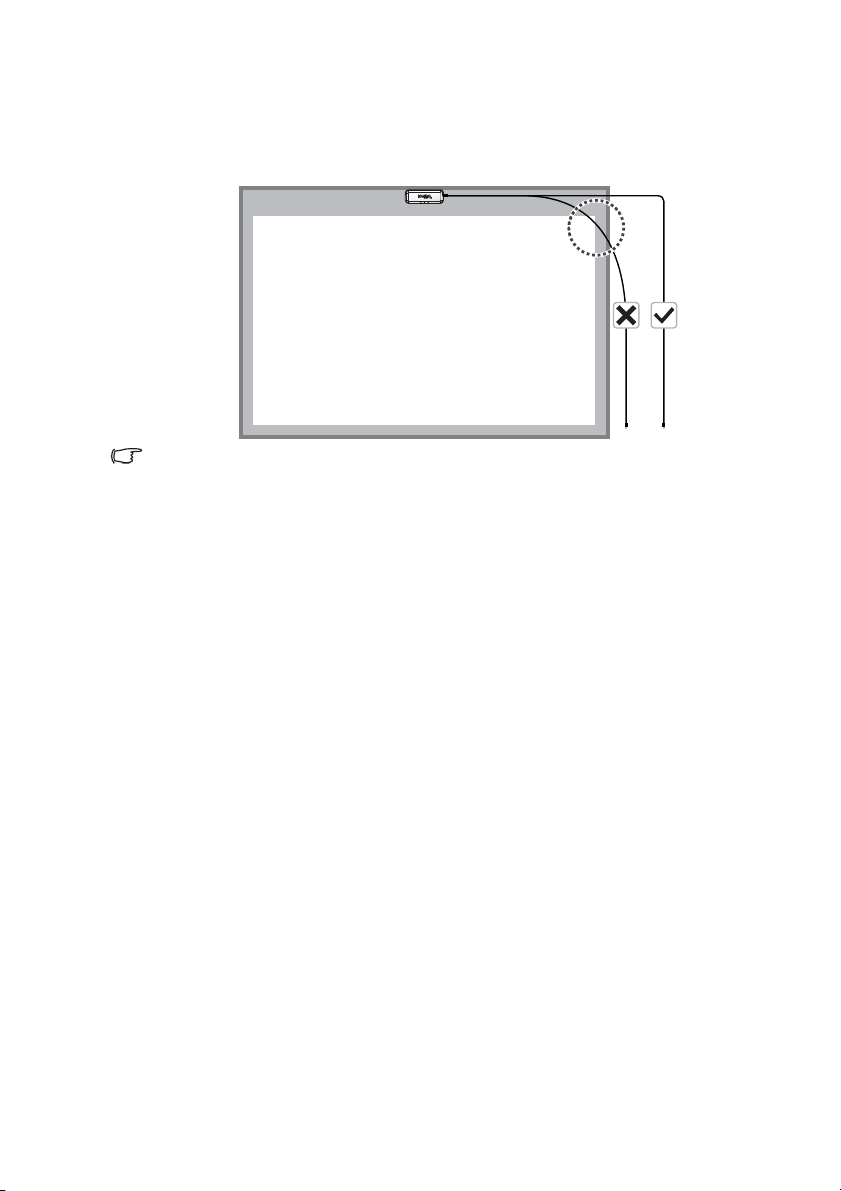

Maintain the projection area clean and free of obstructions. The following are
common obstruction examples:
• Cables or wires that hang into the projected image.
Leave extra space between the cables and the projected image so you can
make image adjustments later.

Preparation for Setup10
Projector Requirements
The PointWrite touch module is only available for BenQ PointWrite series
interactive projector. Make sure the PointWrite camera module is installed
properly before you setup the PointWrite touch module.
• For more information, please refer to the PointWrite camera module
User Manual or Quick Guide when installing.
• To ensure the projector provides power to the PointWrite Touch
module, turn on the USB Power Switch function in the OSD menu.
• PointWrite touch module is compatible with selected PointWrite camera
module and projector.

Preparation for Setup 11
Touch Module Installation
Screen Tolerance
The ambient light or direct sun light may impact the screen size of touch area
or cause interference.
In this case, make screen size smaller or turn to pen mode with PointWrite
pen for better writing quality.
# Item Specification
1 Horizontal Position Center line of touch area.
2 Vertical Position Ceiling Mounting: Top of the screen with Gap.
3 Gap Min: 100 mm, max: 150 mm
4Orientation Head of laser module should be face to touch
screen.
5TouchArea Min: 65”, max: 100” (without external lighting
interference)
1. Center line of touch area
Touch module
Frame
Surface
Touch area
3.Gap:100-150mm
50mm
50mm 50mm

Preparation for Setup12
Mounting Touch Module

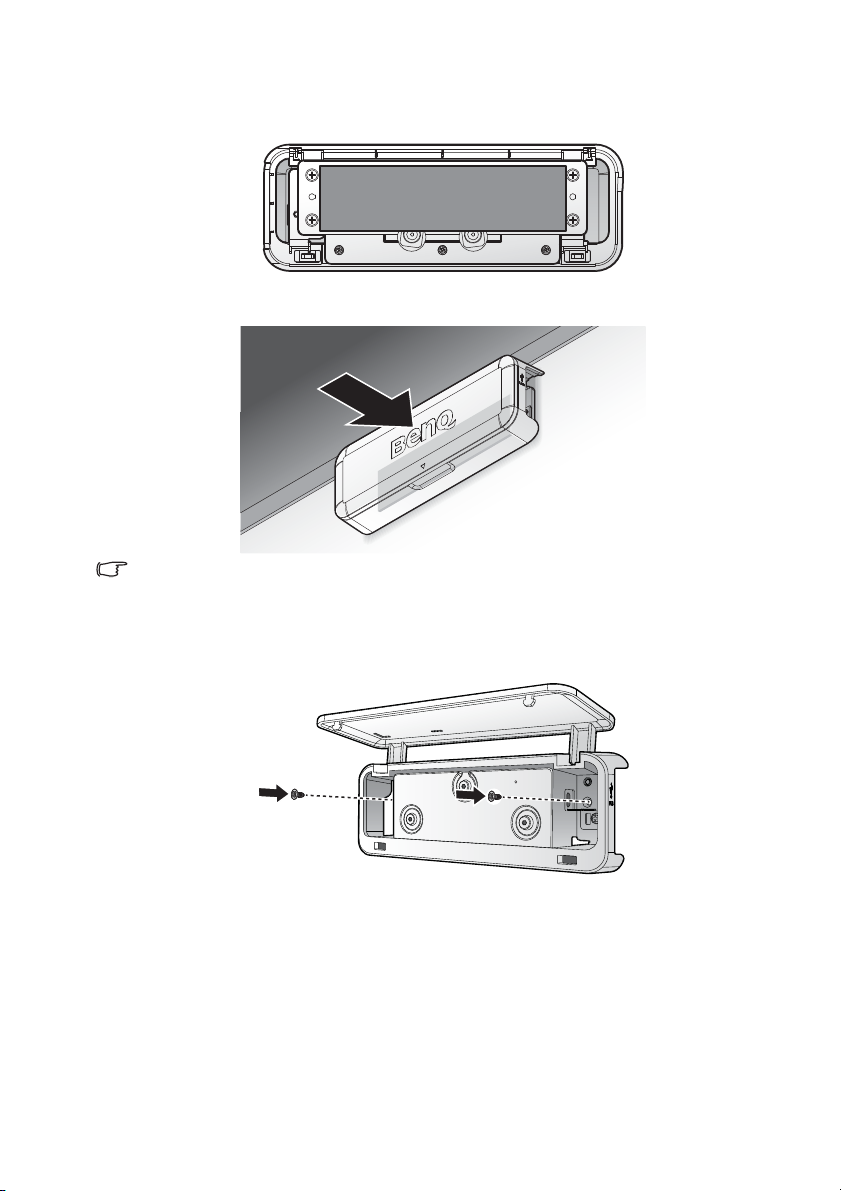

1. Attach the tape strip on the rear side of the PointWrite touch module.
2. Follow the instructions above to position the touch module on the
screen.
3M double tape (thickness: 1mm) is recommended.
3. Turn over the front cover.
4. Secure the touch module to the wall with screws.
5. Refer to page 17 to make sure the touch module is properly installed in
the center of the projection screen.

Preparation for Setup 13
Driver Installation
When you are the first time to use this PointWrite Module, please install set-
up driver for Configuration setting.
1. Please go to below BenQ Display Website to download PointWrire Set-
up driver https://business-display.benq.com/en/findproduct/projector/
accessory/pointwrite-pt20.html
Go to BenQ Website >> Search PT20 >> Go to “Download Page”.

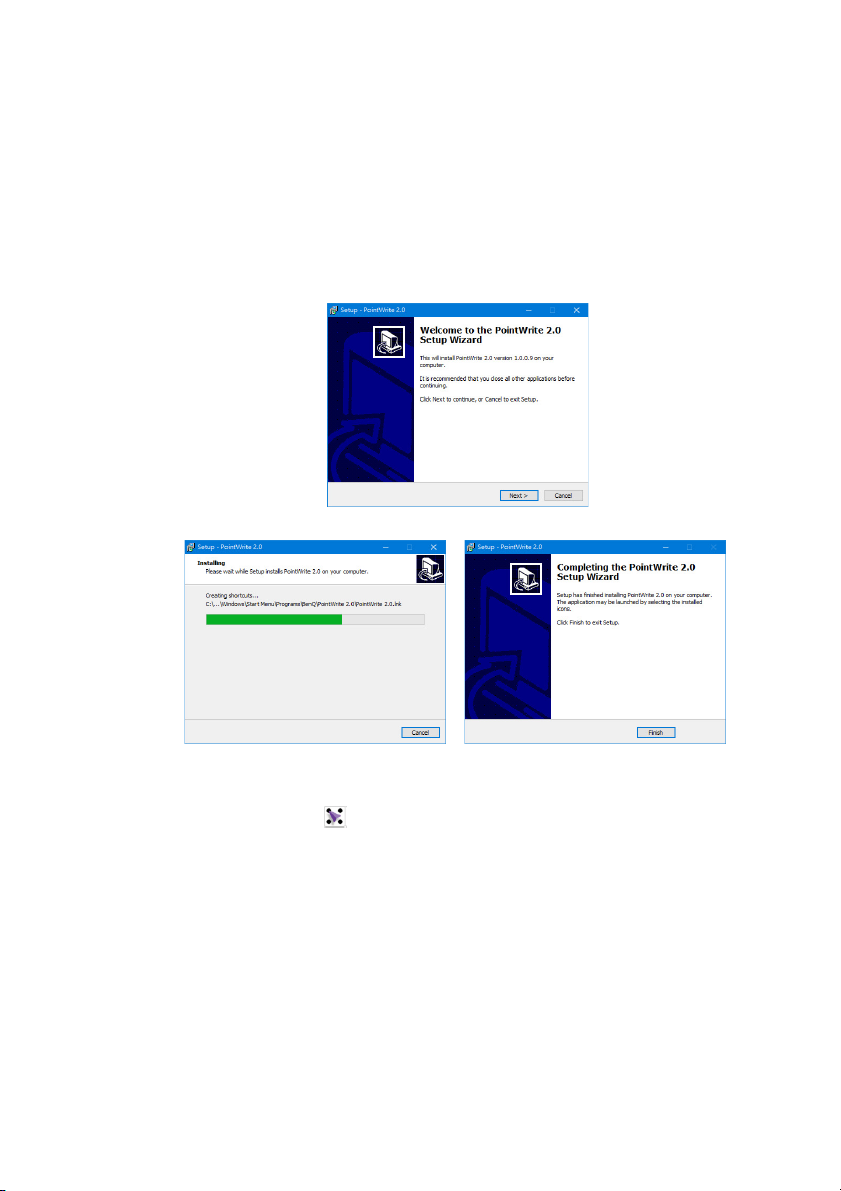

2. Follow the on-screen instructions to install the driver.
3. Complete the installation.
Driver Installation Complete
The PointWrite icon will be created on the desktop.
The installation folder will be created on C: directory.
• 64-bit Windows: C:\Program Files (x86)\BenQ\PointWrite 2.0
• 32-bit Windows: C:\Program Files\BenQ\PointWrite 2.0
Remark:
Only First time using the PointWrite module need to install set-up driver for
Configuration setting, the subsequent users can only plug the USB cable to
connect to PC to start the interaction quickly without driver installation.

Preparation for Setup14
Connection
Connecting the PointWrite to PC
Use the USB cable1to connect the PointWrite to PC. Plug the USB mini-B
end into the projector and plug the USB type-A end into PC.
Check “Device Manager” from your computer to make sure that PointWrite
device is recognized by your computer.
1. A USB cable of 2 meters is provided. Use a USB repeater cable If you need to extend
the length.

Preparation for Setup 15
Connecting Touch Module
Use the USB cable to connect the touch module for power supply.
Connect Touch Module to Projector (Recommended)
To prevent the connector from coming off, adjust the screw after inserting a
USB cable.
1. Loosen the screw on the holder and move the holder down.
2. Insert a USB cable.
3. Move the holder up to holder the USB connector.
4. Secure the screw on the holder.
USB type-A power is available for selected projector model.
5V USB adapter is not allowed!
Charging of the device through an adapter is not recommended and may
damage the touch module.

Configuration Setting16
Configuration Setting

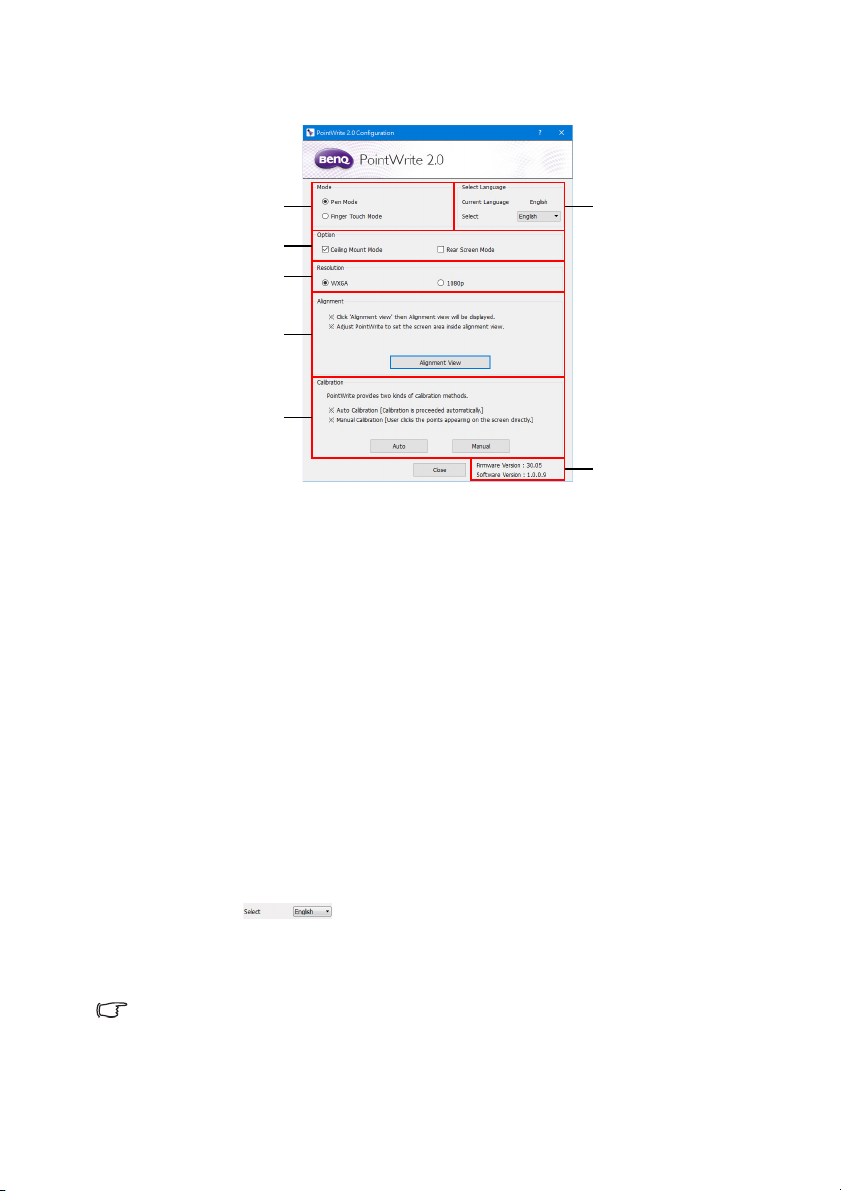

1. PointWrite Mode:
•Pen Mode: Default selection
•Finger Touch Mode: Only available when PointWrite Module
works with BenQ PointWrite Touch module. When selecting
Finger Touch mode, pen and finger can be used simultaneously.
2. PointWrite Option:
• Ceiling Mount Mode: Click this item if you mount the projector on
the ceiling. When the projector is placed on the table, do not click
this item.
• Rear Screen Mode: If the projector is installed on the rear screen
system, click this item.
3. Resolution: Select Projector resolution.
4. PointWrite Alignment: See "Alignment View" on page 17.
5. PointWrite Calibration: See "PointWrite Calibration" on page 21.
6. PointWrite Language: The default language is the same as the
language for your operating system. If you want to change the language,
click on and then language list will display. After selecting
your preferred language, quit the PointWrite and start the
PointWrite again.
7. Information: Shows the camera firmware version.
Select Finger Touch Mode during the setting process.
1
2
7
3
6
4
5

Alignment Instructions 17
Alignment Instructions
Alignment View
The PointWrite Alignment function is to set the orientation of the
PointWrite to the screen.
Alignment View: When clicking on the "Alignment View", the screen image
is displayed on the alignment view as illustrated.
Ensure the touch module is in the middle of the screen and the triangle on
the Alignment View is aligned with the touch module.
If the screen image is not in the center, the calibration will fail. Please make
sure the PointWrite module is attached to the projector properly.
Connect the USB cable for touch module and go to "Adjustment for optimal
height of Touch Module Laser Curtain" on page 20 for alignment instructions.
To avoid active touching , please connect the USB cable after entering
Alignment View.
• Right side conflict • Left side conflict• Upper side conflict

Alignment Instructions18
Adjustment for Touch Module Laser Curtain
The laser curtain is a perfect plane to cover the screen in max fan angle of
180 degrees. The laser curtain is required to be parallel to the surface with
the optimal gap for the effective finger touch performance.
How to Adjust Touch Module Laser Curtain
To have the best performance of touch module, adjust the laser curtain using
a hex key on the screws.
Pitching control
Adjust top screw, the laser curtain goes up and down as the following image.
Adjust left screw, the left side of laser curtain goes up and down as the
following image.
Adjust right screw, the right side of laser curtain goes up and down as the
following image.
Laser curtain
Laser
curtain
Screen
board
Gap
Height
Top screw
Left screw Right screw
Top screw Top screw
Left screw Left screw
Right screw Right screw

Alignment Instructions 19
1. Adjust reflection of Touch Module Laser Curtain horizontally.
Left screw
Right screw
Left screw
Right screw
Top screw
Adjust the reflection
laser curtain
horizontally
Before
Adjustment
After
Adjustment

Alignment Instructions20
2. Adjustment for optimal height of Touch Module Laser Curtain
The alignment masks help you to find the optimal height of the laser curtain
and optimal touch performance.
• Using the Alignment Mark
Mounting Position of Alignment Mark
In the camera view of PointWrite, The alignment mark reflector is shown like
below picture.
The number of bright spots reflected on the mask represents the height of
the laser curtain:
Lower reflector
Higher reflector
5mm
5mm
Mask 2 Mask 1
Mask 3Mask 4
Reflection of
mask 4
Reflection of
mask 2
Reflection of
mask 3
Reflection of
mask 1
Ceiling Mounting
Reflected Points on
the Mask Height of Laser Curtain
1 point 5 - 10 mm
2 points < 5 mm
3 points Around 5 mm
Height of Laser
Curtain
