USER-MANUAL
Tamson Vacuum System
Tamson Instruments bv
Page 2/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
CONTENTS
1SAFETY AND WARNINGS ......................................................................................................................3
2WARRANTY .............................................................................................................................................3
3PRECAUTIONS AND HAZARDS ............................................................................................................4
4SET-UP.....................................................................................................................................................4
4.1 SYSTEM APPLICATION ..........................................................................................................................4
5WHAT IS WHAT .......................................................................................................................................5
6OPERATION.............................................................................................................................................6
7CALIBRATION .........................................................................................................................................6
7.1 ZERO...................................................................................................................................................7
7.2 SPAN...................................................................................................................................................7
7.3 DIMENSION ..........................................................................................................................................7
7.4 NOTE...................................................................................................................................................7
8MANIFOLD ...............................................................................................................................................8
8.1 QUICK RELEASE ...................................................................................................................................8
9TECHNICAL DETAILS.............................................................................................................................9

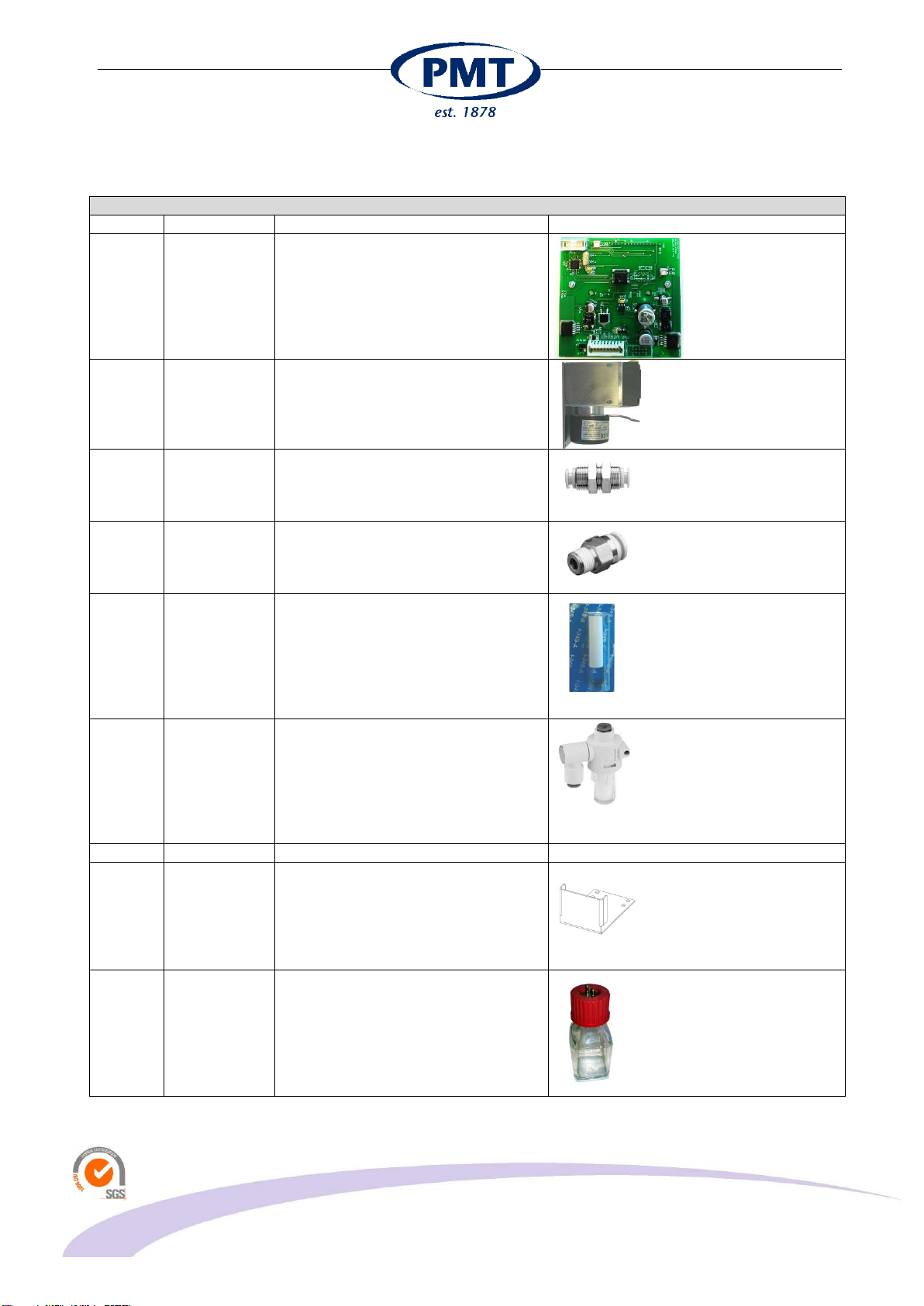

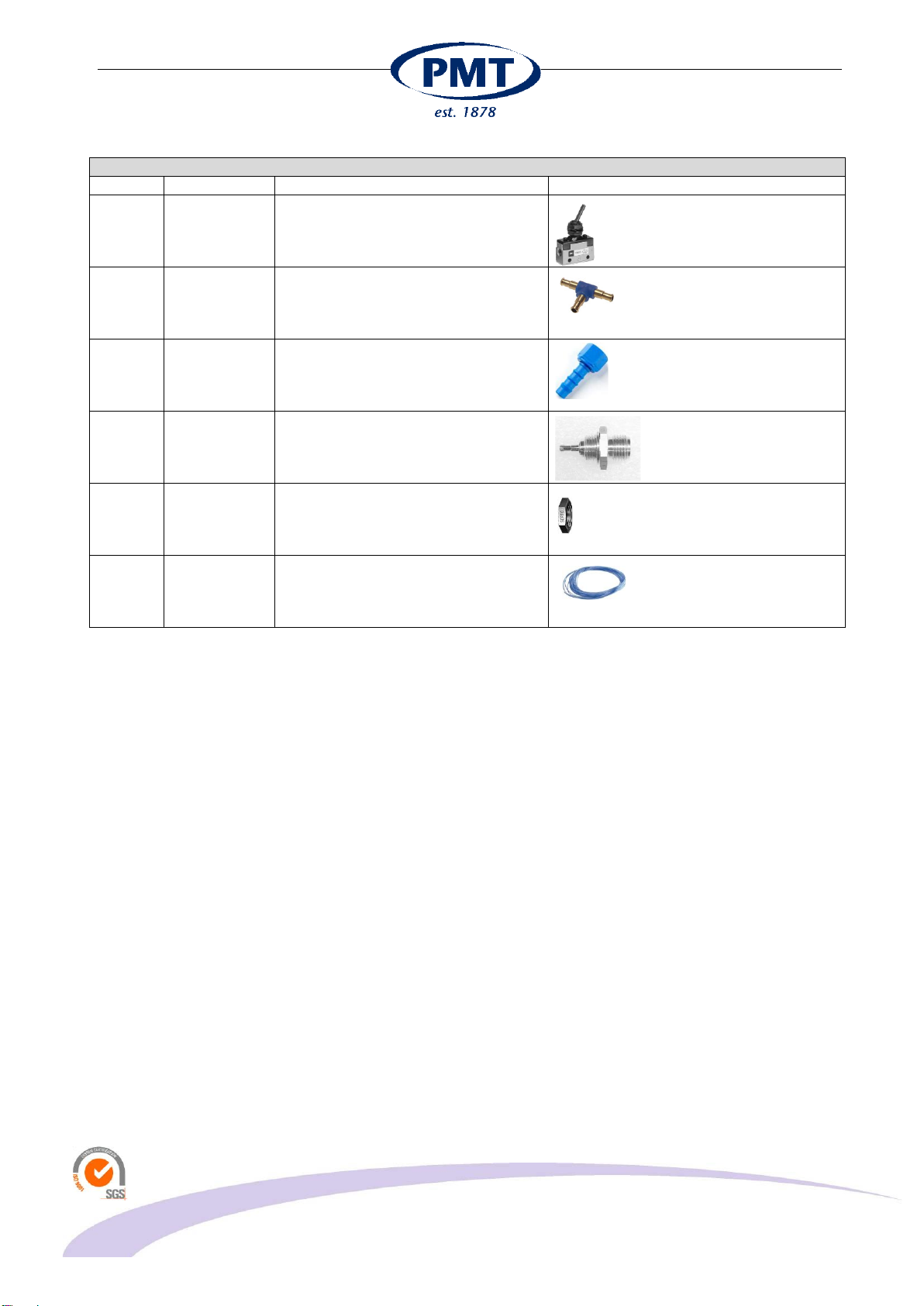

10 SPAREPARTS....................................................................................................................................10

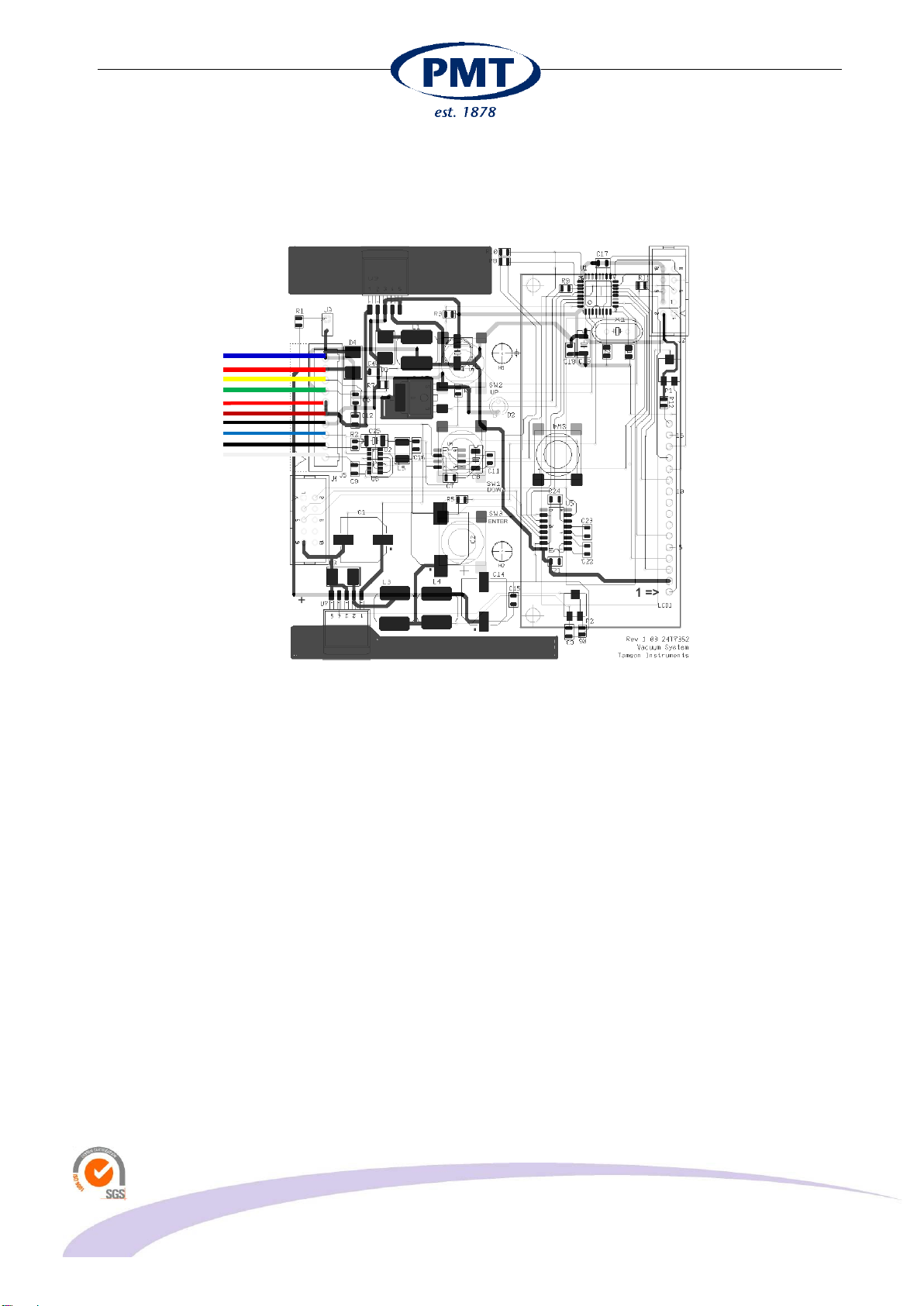

12 CONNECTION DIAGRAM..................................................................................................................12

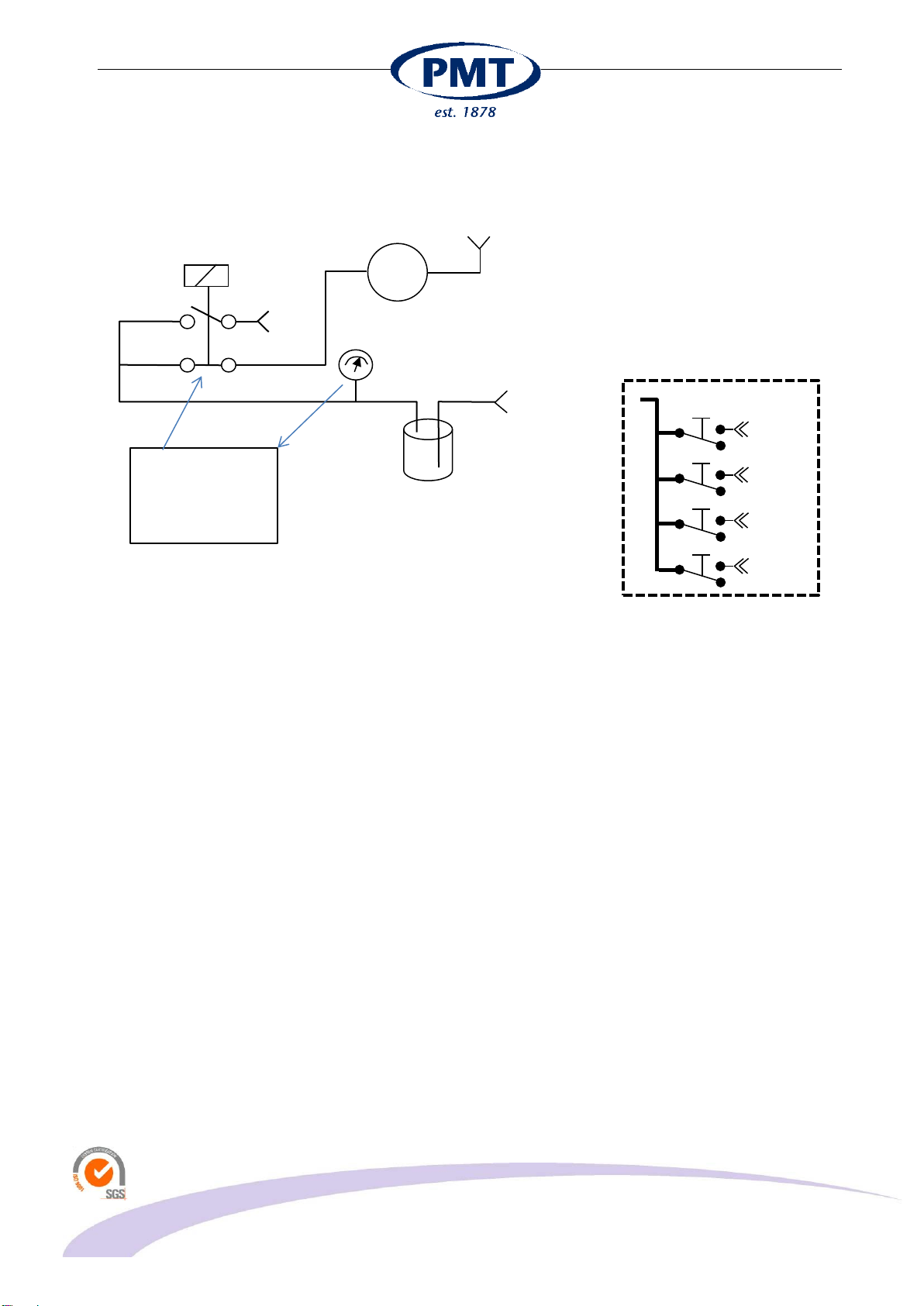

13 PRINCIPAL DIAGRAM.......................................................................................................................13
14 TROUBLE SHOOTING.......................................................................................................................14
15 CALIBRATION DETAILS ...................................................................................................................16
16 CE DECLARATION ............................................................................................................................17
17 DISCLAIMER ......................................................................................................................................18
Tamson Instruments bv
Page 3/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
1 SAFETY AND WARNINGS
Make sure before installing or operating the equipment
to read and understand all instructions and safety
precautions listed in this manual. If there are any
questions concerning the operation of the equipment or
about the information given in this manual, please
contact your local dealer or our sales department first.
Performance of installation, operation, or maintenance
other than those described in this manual may result in
a hazardous situation and may void the manufacturer's
warranty.
Never operate equipment that is not correctly installed.
Unqualified personnel must not operate the equipment.
Avoid damage to the equipment, or its accessories,
caused by incorrect operation.
Important:
-When performing service, maintenance or
moving the apparatus, always disconnect the
apparatus at the main's socket,
-Proper skilled and trained personnel are only
allowed to operate this equipment,
-Take notice of warning labels and never remove
them,
-Refer service and repairs to qualified technician,
-If a problem persists, call your supplier or
Tamson Instruments b.v.
2 WARRANTY
Tamson Instruments b.v. warrants that all their
manufactured equipment is free from defects in material
and workmanship, preventing the machine from normal
operation. Tamson Instruments b.v does not warranty
that the equipment is fit for any other use than stated in
this manual. The manufacturer can only be held
responsible for the security, reliability and performance
of the equipment, when operated in accordance with the
operating instructions, extensions, adjustments,
changes and/or if repair is performed by Tamson
Instruments b.v. or authorized persons only. This
warranty is limited to one year from the date of invoicing.
All equipment and materials are subject to standard
production tolerances and variations.
Tamson Instruments bv
Page 4/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
3 PRECAUTIONS AND HAZARDS
Before attempting to operate the TVS read all parts
of this manual carefully to insure smooth operation
and avoid damage to the equipment or its
accessories.
If a malfunction occurs, consult section trouble shooting
page 14 at the end of this manual.
If problem persists, call your supplier or Tamson
Instruments bv. Never operate the equipment if not
correctly installed. The equipment must be operated
only by qualified personnel. Avoid damage to the
equipment or its accessories through incorrect
operation.
4 Set-up
4.1 System Application

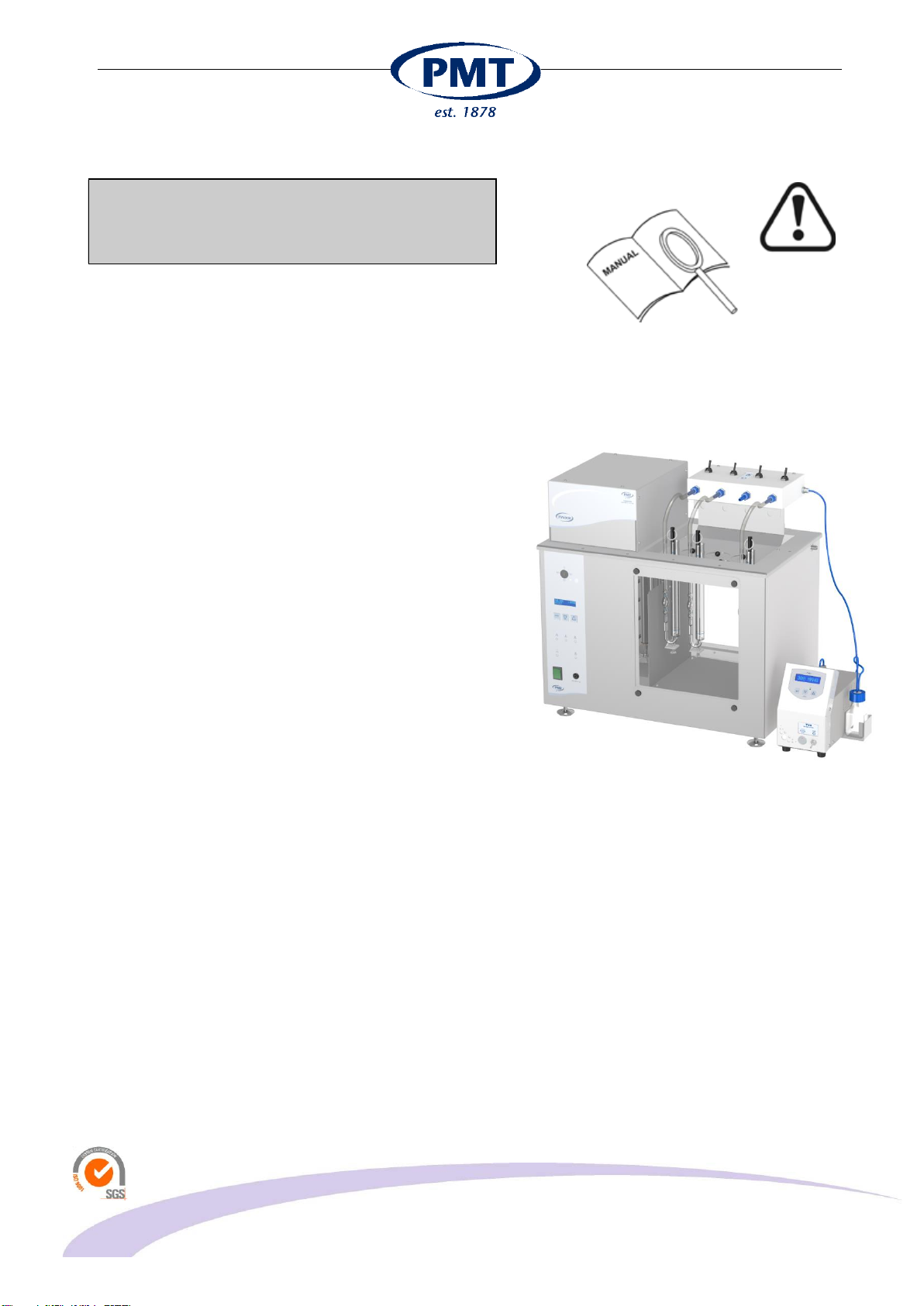

The TVS is used in combination with a viscometer bath.
The Tamson vacuum manifold (TVM) p/n 00T0941 has
specifically been designed to fit the TV4000MKII. As
indicated on the picture the vacuum pump is connected
via a four position manifold to a maximum of four
viscometers.
The pressure can be set in small steps offering a
resolution of 1 digit (no decimals) (mBar, PSI or mmHg).
The TVS especially has been designed for measuring
viscosity of bitumen (ASTM D2171 –IP 22 –EN 12596
–AASHTOT202). The system also can be supplied for
manual viscosity testing and conforming to D445 and IP
71 and ISO 3104.
For low viscosity the vacuum can be reduce to just a few
mBar. Sucktion of the sample fluid can be extremely
well controlled and this prevents air bubbles in the
sample. Air bubbles are a serious cause for measuring
error. By using controlled vacuum this completely rules
out this error.
READ
CAREFULLY
Tamson Instruments bv
Page 5/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125

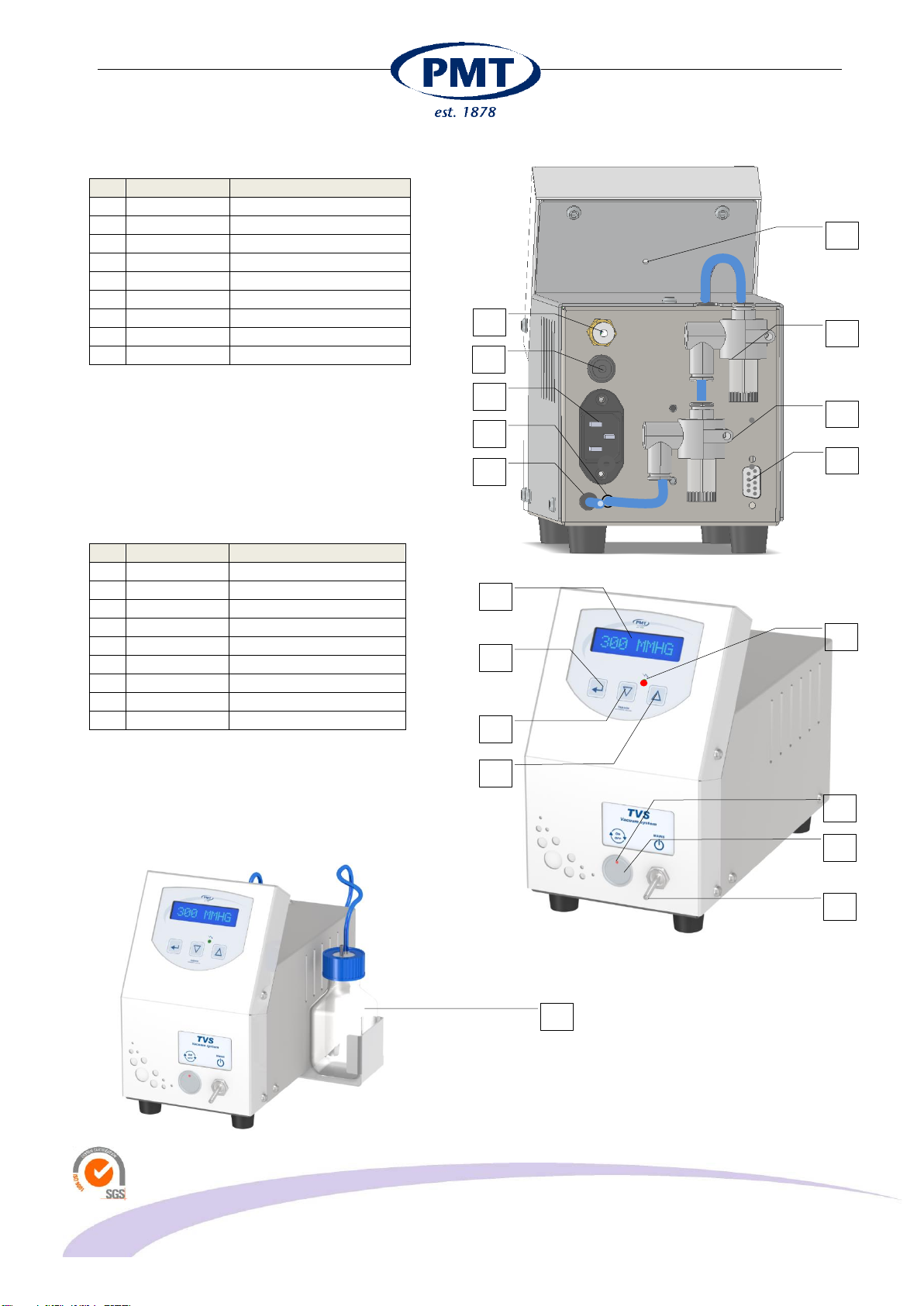

5 What is what
Item
Description
remark
A
Vacuum inlet
Connect to manifold
B
Motorfuse
C
Mains entry
85 .. 230V (47..63Hz) in
D
Connection
To vacuum trap
E
Outlet
“+” pressure out
F
Hole
Press for calibration
G
Vacuum trap
“I“
H
Vacuum trap
“II“
I
RS232
Optional
Item
Description
remark
1
Display
2
Key “enter”
3
Key “down”
4
Key “up”
5
LED “set”
Vacuum set to memory
6
LED Motor
Pump stopped/running
7
Switch pump
8
Unit on/off
9
Fluid trap
Optional
F
I
C
E
D
H
A
G
B
1
2
3
4
7
5
6
8
9
Tamson Instruments bv
Page 6/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
6 Operation
Switch the vacuum pump on using the on/off button (7).
The pump will start and vacuum will be generated at
connector (A).
When the pump is switched-off (7) the pump motor will
switch-off and vacuum is released.
Only when the pump is running the vacuum can be set
using the up (4) and down (3) buttons. Press the button
long for larger steps, press short for smaller steps.
Once the setting of the vacuum is altered, the displays
shows alternating “Conf. Sp”[Enter]. This indicates that
the feedback system of the pump needs this new
vacuum value to be confrmed. This can be done by
pressing the “enter”key (2). The new vacuum set point
is now programmed into memory (Eeprom). After
switching-off, this new value will be stored.
Ensure yourself that correct set-point is set by switching
the pump off and on again (7). Repeat the procedure if
the set point value deviates slightly. The cause for this is
that with a perfectly tight system it is difficult to lower the
set point as vacuum is not released. It is easier to
increase the value using the up key than lowering the
value using the down key. This is the cause of using an
internal feedback system and well closed system.
7 Calibration
Span and zero can be calibrated easily.
Before going into calibration mode:
Connect a calibrated pressure meter to the suction
connector (A).
Activate the pump (7) and set the vacuum set-point to
the highest value i.e. 300 mmHg using (3) and (4).
Press enter (2) to program the Set-Point
Check that calibrated pressure meter has same
dimension as the TVS i.e. mmHg on the TVS and the
calibrated vacuum meter. Switch off the pump (7)
The calibration mode can now be selected by using a
paper clip or small pin to press the button located
behind the hole indicated with (F).
4
3
2
5
Tamson Instruments bv
Page 7/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
7.1 Zero
Start the procedure by calibrating the zero pressure.
The display indicates “Cal. Zero”. Press up (4) and down
(3) to set the value nearest to 0. The most right value
(around 400) indicates the digital to analog value from
the controller. This is an indicator value and can be used
for error solving and service. When the displayed value
is set with up and down keys, press enter to store the
calibrated zero value into memory. The display will
shortly show “strd”. The zero now is calibrated.
Press (6) again
7.2 Span
The display now indicates “Cal. Span”. Start the pump.
Use the up (4) and down (3) button to match the reading
from the TVS against the calibrated vacuum meter. The
most right value indicates the digital to analog value
from the controller. This is an indicator value and can be
used for error solving and service. Press enter to store
the calibrated span value into memory. The display will
shortly show “strd”. The span is now calibrated.
Press (6) again.
7.3 Dimension
The display shows readout. Use the up (4) and down (3)
button to switch dimension to:
mmHg
mBar
hPa
PSI
Press enter to store the readout into memory.
Press (6) again
The display is in operation mode again.
7.4 Note
Pressing (6) without using “enter” (2) will not change the
calibration, so not using “enter” will not store the
changed values! Changing the dimension will not
change the zero or span as the vacuum readout is
calculated from the internal analog to digital converter
value
Tamson Instruments bv
Page 8/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
8 Manifold
Item
Description
Remark
1
Toggle switch (4x)
To front is open
2
Connector 4mm
To TVS
3
Hose connector (4x)
To viscometer tube
4
Mounting holes
When the toggle switch is backwards, vacuum is applied
to the hose connector (3). When the toggle switch is
positioned towards the hose connector the connector (3)
is atmosperical.
As an option other toggle switches can be mounted. These offer
vacuum (backwards) or closed when positioned to the front.
8.1 Quick release
The TVM is connected to the vacuum system with a 4mm poly urethane hose. A quick release system
combines ensures operation with a simple connection.
To connect simply press the hose into the connector (2)
To unconnect press (B) the connector (2) and pull the hose out (C)
A
B
C
2
4
3
1
Tamson Instruments bv
Page 9/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
9 Technical details
Specification
Dimension
Dimension
Length
270
mm
Width
126
mm
Height
205
mm
Weight
2.5
Kg
Mains
85 .. 264
Volt
47 .. 63
Hz
Consumption
20
Watt
Range
1 .. 340
mmHg
Linearity
± < 0.5
% F.S.
Accuracy of control*
± 0.5
mmHg
Connector PolyProp. hose
4 –2.5
mm outer/inner dimension
Tamson Instruments bv
Page 10/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
10 Spareparts
Tamson Vacuum System
Item
Part number
Description
Remark
06T0523
Microcontroller board with keys and
display
11T0030
Pump with motor
28T4504
Quick connector 4mm hose/4mm
hose
28T4501
Quick connector 4mm hose/1/4”
28T4126
Replacement filter (10pcs per pack)
SMC –1-34S-A
28T4127
Filter body
SMC-ZFB100-4
28T4099
Vacuum relais
13T8030
Fluid trap bracket
02T0230
Fluid trap flask complete:
- Glass jar 08T0130
- Cap (red) 08T0140
- Cover with 2 hose connections
- O-Ring 24T0386
Tamson Instruments bv
Page 11/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
nifold
Item
Part number
Description
Remark
28T4101
Valve
28T4145
T-Piece 4,0x2,5mm hose
28T4503
Hose connector
28T4154
Adapter piece 4mm hose to 3/8”
28T4153
Nut 3/8”
24T0049
Tubing 4mm x 2,5mm PU Blue
Tamson Instruments bv
Page 12/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
12 Connection Diagram
Printed Circuid Board 06T0523
Pumpmotorr
Pumpmotor Indicatorr
DC(-)
DC(+)
Pressure (0..5V)
GND (2x)
Set-point (1..5V)
+24V (2x)
Tamson Instruments bv
Page 13/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
13 Principal diagram
Vacuum inlet
Pressure
sensor
Pump outlet (backpanel)
Pump
Vacuum relais
A
B
FilterFluid
trap
Microcontrolled
feedback
systemSD
Manifold
Tamson Instruments bv
Page 14/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
14 Trouble shooting
Vacuum readout doesn’t drop whilst pressing
“down” few times.
The system uses feedback, and the value on the display
is the measured pressure. Though the vacuum set
points drops, the system maintains its vacuum. After a
certain difference the vacuum relais opens, thus
dropping the vacuum.
Try to set the vacuum upwards. Lower the
vacuum under the set point and use the up
button to reach the desired set point.
After calibration the displayed vacuum value
doesn’t seem to be correct
Vacuum can be displayed in:
mmHg
mBar
hPa
PSI
Recheck the calibration of device. The
dimension of the device must be the same
dimension which is displayed on the TVS.
During calibration zero or span value is not stored
Press enter to store the zero, span or
dimension into the microcontroller memory
The value to calibrate the span is too low. When
calibrating at 100 mmHg and operating the system at
300 mmHg be higher than the set point used for
measuring
Before calibrating start the pump and
select maximum vacuum. Press enter and
than start the calibration procedure
Pump doesn’t reach vacuum
When the system is not closed a vacuum can not be
build up.
Check the system for leakage. Tubing must
be tight and well connected. Valves from
manifold must be closed.
Tamson Instruments bv
Page 15/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
Vacuum value decreases, than settles
When the motor is turned on the vacuum probably didn’t
build up due to an open system (toggle switch not
closed). The feedback systems tries to increase the
vacuum. When the system closes, the feedback
overshoots. After a short period the vacuum drops and
settles at a stable value.
When starting the pump the system must be
closed.
Pump motor doesn’t start
System still under vacuum.
Open and close a valve on the manifold.
Tamson Instruments bv
Page 16/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
15 Calibration details
Date of calibration
Serial number
Performed by
Readout TVS [mBar/hPa]
Readout reference [mBar/hPa]
Reference standard:
Pressure sensor
Type GHM Pressure sensor SL-01R
Serial 14026635
Range -1000 .. 1500mbar
Reader serial 37200058
Certificate . . . . .
by Deutsche Kalibrier
Dienst (DKD), Traceable to
national standards
Tamson Instruments bv
Page 17/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
16 CE Declaration
Manufacturer: Tamson Instruments BV
van 't Hoffstraat 12
2665 JL Bleiswijk
The Netherlands
Product: Vacuum system
Model: TVS (Tamson Vacuum System)
Serial code: Effective from 13Txxx
Manufacturer: Tamson Instruments bv
van 't Hoffstraat 12
2665 JL Bleiswijk
The Netherlands
The products are in conformity with the following specifications:
Item
Reference
Description
Test result
a
RoHS Directive
2011/65EU
p
b
EN61010-2-010
Safety requirements for electrical
equipment for measurement, control,
and laboratory use. Particular require-
ments for laboratory equipment for the
heating of material
c
Machine Directive
2006/42/EC
Machinery Directive, of the European
Parliament and of the Council of 17 May
2006/42/EC 2nd Edition June 2010
p
d
EN 60204
Machinery Directive and Safety
requirements
p, pi
e
EN60950-1
Low Voltage Directive
p
f
EN61000-4-2 +A1+A2
ESD
p
g
EN61000-4-3 +A1+A2
Radiated immunity
p (anechoic room)
h
EN61000-4-4
Electrical Fast Transients
Minimum requirements pass
i
EN61000-4-5+A1
Surges
Minimum requirements pass
j
EN61000-4-6+A1
Conducted immunity
p
k
EN61000-4-11 +A1
Voltage dips and Voltage variations
p
l
EN55016-2-1
Conducted emission
p
m
EN55016-2-3
Radiated emission
p (anechoic room)
p = Pass
pi= Individually tested
Entity responsible for marking this declaration :
Manufacturer, Tamson Instruments bv, van 't Hoffstraat 12, Bleiswijk The Netherlands,
Name : R.C. van Hall
Function : Director
Date : January, 2013
Version : 1.02
Tamson Instruments bv
Page 18/18
VAT: NL 80 66 34 984 B01
Bank account no.:
NL28 INGB 0007 350 370
NL95 RABO 0160100046
Chamber of commerce 27 16 95 41
Van ’t Hoffstraat 12
2665 JL Bleiswijk, The Netherlands
T. 31 (0) 10 522 43 73
TVS Man.docx Rev. 1.04UK 0518
ISO 9001 : 2015
NL/PRO 238239125
17 Disclaimer
Information given herein is offered in good faith as
accurate, but without guarantee. Conditions of use and
suitability of the product for particular uses are beyond
our control; all risks of use of the product are therefore
assumed by the user.
We expressly disclaim all warranties of every kind
and nature, including warranties of merchantability
and fitness for a particular purpose in respect to the
use or suitability of the product.
Nothing is intended as a recommendation for uses which
infringe valid patents or as extending license under valid
patents. Appropriate warnings and safe handling
procedures should be provided to handlers and users.
Alteration of this document is strictly prohibited. Except
to the extent required by law, republication or
retransmission of this document, in whole or in part, is
not permitted. Tamson Instruments bv assume no
responsibility for accuracy of information. Tamson
Instruments neither represent nor warrant that the
format, content or product formulas contained in this
document comply with the laws of any other country
except the Netherlands.
Tamson Instruments bv, All rights reserved.
Table of contents
