Polaris Sportsman 9922237 User manual

A card containing important ATV safety information should be
attached to the owner's manual on the next page. If you cannot
locate this card, or if it has been removed, please call 1-800-342-
3764 for assistance.
WARNING
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.

The text is printed on 100% recycled
with 40% post-consumer waste (PCW).

For your nearest Polaris dealer,
call 1-800-POLARIS
or visit www.polarisindustries.com
Polaris Sales Inc., 2100 Hwy 55
Medina, MN 55340
Phone [phone]
Part No. 9922237 Rev 02
Printed in USA
WARNING
Improper vehicle use can result in SEVERE INJURY or DEATH.
LOCATE AND READ OWNER'S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
ALWAYS USE
AN APPROVED
HELMET AND
PROTECTIVE GEAR
FOR DRIVER
AND PASSENGER
NEVER USE
ON PUBLIC
ROADS
NEVER CARRY
MORE THAN
1 PASSENGER
NEVER USE
WITH DRUGS
OR ALCOHOL
without proper ATV training or instruction
at speeds too fast for your skills or the conditions
on public roads - a collision can occur with another vehicle
with a passenger unless passenger seat is securely in place
THE OPERATOR MUST ALWAYS:
use proper riding techniques to avoid vehicle overturns on hills
and rough terrain and in turns
avoid paved surfaces - pavement may seriously affect handling
and control
reduce speed and use extra caution at all times when carrying a
passenger - dismount passenger when conditions require
make sure passenger reads and understands this label and
passenger safety label

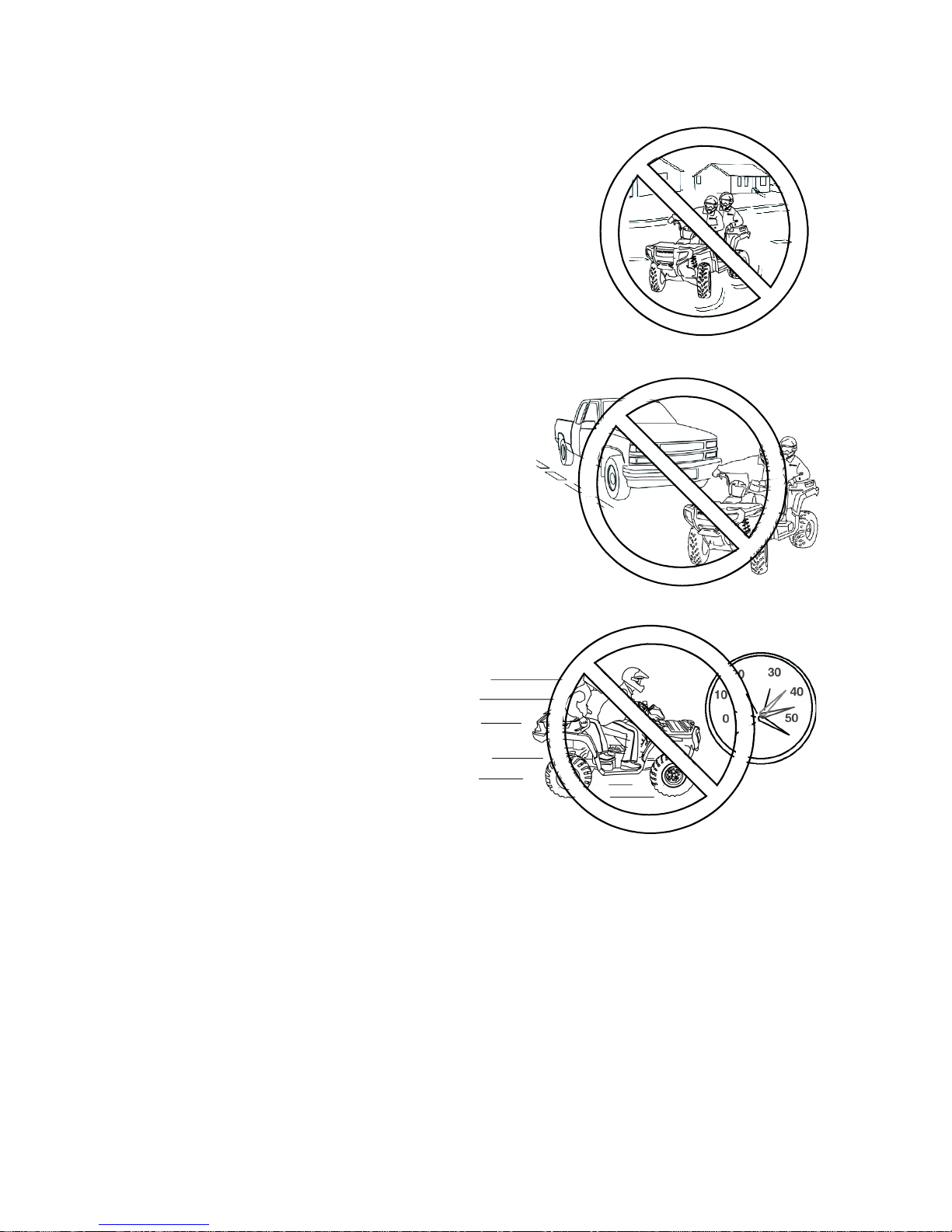

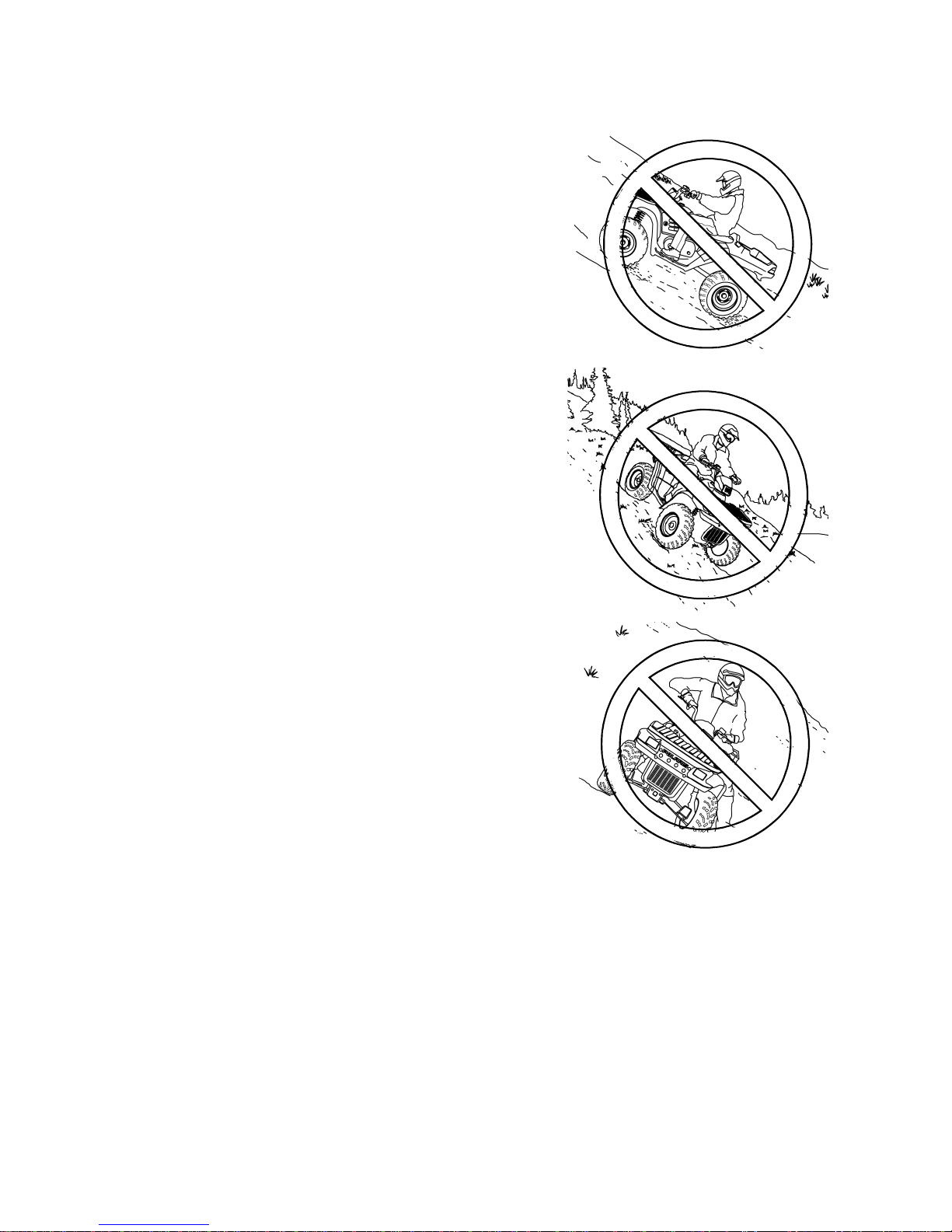

NEVER operate:
P
an
t
one
426C

1
WELCOME
Thank you for purchasing a Polaris vehicle, and welcome to our world-
wide family of Polaris owners. We proudly produce an exciting line of
utility and recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
•RANGER®utility vehicles
• Victory Motorcycles®
We believe Polaris sets a standard of excellence for all utility and recre-
ational vehicles manufactured in the world today. Many years of experi-
ence have gone into the engineering, design, and development of your
Polaris vehicle, making it the finest machine we’ve ever produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual
contains instructions for minor maintenance, but information about
major repairs is outlined in the Polaris Service Manual and should be
performed only by a factory certified Master Service Dealer®(MSD)
technician.
Your Polaris dealer knows your vehicle best and is interested in your
total satisfaction. Be sure to return to your dealership for all of your ser-
vice needs during, and after, the warranty period.
We also take great pride in our complete line of apparel, parts and acces-
sories, available through our online store at www.purepolaris.com. Have
your accessories and clothing delivered right to your door!

2
POLARIS, THE WAY OUT and SPORTSMAN are registered trademarks of Polaris
Industries Inc.
Copyright 2009 Polaris Sales Inc. All information contained within this publication is
based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor discrep-
ancies may result between the actual vehicle and the information presented in this publi-
cation. Depictions and/or procedures in this publication are intended for reference use
only. No liability can be accepted for omissions or inaccuracies. Any reprinting or reuse
of the depictions and/or procedures contained within, whether whole or in part, is
expressly prohibited.
Printed in U.S.A.
2010 SPORTSMAN Touring 500 HO Owner’s Manual
P/N 9922237

3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features and Controls . . . . . . . . . . . . . . . . . . . 26
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Emission Control Systems . . . . . . . . . . . . . . . 66
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 120
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 124
Polaris Products. . . . . . . . . . . . . . . . . . . . . . . 126
Declaration of Conformity . . . . . . . . . . . . . . . 127
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 136
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

4
INTRODUCTION
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and sym-
bols are used. Become familiar with their meanings before reading the
manual.
The safety alert symbol indicates a potential personal injury hazard.
WARNING
A WARNING indicates a hazardous situation which, if not avoided, may result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation which, if not avoided, may result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that may result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.

5
INTRODUCTION
Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. A Polaris ATV is not a toy and can be
hazardous to operate. This vehicle handles differently than other vehicles, such
as motorcycles and cars. A collision or rollover can occur quickly, even during
routine maneuvers like turning, or driving on hills or over obstacles, if you fail to
take proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating a Polaris ATV. Keep this manual with
the ATV.
• Never operate an ATV without proper instruction. Take a training course.
• This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone
under 16 years of age.
• Never permit a guest to operate the ATV unless the guest has read this
manual and all product labels and has completed a certified safety training
course.
WARNING

6
INTRODUCTION
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a Polaris key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Frame VIN: ____________________________________________________________
Engine Serial Number: ___________________________________________________
Key Number: ___________________________________________________________
####
VIN
Engine Serial Number
Key Number

7
SAFETY
Safety Training
ATV safety training is a top priority for Polaris. Polaris strongly
encourages you and any family members who will be riding the ATV to
take a training course.
If you purchased a new Polaris ATV in the United States, your dealer
provided instruction to you about the authorized ATV RiderCoursesm
that is available to you and your eligible family members. This training
is included in the purchase price of your ATV. You were also provided
with printed materials that explain safe operating procedures. You
should review this information on a regular basis.
If you purchased a used Polaris ATV in the United States, you can enroll
in the ATV RiderCoursesm for a fee. Call ATV Enrollment Express at
[phone] or visit www.atvsafety.org.
If you purchased a Polaris ATV outside the United States, please contact
your dealer or local law enforcement agencies for information about
safety training.
A Polaris ATV is an off-road vehicle. Familiarize yourself with all laws
and regulations concerning the operation of this vehicle in your area.
We strongly advise you to strictly follow the recommended maintenance
program outlined in your owner's manual. This preventive maintenance
program is designed to ensure that all critical components on your vehi-
cle are thoroughly inspected at specific intervals.
FOR MORE INFORMATION ABOUT ATV SAFETY in the United
States, call the Consumer Product Safety Commission at 1-800-
638-2772, or visit www.cpsc.gov, visit www.atvsafety.org, or call
Polaris at 1-800-342-3764.

8
SAFETY
Safe Riding Gear
Always wear appropriate clothing when riding an ATV. Wear protective
clothing for comfort and to reduce the chance of injury.
Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding a
Polaris vehicle, always wear a helmet that meets or exceeds established
safety standards.
Approved helmets in the USA and Canada bear a U.S. Department of
Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.
Helmet
Eye Protection
Gloves
Boots
Long Pants
Long
Sleeves
E
4
051039
0006.31

9
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection. When-
ever riding a Polaris vehicle, always wear shatterproof goggles or use a
shatterproof helmet face shield. Polaris recommends wearing approved
Personal Protective Equipment (PPE) bearing markings such as VESC
8, V-8, Z87.1, or CE. Make sure protective eye wear is kept clean.
Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
Boots
The best footwear is a pair of sturdy over-the-calf boots with low heels.
Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide the
best protection.
Equipment Modifications
We strongly recommend that consumers do not install on a Polaris ATV
any equipment that may increase the speed or power of the vehicle, or
make any other modifications to the vehicle for these purposes.
The warranty on your Polaris ATV is terminated if any equipment has
been added to the vehicle, or if any modifications have been made to the
vehicle, that increase its speed or power.
The addition of certain accessories, including (but not limited to) mow-
ers, blades, tires, sprayers, or large racks, may change the handling char-
acteristics of the vehicle. Use only Polaris-approved accessories, and
familiarize yourself with their function and effect on the vehicle.

10
SAFETY
Safety Warnings
Failure to operate the ATV properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the OPERATION
section of the owner’s manual for proper operating procedures.
Operating Without Instruction
Operating this ATV without proper instruction
increases the risk of an accident. The operator
must understand how to operate the ATV properly
in different situations and on different types of
terrain.
Beginning and inexperienced operators should
complete the recommended safety training before
operating this vehicle. See page 7.
Never permit a guest to operate the ATV unless the
guest has read this manual and all product labels
and has completed a certified safety training
course.
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone
under 16 years of age. Never allow anyone under 12 years of age to ride as a
passenger on this 2-up ATV.
Even though a child may be within the recommended age group for operating
some ATVs, he/she may not have the skills, abilities, or judgment needed to
operate or ride on this ATV safely and could be susceptible to accident or injury.
WARNING

11
SAFETY
Safety Warnings
Handling Gasoline
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always refuel with the engine stopped, and outdoors or in a well ventilated
area.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
• Turn the fuel valve off whenever the vehicle is stored or parked.
Exposure to Exhaust
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
The engine exhaust from this product contains chemicals known to cause
cancer, birth defects or other reproductive harm. Operate this vehicle only
outdoors or in well-ventilated areas.
Failure to Inspect Before Operating
Failure to inspect and verify that the ATV is in safe
operating condition before operating increases the
risk of an accident.
Always inspect the ATV before each use to make
sure it's in safe operating condition.
Always follow all inspection and maintenance
procedures and schedules described in the
owner's manual.

12
SAFETY
Safety Warnings
Protective Apparel
Riding in this vehicle without wearing an
approved helmet and protective eyewear
increases the risk of a serious injuries in the
event of an accident.
Operator and passenger must always wear an
approved helmet that fits properly and eye
protection (goggles or face shield).
Carrying a Passenger
Do not carry a passenger until you have at
least two hours of driving experience with this vehicle.
Carrying More Than One
Passenger
Carrying more than one passenger greatly
reduces the operator's ability to balance and
control the ATV, which may result in an
accident or overturn.
Never carry more than one passenger on this
2-up ATV.
Using Alcohol or Drugs
Operating the ATV after consuming alcohol or
drugs could adversely affect operator
judgment, reaction time, balance and
perception.
Never consume alcohol or drugs before or
while operating an ATV.

13
SAFETY
Safety Warnings
Operating on Pavement
Operating an ATV on paved surfaces
(including sidewalks, paths, parking lots and
driveways) may adversely affect the
handling of the ATV and could result in loss
of control and accident or overturn.
Avoid operating the ATV on pavement. ATV
tires are designed for off-road use. If it's
unavoidable, travel slowly and avoid sudden
turns or stops.
Operating on Public Roads
Operating this ATV on public streets, roads
or highways could result in a collision with
another vehicle.
Never operate the ATV on any public street,
road or highway, including dirt and gravel
roads. In many states it's unlawful to
operate ATVs on public streets, roads and
highways.
Operating at Excessive
Speeds
Operating the ATV at excessive
speeds increases the operator's risk
of losing control.
Never operate at excessive speeds.
Travel at speeds appropriate for
your skills, your passenger's skills,
and operating conditions.

14
SAFETY
Safety Warnings
Physical Control of the ATV
Removing even one hand or foot can reduce
ability to control the vehicle or could cause loss
of balance and ejection from the ATV.
If a person's feet are not firmly planted on the
footrests, they could come into contact with the
wheels or other moving parts and lead to
accident or injury.
Always keep both hands on the handlebars
and both feet on the footrests of the ATV during
operation. A passenger should always be
seated in the passenger seat with both feet on the footrests and both hands on
the passenger grab handles at all times. The passenger should never hold on to
the operator.
Turning Improperly
Turning improperly could cause loss of
traction, loss of control, accident or
overturn.
Always follow proper procedures for
turning as described in the owner's
manual.
Practice turning at slow speeds before
attempting to turn at faster speeds.
Never turn at excessive speed.
Jumps and Stunts
Attempting wheelies, jumps and other
stunts increases the risk of an accident or
overturn.
Never attempt wheelies, jumps, or other
stunts. Avoid exhibition driving.

15
SAFETY
Safety Warnings
Improper Hill Climbing
Improper hill climbing could cause loss of
control or overturn. Always follow proper
procedures for climbing hills as described in the
owner's manual. See page 54.
Descending Hills Improperly
Improperly descending a hill could cause loss of
control or overturn.
Always follow proper procedures for traveling
down hills as described in the owner's manual.
See page 58.
Crossing Hillsides
Driving on a sidehill is not recommended.
Improper procedure could cause loss of control
or overturn. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a hillside is unavoidable, always
follow proper procedures as described in the
owner's manual. See page 55.
Never attempt to turn the ATV around on any
hill until you've mastered the turning technique
(on level ground) as described in the owner's
manual. See page 56.

16
SAFETY
Safety Warnings
Stalling While Climbing a Hill
Stalling, rolling backwards or improperly
dismounting while climbing a hill could cause
an overturn.
• Always maintain a steady speed when
climbing a hill.
If all forward speed is lost:
• Lean forward to keep body weight uphill. A
passenger should also lean uphill.
• Apply the single lever brakes.
• Lock the parking brake when fully stopped.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill. Have a passenger dismount first, then the operator
may dismount.
• Turn the ATV around and remount, following the procedure described in the
owner's manual. See page 56.
If the ATV begins rolling backwards:
• Keep operator and passenger body weight uphill.
• Never apply engine power.
• Never apply the rear brake while rolling backwards.
• Apply the single-lever brake gradually.
• When fully stopped, apply the foot brake as well, and then lock the parking
brake.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill. Have a passenger dismount first, then the operator
may dismount.
• Turn the ATV around and remount, following the procedure described in the
owner's manual. See page 56.
Operating on Steep Hills
Operating on excessively steep hills could
cause an overturn.
Never operate on hills too steep for the ATV or
for your abilities. Never operate the ATV on
hills steeper than 15 degrees.
>15°
