Polin Stratos User manual

OVEN LINE

STRATOS

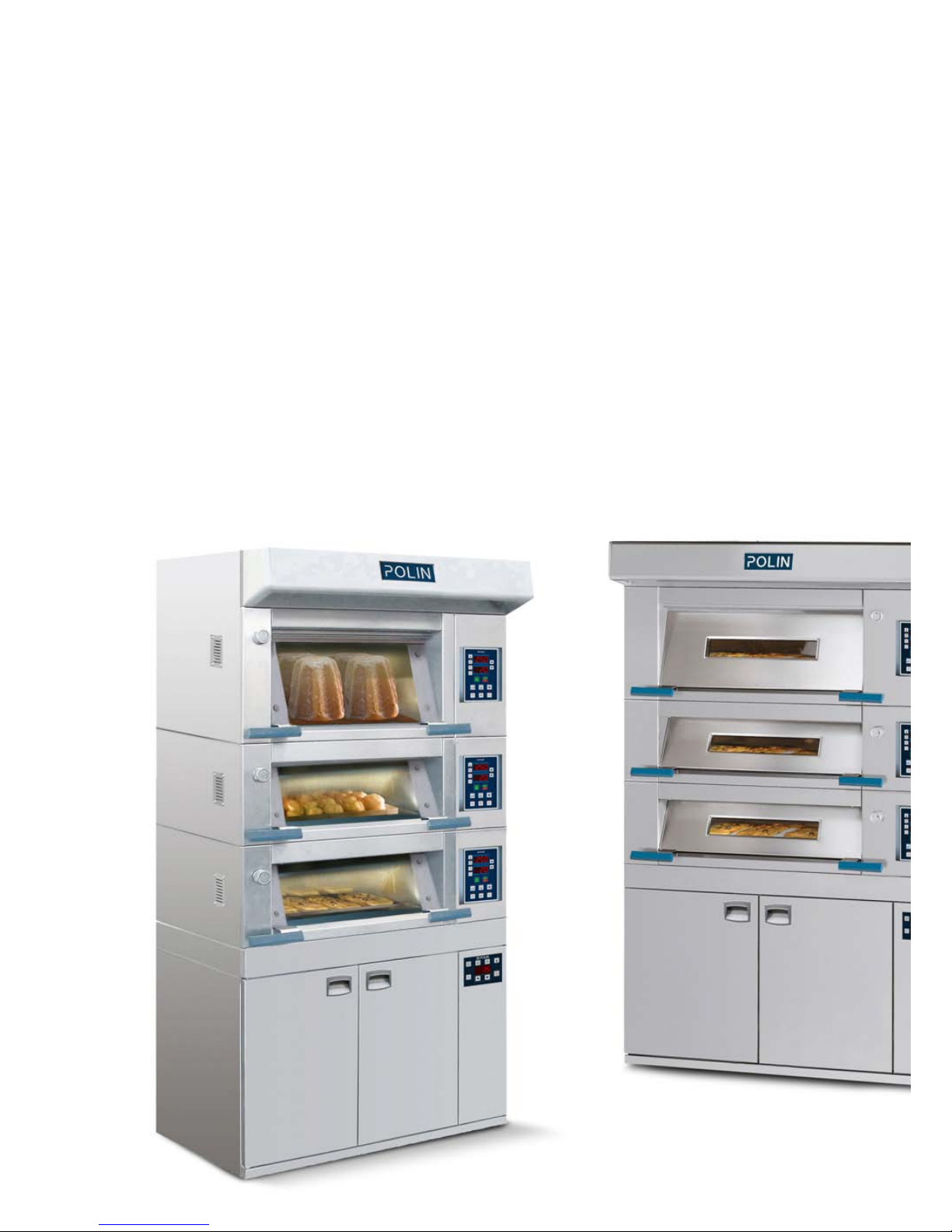

Stratos modular electric oven for pizza,

pastry and bread

Stratos Crystal

Stratos Classic

The modular

electric baking

system that

meets your

needs

Stratos originates from the idea of creating an elec-

tric oven perfectly adaptable to clients’ needs.

Maximum versatility, great energy efficiency and co-

oking perfection, make it ideal for bakeries, pastry

shops and pizzerias that need high flexibility in pro-

duction. Stratos also allows you to highly personali-

se its look. There are four versions:

•CRYSTAL with doors in screen-printed tempered

glass

•BLACK with doors in tempered glass and Black

Design face

•CLASSIC with insulated doors in stainless steel

• OLD STYLE with AISI 304 steel face electro-

chemically painted black and inserts in aged brass

and analogical thermostats. 3 decks oven, height

18 cm, models STA and 4ST.

A stainless steel proofer can be combined with the

oven, which can be equipped with a humidity con-

trol kit.

Stratos Black

Stratos Old Style

Mod. 2STA - 4 ST

The Stratos Old Style version with aged

brass inserts and mechanical thermostats.

Maximum

efficiency

and

reliability

Major heat insulation (160 mm)

The insulation efficiency is at the category’s maxi-

mum levels thanks to the use of combined insulating

materials and a middle layer of rock wool 160 mm

thick (except model 2STL 6040).

Great reliability over time

Many of the design and construction features are

designed to minimise the need for maintenance and

to ensure high reliability in the time.

Some of these are:

•Electrical panel and connections are positioned

away from the hotter spots and steam vents

•Highly durable resistors

•Safety thermostats for the protection of Decks

and the steam generators in case of malfunction

Stratos 3STA Classic

Wind 4060/5

Stratos 2STL Classic

Wind 6040/5

What are the secrets

of gentle and

uniform baking?

The heat generated by the resistors of a traditional electric oven.

The uniform heat created by the resistors of Stratos.

Asystemthatdiffusesasoftanduni-

formheatintheDeck

In traditional ovens, resistors are often too few and

too spaced out from each other. This forces them

to work at very high temperatures to provide the

necessary heat to the product, risking harsh and

non-uniform cooking.

In Stratos the problem has been solved with a lar-

ger number of special steel armoured heating resi-

stors, placed in close proximity. The power is there-

fore distributed and generates a softer, widespread

and readily available heat.

Independentcontrolofresistorinthe

opening(AutoLevel)

In traditional electric ovens losses from the do-

ors are usually offset merely by a simple reinforce-

ment of front resistors that, however, does not al-

low the correction of any cooking non-uniformity.

Stratos, on the other hand, is equipped with two

electric elements for top and bottom, adjustable

independently, to have a dynamic control (automa-

tic) of the temperature through an additional probe

Independent control of top/bottom

control(DualLevel)

Stratos is equipped of an independent device to

adjust the temperature of the baking chamber top

and bottom (deck) with thermostats.

Set Temperature

Thermostat switched off

Thermostat switched on

COMPETITOR'S OVEN

STRATOS

Temperatureconstant

thankstotheheatcontrolsystem

Normal temperature controls (thermostat always

on or always off) lead to an inevitable heat inertia,

resulting in a waste of energy and problems with

cooking.

Stratos oven is provided with a heat inertia control

system that makes it possible to reduce the surges

and maintain the set temperature more constant.

The digital keyboard on Stratos has Fine Bake Keys buttons, which allow you to act quickly and easily on

functions that perfect the quality of cooking.

Rapid control for

perfect baking

quality

Regulates the heating at

start-up standardising the first

baking cycle with subsequent

baking cycles. Also eliminates

energy waste.

Eliminates overheating of the

oven bottom and reduces up

to 18% energy consumption.

CONTROLLED

HEATING

BUTTON

PAUSEBUTTON

BETWEENTWO

COOKINGCYCLES

Baking Controls

Lets you set an optimal

amount of energy according

to the type of product to be

cooked.

ENERGYLEVEL

BUTTON

Polin experience at

the service of

functionality

Steam generator with high powered resistors

Doorsthatmakeworkeasier

The doors of the Stratos oven have an inward ope-

ning system that avoids accidental contact typical

of the tilting opening systems, during loading and

unloading. In this way you avoid unpleasant burns

and annoying obstructions.

The handles are functional for work and immune

from overheating because placed outside the ope-

ning and made of heat insulating material.

The door can be cleaned without the need to re-

move the glass, avoiding risks of breakage and

energy loss over time.

Controllable steam in abundance

Stratos steam generator is equipped with two hi-

ghly powerful ceramic resistors, capable of always

guaranteeing a generous amount of steam.

The steam generator (optional) has a large heating

element that is placed in the back of the Deck. It

has great insulation, as well as inspection fittings

and heads that are made in anticorrosion materials.

Embossed plate

Reinforced concrete plate

Fibro

cement plate

Refractory plate

Four different deck baking plates

Stratos ovens can have different deck baking pla-

tes, to be adapted to different needs. There are

four baking plates available:

•Embossed plate (standard): particularly suitable

for light pastries on trays

•Fiber cement: ideal for pastries and bread

•Reinforced concrete: thick plates ideal for heavy

products such as bread, buns and pizza mainly

on baking trays

•Refractory material: an alternative plate to rein-

forced concrete, ideal for direct cooking of piz-

zas and focaccia

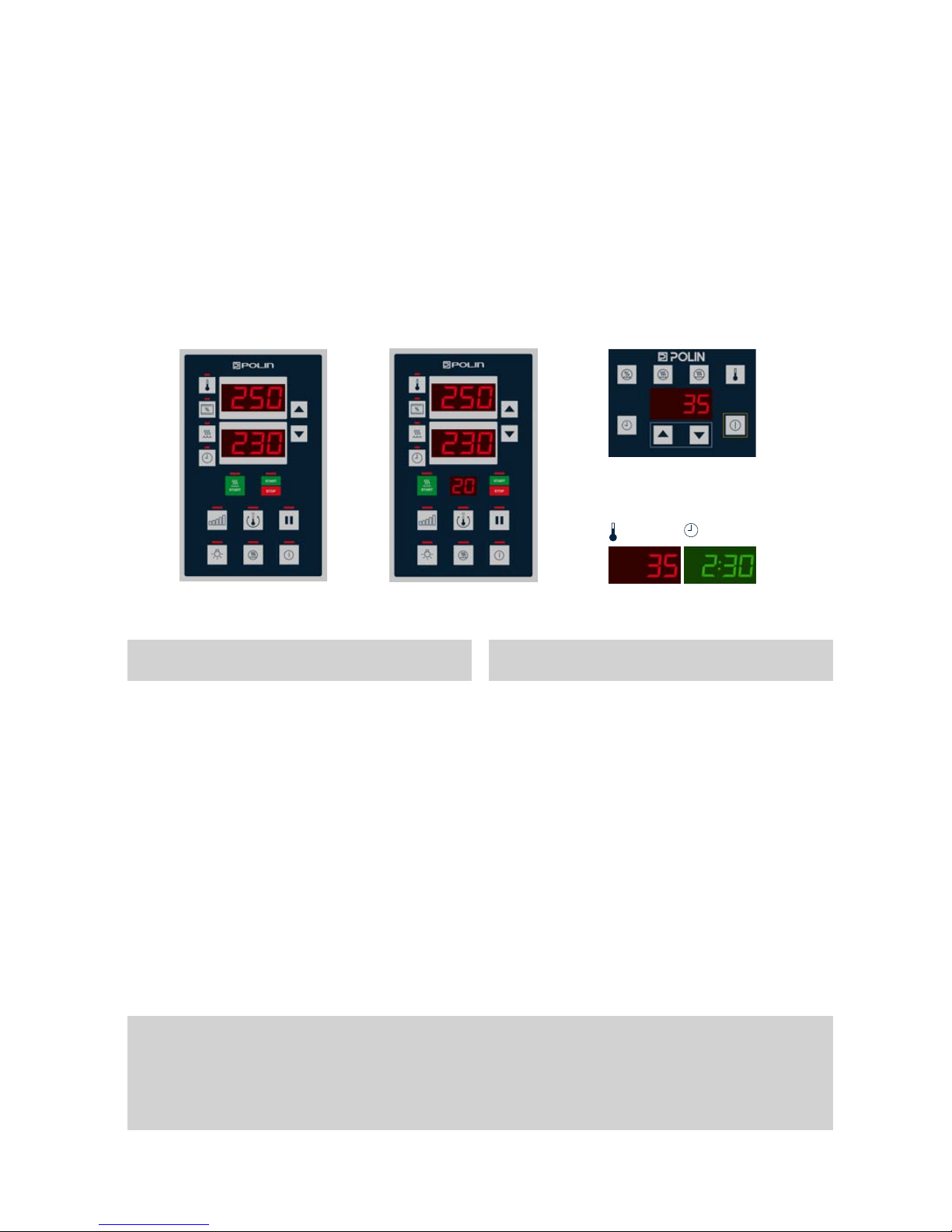

Standard Digital keyboard

00 program Digital keyboard

Temperatura Tempo

Temperature Time

Température Temps

Two coloured display cell

Proofer digital keyboard

To Bake as

you wish

Stratos allows you to choose among 6 different control settings top/bottom in order to meet your specific needs.

Cardoptions

•Power Saver, to limit the power required for the installation of ovens with 2 to 5 Decks

•Increased power for cooking pizzas and focaccia (Super Power)

•Dynamic control of the temperature control of the opening via probe (Auto Level)

•Regulation of humidity percentage inside the proofer

100ProgramDigitalkeyboard

All functions of the Standard keyboard

Manual - Automatic use setting

99 program memory.

Each program allows you to set:

3 temperature phases for each program (to go from one

temperature to another after a pre-set time).

The amount of steam dispensed automatically (steam

generator optional).

Open/close valve cycle aut. vapour discharge.

Splitting ratio between the top and the bottom.

Opening power adjustment.

Level of energy.

STANDARDDigitalkeyboard

Separate control of the Deck and opening (dispersion

offsetting in the opening)

Independent temperature top and bottom using a dou-

ble probe (Dual Level)

Splitter: allows you to assign different percentages of

power to the top and to the bottom for an infinite

variety of cooking types

Diagnostic program with display of the alarms and data

storage function, for a constant control of the oven's

efficiency

Switching on and off of steam generator with adjustable

steaming time (steam generator optional)

Timer with acoustic signal for end of cooking

Automatic turning on and off daily or weekly

Fine Bake Keys

•

•

•

•Dry air activated carbon steam

condenser

•Hooks in the opening for small

manual loader

•Internal coating in refractory

material

•Low emission doors with mirrored

glass to reduce heat loss (-15%)

•Prover humidity control kit

Configure the

oven for your

exact needs

Buildoptions

1. Hood without extractor function

2. Hood with extractor fan

3. Top element

4. Hood air condenser

5. Deck 18 cm glass door

6. Deck 22 cm glass door

7. Deck 30 cm glass door

8. Steam generator*

9. Deck 18 cm insulated door

10. Deck 30 cm insulated door

11. Lower element with pull out shelf

12. Lower element

13. Pan holding box

14. Base on adjustable feet*

15. Base on wheels*

16. Ventilated final proofer*

17. Base with side panels*

18. Pan holding rack*

19. Wheel kit for base/prover with side panels*

StandsAccessories

Upper ElementsBaking PlatesLower Elements

99999513802

2STA 4060

3STA 4060

3STA 4676

2STL 6040

6ST 40604ST 4060

2STA 4060

3STA 4060

3STA 4676

2STL 6040

6ST 40604ST 4060

ProBAKE, Inc.

2057 East Aurora Road - Twinsburg, OH 44087 -Tel. 330 425 4427 - Fax 330 425 9742 - www.probake.com -

[email protected]

CERTYQUALITY

É MEMBRO DELLA

FEDERAZIONE CISQ

UNI EN ISO 9001:2008

FEDCPLBA FEDCPLBA

Steam condenser hood

Capacità padelle

2 STL 6040 Cella - Proofer - Étuve

2 STA 4060 Cella - Proofer - Étuve

3 STA 4060 Cella - Proofer - Étuve

3 STA 4676 Cella - Proofer - Étuve

4 ST 4060 Cella - Proofer - Étuve

6 ST 4060 Cella - Proofer - Étuve

2 STL 6040

mmn° n° n° kW kW

2 STA 4060 / OLD

2 STA 4060 + OLD

3 STA 4060

3 STA 4676

4 ST 4060 / OLD

6 ST 4060

Capacità pizze Potenza

elettrica std Pot. el. max

(Super Power) Linea di

alimentazione

Ø28 Ø32

Pan capacity Pizza capacity Electrical power

standard

Power el. max

(Super Power)

Power

line

Capacité plaques Capacité pizzas Puissance

électrique std

Puissance él. max

(Super Power)

Ligne

d'alimentation

3STA 4060

3STA 4676

2STL 6040

6ST 40604ST 4060

2 STL 6040

1801902803208406201110980

2 STA 4060

1801902802506408309101320

3 STA 4060

18019028025064012409101730

3 STA 4676

180190280250800142010701910

4 ST 4060

180190280250124083015101320

400/3N~/50

230/1~/50

400/3N~/50

230/1~/50

400/3N~/50

230/1~/50

400/3N~/50

230/1~/50

400/3N~/50

230/1~/50

400/3N~/50

230/1~/50

400x600

600x400

400x600

1,6

16,2

1,6

13,1

1,6

7,3

1,6

7,4

1,6

6,5

1,6

9,2

1,6

7,2

1,6

8,5

1,6

4,2

1,6

4,4

1,6
