Politec Parvis Solar SMA User manual

Technical
manual

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
2
INDEX
1
MAIN COMPONENTS
Pag. 3
2
ASSEMBLING THE CABLE PIT
Pag. 4
POSITIONING THE CABLE PIT
Pag. 6
3
INSTALLING THE BASE
Pag. 8
4
PHOTOVOLTAIC PANEL ORIENTATION
Pag. 9
5
INSTALLATION SAMPLES
Pag. 10
6
OPTICAL CONFIGURATION
Pag. 11
OPTICAL TRANSMITTER
Pag. 11
OPTICAL RECEIVER
Pag. 12
7
SANDOR WS TX BOARD
Pag. 13
8

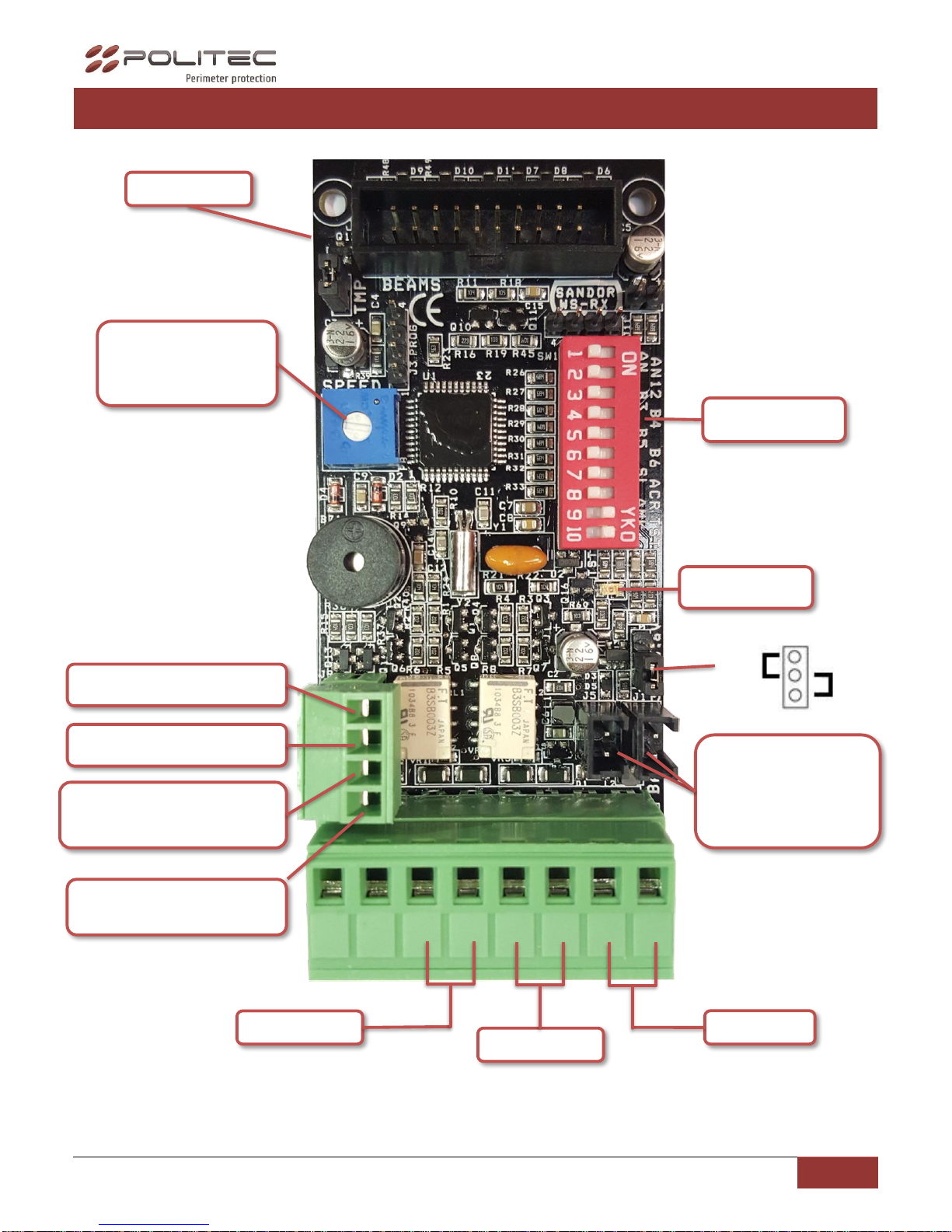

SANDOR WS RX BOARD
Pag. 14
9
SETTING AND FUNCTION
Pag. 15
DIP SWITCH DESCRIPTION
Pag. 15
10

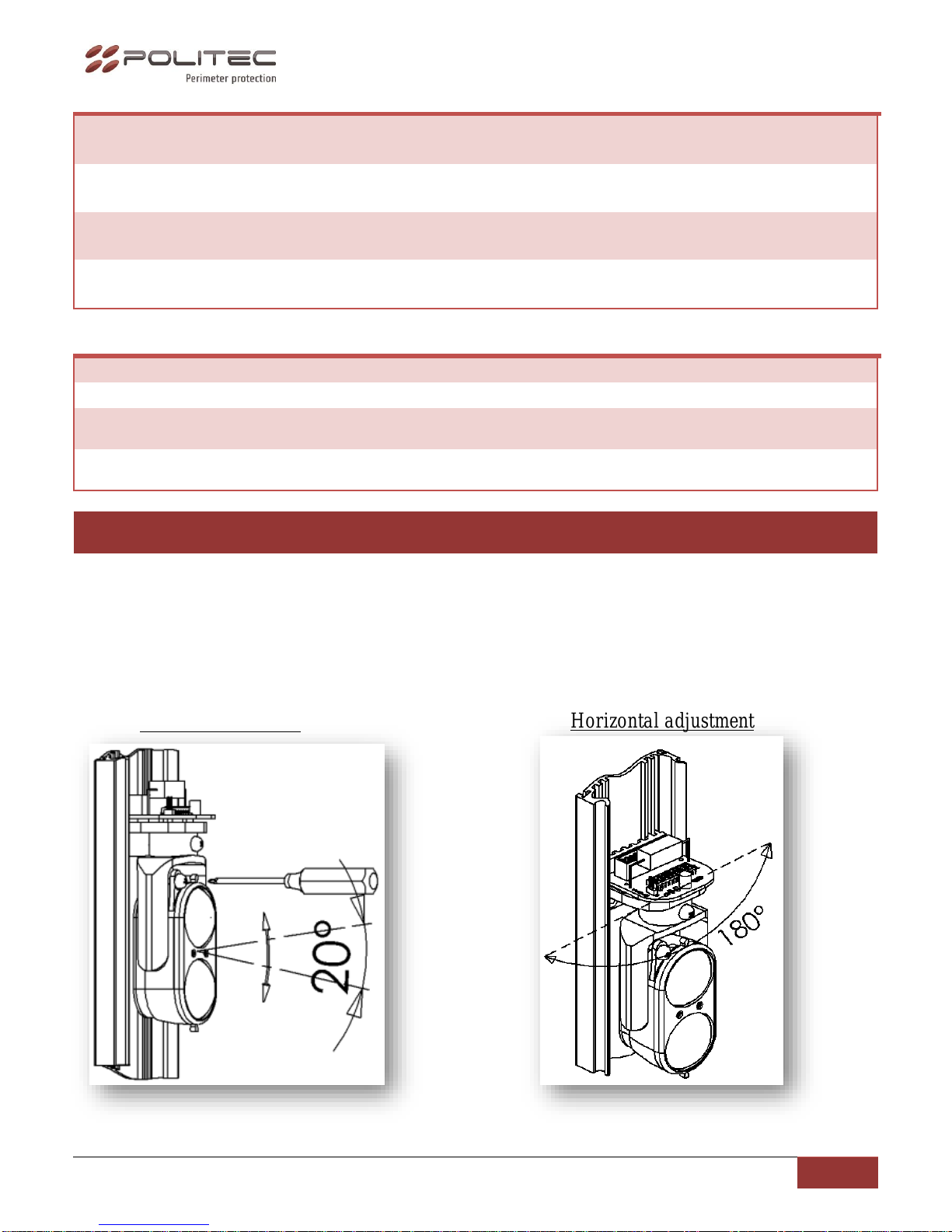

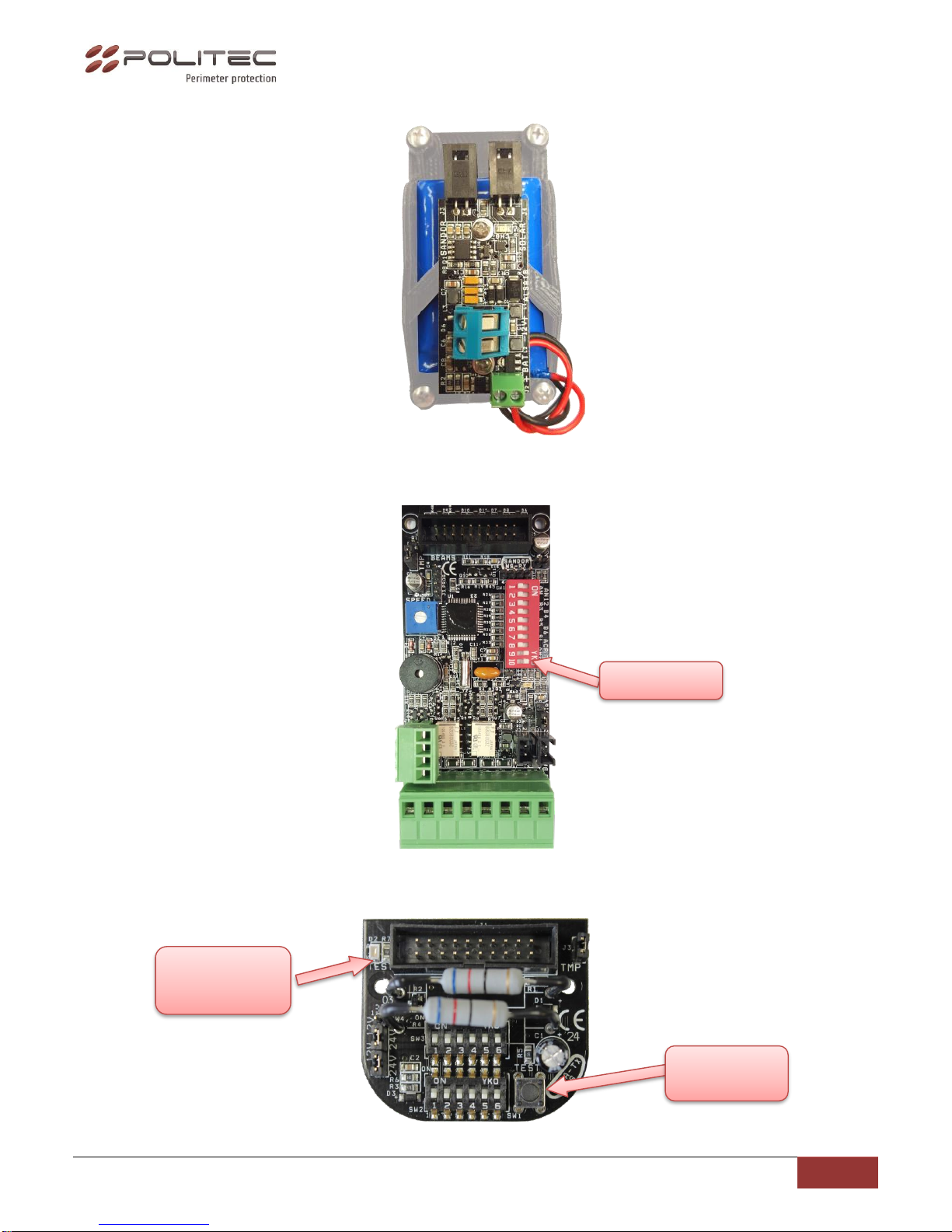

COLUMN ALIGNMENT
Pag. 17
11

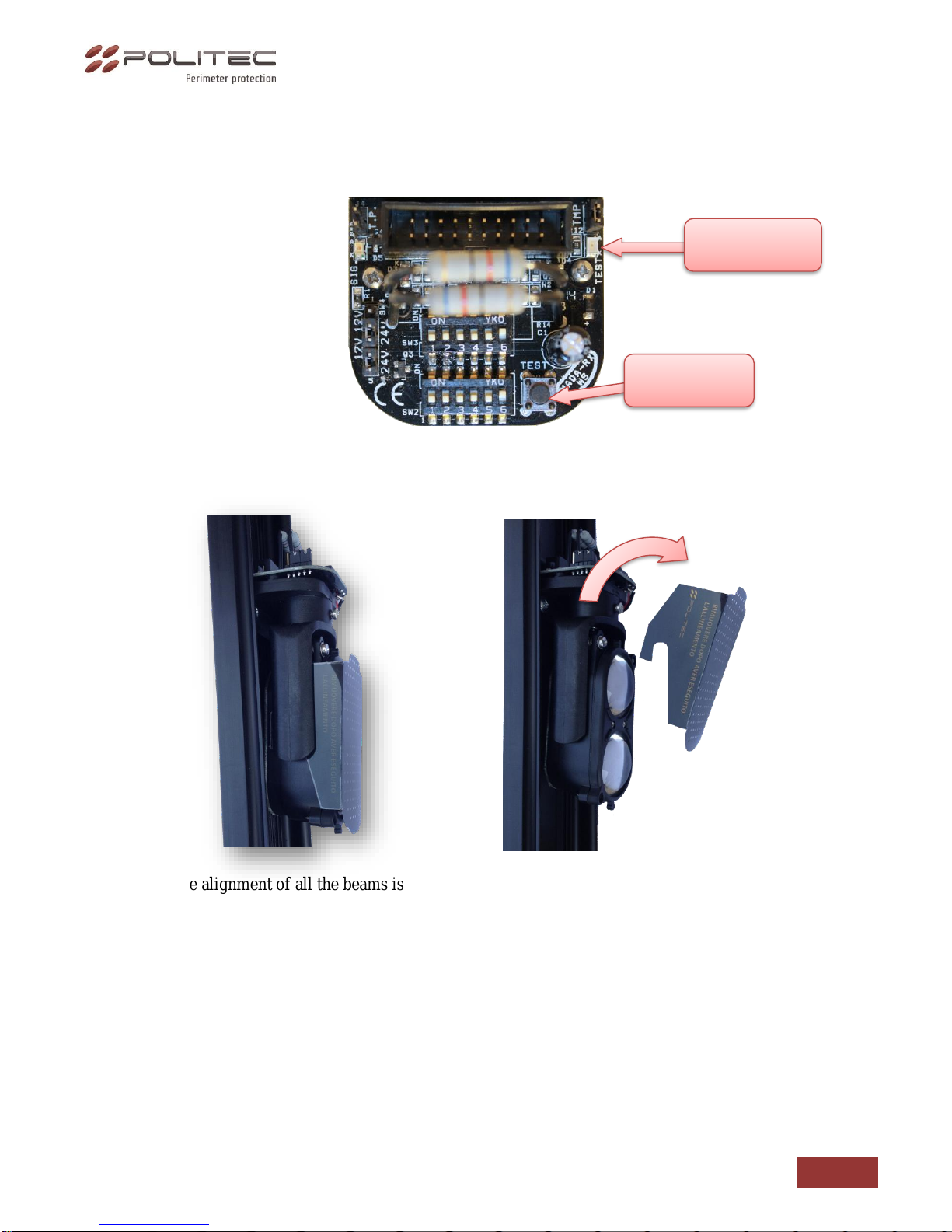

CALIBRATION WITH SMA SYSTEM
Pag. 18
12
PARALLEL BEAMS CALIBRATION
Pag. 22
13
ALARM SENSITIVITY ADJUSTMENT
Pag. 23
14
CABLES
Pag. 24
15
TECHNICAL CHARACTERISTICS
Pag. 25
Installation recommendation
Verify that the beam tower is fully watertight once the cover and end caps have been correctly filled at the
end of the installation.
Use the cable glands supplied on the tower for all cabling must pass through the lower end cap using the
cable glands supplied. The missed used of proper accessories decrease the IP grade protection of the
tower.
Avoid any type of obstruction between the transmitter and receiver.
Avoid installing the receivers beams in a position where direct sunlight, at the same angle as the receivers
beams, can enter directly into optics especially at sunset and sunrise
Do not install multiple beams where the transmitter beam can interfere with other receiver beams. It is
always better place either transmitter or receivers back to back.

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
3

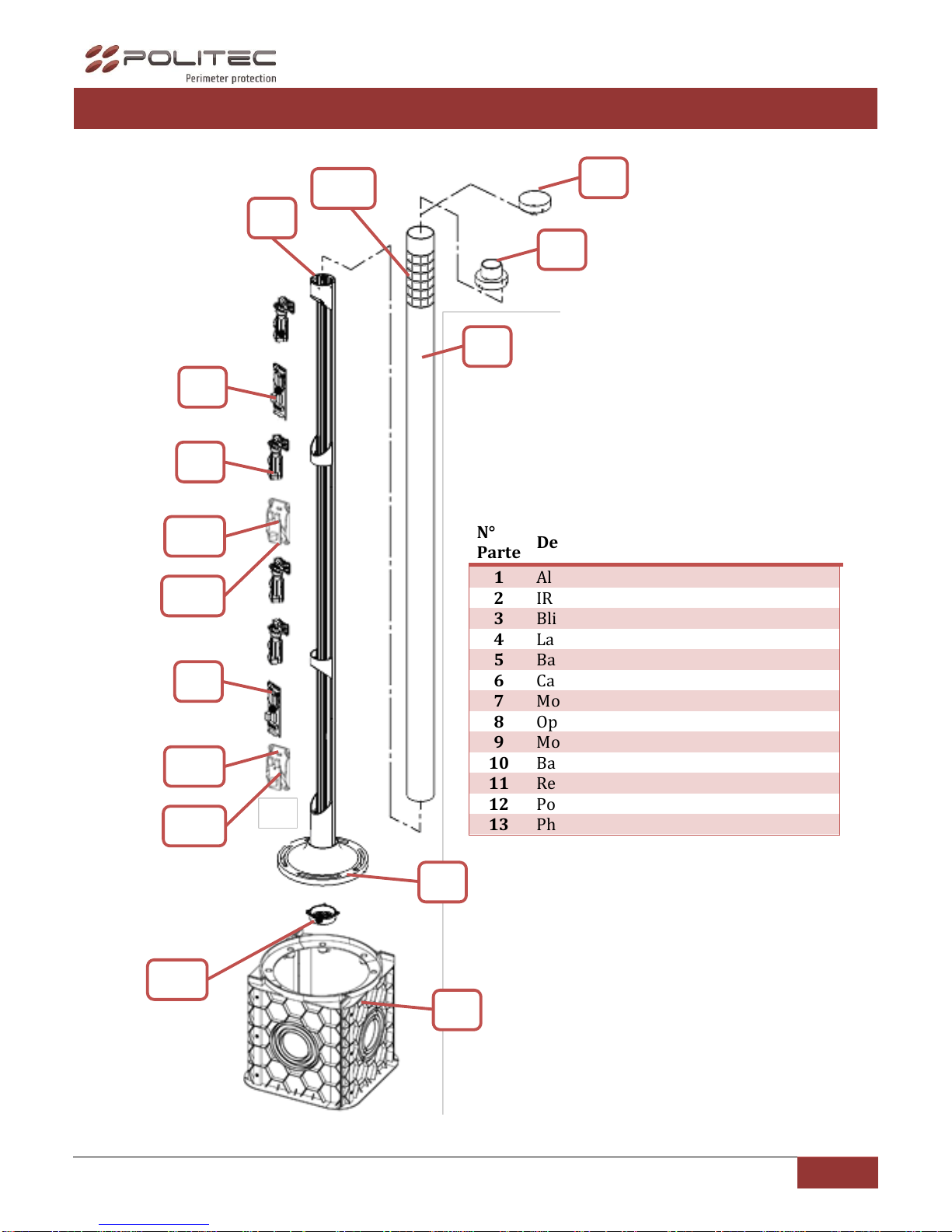

1MAIN COMPONENTS
N°
Parte
Descrizione
1
Aluminum bar
2
IR pipe
3
Blind cap
4
Lamp Adapter
5
Base
6
Cable Pit
7
Mother board TX
8
Opitical RX/TX
9
Mother board RX
10
Base cover (with cable glands)
11
Rechargeable battery 3.6V
12
Power Board 3.6 V
13
Photovoltaic Panel
13
2
1
3
4
5
11
9
7
8
10
6
12
11
12

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
4
2ASSEMBLING THE CABLE PIT
1. Match the highlighted edge in the slot into other section and fix with screws
2. Insert the third section in the same way and fix with screws.
3. Enlarge the walls to allow to join the last section of the cable pit.

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
5

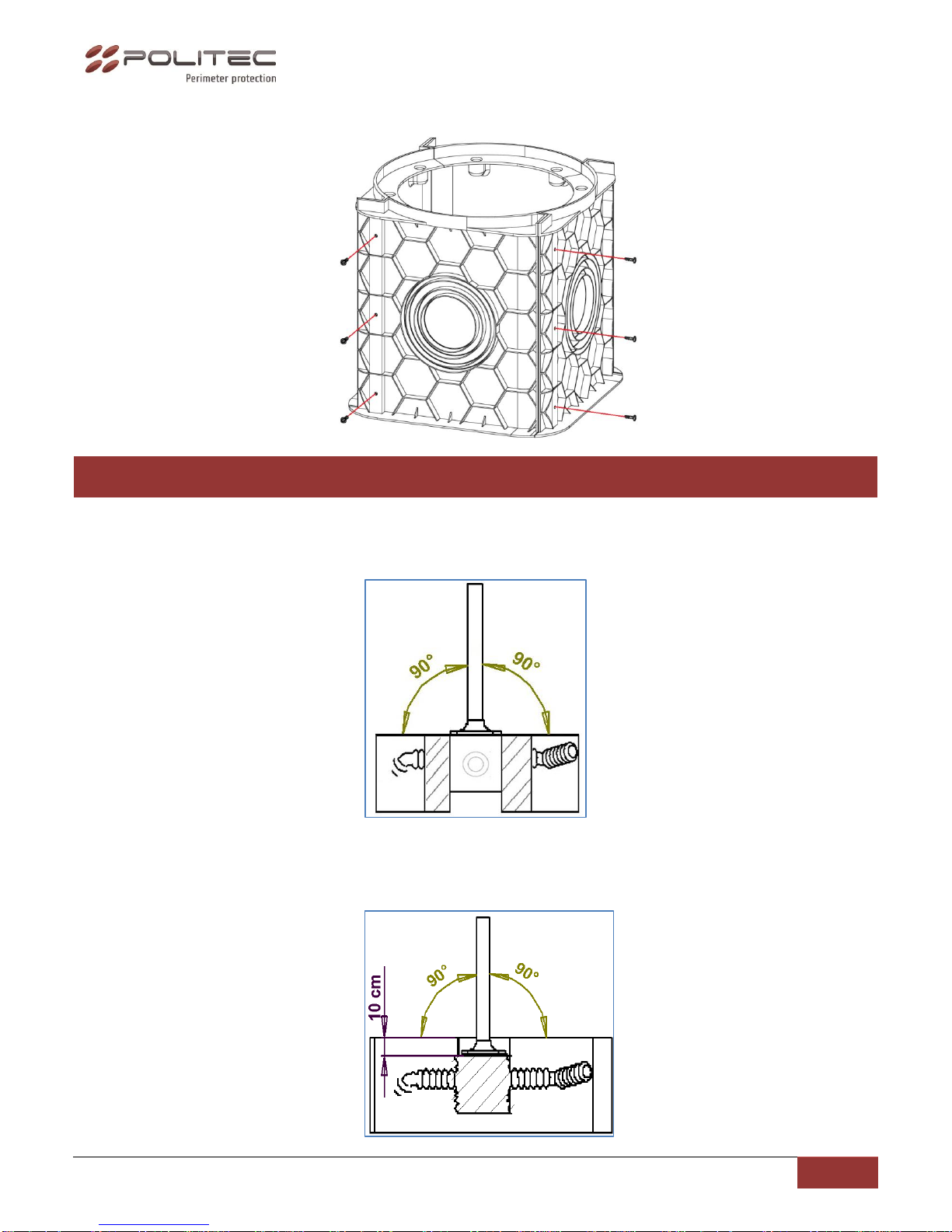

4. Insert and fix the screws in the other sides.
2.1 POSITIONING THE CABLE PIT
The placement of the cable pit for the columns PARVIS is made by concrete all around and not at the bottom,
keeping the top edge same level of ground
For columns PARVIS is possible to keep the top edge ten centimeters below the level of the ground so that it is
visible only the IR tube.
This type of placement is possible only when the cable pit is fixed directly into the ground and not in concrete
or pavement.

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
6
POSSIBLE CORRECTION OF THE INCORRECT
POSITIONING
Placement should be perpendicular to the ground. If the base is not in perfectly level, you can make small
adjustments through the regulation of the inserts in the cablepit.
Loosening the insert on the side to correct inclination you get the increase to the correct position
Wrong positioning.
Example of
setting.
Correct positioning by
adjusting inserts.

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
7

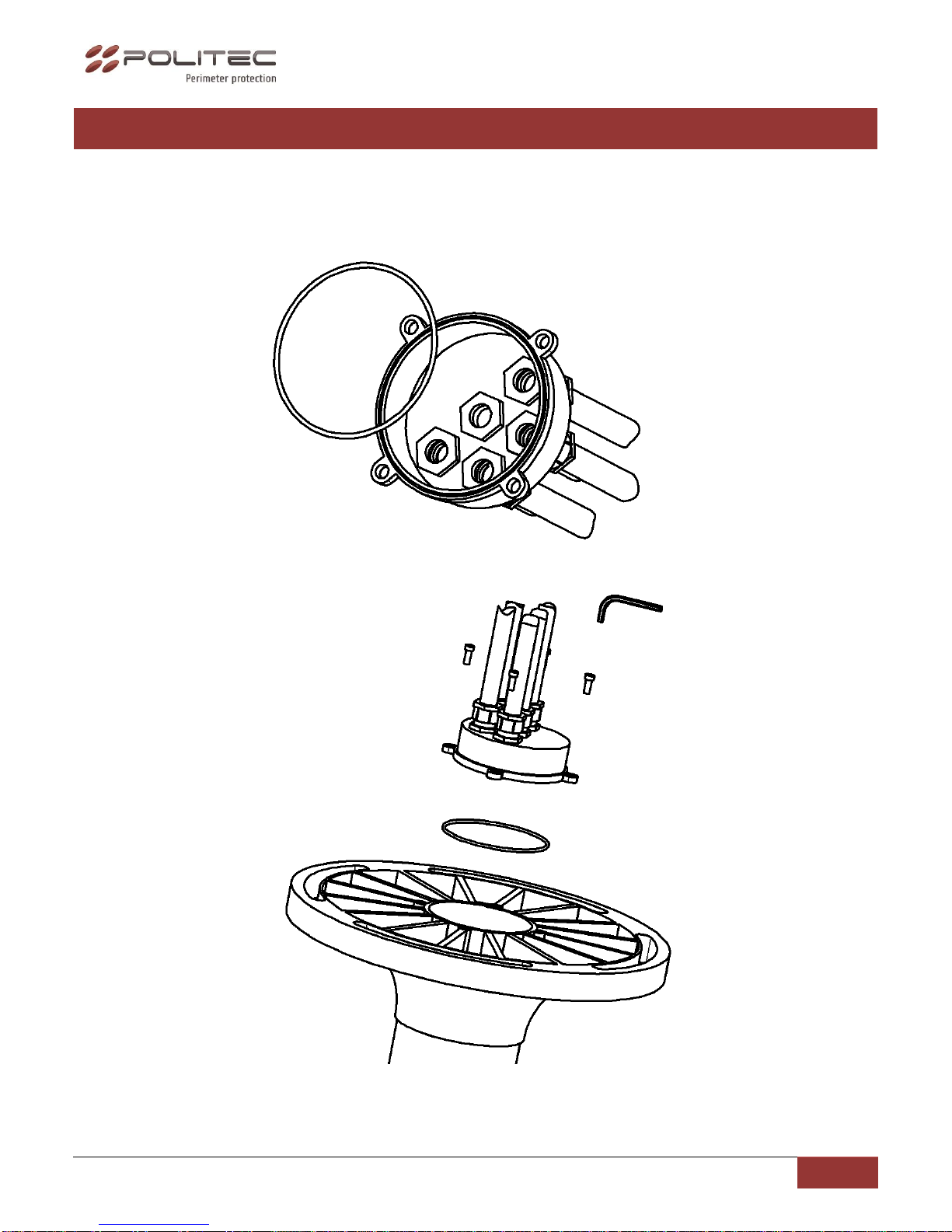

3INSTALLING THE BASE
Ensure that all the cabling to and from the Parvis beam passes through the supplied cable glands that should be
fitted to the base of the tower. Use the central cable gland for the pre-wired light cabling.
The base cover fitted with the cable glands
Once the cabling is completed the base cover has to be fixed to the base.

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
8
4PHOTOVOLTAIC PANEL ORIENTATION
Using screws of the cap you can rotate the plastic profile of 120 ° at a time to expose the solar panel as much as
possible in the midday sun.
You can make other minor corrections using the slots
FIXING SCREW
CAP
FIXING SCREW
BASE

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
9
5INSTALLATION SAMPLES
Standard perimeter protection:
N.B.: Don’t put all optical RX on the same column
4 BEAMS
Simple barrier
8 BEAMS
Single barrier
8 BEAMS
Crossed barrier

POLITEC s.r.l. | Parvis Solar Sma –Ver. 1.1
10

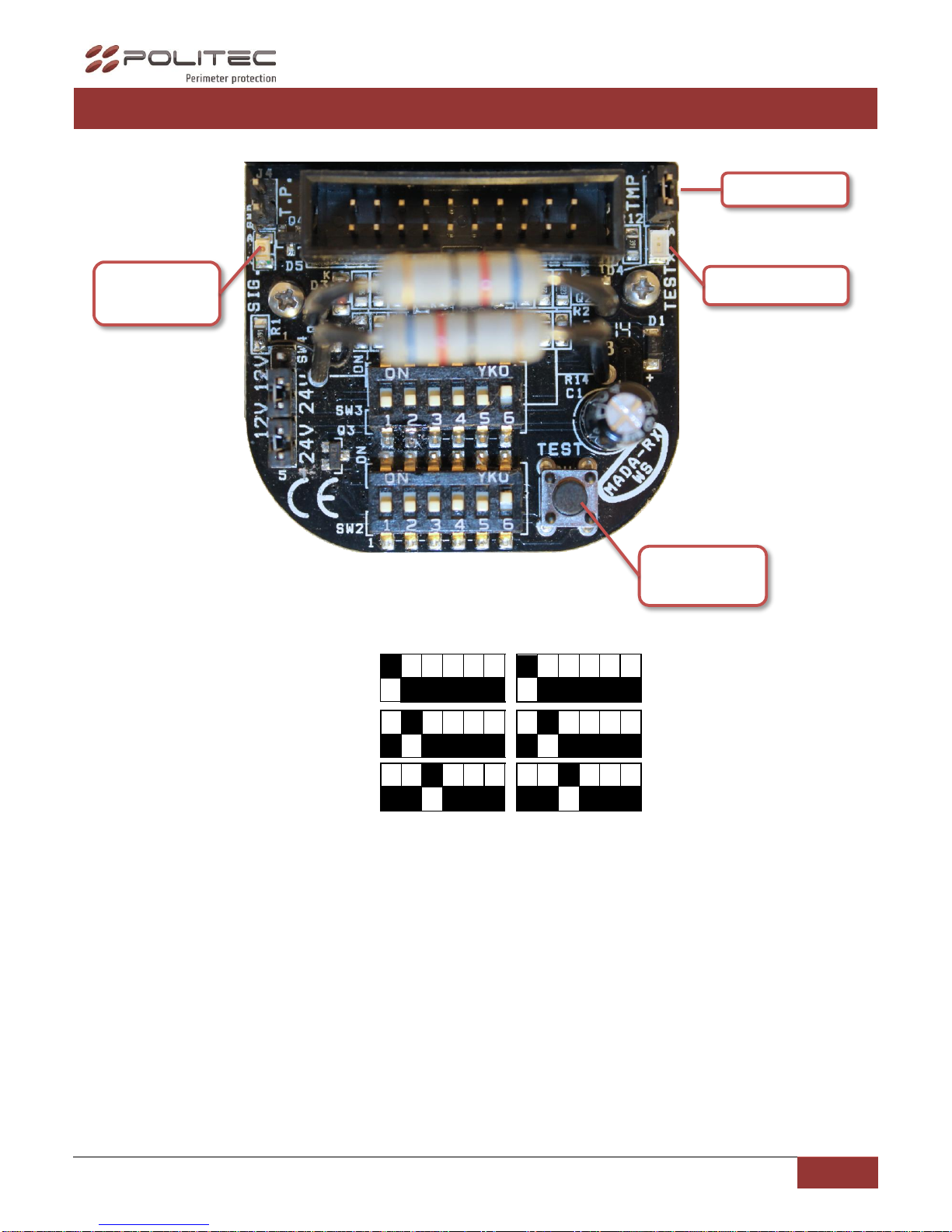

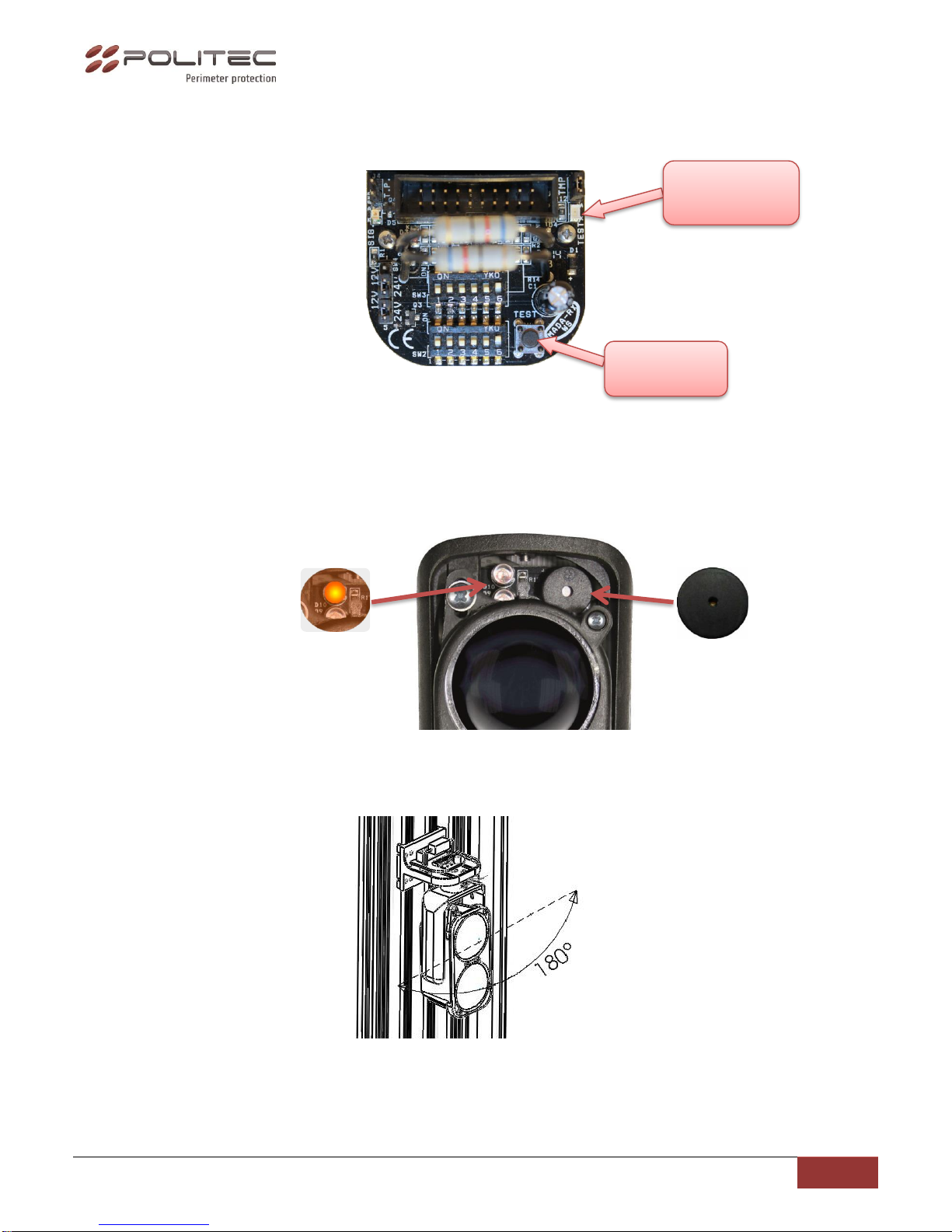

6OPTICAL CONFIGURATION
OPTICAL TRANSMITTER
NB: The address settings as per default .
1
2
3
4
5
6
1
2
3
4
5
6
TX1
TX2
TX3
TEST LED
TAMPER
TEST
BUTTON
