Polk Audio db351 User manual

Amplifier
Bass Blocker
Amplifier
Coaxial speaker
Figure 1
BASIC COAXIAL CONNECTION
Figure 2
BASS BLOCKER db351 WIRING CONNECTION
Amplifier
Mid-Woofer
Tweeter
Crossover
– +
Figure 3
BASIC COMPONENT CONNECTION
INSTALLING db5251& db6501

Figure 4
INSTALLING db351
ROUND MODEL
Figure 6
INSTALLING db461, db461p, db571,
OVAL MODELS
Figure 5
INSTALLING db401, db501, db521, db651,
db651s, db5251, db6501 ROUND MODELS

Remove bottom mount spacer
ring before installing grille.

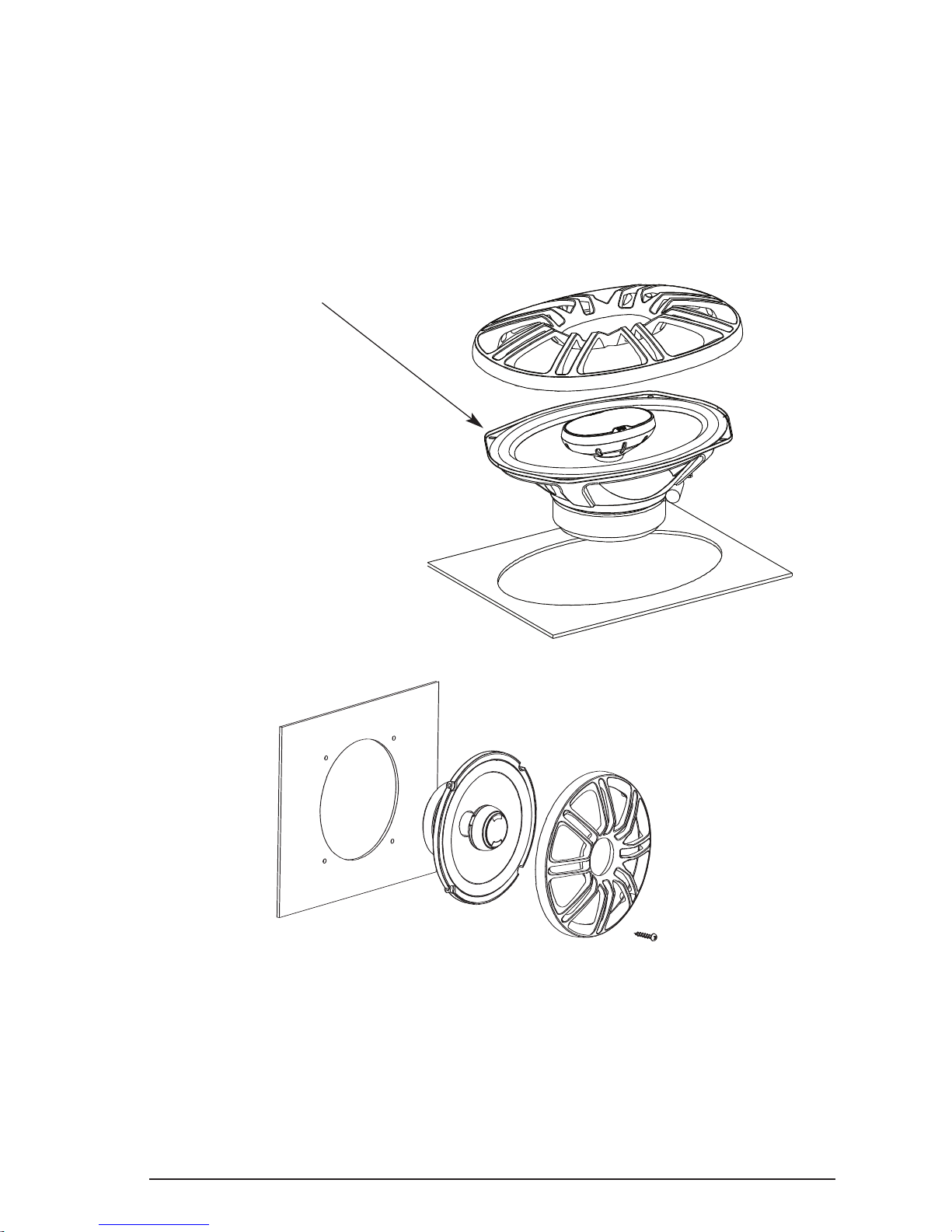

Figure 7
INSTALLING db691
OVAL MODEL WITH GRILLE
Figure 8
INSTALLING db401, db521, db5251,
ROUND MODELS WITH GRILLE

SPACER/ADAPTER BRACKET
(for db6501/db651
driver installation only)
Figure 9
INSTALLING db651s, db651& db6501
WITH GASKET AND GRILLE
Figure 10
INSTALLING db6501/db651 WITH GRILLE
Some applications may require using the
additional spacer/adapter bracket.

Figure 11
CROSSOVER MOUNTING
Allow for ventilation clearance.
Figure 12
TWEETER ATTENUATION SWITCH
A3-position switch (-3dB, 0dB, +3dB ) allows you
to adjust tweeter level for the tonal balance that's
right for your car and system.
Abbildung 12
HOCHTÖNERABSCHWÄCHUNGS-SCHALTER
Dieser Schalter mit 3 Positionen (-3 dB, 0 dB, +3 dB )
ermöglicht es Ihnen, den Hochtönerpegel auf den für
Ihr Auto und Ihr System richtigen Wert einzustellen.
Figure 13
TWEETER ATTENUATION WIRE LOOP
Cut this wire to reduce tweeter level 3dB.

DB6501 & DB5251

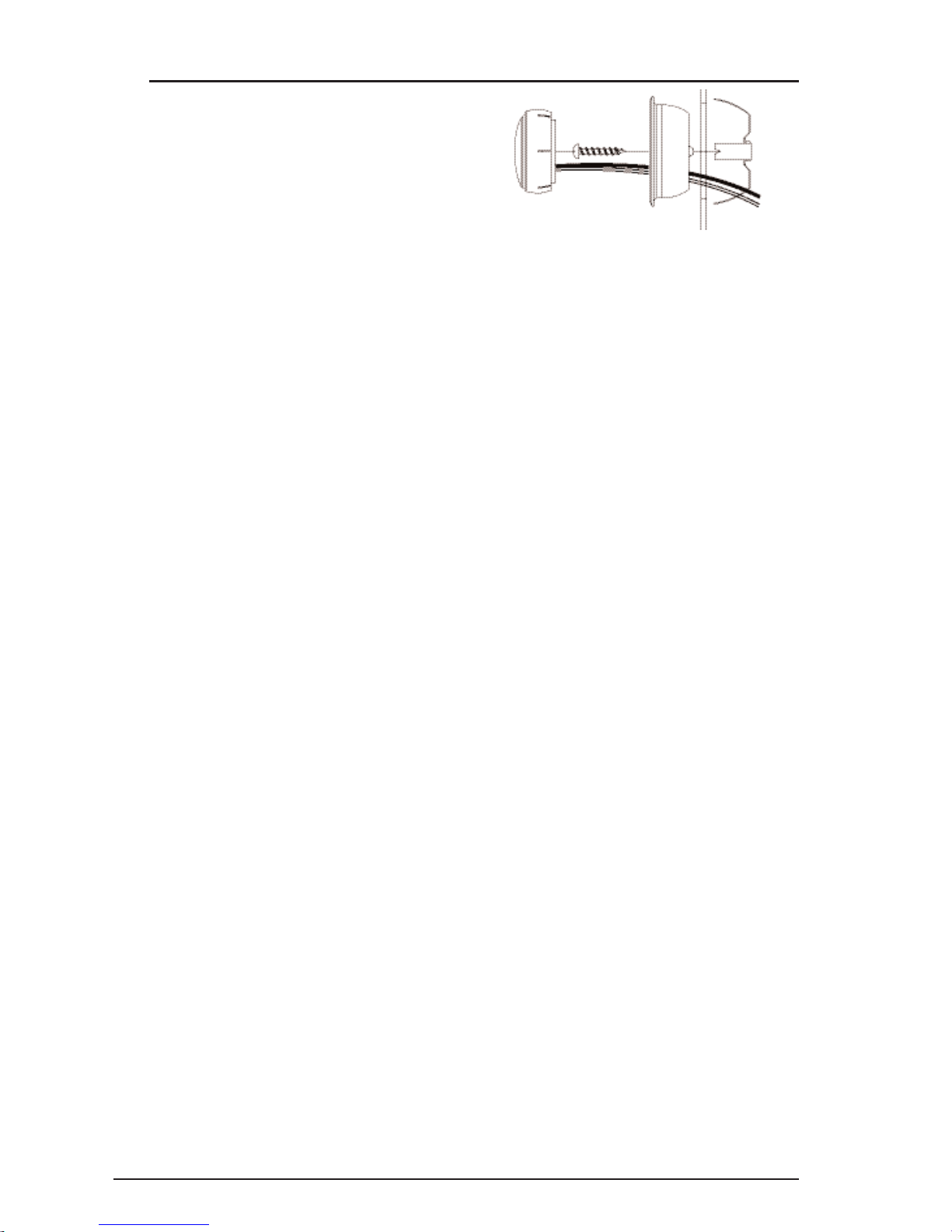

Figure 14
Flush Mount
TWEETER MOUNTING
1. Check for proper clearance: The flush mount
kit is 7/8" (22.2mm) deep.
2. Mark the center of the spot and cut a
2" (50.8mm) diameter hole using a hole
saw, drill bit or razor knife.
3. Assemble the cup, clamp and machine
screw loosely as shown.
4. Route wires through the round opening in the
bottom of the cup.
5. Press the assembly into the 2" (50.8mm) diameter
hole until the clamp edge is below the mounting
surface, then tighten the screw. The legs of
the clamp can be bent outward by inserting
ascrewdriver through the holes in the cup
while still mounted.
6. Connect wires from the tweeter terminals of the
Crossover to the tweeter itself using the faston
connectors. Connect the red wire from the (+)
terminal of the Crossover tweeter output to
the red (+) wire from the tweeter.
7. Mount the tweeter by snapping it into the
mounting cup.
ENGLISH

DB6501 & DB5251

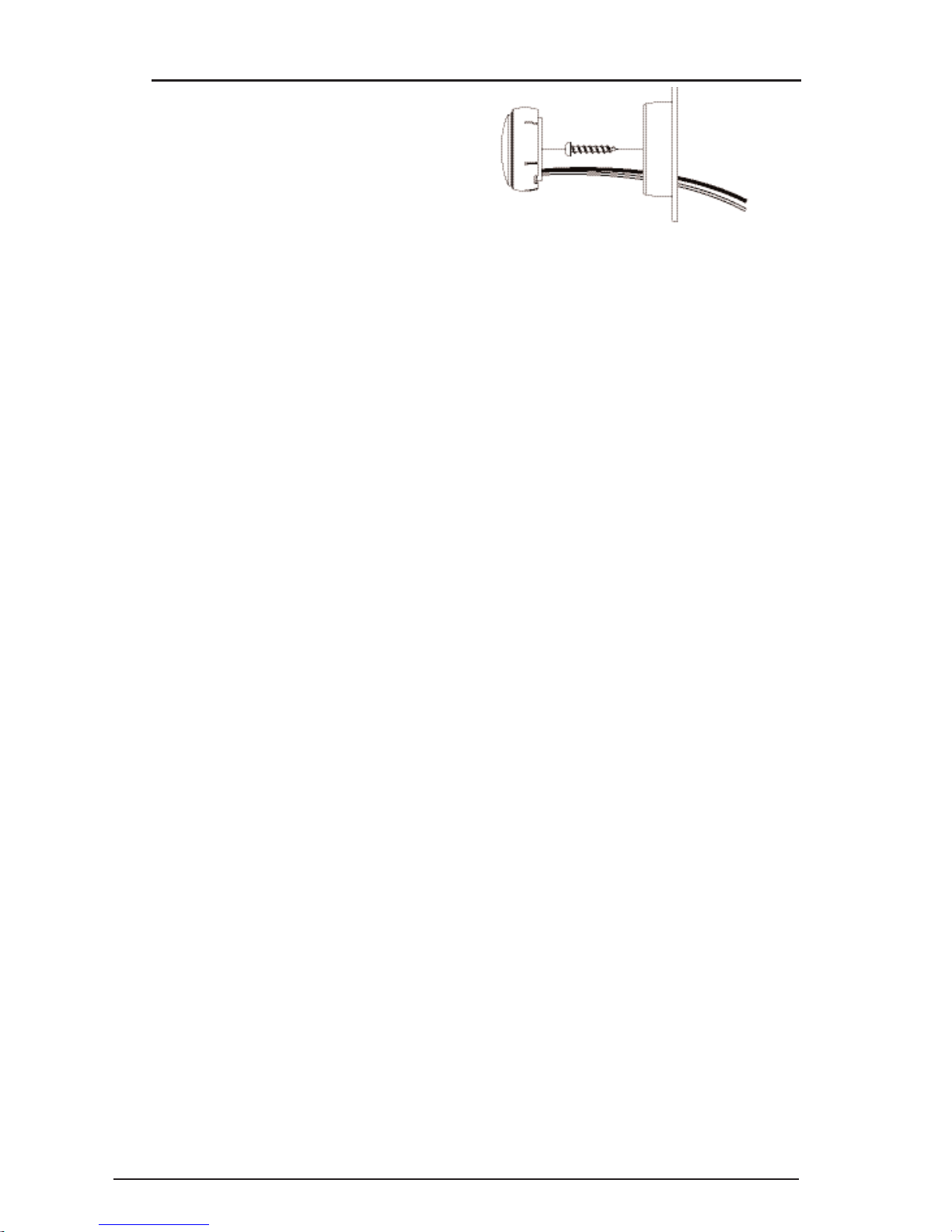

Figure 15
Surface Mount
TWEETER MOUNTING
1. Using the base of the surface mount cup as
atemplate, mark the screw hole and drill them
using a 1/8" (3mm) drill bit. Drill a second hole
(for the speaker wire) using a 3/16" (5mm) drill bit.
2. Screw surface mount cup to the panel.
3. Push the tweeter wires through the open area at
the bottom of the cup and through the 3/16" (5mm)
hole in the panel.
4. Connect wires from the tweeter terminals of
the Crossover to the tweeter wires using faston
connectors. Be sure to connect the red wire
strand from the tweeter to the (+) terminal
of the crossover tweeter output.
5. Mount the tweeter by snapping it into the
mounting cup.
ENGLISH

db Series Full Range/Component Systems Specifications
db351 db401 db461 db461p db501 db521
Type 3 1/2" 4" 4" x 6" 4" x 6" 5" 5 1/4"
coaxial coaxial coaxial plate coaxial coaxial
................................................................................................................................................................................................................
Driver 3 1/2" 4" 4" x 6" 4" 5" 5 1/4"
complement (8.89cm) (10.2cm) (10cm x 15cm) (10.2cm) (12.7cm) (13.0cm)
mid/woofer mid/woofer mid/woofer mid/woofer mid/woofer mid/woofer
................................................................................................................................................................................................................
Tweeter 1/2" (12mm) 3/4" (19mm) 3/4" (19mm) 3/4" (19mm) 3/4" (19mm) 3/4" (19mm)
complement soft dome soft dome soft dome soft dome soft dome soft dome
tweeter tweeter tweeter tweeter tweeter tweeter
................................................................................................................................................................................................................
Mounting 3 1/8" 4" 6" x 4" 6" x 4" 4" 4 11/16"
dimensions (79.36mm) (101.6mm) (152.4mm x (152.4mm x (101.6mm) (119mm)
101.6mm) 101.6mm)
................................................................................................................................................................................................................
Mounting 1 1/2" 1 13/16" 1 15/16" 1 13/16" 1 13/16" 2 5/16"
depth (top) (38.1mm) (46.0mm) (49.2mm) (46.04mm) (46.0mm) (58.7mm)
................................................................................................................................................................................................................
Mounting 111/16" 1 15/16" 2" 2" 1 15/16" 2 7/16"
depth (bottom) (42.86mm) (49.21mm) (50.8mm) (50.8mm) (49.21mm) (61.9mm)
................................................................................................................................................................................................................
Peak 105w 135w 120w 150w 135w 135w
Power handling
................................................................................................................................................................................................................
Continuous 35w 45w 40w 50w 45w 45w
Power handling
................................................................................................................................................................................................................
Nominal 4 Ω4Ω4Ω4Ω4Ω4Ω
Impedance
................................................................................................................................................................................................................
Frequency 90-22kHz 85-22kHz 75-22kHz 71-22kHz 65-22kHz 60-22kHz
response
................................................................................................................................................................................................................
Grille height n/a 3/4" n/a n/a n/a 1"
(6.35mm) (25.4mm)
................................................................................................................................................................................................................
Sensitivity 91dB 91dB 91dB 91dB 93dB 93dB
................................................................................................................................................................................................................
ENGLISH

db Series Full Range/Component Systems Specifications
db571 db651 db651s db691 db5251 db6501 db1001
5" x 7" 6 1/2" 6 1/2" 6" x 9" 5 1/4" 6 1/2" 1"
coaxial coaxial slim mount three way component component tweeter
coaxial system system
................................................................................................................................................................................................................
5" x 7” 6 1/2" 6 1/2" 6" x 9" 5 1/4" 6 1/2" n/a
(12.7cm x (16.0cm) (16.0cm) (15cm x 22.9cm) (13.0cm) (16.0cm) mid/woofer
17.8cm) mid/woofer mid/woofer mid/woofer mid/woofer mid/woofer
mid/woofer
................................................................................................................................................................................................................
3/4" (19mm) 3/4" (19mm) 3/4" (19mm) 1" (25.4mm) 1" (25.4mm) 1" (25.4mm) 1" (25.4mm)
soft dome soft dome soft dome soft dome soft dome soft dome soft dome
tweeter tweeter tweeter tweeter tweeter tweeter tweeter
3/4" (19mm)
soft dome tweeter
................................................................................................................................................................................................................
71/8" x 4 15/16" 5" 5" 8 1/2" x 5 3/4" 4 11/16" 5" 2 1/16"
(181mm x (127mm) (127mm) (215.9mm x (119mm) (127mm) (52.39mm)
125.4mm) 146mm) mounting cup
................................................................................................................................................................................................................
23/16" 2" 2" 3 3/16" 2 5/16" 2" 1 3/16"
(55.6mm) (50.8mm) (50.8mm) (81.0mm) (58.7mm) (50.8mm) (30.2mm)
................................................................................................................................................................................................................
25/8" 2 5/16" 2 5/16" 3 3/4" 2 7/16" 2 5/16" 1 1/32"
(66.7mm) (58.74mm) (58.7mm) (95.2mm) (61.9mm) (58.7mm) (26.2mm)
................................................................................................................................................................................................................
180w 180w 165w 300w 250w 300w 180w
................................................................................................................................................................................................................
60w 60w 55w 100w 100w 100w 60w
................................................................................................................................................................................................................
4Ω4Ω4Ω4Ω4Ω4Ω4Ω
................................................................................................................................................................................................................
52-22kHz 35-22kHz 50-22kHz 35-22kHz 53-23kHz 35-23kHz 4kHz-23kHz
................................................................................................................................................................................................................
n/a 1 1/8" 1 1/8" 1 1/4" 1" 1 1/8" n/a
(28.58mm) (28.58mm) (31.75mm) (25.4mm) (28.58mm)
................................................................................................................................................................................................................
93dB 92dB 92dB 93dB 93dB 92dB 92dB
......................................................................................................................................................................................
