Pondmaster AP Series User manual

0307 ZG143

COVER LID
FILTER
MEDIA
FLAPPER
ASSEMBLY
AIR FILTER
COVER
COVER FASTENER (AP-100 ONLY)

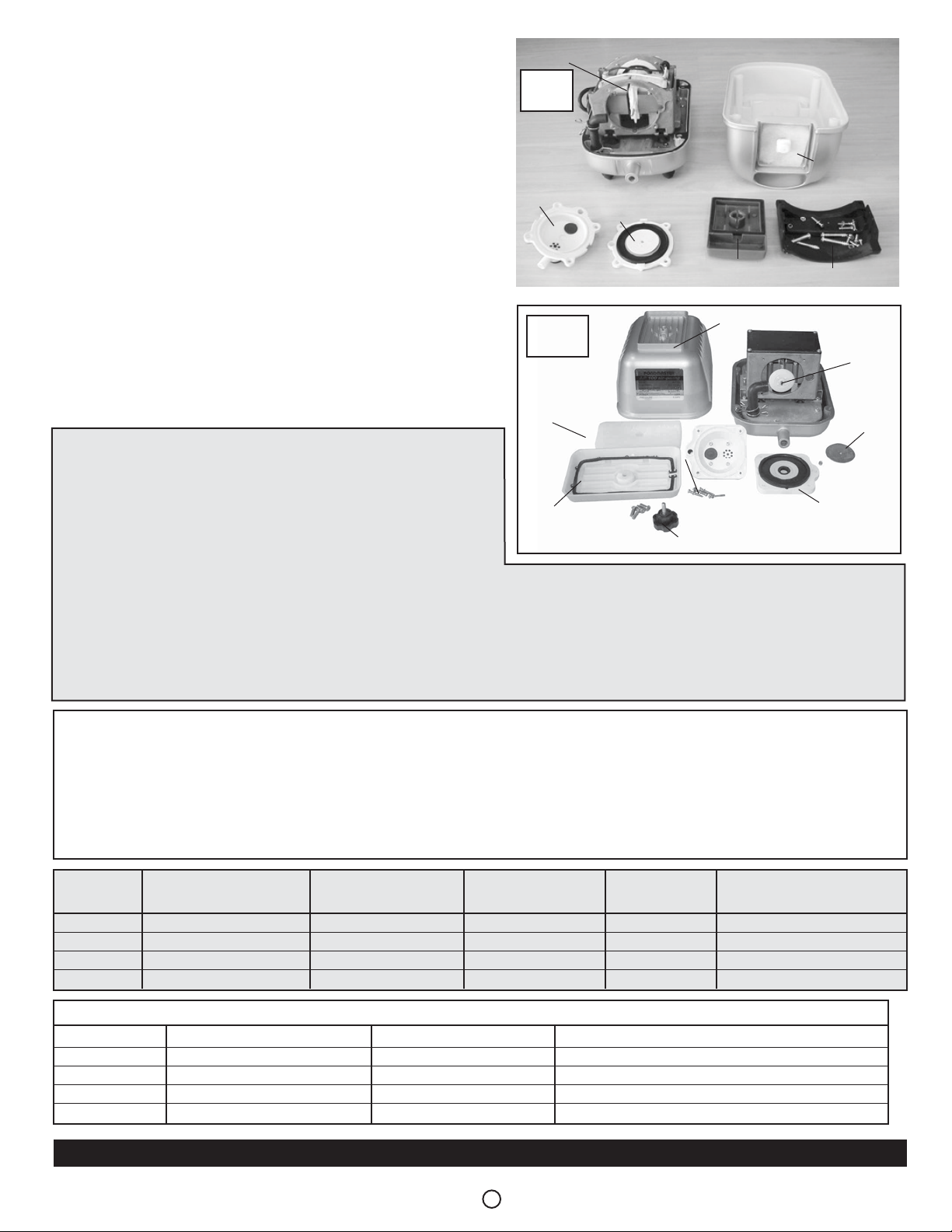

SERVICE AND MAINTENANCE
There are no parts that need lubrication.The integrated air filter
requires periodic cleaning. See photo for proper procedure. To
clean the filter media, remove the air filter cover. Extract the filter
media from the pump and rinse thoroughly with cold water.
Replace media into the empty filter cavity, replace the air filter
cover and refasten.When the airflow slows down, it is time to
replace the diaphragms and flapper valves. A complete replace-
ment kit is available (see parts list, below). There are two of each
(diaphragms, flapper valves), one at either end of the pump.
1. Disconnect the pump from the AC receptacle.
2. Remove the cover lid.
3. Unscrew the diaphragm / flapper combination assembly from
either end of the pump and separate the two parts.
4. Remove the flapper valves and replace with the supplied parts.
Be sure to maintain the same orientation of the flapper valves.
5. Remove the black, round doughnut-like diaphragm and
replace with the supplied parts.
6. Replace the diaphragm / flapper assembly and refasten.
7. Replace the cover lid.
LIMITED ONE-YEAR WARRANTY
E.G. Danner Manufacturing, Inc. will repair or replace any air pump found to be defective within one year of original
purchase. Air filter, flapper valves, and diaphragms are wearable items and are not covered by this warranty. Cutting
or altering the cord voids any warranty consideration. For warranty repair, return only the part that is defective to our
factory. Please include a dated proof of purchase and $5.00 for postage and handling. Damages or injuries resulting
from negligence or misuse of the product are not covered by this warranty. This warranty gives you specific legal rights.
You may have other rights which may vary from state to state.
Model AIR DIFFUSER DIAPHRAGM KIT TUBING
AP-20 Item #1450 Item #14525 1/2" x 10' Item #12012
AP-40 Item #14515 Item #14545 5/8" x 20' Item #12158
AP-60 Item #1455 Item #14555 3/4" x 50' Item #12035
AP-100 Item #1456 Item #14565 3/4" x 50' Item #12035
Model For Ponds Maximum Air Flow Power Hose Size
up to: Water Depth Inches3/Min Usage
AP-20 2500 Gallons 7 Feet 1700 20 Watts 1/2" ID
AP-40 5000 Gallons 10 Feet 2900 40 Watts 5/8" ID
AP-60 7000 Gallons 9.6 Feet 5500 50 Watts 3/4" ID
AP-100 10,000 Gallons 11.5 Feet 9150 100 Watts 3/4" ID
SPARE PARTS FOR SERIES AP PUMPS
CAUTION: PONDS CAN BE DANGEROUS TO SMALL CHILDREN. NEVER LEAVE CHILDREN UNSUPERVISED NEAR A POND!
DANNER MFG. INC. • 160 Oval Drive, Islandia, NY 11749-1489 • Visit our web site at www.Dannermfg.com • Made in China
SECOND FLAPPER AND DIAPHRAGM ASSEMBLIES
COVER LID
FILTER MEDIA
COIL COVER
AIR FILTER COVER
DIAPHRAGM
ASSEMBLY
FLAPPER
ASSEMBLY
DIAPHRAGM
ASSEMBLY
DIAPHRAGM
WASHER
SECOND
FLAPPER AND
DIAPHRAGM
ASSEMBLIES
AP-60
AP-100
2
CAUTIONS
WARNING: FOR YOUR PROTECTION, ALWAYS UNPLUG
THE UNIT FROM ITS POWER SOURCE BEFORE
INSTALLING OR SERVICING. SHOULD THE UNIT
APPEAR TO BE NOT WORKING, DO NOT ATTEMPT TO
REACH, REMOVE, OR DISASSEMBLE BEFORE
DISCONNECTING FROM THE POWER SOURCE.
1. This pump is solely intended to pump air. Do not use for oil, solvents, or any petroleum products (gasoline, diesel, etc.).
2. ALWAYS use a properly grounded AC outlet. Do not immerse the pump’s plug in water or attempt to plug in a wet plug.
3. Provide a “drip loop” for the line cord. This is a loop in the cord below the level of the receptacle or plug that prevents
water from traveling along the cord in the direction of the receptacle.
4. Be sure that a ground fault circuit interrupter (GFCI) is installed in the branch circuit supplying the aquarium, fountain,
or pond equipment.
5. NEVER remove the ground pin from the plug.
AP-20
AP-40
0307 ZG143
