Pope 101BV1800 User manual

POWER SWEEP ‘N’ VAC 1800W
Model No. 101BV1800
Operator’s Manual
To reduce the risk of injury, the user must read and understand the
Operator’s Manual. Save this manual.
WARNING

Introduction
Thank you for purchasing a Pope product.
We would like you to be completely satisfied with your new product, so feel free to contact Pope
for help with any information you require.
Pope's Customer Service centre number is 1300 134 880.
Please read this manual carefully to learn how to operate and maintain your product correctly. It is
important to consult these instructions in order to acquaint yourself with the tool, its proper use
and safety precautions.
Please observe the general maximum operating times as well as local regulations for tool
operation.
Should this product require repair under the conditions of the warranty, please return it to the
place of purchase. You will need to provide proof of purchase to obtain a free of charge repair, or
a replacement.
Keep these instructions in a safe place.
For your records, attach your receipt here.
2

SAFETY RULES
•Physical Condition of the Operator. Do not operate this product when tired, ill or under the
influence of alcohol, drugs or medication.
•Clothing Requirements. Always wear long heavy pants, boots and gloves. Do not wear
loose clothing, jewellery, short pants, sandals or go barefoot. Secure hair so that it is above
shoulder level to avoid entanglement in moving parts.
•Protective Accessories Requirements. Wear safety eye protection when operating this
product. Wear hearing protection during extended periods of operation. In dusty applications
always wear a face mask.
•Condition of Product Before Use. Inspect condition of the product before use. Only operate
the tool when it is in good working order and is not damaged in any way. Damaged parts have
to be replaced immediately by a qualified electrician. Never use the tool if any of its safety
devices or guards are damaged or if any safety attachments are missing.
•Proper Stance. Keep firm footings and balance. Do not overreach.
•Dangerous Environments. Do not use the product in damp or wet locations. Do not expose
the tool to wet conditions.
•Use the Right Product. Use the product for the intended purpose only.
•Condition of Blower Vac before use. The tubes and catching bag shall be mounted
according to the manufacturer’s instructions. Failure to use the proper parts may cause
product failure or increase the risk of injury to the user.
•Ensure covers are securely fastened before each use. The impeller will rotate whenever
the machine is operated. Never operate the machines unless the intake cover and machine
tubes are properly installed and in good working order.
•Use of Product. Never allow children or infirm persons to use the tool. Never allow other
persons who are not familiar with the operating instructions to use the tool. Never use the tool
when there are people, particularly children or pets nearby.
•Responsibility. The user is responsible for any accidents or hazards suffered by third parties
or their property.
•Maintenance. Switch off the tool and pull plug from the socket before carrying out any
cleaning or maintenance work.
•Outdoor Use. When working outdoors, use only extension cables which are approved for
outdoor use.
•Plugs. Plug connections must have earthing contacts and be protected from water.
Read and understand all instructions. Failure to follow all instructions
may result in serious personal injury as well as damage to the product.
WARNING
3

4
Applications
Use this product for the following applications:
•Blowing leaves, grasses and debris and other garden refuse away from garden areas or
surfaces.
•Vacuuming leaves, grasses, debris and other garden refuse from garden areas or surfaces into
the debris collection bag.
•Mulching leaves, grasses, debris and other garden refuse at a 10:1 ratio for efficient refuse
management or redistribution of mulch around the garden. Item such as bones, stones, wire
or other dense debris should be removed or damage may be caused to the impeller.
The Pope POWER SWEEP ‘N’ VAC is designed to handle only foliage and garden refuse such as
grass and small branches. Any other use is prohibited.
This tool is only intended for use around the home and should only be operated within its design
limitations. Tools of this category which are designed for home and garden use should only be
operated in such settings. Tools of this category are not suitable for use in public facilities, parks
and sports centres, on farms or in the forestry sector.
Unpacking
•Carefully remove the product from the box.
•Inspect the product carefully to make sure no breakage or damage occurred during shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
•If any parts are damaged or missing please call the Pope Customer Service Centre on
1300 134 880 for assistance.
Packing List
Motor (1)
Vacuum Tubes (2)
Blower Tube (1)
Blower Inlet Cover (1)
Vacuum Inlet Cover (1)
Debris Collection Bag (1)
Bag Connection Mount (1)
Shoulder Strap (1)
Instruction Manual (1)

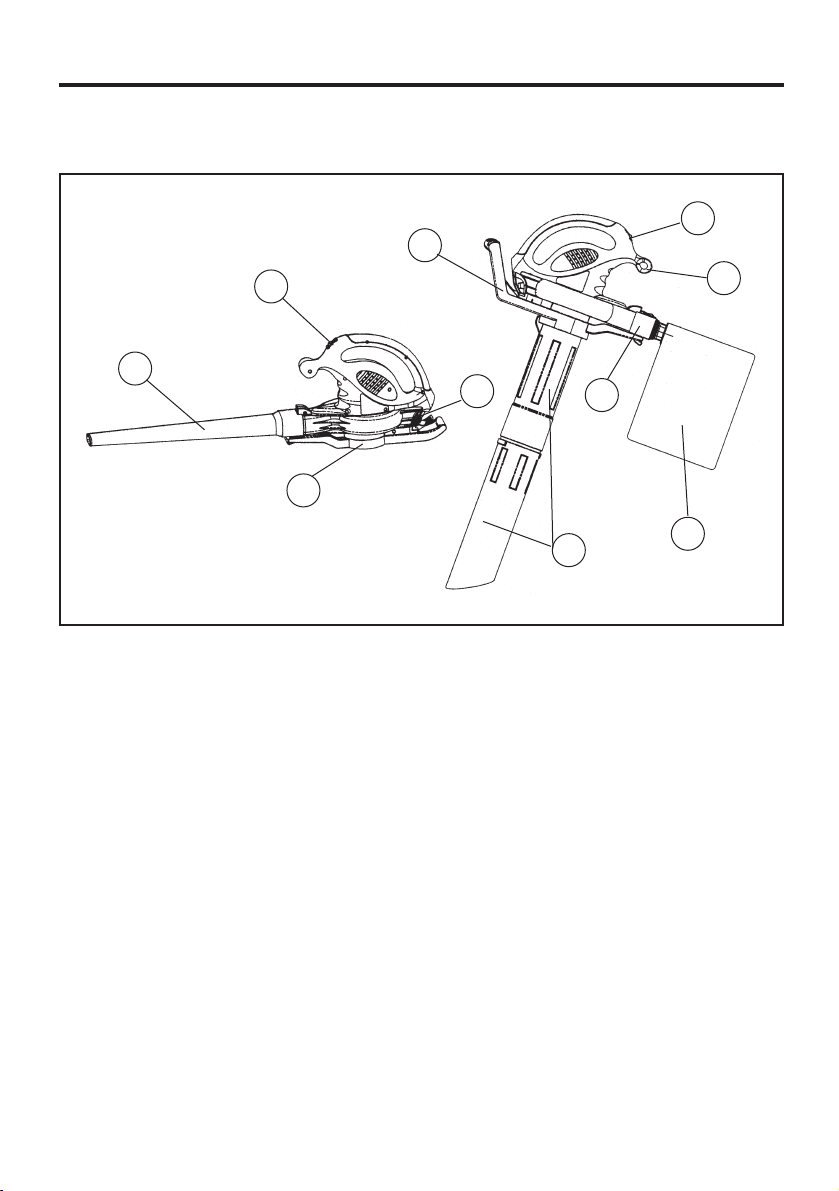

Product Layout and Descriptions
Fig 1
1. Vacuum Tube(s) 6. Power Cord
2. Blower Tube 7. Debris Collection Bag
3. Blower Inlet Cover 8. Bag Connection Mount
4. Vacuum Inlet Cover
5. ON/OFF switch
SPECIFICATIONS
Name Pope POWER SWEEP ‘N’ VAC
Model Number 101BV1800
Output Power 1800W
Blower Speed Up to 280km/hr
AC motor 230V 50Hz
Suction rate 12 m3/min
Volume of debris bag approx. 45 litres
ASSEMBLY
5
1
2
3
4
5
6
8
7
5
6

ASSEMBLY
6
To assemble as a BLOWER
See Fig 2
Follow these steps to assemble as a blower:
1. Install the blower tube on the motor housing.
2. Hook the front of the blower inlet cover to the latch on the blower tube.
3. Attach the rear of the blower inlet cover to the latch on the motor. This should "snap" in place.
4. The blower is ready for use.
Note: The Motor will not run if the blower inlet cover is not connected or is incorrectly connected.
Fig 2
Ensure that the blower vacuum unit is switched off and is not connected to the mains
power source while assembling this unit.
WARNING

ASSEMBLY – continued
7

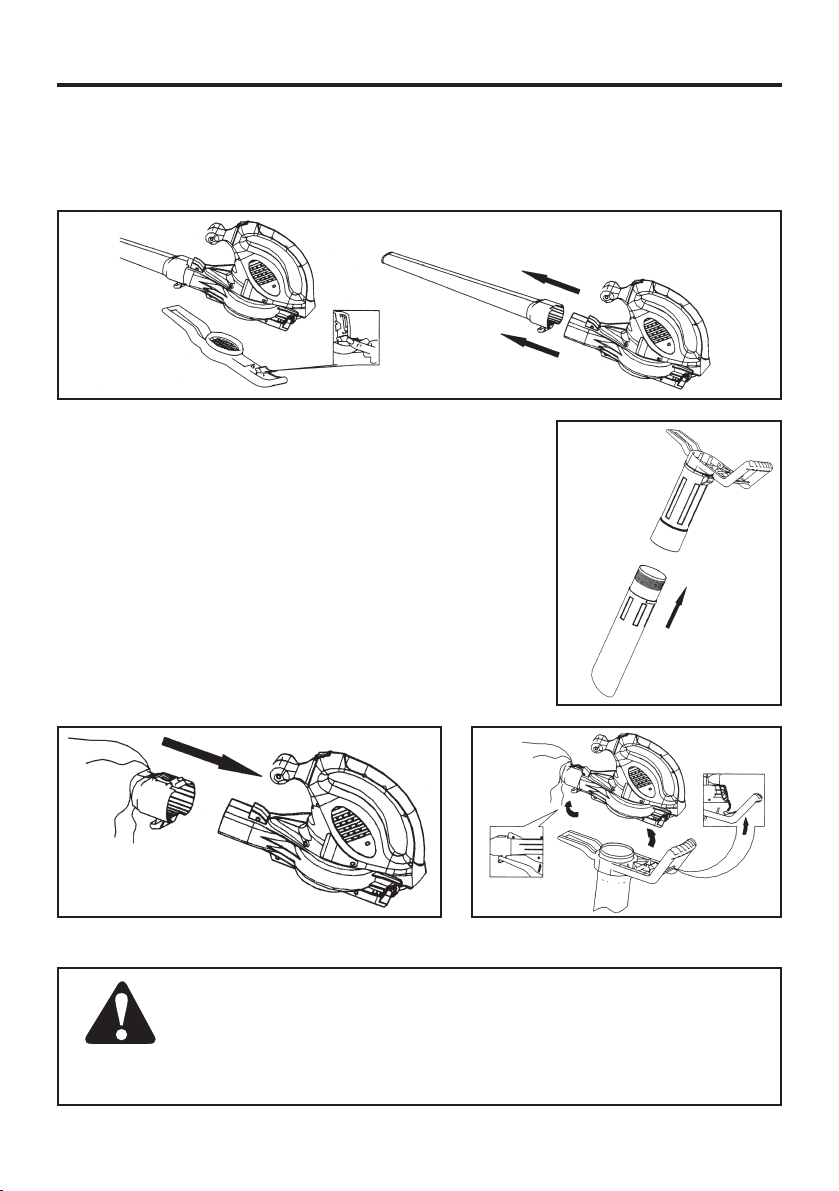

To assemble as a VACUUM
See Figs 3-6
Follow these steps to assemble as a vacuum:
Fig 3
Ensure that the blower vacuum unit is switched off and is not connected to the mains
power source while assembling this unit.
WARNING
Fig 4
1. If the unit is assembled as a blower, remove the blower tube
and blower inlet cover from the motor housing. (see Fig 3)
2. Connect the top blower tube to the vacuum inlet cover, and
attach lower vacuum tube. Ensure that the angle of the
vacuum inlet is positioned correctly as per Fig 4.
3. Fit the Bag Connection Mount securely to debris collection
bag. Ensure the velcro straps are tightened. (see Fig 5)
4.
Hook the Vacuum inlet cover to the latch on the Bag
Connection Mount, then attach to the rear of the engine
housing. The latch should "snap" into place. (Fig 6)
Fig 5 Fig 6

Sizing the strap
Follow these steps to size the strap:
1. Size the length of the shoulder strap so that the vacuum tube just clears the ground.
NOTE: PRIOR TO USING THE PRODUCT
Follow these operational guidelines to maximise performance and minimise operator
risk:
•Always trail the power cable behind the tool.
•If the power cable or extension cable is damaged, pull the plug out of the socket.
•Do not carry the tool by its power cable.
•Always pull out the plug:
–when the tool is not being used;
–when it is being transported or when you leave it unsupervised;
–when you are checking the tool, cleaning it or removing blockages;
–when you want to carry out cleaning or maintenance work on the tool or replace
accessories;
–after the tool impacts with foreign bodies or you notice unusual vibrations.
•Use the tool only in broad daylight or in well lit conditions.
•Do not underestimate the forces involved. Make sure you stand squarely and keep your
balance at all times.
•Avoid using the tool on wet surfaces.
•Ensure that you maintain a steady foothold particularly while working on slopes.
•Always walk. Never run.
•Always keep the ventilation opening clean.
•Never direct the vacuum/blower at persons or animals.
OPERATION
8
Start up the tool only after it is fully assembled. Always inspect the power cord for damage
before starting up. The tool may only be used if he cord is in flawless condition.
CAUTION

Connecting the tool to the power supply and switching on
See Fig 7

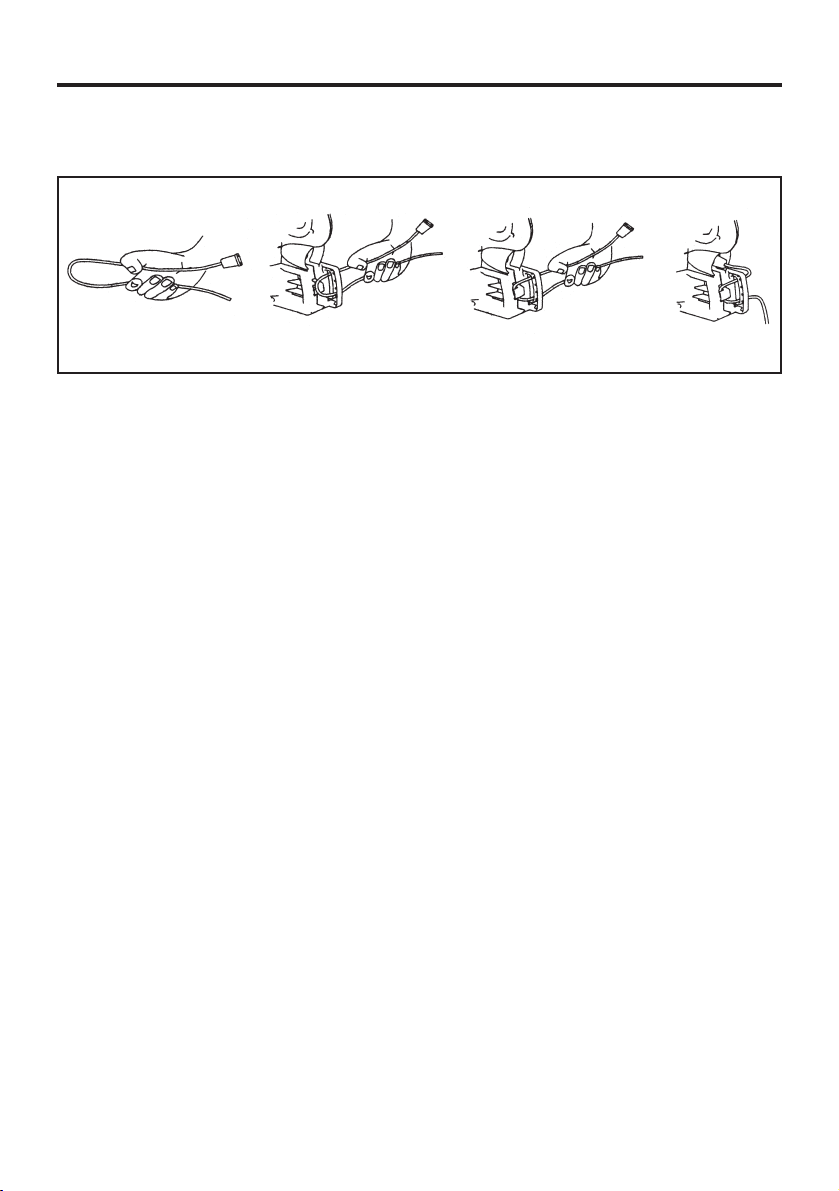

1. Secure the extension cord to motor housing as shown in Figure 7 to prevent the accidental
removal if the electrical cord.
2. Plug the unit’s power cord into the extension cord.
Emptying the debris collection bag
1. Switch off the tool and pull out the plug.
2. Open the zipper on the debris collection bag and shake out the material.
3. Reconnect bag following instructions on page 7.
NOTE: Empty the debris collection bag regularly. When the bag is heavily loaded with material,
vacuum power is considerably reduced.
Deposit waste according to local council or government regulations.
OPERATION – continued
9

MAINTENANCE
10
Follow these general maintenance guidelines before each use.
•Check that all nuts, bolts and screws are securely tightened in order to be sure that the
machine is in a safe working condition.
•Frequently check the grass catching devices for signs of wear and deformation.
•Only use replacement cutters of the correct type.
•For your own safety, replace worn or damaged parts without delay.
Cleaning
IMPORTANT! All maintenance, service and cleaning work must be performed after the power
cord has been disconnected from the socket.
•Do not use high-pressure cleaners or running water to clean the tool.
•Do not use any aggressive cleaning agents.
•After shaking out the debris bag, turn it inside out and thoroughly clean it in order to prevent
mould and unpleasant odours from forming.
•You can use soap and water to clean out a heavily soiled debris bag.
•Rub a bar of dry soap across the zipper teeth if the zipper becomes difficult to pull.
•Always keep the tool and ventilation slats clean.
•Use a damp rag to wipe dirt marks off of the tool. Clean the vacuum/blower tube with a brush
upon evidence of dirt and grime.
•Dirt and grime can make the switch (blower/vacuum) more difficult to operate as a result of the
material that swirls up off the ground. When this occurs, simply flip the switch back and forth a
few times, which should bring it back to normal.
Storage
Electric tools should be kept in a dry place when not in use.
