PORODO Gimbal P10 PRO User manual

3-Axis anti shake - SKU: PD-3AXGMP-GGY
Gimbal P10 PRO

Quick Start.........................................................................................2
Powering the Device ON and OFF .................................................... 3
Bluetooth Connection .......................................................................4
Schematic View of Porodo Gimbal P10 PRO ......................................7
Switching Between Horizontal/Vertical Mode ..................................11
Charging the Gimbal..........................................................................14
App Connectivity...............................................................................15
Specifications..................................................................................16
Caution.............................................................................................17
Storage and Maintenance................................................................17
Warranty...........................................................................................18
Contact Us........................................................................................18
Instructions for Operation Modes......................................................4
Table of Content

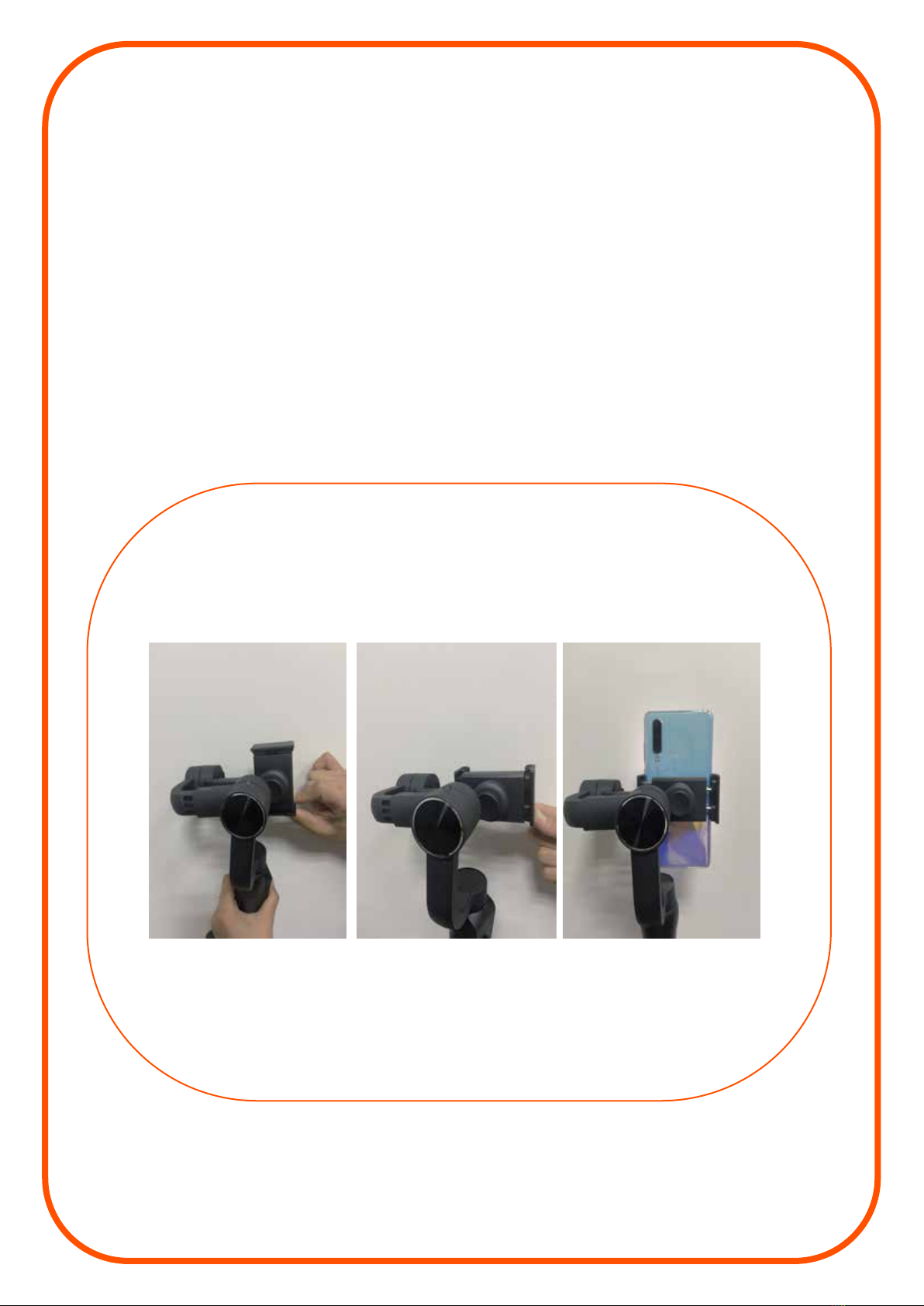

1. Remove the smartphone case before installation.
2. Place the smartphone in the phone holder, ensuring it is centered.
3. Secure the smartphone in the phone holder.
To install the smartphone and adjust the balance of the phone follow
these steps:
(Note: No need to turn on the Gimbal)
4. Adjust so that the smartphone counterbalances the motor, as
illustrated, to minimize vibration during use.
Quick Start
2

Powering the Device ON and OFF
Balance Knob
Power ON/OFF
Power ON
Press and hold the power button until the indicator lights turn on.
3

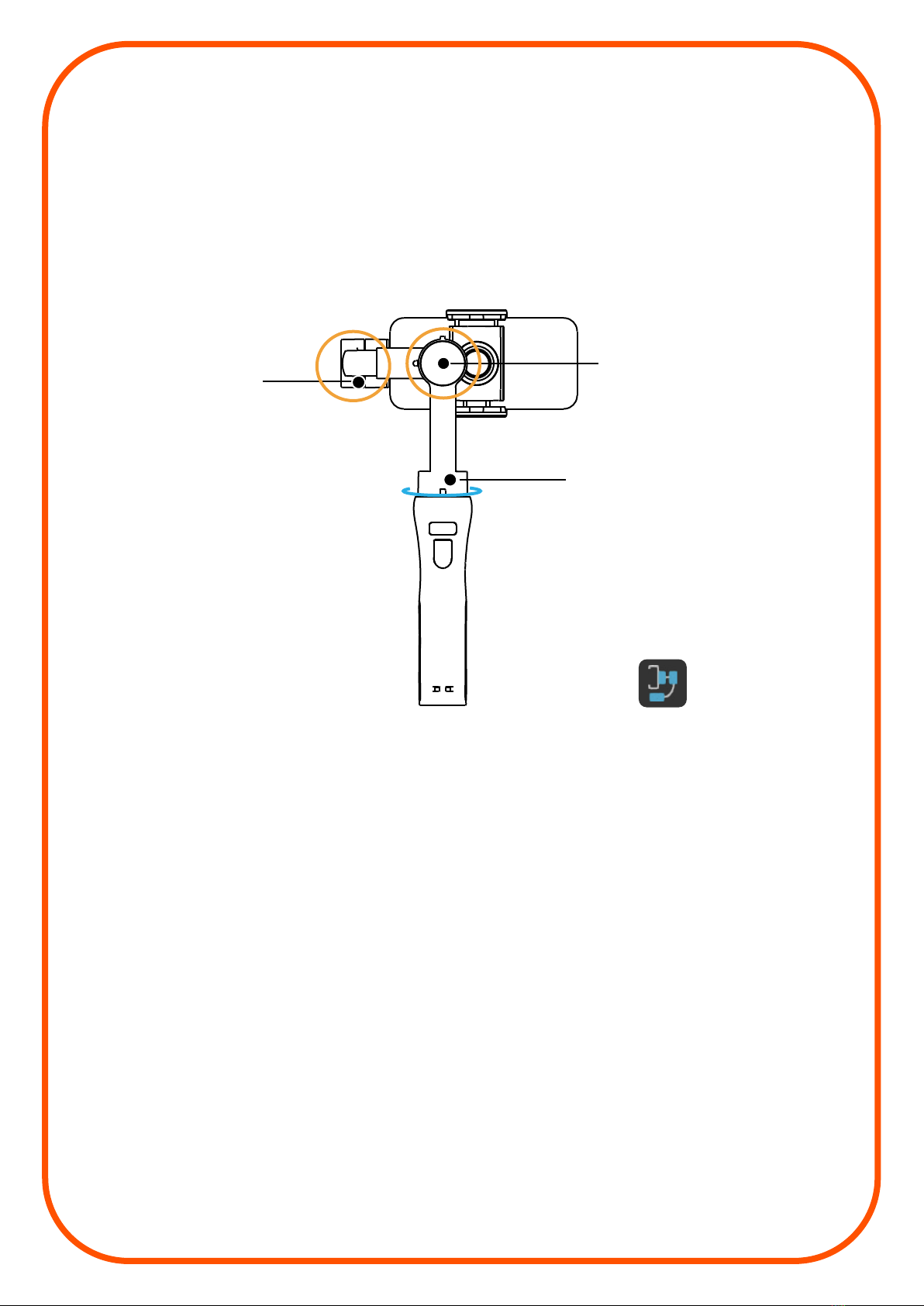

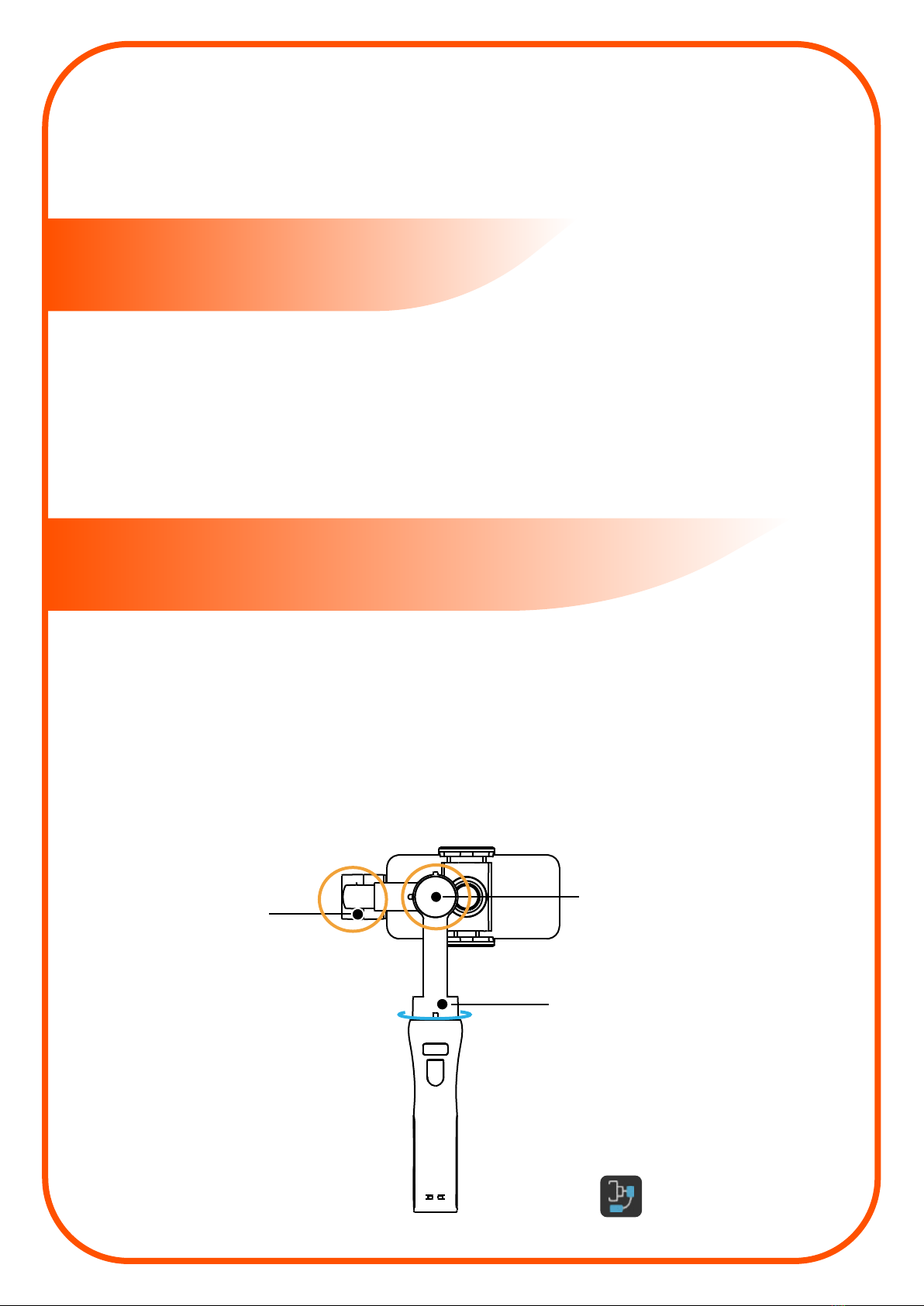

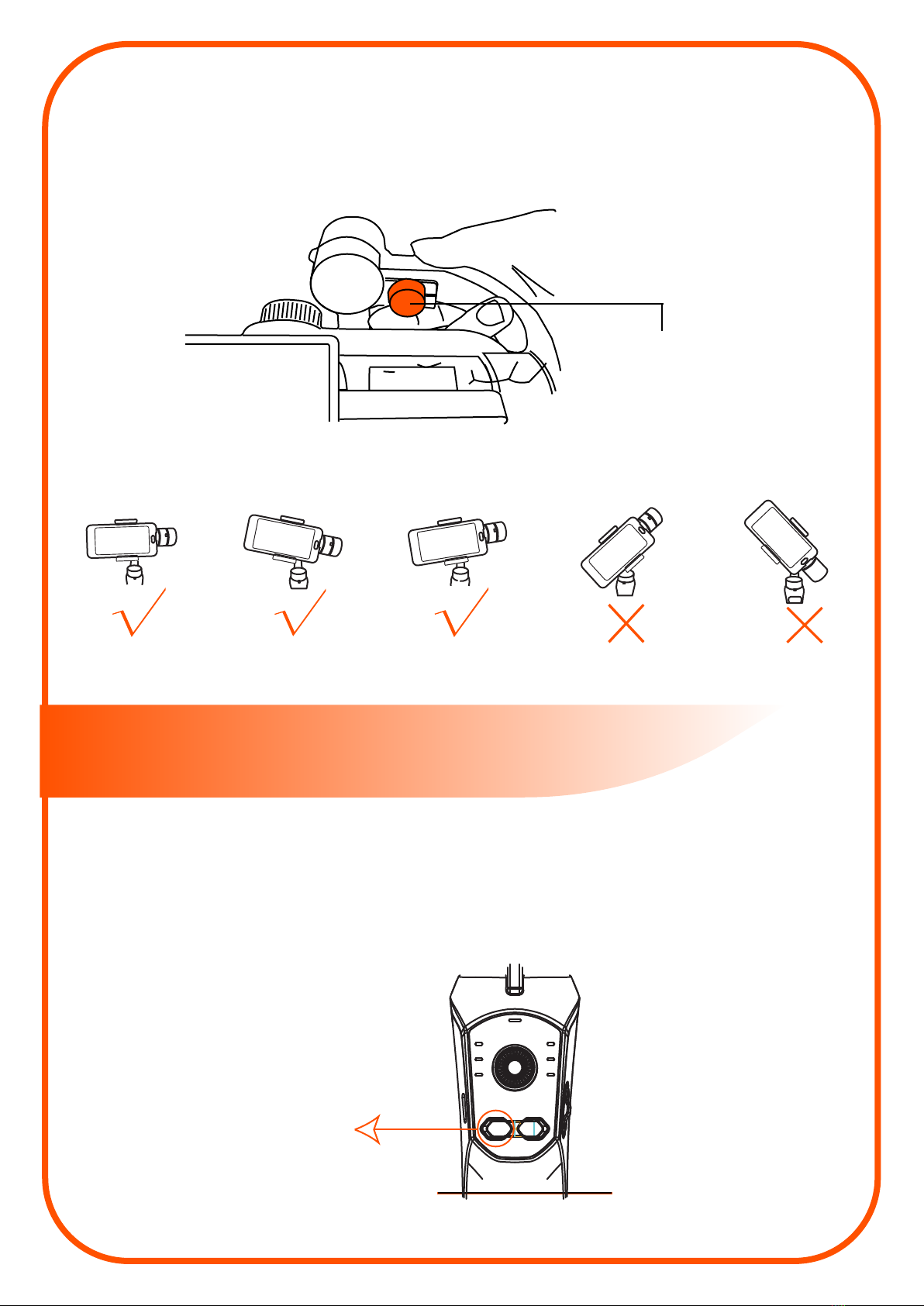

5. To re-adjust the phone loosen the balance knob. Adjust the balance
arm until the smartphone is suitably balanced.

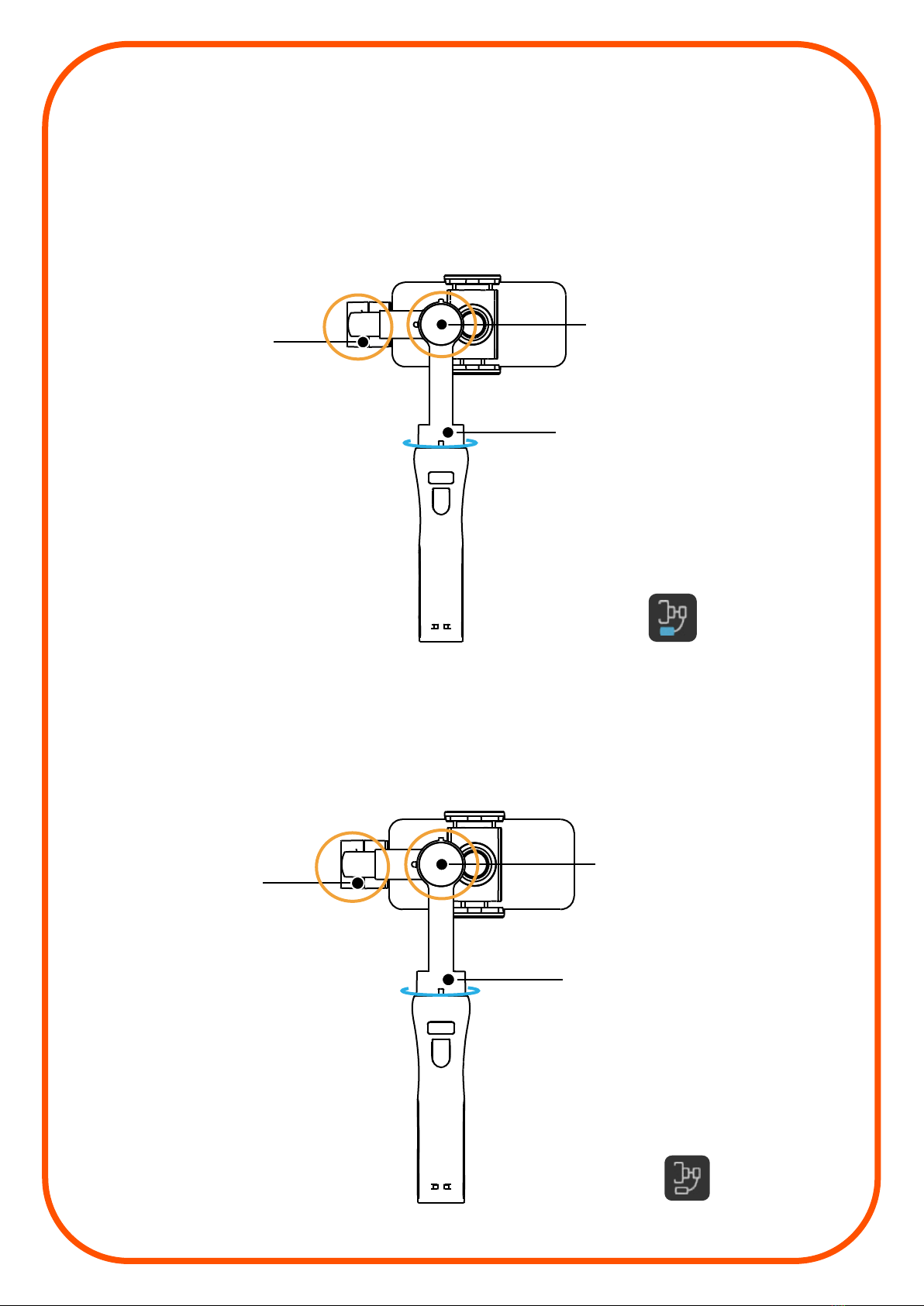

Tilt axis Roll axis
Pan axis
Instructions for Operation Modes
Power OFF
Press and hold the power button until the indicator lights turn off.
Bluetooth Connection
1. Turn on the device
2. Activate Bluetooth on your phone.
3. Navigate to the Bluetooth settings on your smartphone.
4. Select the device named "GP5_XXXX" to pair and connect.
All Follow (AF) Mode
4
The Roll axis remains stationary.The Pan axis moves left and right
while the Tilt axis has upward and downward motion to ensure pre-
cise tracking of the motion handle.
Note: This is the default mode upon turning the device ON.

Half Follow (HF) Mode
The Tilt and Roll axes are fixed. The Pan axis moves smoothly left and
right in sync with the handle's movement.
Tilt axis Roll axis
Pan axis
Lock Full (LF) Mode
In this mode, the Pan, Tilt, and Roll axes are fixed.
The camera remains stationary, not tracking the handle's movement.
Tilt axis Roll axis
Pan axis
5

Phone Go Mode
Tilt axis Roll axis
Pan axis
First Person View (FPV) Mode
The Pan, Tilt, and Roll axes follow the movement of the handle,
providing a first-person perspective.
To activate the phone Go mode , press and hold the shutter button
until the AF light starts flashing. Releasing the shutter button deactivates
the Phone Go mode.
6

A
C
E
F
G
D
B
M
K
J
I
H
L

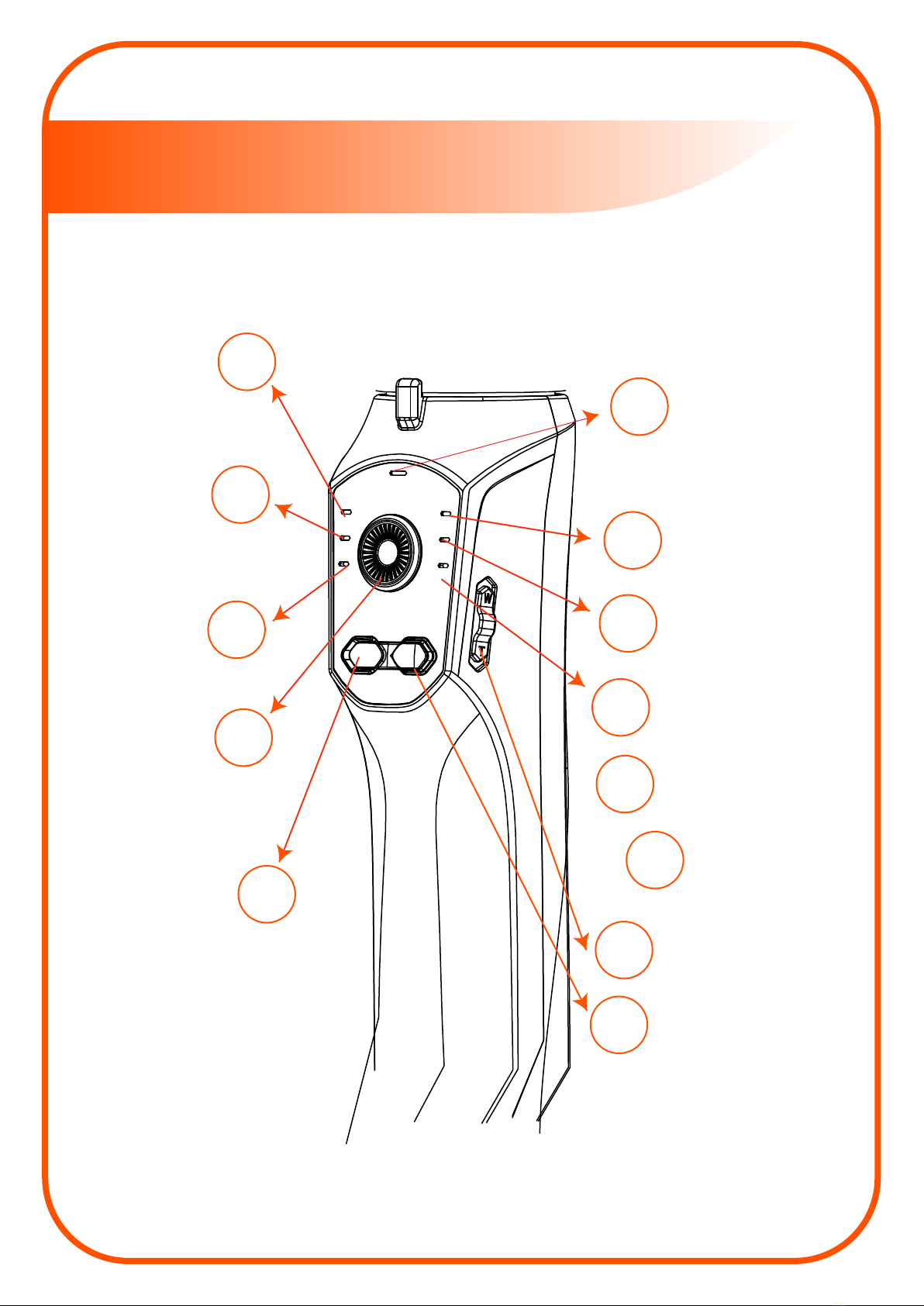

Schematic View of Porodo Gimbal
7

A: Battery Level Indicator
High level (67%-100%)
B: Battery Level Indicator
Middle level (34%-66%)
C: Battery Level Indicator
Low level (1%-33%)
D: Joystick
E: Power Button
I: FPV Mode
All AF, HF, and LF lights are on.
H: Phone Go mode
AF light is flashing.
G: Zoom
Use this button to operate the zoom feature.
F: Mode Button
(1) Single press: Switch between four modes.
(2) Double press: Recenter the gimbal.
(3) Triple press: Switch between portrait/landscape mode.
8
Control the orientation of Gimbal Pro by maneuvering the joystick
upward, downward, left, and right direction.
(1) Long pressing the button turns the device ON and OFF.
(2) Double press the power button to switch between front-facing
and rear-facing cameras.
(3) Triple pressing the button switches between video/photo mode.
(To use this feature connect the device to “Gimbal Pro” App)

M: Bluetooth Connection Indicator
(1) Flashing slowly means that the Bluetooth is not connected.
(2) Flashing rapidly indicates that Bluetooth is connecting.
(3) Solid light is when Bluetooth is successfully connected.
L: AF Mode
All follow (AF) mode is activated.
K: HF Mode
Half follow (HF) mode is activated
J: LF Mode
Lock full (LF) mode is activated.
9

O
N
P
10

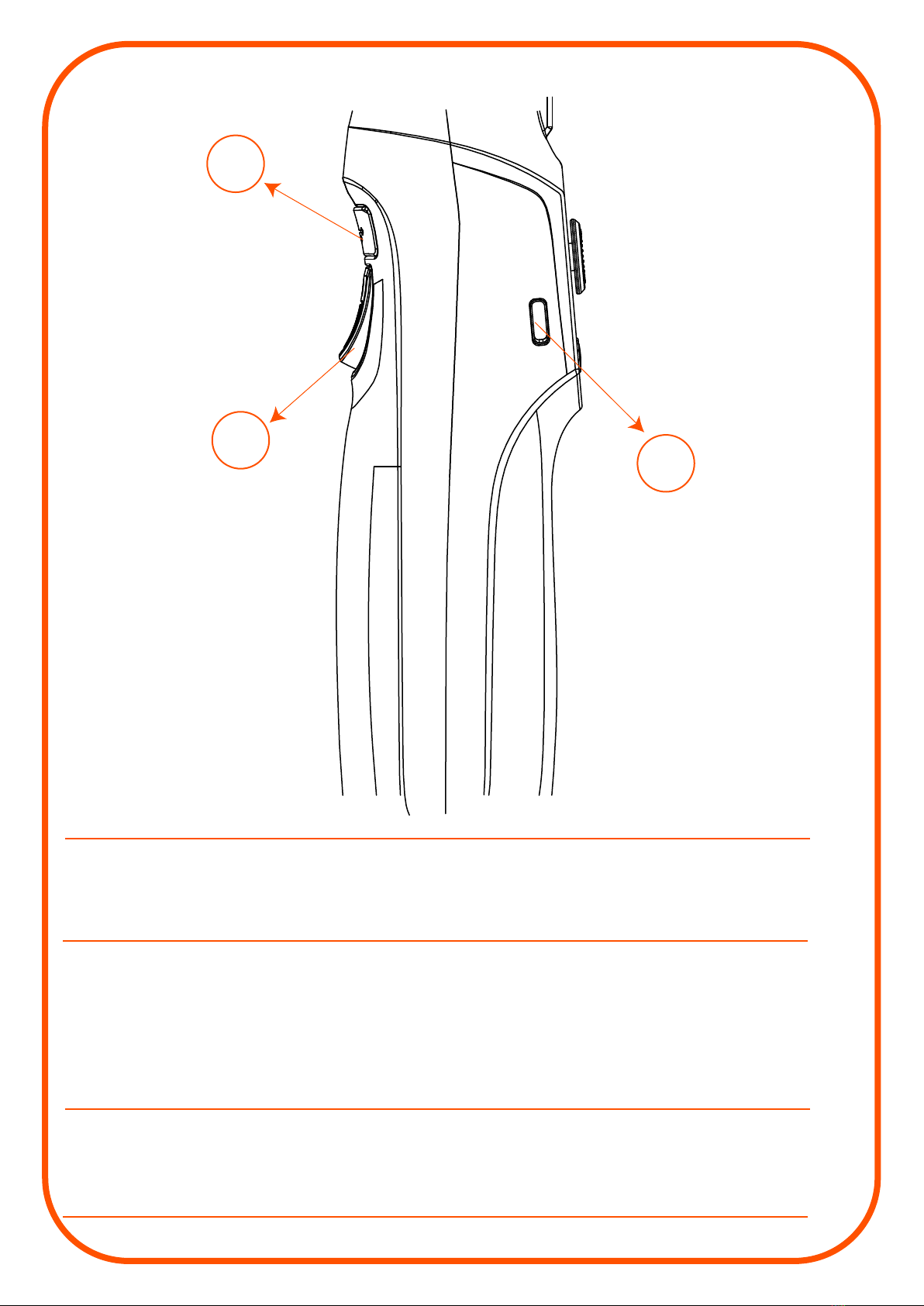

N:Output Port
Use this port to charge the smartphone.
P:Input Port
Use this port to charge the device.
O:Shutter Button
(1) Single press: Captures a photo or starts recording video (To
use this feature connect the device to “Gimbal Pro” App).
(2) Long press: Activates Phone Go mode.

Switching Between
Horizontal/Vertical Mode
Press the power
button three times
11

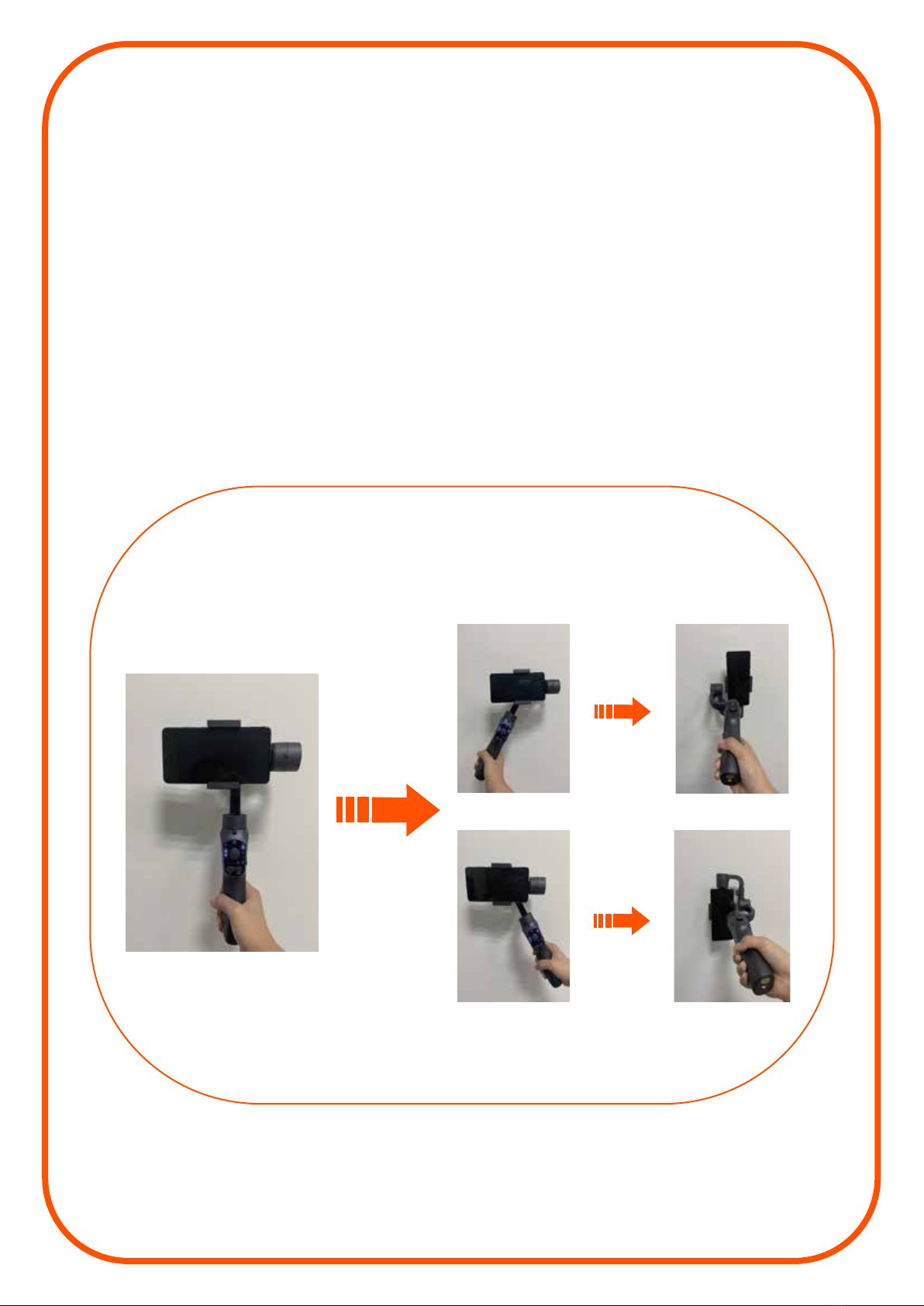

There are three different methods to switch between horizontal
and vertical modes

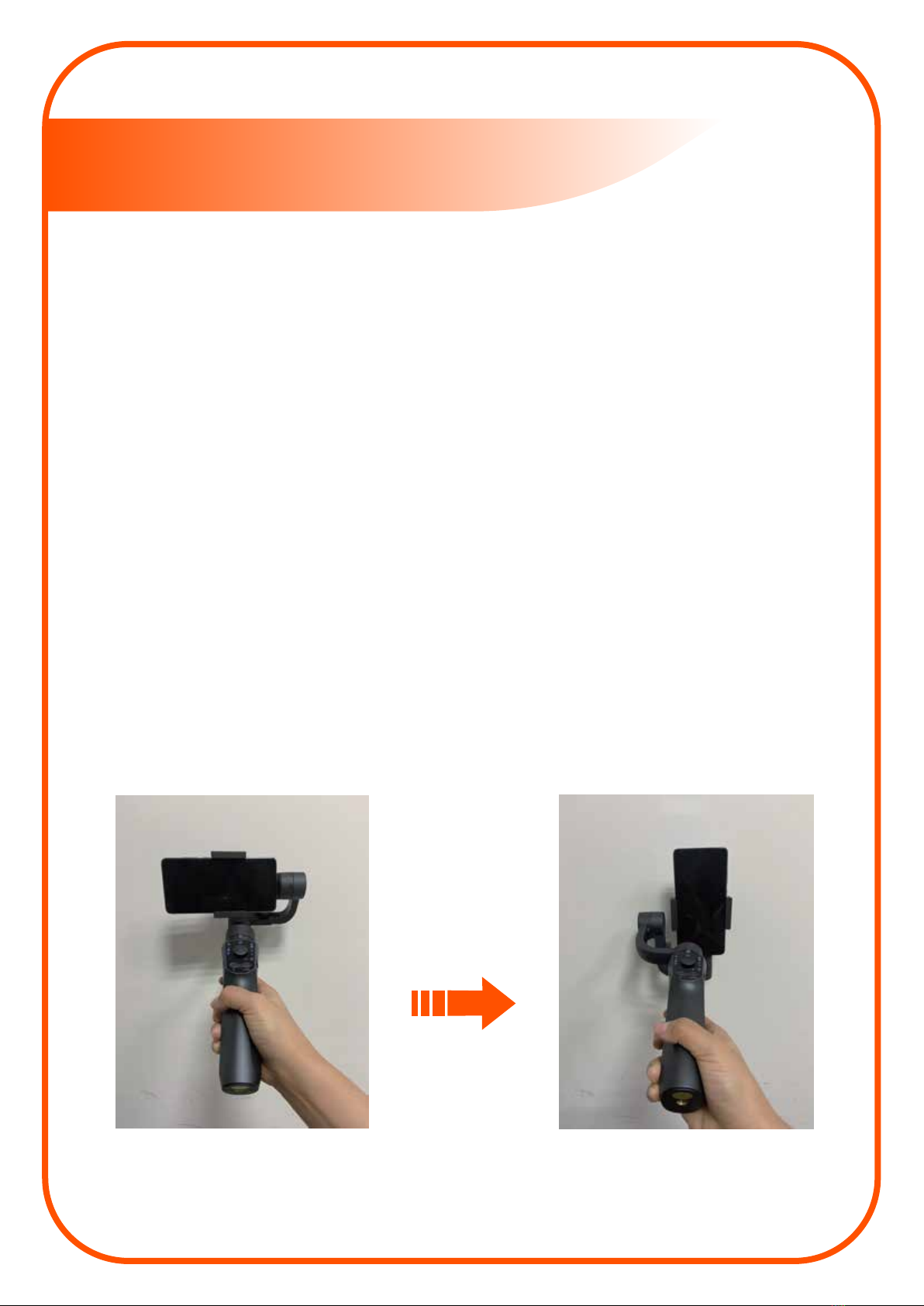

Method 1: Pressing the Power Button
1. Position the gimbal as shown in the picture.
2. Press the power button three times to switch from horizontal to
vertical mode.
3. Press the power button three times again to switch back to
horizontal mode, or the gimbal will revert to horizontal mode
automatically when held upright.
Note: This method is not applicable in FPV mode.

Method 2: Gesture Control
1.Hold the gimbal perpendicular to the ground.
2.Tilt the gimbal 70° left or right to switch orientation.
3.The gimbal automatically switches to vertical mode.
4.It will return to horizontal mode when held upright.
Note: This method is not applicable in FPV mode.
12

Method 3: Rotate the Smartphone Clamp
1. Loosen the clamp knob.
2. Rotate the smartphone clamp by 90°.
3. Secure the phone by tightening the clamp knob.
13

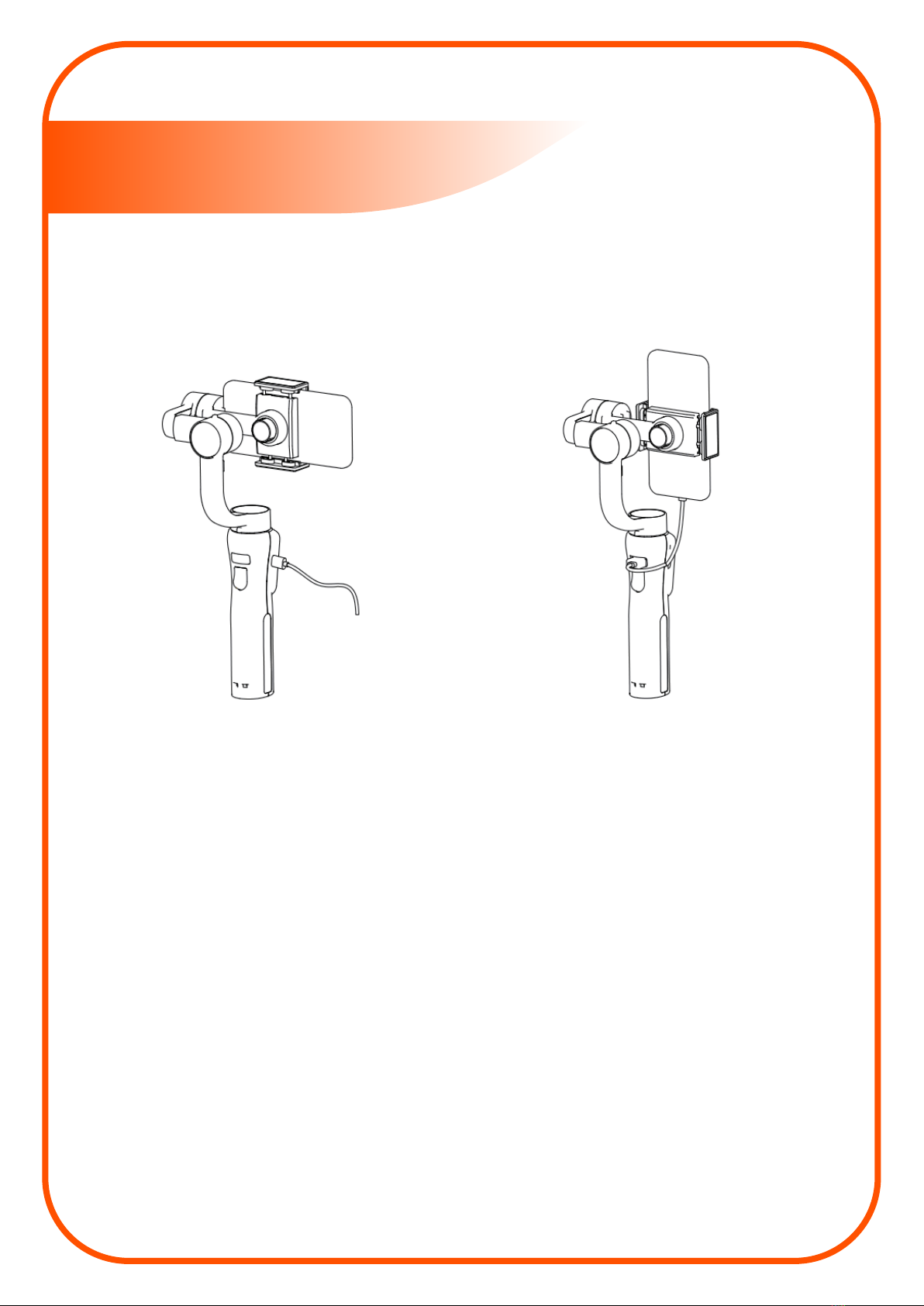

Charging the gimbal
To charge the smartphone follow these steps:
Charging the smartphone
Charging the Gimbal
14
1. Place the phone inside the clamps as shown in the picture.
2. Use a Type-L charger to connect the smartphone to the gimbal.

App Connectivity
15
Porodo Gimbal is capable of performing primary tasks such as taking
a simple picture without the App connectivity. However, various options,
including the zooming feature, panoramic view, and time-lapse feature,
are only provided via the Gimbal Pro App.
To download and install the App, scan the following QR code or
search for "Gimbal Pro" on Google Play or App Store.
Enable Bluetooth connectivity on your phone. Install the App on your
smartphone. Start the App and find and connect to the device named
"GP5_XXXX".
Android / iOS

Specifications
Specifications
Tilt angle 330°
Roll angle 180°
Pan angle 330°
Weight 440 gr
Payload 75 – 250 gr
Operating temperature 0° to 40° C
Controllable tilt angle -155° / +155°
Controllable roll angle -30° / +30°
Controllable pan angle -155° / +155°
Working voltage 3.4~4.2 V (Standard 3.7 V)
Width: 6 to 8.5 cm
Length: ≤ 16.5
Weight: ≤ 250 gr
Working current 150~3000 mA (Standard 1500 mA)
Gimbal dimension
Charging time 4 Hr
Working time
Face tracking
App
Zoom
Output/Input current
Output/Input voltage
Arm material
Handle material
10.8×7×28.9 cm
8 to 10 Hr
YES
YES
YES
1 A
5 V
PPA+Nylon
ABS+PC
16
Compatible smartphone range

Caution
Storage and Maintenance
1. Ensure that the motor's rotation is not impeded by any external
forces when the stabilizer is switched on.
2. Avoid exposing the stabilizer to seawater or corrosive liquids.
3. Do not disassemble the stabilizer, except to attach or detach
accessories specified in the manual.
4. If the device is in use for an extended period, its surface temperature
may become elevated.
5. It is essential to prevent dropping or striking the stabilizer, as such
impacts can lead to damage and disrupt normal functioning.
1. Ensure this product is kept out of reach of children and pets.
2. Do not place the product near any heat source, such as furnaces
or heaters, nor leave it in a vehicle during hot weather.
3. Store the product in a dry environment to prevent damage.
4. Avoid overcharging or completely discharging the battery as it
can lead to damage.
5. Operate the product within a temperature range that is neither
too high nor too low to ensure its proper functioning.
17

Warranty
Contact Us
For more info, please check:
porodo.net/warranty
Products that you buy directly from our Porodo website or shop
come with a 24-month warranty. When you buy Porodo products
from any of our approved sellers,you only get a 12-month warranty. If
you want to extend this warranty,
go to our website at https://porodo.net/warranty and fill out the
form with your information. Don't forget to upload a pictureof the
product too.After we've checked and accepted yourrequest, we'll
send you an email to confirm that your product's warranty has been
extended.
If you have any questions about this Privacy Policy,pleasecontact us
at: [e-mail]
Website: porodo.net
Service Support: [e-mail]
Instagram: porodo
