Porsche 997.642.590.00 User manual
2
4
997.642.590.00997.642.591.00Parts numbers:Porsche, the Porsche emblem and other trade-marks are registered trademarks of Dr. Ing. h.c. F. Porsche AG.Printed in Germany.Reproduction, including excerpts, as well as duplications of any kind are strictly subject to the written consent of Dr. Ing. h.c. F. Porsche AG.© Dr. Ing. h.c. F. Porsche AG Porscheplatz 1 70435 Stuttgart Germany.Equipment and on-board literaturePorsche reserves the right to make changes to equipment and technology from the illustrations and descriptions in this manual as part of theongoing further development of Porsche Classic Communication Management. The equipment variants do not always depend on the standard scope of delivery or on national equipment. For information on installing Porsche Classic Communication Management, please contact a Porsche Partner. The equipment of your Porsche Classic Communication Management may dier from the description due to dierent legal requirements in individual countries.If your Porsche Classic Communication Management is equipped with equipment details that are not described here, your Porsche Partner will inform you about correct operation and maintenance.Always keep on-board literature in the vehicle and pass it on to the new owner when the vehicle or Porsche Classic Communication Management is sold. If you have any questions, suggestions or ideas concerning your Porsche Classic Communication Management:Dr. Ing. h.c. F. Porsche AG Customer Relations Sales Porscheplatz 1 70435 Stuttgart GermanyWarnings and symbolsPossible severe injury or deathGEFAHRFailure to observe warnings in the "Danger" categorywill result in serious injury or death.Always observe the warnings.WARNUNGPossible severe injury or deathAlways observe the warnings.Failure to observe warnings in the "Warning" category may result in serious injury or death.Always observe the warnings.VORSICHTPossible moderate or minor injuryFailure to follow warnings in the "Caution" categorymay result in moderate or minor injury.HINWEISAlways observe the warnings.Possible severe injury or deathFailure to observe warnings in the "Notice" category may result in damage to the vehicle or Porsche Classic Communication Management.iInformationAdditional information is marked with "Information".5

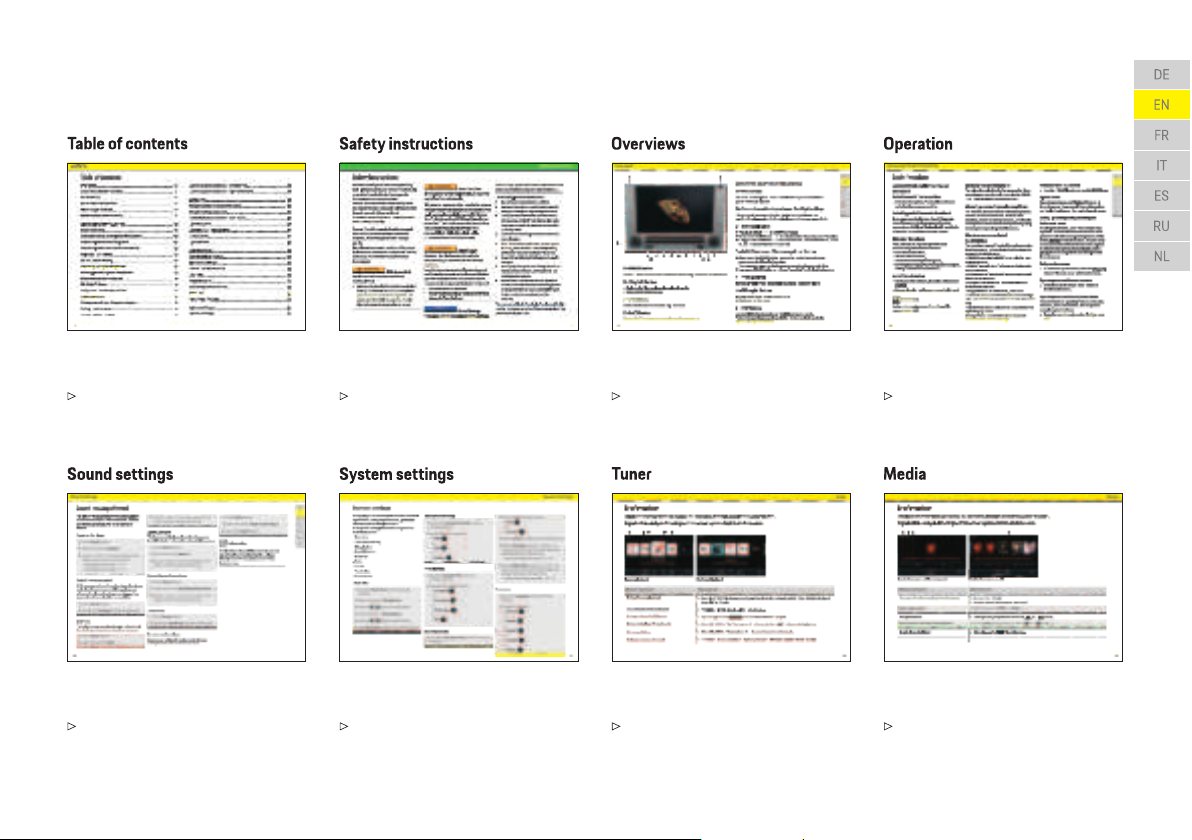

6Structure ohis manualGain an overviewand nd the desired topic.This section explains how tocontribute to safe operationThis section explains the controls and their operation.This section explains how to operate the functions.From Page 8.From Page 11.From Page 12.From Page 18.From Page 20.From Page 21.From Page 23.From Page 25.This section explains how to change the sound settings.This section explains how to change the system settings.This section explains how to operate the radio functions.This section explains how to operate the media functions.

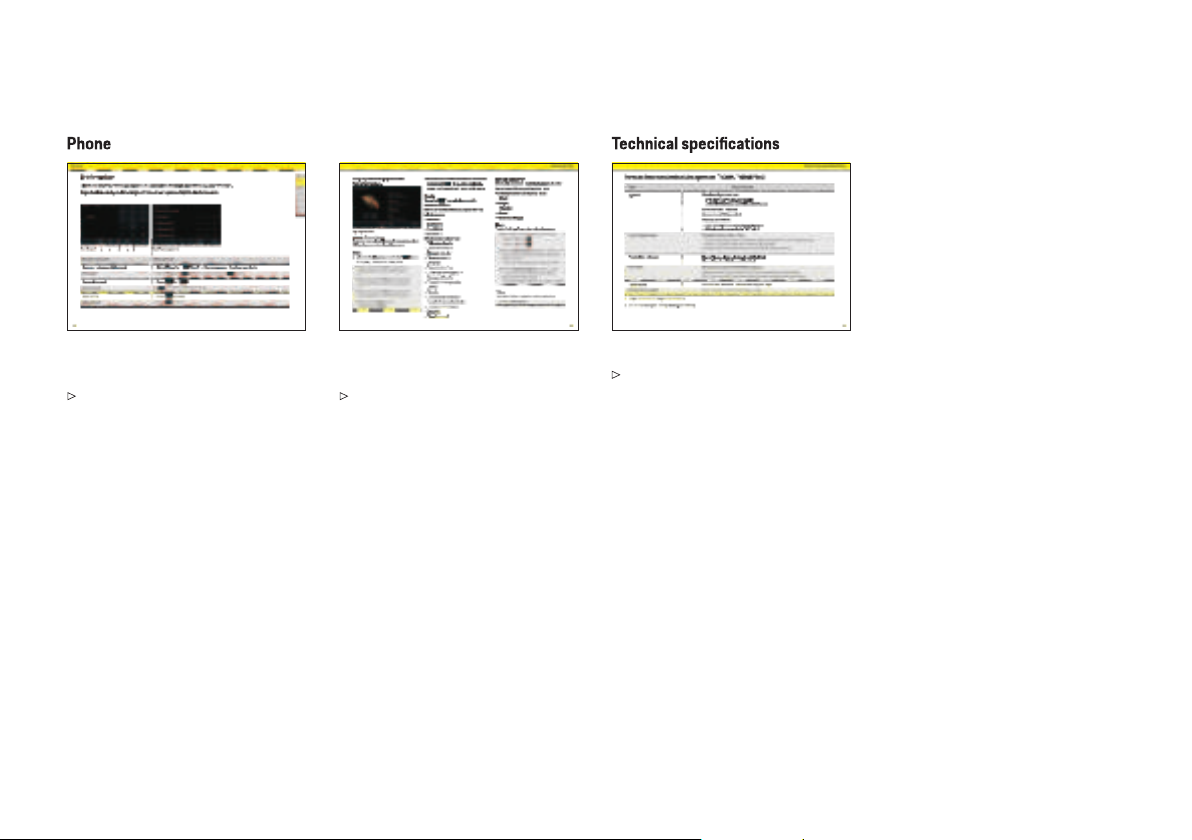

7From Page 28.From Page 33.From Page 35.Look up technical specications.This section explains how to operate the telephone functions.This section explains how to operate the Personal trip functions.Personal trip
Table of contentsContents1818Operating menus with the touchscreen............................................Operating menus with the right-hand knob......................................Exit menus............................................................................................Jump back to the next higher menu...................................................Jump back to main menu.....................................................................Return to the top level of a main menu...............................................Operating lists...................................................................................... Operating the input menus................................................................. Check boxes.........................................................................................Option elds.........................................................................................Sound settings.....................................................................................Sound settings Sound.........................................................................Equalizer Settings................................................................................Switch Loudness on/o......................................................................Set Fader...............................................................................................Adjust Balance.....................................................................................Speed dependent volume...................................................................Audio Pilot............................................................................................Rest sound settings.............................................................................System settings...................................................................................System settings...................................................................................8Overviews....................................................................................... Controls and their functions.........................................................HOME screen..................................................................................Radio function controls.................................................................Audio player controls..................................................................... Bluetooth function controls.........................................................121213141516Operating PCCM/PCCM Plus......................................................Basic functions..............................................................................Communication Management on and o....................................Switching on/o via the ignition..................................................Switching on/o via the le-hand knob......................................Adjusting the volume.................................................................... Mute/Cancel muting.....................................................................Selecting the operating mode......................................................Menu types and operation options..............................................Which menus are available?.........................................................The HOME Menu............................................................................Jump back to the HOME menu.....................................................Options menus...............................................................................Calling up and operating menu types.......................................... Call up main menus........................................................................Call up options menus...................................................................1818181818181818181818181818181819191919191919192020202020202020202121
Date/time.......................................................................................Time synchronise...........................................................................Standby time..................................................................................Day/night mode.............................................................................Language........................................................................................Units................................................................................................Volume............................................................................................Version info.....................................................................................Factory reset..................................................................................Tuner...............................................................................................Brief overview................................................................................. Setting the reception band........................................................... Tuning in to a station.....................................................................Setting stations via skip buttons.................................................Setting stations manually.............................................................Saving stations...............................................................................Settrac announcements............................................................Media..............................................................................................Brief overview.................................................................................Media source..................................................................................Select media source......................................................................Playing music.................................................................................Contents921212121212222222223232424242424242525262626Phone.................................................................................................... Brief overview.......................................................................................Hands-free quality...............................................................................Interrupted calls..................................................................................Connect a mobile telephone via Bluetooth.......................................Connect new mobile telephone.........................................................Bluetooth function on/o...................................................................Automatically connect a mobile phone on/o.................................Change Bluetooth name.....................................................................Connect to a known mobile phone.....................................................Display connection status..................................................................Deleting a Bluetooth device from Phone Manager...........................Dial telephone number........................................................................Call redial..............................................................................................Selecting a number from call lists......................................................Media and le formats.........................................................................Connecting and playing Bluetooth music.........................................Connection Smartphone.....................................................................Connection Carplay.............................................................................Operate Apple CarPlay via Siri speech...............................................Connection Android Auto....................................................................Operate Android Auto via Siri speech................................................26262727272727282829292929293030303030303131
Use contacts..................................................................................Transfer contacts...........................................................................Search contacts.............................................................................Call contact....................................................................................Delete contact list.........................................................................Sort contacts list...........................................................................Play external audio sources via Bluetooth..................................Selecting a number from contacts..............................................Answer call.....................................................................................Reject call/Select end call............................................................Private mode..................................................................................Show call list..................................................................................Contents10313131313131313232323232333333333333343434Technical specications............................................................... Porsche Communication Management(PCCM/PCCM Plus)......................................................................System............................................................................................Tuner/Digital radio........................................................................Navigations soware....................................................................Bluetooth........................................................................................ File formats....................................................................................Dimensions/weight......................................................................3535353535353535Personal trip..................................................................................Reset..............................................................................................Cong.............................................................................................Individual Memory........................................................................Light................................................................................................Wiper..............................................................................................Climate...........................................................................................Lock................................................................................................Factory reset.................................................................................
Safety instructionsSafety instructionsPerfect technology: Prerequisite for your safety High-quality materials and excellent workmanship ensure that Porsche Classic Communication Management has a long service life. Porsche Classic Communication Management needs your attention and care to full its potential. This will ensure that Porsche Classic Communication Management can be relied upon even in critical situations.Porsche Classic Communication Management is the central control unit for the radio,media functions,Phone,navigation,sound settingsand Car.The following points must be observed to ensurethat you do not endanger or harm yourself or others when using Porsche Classic Communication Management:WARNUNGRisk of accidentAny distraction may cause control of the vehicle to be lost.WARNUNGRisk of injuryWARNUNGRisk of accidentOnly operate Porsche Classic Communication Management when the vehicle is safely under control and the trac situation permits. If in doubt,stop the vehicle and operate Porsche Classic Communication whilst stationary.The navigation system only provides the driver withsupport and suggests a route.This does not release the driver from the full respon-sibility for correct driving style and behaviour in roadtrac in accordance with the rules of the German Road Trac Regulations (StVO) and other relevant regulations. The driver is responsible for assessing the trac situation. The driver retains sole responsibility for driving the vehicle safely.Remain aware of the trac situation.Do not use the telephone close to explosive substances (e.g. at a petrol station) or close to explosives.In certain hazardous areas, such as close to petrol stations, fuel depots, chemical plants and blasting operations, mobile phones must be switched o. Their use could interfere with technical equipment.Observe relevant instructions.Observe legal regulations and local restrictions when using the telephone.The following points should be noted:The screen is susceptible to scratches.The device must not be splashed with liquids. The ingress of liquids may destroy the device.Clean your Porsche Classic Communication Management carefully from time to time with a dry, clean and so cloth (microbre cloth) or a cleaning brush.Do not exert excessive pressure on the surface when cleaning.Never use solvents such as methylated spirits, thinners, petrol, acetone or alcohol (ethanol, methanol or isopropyl alcohol) or abrasives.Remove ngerprints with a damp cloth or mild detergent.Never spray detergents or other liquids directly onto the screen. Instead, moisten a cloth and gently wipe the screen.In the event of a malfunction never open the Porsche Classic Communication Management device yourself! In the event of a fault have the device repaired at a qualied specialist workshop.We recommend that a Porsche Partner is used for this work as they have trained workshop personnel and the necessary parts and tools.contains high-quality electronic components whose maintenance and care requires special attention.HINWEISRisk of damageThe Porsche Classic Communication Management 11
OverviewsCABEDFHIJKLNOMGUse the TUNER to access the radio mode and change between FM/AM/DAB+E--TUNER button Radio status The previous channel on the radioMusic status previous songG--Skip le ButtonI--CAR ButtonUse the BACK button to return to the previous menu stepK--BACK buttonUse the CAR button to enter the Trip interfaceC--Le knob ButtonD--HOME button and Voice recognition Button Use the PHONE button to switch to Bluetooth hands-free modeF--PHONE buttonTurn the le knob ---> to adjust the volumeShort press the le knob ---> to activate or deactivate the mute functionLong press the le knob ---> Quickly power o, then short press to power on,and memorize the radio broadcastRadio status Next channel on the radioMusic status Next songH--Skip right ButtonUse the NAV button to switch to the GPS navigation mode. Further information navigating with the device can be found in the separate Navigation ManualJ--NAV ButtonThe built-in microphone is used to make a telephone call with the Bluetooth hands-free kit.A--MicrophoneThe day/night sensor enables the device to detect the current ambient lighting level and adjust the display brightness accordinglyB--Sensor for switching between day/night settingsShort press the HOME button to enter the navigation main menu and access the following functions:Tuner, media, phone, navigation, map, sound, settings, applicationLong press HOME button to wake up Apple CarPlay/Android Auto voiceControls and their functions12
OverviewsTurn the knob to select APP, track, radio and other functions forward or backward.Aer selecting APP, track, radio function item, vertical short press is to conrm the selection.L--Besides the touchscreen the right-hand knob is the central control elementM--Navigation soware card slotNavigation soware card slot holds the MicroSDHC navigation soware and map material cardN--Media card slotIn addition to the right-hand knob the touchscreen is also a central control element.Any menu item can be selected directly from the touchscreen display.O--Touchscreen displayPlay media music, fast charge, Carplay/Android Auto13
OverviewsCABEDFHGHOME screenUse the [ ] button to navigate through the mainmenu and access the following functions:A– TunerPress the Tuner [ ] button to switch to radio mode and between the FM/AM/DAB+ reception bands.C--PhoneD--NaviB--MediaPress the media [ ] button in the playback mode to switch between USB music playback/Bluetooth music.Press the Phone [ ] button to switch to Bluetooth® hands-free mode.Press the Nav [ ] button to switch to GPS navigation mode. Further information navigating with the device can be found in the separate Navigation ManualE--MapF--SoundH--AppG--CarPress the Map [ ] button to switch to map view in navigation mode. Further information navigating with the device can be found in the separate Navigation ManualPress the Sound [ ] button to switch to sound setting mode.Press the Settings [ ] button to switch to general device settings mode.Press the App [ ] button to switch to Android-Auto® or AppleCarplay® mode.14
OverviewsCABEDFIJKHGRadio function controlsA--Reception band FM/AM/DAB+B--Page indicatorC--Selected stationIndicates the program memory location of the currently selected station.D--Station key/program memory location Displays the name or transmission frequency of the currently selected stationE--Station name or frequency displayF--RDS textThis display gives information on current radio text. This information is additional information transmitted by the radio station and shown as text in the display. For example, this may be the song title and artist of the track currently being played or current news.G--Presets [ ] Main tuner viewH--Tune [ ] Frequency band displayI--List [ ] List of stationsAM on / o switchSave stationTA) Switch trac announcements on/oJ--Options [ ] Radio settingsThe skip [ ] buttons allow you to switch to the previous/next station in the program memoryK--Skip button15
OverviewsABCDCEKLFGHIJCAudio player controlsA--Selected media: USB/BluetoothB--Track/artist currently playingThe skip [ ]/[ ] buttons allow you to switch to the previous/next track.C--Skip buttonD--Pause/PlayE--Time already playedF--Fast forward/backward/progress barG--Total timeH--Random playbackActivate/deactivate random modeK--Player [ ] Main audio player viewJ--All album titles on the playlistL--Browse [ ]Structure of the medium folderI--RepeatRepeat allRepeat titleRepeat folder16
OverviewsAFBCDEHIGJKBluetooth function controlsA--Selected mobile telephoneB--Field strengthC--Mobile phone charge indicatorD--Bluetooth function activatedF--Display the number enteredE--Numeric/character blockG--Dial/Hang UpH--Keypad [ ] Main Bluetooth function viewI--Calls [ ] Call historyJ--Contacts [ ]ContactsK--Options [ ] OptionsPhone ManagerBluetooth settingsContact settingsActivate/deactivate external microphoneChange calls17
Operating PCCM/PCCM PlusWhich menus are available?The HOME MenuThe functional range of Porsche Classic Communica-tion Management is divided into the following main menus via the HOME menu:--TUNER (button in the HOME menu or the button):Radio main menu，--MEDIA (button in the HOME menu or the button):Media main menu,--PHONE (button in the HOME menu or the button):Telephone, main menu--NAV (button in the HOME menu or the button):Navigation main menu,--Map (button in the HOME menu): map view--Sound (button in the HOME menu): Sound settings,--Car (button in the HOME menu): General device set-tings,--App (button in the HOME menu): Android-Auto® or AppleCarplay® mode.In many of these main menus various sub menus are combined to form a single topic.Menu types and operation optionsThe Porsche Classic Communication Managementscreen is a colour touch screen. All of the menufunctions, list entries and input menus, as well as thearrow symbols and scroll bars are operated by lightlytouching the respective part of the screen.Selecting the operating modeThe various Porsche Classic Communication Mana-gement modes are selected by pressing the HOME;TUNER; MEDIA; PHONE and NAV buttons.Basic functionsCommunication Management on and oSwitch on the ignition. Porsche Classic Comm-unication Management is active.Switching on/o via the ignitionSwitching on/o via the le-hand knobIf you do not wish the Porsche Classic Communi-cation Management to be permanently active, you can also switch it on/ using the le-hand knob.Press the le knob for at least one second.Adjusting the volumeTurn the le knob . Depending on situation,you can change the volume as follows:-- the active audio source,-- a trac announcement,-- an announcement by the navigation,-- the telephone ringing tone during an incoming call,-- making a hands free telephone call.Mute/Cancel mutingBriey press the le knob.The active audio source is mutedMuting is also used to cancel incoming trac announcements (TA)iInformationTo cancel muting briey press or turn the le knob.Jump back to the HOME menuPress the [ ] key to return to the HOME Menu.HOMEOptions menusThere is an options menu [ ] for some ofOptionsthe main menus where you will nd setting optionsand further functions for that particular main menu.Calling up and operating menu typesCall up main menusTo call up a main menu, press the correspondingkey on the Porsche Classic Communication Mana-gement or select the corresponding button via the menu [ ] on the touchscreen. You can chang-HOMEe from one main menu to another menu at any time. To return to the top level of a main menu, use the [ ] button until you return to the top level of BACK the main menu.Call up options menusTo access an Options menu, select the [ ] Options button in the main menu on the touch screen.Operating menus with the touchscreenTouch the individual menu items or buttons directly on the screen.Operating menus with the right-hand knobAs an alternative to operating via the touchscreenoperation, the menu items can also be operated using the right-hand knobHighlight a menu item by turning the right-hand knob18
Operating PCCM/PCCM PlusSelect the highlighted menu item by pressing the right-hand knobExit menusJump back to the next higher menuPress the [] button to cancel an operationBACK and go to the next higher menuJump back to main menuPress a main menu button to return to the corres-ponding main menu.Return to the top level of a main menuPress the [ ] button several times to reach theBACK top level of the main menu. Alternatively, press thecorresponding key on the Porsche Classic Commu-nication Management or select the correspondingbutton in the menu [ ] via the touchscreen.HOMEOperating listsThe following options are available for highlighting a menu item:Turning the right knob A highlighted menu item is indicated by an orange frame.Press the right-hand knob– or –Select a menu entry via the touchscreen: Conrm the selection.Operating the input menusIn some cases data can be entered into PorscheClassic Communication Management. For example,when entering a telephone number.To enter data in an input menu touch the charact-ers on the screen.– or –Mark the characters by turning the right-handknob and select them by pressing the righthandknobTo conrm and accept the data entered so far,select the corresponding button, e.g. in themenu.The input menus include some buttons in addi-tion to numbers.deletes the last entry in the input eld.switches to digits and special charactersswitches to extended special charactersswitches to letters/switches to Cyrillic alphabet (only if Russian is selected as menu language)switches between upper and lower caselettersinserts blanksconrms the entry and searches for ent-ries in the phone bookdials the entered phone numberends the current callis used to enter GSM service codesis used to enter country codesis used to change valuesiInformationFurther special types of letters can be called bypressing and holding the respective letter.iInformationSelect and activate menu item .Select and deactivate menu item .Some menu items have check boxes for activatingand deactivating functions.Check boxesOption eldsSome menu items have elds known as option eldsfor selecting dierent options.Select and activate the menu item .Select and deactivate menu item .In some cases, the illustrations in this manual maydier between the PCRN3-Plus-9X7-RDW devices.19
Sound settingsSound settings SoundThe sound settings in the [ ] menu are usedSoundto set the sound of your Porsche Classic Commun-ication Management for the audio sources as follows:Equalizer Settings1. Sound Press [ ] button. Select menu item [ ].2.Equalizer 3. Touch [ + ]and [ - ]or turn the knob on the right to select the desired setting:1. Sound Press [ ] button. Select menu item [ ].2.Fader 3. Touch [ + ]and [ - ]or turn the knob on the right to select the desired setting.1. Sound Press [ ] button. Check box [ ] activate or deactivate.2.Audio Pilot Set Fader1.Sound Press [ ] button. Check box [ ] activate or deactivate.2.Loudness --Bass adjustment range: -5~+5;--Treble adjustment range: -5~+51. Sound Press [ ] button. Select menu item [ ].2.Balance 3. Touch [ + ]and [ - ]or turn the knob on the right to select the desired setting.1. Sound Press [ ] button. Select menu item [ ].2.Speed dependent volume 3. Touch [ + ]and [ - ]or turn the knob on the right to select the desired setting.Switch Loudness on/oAs the human ear is most sensitive at medium frequ-encies it makes sense to use this function at low volume where the system increases high and low frequencies this results in better audibility.The fader setting is used to adjust the volume leveldistribution between the rear and front speakers.Adjust BalanceThe balance setting is used to adjust the volumelevel distribution between the le± and right speakers.Speed dependent volumeAudio PilotReset sound settingsReset sound settings is used to delete all sound settings and reset them to default values.1. Sound Press [ ] button. Select menu item [ ].2.Reset sound settings 3.Reset Select the [ ] button.iInformationTo adjust the volume of dierent audio sources separately (for example navigation, radio or Media), select the menu item Volume in the Settings menu.20
