Porter&Charles CG60WOK-F User manual

Operating and Installation
Instructions
Gas Cooktop
Model:
CG60WOK-F
CG76WOK-F
CG90WOK-F
To prevent accidents and
machine damage,
read the Operating Manual
before
installation or use.
en
CURRENT STANDARD: ANSI Z21.1-2016/CSA 1.1-2016

WARNING:
If the information in these instruction is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
death.
–Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
ß Do not try to light any appliance.
ß Do not touch any electrical switch.
ß Do not use any phone in your building.
ß Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
ß If you cannot reach your gas supplier, call the fire department.
–Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
–Note to the installer:
Please leave this instruction book with the consumer for the local
electrical / gas inspector’s use.
2 di 31
Leak testing of the appliance shall be conducted according to the manufacturer’s
instructions
This cooktop is NOT designed for installation in manufactured (mobile)
homes or in recreational vehicles.
Proper installation is your responsability. Make sure your appliance is
properly installed and grounded by a qualified installer
The installation must conform with local codes or, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or, in Canada, the Natural Gas and
Propane Installation Code, CSA B149.1.
If an external electrical source is utilized,the appliance, when installed,
must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, NFPA 70 or
the Canadian Electric Code, CSA C22.1-02.

3 di 31
WARNING:
This appliance is intended for use in the home only.
Use this appliance only for its intended purpose. The manufacturer
cannot be held liable for damage caused by improper use of this range.
This appliance complies with current safety regulations.
Improper use of this cooktop can result in personal injury and material
damage.
Read all the instructions before installing or using the range for the first
time.
Keep these operating instructions in a safe place and pass them on to
any future user.


NOTE: This cooktop is manufacted for use with natural gas. To convert
the appliance to LP/Propane gas, see the instructions in the Gas
Conversion instructions.
The proper gas supply connections must be available. See “Gas supply
requirements”.
IMPORTANT:
Please ensure that the cut out measurement, venting, and wiring is as specified
in the range measurement section of this manual.
A licensed electrician with relevant qualifications must perform electrical work when
installing or servicing the appliance. The supply cable and fuse rating must be suitable
for the appliance. You must never repair or replace any part of the appliance unless
specifically recommended in the operation manual.
Gas supply requirements
MAXIMUM GAS-SUPPLY PRESSURE, ALL MODELS ½ psi
VENTILATION
The room containing this range should have an air supply in accordance with local
regulations. Ventilation opening must not be covered or obstructed in any way
-
-
-
-
-
All rooms require an open window, or equivalent, and some rooms will also
require a permanent vent.
For room areas up to 5m2 an air vent of 100cm2 is required.
For room areas between 5m2 and 100cm2 an air vent of 50cm2 is required.
If the room is greater than 5m2 and has a door that opens directly to the
outside, then no air vent is required.
If there are other fuel-burning appliances in the same room, check your local
regulations to determine the air vent requirements.

Installation and connection
When using your gas appliance
follow basic safety precautions
including the following:
~Read all instructions before using for
the first time.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
~Install the appliance so that the
power cord and gas piping do not
come into contact with any portion of
the cooktop which may become hot
during use.
~ Do not connect the appliance to the
main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
~Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually “tripping” the
circuit breaker.
~ This equipment has not been
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles. However, under
certain circumstances it may be
possible for installation in these
applications. Please contact the
Technical Service Department with
specific requirements.
~After connecting the appliance test
for leaks according to the installation
instructions.
~ If there is any doubt concerning
installation contact Technical
Service Department.
IMPORTANT SAFETY INSTRUCTIONS
4 di 31
WARNING:The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during any pressure testing
of the gas supply piping system at test pressures equal to or less than 1/2 psi
(3.5 kPa). the maximum gas supply pressure in accordance with the inlet pressure
rating of the gas appliance pressure regulator supplied.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
WARNING:

Correct usage
~Do not operate the cooktop until it is
properly installed in the countertop.
~This appliance is intended for
residential cooking only.
~Use the appliance only for its
intended purpose.
~Be sure drafts do not blow
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
~Install the cooktop in a room that
has sufficient ventilation.
~This appliance must not be
operated outdoors.
~Do not use aluminum foil to line any
part of the cooktop.
~For proper lighting and performance
of the burners, keep the igniters clean
and dry.
~Make sure all components of the
gas burners are assembled correctly
before using the cooktop.
~Ensure that any burners in use are
always covered with a pan.
~Do not use pans that extend past
the burner grate. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
~For safety and stability, do not use
pans with a bottom diameter smaller
than the burner grate.
~Only certain types of glass, ceramic
or other glazed cookware are suitable
for use on a cooktop without breaking
due to the sudden temperature change.
~Do not store aerosols, gasoline,
combustibles or any other flammable
materials underneath or adjacent to the
cooktop.
WARNING - NEVER use this
appliance as a space heater to heat
or warm the room. Doing so may
result in carbon monoxide poisoning
and overheating.
Protection from damage
~Do not use a steam cleaner to clean
the appliance. Steam could penetrate
electrical components and cause a
short circuit.
~Spills containing salt or sugar
should be removed immediately.
IMPORTANT SAFETY INSTRUCTIONS
5 di 31

Personal safety
~The burners become very hot when
in use. Make sure that no one comes in
contact with them.
~Do not leave children unattended in
an area where the appliance is in use.
~Do not store toys or items of interest
to children in cabinets above or behind
the cooktop. Children climbing onto the
cooktop to reach these items may
become seriously injured.
~Do not allow children to operate or
play with the cooktop. Keep all pans
out of the reach of children.
~Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot burners. Do not use
towels or other bulky items near the
appliance.
~Be aware of loose fitting or hanging
garments when operating the cooktop,
they may present a fire hazard.
~Do not heat unopened food
containers. Built-up pressure may
cause the container to burst and result
in injury.
~Do not store items on the cooktop
when not in use.
~Do not let cooking grease or other
flammable materials accumulate on the
appliance.
~Do not leave the cooktop
unattended while in use. Boil-overs
cause smoking, and greasy spill-overs
may ignite.
~Do not use water on grease fires.
Smother any fire or flame, or use a dry
chemical or foam-type extinguisher.
~Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
~For safety reasons the flame should
be adjusted to be the same size as the
bottom of the pan or smaller. Do not
use small pans with high flame settings
as the flames can climb the sides of the
pan.
~Only use cooking utensils suitable
for cooktop use.
~Always position pan handles and
utensils inward so they do not extend
over adjacent work areas, burners or
the edge of the cooktop.
~If there is a drawer directly
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, these must be
made of a heat-resistant material.
IMPORTANT SAFETY INSTRUCTIONS
6 di 31

Damage to the appliance
~ In the event of damage or a defect,
turn off the appliance immediately. Turn
off the gas shut off valve and
disconnect completely from the
electricity supply. Contact the
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
~Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Under no circumstance
open the outer casing of the appliance.
~While the appliance is under
warranty repairs should only be
performed by a Miele authorized
service technician. Otherwise the
warranty is void.
Further safety notes
~When using a portable appliance
near the cooktop, make sure that its
power cord does not come in contact
with the cooktop.
~Do not use containers made of
plastic or aluminum. They may melt at
high temperatures.
~Do not heat empty pots or pans,
they may be damaged.
~Before discarding an old appliance,
disconnect it from the gas and
electrical supply and cut off the power
cord to prevent it from becoming a
hazard.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7 di 31

Cleaning the cooktop
Before using for the first time clean the
appliance as follows:
^Wash the gas burner assembly with a
mild solution of warm water and
liquid dish soap.
^Wipe dry and reassemble the parts in
the proper order (see “Cleaning and
care”).
^Wipe the cooktop with a damp cloth
and dry thoroughly.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated.
The harmless odor will dissipate after a
short time and does not indicate a
faulty connection or appliance defect.
Before using the cooktop
8 di 31

Ignition-System
The gas cooktops are equipped with a
Fast-Ignition-System which
incorporates the following features:
– The control knob can be released
once it is turned to the largest flame
symbol.
Turning on and off / Regulating
The control knob is used to light the
burner and to regulate the strength of
the flame.
Normal / Fast burner
ßCooktop is turned off
&Highest flame
/Lowest flame
Using the cooktop
Turning on
^To light a burner press down and turn
the corresponding control knob
counterclockwise to the largest flame
symbol. Release the knob. The ignitor
will click and ignite the gas.
The ignition process lasts about 2-5
seconds. The flame should light within
4 seconds.
^Adjust the knob to the desired
setting.
Turning off
^Turn the control knob clockwise to
“ß”.
This stops the flow of gas and turns off
the cooktop.
The knob must only be turned left to
turn the appliance on and right to
turn it off.
If the knob is turned,
- on without pressing it down first,
- clockwise past the 12 o’clock
position, or
- counterclockwise past the smallest
flame symbol,
parts of the cooktop could be
damaged.
9 di 31

Pan size
– Set the cooktop to a high flame when
using a large diameter pan and low
flame when using small diameter
pans.
– Generally, wide / shallow pans will
heat quicker and cook more evenly
than narrow / tall ones.
– Using oversized pans may cause the
flames to spread out and damage
the surrounding countertop or other
countertop appliances. The proper
pan size will also improve efficiency.
– Do not use small pans with high
flame settings, the flames may climb
the sides of the pan.
– Pots with a smaller diameter than the
pan support and pots that do not sit
securely (without wobbling) are
hazardous and should not be used.
Suitable pans
Unlike pans used on an electric
cooktop, the bases do not need to be
even for good results.
Thick pan bases will give more even
results, as hot spots are reduced due to
better heat distribution.
Thin pan bases will conduct the heat
faster but not as evenly as thick pan
bases. Stir the food frequently to
prevent burning.
Wok burners
You can use a wok on these burners
without any additional rings, trivets, etc.
If you wish to use the wok ring, for extra
stability, attach it as shown (depending
on your grates).
Using the cooktop
10 di 31

Using the cooktop
Mini Trivet
Examples of positioning of mini-trivet
MODEL:CG60WOK-F
11 di 30
MODEL:CG90WOK-F
MODEL:CG76WOK-F
The mini-trivet included with this
cooktop is to be used for cooking
vessels of diameter 120 mm or smaller

Never use a steam cleaner to clean
this cooktop. Pressurized steam
could cause permanent damage to
the surface and to components.
Do not use any sharp or pointed
objects which could damage the
seal between the frame and the
countertop.
Never use scouring agents, pads,
abrasive cleaning agents, or strong
cleaners, e.g. oven sprays, stain or
rust removers, these could damage
the surface of the appliance.
Keep the ignitor in the burner dry. If
it gets wet it will not spark.
Dry your cooktop thoroughly after
cleaning it to prevent lime deposits.
Spills containing salt or sugar should
be cleaned immediately.
Cooktop
Let the appliance cool to a safe
temperature before removing the
grates.
^Clean the grates, cooktop and knobs
with a sponge and a mild solution of
warm water and liquid dish soap.
^Soak baked or hardened spills.
Dry the cooktop and grates
thoroughly after cleaning.
The stainless steel surfaces can be
cleaned using a non-abrasive stainless
steel cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Printed surfaces
Remove any soiling which comes
into contact with the printed flame
symbols and the Miele logo right
away. Soiling, particularly salty food
or liquid and olive oil, can cause
damage if left on the printed
surfaces for too long. Do not use
stainless steel cleaning agents on
the printed surfaces. This can rub
off the print.
Stainless steel colored knobs
These controls may become
discolored or damaged if not
cleaned regularly.
Do not use a stainless steel cleaner
on the knobs.
Cleaning and care
12 di 30

Burners
The burners can be dismantled and
cleaned when cool.
^Remove the burner parts and wash
them in a solution of hot water and
liquid dish soap. Dry them
thoroughly. Make sure that the flame
holes are clean and completely dry.
^Wipe the burner base clean with a
damp cloth and then dry.
^Gently wipe the ignitor and ignition
safety control with a slightly damp
cloth, and then wipe dry.
Make sure that no liquid gets into
the appliance.

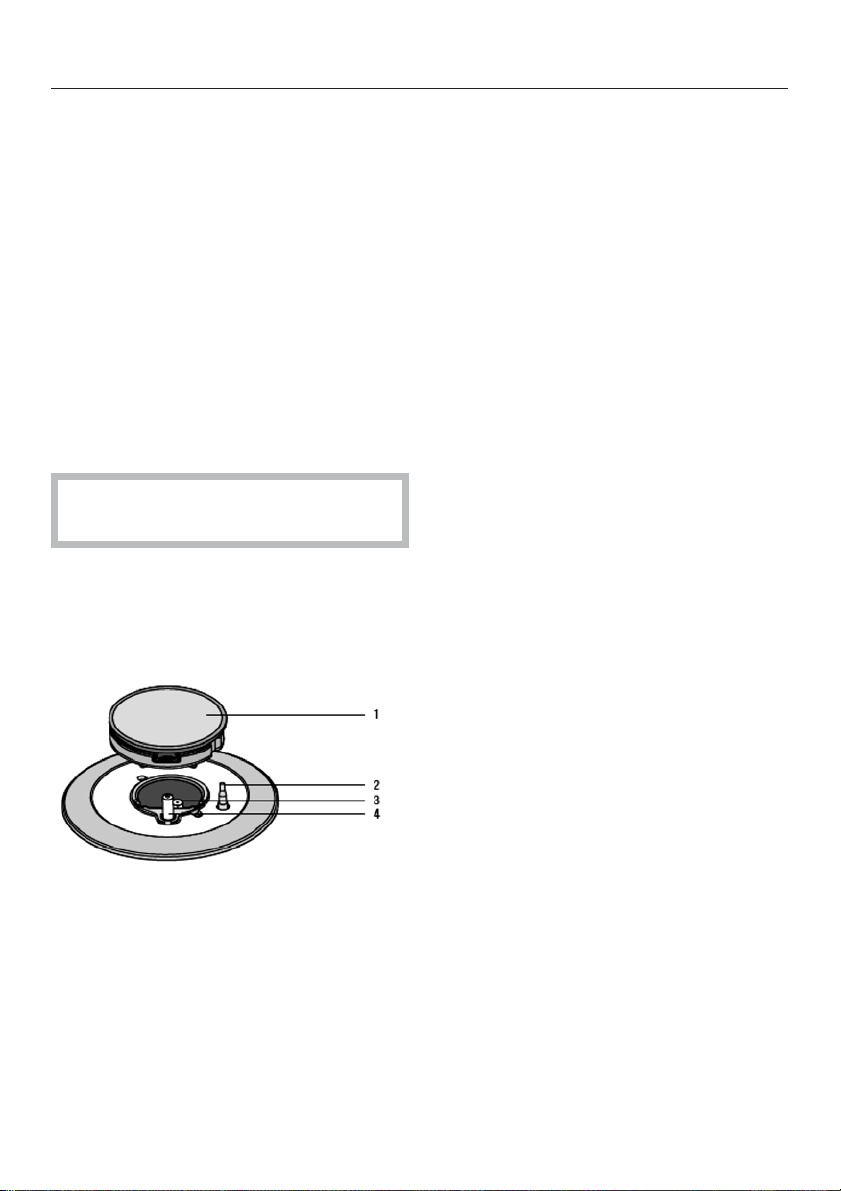

Reassembling the normal and fast
burners
Cleaning and care
1 Burner
2 Flame safeguard sensor (where fitted)
3 Injector
4 Ignition spark plug
13 di 30

,Repairs should only be carried out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
The burners do not ignite after several attempts.
Possible fault Fix
– The burners are assembled
incorrectly.
– The gas valve is closed.
– The burners are wet and soiled
and/or the flame holes in the
burners are soiled and clogged.
– The igniters are wet.
– The cooktop is not plugged in
and the circuit breaker has
tripped.
– Reassemble the burners as shown in
“Cleaning and Care - Burners”.
– Open the gas valve.
– Clean the burners. See “Cleaning and
Care”.
– Dry the igniters.
– Plug the cooktop in and restore power.
If lack of power is the problem, the
cooktop can be lit with a match. See
“Using the cooktop during a power
failure”.
The flame goes out after being lit.
– The burners are assembled
incorrectly.
– The flame holes in the burners
are soiled and clogged.
– Reassemble the burners as shown in
“Cleaning and Care - Burners”.
– Clean the burners. See “Cleaning and
Care”.
The igniters no longer work.
– Residue has been built up
between the ignitor and the
burner.
– Make sure the ignitor is dry.
– Clean the burners. See “Cleaning and
Care”.
– Dry the igniters.
The flame appears different than usual.
– The burners are assembled
incorrectly.
– Reassemble the burners as shown in
“Cleaning and Care - Burners”.
Frequently asked questions
14 di 30

In the event of a fault which you cannot
easily fix yourself, please contact the
Technical Service Department at the
address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the cooktop. This information
is visible on the silver data plate
supplied with the cooktop.
Adhere the data plate sticker to the box
below:
Technical Service
15 di 30

Installation Instructions
To prevent accidents
and machine damage
read these instructions
before
installation or use.
15 di 36

Installation
The minimum distances given in
these Installation instructions are to
combustible surfaces, and must be
observed to ensure safe operation.
Failure to do so increases the risk of
fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the cooktop.
~Gas appliances should only be
installed in a well ventilated area.
~The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion or
dissolving.
~The cooktop should only be installed
as shown in the illustrations while
maintaining the required safety
distances shown. Do not install the
cooktop between two tall cabinets, this
is a fire hazard.
a = indicates cooktop cut-out
b = minimum distance between
cut-out and a tall cabinet:
4.72" (12 cm)
~ This appliance has not been
designed for maritime use or for use in
mobile installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Technical Service
Department with specific requirements.
recommended
not recommended
not allowed
IMPORTANT SAFETY INSTRUCTIONS
16 di 307
1.97"
50 mm
1.97"
50 mm

~The cooktop must not be installed
over a dishwasher, washer, dryer,
refrigerator or freezer. Heat radiated by
the cooktop may damage the
appliances.
~Deep fat fryers must not be installed
next to gas cooktops. Gas flames can
ignite splattering oil. A distance of at
least 12" (305 mm) should be
maintained between these two
appliances. The minimum distance
between two cooktops must be 4"
(100 mm).
~Install the appliance so that the
power cord or gas piping does not
come into contact with any portion of
the cooktop which may become hot
during use.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer after the appliance is
installed.
This appliance must be
disconnected from the gas supply
during any pressure testing of the
system performed in excess of
1/2psi (3.5 kPa). This appliance
must be isolated at test pressures
equal to or less than 1/2psi
(3.5 kPa).
Any pipe connections must be made
using a thread sealant approved for
gas connections. Failure to correctly
install these items could lead to a
gas leak and subsequent explosion.
If the cabinet manufacturer
recommends a greater distance, follow
that manufacturers recommendation.
When installing the cooktop under a
venting hood, always observe the
minimum distance recommended by
the hood manufacturer.
Keep this instruction book in a safe
place for reference and pass it on to
any future user.
IMPORTANT SAFETY INSTRUCTIONS
18 di 30

19 di 30
IMPORTANT SAFETY INSTRUCTIONS
MINIMUM REQUIRED CLEARANCES AROUND THE COOKTOP
1 Distance to the combustible surfaces measured from cooking
surface (top of cooktop grate)
2 If installing with an overhead range hood, check the hood
specification for minimum required clearances.
3 This specification does not apply for cabients located grater
than a horizontal distance of 5 1/2" (14,0 cm) from edge of
cooktop. Allow 6 7/8" (17.5 cm) from cutout edge.

20 di 30
Appliance dimensions
5
22
3
8
Gas Connection
Electrical Supply
Cord
8,2"
2,7"
20"
23"
MODEL:CG60WOK-F
Depth of cooktop casing
from benchtop surface : 2,7"
Gas Connection Electrical Supply Cord
20,4"
2,7"
2
4
1
2
330" 8
20"
MODEL:CG76WOK-F
Depth of cooktop casing
from benchtop surface : 2,7"
Gas Connection Electrical Supply Cord
24"
2,7"
35"
20"
2
4
1
2
8
3
MODEL:CG90WOK-F
Depth of cooktop casing
from benchtop surface : 2,7"
NG Universal LPG
11500 BTU/hr 12000 BTU/hr
7600 BTU/hr 8250 BTU/hr
4900 BTU/hr 5700 BTU/hr
16500 BTU/hr 16500 BTU/hr
11000 BTU/hr 12500 BTU/hr
1 Rapid burner
2 Semi-rapid burner
3 Auxiliary burner
4 Triple ring burner
5 Double ring burner
8 Control knob for burner
