Porter&Charles CI76V User manual

INDUCTION HOB
INSTALLATION AND OPERATING INSTRUCTIONS
EN
Porter&Charles
CI76V

CONTENTS:
Safety Warnings ...................................................................................................3
Description of the appliance..............................................................................5
Cooking surface and control panel of heaters.......................................................5
Operation of the appliance.................................................................................7
Switching the appliance on and off........................................................................7
Switching the cooking-zones on and off................................................................7
Smart Pause .........................................................................................................7
Residual heat indicator..........................................................................................8
Safety switch off function.......................................................................................9
Child Lock..............................................................................................................9
Key Lock ...............................................................................................................9
Timer function (*optional).....................................................................................10
Buzzer .................................................................................................................11
Boost Function ....................................................................................................11
Hints and tips.....................................................................................................12
Installation of the appliance.............................................................................14
Installation safety.................................................................................................14
Fitting the cooktop into a worktop........................................................................14
Making an electrical connection..........................................................................16

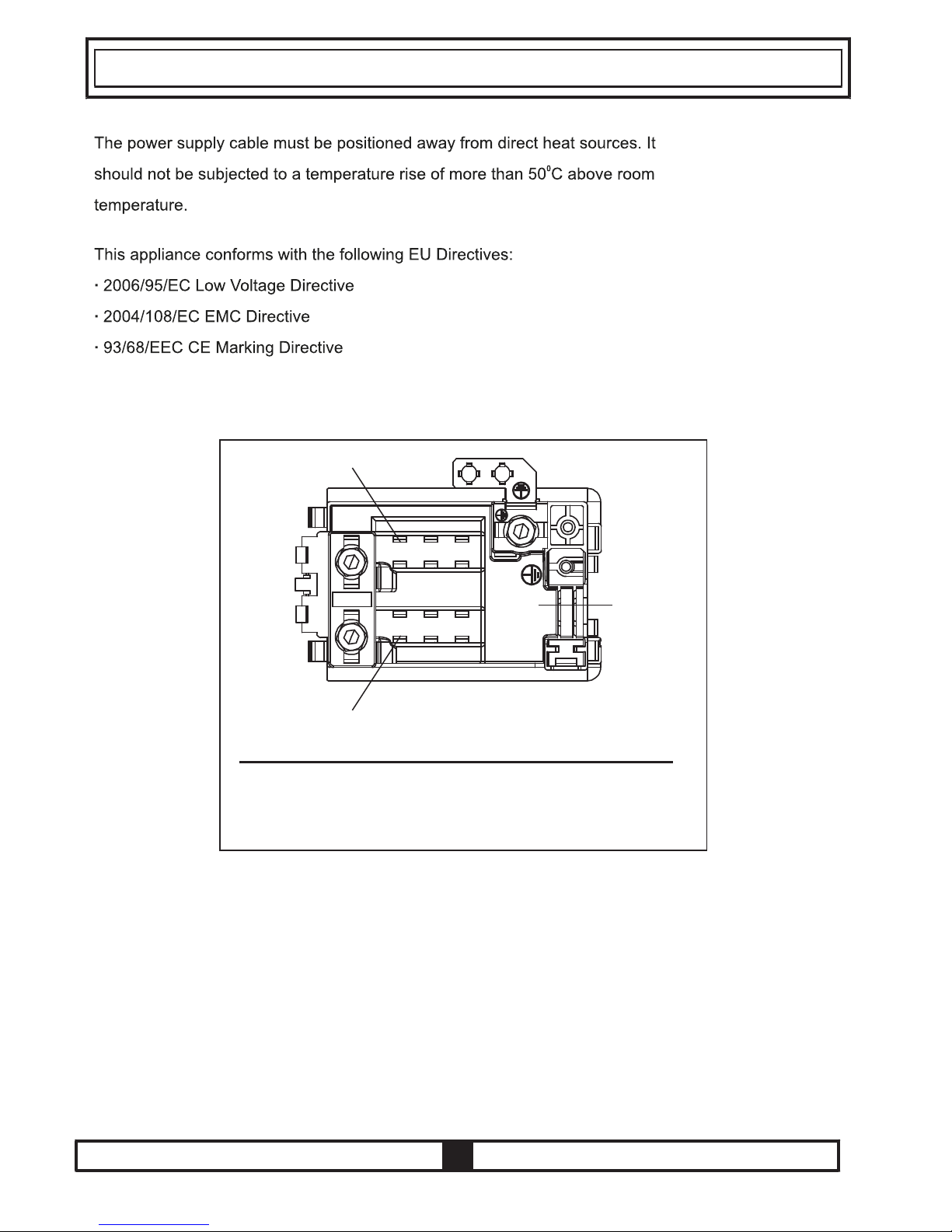

Electrical connection diagram.............................................................................17

1
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR
APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MULTIPLE SIMILAR COOKTOPS. YOUR APPLIANCE MAY NOT
HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. REFER TO THE MODEL
THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be done by children
without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
- WARNING: Unattended cooking on a cooktop
with fat or oil can be dangerous and may result in
fire. NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame
e.g. with a lid or a fire blanket.
- WARNING: Danger of fire: do not store items
on the cooking surfaces.
SAFETY WARNINGS

2
SAFETY WARNINGS
- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- For induction cooktops, metallic objects such
as knives, forks, spoons and lids should not be
placed on the cooktop surface since they can
get hot.
- For induction cooktop, after use, switch off the
cooktop element by its control and do not rely
on the pan detector.
- For cooktops incorporating a lid, any spillage
should be removed from the lid before opening.
And also the cooktop surface should be allowed
to cool before closing the lid.
- The appliance is not intended to be operated
by means of an external timer or separate
remote-control system.
- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the cooktop glass and
other surface since they can scratch the
surface, which may result in shattering of the
glass or damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.

3
SAFETY WARNINGS
- Your appliance is produced in accordance with all applicable local and international standards and
regulations.
- Maintenance and repair work must be made only by authorized service technicians. Installation and
repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter
or modify the specifications of the appliance in any way.
- Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure
or electricity voltage and frequency) and the requirements of the appliance are compatible. The
requirements for this appliance are stated on the label.
- CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic
household use only and should not be used for any other purpose or in any other application, such as
for non-domestic use or in a commercial environment or room heating.
- All possible security measures have been taken to ensure your safety. Since the glass may break,
you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with
accessories.
- Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
prevent a hazard.
Installation Warnings
- Do not operate the appliance before it is fully installed.
- The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement and installation by
unauthorized people.
- When you unpack the appliance, make sure that it is not damaged during transportation. In case of
any defect; do not use the appliance and contact a qualified service agent immediately. As the
materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children,
they should be collected and removed immediately.
- Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain,
snow etc.
- The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min
100°C.
During usage
- Do not put flammable or combustible materials, in or near the appliance when it is operating.
- Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of
extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan
with its cover in order to choke the flame that has occured in this case and turn the cooker off.
- Always position pans over the centre of the cooking zone, and turn the handles to a safe position so
they cannot be accidentally koncked.
- If you will not use the appliance for a long time, switch it off.
- Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
During cleaning and maintenance
- Always turn the appliance off at the main control before operations such as cleaning or maintenance.
- Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED SERVICE
AGENTS IN CASE OF NEED.
EURO PARTS:1800.678.8352

DESCRIPTION OF THE APPLIANCE
Dear Customer,
Please read the instructions in this user guide before using the cooktop and
keep it for future reference.
Cooking Surface for 4 zones:
4
Induction
heating element
Control panel

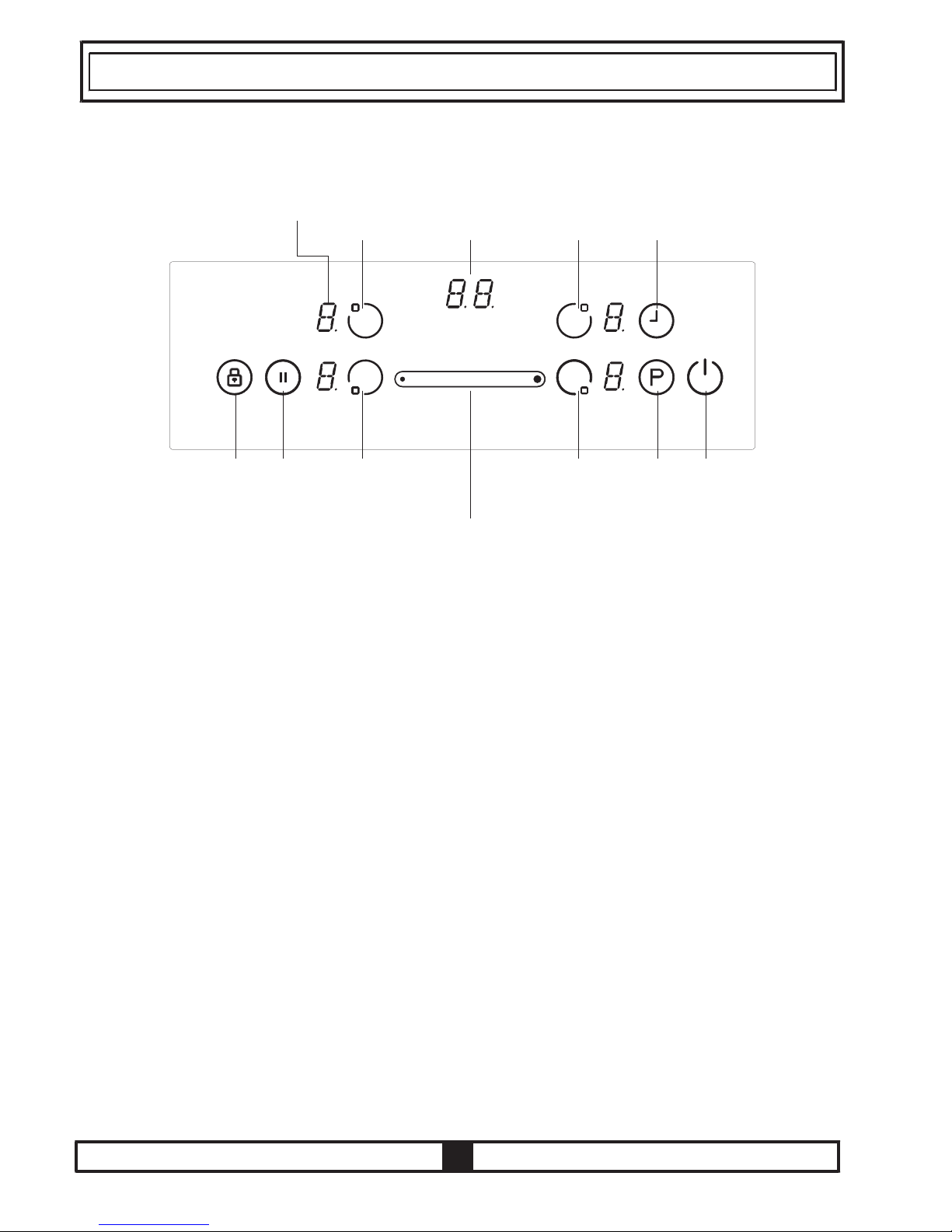

Control Panel for 4 zones :
5
Back left
zone selection
Front Right
zone selection
Boost
Front left
zone selection
Key Lock
Indicator
On/Off
Smart
Pause
Back Right
zone selection Timer
Sliding Buttons
Zone
Display Timer
Display

OPERATION OF THE APPLIANCE
Use the induction cooking zones with suitable cookware.
After mains voltage is applied, all displays come on for a moment. Fallowing this, the cooktop is in
the stand-by mode and it is ready for operation.
The is controlled with electronic sensors which are operated by touching the related
sensors. Each sensor activation is followed by a sound signal (buzzer).
Switching the appliance on:
Switch the on by touching ON/OFF key . All zone displays show a static "0" and the
bottom right dots blink. (If no cooking-zone is selected within 20 seconds, the hob will automatically
turn off.)
Switching the appliance off:
Switch the off at any time by touching .
ON/OFF key always priority in the switch off function.
Switching the cooking-zones on:
Touch the zone selection key you wish to cook on. There is a static dot indication on the selected
display and the blinking dot on all other displays extinguish.
For the selected you can set the heat level by touching the Sliding Buttons
. The element is now ready to cook on. For quickest boil times, select
desired cooking level and then touch the P key to activate Boost function.
Switching the cooking-zones off:
Select the element you want to switch off by pressing the zone selection key. Using the
Sliding Buttons from high to low(right to left) turn the temperature down to "0". (Also using the right
and left of the slider buttons simultaneously turns the temperature to "0")."
If the cooking zone is hot, "H" will be displayed instead of "0".
cooktop
cooktop
cooktop
has
zone
zone, from low to
high(left to right)
6

Switching all cooking-zones off:
To turn all the cooking zones off at once, touch the key.
In the stand-by mode, an "H" appears on all cooking zones which are hot.
Residual heat indicator:
Residual heat indicator indicates that the glass ceramic has a dangerous touch temperature
in the circumference of a cooking zone.
After switching off the cooking zone, the respective display shows "H" until the assigned
cooking zone temperature is in an uncritical level.
Smart Pause
Smart Pause, when activated, reduces the power of all burners that have been switched on.
If you then deactivate the Smart Pause, the heaters will automatically return to the previous
level.
If the Smart Pause is not de-activated, the cooktop will turn off after 30 minutes.
Touch ( ) to activate Smart Pause. The power for the activated heater(s) will reduce to
level 1 and “II” will appear at all displays.
Touch ( ) again to deactivate Smart Pause. “II” will disappear and the heaters will now
run at the level previously set.
7

Safety switch off function:
Every cooking zone will be switched off after a defined maximum operation time if the heat
setting is not modified. Every change in the cooking zone puts back the maximum operation time to
the initial value of the operating time limitation. The maximum operation time depends on the
selected temperature level.
Child Lock:
After switching on the control, the child lock function can be activated. To activate the child lock,
simultaneously press the right and the left of the slider button and then the right of the slider
button again. "L" meaning LOCKED will appear in all zone displays and the control can not be
changed. (If a cooking zone is in the hot condition, "L" and "H" will be displayed in alternation.)
The cooktop will remain in a locked condition until it gets unlocked, even if the control has been
switched off and on.
To deactivate the child lock, first turn on the cooktop. Simultaneously press the right and the left of
the slider button and then press left of slider button again. "L" will disappear in the display and the
cooktop will be switched off.
Key Lock
Key lock functionality is for blocking and set the appliance into a save mode during operation.
Touch modifications for example raising e heat settings and others should not be possible. It is only
possible to switch the appliance off.
The lock function is active, if the Key Lock button is pressed for at least 2 sec. This operation is
acknowledged by a buzzer. After successful operation of more than 2 sec, the Key Lock Indicator
flashes and the heater is locked.
press
Heat setting Safety switch off after
1 - 2
3 - 4
5
6 - 9
6 Hours
5 Hours
4 Hours
1,5 Hours
8

Timer function (*optional):
The timer function is realized in two versions:
Minute minder timer (1..99 min):
The minute minder timer can be operated if the cooking zones are switched off. The timer display
shows "00" with a blinking dot.
Use the Timer Sliding Buttons to increase/decrease the time. Adjustment range is
between 0 and 99 minutes. If there is no operation in 10 seconds, the minute minder timer will be
set and the blinking dot will disappear. After the timer is set, the time runs down according to the
adjustment.
When the time is over, a signal sounds and the timer display blinks. The sound signal will be
stopped automatically after 30 second and/or by operating any key.
The minute minder timer can be changed or switched off any time by using the Timer Sliding
Buttons . Switching off the hob by touching at any time will also switch off
the minute minder timer.
Cooking zone timer (1..99 min):
When the hob is switched on, an independent timer can be programmed for every cooking zone.
Select a cooking zone, then select the temperature setting and finally activate the timer setting
key , the timer can be programmed as a switch off function for a cooking zone. Four LEDs are
arranged around the timer. These indicate for which cooking zone the timer has been activated.
10 seconds after the last operation, the timer display changes to the timer that will run out next (in
case of programming more than 1 cooking zone).
9

When the timer has is complete, a signal sounds and the timer display shows "00" statically, the
assigned cooking zone timer LED blinks. The programmed cooking zone will be switched off and the
"H" will be displayed if the cooking zone is hot.
The sound signal and the blinking of the timer LED will STOP automatically after and/or
by operating any key.
Buzzer :
While the cooktop is in operation, the following activities will be signalled by means of a
buzzer:
· Normal key activation with a short sound signal
· Continuous operation of keys over a longer period of time (10 seconds) with a longer,
intermitten sound signal.
Boost Function :
A cooking zone has to be selected, cooking level set to „desired cooking level" and P(Boost) key
has to be pressed again.
Boost-Function can be activated if the induction module accepts the setting on this cooking zone If
Boost Function is actived a „P" is displayed on the corresponding display.
Activating the booster can exeed the maximum power for the appliance and the intagrated power
management will be activated .
The neccessary power reduction is shown by blinking of the correpsonding cooking zone display.
Blinking is active for 3 sec. and allows further adaptations of the settings before power reduction.
30 second
10

HINTS AND TIPS
Cookware
· Use thick, flat, smooth bottomed cookwares that are the same diameter as the element. This will
help reduce cooking times.
· Cookware made of steel, enamelled steel, cast iron and stainless steel (if appropriately abelled by
the manufacturer) will give you the best results.
· Cookware made of enamelled steel or aluminium or copper bottoms can cause a metallic residue to
remain on the hob. If left, this becomes difficult to remove. Clean the hob after every use.
· Cookware is suitable for induction if a magnet sticks to the bottom of the cookware.
· Cookware must be placed centrally on the cooking zone. If it is not placed correctly, is displayed.
· When using certain pans, you may get various noises from the pans, this is due to the design of the
pans and does not effect the performance or safety of the hob.
Energy saving
· Induction cooking zones adapt automatically to the size of the cookware bottom up to a certain limit.
However the magnetic part of the cookware bottom must have a minimum diameter depending upon
the size of the cooking zone.
· Place the cookware on the cooking zone before it is switched on.If it is switched on before putting
any cookware, the cooking zone will not operate and the control display shows.
· Use a lid to reduce cooking time.
· When liquid comes to the boil, reduce the temperature setting.
· Minimise the amount of liquid or fat to reduce cooking times.
· Select the proper temperature setting for the cooking applications.
CORRECT FALSE FALSE
11

Examples of cooking applications
The information given in the following table is for guidance only.
Cleaning tips
· Do not use abrasive pads, corrosive cleaners, aerosol cleaners or sharp objects to clean the
surfaces of the hob.
· To remove burnt food, soak it off with a damp cloth and washing-up liquid.
· You may use a scraper for cleaning food or residues. Sticky foods must be cleaned immediately
when they spill, before the glass has cooled down.
· Be careful not to scratch the silicon adhesive placed on the edges of the glass whilst using a
scraper.
· The scraper has a razor, therefore, it must be kept away from children.
· Use special ceramic hob cleaner on the hob while it is warm to touch. Rinse and wipe dry with a
clean cloth or paper towel.
Settings Use for
0
1 - 3
4 - 5
6 -7
8
9
P
Element off
Delicate warming
Gentle simmering, slow warming
Reheating and rapid simmering
Boiling, saute and searing
Maximum heat
Boost function
12

INSTALLATION OF THE APPLIANCE
WARNING:
The electrical connection of this hob should be carried out by a qualified electrician, according to
the instructions in this guide and in compliance with the current regulations. In the event of any
damage that occurs as a result of improper connection or installation, the warranty will not be valid.
This appliance must be earthed.
Installation safety
· Any overhanging surface should be at least 65cm above the hob.
· Extractor fans must be fitted in accordance with the manufacturer's instructions.
· The wall in contact with the rear of the hob must be made of flameproof material.
· The power cable length should not exceed 2 metres.
Fitting the hob into a work surface
· The hob can be inserted into any worktop provided it is heat resistant up to at least 90ºC.
· Create an opening with the dimensions shown in the picture below and on next page.
· Induction hob may be built in the 25 to 40 mm thick worktops.
13
78cm induction hob

Screw the 4 worktop mounting brackets on the side walls of product.
worktop mounting bracket
· Secure the hob in place by putting it into cutout on the work surface.
· Before inserting the oven, it is necessary to remove the rear kitchen element panel in the area of
the oven opening, in order to supply cooling. Equally, the front part of the kitchen element must
have an opening of no less than 5 mm.
Min. 35 mm
Min. 10 mm
Min. 10 mm Min.
5mm
14

Making an electrical connection
Before making a connection, check that:
·The mains voltage is the same as that quoted on the rating plate which is situated at the back of
your hob.
· The circuit can support the appliance load (see the rating plate).
· The power supply has an earth connection, which complies with the provisions of current
regulations and is in good working order.
· The fused switch is easily accessible once the hob has been installed.
If there is no dedicated hob circuit and fused switch, they must be installed by a qualified
electrician before the hob is connected.
An approved suitable cable must be connected from the Consumer Unit (main fuse box) and be
protected by its own 32amp fuse or Micro Circuit Breaker (MCB). The electrician must provide a
fused all pole switch, which disconnects both the line (live) and neutral conductors with a contact
seperation of at least 3,0 mm.
The fused switch should be fitted to the kitchen wall, above the worksurface and to the side of the
hob, not above it, in accordance with IEE regulations. Connect the fused switch to a junction box
which should be fitted on the wall about 61cm (24 inches) above floor level and behind the hob. The
hob's power supply cable can then be connected. Connect one end to the junction box and connect
the other end to the hob's power connection box which is located at the back of the hob. Remove
the cover of the power connection box and install the cable, in accordance with the connection
diagram.
15

Electrical connection diagram
For the induction hob, the cable must be suitable for region will be used. You will find the
connection diagram shown on the bottom of your appliance.
16
* This appliance must be earthed.
* For this connetion a power lead of wire type
10 AWG should be used.
LN
PE
BLACK
RED
GREEN

ERROR CODES
If there is an error, error code will be showed at heater displays.
E1 : Cooling Fan is disabled, call authorized service agents.
E3 : Supply coltage is over than rated values, turn the hob off by touching ,wait until “H”
disappears for all zones, turn the hob on by touching and continue to use. If same
error is seems again, call authorized service agents.
E4: Supply frequency is different from rated values, turn the hob off by touching
, wait until “H” disappears for all zones, turn the hob on by touching and
continue to use. If same error is seems again, plug off/on turn the hop on by
touching continue to use it. If same error is still seem call authorized service
agents.
E5: Hob inside temperature is too high, turn the hob off by touching let heaters
cool down.
E6: Communication error between touch control and heater, call authorized service
agents.
E7: Coil temperature sensor is disabled, call authorized service agents.
E8: Cooler temperature sensor is disabled, call authorized service agents.
E9: Calibration error, call authorized service agents.

The symbol on the product or on its packaging indicates that this product may not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you purchased the
product.
