PORTMAN P1 Mini User manual

P1 Mini
User manual
PRELIMINARY

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Welcome!
2/23
Welcome!
Dear User,
Thank you for choosing our P1 Mini. We are proud of delivering you the highest quality,
the greatest design and the real passion with our product. Each fixture in Portman P
range is different, but all of them ensure you the best performance and support your
creativity.
If you have any questions, suggestions or require additional information contact us at:
[email protected]
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
© 2016-2019 Portman Lights Sp. z o. o. All rights reserved.
The information and specifications are subject to change without notice. Portman
Lights Sp. z o. o. disclaims liability for any injury, damage, direct or indirect loss,
consequential or economic loss or any other loss occasioned by the use of, inability to
use or reliance on the information contained in this user manual.

USER MANUAL –Portman Custom Lights P1 Mini | Table of contents
P1 Mini
3/23
Table of contents
Welcome!.................................................................................................................................................................................................2
Table of contents...............................................................................................................................................................................3
Safety information ..........................................................................................................................................................................4
Technical specification ............................................................................................................................................................... 7
Fixture Overview............................................................................................................................................................................... 8
Preparation for use....................................................................................................................................................................... 10
Operation modes ...........................................................................................................................................................................13
Menu ..........................................................................................................................................................................................................15
DMX Chart............................................................................................................................................................................................ 18

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Safety information
4/23
Safety information
WARNING This product is for professional use only! It is not for household use.
P1 Mini presents risk of lethal or severe injury due to heat, electric shock,
fire or falls. Intense and flashing light could trigger epileptic seizures.
Read this manual before your initial start-up and follow the safety
information in this manual and engraved on the fixture.
Every person involved with the installation, operation and maintenance
of this device has to be qualified and experienced with operations on
stage lighting fixtures.
Before your initial start-up, please make sure that there is no damage
caused by transportation. Should there be any, consult your dealer and
do not use the device.
Please consider that damages caused by manual modifications to the
device are not subject to warranty.
CAUTION! Keep this device away from rain and moisture!
CAUTION! Be careful with your operations! With a dangerous voltage you
can suffer an electrical shock when touching the fixture and wires!
CAUTION! During the operation the fixture surface becomes hot. Allow the
device to cool approximately 30 minutes prior to manipulating with it. Keep a
minimum 0,7 meter distance from flammable materials to all exterior
surfaces of the fixture.
CAUTION! Avoid looking directly into the light source (meant especially for
epileptics)!
CAUTION! Unplug mains lead before opening the housing, installing the
lamp or the fuse. Allow the device to cool approximately 1 hour prior to
manipulating with it.

USER MANUAL –Portman Custom Lights P1 Mini | Safety information
P1 Mini
5/23
Protection against electrical shock
Disconnect the fixture from AC power when not in use.
Disconnect the fixture from AC power before any operation.
Do not remove the rear cover. There are no user-serviceable parts inside.
Always ground the fixture electrically.
Use only the wires attached to the kit.
Use only a source of AC power that complies with local building and electrical
codes and has both overload and ground-fault protection.
Do not expose the fixture to rain or moisture.
Replace the lamp or fuse only as described.
Protection against burns and fire
Never operate when the fixture is damaged or some part is missing.
Do not touch surface when the fixture is in operation. The exterior of the fixture
can reach temperatures up to 100°C (212°F). Allow the fixture to cool
approximately 30 minutes before any operation.
Replace the lamp when it becomes defective or worn out.
Never attempt to bypass the fuse. Always replace defective fuses with ones of the
specified type and rating.
Keep all combustible and flammable materials (for example fabric, wood, paper)
at a distance of at least 1 meter away from the fixture. Do not cover the fixture
when in operation and when it is hot.
Do not modify the fixture.
Do not operate the fixture if the ambient air temperature exceeds 45°C (113°F).
Do not operate the fixture after extreme change of surrounding environment
temperature. Allow the fixture to acclimate for at least an hour before operating.
Protection against falls
Use only professional tripods and clamps to mount the fixture. Ensure, that the
clamp or tripod is designed to withstand the weight of the fixture.
Ensure that the structure intended for installation can hold at least 10 times the
weight of all installed devices.
Ensure that all fixtures are attached correctly to the structure, after having
checked that the housing is firmly closed and all screws are tightly fastened and
use an approved means of secondary attachment such as a safety cable.
Block access below the work area whenever installing or removing the fixture.

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Safety information
6/23
Protection against eyesight damage and epileptic seizure
Do not stare directly into the light sources. Never look at an exposed lamp while it
is lit.
Provide advance notice that flash light is in use.
Avoid long cycles of rapid flashing light.
Always use safety glasses to protect your eyes when changing a lamp or opening
front cover.

USER MANUAL –Portman Custom Lights P1 Mini | Technical specification
P1 Mini
7/23
Technical specification
dimensions
778 x 620 x 172 mm
weight
12,5 kg
input voltage
100 - 240V 50Hz/60Hz
power consumption
90W
light source
3W 1800K filament + 10W RGBW
color temperature
1800 K (filament) + 6300K (glow white)
luminous flux
TBA
CRI
>90
beam angle
94o
DMX channels
19 - 50
DMX modes
5
connectors
2 x 5pin DMX
1 x AC Neutrik powerCON TRUE1 (inlet and outlet)
other features
built-in dimmers
built-in display and buttons
built-in macros
WDMX module optional
IP 20
Appliance class I

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Fixture Overview
8/23
Fixture Overview
Dimensions
DMX chart

USER MANUAL –Portman Custom Lights P1 Mini | Fixture Overview
P1 Mini
9/23
Pixels order
Back view

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Preparation for use
10/23
Kit content
1 x Portman P1 Mini
1 x AC power wire (powerCON TRUE1)
1 x User manual
Preparation for use
AC power connection
The Portman Custom Lights P1 Mini must be installed at 100-240V and 50/60Hz.
Fixture automatically detects the alternating current frequency. To turn on the fixture
simply plug in the powerCON TRUE1 and set the power switch to “ON”. Use only high
quality 3 x 2.5 mm2or larger mains power cords. Inspect all the power feed cables for
damages before use. Make sure to always connect the fixtures to a protected circuit
with appropriate electrical ground. Do never connect the fixture to a dimmer plug,
even if it supplies proper current.
Only qualified electricians in accordance with all known electrical regulations can
install the fixtures.
The P1 Mini comes with power input cord terminated with powerCON TRUE1 on one
end and tube connectors on the other end. Follow the rules from table below to
assemble power plug to the wire:
Connection
EU wires
US wires
Live
L
Brown
Black
Neutral
N
Blue
White
Earth
Green/Yellow
Green or Green/Yellow
CAUTION! Do not use the power cord without a plug attached!
REMEMBER! Only qualified person can change or install the plug!

USER MANUAL –Portman Custom Lights P1 Mini | Preparation for use
P1 Mini
11/23
Installation
Before mounting the fixture read and follow the safety recommendations indicated in
the Safety Information.
The Portman P1 Mini may be installed on a tripod or on a clamp. The fixture has 13 mm
(0,512 in) hole for a spigot, rigging clamp or a screw. Before rigging operations make
sure, that the structure onto which you are mounting the fixtures can withstand the
weight of all of the fixtures. Check if there is enough room for ventilation, configuration
and maintenance in a location where you want to place the fixture. You must secure
every hanged fixture with appropriate safety wire.
REMEMBER! Always secure hanged fixture with safety wire!
To adjust the position of the fixture when aiming it to the desired angle, use the side
handles. Loosen them by turning them counterclockwise before adjustment and set
the desired angle. Tighten the handles after adjusting the position by turning them
clockwise. Operate handles carefully and manually only. Tools can damage them.
Always double check if the fixture’s handles are tightened properly.

USER MANUAL –Portman Custom Lights P1 Retro Lamp |
12/23

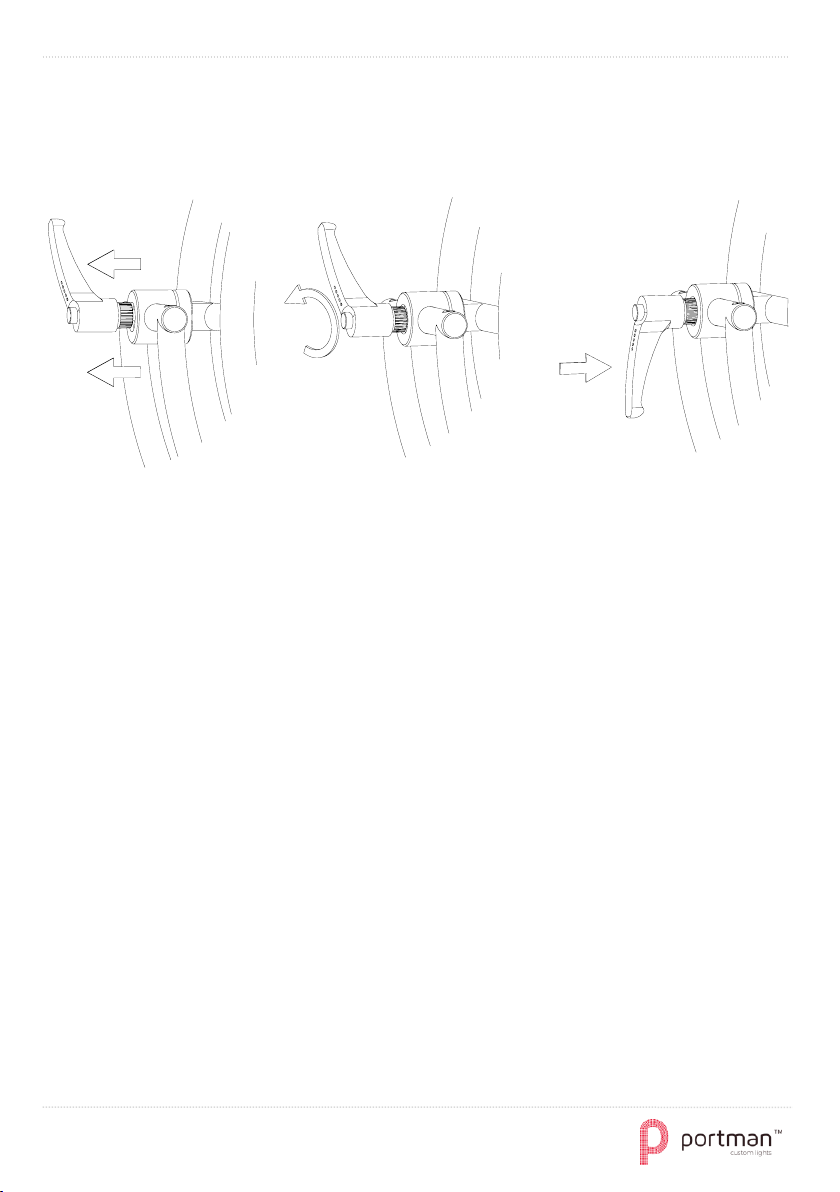

You can easily change the orientation of tightened handles to make your rig look even
better. Gently pull the tightened handle to disengage its teeth and rotate it into the
desired orientation. By releasing the handle the return spring automatically engages
the teeth.

USER MANUAL –Portman Custom Lights P1 Mini | Operation modes
P1 Mini
13/23
Operation modes
The Portman P1 Mini can work in two operation modes: Regular and Macro. Regular
mode is designed to work with DMX signal and Macro mode is designed to operate
the fixture manually, without external controlling signal. However the DMX signal has
got the highest priority and the fixture always reacts to connected DMX signal
regardless the operating mode.
Operation mode
Regular
Macro
DMX wire connected
reacts to DMX
reacts to DMX
WDMX connected
reacts do WDMX
doesn’t react to WDMX
DMX disconnected
keeps last DMX frame, or
turns off all lighting
sources (depends on
settings)
gets back to last
macro/manual setting
Power turned on
all lighting sources off
gets back to last
macro/manual setting
Main screen
address setting
macro number setting
There are three ways to operate the fixture in the Regular mode. You can use DMX wire,
onboard manual control or WDMX to control the fixture(if the WDMX card is installed).
You can link the P1 Mini to a DMX controller using a 5 pin DMX wire, or Wireless
Solution Sweden hardware (if WDMX card is installed). You can control each channel
individually whether with a DMX controller or a manual control build in the fixture. The
P1 Retro Lamp has got only one 7-channel DMX personality and it does support RDM.
In Regular mode fixture does not remember manual settings after reset.
To remember manual settings after reset you have to use Macro mode. You can set
any lighting scene using manual control section in the fixture’s menu or play build in
macros. The fixture always switches to DMX when DMX wire connected. After
disconnecting DMX in Macro mode fixture always gets back to last macro/manual
setting.
RDM
RDM (Remote Device Management) is an enhancement of DMX 512 protocol and
allows the bi-directional communication between DMX consoles and fixtures. It works
simultaneously with DMX 512 and on the same lines and wires. RDM is not affecting
non-RDM devices in a line, however non-RDM devices can disrupt communication
with console. RDM allows you to change the fixture’s options (such as DMX address)

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Operation modes
14/23
without even touching neither ladder or fixture’s buttons. P1 Mini fully supports the
RDM standards.
Manual operation
The fixture works in manual operation when it’s not receiving DMX signal whether
wired or wireless. You can adjust the brightness of all filaments at once from main
screen, or you can control each source individually from the “MANUAL CONTROL”
option in the menu (refer to the “Menu” chapter to learn how to manually control
channels). To enter menu simply hold enter for 2 seconds.
DMX 512 modes
The fixture automatically switches into DMX mode after receiving DMX data. To learn
how to change the DMX address or signal source (wired or wireless) refer to the “Menu”
chapter. When the fixture works in the wired DMX mode You can daisy chain fixtures
using 5 pin DMX wires. When daisy chaining remember, that you can connect up to
32 devices per DMX 512 universe. Always terminate the DMX 512 line. Put the 120 Ω
terminator into last device’s DMX OUT XLR socket.
When the fixture works in the wireless mode (only when WDMX card is installed) it is
receiving DMX 512 signal from Wireless Solution Sweden transmitters and can send
the signal throughout the 5 pin DMX OUT XLR socket. You can put the fixture with
WDMX card installed as a first fixture in a line and use it as a WDMX receiver. The P1
Mini supports bi - directional WDMX TRX module. It means, that the fixture supports
RDM in wireless mode too. To link P1 Mini with W-DMX transmitter first use “UPAIR
ALL WDMX DEVICES” option from menu, than turn the scanning mode on in the
transmitter. Transmitter will link with all unlinked devices. For more detailed
information please refer to your transmitter’s user manual.

USER MANUAL –Portman Custom Lights P1 Mini | Menu
P1 Mini
15/23
Menu
Navigation buttons are located under the LCD display on the back panel. To enter the
menu hold enter button for 2 seconds. To navigate the menu use the “+” and “-“
buttons. To exit the menu from any level hold enter for 2 seconds or use the exit
function. For confirming simply push the enter button.

USER MANUAL –Portman Custom Lights P1 Retro Lamp | Menu
16/23
Menu map
Main section
Level 1
Level 2
Level 3
Description
ADDRESS:
DMX ADDRESS
Sets up the DMX start address
PERSONAL
SETTINGS
DMX MODE
SIMPLE
Sets up the DMX mode. Refer to DMX chart for DMX channels
order.
STANDARD
STANDARD FINE
PIXEL
PIXEL FINE
DMX INPUT
WIRED
Changes the DMX input to wired (default). In this mode fixture
is receiving DMX signal from the DMX IN 5 pin XLR socket.
WIRELESS
Changes the DMX input to wireless. This mode works only
when WDMX card is installed. Fixture is receiving DMX data
from WDMX card.
OPERATING
MODE
REGULAR
Changes the fixture’s operating mode. Refer to Operation
Modes chapter for more info. Regular is default
MACRO
DIMM CURVE
LINEAR
Changes dimming curve of filaments. Halogen mode is
emulating behavior of halogen using also glow sources. Linear
is default.
LOGARYTHMIC
HALOGEN
RESET ALL TO
DEFAULT
CONFIRM
Resets all the options to default values.
WDMX
SETTINGS
PAIR DEVICES
PAIRING MODE
Switches device into pairing mode to connect it with Wireless
Solution Sweden WDMX transmitters.
WDMX INFO
WDMX INFO
Shows WDMX card info.
RDM INFO
MANUFACTURER
Shows the name of the fixture’s manufacturer.
DEVICE NAME
Shows the fixture’s name given by manufacturer.
DEVICE LABEL
Shows the fixture’s name given by user.
RDM ID
Shows the fixture’s RDM unique ID number.

USER MANUAL –Portman Custom Lights P1 Mini | Menu
P1 Mini
17/23
FIRMWARE LPU1
Shows actual firmware version of LPU1 board.
FIRMWARE LDB1
Shows actual firmware version of LDB1 board.
MANUAL
CONTROL
FILAMENTS
ALL FILAMENTS
0 –100% BRIGHTNESS
Sets all filaments dimmer value
FILAMENT CH.1
0 –100% BRIGHTNESS
Sets filament pixel 1 dimmer value
FILAMENT CH.2
0 –100% BRIGHTNESS
Sets filament pixel 2 dimmer value
FILAMENT CH.3
0 –100% BRIGHTNESS
Sets filament pixel 3 dimmer value
FILAMENT CH.4
0 –100% BRIGHTNESS
Sets filament pixel 4 dimmer value
FILAMENT CH.5
0 –100% BRIGHTNESS
Sets filament pixel 5 dimmer value
FILAMENT CH.6
0 –100% BRIGHTNESS
Sets filament pixel 6 dimmer value
FILAMENT CH.7
0 –100% BRIGHTNESS
Sets filament pixel 7 dimmer value
GLOW
GLOW DIMMER
0 –100% BRIGHTNESS
Sets glow all pixels dimmer value
RED
0 –100% RED
Sets glow red value
GREEN
0 –100% GREEN
Sets glow green valuer
BLUE
0 –100% BLUE
Glow blue value
WHITE
0 –100% WHITE
Glow white value
MACRO
MACRO SELECT
MACRO NUMBER
SELECT
Selects macro
MACRO SPEED
MACRO SPEED
Sets the macro speed
EXIT
Exits from main section of the menu to main screen.
Red values are editable.

USER MANUAL –Portman Custom Lights P1 Retro Lamp | DMX Chart
18/23
DMX Chart
I. Mode Simple
DMX
channel
Parameter
Descripton
1.
Dimmer Main Source Ch. 1
Pixel 1 filament 8 bit dimmer 0 –100%
2.
Dimmer Main Source Ch. 2
Pixel 2 filament 8 bit dimmer 0 –100%
3.
Dimmer Main Source Ch. 3
Pixel 3 filament 8 bit dimmer 0 –100%
4.
Dimmer Main Source Ch. 4
Pixel 4 filament 8 bit dimmer 0 –100%
5.
Dimmer Main Source Ch. 5
Pixel 5 filament 8 bit dimmer 0 –100%
6.
Dimmer Main Source Ch. 6
Pixel 6 filament 8 bit dimmer 0 –100%
7.
Dimmer Main Source Ch. 7
Pixel 7 filament 8 bit dimmer 0 –100%
8.
Red All glow
Red glow 8 bit on all pixels
9.
Green All glow
Green glow 8 bit on all pixels
10.
Blue All glow
Blue glow 8 bit on all pixels
11.
White All glow
White glow 8 bit on all pixels
12.
Dimmer glow
All pixels glow 8 bit dimmer 0 –100%
13.
Strobe glow
Glow strobe channel
14.
Strobe Main Source
Filaments strobe channel
15.
Color wheel All glow
Glow virtual color wheel
16.
Macro
Macro select channel
17.
Macro direction
Macro direction channel
18.
Macro speed
Macro speed channel
19.
Control
Fixture control channel

USER MANUAL –Portman Custom Lights P1 Mini | DMX Chart
P1 Mini
19/23
II. Mode Standard
DMX
channel
Parameter
Description
1.
Dimmer Main Source Ch. 1
Pixel 1 filament 8 bit dimmer 0 –100%
2.
Dimmer Main Source Ch. 2
Pixel 2 filament 8 bit dimmer 0 –100%
3.
Dimmer Main Source Ch. 3
Pixel 3 filament 8 bit dimmer 0 –100%
4.
Dimmer Main Source Ch. 4
Pixel 4 filament 8 bit dimmer 0 –100%
5.
Dimmer Main Source Ch. 5
Pixel 5 filament 8 bit dimmer 0 –100%
6.
Dimmer Main Source Ch. 6
Pixel 6 filament 8 bit dimmer 0 –100%
7.
Dimmer Main Source Ch. 7
Pixel 7 filament 8 bit dimmer 0 –100%
8.
Red 1 glow
Pixel 1 Red 8 bit
9.
Green 1 glow
Pixel 1 Green 8 bit
10.
Blue 1 glow
Pixel 1 Blue 8 bit
11.
White 1 glow
Pixel 1 White 8 bit
12.
Red 2 glow
Pixel 2 Red 8 bit
13.
Green 2 glow
Pixel 2 Green 8 bit
14.
Blue 2 glow
Pixel 2 Blue 8 bit
15.
White 2 glow
Pixel 2 White 8 bit
16.
Red 3 glow
Pixel 3 Red 8 bit
17.
Green 3 glow
Pixel 3 Green 8 bit
18.
Blue 3 glow
Pixel 3 Blue 8 bit
19.
White 3 glow
Pixel 3 White 8 bit
20.
Red 4 glow
Pixel 4 Red 8 bit
21.
Green 4 glow
Pixel 4 Green 8 bit
22.
Blue 4 glow
Pixel 4 Blue 8 bit
23.
White 4 glow
Pixel 4 White 8 bit
24.
Red 5 glow
Pixel 5 Red 8 bit
25.
Green 5 glow
Pixel 5 Green 8 bit
26.
Blue 5 glow
Pixel 5 Blue 8 bit
27.
White 5 glow
Pixel 5 White 8 bit
28.
Red 6 glow
Pixel 6 Red 8 bit
29.
Green 6 glow
Pixel 6 Green 8 bit
30.
Blue 6 glow
Pixel 6 Blue 8 bit
31.
White 6 glow
Pixel 6 White 8 bit
32.
Red 7 glow
Pixel 7 Red 8 bit
33.
Green 7 glow
Pixel 7 Green 8 bit
34.
Blue 7 glow
Pixel 7 Blue 8 bit
35.
White 7 glow
Pixel 7 White 8 bit
36.
Dimmer glow
All pixels glow 8 bit dimmer 0 –100%
37.
Strobe glow
Glow strobe channel
38.
Strobe Main Source
Filaments strobe channel
39.
Color wheel All glow
Glow virtual color wheel
40.
Macro
Macro select channel
41.
Macro direction
Macro direction channel
42.
Macro speed
Macro speed channel
43.
Control
Fixture control channel

USER MANUAL –Portman Custom Lights P1 Retro Lamp | DMX Chart
20/23
III. Mode Standard fine
DMX
channel
Parameter
Description
1.
Dimmer Main Source Ch. 1
Pixel 1 filament 8 bit dimmer 0 –100%
2.
Dimmer Main Source Ch. 1 fine
Pixel 1 filament 16 bit dimmer 0 –100%
3.
Dimmer Main Source Ch. 2
Pixel 2 filament 8 bit dimmer 0 –100%
4.
Dimmer Main Source Ch. 2 fine
Pixel 2 filament 16 bit dimmer 0 –100%
5.
Dimmer Main Source Ch. 3
Pixel 3 filament 8 bit dimmer 0 –100%
6.
Dimmer Main Source Ch. 3 fine
Pixel 3 filament 16 bit dimmer 0 –100%
7.
Dimmer Main Source Ch. 4
Pixel 4 filament 8 bit dimmer 0 –100%
8.
Dimmer Main Source Ch. 4 fine
Pixel 4 filament 16 bit dimmer 0 –100%
9.
Dimmer Main Source Ch. 5
Pixel 5 filament 8 bit dimmer 0 –100%
10.
Dimmer Main Source Ch. 5 fine
Pixel 5 filament 16 bit dimmer 0 –100%
11.
Dimmer Main Source Ch. 6
Pixel 6 filament 8 bit dimmer 0 –100%
12.
Dimmer Main Source Ch. 6 fine
Pixel 6 filament 16 bit dimmer 0 –100%
13.
Dimmer Main Source Ch. 7
Pixel 7 filament 8 bit dimmer 0 –100%
14.
Dimmer Main Source Ch. 7 fine
Pixel 7 filament 16 bit dimmer 0 –100%
15.
Red 1 glow
Pixel 1 Red 8 bit
16.
Green 1 glow
Pixel 1 Green 8 bit
17.
Blue 1 glow
Pixel 1 Blue 8 bit
18.
White 1 glow
Pixel 1 White 8 bit
19.
Red 2 glow
Pixel 2 Red 8 bit
20.
Green 2 glow
Pixel 2 Green 8 bit
21.
Blue 2 glow
Pixel 2 Blue 8 bit
22.
White 2 glow
Pixel 2 White 8 bit
23.
Red 3 glow
Pixel 3 Red 8 bit
24.
Green 3 glow
Pixel 3 Green 8 bit
25.
Blue 3 glow
Pixel 3 Blue 8 bit
26.
White 3 glow
Pixel 3 White 8 bit
27.
Red 4 glow
Pixel 4 Red 8 bit
28.
Green 4 glow
Pixel 4 Green 8 bit
29.
Blue 4 glow
Pixel 4 Blue 8 bit
30.
White 4 glow
Pixel 4 White 8 bit
31.
Red 5 glow
Pixel 5 Red 8 bit
32.
Green 5 glow
Pixel 5 Green 8 bit
33.
Blue 5 glow
Pixel 5 Blue 8 bit
34.
White 5 glow
Pixel 5 White 8 bit
35.
Red 6 glow
Pixel 6 Red 8 bit
36.
Green 6 glow
Pixel 6 Green 8 bit
37.
Blue 6 glow
Pixel 6 Blue 8 bit
38.
White 6 glow
Pixel 6 White 8 bit
39.
Red 7 glow
Pixel 7 Red 8 bit
40.
Green 7 glow
Pixel 7 Green 8 bit
41.
Blue 7 glow
Pixel 7 Blue 8 bit
42.
White 7 glow
Pixel 7 White 8 bit
43.
Dimmer glow
All pixels glow 8 bit dimmer 0 –100%
44.
Strobe glow
Glow strobe channel
45.
Strobe Main Source
Filaments strobe channel
46.
Color wheel All glow
Glow virtual color wheel
47.
Macro
Macro select channel
48.
Macro direction
Macro direction channel
49.
Macro speed
Macro speed channel
50.
Control
Fixture control channel
