POSIFLEX TX-2300-G2 User manual

1
Package Contents
POS box…………………………………..…………………………..(x 1)
Power adaptor………………………………..…………………….…(x 1)
Power cord………………………………………..…………………..(x 1)
SOME IMPORTANT NOTES
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment
this equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement
résidentiel, cet équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other
than the authorized technicians. The user should consult his/her dealer for the problem
happening. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne
autre que les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le
problème qui se produit. La garantie s'annule si l'utilisateur ne suit pas les instructions
d'application de cette marchandise. Le fabricant n'est en aucun cas responsable de tout
dommage ou danger causé par une mauvaise application.
TX-2300-G2/TX-2300E-G2
Fanless POS Box
User Manual
TX-2300(E)-G2 Ver. A0

2
警告使用者
為避免電磁干擾，本產品不應安裝或使用於住宅環境。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be
present.
CONSIGNES DE SÉCURITÉ
Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des
enfants.
WARNING
Power cord shall be connected to a socket-outlet with earthing connection.
ATTENTION
Le cordon d'alimentation doit être connecté à une prise de courant avec mise àla terre.
BATTERY WARNING
Risk of explosion if battery is replaced by an incorrect type. Dispose of expended
battery in accordance with local disposal regulations.
AVERTISSEMENT DE BATTERIE
Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez la batterie
usagée conformément aux réglementations locales en matière d'élimination.
警告
本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之電池。

3
Views of the TX-2300-G2
Front View
Rear View
Bottom View
Rubber Pad
Rubber Pad
Power Button
USB 2.0 Port
Power Status LED Indicator
PS2 Port for Keyboard
HDD LED Indicator
I/O Interface
Service Window

4

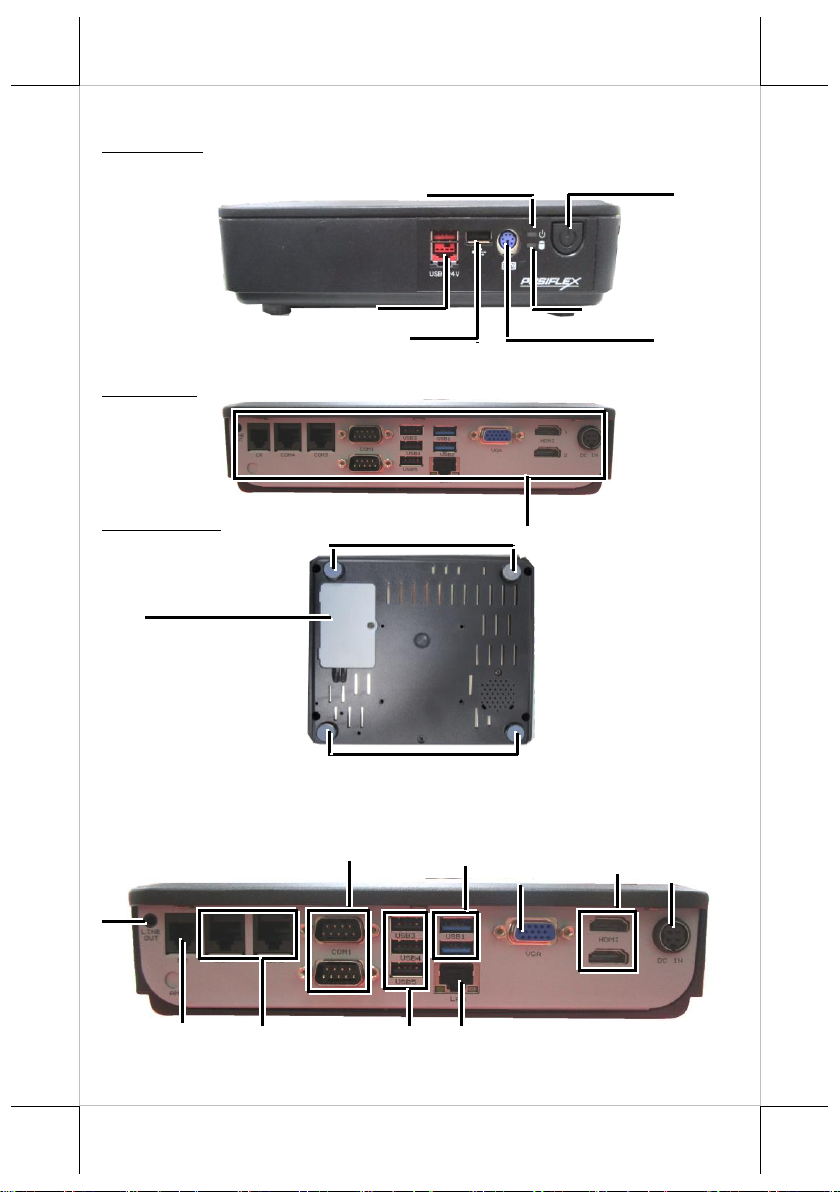

Views of the TX-2300E-G2
Front View
Rear View
Bottom View
View of Rear I/O Interface of TX-2300-G2/2300E-G2
Power Button
USB 2.0 Port
Power Status LED Indicator
PS2 Port for Keyboard
2
10
5
1
6
7
8
4
9
3
PoweredUSB Port
HDD LED Indicator
I/O Interface
Rubber Pad
Rubber Pad
Service Window

5
1
Mic-in & Line-out Combo
2
CR port (RJ10)
3
COM ports (RJ50)
4
COM ports (DB9)
5
USB 2.0 ports
6
USB 3.0 ports
7
LAN port (RJ45)
8
VGA port
9
HDMI ports
10
12 VDC-IN power jack

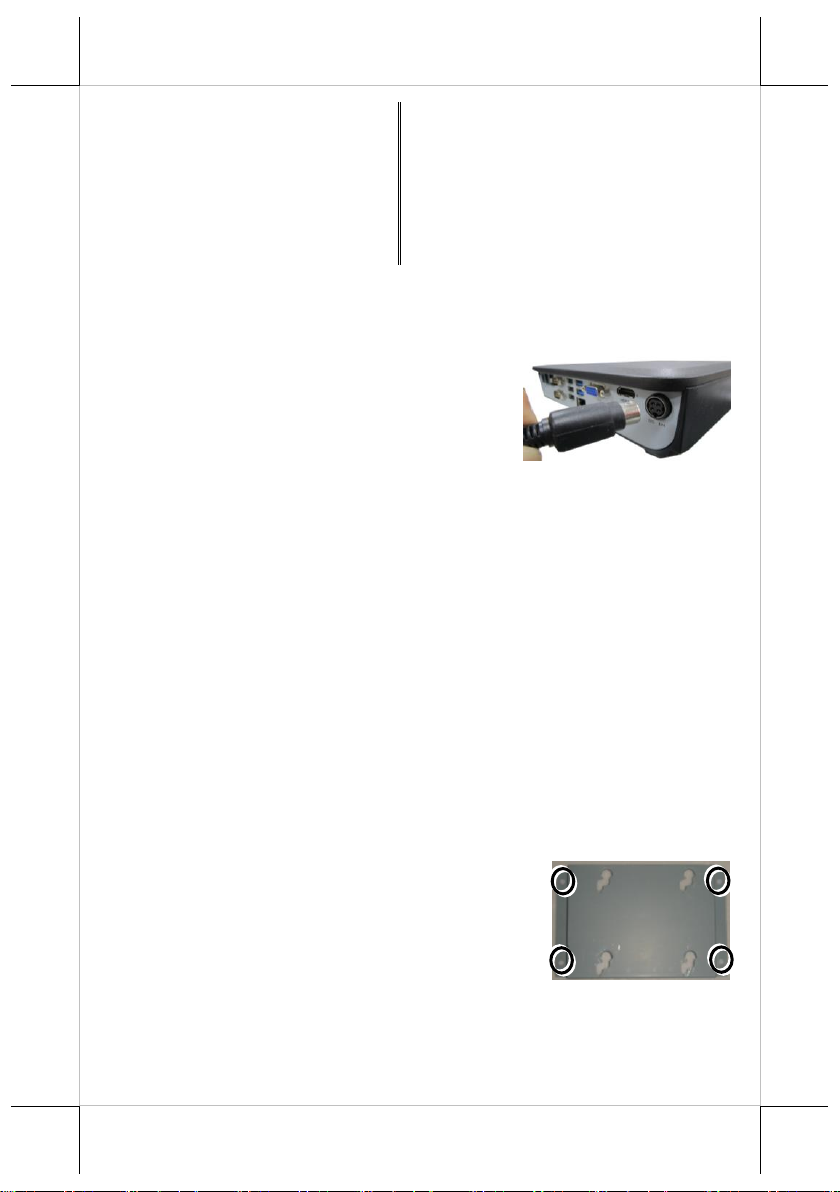

Connecting Power Adapter and I/O Cables
Please follow the steps described below to connect power adapter and I/O
cables.
1. Connect power adapter to DC-IN power
connector on the I/O plate
2. Connect another end of power adapter to the electrical outlet.
CAUTION: On doing insertion or extraction of a cable connector, please
always hold the connector head itself instead of pulling the cable wire.
Doing this could damage the cables and ports, which is considered as an
artificial damage and is not covered by the warranty. The means of power
cord should be connected to a socket-outlet with earthing connection.
ATTENTION: Lors de l'insertion ou de l'extraction d'un connecteur de
câble, veuillez toujours tenir la tête du connecteur elle-même au lieu de
tirer le fil du câble. Cela pourrait endommager les câbles, ce qui est
considéré comme un dommage artificiel et n'est pas couvert par la
garantie. Le cordon d'alimentation doit être connecté à une prise de
courant avec mise à la terre.
Mounting the TX-2300-G2/2300E-G2 on the Wall (Optional)
Please follow the steps described below to mount TX-2300-G2/2300E-G2 onto
the wall using WB-4200 wall-mount kits.
1. Refer to WB-4200 installation guide to fix the
wall mount bracket onto the wall using plastic
anchors and screws.

6
2. Insert four screw bolts into the 4 screw bolt
holes.
3. Align 4 screw bolts to four mounting holes of
the wall-mount bracket as shown in the figure.
Then slide down the system along the rail until it
is locked into place with a click sound.
Powering ON/OFF TX-2300-G2/2300E-G2
Power ON TX-2300-G2/2300E-G2
Press down the power button to power on TX-2300-
G2/2300E-G2.
Power OFF TX-2300-G2/2300E-G2
In most cases, push the power button again to power off the
system. However, if TX-2300-G2/2300E-G2 halts for
unknown reasons, please be advised to hold the power more
than 10 seconds to initiate a forced shutdown.
Power Status LED Indicator
Power LED indicator is mainly responsible for notifying users of the current
system status by emitting various LED signals. The chart provided below will
offer helpful information that you need to interpret LED status.
LED
Status
Description
Power
Solid green
System power ON
Solid red
System standby
Storage
Flash green
Data access
Installing Optional Peripheral Devices
TX-2300-G2/2300E-G2 can work with multiple optional peripheral devices,
such as LCD monitor, cash drawer and the like. Before installing an optional
peripheral device, make sure that the system is powered off and the external
power source is removed from the POS box to prevent electric hazard. For the
detailed instruction, refer to each of the user manuals of the optional peripheral
devices.

7
Installing an Operating System
You are highly advised not to install an operating system on
TX-2300-G2/2300E-G2 without professional instructions. Improper
installation could lead to system malfunction or failure. Please contact with
your dealers about the issues of operating system installation.
Driver Download
If your POS terminal is shipped without OS pre-installed, please download the
relevant driver that you need from the Posiflex website
(https://download.posiflex.com/en-global/Download/index/driver/POS-
Box/TX-2300-G2).
Operating System Recovery
For TX-2300-G2/2300E-G2 models with preloaded operating systems, you are
not encouraged to recover your system without the help of system integrators.
Please be advised to contact your service center for further assistance with
system recovery.
Operation Environment
To prevent TX-2300-G2/2300E-G2 from overheating, it is suggested to
position your terminal in a well-ventilated working environment. In doing so,
please be advised to keep the POS box at least 25mm away from other devices
to ensure the machine is properly cooled down and functioning normally.
Specifications
TX-2300-G2
TX-2300E-G2
CPU
Intel Elkhart Lake Celeron J6412 (default)
Intel Elkhart Lake Celeron N6210
System Memory
DDR4 SO-DIMM socket x 2
Storage Port
1 x M.2 socket (M.2 2280 / B+M key)
Power Supply
12V/60W
12V/150W
OS support
Windows 10 IoT (64-bit)
Serial Port
2 x DB-9 COM ports +
2 x RJ-50 COM ports
2 x DB-9 COM ports +
2 x RJ-50 COM ports +
COM5/6 pin headers in
service window
Parallel Port
1 port (header in service window)
Standard USB Port
4 x USB 2.0 + 2 x USB 3.0 port
LAN Port
1 x 10 /100 /1000 Mb

8
TX-2300-G2
TX-2300E-G2
Display Port
2 x HDMI port + 1 x VGA port
CR Port
1 port, controlling 2 CRs
PS/2 Port
1 port, on the front bezel
DC Jack
1 port
Expansion Slot
1 x M.2 socket (M.2 2230 / E key) for WiFi/BT module
Audio
1 x Mic-in & Line-out combo jack + 1 x internal speaker
LED Indicator
Bi-color power LED
PoweredUSB port
N/A
1 x 24V (via PU-470
module)
Dimension
(W x D x H in mm)
220 mm x 202 mm x 56 mm
Weight
1.2 kg
Regulation Rules
FCC/CE
Environmental
Requirements
Operating :
0°C - 40°C, 20%RH - 90%RH
Storage :
-20°C - 70°C, 10%RH - 90%RH
※The product information and specifications are subject to change without prior
notice. To get the detailed information on TX-2300-G2/2300E-G2, please check
this model from Posiflex Global Website (https://download.posiflex.com/en-
global/Download/index/driver/POS-Box/TX-2300-G2).
