Poulan Pro 1625 User manual

1625 Electric Saw Page 1 of 2
CHAIN SAW ASSEMBLY VALSI México MS16E250-1625 Motosierra Electrica 2.5 Amp.

1625 Electric Saw Page 2 of 2
CHAIN SAW ASSEMBLY VALSI México MS16E250-1625 Motosierra Electrica 2.5 Amp.
Ref # Número de parte DescripciónCant.
1 530029504 Hsg - Right
2 530015832 Spacer
3 530029278 Gear Cover
4 530015251 Nut
5 530015842 Washer
6 530036012 Gear Seal
7 530029341 Gear Assy
8 530015501 Retaining Ring
9 530025463 Pinion Gear
10 530015495 Screw
11 530015835 Screw
12 530029342 Endbell Ass'y.
13 530089765 Model 1220,1420,1425,1625,L-14
13 530401718 Model EL-16
14 530025873 Safety Lock Button
15 530025518 Switch (Incl. 14.)
16 530029282 Oil Cap
17 530014254 Oil Tank Assembly
18 530014253 Motor Hsg - Left (Incl. 19)
19 530015831 Bar Mounting Bolt
20 530023492 Pin
21 530025466 Bar Adjusting Plate
22 530015514 Screw
23 952051208 12"
23 952051209 14"
23 952051211 16"
24 952044366 12"
24 952044368 14"
24 952044370 16"
25 530031063 Wrench
26 530029285 Plate
27 530029571 Model 1220
27 530036687 Model 1420
27 530029572 Model 1425
27 530029573 Model 1625
27 530029726 Model EL-14
27 530401694 Model EL-16
28 530052073 Chain Repair Kit
29 530014164 Models 1220,1420
29 530014255 Models 1425,1625,EL-14,EL-16
530082417 Operator's Manual Not Shown.
, Scabbard Not Shown.
530025644 12" & 14" Not Shown.
530029543 16" Not Shown.
530061837 Carton Not Shown.

ES300 Electric Saw Page 1 of 2
Chain Saw Assembly VALSI México MS16E300-ES300 Motosierra Eléctrica 3 Amp.

ES300 Electric Saw Page 2 of 2
Chain Saw Assembly VALSI México MS16E300-ES300 Motosierra Eléctrica 3 Amp.
Ref # Número de parte DescripciónCant.
1 530403211 Motor Cover
2 530403712 Housing/Motor Ass'y. (Incls. 1 & 24)
3 530403311 Oil Pump Ass'y.
4 530031163 Bar Wrench
5 530053181 Trigger
6 530402879 Switch-Momentary
7 952044759 Bar-18"
8 952051470 Chain-16"
9 530403394 Outlet Line
10 530053251 Insert Bar Pad
11 530053061 Housing Cover
12 530053053 Sprocket (3/8 Pitch)
13 530015775 Screw
14 530403237 Front Handle
15 530403313 Handguard
16 530403250 Cord Set
17 530053248 Oil Tank Ass'y. (Incls. 18, 20-23 & 37)
18 530053270 Oil Pickup Fitting
19 530042091 Spring - Trigger
20 530047663 Oil Pickup Ass'y.
21 530019143 O-Ring (Oil Cap)
22 530053072 Oil Cap
23 530403393 Inlet Line
24 530015814 Screw
25 530016278 Washer-Thrust
26 530053048 Gear Drive
27 530053067 Pinion
28 530053153 Bar Clamp
29 530053179 Lockout Button
30 530029850 Chain Catcher
31 530015770 Screw
32 530403217 Cover Access
33 530016262 Washer-Sprocket
34 530015917 Nut-Bar Mounting
35 530042090 Ring-Retainer
36 530015775 Screw
37 530026119 Check Valve (Duckbill)
38 530053068 Pin-Bar Adjust
39 530038593 Retainer-Bar Adjust
40 530016265 Screw-Bar Adjust
530403514 Operator Manual (Not Shown)
530029543 Scabbard (Not Shown)
530053555 Decal-Bar Clamp (Not Shown)
530053853 Decal-Warning (Not Shown)

2050 Gas Saw Page 1 of 8
Carburetor - WT324 VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC

2050 Gas Saw Page 2 of 8
Carburetor - WT324 VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC

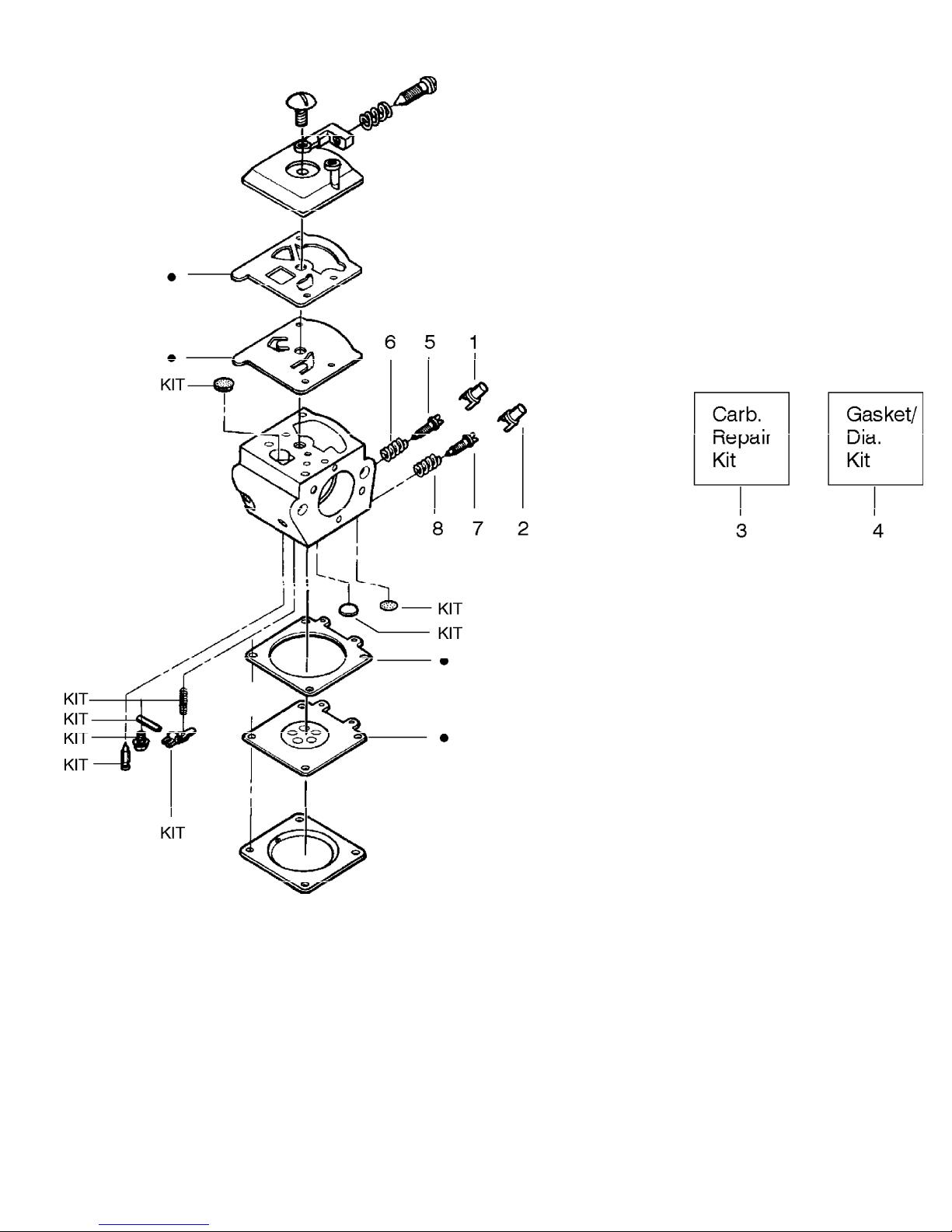

Ref # Número de parte DescripciónCant.
1 530038318 Limiter Cap-High
2 530038317 Limiter Cap-Low
3 530069826 Carburetor Repair Kit (KIT = Indicates Contents)
4 530069844 Gasket Diaphragm Kit (DOT = Indicates Contents)
5 530035383 Needle-Low Speed
6 530035293 Needle Spring-Low Speed
7 530035384 Needle-High Speed
8 530035295 Needle Spring-High Speed
530069703 Kit-Carburetor

2050 Gas Saw Page 3 of 8
Handle & External Power Unit VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC

2050 Gas Saw Page 4 of 8
Handle & External Power Unit VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC
Ref # Número de parte DescripciónCant.
1 530069724 Trigger & Lockout Kit (Includes Pin)
2 530038593 Retainer-Bar Adjust
3 530037809 Wire-Throttle
4 Clutch Cover
530038236 2050, 2150
530049217 2175
530053712 2375-Wildthing
5 530015917 Nut-Bar Mounting
6 530047989 Choke Lever
7 530038406 Grommet-Choke Knob
8 530069822 Chassis Ass'y. Kit
9 530094188 Clutch Spring
10 530047061 Assy.-Drum-w/Brg.
11 530015611 Washer-Clutch
12 530014949 Clutch Ass'y.
13 530038227 Switch Lever
14 530016149 Switch Spring
15 530015775 Screw
16 530015922 Nut - Speed
17 530029850 Chain Catcher
18 530015814 Screw
19 530015907 Washer - Thrust
20 530015826 Pin - Bar Adjusting
22 530069611 Kit - Bar Adjust (Incl. 2)
23 530038238 Bar Mounting Plate
24 530071259 Oil Pump Kit (Incl. Oil Pump Body, Gear Assy, Pin,
31 & 45)
26 530016133 Bolt
28 952069662 Chain Brake Kit
29 530016064 Screw
30 530019206 Seal Block
31 530049477 Elbow - Oil Pickup
32 530038373 Pick - Up Oiler
33 530037821 Oil Filter
34 530030189 Plug - Oil Filter
35 530010846 Oil Cap Ass'y.
36 530069216 Fuel Line Kit (Large)
38 530047164 Fuel Cap Ass'y.
40 530016080 Screw
41 530047663 Oil - Pickup Ass'y. (Incl. 32, 33 & 34)
42 530016020 Screw
43 530016132 Screw
44 530015814 Screw
45 530037820 Gear Worm Spring
46 530019231 Dust Seal
47 530037799 Front Handle
48 530038224 Handguard
49 530015940 Screw
50 530037485 Starter Handle
51 530069232 Rope Kit
52 530015892 Screw
53 Fan Housing New part number for this IPL
530049334 2050, 2150
530049337 2175, 2375-Wildthing
54 530027531 Starter Spring

2050 Gas Saw Page 5 of 8
Handle & External Power Unit VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC
Ref # Número de parte DescripciónCant.
55 530037817 Starter Pulley
56 530039209 Flywheel Ass'y.
57 530015127 Washer-Flywheel
58 530026119 Check Valve
59 530016134 Nut-Flywheel
60 530015920 Screw
61 530038264 Plug-Bronze Vent
62 952051209 Chain-14"
952051211 Chain-16"
952051338 Chain-18"
63 952044368 Bar-14" Decorative Bar for Model 2175 is not
available.
952044370 Bar-16" Decorative Bar for Model 2175 is not
available.
952044418 Bar-18" Decorative Bar for Model 2175 is not
available.
64 530023877 Fitting
65 530023817 Spring - Starter Dog

2050 Gas Saw Page 6 of 8
Internal Power Unit VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC

2050 Gas Saw Page 7 of 8
Internal Power Unit VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC

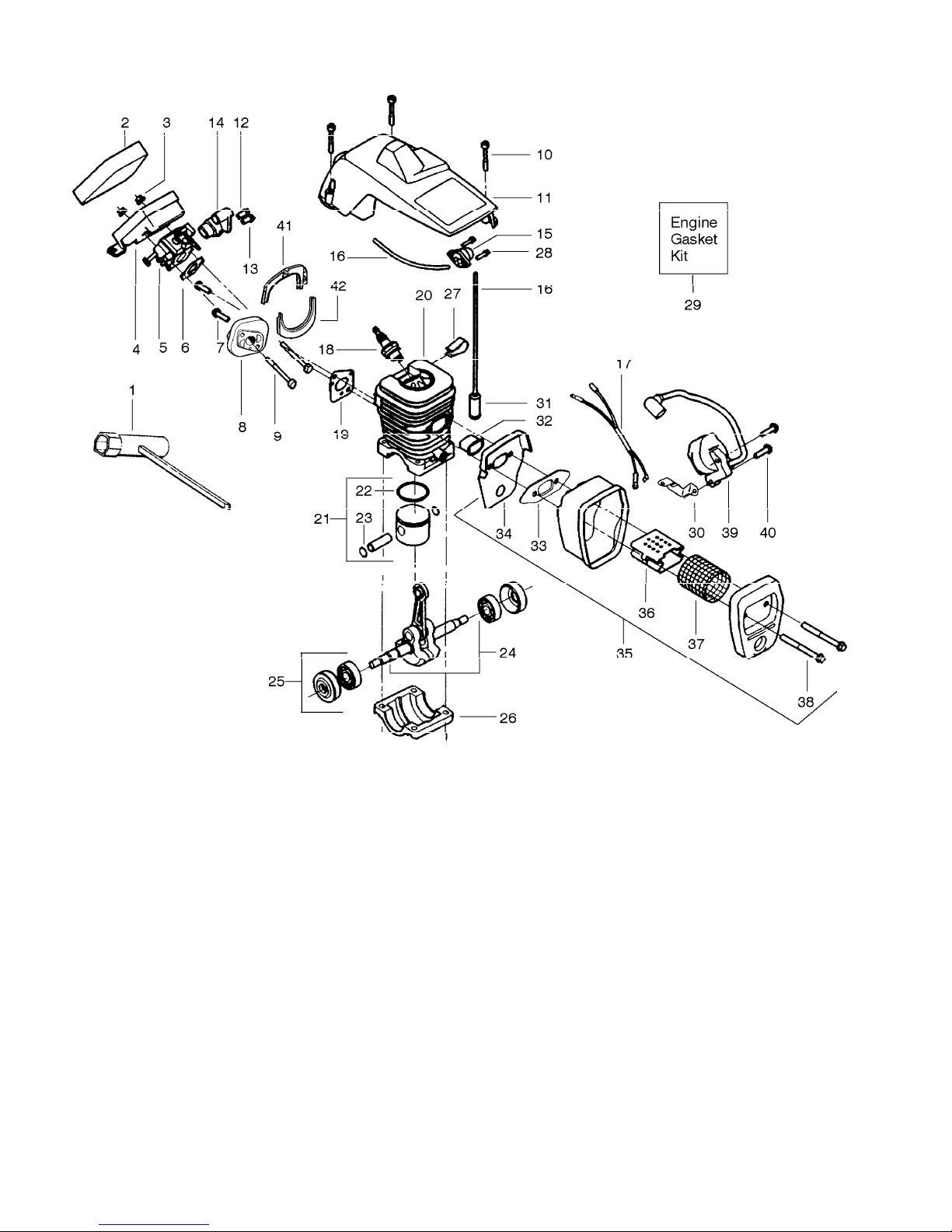

Ref # Número de parte DescripciónCant.
1 530031163 Bar Wrench
2 530037793 Foam-Air Filter
3 530016101 Nut
4 530037804 Air Filter Housing
5 530069703 Carburetor Kit (Incl. 12 & 13)
6 530019239 Carb. Gasket
7 530015810 Screw
8 530069964 Kit - Carb. Adapter
9 530016187 Screw
10 530016153 Screw
11 Cylinder Shield
530069964 2050, 2150
530049227 2175
530053185 2375-Wildthing
12 530038318 Limiter Cap-High
13 530038317 Limiter Cap-Low
14 530049244 Grommet-Carb Adjust
15 530047213 Air Purge Ass'y.
16 530069247 Fuel Line Kit (Small)
17 530052296 Wire Harness Ass'y.
18 952030150 Spark Plug (RCJ-7Y)
19 530019249 Gasket-Carb Adaptor
20 Cylinder Kit
530069606 2050, 2150, 2175
530069607 2375-Wildthing
21 Piston Kit (Incl. 22 & 23); New part number for this
IPL
530069604 2050, 2150, 2175
530069605 2375-Wildthing
22 Piston Ring
530029805 2050, 2150, 2175
530038729 2375-Wildthing
23 530015697 Retainer-Piston Pin
24 530047062 Crankshaft Ass'y.
25 530047827 Seal & Bearing Ass'y.
26 530037935 Cap-Crankcase
27 530016136 Clip-High Tension Lead
28 530015780 Screw
29 530069608 Engine Gasket Kit (Incl. 6, 19 & 33)
30 530047442 Ground Strap
31 530095646 Fuel Pick-up Ass'y.
32 530037652 Heat Insulator
33 530019221 Muffler Gasket
34 530049870 Muffler Backplate
35 530047207 Muffler Ass'y. (Incl. 33-34 & 36-38)
36 530037813 Muffler Diffuser
37 530036103 Spark Screen
38 530016132 Screw
39 530052277 Ignition Module
40 530015814 Screw
41 530049715 Seal-Carb Adapter-(Upper)
42 530049714 Seal-Carb Adapter-(Lower)
530087604 Operator Manual Not Shown
530038257 Decal Instruction Not Shown
530038486 Decal Stop Not Shown

2050 Gas Saw Page 8 of 8
Internal Power Unit VALSI México MS14G33-2050 Motosierra Gasolina 14" 33 CC
Ref # Número de parte DescripciónCant.
530031112 Clutch Ass'y. Tool Not Shown
530031097 Air Gap Gauge Not Shown
530031160 Insert Tool-Limiter Cap Not Shown

2150 Gas Saw Page 1 of 8
Carburetor - WT324

2150 Gas Saw Page 2 of 8
Carburetor - WT324
Ref # Número de parte DescripciónCant.
1 530038318 Limiter Cap-High
2 530038317 Limiter Cap-Low
3 530069826 Carburetor Repair Kit (KIT = Indicates Contents)
4 530069844 Gasket Diaphragm Kit (DOT = Indicates Contents)
5 530035383 Needle-Low Speed
6 530035293 Needle Spring-Low Speed
7 530035384 Needle-High Speed
8 530035295 Needle Spring-High Speed
530069703 Kit-Carburetor

2150 Gas Saw Page 3 of 8
Handle & External Power Unit VALSI México MS16G34-2150 Motosierra Gasolina 16" 32 CC

2150 Gas Saw Page 4 of 8
Handle & External Power Unit VALSI México MS16G34-2150 Motosierra Gasolina 16" 34 CC
Ref # Número de parte DescripciónCant.
1 530069724 Trigger & Lockout Kit (Includes Pin)
2 530038593 Retainer-Bar Adjust
3 530037809 Wire-Throttle
4 Clutch Cover
530038236 2050, 2150
530049217 2175
530053712 2375-Wildthing
5 530015917 Nut-Bar Mounting
6 530047989 Choke Lever
7 530038406 Grommet-Choke Knob
8 530069822 Chassis Ass'y. Kit
9 530094188 Clutch Spring
10 530047061 Assy.-Drum-w/Brg.
11 530015611 Washer-Clutch
12 530014949 Clutch Ass'y.
13 530038227 Switch Lever
14 530016149 Switch Spring
15 530015775 Screw
16 530015922 Nut - Speed
17 530029850 Chain Catcher
18 530015814 Screw
19 530015907 Washer - Thrust
20 530015826 Pin - Bar Adjusting
22 530069611 Kit - Bar Adjust (Incl. 2)
23 530038238 Bar Mounting Plate
24 530071259 Oil Pump Kit (Incl. Oil Pump Body, Gear Assy, Pin,
31 & 45)
26 530016133 Bolt
28 952069662 Chain Brake Kit
29 530016064 Screw
30 530019206 Seal Block
31 530049477 Elbow - Oil Pickup
32 530038373 Pick - Up Oiler
33 530037821 Oil Filter
34 530030189 Plug - Oil Filter
35 530010846 Oil Cap Ass'y.
36 530069216 Fuel Line Kit (Large)
38 530047164 Fuel Cap Ass'y.
40 530016080 Screw
41 530047663 Oil - Pickup Ass'y. (Incl. 32, 33 & 34)
42 530016020 Screw
43 530016132 Screw
44 530015814 Screw
45 530037820 Gear Worm Spring
46 530019231 Dust Seal
47 530037799 Front Handle
48 530038224 Handguard
49 530015940 Screw
50 530037485 Starter Handle
51 530069232 Rope Kit
52 530015892 Screw
53 Fan Housing New part number for this IPL
530049334 2050, 2150
530049337 2175, 2375-Wildthing
54 530027531 Starter Spring

2150 Gas Saw Page 5 of 8
Handle & External Power Unit VALSI México MS16G34-2150 Motosierra Gasolina 16" 34 CC
Ref # Número de parte DescripciónCant.
55 530037817 Starter Pulley
56 530039209 Flywheel Ass'y.
57 530015127 Washer-Flywheel
58 530026119 Check Valve
59 530016134 Nut-Flywheel
60 530015920 Screw
61 530038264 Plug-Bronze Vent
62 952051209 Chain-14"
952051211 Chain-16"
952051338 Chain-18"
63 952044368 Bar-14" Decorative Bar for Model 2175 is not
available.
952044370 Bar-16" Decorative Bar for Model 2175 is not
available.
952044418 Bar-18" Decorative Bar for Model 2175 is not
available.
64 530023877 Fitting
65 530023817 Spring - Starter Dog

2150 Gas Saw Page 6 of 8
Internal Power Unit VALSI México MS16G34-2150 Motosierra Gasolina 16" 34 CC

2150 Gas Saw Page 7 of 8
Internal Power Unit VALSI México MS16G34-2150 Motosierra Gasolina 16" 34 CC
Ref # Número de parte DescripciónCant.
1 530031163 Bar Wrench
2 530037793 Foam-Air Filter
3 530016101 Nut
4 530037804 Air Filter Housing
5 530069703 Carburetor Kit (Incl. 12 & 13)
6 530019239 Carb. Gasket
7 530015810 Screw
8 530069964 Kit - Carb. Adapter
9 530016187 Screw
10 530016153 Screw
11 Cylinder Shield
530069964 2050, 2150
530049227 2175
530053185 2375-Wildthing
12 530038318 Limiter Cap-High
13 530038317 Limiter Cap-Low
14 530049244 Grommet-Carb Adjust
15 530047213 Air Purge Ass'y.
16 530069247 Fuel Line Kit (Small)
17 530052296 Wire Harness Ass'y.
18 952030150 Spark Plug (RCJ-7Y)
19 530019249 Gasket-Carb Adaptor
20 Cylinder Kit
530069606 2050, 2150, 2175
530069607 2375-Wildthing
21 Piston Kit (Incl. 22 & 23); New part number for this
IPL
530069604 2050, 2150, 2175
530069605 2375-Wildthing
22 Piston Ring
530029805 2050, 2150, 2175
530038729 2375-Wildthing
23 530015697 Retainer-Piston Pin
24 530047062 Crankshaft Ass'y.
25 530047827 Seal & Bearing Ass'y.
26 530037935 Cap-Crankcase
27 530016136 Clip-High Tension Lead
28 530015780 Screw
29 530069608 Engine Gasket Kit (Incl. 6, 19 & 33)
30 530047442 Ground Strap
31 530095646 Fuel Pick-up Ass'y.
32 530037652 Heat Insulator
33 530019221 Muffler Gasket
34 530049870 Muffler Backplate
35 530047207 Muffler Ass'y. (Incl. 33-34 & 36-38)
36 530037813 Muffler Diffuser
37 530036103 Spark Screen
38 530016132 Screw
39 530052277 Ignition Module
40 530015814 Screw
41 530049715 Seal-Carb Adapter-(Upper)
42 530049714 Seal-Carb Adapter-(Lower)
530087604 Operator Manual Not Shown
530038257 Decal Instruction Not Shown
530038486 Decal Stop Not Shown

2150 Gas Saw Page 8 of 8
Internal Power Unit VALSI México MS16G34-2150 Motosierra Gasolina 16" 34 CC
Ref # Número de parte DescripciónCant.
530031112 Clutch Ass'y. Tool Not Shown
530031097 Air Gap Gauge Not Shown
530031160 Insert Tool-Limiter Cap Not Shown
