Poulan Pro PP4620AV User manual

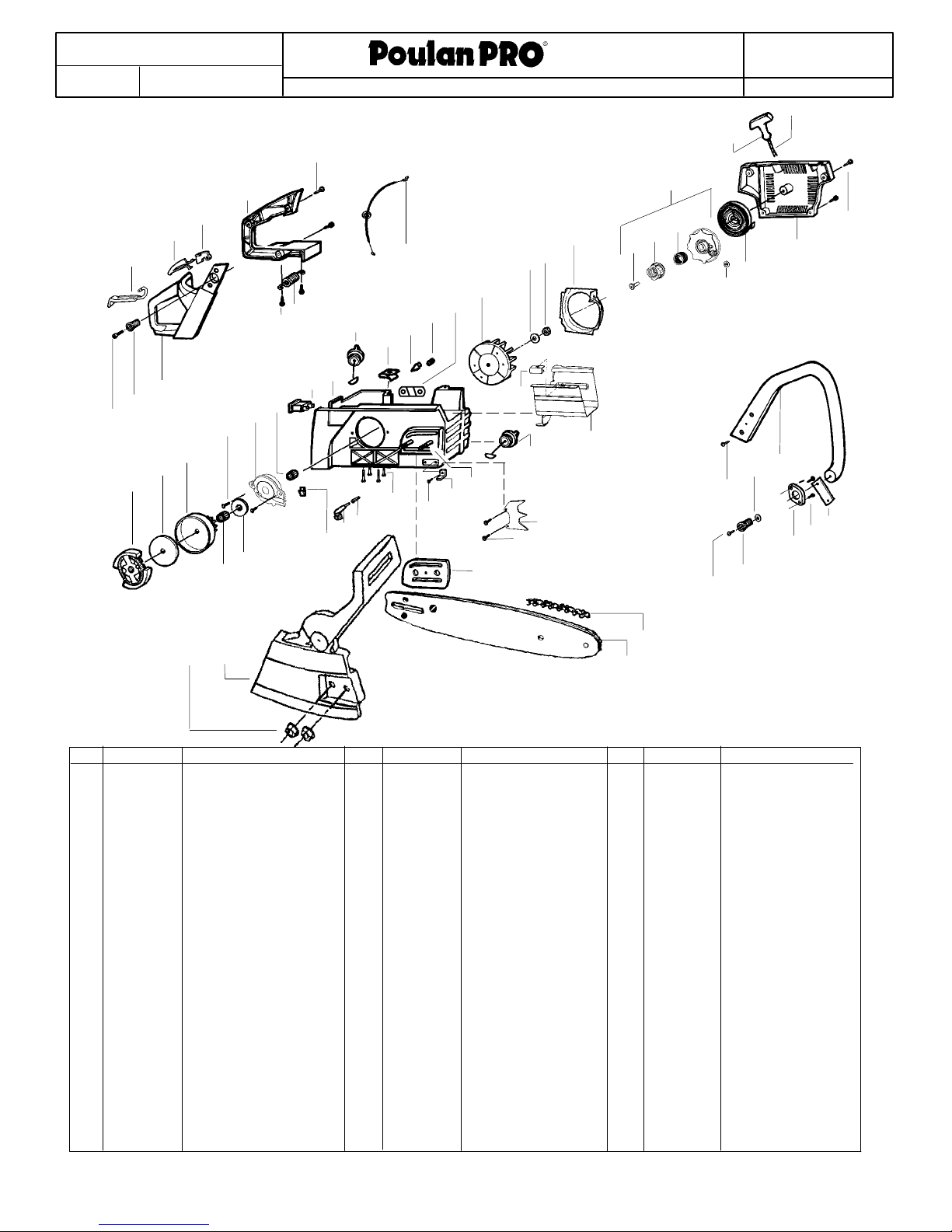

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
Replaces
1
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
Chain Saw Model(s):
545014314
PP4620AV
DATE
04/16/09 545014314 -- 7/03/08
PARTS LIST
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
1
78
13
14
16
17
6
2
Ref. Part No. Description Ref. Part No. Description
1. 530016154 Screw
2. 530069716 Kit--Cylinder Shield
3. 530035583 Grommet --Carb.
4. 530015814 Screw
5. 952030150 Spark Plug (RCJ--7Y)
6. 545063901 Module--Ignition
7. 545121901 Screw
8. 530037467 Assy--Switch Wire
9. 530037652 Insulator--Heat
10. 530071495 Kit--Muffler
(Incl.11,13,14,15,16,17,18)
11. 530071497 Kit--Spark Arrestor (Incl.# 15)
12. 530016359 Nut--Brass
13. 530056061 Cover--Bolt
14. 530016338 Bolt--Muffler
15. 530016351 Screw--Spark Screen
16. 530055128 Gasket--Muffler
17. 530055765 Assy--Muffler Backplate
18. 530055402 Backplate -- Alum.
19. 503414101 Bearing--Piston Pin
20. 530056363 Assy--Bearing & Seal
21. 530049794 Cap--Crankcase
22. 530015897 Screw
23. 530029794 Assy--C’shaft & Rod
24. 530015697 Retainer--Piston Pin
25. 530037380 Ring--Piston
26. 530069548 Kit--Piston
(Incl. 19,24,25 )
27. 530071490 Assy--Cyl/Crankcase
(Incl.#21)
28. 530019251 Seal--Super Clean
29. 530035581 Intake Boot
30. 530053396 Adapter--Carb.
31. 530037872 Intake Plate--Carb
32. 530019172 Gasket--Carb.
33. 530071693 Kit--Carburetor (WT--657)
34. 530036792 Isolator
35. 530059738 Filter--Air (Bottom)
36. 530015970 Screw
37. 545057701 Filter--Air (Top)
38. 530015899 Screw
39. 530069247 Kit--Fuel Line (Small)
40. 545038502 Assy--Fuel Pick--up
545186802 Manual
530031163 Wrench -- Bar
545056701 Decal -- Warning
30
29
3
38
37
4
28
10
11
15
39
40
12
20
26
21
23
24
25
32
31
35
33
36
9
5
Not Shown
22
27
34
19
18
n=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
=THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=NEW PART NUMBER FOR THIS IPL
D
K
n

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
Replaces
2
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
Chain Saw Model(s):
545014314
PP4620AV
DATE
04/16/09 545014314 -- 7/03/08
PARTS LIST
3
4
8
1
10
9
11
2
25
22
24
26
27
28
36
35
32
33
34
37
65 64
19
21
62
63
44
43
3839
20
40
47
23
6
54
7
5
12
53
56
58
55
60
59
57
16
17
15
51
52
13
18
42
41
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530015957 Screw
2. 530071272 Cover--Handle (kit)
3. 530036097 Trigger--Throttle
4. 530036098 Lockout--Throttle
5. 530053443 Lever--Choke
6. 530015937 Screw
7. 530038985 Spring--Isolator
8. 530071272 Handle--Rear (kit)
9. 530015906 Screw
10. 530038986 Spring--Isolator
11. 530038471 Assy--Throttle Cable
(Incl. Grommet)
12. 530069232 Kit--Rope
13. 530049797 Handle--Starter
14. 530071966 Kit--Starter EPS
(Incl. 15,16,17,50)
15. 530021180 Spring EPS
16. 530059677 Hub--Starter EPS
17. 530021179 Screw--Shoulder
18. 530047667 Plate--Baffle Fan
19. 530016134 Nut--Flywheel
20. 530015127 Washer--Flywheel
21. 530059637 Assy--Flywheel
22. 530036043 Plate--Support
(Bar Stud)
23. 530029868 Plug--Vent
24. 530026119 Valve--Check
25. 530015922 Nut--Speed
26. 530010845 Assy--Fuel Cap
27. 530037551 Assy--Chassis
(Incl. 22,23,24,26,43,47
Fuel line and filter)
28. 530069572 Kit--Switch
29. 530029833 Worm--Oil Pump
30. 530014410 Assy.--Oil Pump
31. 530015896 Screw
32. 530069342 Kit--Clutch Drum
(Incl. #35)
33. 530015611 Washer--Clutch
34. 530014949 Assy--Clutch
35. 530032119 Bearing--Clutch
36. 530015907 Washer--Thrust
37. 530019174 Seal--Oil
38. 545047801 Pickup--Oil
39. 530056533 Filter--Oil
40. 530016037 Screw
41. 530015814 Screw
42. 530029850 Chain Catcher
43. 530015877 Bar Bolt
44. 530047855 Bar Plate
45. 530016439 Screw
46. 530014381 Kit--Spike Assy(incl#45)
47. 530057236 Assy--Oil Cap
48. 530055406 Shield--Heat
49. 530055322 Clip--”U”
50. 530016080 Screw
51. 530042095 Spring--Recoil
52. 545008803 Housing--Fan
53. 530015892 Screw
54. 530015814 Screw
55. 530015158 Washer
56. 530038327 Handle--Front
57. 530036113 Front Strap--AV
58. 530015775 Screw--Plate
59. 530036101 Plate--Isolator
60. 530038985 Spring--Isolator
61. 530015984 Screw
62. 952051310 Chain”-- 20”
63. 952044815 Bar --20” Quick Adjust
64. 530054804 Assy--ChainBrake
65. 530015917 Nut--Bar Mounting
45
46
48
49
61
=NEW PART NUMBER FOR THIS IPL
n=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
14
29
30
31
50
