ILLUSTRATED PARTS LIST
MFG. ID NO. 96041013900
CUSTOMER CATALOG NO. PP18542
PRODUCT NO. 960 41 01-39

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
7
1
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 12 51-21 Rim Assembly, Front
4 532 05 99-04 Tube, Front
5 532 10 62-22 Tire, Front
6 532 12 49-57 Fitting, Grease
7 532 12 49-59 Bearing, Flange
8 532 19 32-68 Cap, Axle (Front Wheel Only)
9 532 13 84-68 Tire, Rear
10 532 12 49-26 Tube, Rear
11 532 12 51-22 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
5
2
1 532 18 61-63 Decal, Hood RH
2 532 18 61-64 Decal, Hood LH
3 532 18 92-90 Decal, Side Panel
4 532 17 27-40 Decal, Fender
5 532 40 88-32 Decal, Eng H.P.
6 532 40 03-89 Decal, Warning Sym
7 532 15 97-36 Decal, Chassis Hot Muffler
8 532 18 21-66 Decal, Cutfinger
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 19 63-57 Decal, Deflect Wrn Cutfinger
6
11 532 15 97-37 Decal, Brake/Clutch Symbol
12 532 16 25-98 Decal, Drawbar Load Limit
13 532 17 27-43 Decal, Steering Wheel
14 532 14 08-37 Decal, Saddle Brake Park
15 532 19 68-41 Decal, Engine Warning
17 532 16 03-96 Decal, V Belt Schem
- - 532 41 12-73 Pad, Footrest RH
- - 532 40 95-05 Pad, Footrest, LH
- - 532 42 52-66 Manual, Operator's (English)
3
13
98
4
7
12
14
10
15
17
11
16
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39

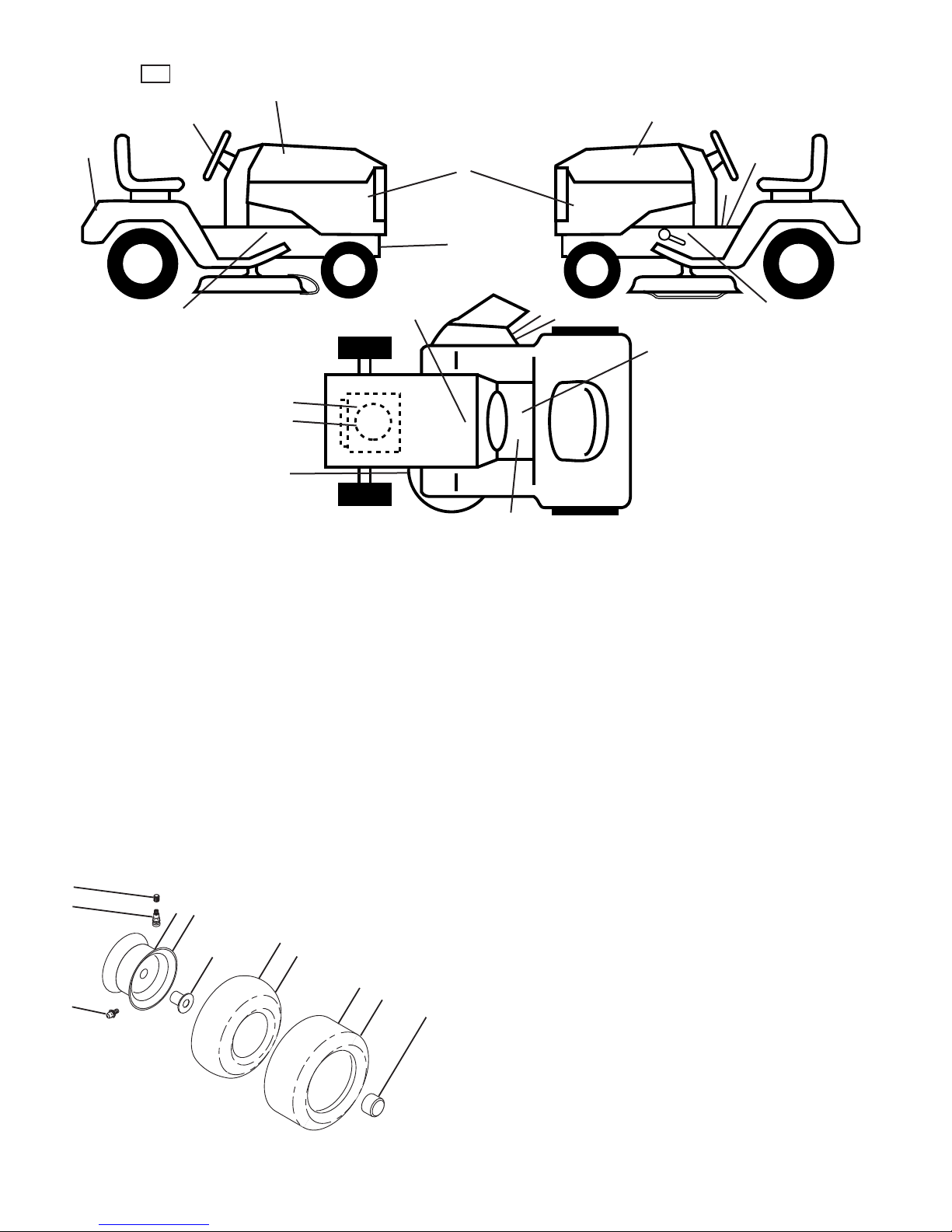

DECALS
27
27

3
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
D
E
R
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3AMPDC@3600RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
SCHEMATIC
38
38

4
30
33
34
22
79 21
41
42
26
43
27
40
71
16
87
25
T02S
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39

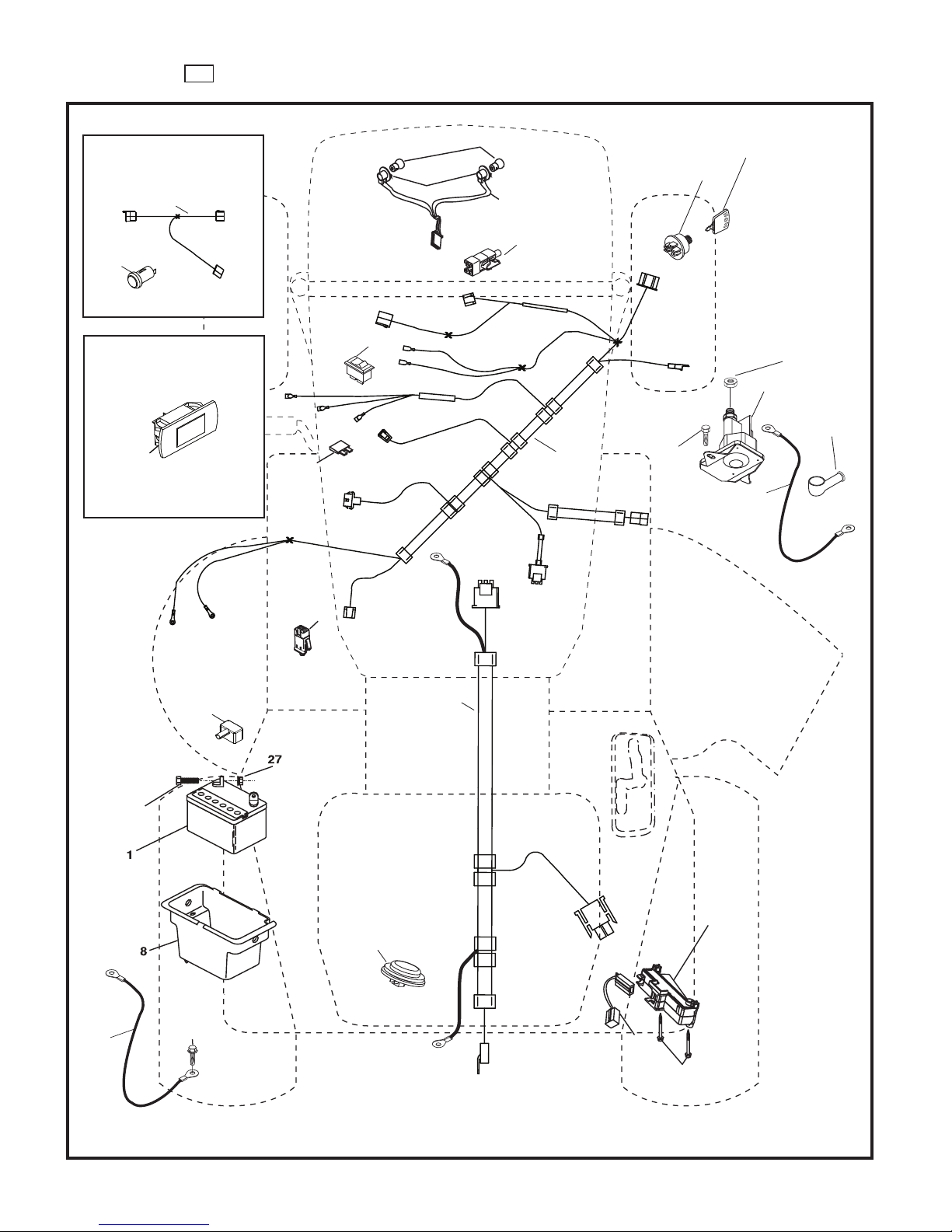

ELECTRICAL
32
32

5
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 532 41 28-94 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ignition
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 10-98 Harness Ignition Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 532 40 04-49 Harness Ignition
79 532 17 52-42 Socket Asm Bulb Twistlock
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 40 07-25 Cover Terminal Battery
92 532 19 66-15 Harness Pigtail Console ROS
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
ELECTRICAL
32
32

6



















#HASSISTEX?ELITESVªPRO??R



























TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39

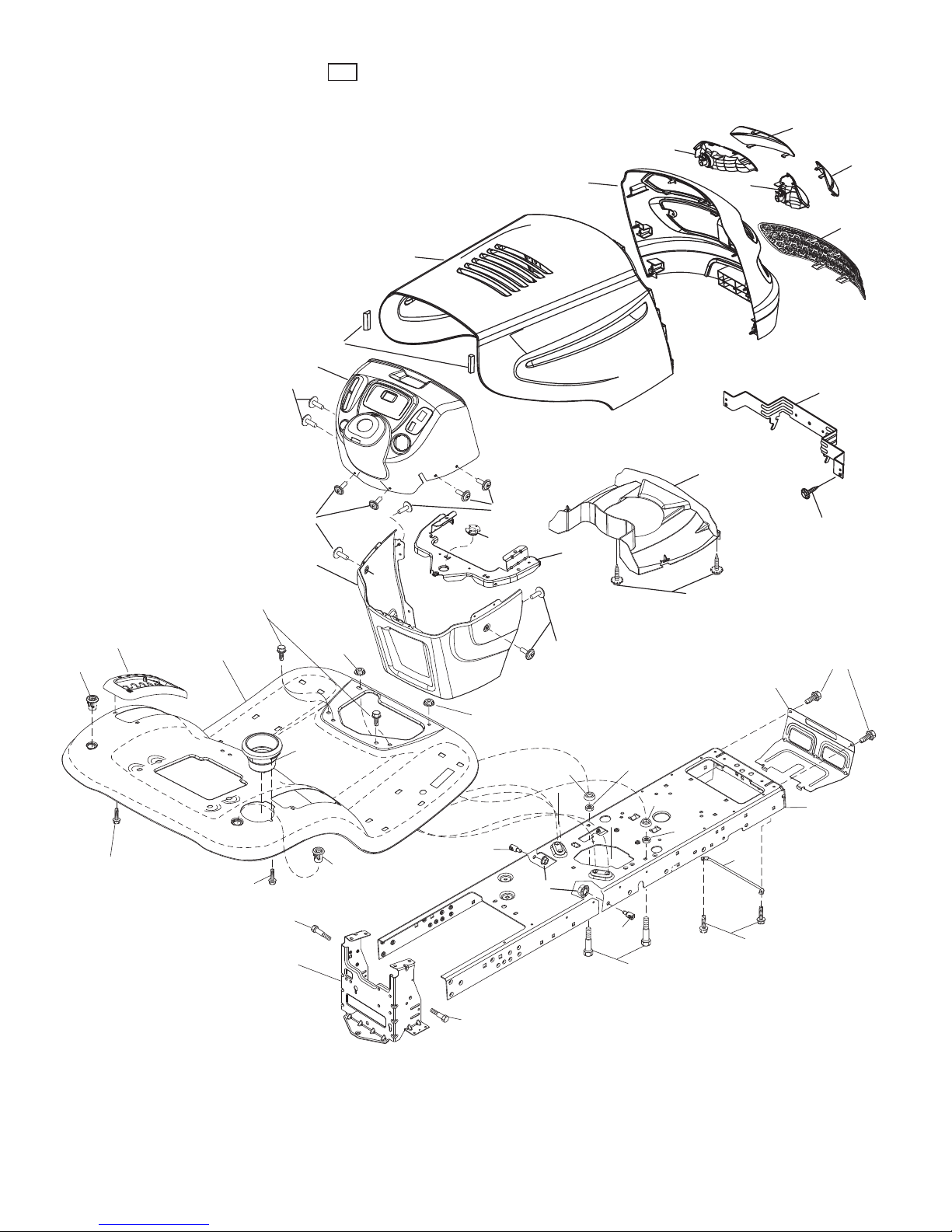

CHASSIS AND ENCLOSURES
39
39

7
KEY PART
NO. NO. DESCRIPTION
2 532 19 42-63 Drawbar
5 532 41 17-64 Dash
14 532 19 45-88 Hood
15 532 18 97-54 Lens Grille LH
18 532 18 38-28 Grille (Included Key #'s 15, 25,191)
25 532 18 97-55 Lens Grille RH
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 42 09-86 Fender
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750 BOS Thread
137 532 18 49-21 Bumper Hood
138 532 40 97-30 Cupholder
150 532 18 43-22 Duct Heat Hood
151 532 40 78-07 Bracket Pivot
152 532 19 43-29 Shield Browning/Debris
159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
175 532 19 32-43 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-28 Bushing Steering
180 532 19 42-60 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 19 30-57 Dash Lower
183 874 78 05-20 Bolt Fin Hex 5/16-18 x 1-1/4
186 532 18 97-53 Insert Grille
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
196 532 4145-81 Console Asm. Deck Lift
197 532 40 91-67 Rod Pivot Chassis
207 532 18 38-33 Bezel RH
208 532 18 38-32 Bezel LH
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18 unc
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
CHASSIS AND ENCLOSURES
39
39

8
56
185
172
172
125
125
29
232
233 165166
64
188
17
195
125
161
35
175
192
134
192
157
141
140
139
23
178
174
176
22
15
15
203
184
167
160
160
42
159
159
166
155
61
202
drive-tex_peerless_fender_17
116
193
2
73 26
158
1
2
37
205 33
1
221
186
189
49
187
50
51
52
51
190
70
74
183
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39

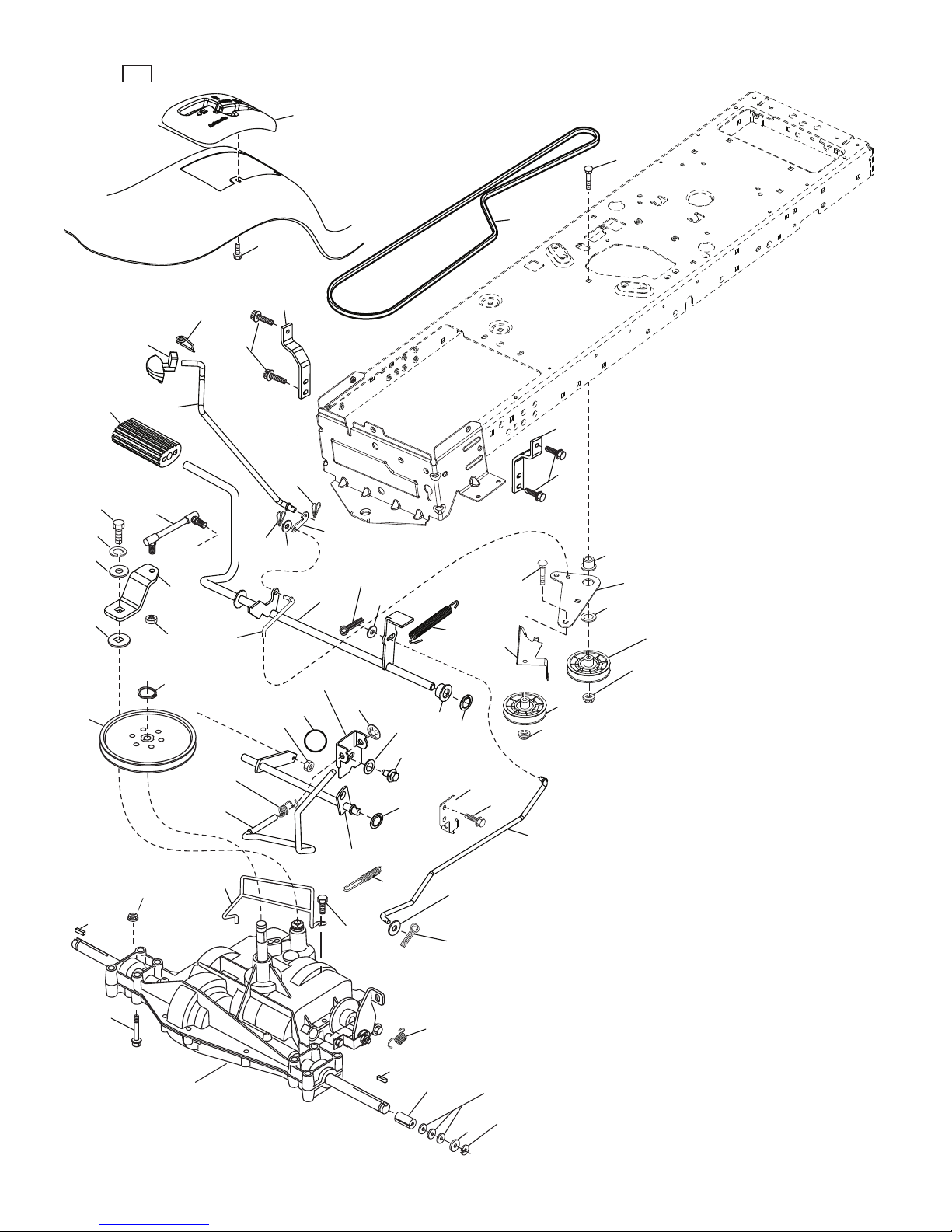

DRIVE
40
40

9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle, Peerless 206-565
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-97 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 17 16-74 Knob
26 532 19 74-55 Spring Brake RTN
29 532 19 72-67 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 77-22 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 19 43-46 V-Belt, Drive
61 532 12 36-66 Pulley Transaxle
64 532 19 62-00 Shaft Asm. Pedal Brake Control
70 532 41 12-90 Console
73 874 49 05-44 Bolt 5/16-18 Gr. 5
74 532 14 24-32 Screw 1/4 x 1/2
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
134 532 19 76-58 Arm Shift
139 874 55 04-12 Bolt 1/4-20 unf Gr. 8 w/Patch
140 810 04 04-00 Washer Lock Hvy Helical 1/4
141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
155 812 00 00-28 Ring Retainer
157 532 10 57-01 Washer Plate Shf
158 532 19 43-52 Keeper T/A
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
165 532 19 62-12 Busing Shaft Brake Hand Control
166 532 19 72-90 Nut Push .625
167 532 40 52-57 Latch Brake Parking
172 532 19 76-57 Strap Torque LH
174 532 19 72-89 Nut Push
175 532 19 62-24 Shaft Asm Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer, Axle
184 532 41 12-89 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
192 532 15 03-60 Nut Lock Center 1/4-28
193 817 06 05-12 Screw 5/16-18 x 3/4
195 532 19 73-32 Bracket Brake Rod
202 532 16 62-31 Link Shift
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
221 532 40 31-87 Retainer Spring Clip Handle
232 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5
233 532 40 52-96 Washer Serrated
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
DRIVE
40
40

10
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
ENGINEBSCYLTEX?
12
42
85
9
90
84
45
1
81
82
69 2
79


TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
ENGINE
24
24

11
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - - Engine B&S Model No. 31P777
2 532 13 73-52 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 40 19-85 Pulley Engine
15 532 40 75-45 Tank Fuel
18 532 19 77-25 Cap Asm
20 532 41 17-24 Control Throttle/Choke
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw Socket HD 5/16-18 x .75
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt 7/16-20 x 4 x Gr. 5-1.5
90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
ENGINE POWER RATING INFORMATION
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained
and corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affect-
ed by, among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of
products on which engines are placed and the variety of environmental issues applicable to operating the equipment,
the gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site”
or net horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner,
exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (tem-
perature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs &
Stratton may substitute an engine of higher rated power for this Series engine.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
ENGINE
24
24

12
6
55
5
13
13
53 8
9
9
8
8
7
7
62
4
35
59
58
50
50
70
65
68
69
67
54
67
66
54
65
15
15
14
14
61
55
2
6
steering-tex_LEGND2_21
16
71
28
13 22
64
21
26
1
20
45
33
72
19
60
78
63
57
57
63
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39

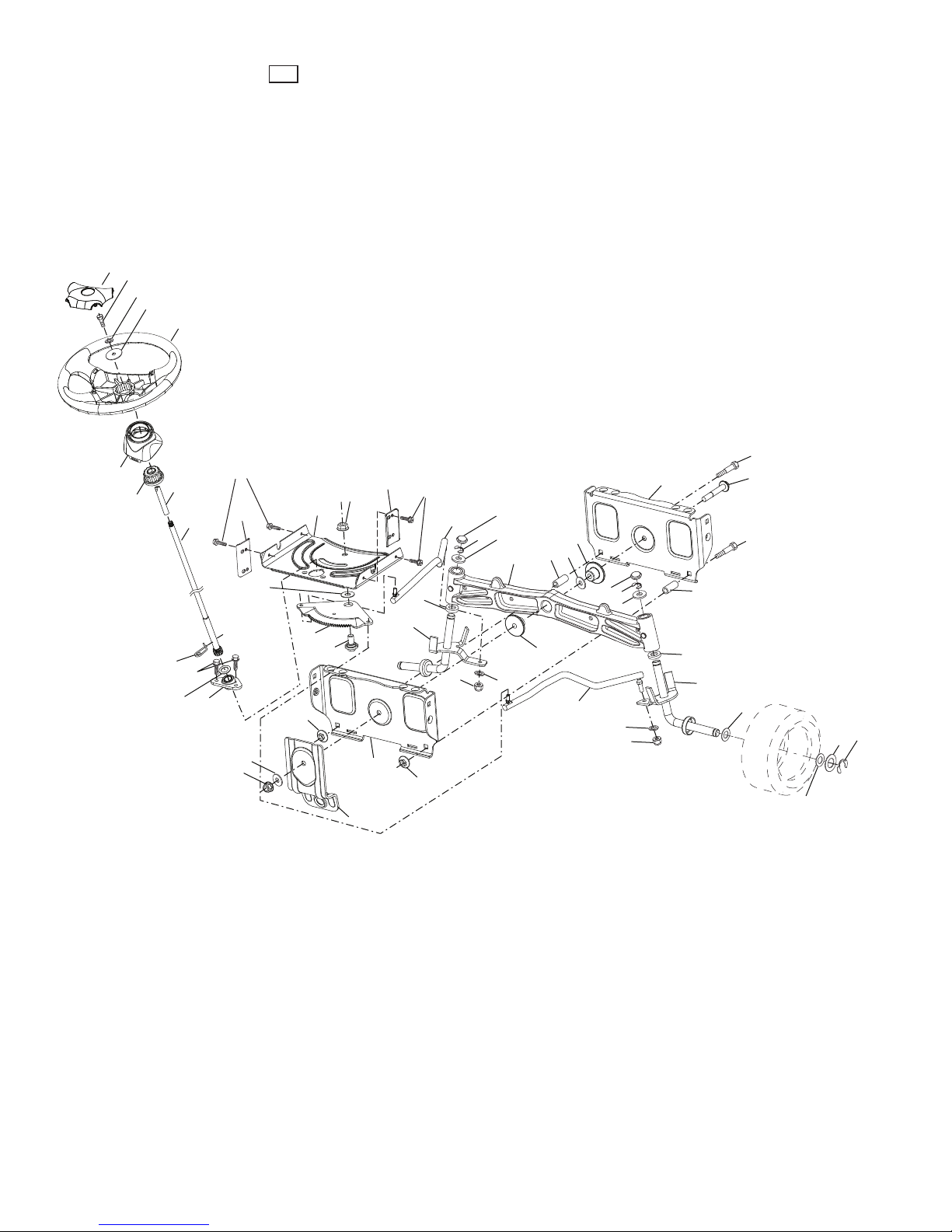

STEERING ASSEMBLY
41
41

13
KEY PART
NO. NO. DESCRIPTION
1 532 19 45-95 Wheel, Steering
2 532 18 47-06 Axle Asm.
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 19 60-74 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 12-91 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 19 46-03 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock Hvy HLCL Spr 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 ID x 2 3/8 OD x 12 Ga.
50 873 90 06-00 Nut Lock 3/8-16 unc
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
54 874 76 06-36 Bolt Hex 3/8-16 unc x 2-1/4
55 532 41 47-36 Spacer Brace Axle
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
65 532 19 47-34 Brace Axle Front
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 60-75 Shaft Ext Steering
72 874 78 05-72 Bolt Fin Hex 5/16-18 unc 4.5 Gr. 5
78 532 05 70-79 Washer Thrust .515 x .750 x .033
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
STEERING ASSEMBLY
41
41

14
30
30
42
43
60
38
63
46
147
55
64
47
192
56
56 57
62
188
189
1
69
21
21
69
69
20
40
145
42_D_man-tex_LT_16_r3
21
24 25
26
27
29
23
189
188
144
36
113
113
40
57
19
19
6
6
117
116
118
119
117 119
116
118
68
30
30
32
38
195
122
123
195
31
33
34
59
15
14
13
11
8
16
208
70
7
7
37
67
152
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
MOWER DECK
44
44

15
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 19 64-95 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x BOS Thread
8 532 19 30-03 Bolt/Washer Asm. 7/16-20 unf
11 532 13 89-71 Blade Mower 42" Hi Lift
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper Mandrel
19 532 19 65-39 Bolt, Shoulder
20 532 15 97-70 Baffle Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 30-04 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol. Rolling Wsh. Hd.
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley Idler 4.50 RAW
37 819 13 13-16 Washer
38 532 19 91-89 Keeper Belt LH Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 72-56 Spring Torsion Retainer
43 532 19 84-10 Spring Torsion Brake
46 532 13 77-29 Screw 1/4-20 x 5/8
47 532 19 72-60 Bracket Brake Stand LH
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv. Idler
60 532 19 74-02 Arm Brake Mower
62 872 11 06-16 Bolt Rd Hd Sqnk 3/8-16 unc x 2
63 532 19 94-78 Arm Brake Mower
64 532 19 99-18 Link Brake
67 532 40 97-92 Handle Clutch Cable
68 532 19 72-53 V-Belt
69 872 14 05-05 Bolt
70 532 19 83-32 Clutch Asm. Manual
113 817 00 05-10 Bolt 5/16-18 Hex Wsh Hd Lckserr
116 532 12 48-42 Bolt SHLD "A" 2.41 "B" 1.66
117 532 18 86-06 Wheel Gauge
118 873 93 06-00 Nut Centerlock 3/8-16 unc
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley, Idler, Flat
147 532 40 19-71 Spring Return
152 532 40 87-14 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
192 532 19 72-50 Bracket Clutch Cable
195 817 00 06-12 Screw 3/8-16 x 3/4
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2
- - 532 19 28-70 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 40 29-42 Replacement Mower, Complete
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
MOWER DECK
44
44

16
1 532 19 75-11 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_2
44
43
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39

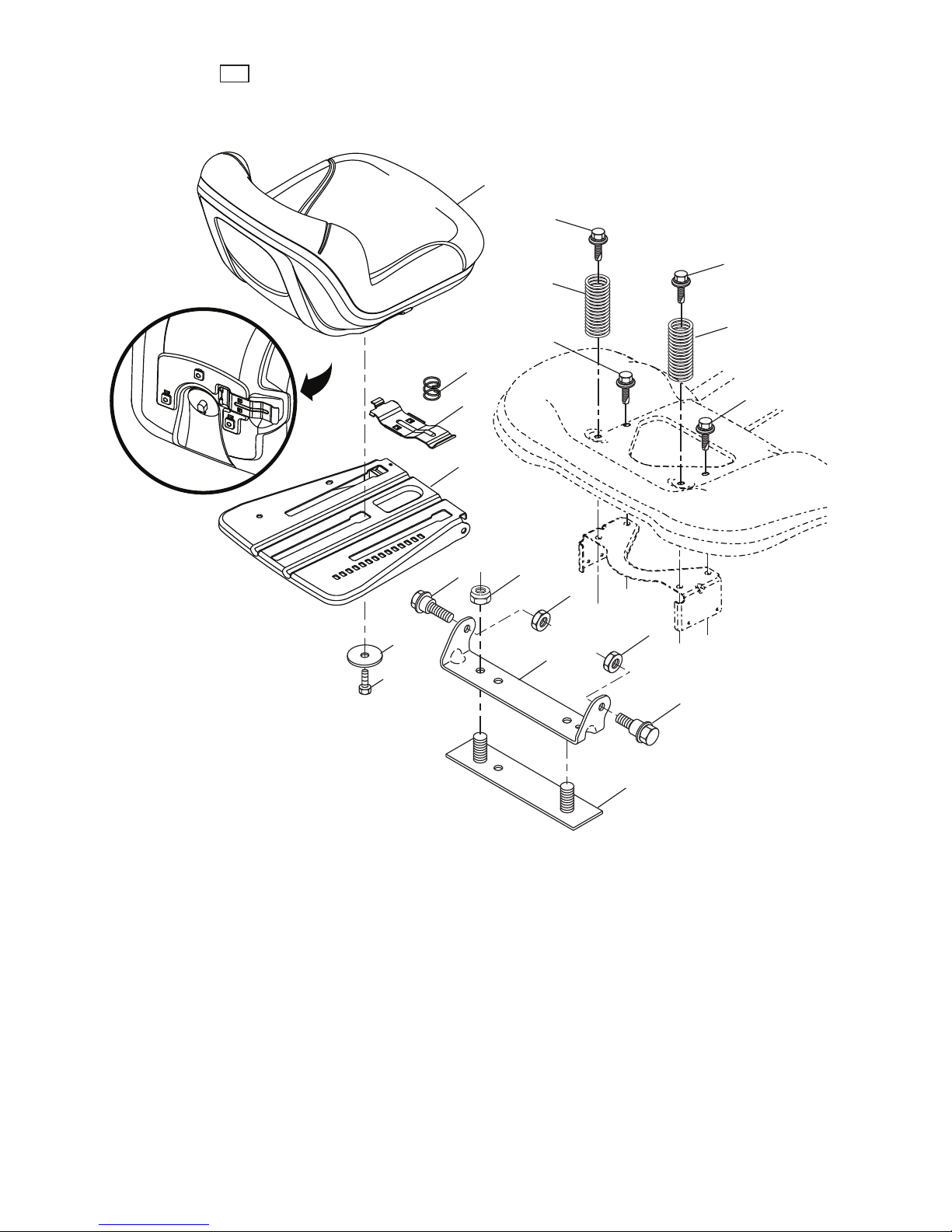

SEAT ASSEMBLY
42
42

2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 17-42 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
91 532 19 51-81 Link Asm. Lift Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Asm Lift FXD
17
7
3
87
10
88
2
89
90
87
98
97
97
lift-tex_16_r3
91
87
100
89
87 101*
*Key 91 may be substituted for Key 101
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
MOWER LIFT
45
45
