REPAIR PART'S MANUAL
MODEL:
PB195A46LT
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulanpro.com
WARNING:
Read this Manual and follow all Warnings
and Safety Instructions. Failure to do so can
result in serious injury.
IMPORTANT MANUAL Do Not Throw Away
12.11.12 SR
583 94 97-27 Printed in the U.S.A.

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “PB195A46LT (96042014701)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11

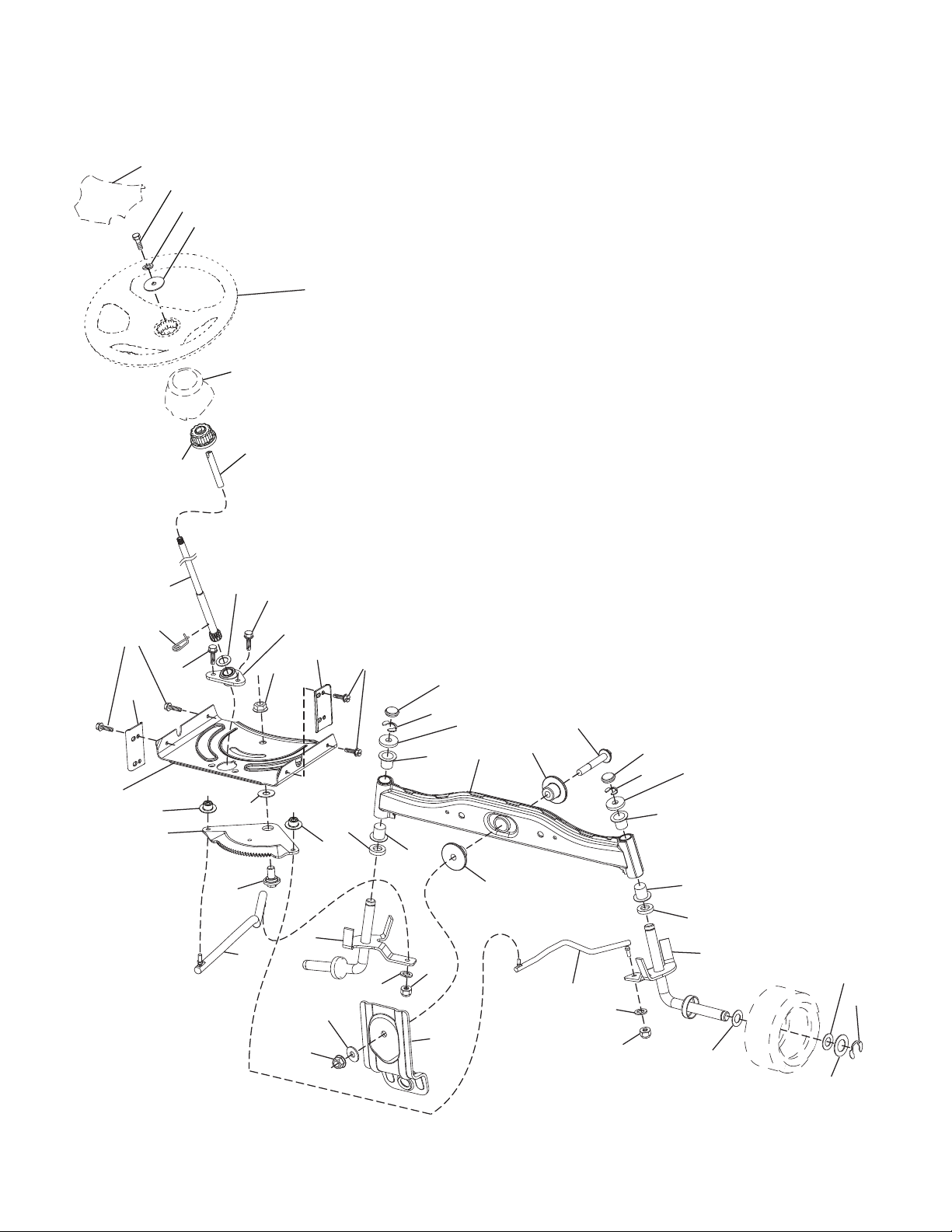

STEERING ............................................................................................................12-13
MOWER DECK .....................................................................................................14-15
MOWER LIFT.............................................................................................................16
SEAT ..........................................................................................................................17
DECALS..................................................................................................................... 18
WARRANTY...............................................................................................................19
PARTS AND SERVICE..............................................................................................20

3
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
D
E
R
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47

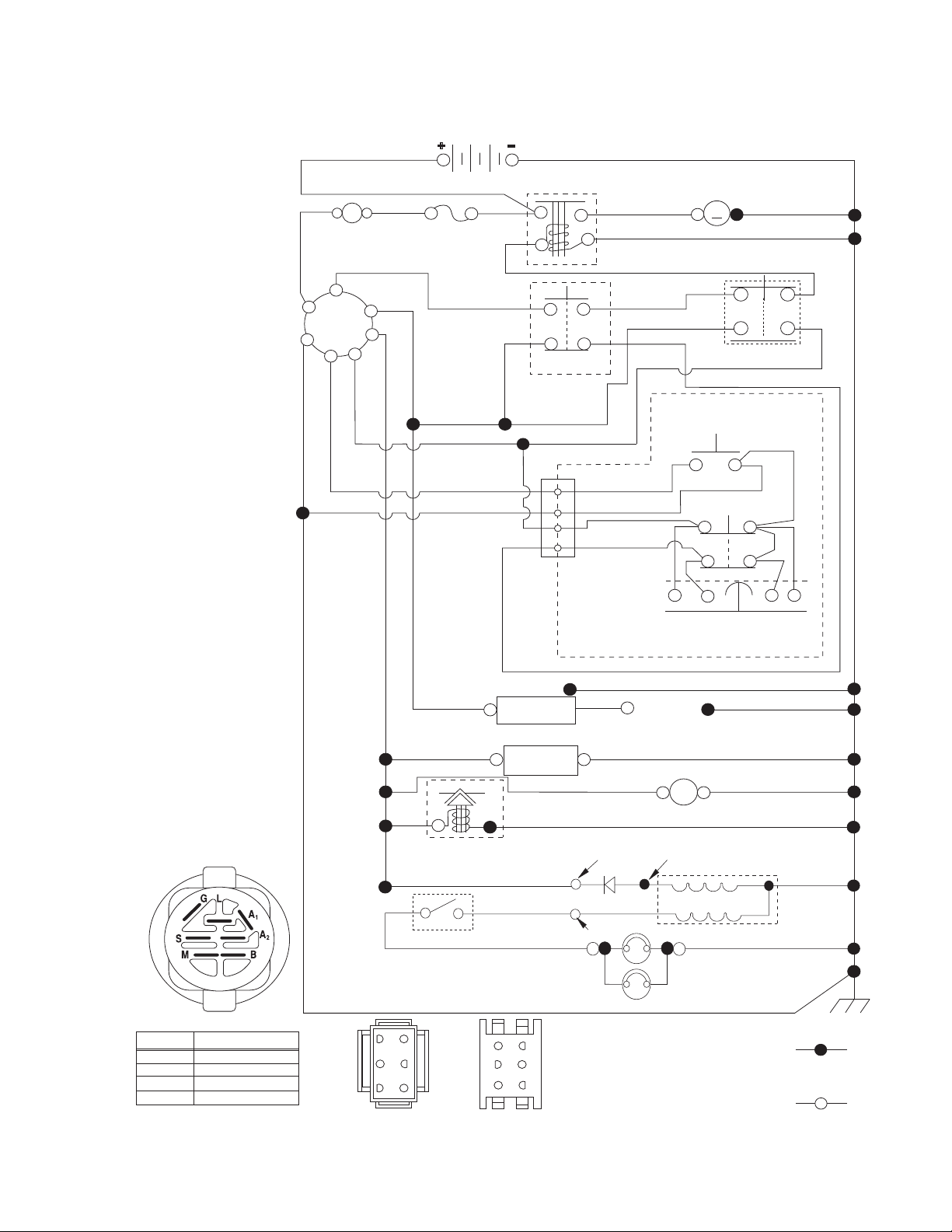

SCHEMATIC

4
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47

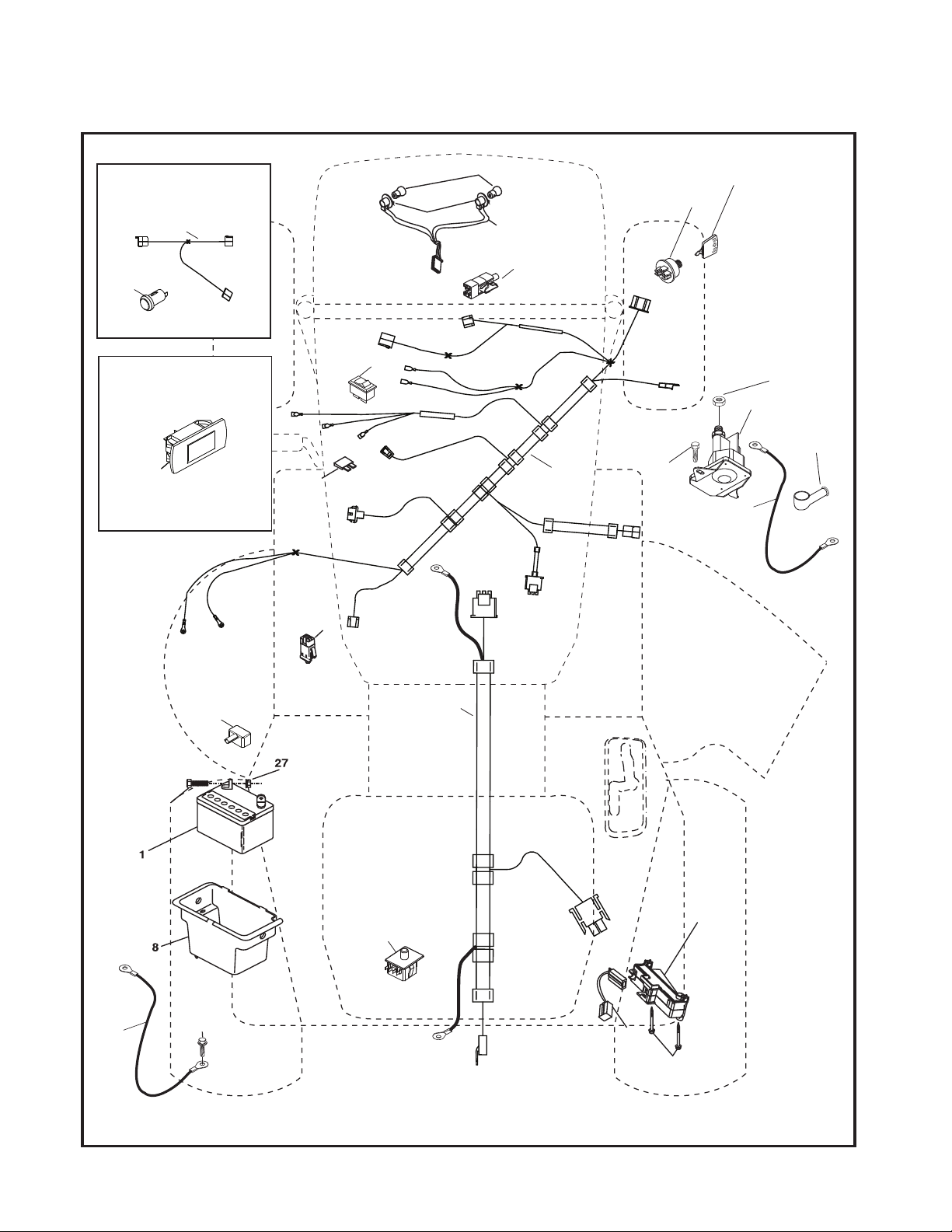

ELECTRICAL
30
33
34
22
79 21
41
42
26
43
27
40
71
16
87
25
T02K
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2

5
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock
21 532 18 37-59 Harness Socket Light
22 532 00 41-52 Bulb, Light #1156
25 532 41 28-95 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable Ground 18" Rear Battery Blk 6 Ga.
29 532 19 27-49 Switch Seat
30 532 19 33-50 Switch Ign
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 10-98 Harness Ign Dash
41 817 72 04-08 Screw 1/4-20 unc x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw 5/16-18 x 3/4
71 532 44 15-44 Harness Ign. Chass
79 532 17 52-42 Socket Asm. Bulb
87 532 19 78-02 Switch Interlock Clutch
90 532 43 53-95 Cover Terminal
92 532 19 66-15 Harness Pigtail
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
37
181
194
194
36
162
181
196
287
Chassis-tex_elite basic_15
138
182
176
175
177
176
130
151
150
5
137
14
18
176
176
153
302
68
68
68
68
183
183
236
236
34
235
235
180
159
159
228
228
194
52
217
189
189
152
68
68
213
218
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47

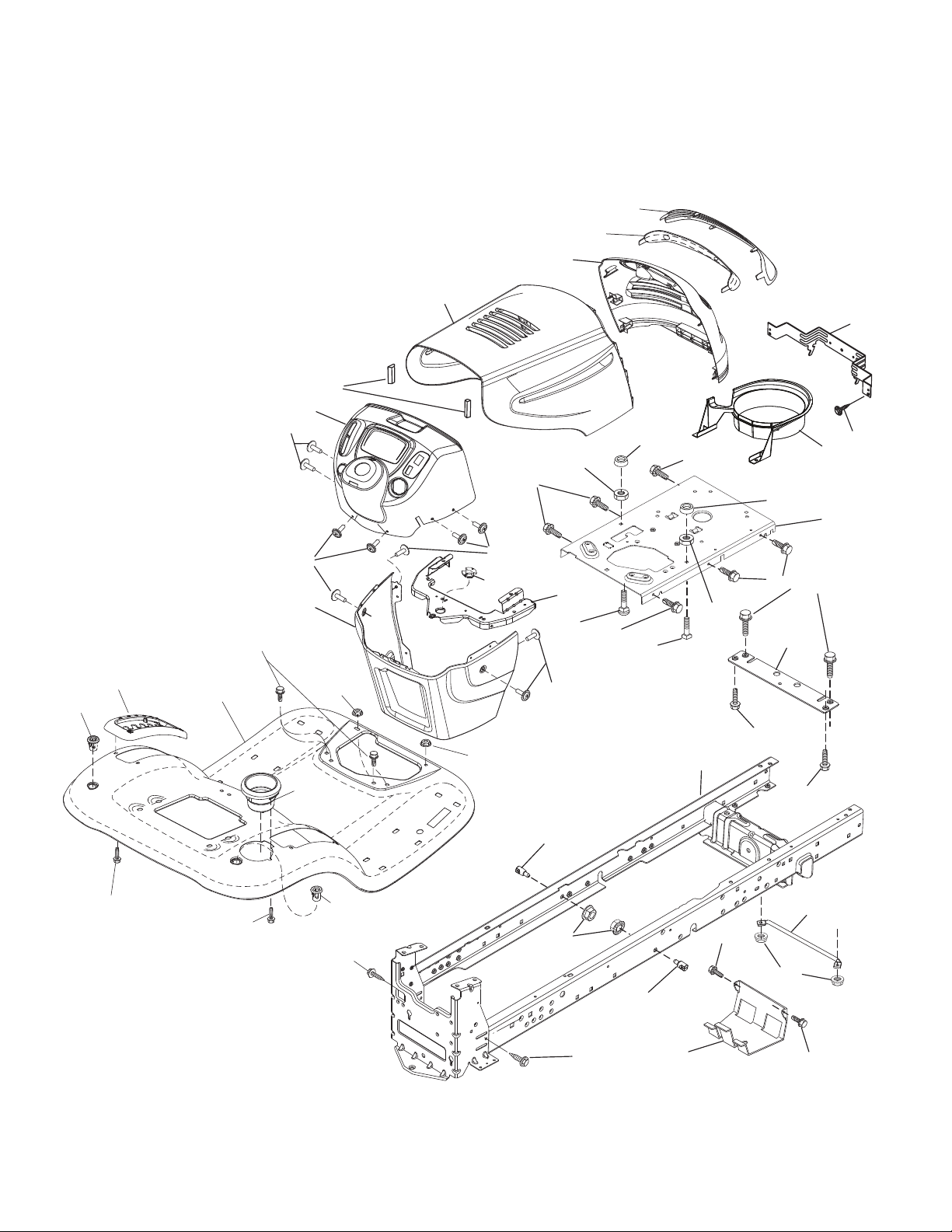

CHASSIS

7
5 532 41 17-64 Dash
14 532 18 33-94 Hood
18 532 42 67-92 Grille
34 580 91 08-01 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 43 65-23 Fender
52 873 68 05-00 Nut Lock 5/16-18
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750
137 532 18 49-21 Bumper Hood
138 532 40 97-30 Cupholder
150 532 18 44-61 Duct Heat Hood
151 532 40 78-07 Bracket Pivot
152 532 19 95-35 Shield Browning
153 532 18 98-37 Lens Grille
159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2
175 532 19 32-43 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-28 Bushing Steering
180 532 19 54-57 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 19 30-57 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
196 532 41 45-79 Console Asm. Deck Lift
213 874 76 05-12 Bolt 5/16-18 x 3/4
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Step
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18
287 817 60 04-06 Screw 1/4-20 x 3/8
302 532 18 38-23 Insert Lens Reflective
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
CHASSIS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

8
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47

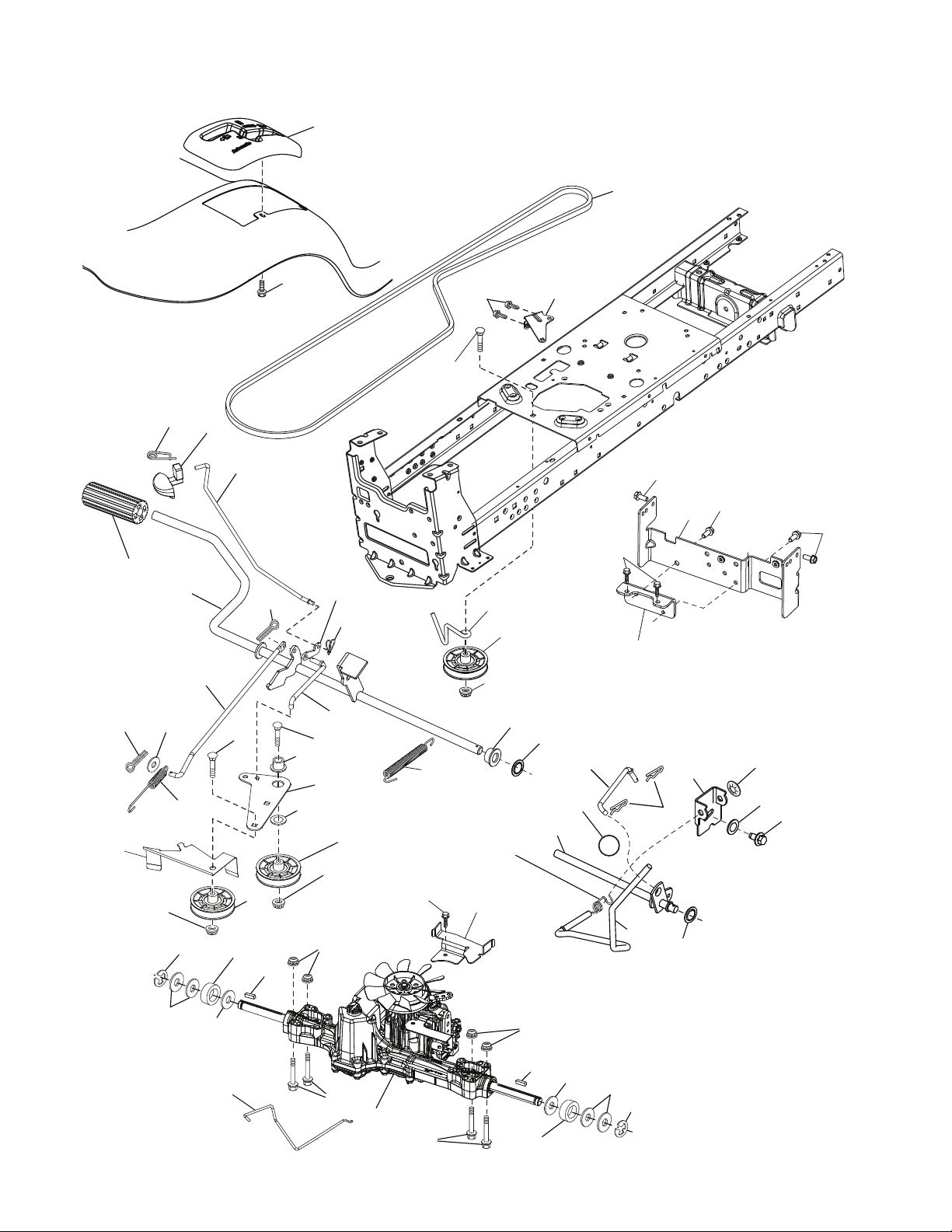

DRIVE
64
161
184
42
125
226
227
125
80 125
221
225
125
drive-tex_K46_fender_24_r2
211
70
74
116
2
2
73
73
33
205
1
116
33
230
230
183
183
205
175
279 176
178
174
22
23
166
232
153
233
166
99
17
159 15
35
167
160
188
186
189
49
29
187
50
51
52
51
185
159
171
51
52
170
216
56
143
190

9
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, Tufftorq K46BA(448348)
(Order parts from transaxle
manufacturer.)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 14 08-45 Knob
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 77-22 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 13 09-69 V-Belt, Drive
64 532 19 62-00 Shaft Asm. Pedal Brake Control
70 532 41 13-29 Console
73 874 49 05-40 Bolt Hex 5/16-18 x 2-1/2 G5
74 532 14 24-32 Screw 1/4 x 1/2
80 532 44 06-19 Strap Torque
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw THDROL 5/16-18
153 532 12 47-88 Retainer Spring 1"
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper Belt Centerspan
171 872 11 06-16 Bolt 3/8-16 unc x 2
174 532 19 72-89 Nut Push
175 532 40 62-08 Shaft Asm Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer Axle
184 532 44 15-04 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
211 532 19 62-12 Bushing Shaft
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
225 532 40 33-19 Keeper Belt Transaxle
226 532 40 15-64 Bracket Mount Torque
227 817 49 05-12 Screw 5/16-18 x 3/4
230 532 18 89-67 Washer Harden .793 x 1.637 x 060
232 874 78 07-16 Bolt 7/16-14 x 1 Gr 5
233 532 40 52-96 Washer Serrated
279 532 40 62-07 Link Shift

10
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
ENGINE
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18 97
96 111
15
37
28
engine-tex_BS_58_r1
12
42
85
9
90
69 2
79
84
45
1
122

11
1 – – – – – – Engine B&S Model No. 31P677-3373-G5 (438211)
(Order parts from engine manufacturer.)
2 532 13 73-52 Muffler
9 532 19 43-20 Keeper Belt Engine
12 532 40 54-72 Pulley Engine
15 532 43 30-03 Tank Fuel 1.50
18 581 17 61-01 Cap Fuel
20 532 17 05-45 Control Throttle/Choke
21 532 41 63-58 Screw #10 x 0.750
28 532 40 11-37 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw Socket Hd 5/16-18 x .75
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
90 817 00 06-16 Screw 3/8-16 x 1.0
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
111 532 41 41-19 Purge Line Carb.
122 532 42 19-22 Extension Drain Oil
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
ENGINE
KEY PART
NO. NO. DESCRIPTION
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive En-
gineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values
are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operat-
ing conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and
the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross
power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety
of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.),
application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this
Series engine.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723

12
61
steering-tex_STDHRS_14
19
60
5
62
15
14
13
13
53
8
70
68
69
16
28
28
13
22
64
4
15
14
6
74
9
8
74
7
9
87
67
67
66
74
74
6
2
63
57
57
63
1
21 71
72
33
45
26
20
35
59
58
122
122
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
STEERING

13
1 532 42 45-43 Wheel, Steering
2 532 41 81-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Washer Thrust 0.75 x 1.23
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer Lock 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-74 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 12-91 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Strg. Supt. Lower
26 532 42 46-91 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 2-3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Ext. Steering
72 532 42 89-82 Bolt 5/16-18 x 4 W/Patch
74 532 12 49-37 Bearing
122 532 44 49-62 Cap Gear Sector Tex
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
STEERING
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

14
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47

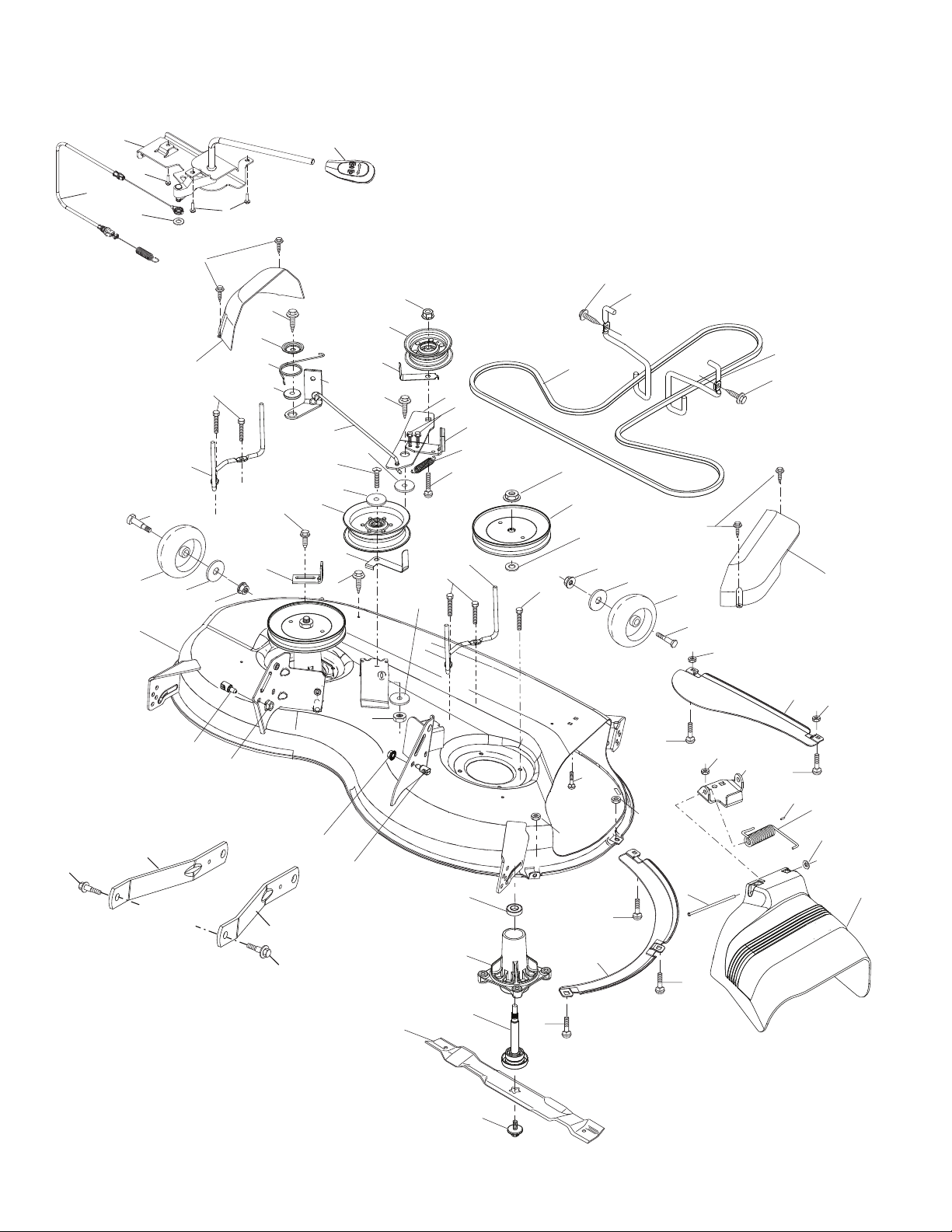

MOWER DECK
30
43
42
60
38
63
46
147
55
64
30
32
31
33
56
34
56 57
59
240
188
1
69
69
69
199
40
145
46_man-Tex_lt_7_r1
15
14
13
11
8
21
25
26
27
198
29
21
21
23
24
144
36
40
57
19
19
6
6
40
117 119
116
40
68
195
122
123
195
189
189
188
21
69
69
69
21
30
38
47
113
116
119
117
197
208
200
3
46
2
46
70
7
7
37
67
152

15
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
MOWER DECK
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 44 16-16 Mower Housing
2 532 40 55-07 Cover Mandrel LH
3 532 40 55-06 Cover Mandrel RH
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x 0.750 BOS Thread
8 532 19 30-03 Bolt/Washer Asm 7/16-20 unf
11 532 40 53-80 Blade Mower Hi-Lift
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
21 873 68 05-00 Nut
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 53-57 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
38 532 43 25-20 Keeper Belt Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw
47 532 19 72-50 Bracket Clutch Cable
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw Hexwsh Thd 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler (94)
60 532 19 94-71 Arm Brake Mower
63 532 19 94-77 Arm Brake Mower
64 532 40 51-38 Linkage Brake
67 532 40 30-12 Handle, Clutch Cable
68 532 40 51-43 V-Belt
69 872 14 05-05 Bolt
70 532 19 83-32 Clutch Asm. Manual
113 817 00 05-10 Screw 5/16-18
116 532 12 48-42 Bolt, Shoulder
117 532 18 86-06 Wheel, Gauge
119 819 12 14-14 Washer 13/32 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Eng. LH
123 532 19 72-59 Keeper Belt Eng. RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley Idler Primary
147 532 40 18-72 Spring Return
152 532 43 51-11 Cable Clutch Manual w/Spr.
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
195 817 00 06-12 Screw 3/8-16 x 3/4
197 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
198 532 40 31-49 Baffle Center Front
199 532 40 31-50 Baffle Front RH
200 532 41 35-24 Washer 13/32 x 1 x 1/2 11 Ga.
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2
240 874 52 06-36 Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5
- - 532 19 28-70 Mandrel Assembly (Includes
housing (Key #14), shaft assembly
(Key #13), and bearing (Key #15)
and nut (key# 33) only - pulley/
washer and blade bolt/washers not
included)
- - 532 43 24-57 Replacement Mower, Complete

16
7
3
87
10
88
2
89
90 98
97
97
lift-tex_17_r3 *Key 91 may be substituted for Key 101
91
101*
87
100
89
89
87
2 532 42 20-27 Shaft Asm., Cross Lift
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47

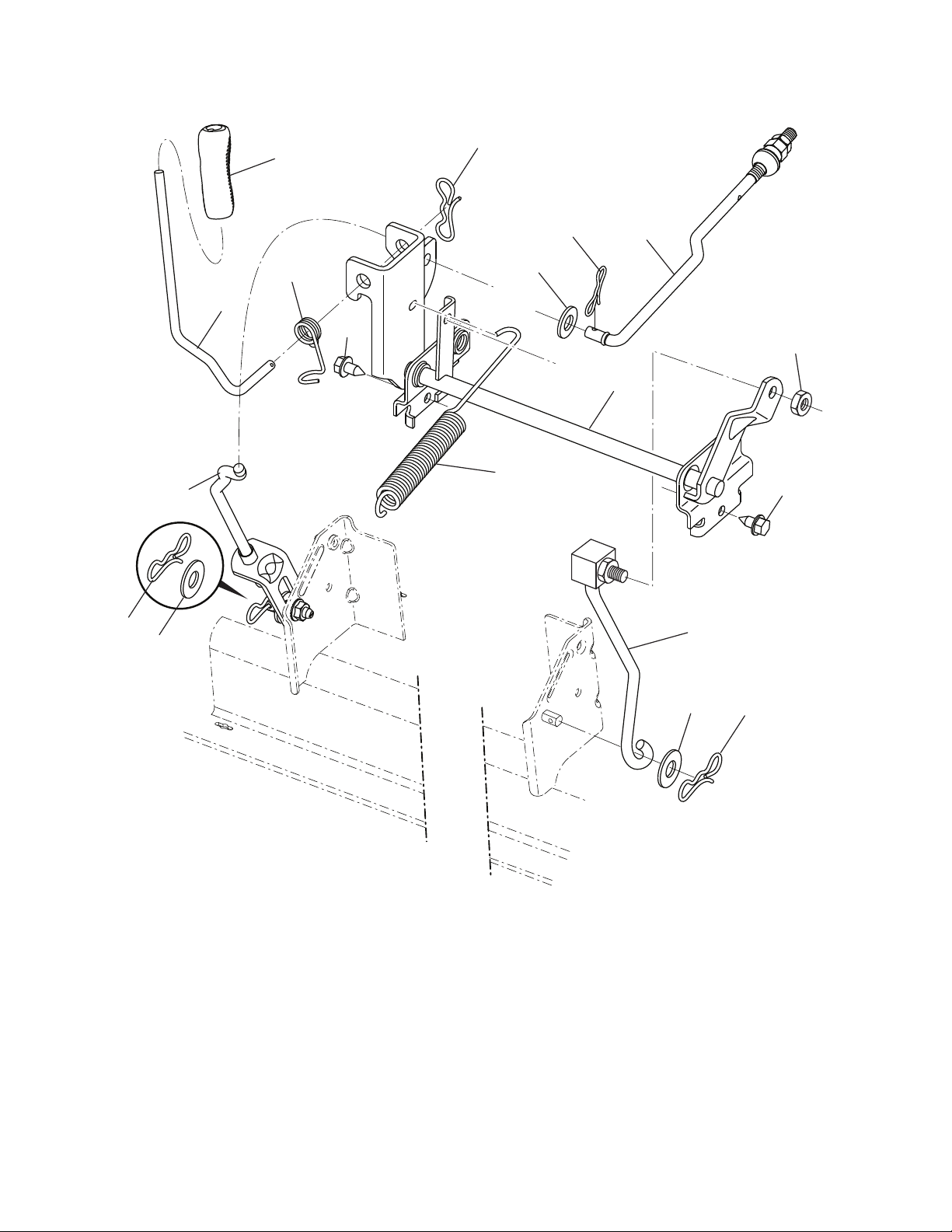

MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8 -16 unc
101 532 40 70-03 Link Asm. Lift Fixed
KEY PART
NO. NO. DESCRIPTION

17
2
6
6
1
14 10
37
37
21
21
42
19
3
5
16
15
12
17
13
7
8
8
7
8
8
seat-tex_knob_1
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
SEAT
1 532 19 75-14 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
5 532 14 50-06 Clip Push-in Hinged
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 44 18-05 Pan, Seat
12 532 19 93-70 Bracket Mnt.
13 532 12 12-48 Bushing Snap
14 872 05 04-12 Bolt 1/4-20 x 1-1/2
15 532 13 43-00 Spacer Split
16 532 12 37-40 Spring CPRSN Plate
17 532 12 39-76 Nut Lock 1/4
19 532 19 93-72 Knob Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
42 532 19 93-71 Cup Washer
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

18
REPAIR PARTS
TRACTOR - - MODEL NUMBER PB195A46LT (96042014701), PRODUCT NO. 960 42 01-47
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 43 96-73 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T 15 x 6 0 - 6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle
9 532 13 84-68 Tire R TS 20 x 8-8C.
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 44 08-81 Rim Asm 8" Rear Service
- - 532 14 43-34 Sealant, Tire (Not Shown)
2 532 42 95-55 Decal Eng. H.P.
3 532 44 52-35 Decal Hood
4 581 56 19-01 Decal Side Panel Logo
6 581 57 95-01 Decal Warning, Keep Hand Away
7 583 94 09-01 Decal Replacement Parts
8 581 57 89-01 Decal Fender Warn
9 532 44 52-34 Decal Fender Logo
11 532 43 85-01 Decal Ins Strg Whl
12 532 43 90-60 Decal Fend SD
14 581 58 00-01 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 581 72 48-01 Decal Bypass
- - 532 40 95-05 Pad Footrest LH
- - 532 41 12-73 Pad Footrest RH
- - 583 94 96-27 ManualOperator's(English/Spanish)
- - 583 94 97-27 Manual Parts (English/Spanish)
3
3
9
20
14
2
7
11 44
6
12
12
8

19
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
9335 Harris Corners Parkway
Charlotte, NC 28269 USA

20
Thisproducthasbeenexpertlyengineeredandcarefullymanufacturedtorigidqualitystandards. Aswithallmechanical
products, some adjustments or part replacement may be necessary during the life of your unit.
For Parts and service, contact our authorized distributor: call 1-800-849-1297
• For replacement parts, have available the following information:
a. Model Number/Manufacturer's I.D. Number
b. Description of part.
For Technical Assistance: call 1-800-829-5886
For a Parts Manual, go to our website: www.poulanpro.com
NOTE: HOP provides parts and service through its authorized distributors and dealers; therefore, all
requests for parts and service should be directed to your local dealer(s). The philosophy of HOP
is to continually improve all of its products. If the operating characteristics or the appearance
of your product differs from those described in this Manual, please contact your local dealer
for updated information and assistance.
PARTS AND SERVICE
