Poulan Pro Pro PB26H5YT Owner's manual

REPAIR PARTS MANUAL
MODEL:
PB26H54YT
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulanpro.com
WARNING:
Read this Manual and follow all Warnings
and Safety Instructions. Failure to do so
can result in serious injury.
IMPORTANT MANUAL DO NOT THROW AWAY
03032
07.28.11 BD
532 44 51-50 Printed in the U.S.A.

HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “TRACTOR”
• MODEL NUMBER - “PB26H54YT (96042012702)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11
STEERING ............................................................................................................12-13
MOWER DECK .....................................................................................................14-15
MOWER LIFT.............................................................................................................16
SEAT ..........................................................................................................................17
DECALS..................................................................................................................... 18
WARRANTY...............................................................................................................19
PARTS AND SERVICE..............................................................................................20

3
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
S
M
B
G
L
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH12
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
SCHEMATIC

4
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
ELECTRICAL
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30
33
22
79 21
40
71
34
With Service Minder Option
4646
With 12V Outlet Option
59
103
16
42
T11S
102
29
105

5
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 18 64-91 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
24 532 40 02-53 Cable Battery
25 532 41 28-94 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ignition
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 11-04 Harness Ignition Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge SRVCMNDR HRMTR
50 532 17 46-51 Switch PTO
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 532 19 42-76 Harness Ignition
79 532 17 52-42 Socket Asm Bulb Twistlock
90 532 43 53-95 Cover Terminal Battery
91 532 19 02-70 Strap Battery
99 817 67 04-12 Screw 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16
102 532 40 44-54 Harness Pigtail
105 532 40 75-68 Switch Reverse
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
CHASSIS
68 68
68
183
236
236
34
chassis-tex_elite-husq_12
228
228
180
189
189
152
235
235
58
189
189
189
194
151
130
182
176
176
176
175
177
37
181
181
194
194
36
36
162
196
287
138
161
165
14
137
130
18
191
297
15
25
205
206
5
176
176
233
233
150
139
139
278
68
68
68

7
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
CHASSIS
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
5 532 43 63-86 Dash
14 532 43 63-82 Hood
15 532 18 99-82 Lens Grille LH
18 532 43 27-78 Grille
25 532 18 99-81 Lens Grille RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 43 63-87 Fender
58 532 41 22-80 Drawbar Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750 BOS Thread
137 532 18 49-21 Bumper Hood
138 532 40 97-30 Cupholder
139 532 17 18-73 Shoulder Bolt
150 532 43 09-61 Duct Heat Hood
151 532 40 78-07 Bracket Pivot
152 532 19 95-35 Shield Browning/Debris
161 532 41 20-72 Window Fuel
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
165 532 19 68-26 Support Tank Rear
175 532 19 32-43 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-27 Bushing Steering
180 532 41 50-63 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 19 30-57 Dash Lower
183 874 52 05-20 Bolt Full Thd. 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 41 65-00 Insert Lens Reflective RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
196 532 41 45-79 Console Asm. Deck Lift
205 532 42 47-47 Skirt Side RH
206 532 42 47-48 Skirt Side LH
228 532 19 51-61 Stud Fastener
233 532 19 65-39 Bolt Shoulder
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18 unc
278 532 19 63-94 Bracket Hood/Muffler
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
297 532 18 82-67 Insert Lens Reflective LH
- - 532 40 09-44 Kit Bumper (Not Shown)

8
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27

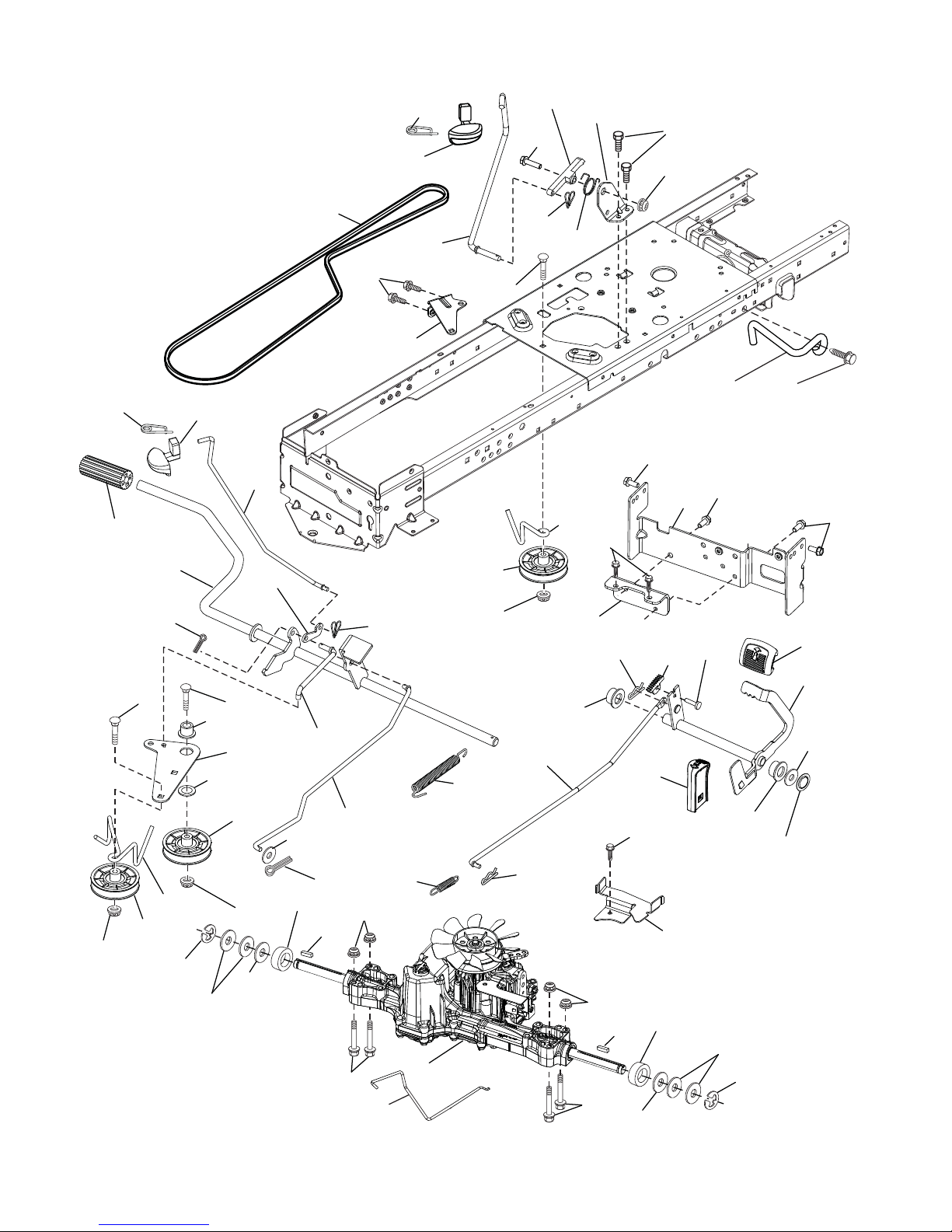

DRIVE
231
51
170
225
125
drive-tex_K46_pedal_39_r1
2
2
73
73 33
205
1
116
33
230
230
183
183
205
116
64
188
161
35
184
167
160
42
29
15
159
159
221
186
189
49
187
50
51
52
51
190
185
125
226
227
125
80 125
208
210
214
125
215
153
166
211
211
222
17
163
153
99
216
143 185
56
213
221
160
206
26
207
209
92 125
116
197 196

9
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 – – – – – – Transaxle, Tufftorq K46BT
(426120)(Order Parts from
Transaxle Manufacturer)
2 532 12 35-83 Key
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 77-22 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-40 Bolt Hex 5/16-18 x 3.75
80 532 44 06-19 Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 40 10-34 Rod Pedal Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 41 34-30 Keeper Belt Centerspan
183 532 13 70-57 Spacer Axle
184 532 44 15-04 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 58-04 Link Clutch Anti-Rotation
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 40 07-69 Rod Control Cruise
210 532 40 09-80 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 42 47-44 Knob control Cruise
214 532 42 12-63 Pad Pedal Forward
215 532 40 17-23 Pad Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
225 532 40 33-19 Keeper Belt Transaxle
226 532 40 15-64 Bracket Mount Torque
227 817 49 05-12 Screw 5/16-18 x 3/4
230 532 18 89-67 Washer Harden .793 x 1.637 x 060
231 532 40 72-87 Idler V-Groove
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27

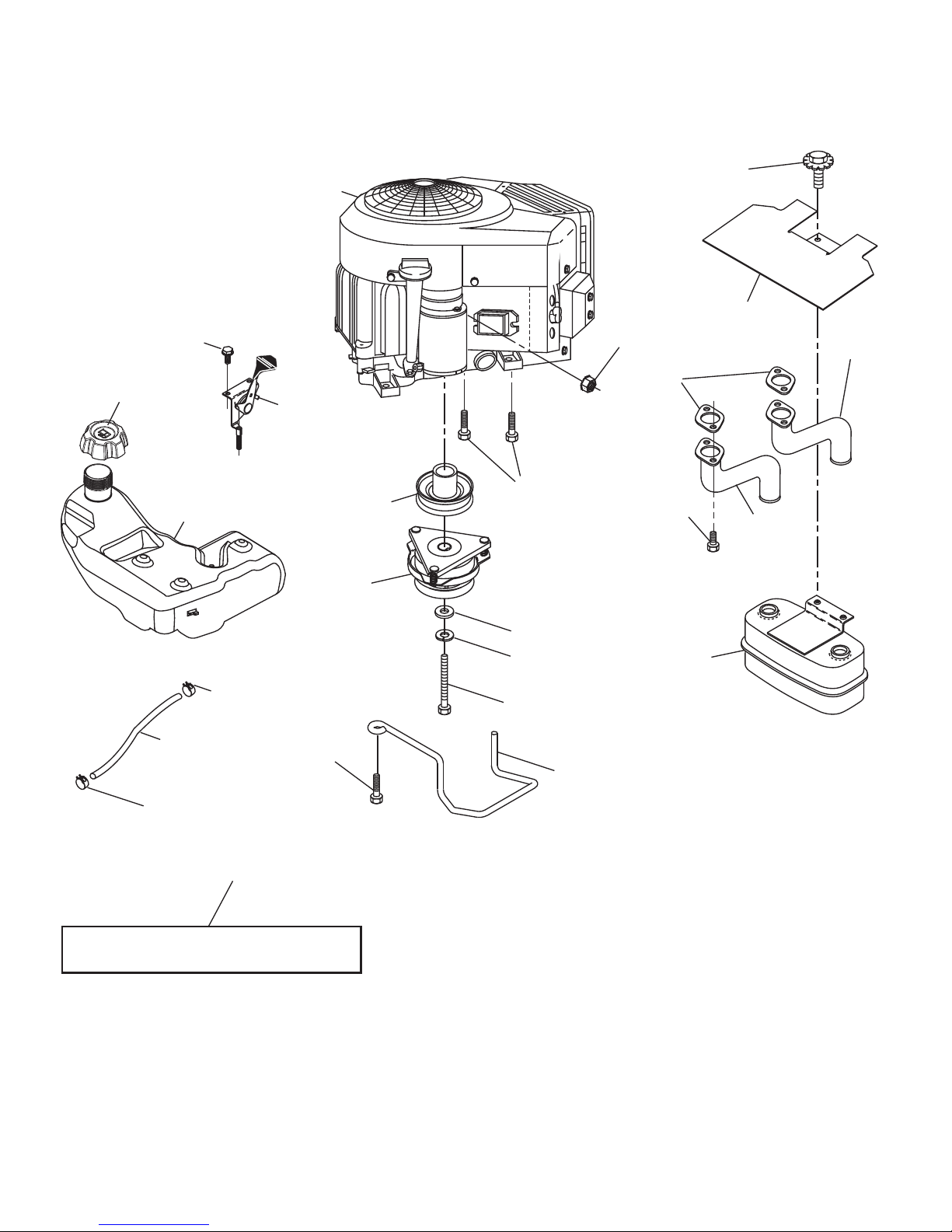

ENGINE
1
84
12
11
41
42
85
29
SPARK ARRESTER KIT
45
18
15
37
28
37
21
20
62
71
70
79
69
87
2
engine-tex_bs-2cyl_41
9
90

11
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Engine B&S Model No. 44P777-2448-G1
(438239) (Order parts from engine
manufacturer)
2 532 14 97-23 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 40 00-08 Clutch Electric
12 532 40 50-97 Pulley Engine
15 532 43 80-80 Tank Fuel
18 532 43 02-14 Cap Fuel
20 532 42 35-02 Control Throttle/Choke
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 40 11-35 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x 250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 43 40-17 Shield Heat Muffler
69 532 16 53-91 Gasket
70 532 15 99-55 Exhaust Tube LH
71 532 16 05-89 Exhaust Tube RH
79 532 18 39-06 Screw Socket HD 5/16-18 x 1
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt 7/16-20 x 4 x Gr. 5-1.5
87 532 17 18-77 Bolt 5/16 - 18 x 3/4
90 817 00 06-16 Screw 3/8-16 x 1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained
and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower
values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambi-
ent operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are
placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop
the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is
due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor,
fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-
engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher
rated power for this Series engine.

12
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27

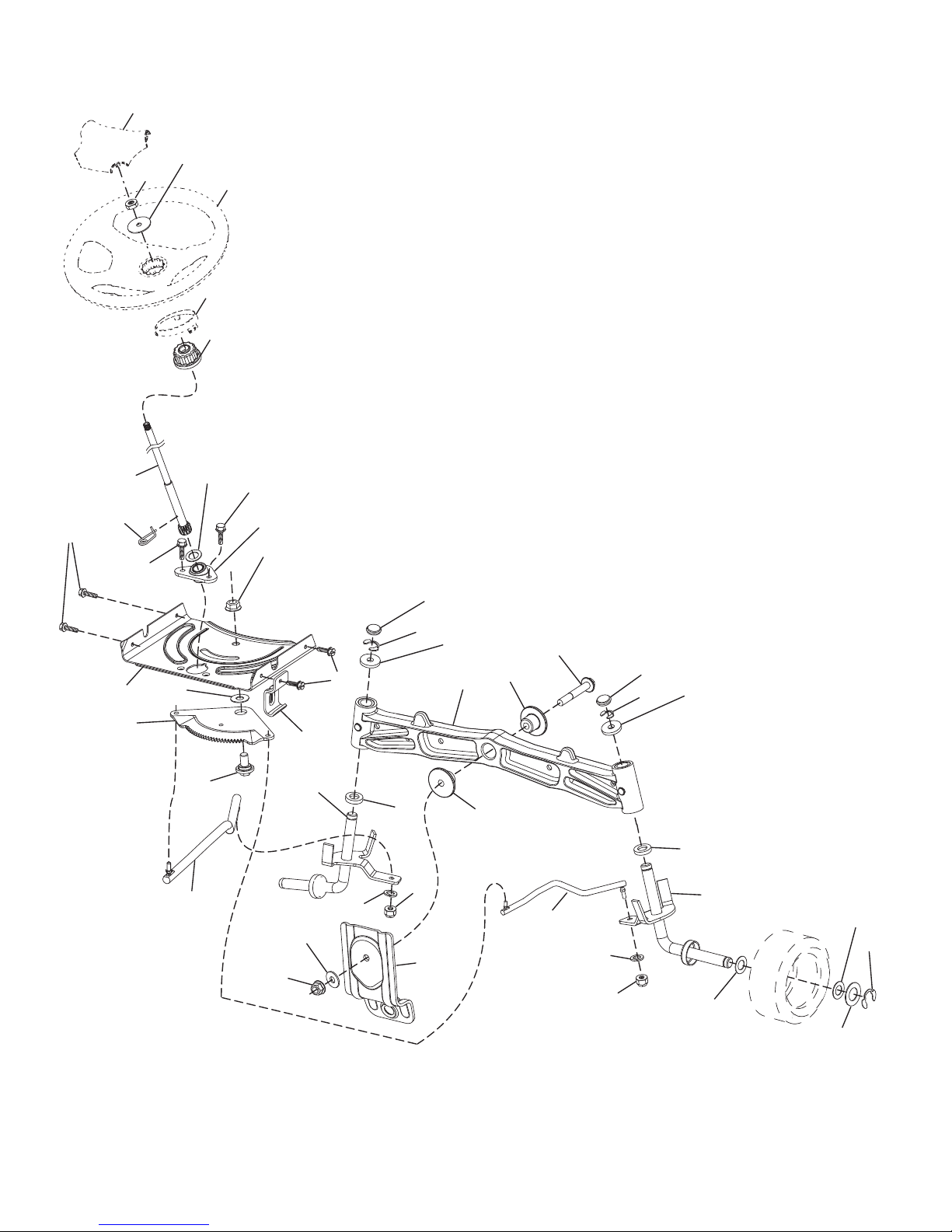

STEERING ASSEMBLY
61
steering-tex_Prem2_9
35
19
60
59
58
63
5
62
15
14
13
13
53
8
70
68
69
16
28
28
13
22
64
4
15
14
6
67
67
66
6
2
9
87
9
87
63
57
21
51
26
1
20
45

13
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 42 45-51 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 43 27-84 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Steering Support Lower
26 532 42 45-53 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 ID x 2-3/8 x 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 WasherHardened.793x1.637x.060
57 532 19 72-46 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

14
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27

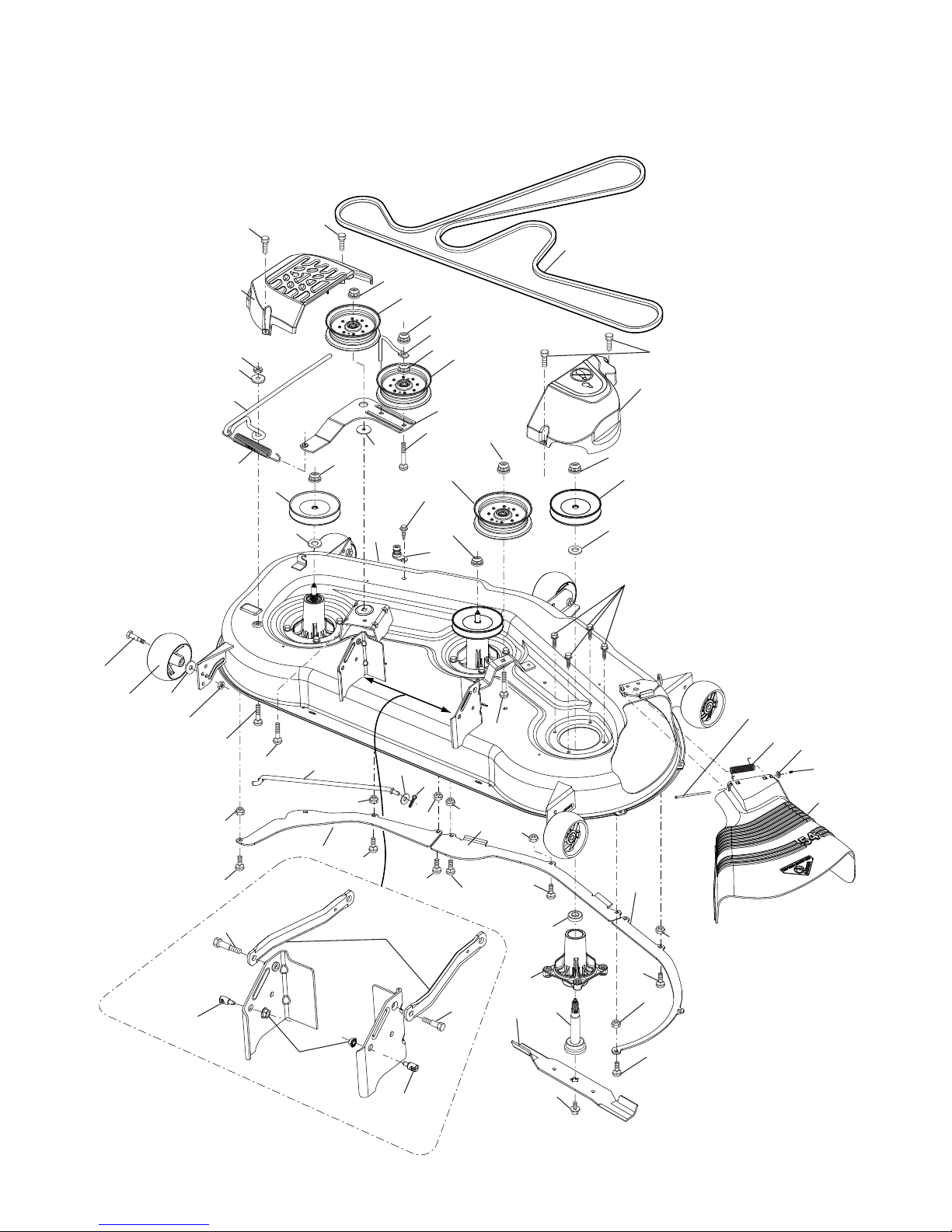

MOWER DECK
MOWER?DECKªTEX??R





























 






































 




15
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 19 56-32 Deck Weldment Mower
6 532 19 60-66 Cover Mandrel LH
7 532 19 71-81 Cover Mandrel RH
8 532 19 30-03 Bolt 7/16 Asm. Blade
11 532 18 72-56 Blade Bagging
12 532 40 48-51 Rod Anti-Sway
13 532 18 72-91 Shaft Asm. w/Lower Bearing
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
16 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
18 872 14 05-05 Bolt Carr. 5/16-18 x 5/8
19 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
24 532 10 53-04 Cap Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 89-38 Deflector Shield
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdroll Washer Head
31 532 18 76-90 Washer, Spacer Mower Vented
32 532 15 35-35 Pulley, Mandrel
33 532 40 02-34 Nut, Flg. Top Lock
34 873 68 06-00 Nut Crownlock 3/8-16 unc
39 532 19 73-80 Pulley, Idler, Stationary
43 532 19 60-65 Arm, Idler
46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8
47 532 19 61-03 V-Belt, Mower
49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
50 872 11 06-16 Bolt Rdhd Sqnk 3/8-16 unc x 2
52 532 19 73-79 Pulley Idler 4.50
58 532 18 73-42 Baffle Right
59 532 18 73-44 Baffle Left
60 532 18 76-07 Baffle Center
97 532 17 85-15 Washer Hardened
98 532 19 61-05 Spring Drive
113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4
114 532 18 75-56 Rod Tension Relief
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Gauge Wheel
120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
122 532 18 75-57 Bushing Tension Relief
185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation
188 873 90 05-00 Nut Lock Hex Flange 5/16-18
189 532 19 51-85 Arm Susp. Mower Rear
190 532 19 65-39 Bolt Shoulder
192 532 19 84-68 Keeper Belt Idler
194 874 49 07-36 Bolt Hex Washer Head 7/16-14 x
2.25
196 872 14 06-20 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
241 532 15 29-27 Screw TT #10-32.5 3/8 FLG
242 532 41 55-98 Port Washout
- - 532 41 64-05 Coupling Quick Disconnect
- - 532 18 72-92 Mandrel Asm. Service (Includes
Key Nos. 13-15 and 33)
- - 532 41 80-76 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

16
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
lift-tex_23
91
89
87
89
87
91
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 40 34-07 Link Asm. Lift Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-64 Link Lift Susp. Front Mower
16

17
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
SEAT ASSEMBLY
1 532 40 66-23 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_1_r1
44
43

18
TRACTOR - - MODEL NO. PB26H54YT (96042012702), PRODUCT NO. 960 42 01-27
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
410
59
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 43 65-75 Rim Assembly, Front
4 532 05 99-04 Tube, Front
5 532 10 62-22 Tire, Front
6 532 12 49-57 Fitting, Grease
7 532 12 49-59 Bearing, Flange
8 532 17 50-39 Cap, Axle
9 532 13 84-68 Tire, R. TS. 20 x 8-8
10 532 12 49-26 Tube, Rear
11 532 10 61-08 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (Not Shown)
1 532 44 52-35 Decal, Hood
2 532 17 84-55 Decal, Mower Caution
3 532 44 52-32 Decal, Side Panel
4 532 44 52-34 Decal, Fender
5 532 43 50-97 Decal, Eng H.P.
6 532 41 16-57 Decal, Fender Operator's
8 532 17 05-63 Decal, Warning
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 43 84-92 Decal, Fender SD RH
11 532 43 84-29 Decal, Replacement
13 532 43 85-01 Decal, Steering Wheel
14 532 19 87-85 Decal, Mower Schematic
- - 532 40 95-07 Pad, Footrest Control
- - 532 16 69-60 Decal, Bypass
- - 532 40 95-05 Pad, Footrest, LH
- - 532 44 11-68 Manual, Operator's (Eng/Span)
- - 532 44 51-50 Manual, Parts (Eng/Span)
1
5
2
1
6
3
13
14
8
11
4
9
10 10

19
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
9335 Harris Corners Parkway
Charlotte, NC 28269 USA

20
Thisproducthasbeenexpertlyengineeredandcarefullymanufacturedtorigidqualitystandards. Aswithallmechanical
products, some adjustments or part replacement may be necessary during the life of your unit.
For Parts and service, contact our authorized distributor: call 1-800-849-1297
• For replacement parts, have available the following information:
a. Model Number/Manufacturer's I.D. Number
b. Description of part.
For Technical Assistance: call 1-800-829-5886
For a Parts Manual, go to our website: www.poulanpro.com
NOTE: HOP provides parts and service through its authorized distributors and dealers; therefore, all
requests for parts and service should be directed to your local dealer(s). The philosophy of HOP
is to continually improve all of its products. If the operating characteristics or the appearance
of your product differs from those described in this Manual, please contact your local dealer
for updated information and assistance.
PARTS AND SERVICE
