REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
2 (EXPLODED)
01.07.032-A
15 16
18
19 20 21
22
23 33
18
17
19
20
24
25
26
27
34
34
9
9
9
1
11
11
11
11
3
4
6
8
7
5
12
12
14
10
13
2
28
28
31
29
30
32

21
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
AUGER HOUSING / IMPELLER ASSEMBLY

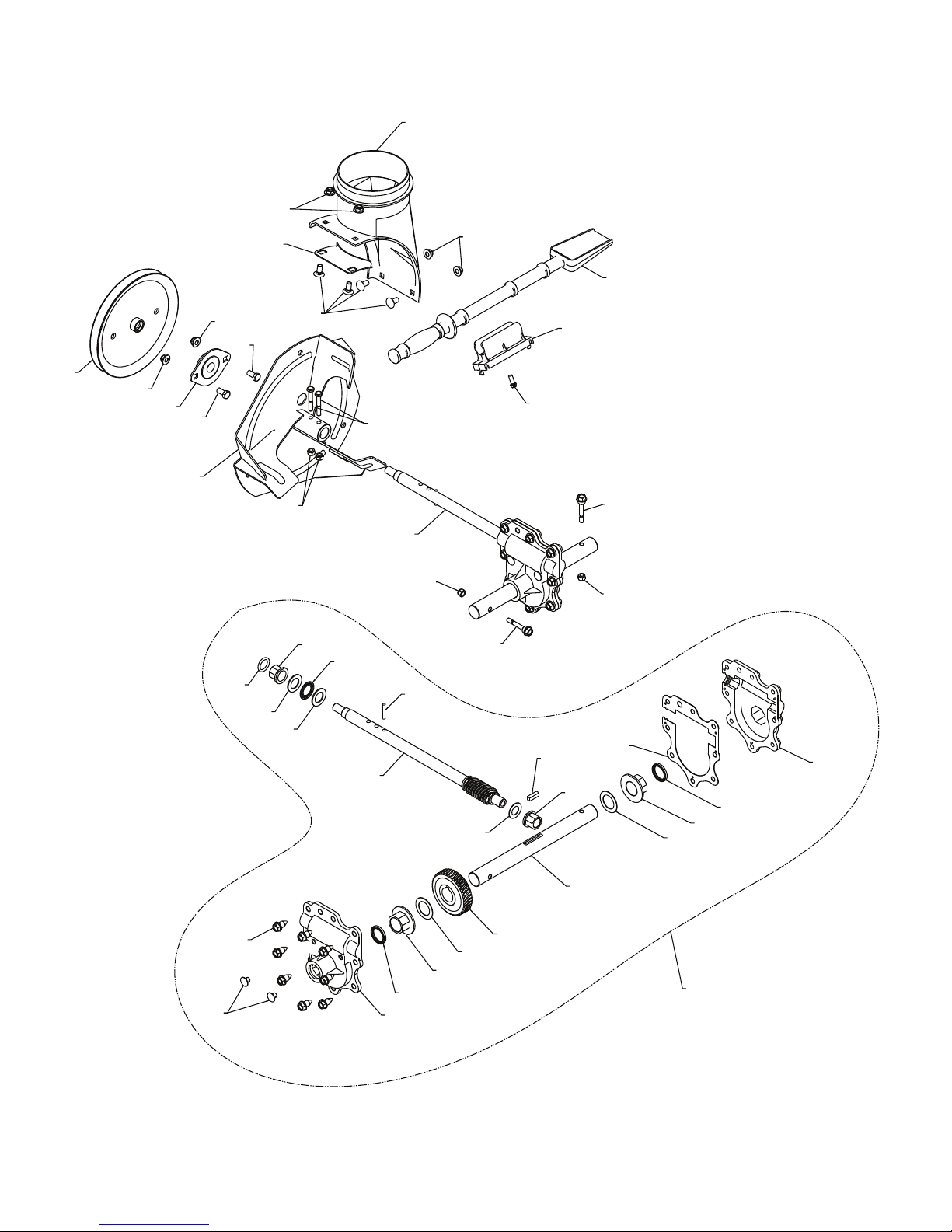

1 532 18 41-05 IMPELLER
2 584 64 83-01 GEARBOX ASSEMBLY
3 532 18 89-09 BEARING
4 585 09 32-01 IMPELLER PULLEY
5 532 44 24-38 DISCHARGE BASE
6 532 18 40-95 CORNER BRACKET
7 532 19 21-99 CLEAN OUT TOOL
8 532 40 54-00 TOOL CLIP
9 873 80 04-00 NUT 1/4-20
10 874 78 04-26 SCREW 1/4-20 X .625
11 532 42 79-42 NUT 5/16-18
12 532 16 31-83 SCREW 5/16-18 X .625
13 532 18 03-55 CARRIAGE BOLT
14 532 19 41-89 SCREW 13-16 X .625
15 532 40 77-60 PLUG
16 532 42 73-02 GEARBOX COVER RH
17 532 42 73-45 GASKET
18 532 40 77-70 SEAL
19 532 40 77-62 BEARING
20 532 17 46-97 THRUST WASHER 1.00
21 532 40 77-63 WORM GEAR
22 532 40 77-64 AUGER SHAFT
23 532 18 92-82 SQUARE KEY
24 532 40 77-58 BEARING
25 532 17 46-83 THRUST WASHER
26 584 64 84-01 IMPELLER SHAFT
27 532 18 42-05 ROLL PIN
28 532 17 46-81 THRUST WASHER
29 532 17 46-84 THRUST BEARING
30 532 40 77-69 BEARING
31 532 40 77-68 O-RING
32 532 40 77-67 SCREW 5/16-18 X .750
33 532 42 73-17 GEARBOX COVER LH
34 532 19 20-90 SHEAR BOLT

22
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1
2
3 (5x)
4 (5x)
01.07.002-A

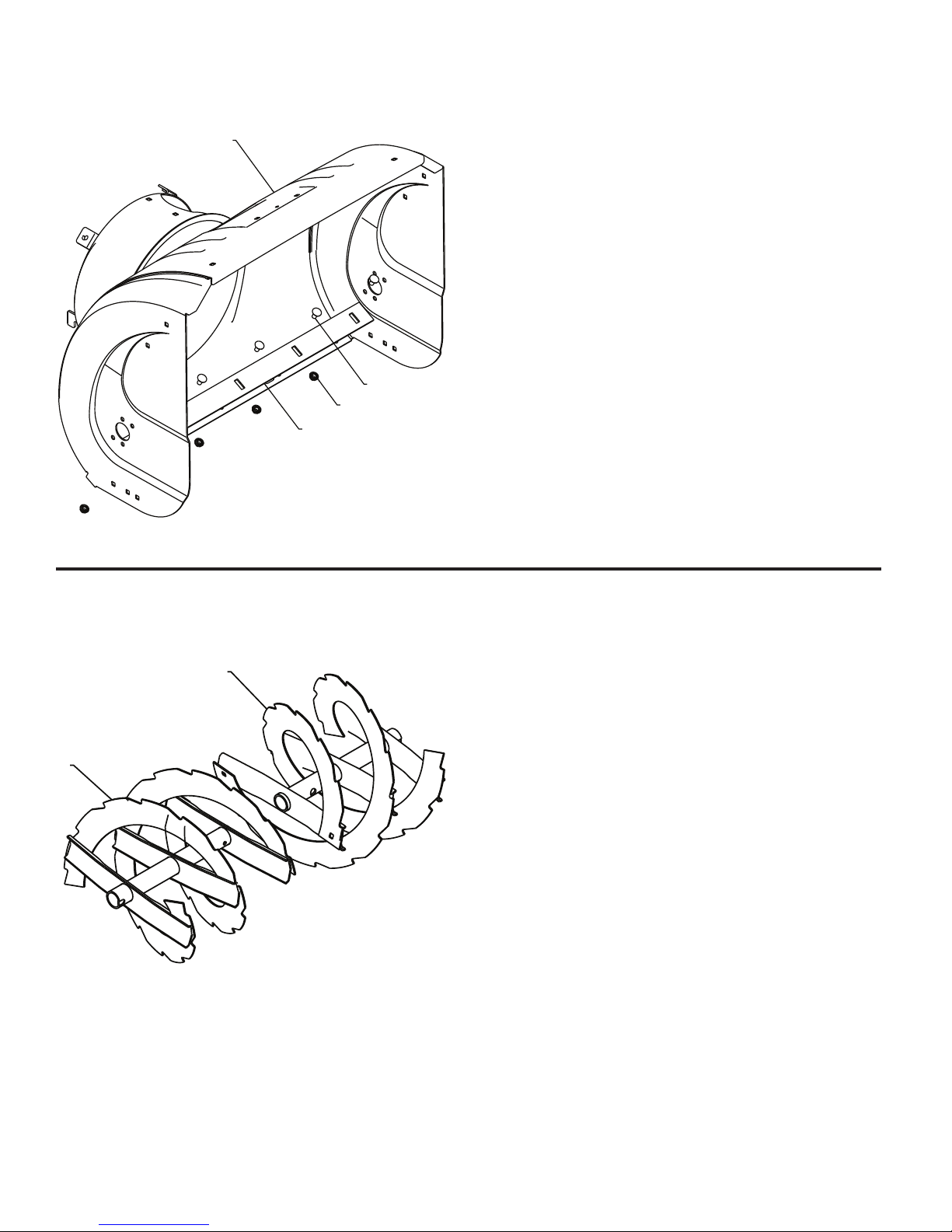

1 532 41 52-71 AUGER HOUSING 27
2 532 40 77-27 SCRAPER BAR
3 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
4 532 15 53-77 NUT 5/16−18
2
1
01.07.018-A
1 532 42 11-35 AUGER 27 LH
2 532 42 11-23 AUGER 27 RH

23
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
AUGER HOUSING / IMPELLER ASSEMBLY
1
1
2
3
23

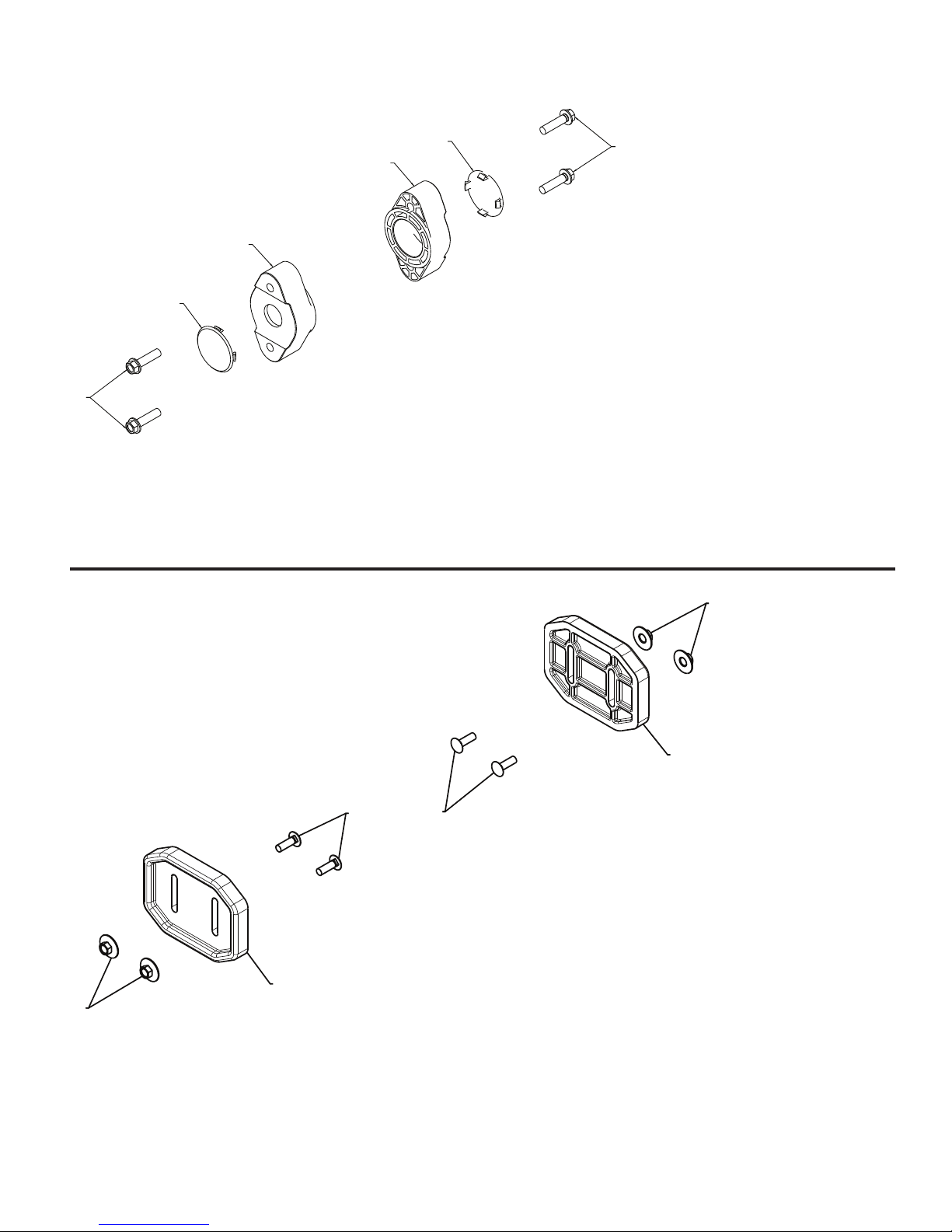

01.07.024-B
1 532 42 04-78 AUGER BEARING
2 532 41 19-39 BEARING PLUG
3 532 17 95-82 SCREW 5/16−18 X 1.00
1
1
2
2
33
01.11.003-B
1 532 43 59-51 PLATE SKID PLASTIC HDPE
2 532 42 65-89 NUT 5/16-18 LARGE HEX
FLANGE BLK
3 872 11 05-10 CARRIAGE BOLT 5/16-18 X 1.25

24
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

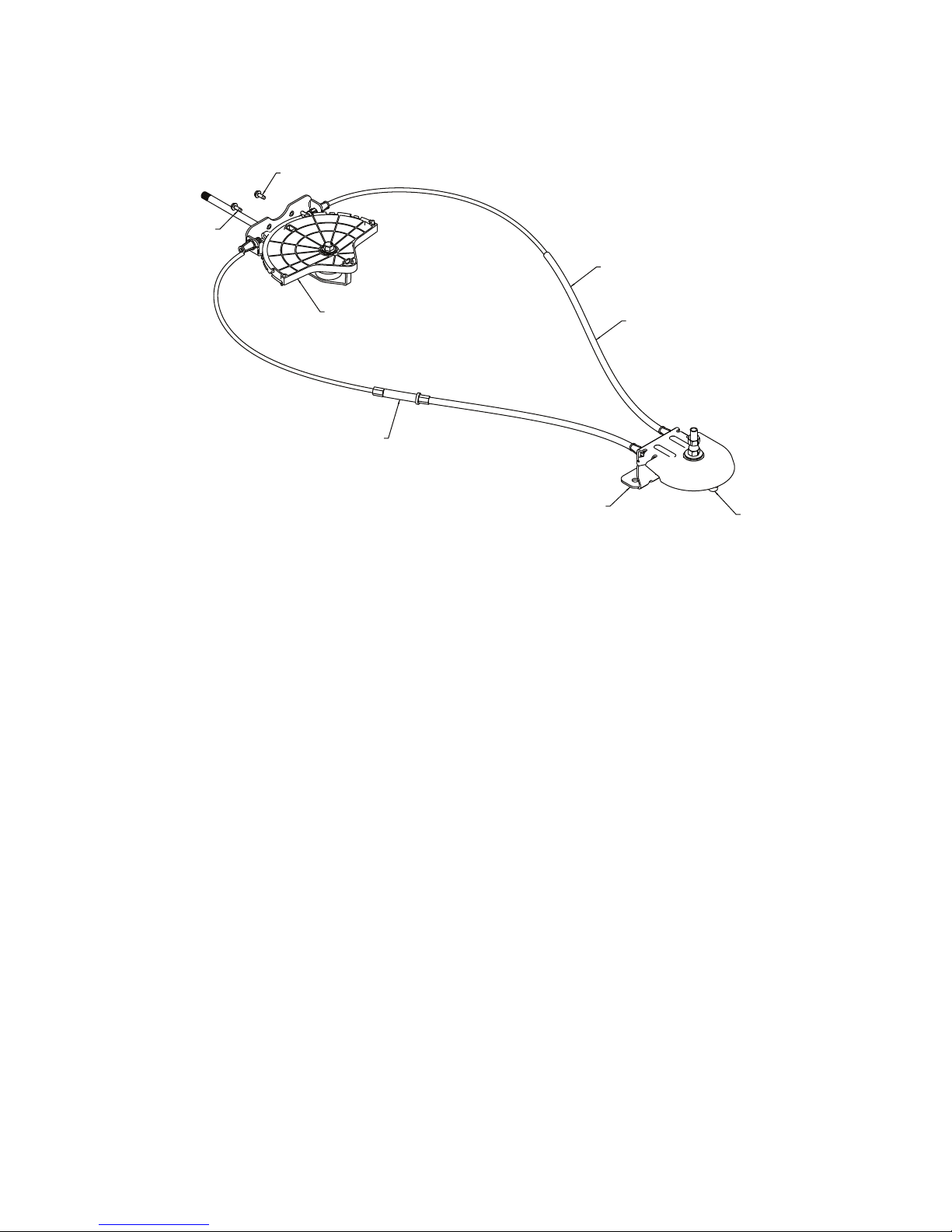

REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
CONTROL PANEL / CHUTE
10
11
11
11
1
2
3
4
5
6
6
6
7
9
8
12
13
01.09.005-E

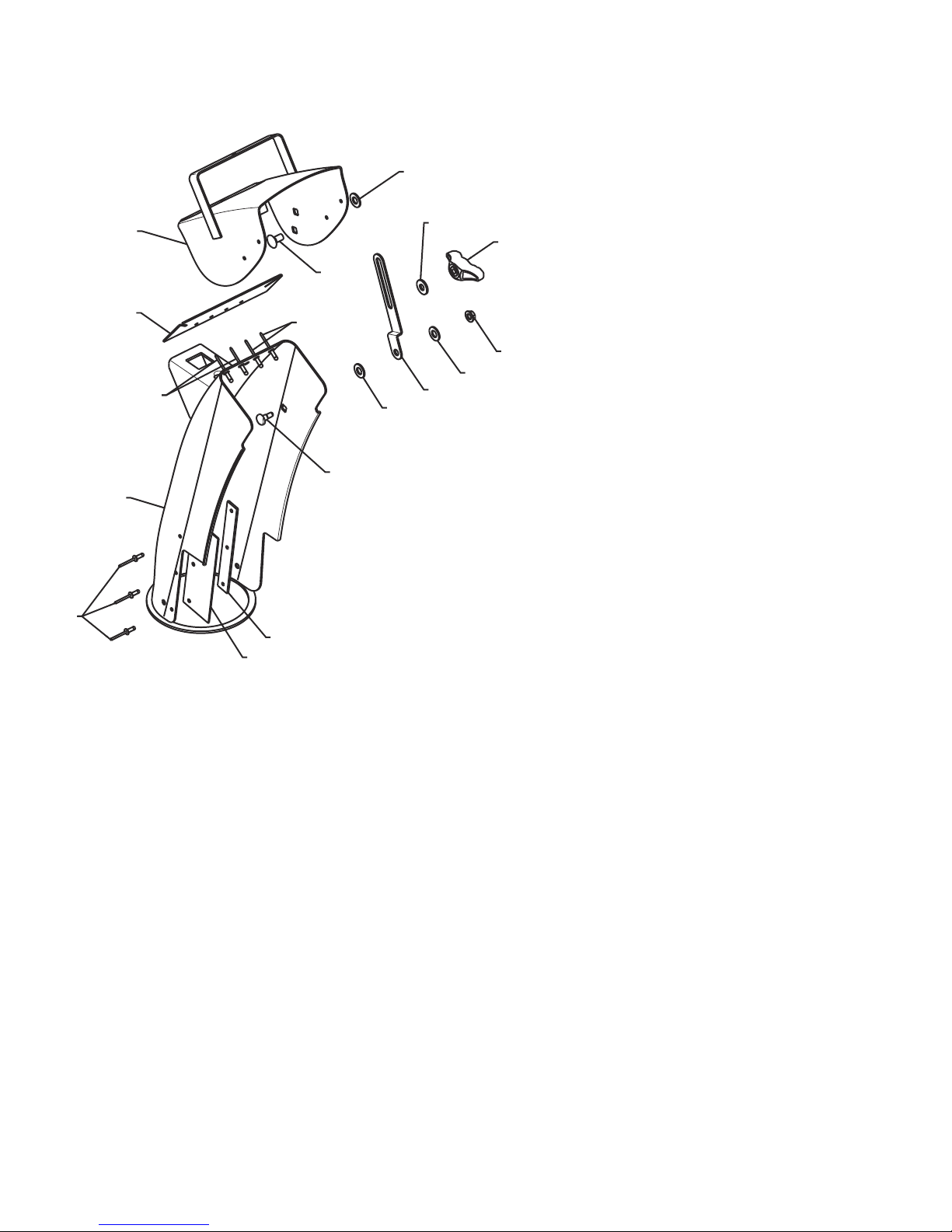

1 532 44 36-24 CHUTE WELDMENT
2 532 18 45-11 DEFLECTOR WELDMENT
3 532 42 03-25 DEFLECTOR SEAL
4 532 18 41-14 STRAP
5 532 19 19-38 KNOB BLACK
6 532 12 84-15 POP RIVET
7 532 18 56-00 SHOULDER BOLT 1/4−20 X .704
8 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
9 532 19 17-30 NUT 1/4−20
10 532 15 54-15 WASHER
11 532 17 92-46 PLASTIC WASHER
12 532 43 03-24 CHUTE SNOW SHIELD
13 532 42 17-28 SHIELD RETAINER STRAP

25
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
CONTROL PANEL / CHUTE
1 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY
2 817 54 10-08 SCREW 10-24 X .625
*3 532 42 06-78 ROTATOR HEAD
*4 532 40 59-32 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 82-73 CABLE ASSEMBLY ADJUSTABLE
*7 532 42 83-10 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
1
2
2
*3
*4 *5
*6
*7
01.09.010-C

26
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

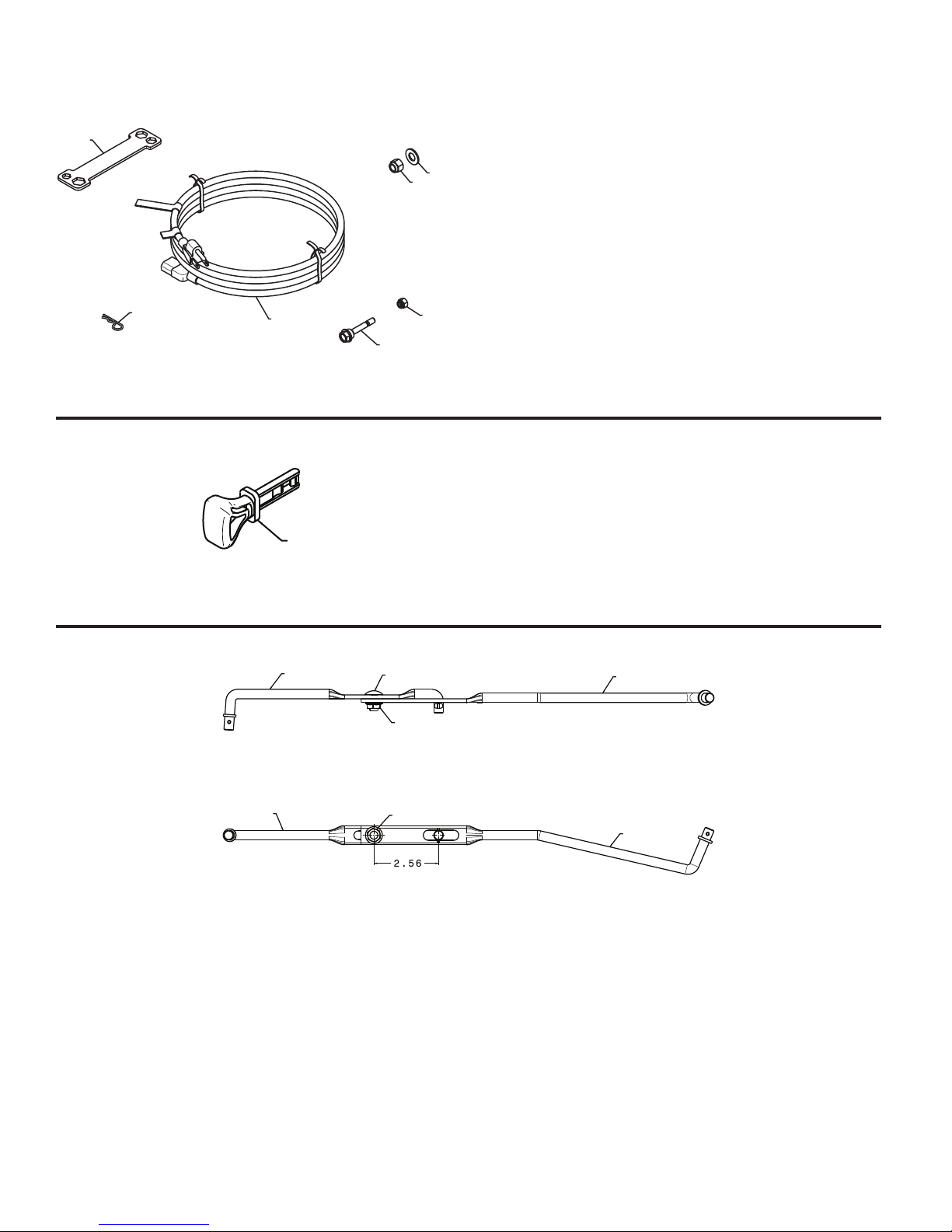

REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
HANDLES
10
1
2
3
4
5
5
6
6
7
7
9
9
8
8
8
01.08.003-B

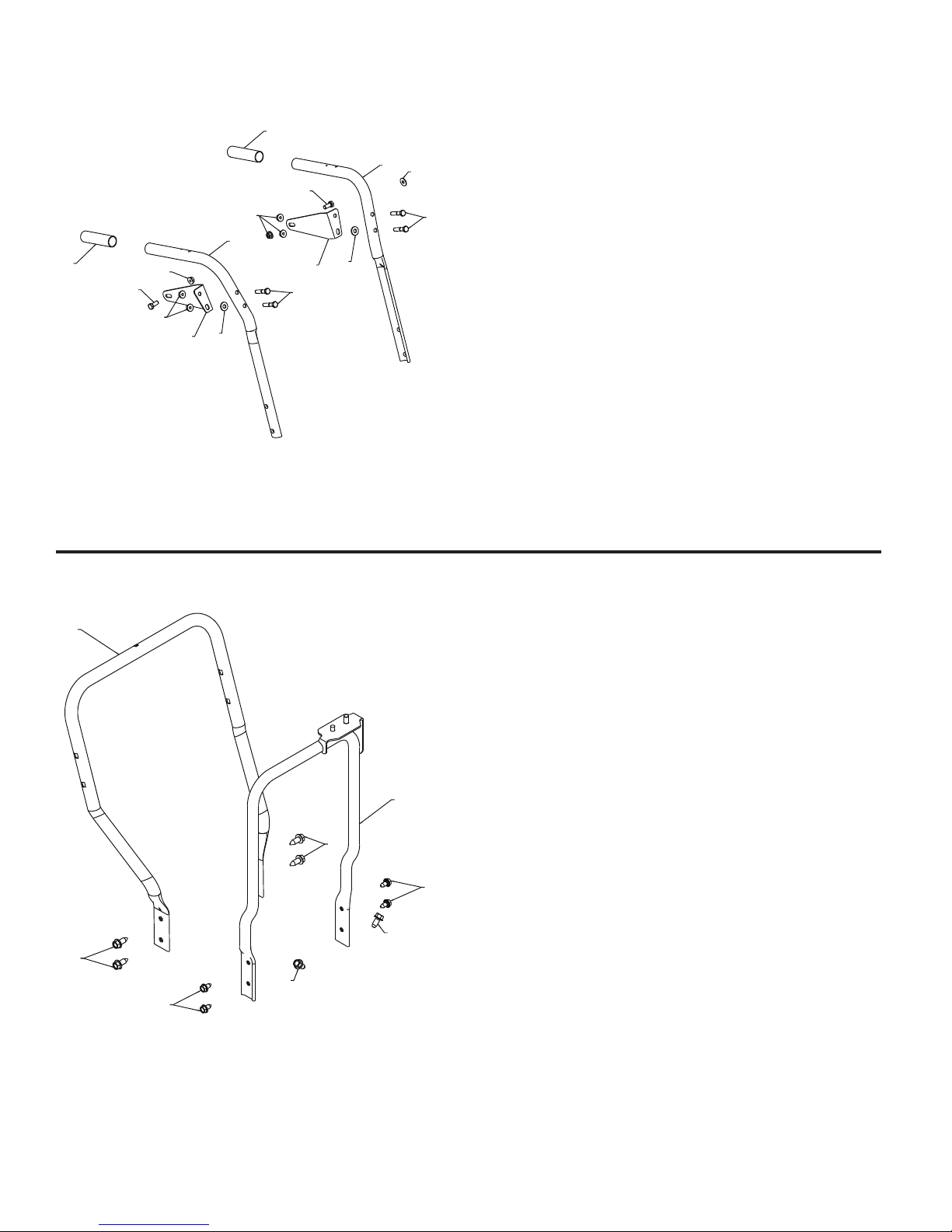

1 532 42 10-69 PLOW HANDLE LH
2 532 42 10-70 PLOW HANDLE RH
3 532 42 91-48 PANEL BRACKET LH
4 532 42 91-49 PANEL BRACKET RH
5 532 19 95-13 HANDLE GRIP
6 874 78 05-12 SCREW 5/16−18 X .750
7 874 78 05-24 SCREW 5/16−18 X 1.50
8 532 75 11-53 NUT 5/16−18
9 532 15 54-15 WASHER
10 532 05 38-47 WASHER
1
2
3
3
4
4
5
5
01.05.013-D
1 532 42 15-36 LOWER HANDLE
2 532 44 36-17 PIVOT SUPPORT WELDMENT
3 817 00 05-10 SCREW 5/16−18 X .750
4 817 00 06-16 SCREW 3/8−16 X 1.00
5 817 00 06-12 SCREW 3/8-16 X .750

27
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
HANDLES
10
11
11
11
11
1
2
3
45 6
7
9
8
12
12
12
12
13
13
13
13
14
01.08.021-A
1 585 19 88-02 CONTROL PANEL
2 581 77 98-01 LH CONTROL LEVER
3 581 77 97-01 RH CONTROL LEVER
4 584 80 90-01 INTERLOCK CONTROL ROD
5 585 00 47-03 INTERLOCK BRACKET
6 874 78 04-10 1/4-20 X .625 HEX HEAD SCREW
7 532 42 16-13 SPACER
8 532 08 83-49 1/4-20 FLANGE NUT (TOP LOCK)
9 532 41 42-81 KNOB RED
10 532 41 42-80 KNOB BLACK
11 532 17 88-99 HANDLE KNOB
12 819 13 13-16 3/8 WASHER
13 872 12 06-18 CARRIAGE BOLT 3/8-16 X 2.25
14 532 16 96-75 RETAINER

28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
HANDLES
10
1
2
3
4
5
5
6
7
9
8

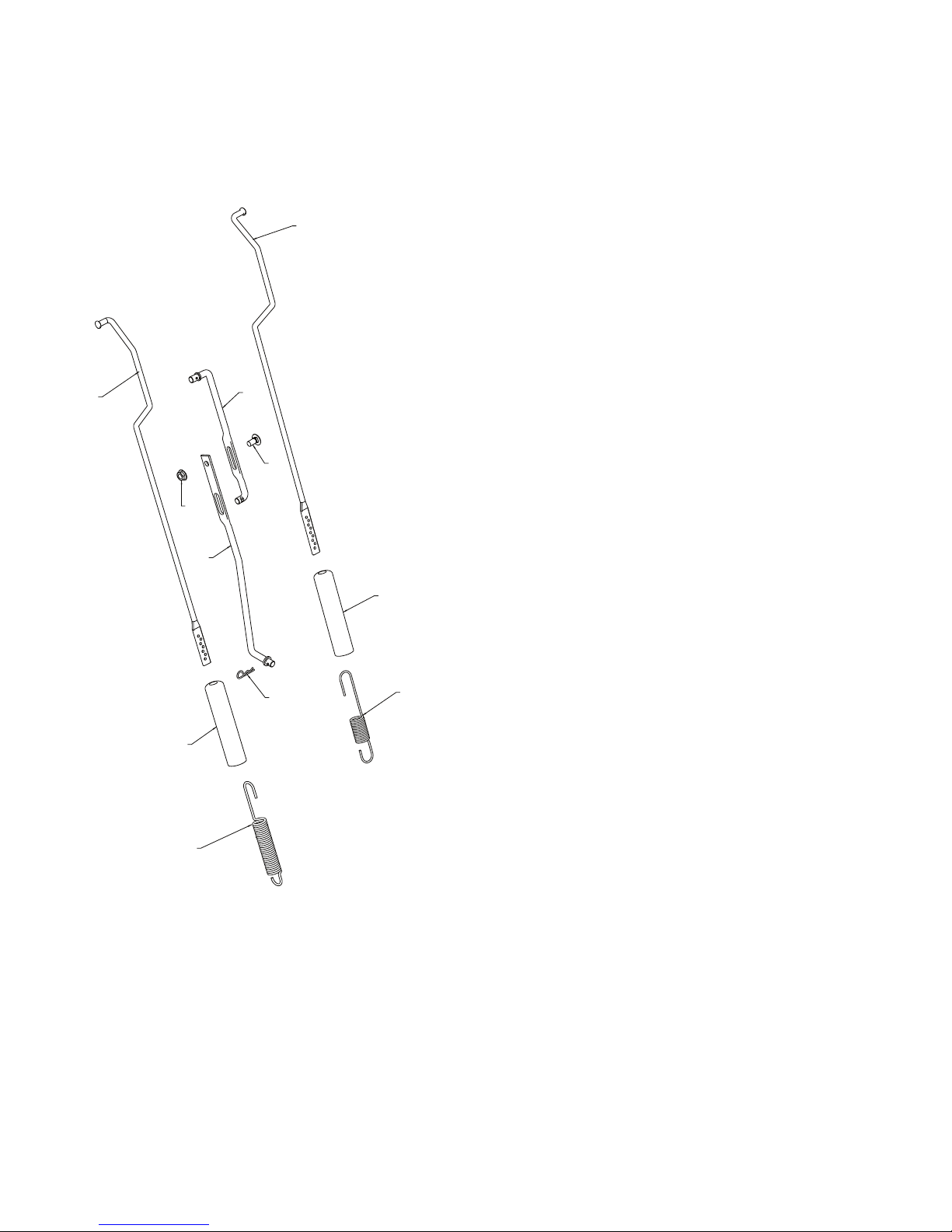

01.12.013-B
1 584 80 87-01 ROD IMPELLER CONTROL
2 584 80 88-01 ROD TRACTION CONTROL
3 532 18 04-45 SHIFTER ROD TOP
4 532 18 77-16 SHIFTER ROD BOTTOM
5 532 18 04-47 SPRING SLEEVE
6 580 79 62-01 SPRING CONTROL ROD
7 580 80 21-01 SPRING TRACTION ROD
8 872 27 05-05 CARRIAGE BOLT 5/16-18 X .75
9 532 15 53-77 NUT 5/16-18
10 532 16 96-75 RETAINER HAIRPIN
NOTE: HOOK TRACTION ROD SPRING IN HOLE 7
HOOK IMPELLER ROD SPRING IN HOLE 4

29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
HANDLES
01.10.001-B
1
3
3
2
2
1 532 18 33-52 CONSOLE PANEL
2 532 18 44-71 SCREW 10−24 X .625
3 532 17 52-62 SCREW 10−24 X 1.25
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
601.08.007-D
1 532 41 62-88 INTERLOCK SPRING
2 532 44 52-91 INTERLOCK CAM
3 532 44 32-15 TORSION SPRING
4 532 16 96-75 RETAINER
5 817 06 04-10 SCREW 1/4−20 X .625
6 532 42 18-14 INTERLOCK STOP

30

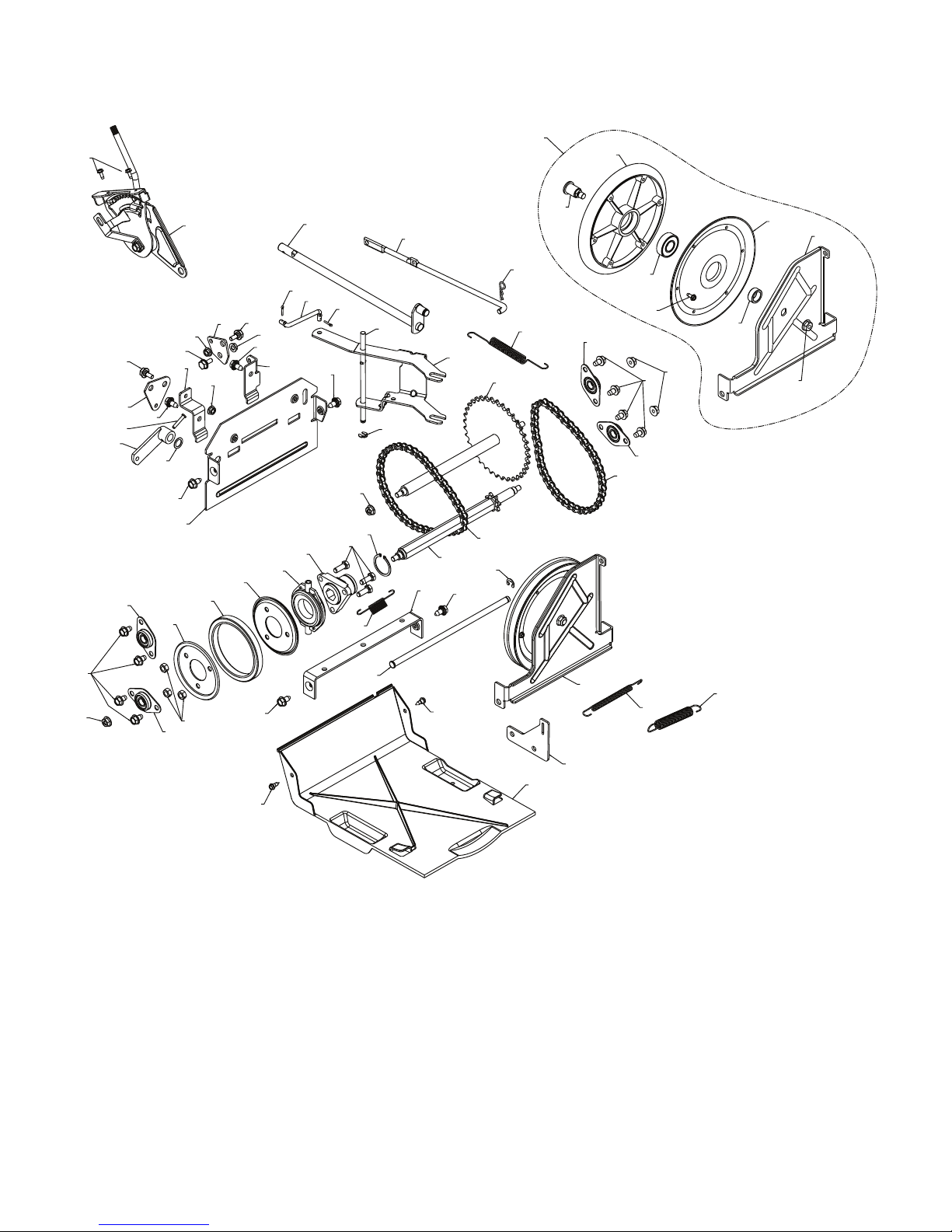

REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
11
11
11
1
2
3
4
5
67
9
9
9
8
12
13
14 15
15
16 17
18
19
20
21
22
23
23
23
24
24
24
4
2425
26
26
27
28 29 3031
32
33
33
34
35
36
37
38
39
39
40
41
42
ITEM 42 EXPLODED
43 44
45
46
47
48
49 50
51
52
01.02.013-F
53
53
53
53
53
54

31
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
DRIVE
1 532 19 88-75 SPEED SELECTOR ASSEMBLY
2 817 54 10-08 THRED ROLLING SCREW
10-24 X .500
3 532 41 54-31 END PLATE
4 817 49 05-08 SCREW 5/16-18 X .50
5 532 05 70-79 WASHER
6 532 40 54-85 CONTROL ARM
7 532 19 85-80 CLEVIS PIN
8 532 41 54-50 SHIFTER PLATE
9 532 40 28-81 SHOULDER BOLT
10 532 41 54-33 SHIFTER BRACKET
11 532 19 17-30 NUT 1/4-20
12 532 41 54-35 CLUTCH PLATE
13 532 41 68-64 CLUTCH BRACKET
14 532 18 71-01 SHIFTER LINK
15 532 70 02-79 RETAINER
16 532 42 75-42 CONTROL SHAFT
17 532 40 25-68 CLUTCH ROD
18 532 16 96-75 RETAINER
19 581 42 25-01 SHIFTER YOKE
20 532 40 23-10 PIVOT ROD
21 812 00 00-36 RETAINER
22 532 40 28-78 RETURN SPRING
23 532 75 11-53 NUT 5/16-18
24 532 40 89-81 BEARING
25 873 93 05-00 NUT 5/16-18
26 532 19 95-09 RUBBER WHEEL PLATE
27 585 02 10-01 RUBBER RING
28 532 17 53-44 BEARING
29 532 17 86-13 WHEEL HUB
30 874 76 05-14 SCREW 5/16-18-.875
31 812 00 00-12 RETAINER RING
32 532 40 21-87 SPROCKET SHAFT
33 532 40 16-19 CHAIN
34 532 43 73-03 SPROCKET WELDMENT
35 532 41 54-29 SHIFTER BRACKET
36 532 18 01-35 SPRING
37 532 40 26-52 PLATE PIVOT ROD
38 532 42 82-88 E-RING .375
39 532 18 44-71 SHOULDER SCREW
40 532 41 08-77 BOTTOM PAN
41 532 41 66-82 SPRING BRACKET
42 532 40 26-89 DRIVE PLATE ASSEMBLY
43 532 41 45-57 IDLER SPRING
44 532 17 88-28 IDLER SPRING
45 532 40 25-04 PULLEY SHAFT
46 532 40 18-20 DRIVE PLATE
47 532 19 87-91 BEARING
48 532 40 23-93 PULLEY HALF
49 817 54 10-08 SCREW 10-24 X .50
50 532 40 25-11 SPACER BEARING
51 532 42 29-41 SWING PLATE
52 532 13 20-10 NUT 3/8-16
53 532 42 88-67 SCREW 5/16-18 X .750
54 817 00 05-10 BOLT 5/16-18 X .625

32
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
DRIVE
KEY PART
NO. NO. DESCRIPTION
1a
1b
1b
2
3
3
4
4
5
5
6
6
7
8
8
01.03.005-C
1 532 18 82-26 AXLE ASSEMBLY
(assy of 1a,1b)
1a 532 17 93-52 AXLE SHAFT
1b 532 18 42-06 ROLL PIN 3/16
2 532 40 26-91 SPROCKET
3 532 44 49-49 THRUST WASHER
4 532 17 98-30 BEARING
5 817 49 05-08 BOLT 5/16−18 X .500
6 532 17 12-71 PIN
7 532 18 92-82 SQUARE KEY
8 532 12 47-88 RETAINER PIN

33
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
- - 532 43 60-67 COMPLETE LCT ENGINE
PW2HK18650178E
1 532 42 92-75 FRAME
2 532 15 04-06 BOLT 3/8-16
3 532 42 88-67 SCREW 5/16-18 X .750
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
CHASSIS / ENGINE / PULLEYS
1
2
2
3
3
01.00.034-A
1
01.01.004-A
1 532 43 07-64 ENGINE MOUNTING PLATE
1
01.21.013-C
1 532 44 30-30 COVER ASSEMBLY

34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)

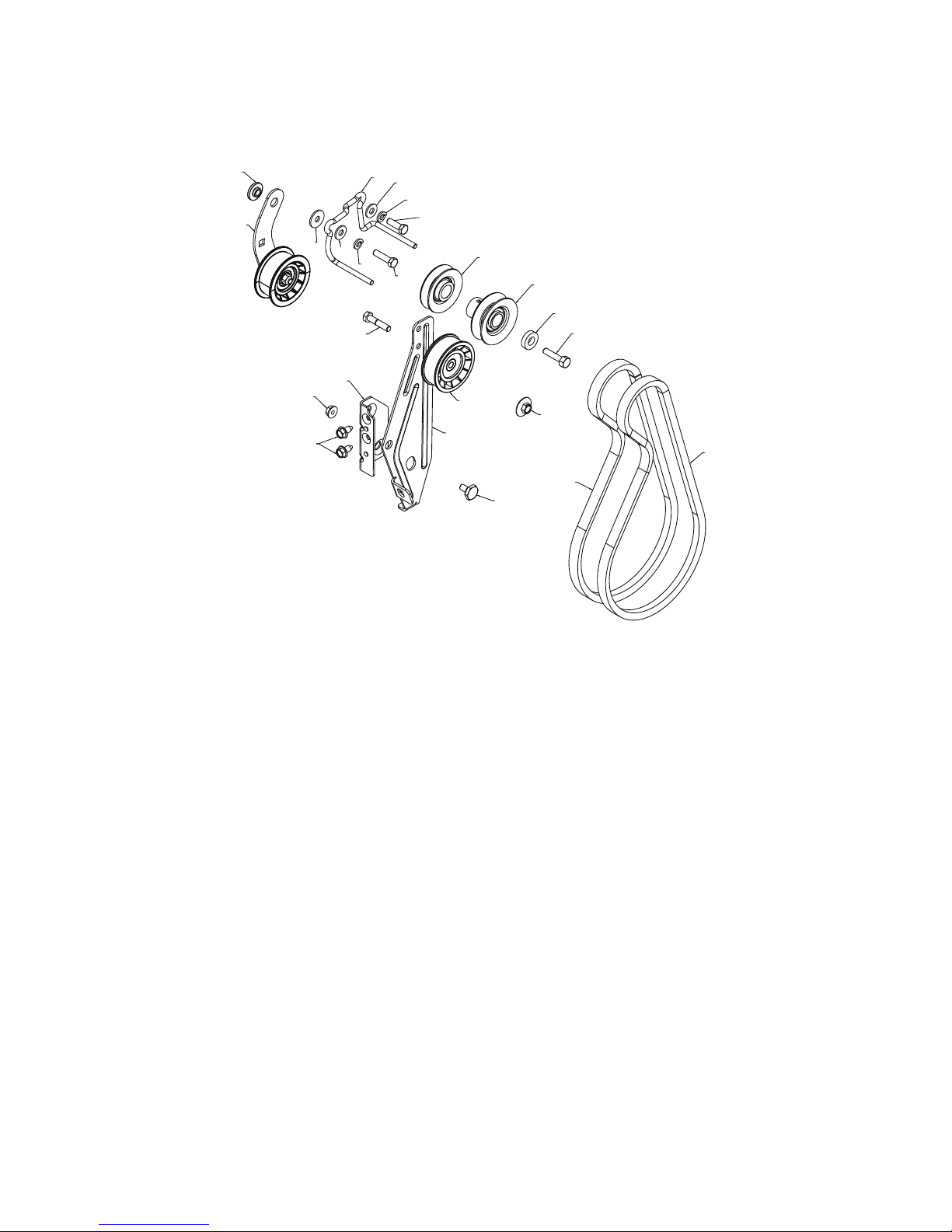

CHASSIS / ENGINE / PULLEYS
1 532 40 80-07 IMPELLER BELT
2 532 41 97-44 TRACTION BELT
3 584 23 24-02 IDLER ARM BRACKET
4 532 18 05-23 IDLER PULLEY
5 532 42 65-89 NUT 5/16-18
6 874 78 05-24 CAPSCREW 5/16-18 X 1.50
7 585 28 49-01 IDLER BRACKET
8 817 00 05-10 SCREW 5/16-18 HEX
9 532 42 42-97 SHOULDER BOLT 5/16-18 X .500
10 532 75 11-53 NUT 5/16-18 TOP LOCK
11 585 23 84-01 TRACTION IDLER ARM ASM
12 532 85 10-84 CAPSCREW 3/8-24 X 1.375
10
11
1
2
3
45
6
7
9
8
12
13
14
15
16
17
18
18
19 20
20
21
22
01.21.003-F
13 532 40 00-26 WASHER
14 532 05 92-89 WASHER
15 532 42 64-91 PULLEY ENG IMPELLER
16 532 42 64-90 PULLEY ENG TRACTION
17 874 61 05-16 SCREW 5/16-18 X 1.00
18 810 04 05-00 LOCKWASER 5/16
19 585 05 82-01 BELT GUIDE
20 532 15 54-15 WASHER
21 532 17 53-31 IDLER BUSHING
22 874 61 05-20 CAPSCREW HEX HEAD
5/16 X 1.25 GR5

35
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
WHEELS
KEY PART
NO. NO. DESCRIPTION
1
2
01.06.018-A
1 581 18 53-01 WHEEL ASSEMBLY LH
2 581 18 54-01 WHEEL ASSEMBLY RH

36
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)
BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
01.14.012
-
B
1
12
2
3
4
4
1 532 18 04-45 SHIFTER ROD TOP
2 532 18 77-16 SHIFTER ROD BOTTOM
3 872 27 05-05 CARRIAGE BOLT 5/16-18 X .75
4 532 15 53-77 NUT 5/16-18
1
2
3
45
6
7
01.14.004-B
1 532 19 85-63 POWER CORD
2 532 16 96-75 RETAINER PIN
3 532 42 91-12 WRENCH
4 873 80 06-00 LOCKNUT 3/8−16
5 819 13 13-16 WASHER 3/8
6 532 19 20-90 SHEAR BOLT 1/4−20 X 1−3/4
7 873 80 04-00 LOCKNUT 1/4−20
01.14.009-B
11 532 44 30-59 SAFETY IGNITION KEY KIT

37
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER P627ES (96198004402)

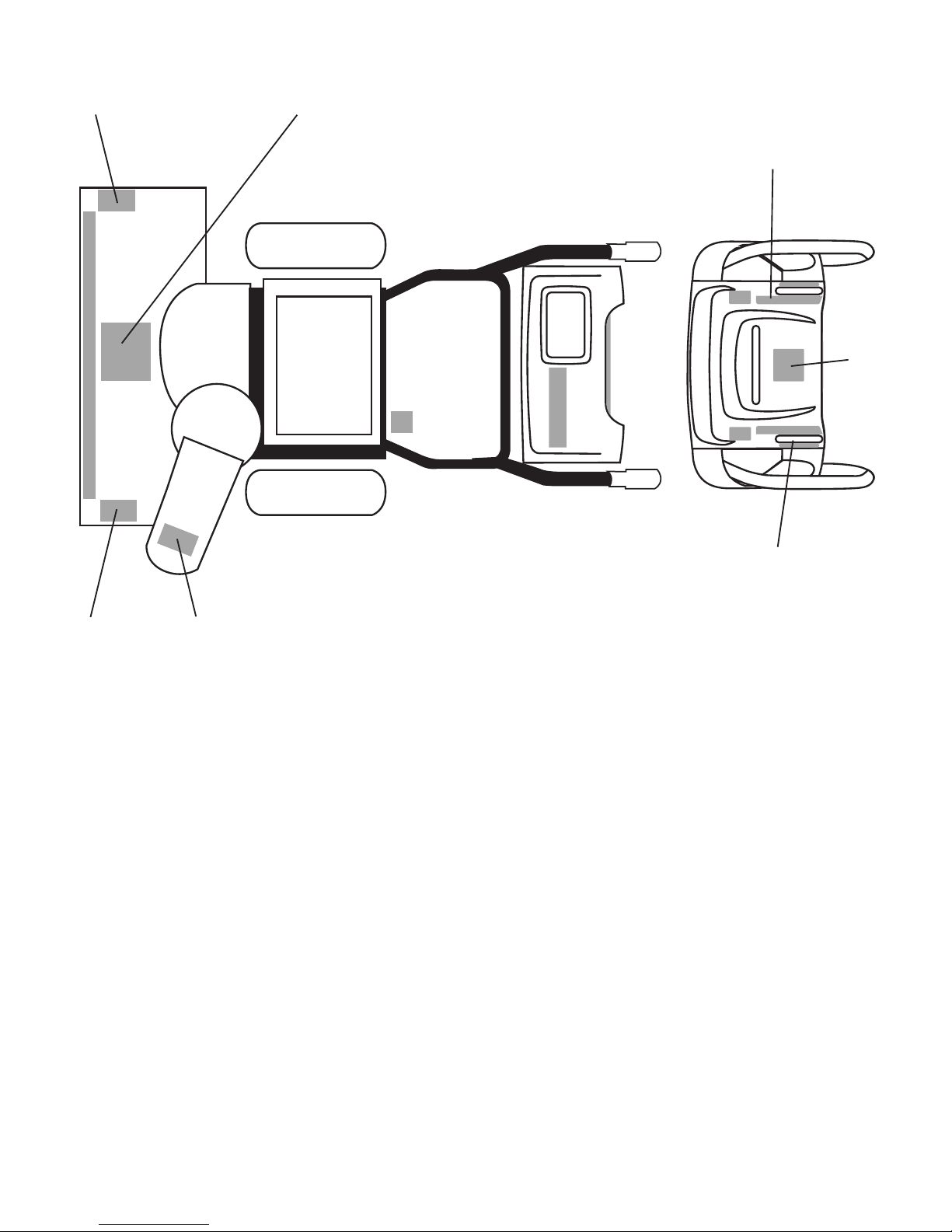

DECALS
1 532 18 10-37 DECAL, DANGER
3 532 18 10-35 DECAL, DANGER, DEFLECTOR
4 532 18 10-42 DECAL, DANGER
6 532 18 10-33 DECAL, INSTRUCTION
9 581 43 01-01 DECAL, CON RT SPD/LEV/PWST
11 581 43 01-02 DECAL, CON LT WD/DEF
- - 585 23 03-27 OWNER’S MANUAL, ENGLISH
- - 585 23 03-31 OWNER’S MANUAL, FRENCH
1
3
4
9
11
6
1

38
26
26A
32
22
22A
Electric Start Only
31
34
29
38
37
36
30
47
27
49
57
48
3
18
28
63
40
23
44
41
39
51
19
17
11 8
13
46
1
5
4
15
6
56
58
25
61
62
52*
53*
*Included
with part# 40
50
21
16
20 20A
10 10A
64
GENII 208 HOP SNOW ENGINE SERVICE KIT
PW2HK18650178EABGJOQUVYE1M
PW2HK18650178PABGOQUVE1M
PW2HK18650178EABGOQUVE1M
PW2HK18650178ZABGOQUVZE7M
54
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - MODEL P627ES (96198004402)

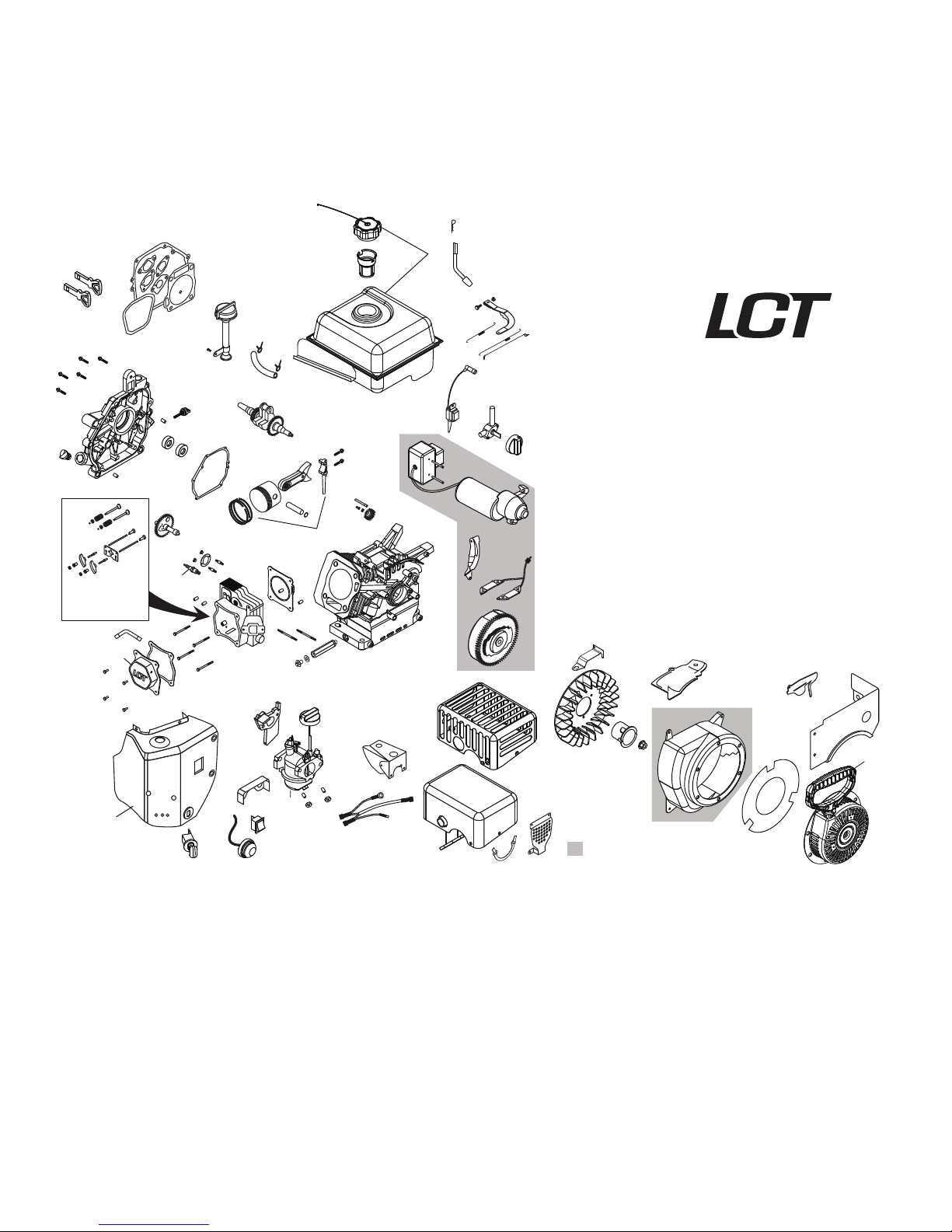

COMPLETE ENGINE-532436067
