Poulan Pro PP11TEP30 User manual

OWNER'S MANUAL
MODEL NUMBER:
PP11TEP30
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
406860 Rev. 2 10.27.06 BY
Printed in U.S.A.

20

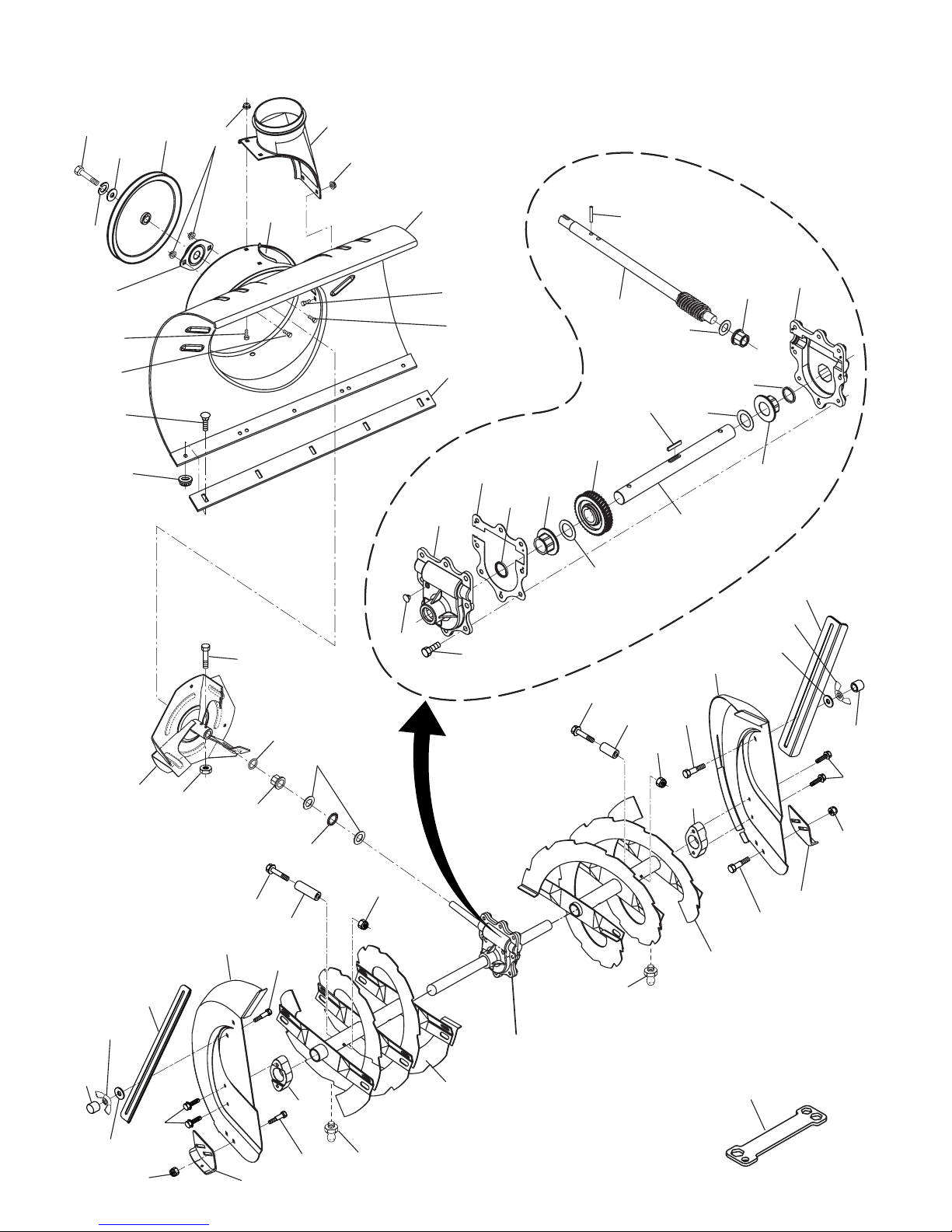

REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
AUGER HOUSING / IMPELLER ASSEMBLY
6
6
5
9
9
12
7
7
8
6
11
57
10
10
13
4
14
16
15
36
37
50
47
42
42
44
27
27
43 43
46
38
45
41
40 39
34
32
49
19
48
51
33
35
30
31
28
19
55
28
19
55
22
18 26
25
20
25
26
29
20
24
18
10
24
54
52
53
53
21
54
21
52
17
17
56

21
KEY PART
NO. NO. DESCRIPTION
4 191079 Pulley, Impeller
5 188909 Bearing Assembly, Flange
6 198541 Nut, Hex Flange 5/16-18
7 180355 Bolt, Flat Head, Carriage
5/16-18 x 5/8
8 72270505 Bolt, Carriage 5/16-18
9 199879 Bolt, Hex Head
10 404927X428 Housing, Auger
11 404933X479 Bar, Scraper
12 178675X008 Bracket, Corner Discharge
13 175322 Base, Discharge Chute
14 10040500 Washer, Lock 5/16
15 19111507 Washer, Flat
16 74950512 Screw, Hex Head 5/16-18 x 3/4
17 405637 Grease Fitting
18 179582 Screw, Hex Head 5/16 x 1
19 73800400 Nut, Hex Lock 1/4-20
20 198541 Nut, Hex Lock 5/16-18
21 401347 Washer, Flat
22 178777X479 Skid Plate, RH
24 128638 Wing Nut
25 72270506 Bolt, Carriage 5/16-18 x 3/4
26 174658 Bearing, Auger
27 174697 Washer, Thrust, 1"
28 198636 Bolt, Shear
29 174762X479 Skid Plate, LH
30 405973X479 Auger Assembly, RH
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
31 405972X479 Auger Assembly, LH
32 407768 O-Ring
33 407769 Bushing, Flange 3/4
34 174681 Washer, Thrust 3/4
35 174684 Bearing, Thrust 3/4
36 407757 Shaft, Impeller
37 174683 Washer, Thrust 5/8
38 407758 Bushing, Flange 5/8
39 407767 Screw, Hex Head 5/16-18 x 3/4
40 407760 Plug, Case
41 407761 Housing, Gearbox, RH
42 407770 Seal, Oil
43 407762 Bushing, Flange, 1"
44 189282 Key, Square 1/4 x 1/4 x 7/8
45 407763 Gear, Worm
46 407764 Shaft, Auger
47 407765 Housing, Gearbox, LH
48 175321X479 Impeller Assembly
49 74780426 Screw, Hex Head 1/4-20 x 1-5/8
50 407766 Gasket, Gearbox
51 7836M Pin, Roll 3/16 x 1-1/8
52 181160X479 Bar, Drift Cutter
53 198648 Bolt, Shoulder
54 198709 Stop
55 198638 Spacer
56 180684 Multi-Wrench
57 196710 Gearbox Assembly

22
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
CONTROL PANEL / DISCHARGE CHUTE
3
2
1
2
6
19
2
2
26
28
27
27
25 20
29
31
30
7
4
5
6
8
8
16
18
17
10
14
3
13
15
9
11
12
22
23
22
23

23
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
CONTROL PANEL / DISCHARGE CHUTE
KEY PART
NO. NO. DESCRIPTION
1 183334 Knob, Lever
2 17501010 Screw #10-24 x 5/8
3 198475 Control Assembly, Deflector
4 73800600 Nut, Lock 3/8-16
5 19131316 Washer, Flat 3/8
6 198473 Control Assembly, Chute Rotater
7 405784X479 Support, Pivot
9 184505 Spring, Deflector
10 179829 Bolt, Shoulder
11 179246 Washer, Friction, Nylon
12 191730 Nut, Lock 1/4-20
13 72250505 Bolt, Carriage 5/16-18
14 751153 Nut, Lock 5/16-18
15 404770X428 Chute Assembly
16 178633X428 Deflector Assembly
17 179145 Seal, Deflector
18 128415 Rivet, Blind
19 183333 Knob, Speed Control Lever
20 72270506 Bolt, Carriage 5/16-18 x 3/4
22 74041024 Screw #10-24 x 1-1/2
23 188303 Control Assembly, Power Steering
25 198541 Nut, Lock 5/16-18
26 198474 Lever Assembly, Speed Control
27 169675 Retainer, Hairpin
28 180445 Rod, Upper, Speed Control
29 187716 Rod, Lower, Speed Control
30 192710 Clamp, Mounting, Clean-Out Tool
31 192199 Tool, Clean-Out
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

24

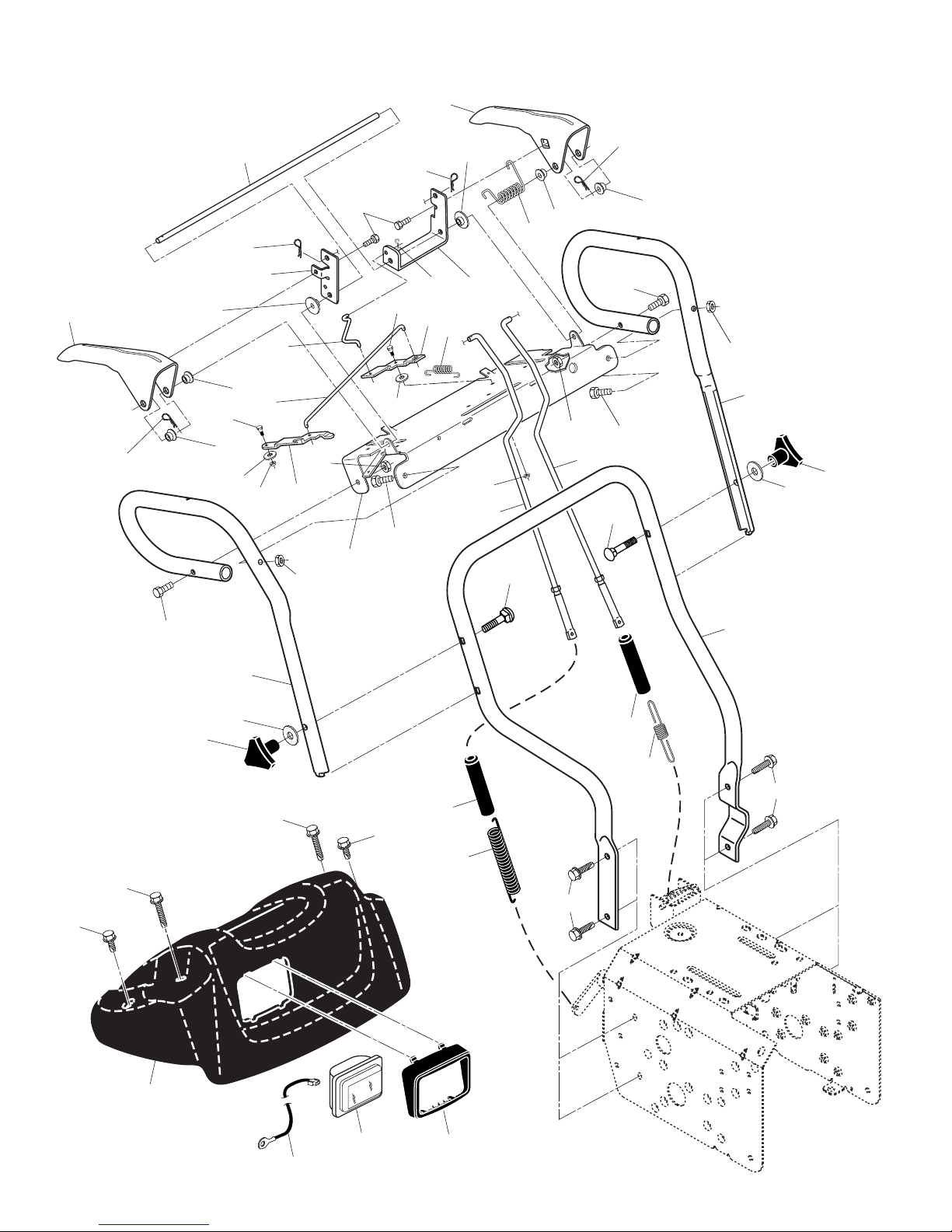

REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
HANDLES
32
31
32
30
31
12
10
11
13
15
15
12
16
17
16
23
22
27
27
22
17
11
15
15
14
38 39
40
7
6
36
2
5
5
1
4
4
4
4
8
28
28
9
18
19
26
24
24
25
5
5
37
33 35
35
34
34
42
43
44
45
46
46

25
KEY PART
NO. NO. DESCRIPTION
1 405783X479 Lever, Auger Control, RH
2 405999X479 Lever, Traction Drive Control, LH
4 178888 Bushing, Flange
5 169675 Retainer, Hairpin
6 17060408 Screw, Hex Head 1/4-20 x 3/4
7 178652 Rod, Interlock
8 196333X008 Arm, Impeller Rod
9 196334X008 Arm, Traction Rod
10 196619X479 Panel, Control
11 74780524 Screw, Hex Head 5/16-18 x 1-1/2
12 74780528 Screw, Hex Head 5/16-18 x 1-3/4
13 407856X479 Handle Tube, LH
14 407857X479 Handle Tube, RH
15 751153 Nut, Lock 5/16-18
16 19131316 Washer, Flat 3/8
17 178899 Knob, Handle
18 180480 Rod, Auger Control
19 180481 Rod, Traction Control
22 72120618 Bolt, Carriage 3/8-16 x 2-1/4
23 178643X479 Handle Tube, Lower
24 180447 Sleeve, Spring
25 180926 Spring, Traction Drive
26 178669 Spring, Auger Control
27 17000616 Screw, Hex Head 3/8-16 x 1
28 198559 Bushing, Pivot Lever
30 182906 Console, Panel
31 175262 Screw, Hex Head, Tapping #10-24 x 1-1/4
32 184471 Screw, Hex Head, Tapping #10-24 x 1/2
33 196335X008 Latch, Interlock
34 401369 Bolt, Shoulder
35 68038 Nut, Lock 1/4-20
36 178831 Spring, Torsion, Lever
37 193885 Spring, Interlock
38 178666 Headlight, Halogen (Includes Bulb)
- - 401620 Bulb, Halogen
39 178668 Bezel, Headlight
40 180964 Harness, Headlight (Halogen)
42 196336X008 Lever, Interlock
43 199638 Rod, Latch, Interlock
44 196338 Rod, Arm, Interlock
45 700279 Clip
46 57079 Washer, Friction
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

26
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
DRIVE
4
4
4
4
2
5
5
2
20
21
17
19
18
18
7
7
2
2
2
24
23
12
32
27
44
22
16
15
2
4
4
13
4
2
5
5
8
910
6
41
14
44
43
11
35
33
15
41
22 34
29
22
31
26
25
28
30
40
39
38
36
37
33

27
KEY PART
NO. NO. DESCRIPTION
2 751153 Nut, Lock 5/16-18
4 198584 Screw, Hex Head 5/16-18 x 1/2
5 180017 Bearing, Flange
6 180134 Shaft, Auxiliary
7 179270 Spacer, Plate
8 192616X479 Plate, Auxiliary
9 180082 Gear, Intermediate (12/58)
10 180065 Gear, Pinion
11 187714 Rod, Clutch
12 180066 Shaft, Long, Hex
13 178807 Pin, Pivot
14 178619X479 Lever, Shifter / Wheel
15 175344 Trunnion Bearing Assembly
16 186951X479 Bracket, Pivot, Shifter
17 179831 Ring, Rubber Wheel
18 198176X479 Plate, Rubber Wheel
19 73930500 Nut, Lock 5/16-18
20 178613 Hub, Rubber Wheel
21 74760514 Screw, Hex Head 5/16-18 x 7/8
22 85179 Retainer, Hairpin
23 180135 Spring, Bias
24 180081 Gear, Axle (58 Teeth)
25 178695 Pin, Pivot Lever
26 197763 Plate Assembly, Drive
27 404307 Shaft, Axle
28 197764 Shaft, Short Hex
29 175350X479 Lever, Shifter Plate
30 175349X479 Bracket, Shifter Support
31 72270505 Bolt, Carriage 5/16-18 x 5/8
32 189282 Key, Square 1/4 x 1/4 x 7/8
33 188909 Bearing, Flange
34 175338X479 Plate, Drive Mounting
35 182504 Spacer, Bearing
36 191080 Pulley, Traction Drive
37 198541 Nut, Lock 5/16-18
38 19111507 Washer, Flat
39 10040500 Washer, Lock 5/16
40 74950512 Screw, Hex Head 5/16-18 x 3/4
41 12000012 Ring, Retaining
43 179095 Spring, Return
44 9465M Pin, Roll
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

28

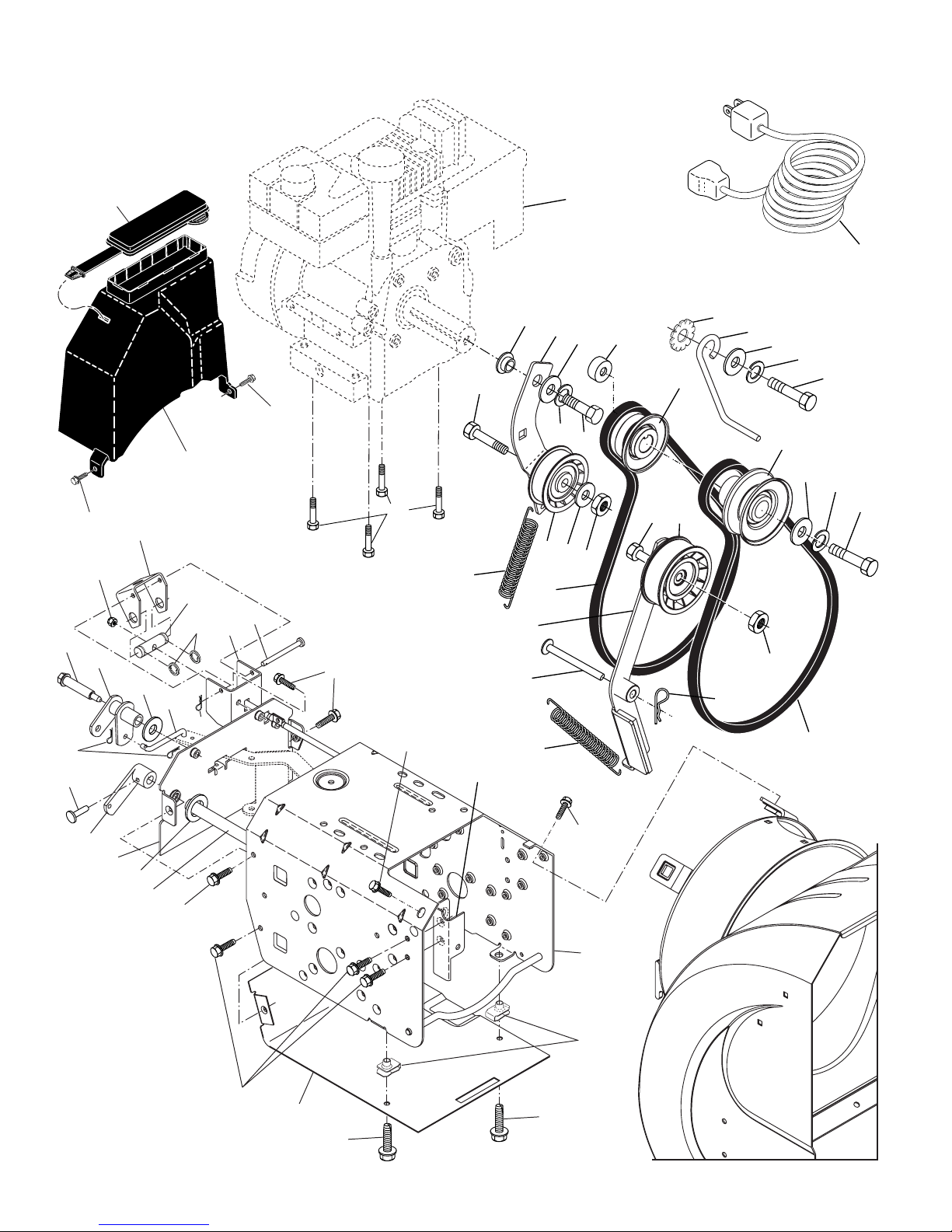

REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
CHASSIS / ENGINE / PULLEYS
6
19 17
10 21
22
23
2
1
3
4
67
8
9
12
13
15
27
26
25
24
18
7
20
14
47
47
48
46
44
49
50
51
52
35
55
34
33
32
38
36
41
6
37
39
42
43
11
11
44
45
41
30
29
31
31
58
16
10 21
28
57
6
11

29
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
CHASSIS / ENGINE / PULLEYS
KEY PART
NO. NO. DESCRIPTION
1 181044 Spring, Traction Idler
2 180522 Pulley, Idler (2-1/4)
3 - - - Engine, Tecumseh, Model Number
OH318SA (For engine service and
replacement parts, call Tecumseh
Products at 1-800-558-5402)
4 74780520 Screw, Hex Head 5/16-18 x 1-1/4
6 59289 Washer, Flat
7 166785 Nut, Jam, Lock 5/16-18
8 175330 Pin, Idler Pivot
9 179092 V-Belt, Traction Drive
10 10040500 Washer, Lock 5/16
11 198584 Screw, Hex Washer Head
5/16-18 x 1/2
12 179259 Impeller Arm / Pad Assembly
13 85179 Retainer, Hairpin
14 178828 Spring, Brake
15 408010 V-Belt, Impeller Drive
16 150406 Screw, Hex Head 3/8-16 x 1-1/4
17 179354X008 Arm, Idler
18 74780524 Screw, Hex Head 5/16-18 x 1-1/2
19 198559 Bushing, Idler Pivot
20 180523 Pulley, Idler (2-3/4)
21 74610516 Screw, Hex Head 5/16-18 x 1
22 179371 Spacer, Engine Pulley
23 180478 Pulley, Engine, Traction Drive
24 179157 Pulley, Engine, Impeller Drive
25 400026 Washer, Flat 3/8
26 850263 Washer, Lock 3/8
KEY PART
NO. NO. DESCRIPTION
27 851084 Screw, Hex Head 3/8-24 x 1-3/8
28 155452 Guide, Belt
29 192213 Belt Cover Assembly
(Includes Toolbox Cover)
30 178830 Cover, Toolbox
31 405024 Screw, Hex Head 1/4-20 x 1/2
32 179256 Bolt, Shoulder 5/16-18
33 187853 Bellcrank Shifter
34 198580 Screw, Hex Head 1/4-28 x 3/4
35 405485 Arm, Auger Control
36 73800500 Nut, Lock 5/16-18
37 178833X479 Bellcrank
38 187101 Link, Speed Control
39 192110 Trunnion, Pivot Bracket
41 700279 Clip, Retainer
42 179065 Pin, Pivot Bracket
43 179063X479 Bracket, Bellcrank
44 17000616 Screw, Hex Head 3/8-16
45 175324X479 Bracket, Pivot, Idler
46 178624X479 Pan, Frame Bottom
47 71020512 Screw, Hex Head 5/16-18 x 3/4
48 181156 Nut, Speed 5/16-18
49 404431X428 Frame Assembly
50 187715X428 Plate, Frame End
51 406109 Shaft, Auger Control
52 57079 Washer, Hardened
55 12000002 E-Ring
57 11050500 Washer, Lock, External Tooth 5/16
58 198563 Power Cord
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

30
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
WHEELS / DECALS
7
32
30
32
30
15
18
17
19
13
20
11
27
27
19
16
20
11
11
11
11
14
15 12
13
18
14
12
4
4
31
34
34
2
8
3
21
33
22
23
24
25
26
28
28
29
10
10
4
4
7
28
28
26
29 25
24
23
22
33
21
9
1
2
3
10
5
3
14
2
1
10 7
6
8
9
11
12

31
KEY PART
NO. NO. DESCRIPTION
1 192092X421 Wheel Assembly, 16", Power Steering, LH
2 155443 Pin, Klik 1/4
3 405161 Cover, Power Steering
4 184471 Screw, Hex Head #10-24 x 1/2
7 17000616 Capscrew, Hex Head, Flanged 3/8-16 x 1
8 185603X479 Bracket, Steering Cable, RH
9 185602X479 Bracket, Steering Cable, LH
10 17600406 Screw, Hex Head 1/4-20 x 3/8
11 198584 Screw, Hex Head 5/16-18 x 1/2
12 406057 Link, Steering Lever
13 193506X498 Yoke, Steering
14 182015 Pin, Steering Lever
15 194944X008 Bellcrank
16 194939X008 Bracket, LH Steering
17 194943X008 Bracket, RH Steering
18 181847 Pin, Steering Bellcrank
19 85179 Retainer, Hairpin
20 179148X479 Bracket, Steering
21 192126 Driver, Wheel
22 182466 Ring, Wire Retainer
23 187622 Lobe, Wheel
24 194941 Slide, Clutch
25 179139 Spring, Clutch Slide
26 194940 Lobe, Axle
27 189282 Key, Square 1/4 x .875
28 174697 Washer, Thrust (1")
29 179830 Bearing, Axle
30 193885 Spring, Return, Steering Latch
31 192093X421 Wheel Assembly, 16", Power Steering, RH
32 700279 Clip, Retainer
33 12000045 Ring, Retaining
34 146315 Screw, Hex Head, Tapping 5/16-18 x 5/8
KEY PART
NO. NO. DESCRIPTION
1 181037 Decal, Danger
2 187867 Decal, Poulan Pro, 11 HP / 30"
3 181035 Decal, Danger, Deflector
4 181042 Decal, Danger
5 187892 Decal, Poulan Pro
6 181033 Decal, Instruction
7 155798 Decal, Traction Lever
8 155800 Decal, Auger Lever
9 181039 Decal, Speed Control
10 183730 Decal, Remote Deflector Control
11 183907 Decal, LH Trigger
12 183905 Decal, RH Trigger
- - 406860 Owner’s Manual, English
- - 406861 Owner’s Manual, French
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - MODEL PP11TEP30 (96198000700)
WHEELS / DECALS

LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects
in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer pur-
chaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part
which we find to be defective due to materials or workmanship. This Warranty is subject to the following limitations
and exclusions.
1. This warranty does not apply to the engine or components parts thereof. Please refer to the applicable manu-
facturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the
purchaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by
the purchaser unless such return is requested by the manufacturer.
3. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date
of original purchase.
4. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained
in accordance with the instructions furnished. This Warranty does not apply to any product which has been sub-
jected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the
product.
5. Exclusions: Excluded from this Warranty are belts, shear pins, normal wear, normal adjustments, standard hard-
ware and normal maintenance.
6. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the complete mfg. ID#, serial number and date of purchase of your product and the name and address of the
authorized dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED
WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WAR-
RANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied
Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you specific
legal rights, and you may have other rights which vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
Poulan Pro, Customer Service Department
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
Poulan Pro
Customer Service Department
1030 Stevens Creek Road
Augusta, GA 30907 USA
