OWNER'S MANUAL
MODEL NUMBER:
PP1330ES
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
428553 Rev.1 08.15.09 SR
Printed in the U.S.A.

21
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1
1
2
3
23
01.07.024-B
1 420478 AUGER BEARING
2 411939 BEARING PLUG
3 179582 SCREW 5/16−18 X 1.00
1
2
3 (5x)
4 (5x)
01.07.003-A
1 404930X428 AUGER HOUSING
2 404933X428 SCRAPPER BAR
3 72270505 CARRIAGEBOLT5/16−18X.625
4 155377 NUT 5/16−18

22
10
11
11
11
11
1
2
3
4
5
6
7
9
9
9
8
12
12
13
14
15
16
17
18 19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
37
01.07.026-C
2(EXPLODED)
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

23
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
1 175321X479 IMPELLER
2 427148 GEARBOX ASSEMBLY
3 188909 BEARING
4 427146 IMPELLER PULLEY
5 175322 DISCHARGE BASE
6 178675X008 CORNER BRACKET
7 192199 CLEAN OUT TOOL
8 405400 TOOL CLIP
9 73800400 NUT 1/4-20
10 74780426 SCREW 1/4-20 X .625
11 427942 NUT 5/16-18
12 163183 SCREW 5/16-18 X .625
13 427145 IMPELLER HUB
14 427154 IMPELLER SLEEVE
15 73900600 NUT 3/8-16
16 180355 CARRIAGE BOLT
17 194189 SCREW 13-16 X .625
18 407760 PLUG
19 427302 GEARBOX COVER RH
20 427345 GASKET
21 407770 SEAL
22 407762 BEARING
23 174697 THRUST WASHER 1.00
24 407763 WORM GEAR
25 407764 AUGER SHAFT
26 189282 SQUARE KEY
27 407758 BEARING
28 174683 THRUST WASHER
29 427147 IMPELLER SHAFT
30 7836M ROLL PIN
31 174681 THRUST WASHER
32 174684 THRUST BEARING
33 407769 BEARING
34 407768 O-RING
35 407767 SCREW 5/16-18 X .750
36 427317 GEARBOX COVER LH
37 192090 BOLT

24
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
4
3
01.11.001-A
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

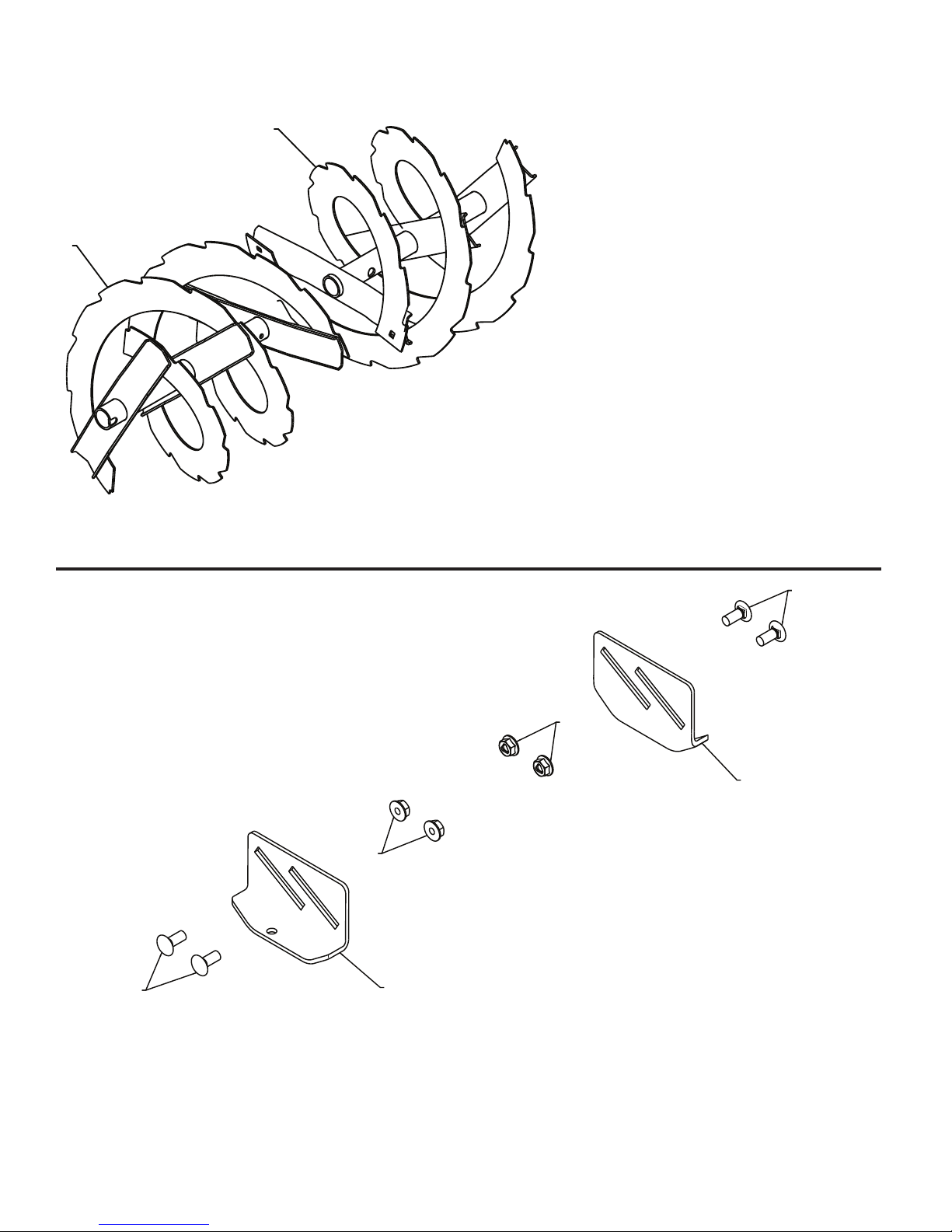

1 174762X479 SKID PLATE LH
2 178777X479 SKID PLATE RH
3 72270506 CARRIAGE BOLT 5/16−18 X .75
4 751153 NUT 5/16−18
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
1
2
01.07.019-A
1 420497X479 AUGER ASSEMBLY 30 LH
2 420498X479 AUGER ASSEMBLY 30 RH

25
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
AUGER HOUSING / IMPELLER ASSEMBLY
1
2
5
34
34
1
2
53
4
3
4
01.16.001-A
1 181160X479 DRIFT CUTTER BAR
2 72270506 CARRIAGEBOLT5/16−18X.750
3 179246 PLASTIC WASHER
4 10040500 LOCKWASHER 5/16
5 128638 NUT 5/16−18
01.17.003-B
1
2
3
3
2
4
4
1 182516 WEIGHT BAR
2 72110510 CARRIAGE BOLT 5/16−18 X 1.25
3 751153 NUT 5/16−18
4 19112206 WASHER

26
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)

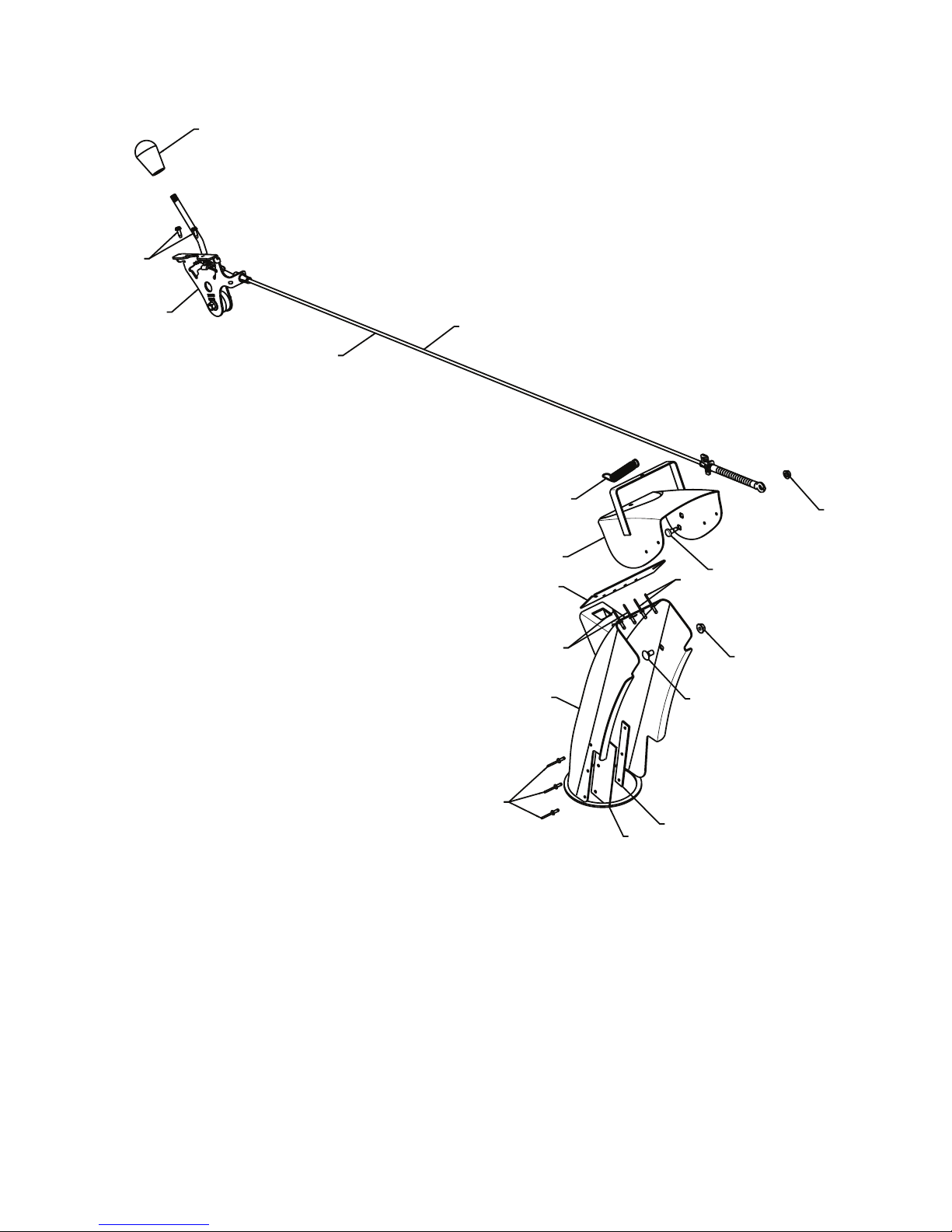

CONTROL PANEL / CHUTE
5
7
15
16
3
*11
*14
2
4
6
1
6
89
*12
*13
10
6
01.09.015-A
1 420315X428 CHUTE WELDMENT
2 178633X428 DEFLECTOR WELDMENT
3 420673 DEFLECTOR CONTROL ASSEMBLY
4 420325 DEFLECTOR SEAL
5 414280 KNOB BLACK
6 128415 POP RIVET
7 17501010 SCREW 10-24 X .625
8 419821 CHUTE SNOW SHIELD
9 419822X004 SHIELD RETAINER STRAP
*10 179829 SHOULDER BOLT 1/4-20 X .375
*11 191730 NUT 1/4-20
*12 72250505 CARRIAGE BOLT 3/8-16 X .625
*13 751153 NUT 5/16-18
*14 184505 DEFLECTOR SPRING
15 420679 (SERVICE PART) DEFLECTOR CONTROL
16 420672 (SERVICE PART) DEFLECTOR CABLE BLK
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2. ITEMS 15 AND 16 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.

27
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3
*4 *5
*6
*7
01.09.010-A
1
2
01.15.009-A
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
CONTROL PANEL / CHUTE

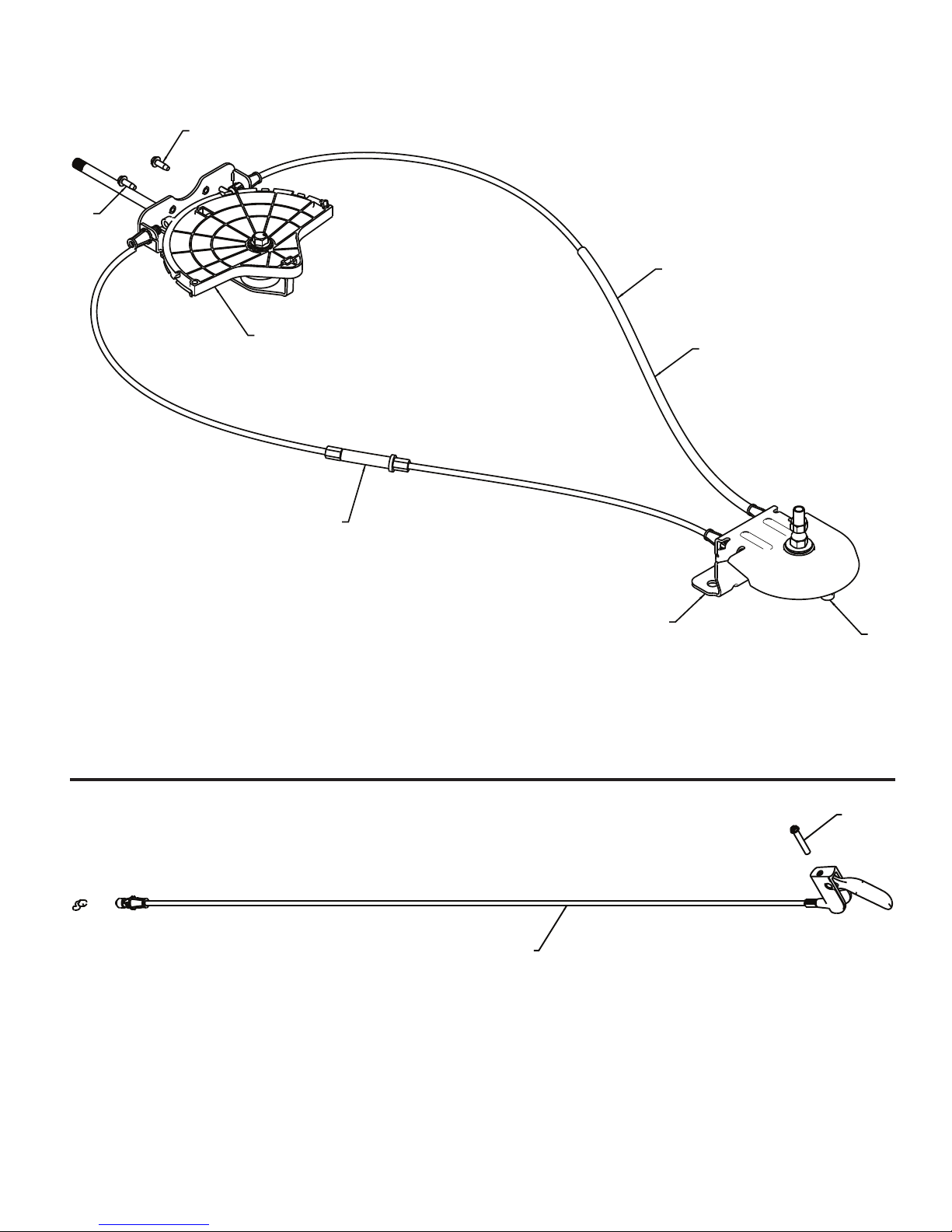

1 428272 LEVER/CABLE ROTATOR ASSEMBLY
2 17501010 SCREW 10-24 X .625
*3 420678 ROTATOR HEAD
*4 405932 ROTATOR PIVOT BRACKET
*5 420675 PULLEY PIVOT
*6 428273 CABLE ASSEMBLY ADJUSTABLE
*7 428310 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
1 421249 STEER CABLE
2 74041024 SCREW 10−24 X 1.50

28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
HANDLES
1
2
3
3
4
4
3
3
01.08.004-B
4
41 419798X479 LOOP HANDLE LH
2 419799X479 LOOP HANDLE RH
3 74780524 SCREW 5/16−18 X 1.50
4 751153 NUT 5/16−18
1
2
3
4
4
4
4
01.05.004-C
1 419797X479 LOWER TUBE
2 418313X479 PIVOT SUPPORT
3 428867 BOLT 5/16-18 X .750
4 17000616 SCREW 3/8-16 X 1.00

29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
11
1
2
3
4
5
67
7
9
9
8
8
12
12
13
13
14
14
01.08.002-F

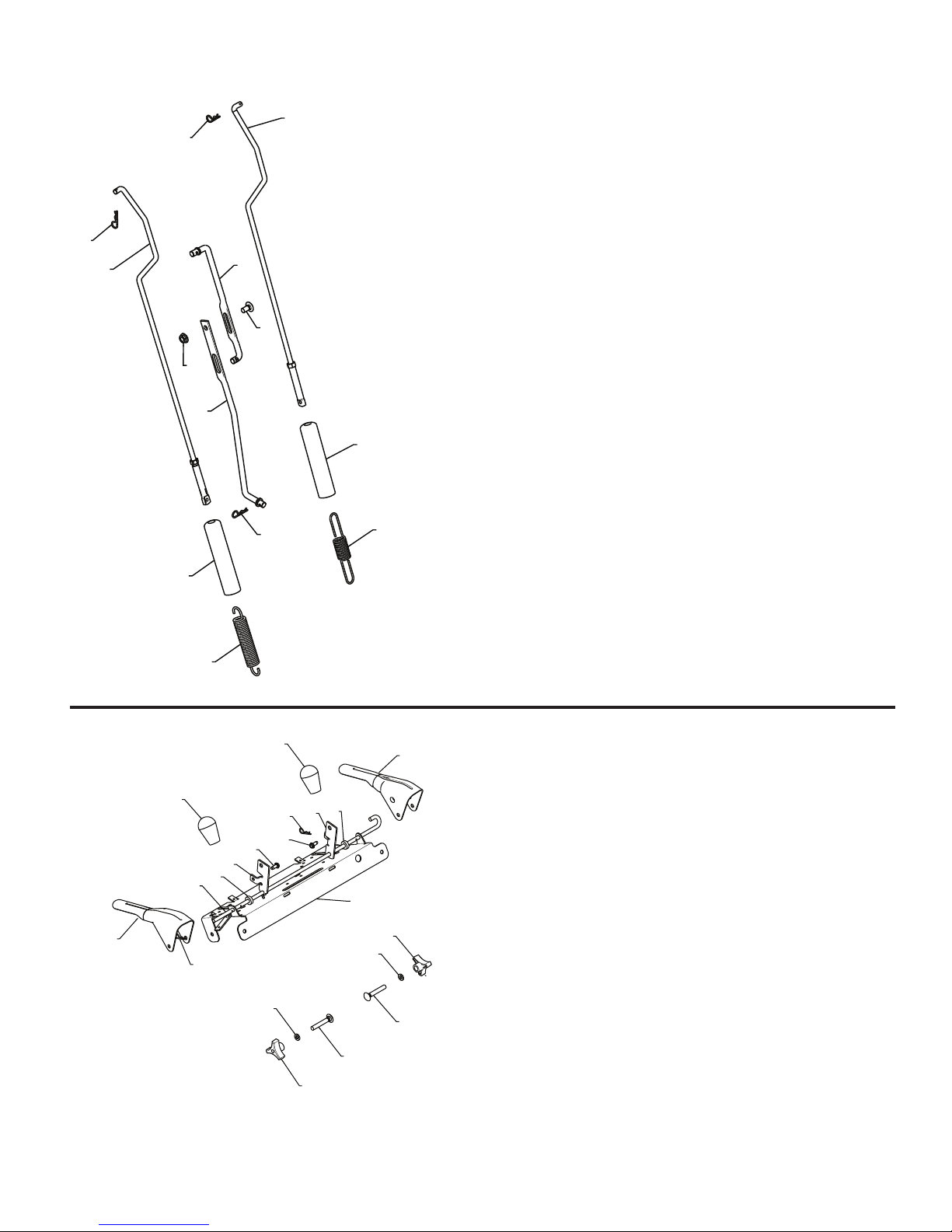

1 412683X479 CONTROL PANEL
2 424517X479 CONTROL LEVER LH
3 424516X479 CONTROL LEVER RH
4 412679X008 TRACTION ROD ARM
5 420889X008 IMPELLER ROD ARM
6 412677 INTERLOCK ROD
7 421613 SPACER
8 169675 RETAINER
9 17060410 SCREW 1/4-20 X .62
10 414280 KNOB BLACK
11 414281 KNOB RED
12 178899 HANDLE KNOB
13 19131316 WASHER 3/8
14 72120618 CARRIAGE BOLT 3/8-16 X 2.25
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
HANDLES
KEY PART
NO. NO. DESCRIPTION
10
10
10
1
2
3
4
5
5
6
7
9
8
01.12.001-E
1 180480 IMPELLER ROD ASSEMBLY
2 405740 TRACTION ROD ASSEMBLY
3 180445 SHIFTER ROD TOP
4 187716 SHIFTER ROD BOTTOM
5 180447 SPRING SLEEVE
6 178669 IMPELLER SPRING
7 180926 TRACTION SPRING
8 72270505 CARRIAGE BOLT 5/16-18 X .75
9 155377 NUT 5/16-18
10 169675 RETAINER

30
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
HANDLES
1
2
3
4
5
601.08.007-B

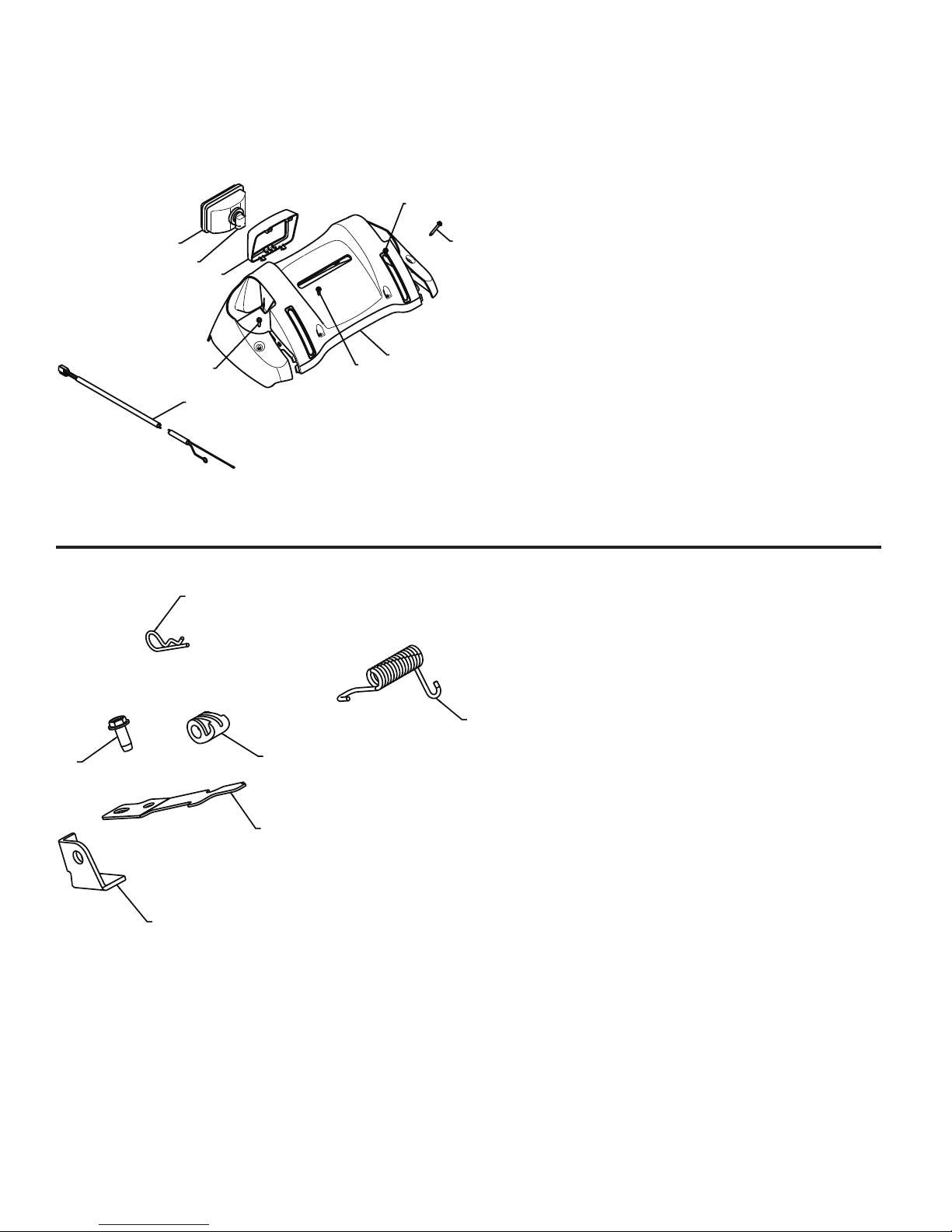

1 412675X004 INTERLOCK SPRING
2 414572 INTERLOCK CAM
3 178831 TORSION SPRING
4 169675 RETAINER
5 17060410 SCREW 1/4−20 X .625
6 421252X004 INTERLOCK STOP
1
2
3
4
5
4
5
7
6
01.10.006-B
1 182906 PANEL CONSOLE
2 178668 HEADLIGHT BEZEL
3 178666 HALOGEN HEADLIGHT
4 184471 SHOULDER SCREW
5 175262 SCREW 10−24 X 1.25
6 180964 WIRE HARNESS
7 401620 BULB

31
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1a
1b
1b
2
4
3
3
4
6
7
7
8
5
601.03.002-A
1 404923 AXLE ASSEMBLY (assy of 1a,1b)
1a 404307 AXLE SHAFT
1b 9465M1 ROLL PIN 3/16 X 1.50
2 402691 SPROCKET
3 174697 THRUST WASHER
4 179830 BEARING
5 146315 SCREW 5/16−18 X .625
6 17490508 SCREW 5/16−18 X .500
7 155443 KLIK PIN 1/4 X 1.50
8 189282 SQUARE KEY

32
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
DRIVE
9
911
11
11
1
2
3
21
5
6
12
13
14 15
20
15
16
17
10
9
8
7
23
19
53
53
53
53
25
26
26
27
39
40
41
42
43
44
32 38
53
53
37
36
35
39
33
28
30
29
31
4
23
24
24

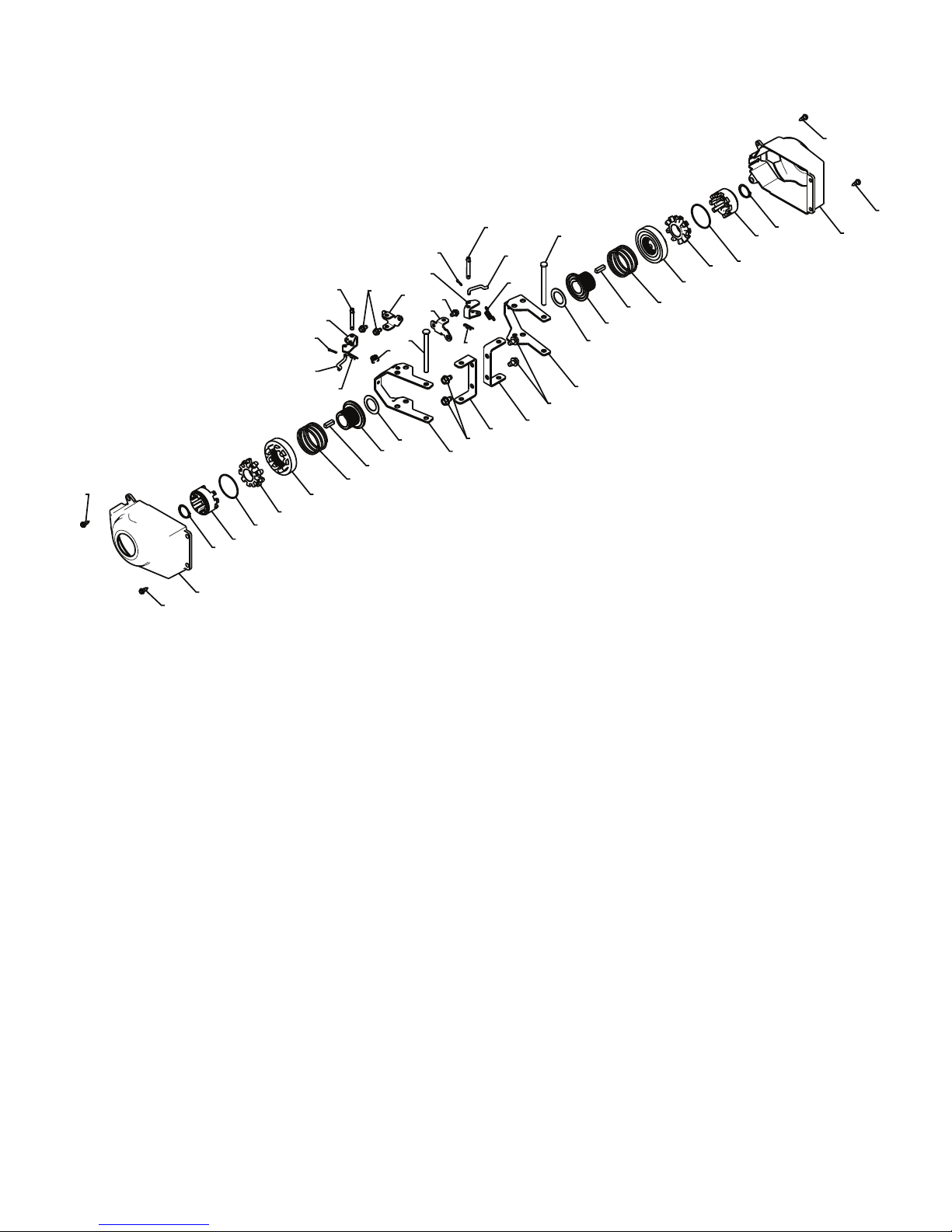

01.02.013-A
18
42 EXPLODED
24
23
24
33
34
22
47
49
50
48
52
51
46
45
4

33
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 198875 SPEED SELECTOR
ASSEMBLY
2 17501010 SCREW 10-24 X .625
3 402685X428 END PLATE
4 17490508 SCREW 5/16-18 X .50
5 57079 WASHER
6 405485 CONTROL ARM
7 198580 CLEVIS PIN
8 403097X004 SHIFTER PLATE
9 402881 SHOULDER BOLT
10 403096X004 SHIFTER BRACKET
11 191730 NUT 1/4-20
12 402856X004 CLUTCH PLATE
13 416717X004 CLUTCH BRACKET
14 187101 SHIFTER LINK
15 700279 RETAINER
16 427542 CONTROL SHAFT
17 402568 CLUTCH ROD
18 169675 RETAINER
19 401732 SHIFTER YOKE
20 402310 PIVOT ROD
21 12000036 RETAINER
22 402878 RETURN SPRING
23 751153 NUT 5/16-18
24 408981 BEARING
25 73930500 NUT 5/16-18
26 198176X479 RUBBER WHEEL PLATE
27 179831 RUBBER RING
28 175344 BEARING
29 178613 WHEEL HUB
30 74760514 SCREW 5/16-18-.875
31 12000012 RETAINER RING
32 402187 SPROCKET SHAFT
33 401619 CHAIN
34 417234 SPROCKET WELDMENT
35 401984X479 SHIFTER BRACKET
36 180135 SPRING
37 402652 PLATE PIVOT ROD
38 428288 E-RING .375
39 184471 SHOULDER SCREW
40 410877 BOTTOM PAN
41 413429X479 SPRING BRACKET
42 402689 DRIVE PLATE ASSEMBLY
43 414557 IDLER SPRING
44 178828 IDLER SPRING
45 402504X008 PULLEY SHAFT
46 401820 DRIVE PLATE
47 198791 BEARING
48 402393 PULLEY HALF
49 17541008 SCREW 10-24 X .50
50 402511 SPACER BEARING
51 418894X479 SWING PLATE
52 132010 NUT 3/8-16
53 428867 SCREW 5/16-18 X .750
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
DRIVE

34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
CHASSIS / ENGINE / PULLEYS
1
2
2
3
3
01.00.034-A
- 428176 COMPLETE LCT ENGINE
1 418694X428 FRAME
2 150406 BOLT 3/8-16
3 428867 SCREW 5/16-18 X .750
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
01.01.004-A
1 427963X428 ENGINE MOUNTING PLATE
KEY PART
NO. NO. DESCRIPTION
01.21.014-B
1
2
2
1 418601 COVER ASSEMBLY
2 17490408 SCREW 1/4-20 X .50

35
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
CHASSIS / ENGINE / PULLEYS
10
11
1
2
3
4
5
6
7
9
8
12
13
13
13 14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
01.21.020-A
1 419888 IMPELLER BELT
2 427304 TRACTION BELT
3 423723X479 IDLER ARM BRACKET
4 180523 IDLER PULLEY
5 423990X479 IDLER BRACKET
6 426589 NUT 5/16-18
7 74780524 SCREW 5/16-18 X 1.50
8 424297 SHOULDER BOLT 5/16-18 X .50
9 751153 NUT 5/16-18 LOCK
10 428867 SCREW 5/16-18 X .625
11 427576 TRACTION IDLER BRACKET
12 180522 TRACTION PULLEY
13 59289 WASHER
14 73930500 NUT 5/16-18
15 74780520 SCREW 5/16-18 X 1.25
16 851084 SCREW 3/8-24 X 1 .375
17 19132005 WASHER
18 425934 PULLEY ENG IMPELLER
19 425933 PULLEY ENG TRACTION
20 74610516 SCREW 5/16-24 X 1.00
21 10040500 LOCKWASHER 5/16
22 155452 BELT GUIDE
23 11050500 LOCKWASHER 5/16
24 175331 IDLER BUSHING
25 19112206 WASHER
26 74610520 SCREW 5/16-24 X 1.25
27 74760608 SCREW 3/8-16 X .750

36
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
WHEELS
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
2
1
3
01.15.003-A
1 410293 CABLE BRACKET LH
2 410294 CABLE BRACKET RH
3 17060410 SCREW 1/4−20 X .625
1
2
01.06.006-A
1 196752 WHEEL ASSEMBLY LH
2 196753 WHEEL ASSEMBLY RH

37
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
2
2
1
3456
7891011 12
13
14
13
14
12
11
10
98
7
65
431
2
2
23
17
19
20
16
18
24
22
21
23
22
15
18
17
16
20
19
21
01.15.001-A
1 405161 COVER
2 184471 SHOULDER SCREW
3 12000045 RETAINER RING
4 192126 WHEEL DRIVER
5 182466 RETAINER RING
6 187622 WHEEL LOBE
7 194941 CLUTCH SLIDE
8 179139 SPRING
9 189282 SQUARE KEY
10 194940 AXLE LOBE
11 174697 THRUST WASHER
12 193506X479 STEERING YOKE
13 179148X479 STEERING BRACKET
14 17490508 SCREW 5/16−18 X .50
15 194943X008 PIVOT BRACKET
16 194944X008 BELLCRANK
17 181847 BELLCRANK PIN
18 17600406 SCREW 1/4−20 X .375
19 405077 STEERING LINK
20 700279 RETAINER
21 85179 RETAINER
22 193885 SPRING
23 182015 LEVER PIN
24 194939X008 PIVOT BRACKET
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
WHEELS

38
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
01.14.009-A
1
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)
BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
01.14.003-B
10
11
1
2
3
4
5
6
7
9
8
12
1 198563 POWER CORD
2 169675 RETAINER PIN
3 180684X008 WRENCH
4 184505 REMOTE SPRING
5 179829 SHOULDER BOLT 1/4-20
6 191730 LOCKNUT 1/4-20
7 72250505 CARRIAGE BOLT 5/16-18 X 5/8
8 751153 LOCKNUT 5/16-18
9 73800600 LOCKNUT 3/8-16
10 19131316 WASHER 3/8
11 192090 SHEAR BOLT 1/4-20 X 1-13/16
12 73800400 LOCKNUT 1/4-20
1 422663 SAFETY IGNITION KEY
1
1
2
2
3
2.56 01.14.012-A
4
4
1 180445 SHIFTER ROD TOP
2 187716 SHIFTER ROD BOTTOM
3 72270505 CARRIAGE BOLT 5/16-18 X .75
4 155377 NUT 5/16-18

39
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1330ES (96192003200)

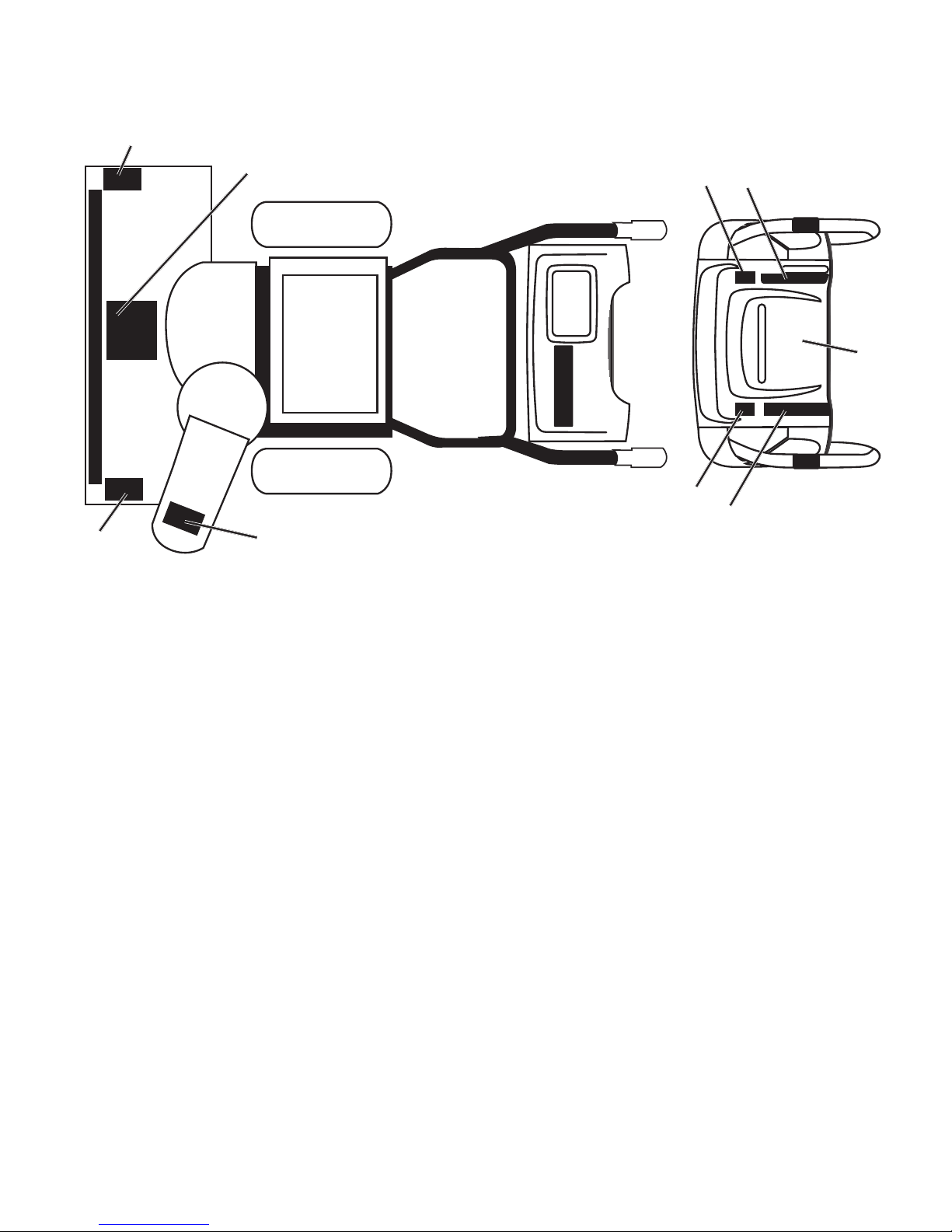

DECALS
1 181037 DECAL, DANGER
3 181035 DECAL, DANGER, DEFLECTOR
4 181042 DECAL, DANGER
6 181033 DECAL, INSTRUCTION
9 415475 DECAL, SPEED CONTROL
10 183730 DECAL, REMOTE DEFLECTOR CONTROL
11 415399 DECAL, LH TRIGGER
12 415398 DECAL, RH TRIGGER
3
1
1
4
11
10
9
6
12
