POWER ACTION CD1200 User manual

GB
Cordless Drill
CD1200 CD1680 CD2100
CD1200A CD2100T

Read this operators guide carefully, before using the machine. Ensure that you know how
the machine works, and how it should be operated. Maintain the machine in accordance with the
instructions, and make certain that the machine functions correctly. Keep this operator’s guide
and other enclosed documentation with the machine.
TECHNICAL SPECIFICATIONS
MODEL
CD
1200
CD
1680
CD2100
Voltage
12
V
16.8
V
21V
Battery capacity
2,0
2,0
2,0
No load speed
0
-350/1300
0
-350/1300
0
-350/1300
Max torque
2
4N.m
26
N.m
28
N.m
Keyless chuck
0.8
-10
0.8
-10
0.8
-10
Impact function
N
o
No
No
Drill capacity
Wood:20mm
Wood:20mm
Woo
d:20mm
S
teel:10mm
S
teel:10mm
S
teel:10mm
Charge time
1
hour
1
hour
1
hour
N.W
1.0kg
1.1kg
1.1
5kg
MODEL
CD1200A
CD2100T
Voltage
12
V
21
V
Battery capacity
2,0
2,0
No load speed
0
-350/1300
0
-350/1300
Max torque
2
4N.m
28
N.m
Keyless chuck
0.8
-10
0.8
-10
Impact function
NO
YES
Drill capacity
Wood:20mm
Wood:20mm
S
teel:10mm
S
teel:10mm
C
oncrete:10mm
Charge time
1
hour
1
hour
N.W
1.
1kg
1.
2kg

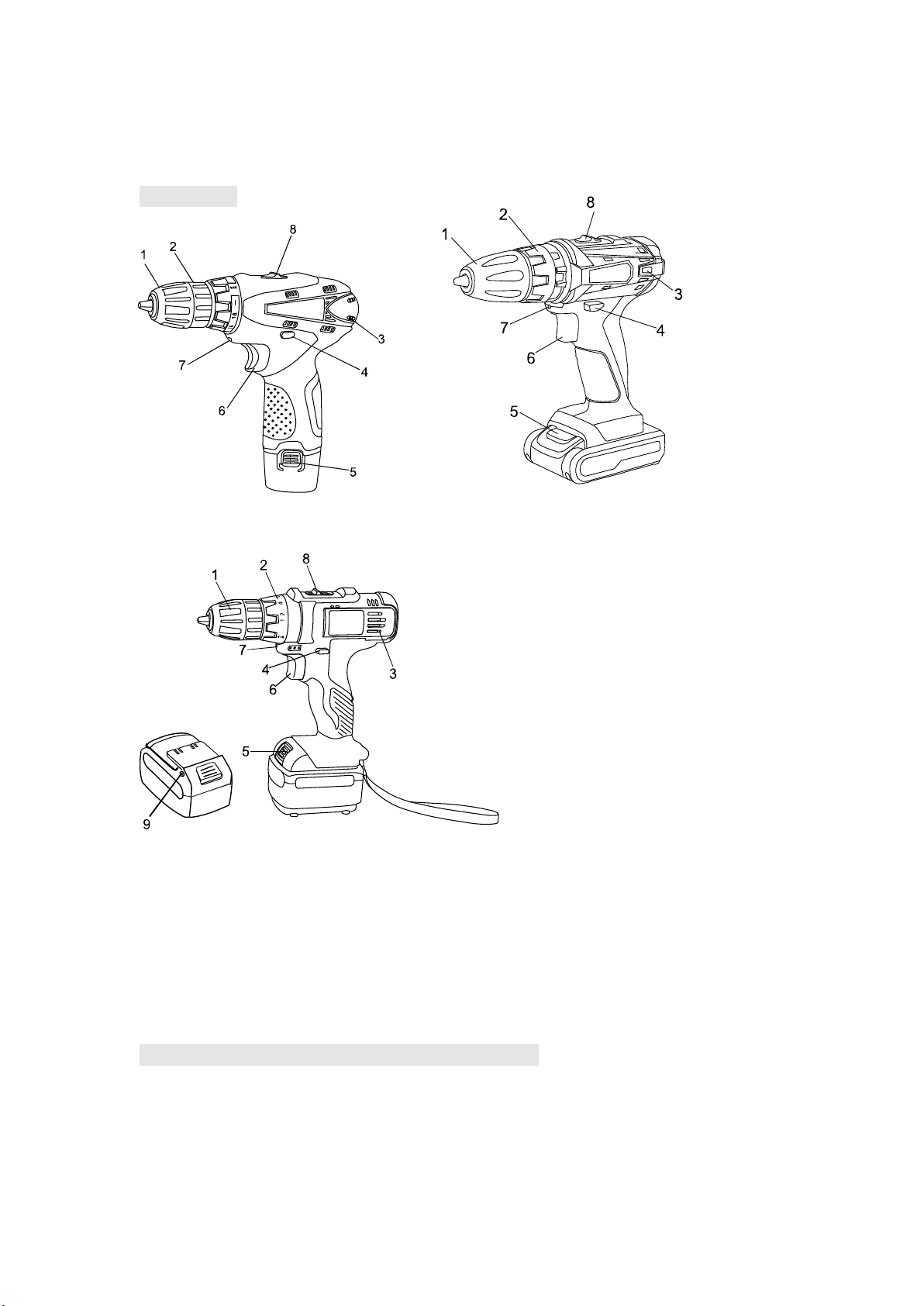

Over view
CD1200A CD2100T
CD1200, CD1680, CD2100
1. Quick-action chuck. 2. Torque limit setting ring.
3. Ventilation holes. 4. Rotation direction switch.
5. Battery compartment release button. 6. Switch trigger
7. Built-in light. 8. Speed Switch Button
9. Charge hole
General Safety Instructions for Electric Tools
This device is exclusively for private use! It is not fit for commercial use!
WARNING!Read all instructions. Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury:

SAVE THESE INSTRUCTIONS
1)Work area
•Keep work area clean and well lit. Cluttered and dark areas invite accidents
•Do not operate machines in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a machine. Distractions can cause you to
lose control.
2)Electrical safety
• Machine plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose machines to rain or wet conditions. Water entering a machine will increase the
risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
3)Personal safety
•Stay alert, Watch what you are doing and use common sense when operating a machine. Do
not use a machine while you are tired or under the influence of drugs, alcohol or medication.A
moment of inattention while operating machines may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as dust mark,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
•Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying
machines with your finger on the switch or plugging in machines that have the switch on invites

accidents.
•Remove any adjusting key or wrench before turning the machine on. A wrench or a key left
attached to a rotating part of the machine may result in personal injury.
•Do not overreach. Keep proper footing and balance at all times. This enables better control of
the machine in unexpected situations.
•Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
•If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of these devices can reduce dust related hazards.
4)Machine use and care
• Do not force the machine. Use the correct machine for your application. The correct machine
will do the job better and safer at the rate for which it was designed.
•Do not use the machine if the switch does not turn it on and off. Any machine that can not be
controlled with the switch is dangerous and must be repaired.
•Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing machines. Such preventive safety measures reduce the risk of starting the
machine accidentally.
• Store idle machines out of the reach children and do not allow persons unfamiliar with the
machine or these instructions to operate the machine. Machines are dangerous in the hands of
untrained users.
• Maintain machines. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the machines operation. If damaged, have the machine
repaired before use. Many accidents are caused by poorly maintained machines.
•Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the machine, accessories and tool bits etc., in accordance with these instructions and in
the manner intended for the particular type of machine, taking into account the working
conditions and the work to be performed. Use of the machine for operations different from
intended could result in a hazardous situation.

5)Service
• Have your machine serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the machine is maintained.
OPERATION INSTRUCTIONS
Removing /installation the battery pack
Remove
Press the battery release button (2) and pull the battery toward you (1) to disconnect the
battery.
Installation
Insert the battery pack (1) until it locks into place (Fig. 1).
ATTENTION: Make sure that the two guides (3) in the battery case coincide with the guides (4)
in the handle of the screwdriver.
Fig.1
CD1200A CD1200 CD1680 CD2100 CD2100T

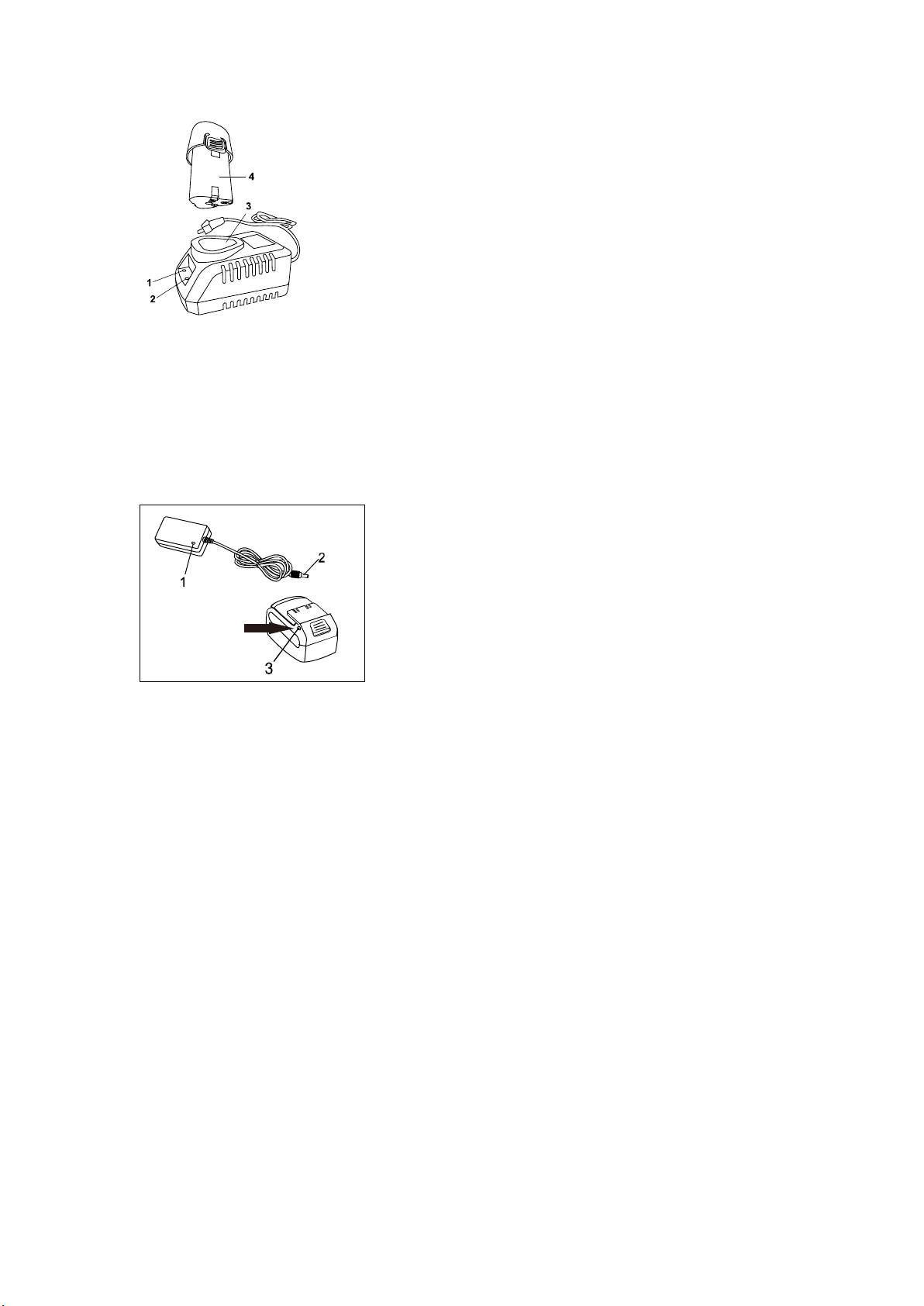

Charging
For CD1200A and CD2100T
1. Connect the charger (3) to a power outlet. The indicator (1) will turn green.
2. Insert the battery (4) into the charger. The indicator (2) lights up in red.
3. The indicator (1) lights up green after a full charge.

Fig.2
For CD1200, CD1680 and CD2100
1. Plug the charger into a power outlet. The indicator (1) will turn green.
2. Connect the charger (2) to the connector for connection (3) on the battery. The indicator (1)
lights in red. This means that the battery has started charging.
3. When the battery has finished charging, the indicator (1) will turn green.
WARNING:
1. To keep the Li-ion working, it must not be charged at temperatures below 0 ° C or above
45 ° C.
2. If the battery pack temperature is above 45 ° C or below 0 ° C, the battery pack can not be
charged. The charger is green after connect the battery pack.
3. It the battery pack is damaged. The charger is green after connect the battery pack.
Setting the torque limit.
For CD1200A CD1200 CD1680 CD2100
The screwdriver is equipped with a special rotating ring for setting the torque limit.
To set the torque limit on the rotating ring, the numbers (1) are shown.
Rotate the ring (Figure 3) until the desired digit is aligned with the arrow (2). For the correct
installation, use the table below.
1-4 Screwing small screws
5-8 Screwing of medium-sized screws into soft material
9-12 Screwing screws into medium hardness material
12-14 Screwing of screws into solid material

15-16 Screwing large screws
Drilling is indicated by the symbol (3) on the rotating ring (Fig 4).
Fig 3 Fig 4
For CD2100T
The screwdriver is equipped with a special rotating ring for setting the torque limit. To adjust
the torque limit, turn the ring (3) (Fig. 4) to the position, then rotating the torque limiting
ring, the mark 1 must coincide with the arrow (2) (Fig. 3). For the correct installation, use the
table below.
1-4 screwing small screws
5-8 Screwing of medium-sized screws into soft material
9-12 screwing screws into medium hardness material
12-14 Screwing of screws into solid material
15-18 Screwing large screws
To select the drilling mode, turn the ring (3) to the position; To adjust the percussive
drilling mode, turn the ring (3) to the position.
Fig 3 Fig 4
Rotation direction switch.
The direction switch (1) is located above the power button (2) (Fig. 5). To rotate clockwise,
switch it to the left, to rotate counterclockwise to the right.
Fig 5

ATTENTION:
Use the rotational direction switch only when the tool is off.
The power button does not work when the rotation direction switch is in the middle position.
Stepless speed control.
The screwdriver is equipped with an on / off button (1) with a stepless speed control. Slow
rotation occurs when the button is pressed lightly and increases with a stronger push (Fig 6).
Release the power button to stop the instrument.
ATTENTION: Rotating at low speed for a long time may cause the engine or battery to
overheat. When heating, take a break for at least 15 minutes.
Fig 6
Built-in light.
The built-in backlight (2) turns on automatically when the power button (1) (Fig. 7) is pressed
and turns off automatically when it is released.
Fig 7
Install the drill bits
The screwdriver is equipped with a quick-action chuck that does not require keys when
installing the tooling.
Rotate the keyless chuck (1) in the counterclockwise direction.
Open the quick-action drill chuck and insert the drill bits.
Turn the sleeve of the chuck (1) clockwise until the chuck (2) is evenly spaced and the tooling
is securely clamped (Fig 8).
With a soft tool shank after a short work time, it may be necessary to tighten the cartridge.
Fig 8

CD1200 CD1200A CD1680 CD2100 CD2100T
Changing speed
The screwdriver has two speeds, to change the speeds, move the shift button to " " for low
speed and high torque (twisting force) or to " " for high speed and low torque (twisting
force) - see fig. 10
ATTENTION! SWITCHING TO BE CARRIED OUT STRICTLY WITH AN UNBREAKABLE
ENGINE! SWITCHING AT THE OPERATING ENGINE MAY BE THE REASON FOR EXIT
FROM THE BUILDING OF THE RECORDER AND DAMAGE TO SUCH DAMAGE IS NOT
COVERED BY WARRANTY REPAIR
Fig. 10
Overload
Never use excessive force when drilling. Too much pressure reduces the speed of the machine,
and the required power is greatly reduced. This may result in overload, which can damage the
motor of the drilling machine.
When the drilling machine becomes too hot, allow it to run for two minutes without a load and
then interrupt working for a short time.
Clean the drilling machine with a clean cloth and a brush. Ensure that the ventilation slits are not
blocked.

CD1200A exploded view

CD1200A Part list

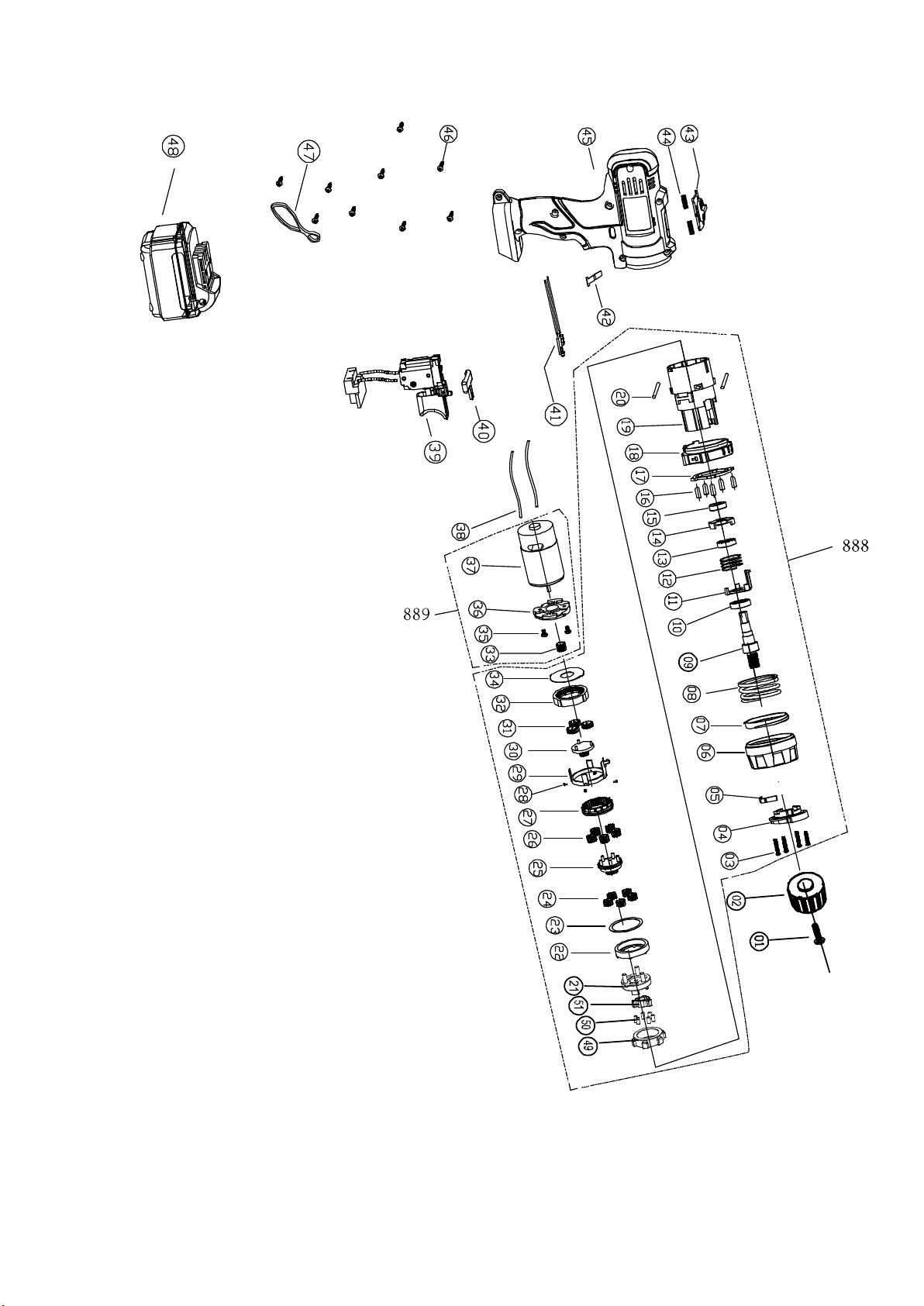

CD2100Texploded view

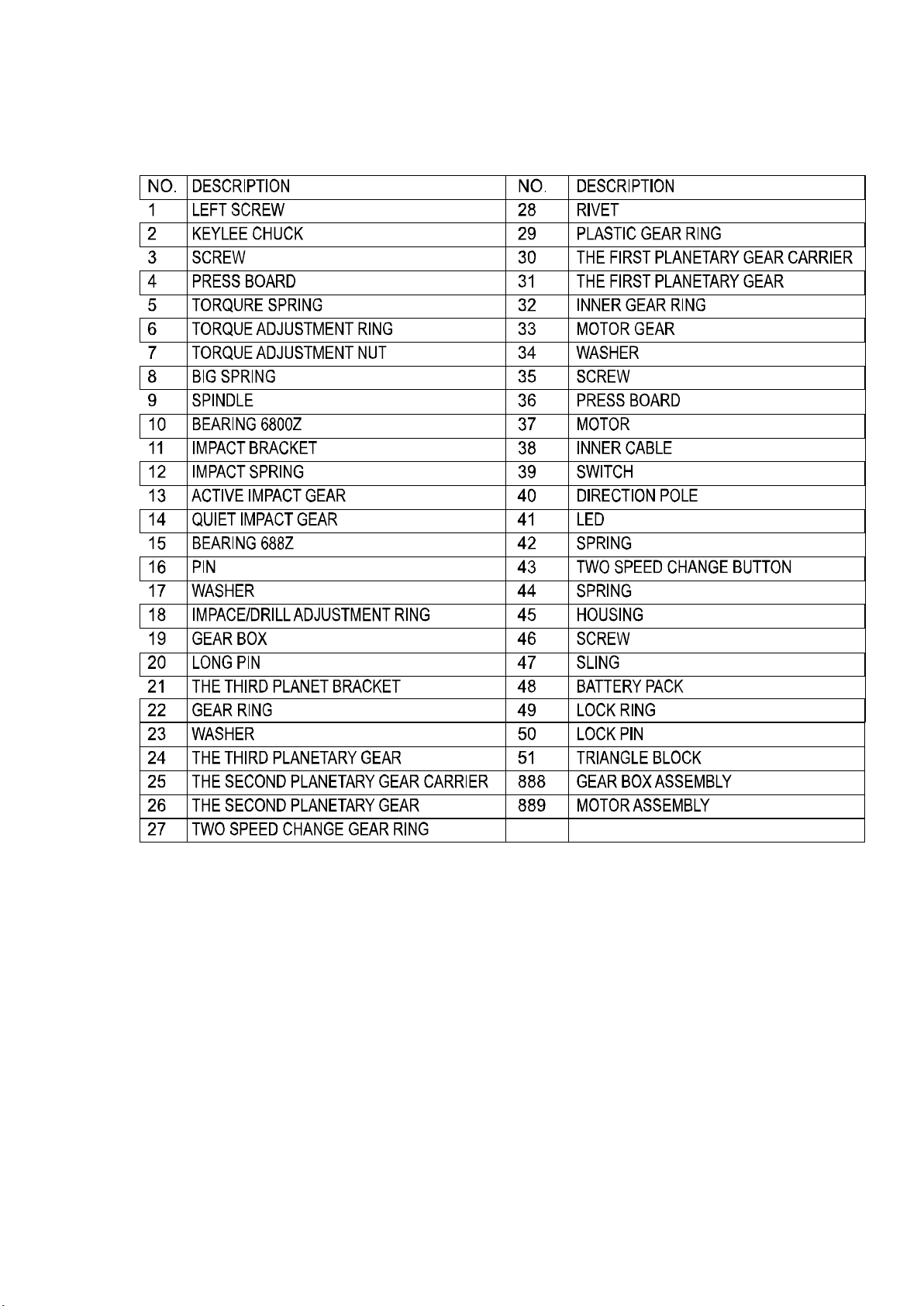

CD2100T part list

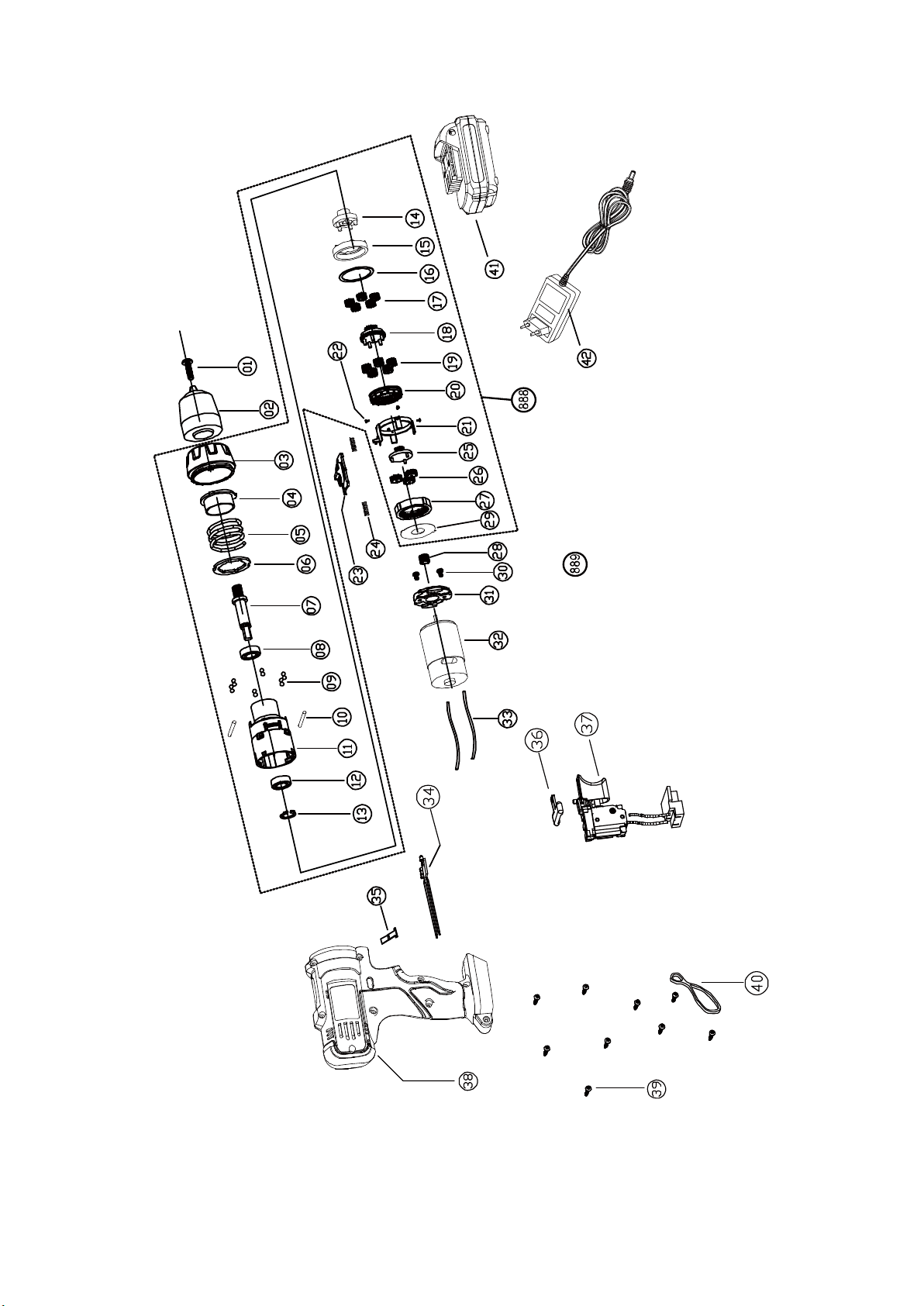

CD1200 CD1680 CD2100 exploded view

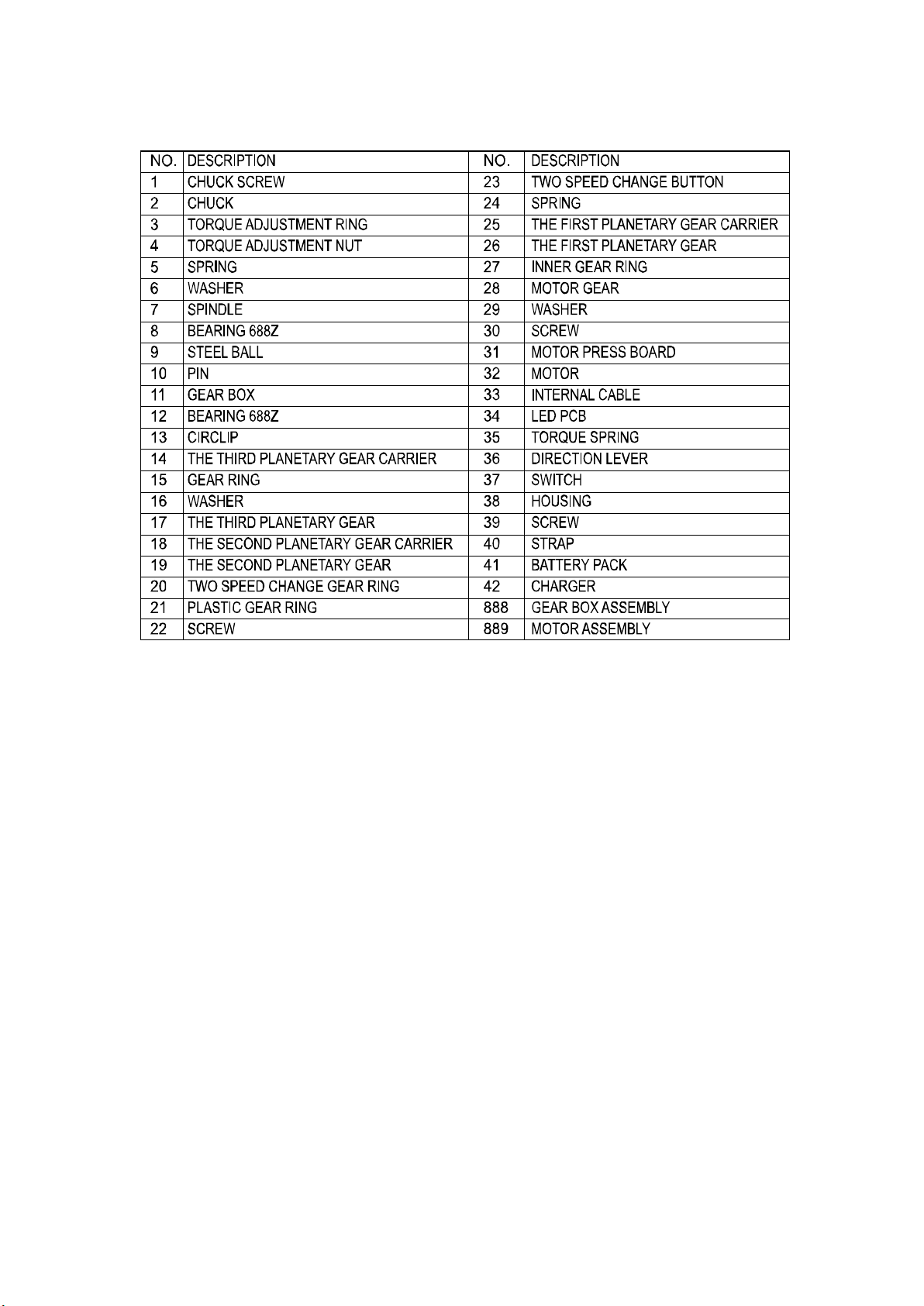

CD1200 CD1680 CD2100 part list
