1. INTRODUCTION
1.1. Equipment Description
When operating with drives which do not include dynamic braking
circuit as standard, and it is necessary to conduct the regenerated
energy, it will connect an optional dynamic braking unit with the
corresponding dynamic braking resistors.

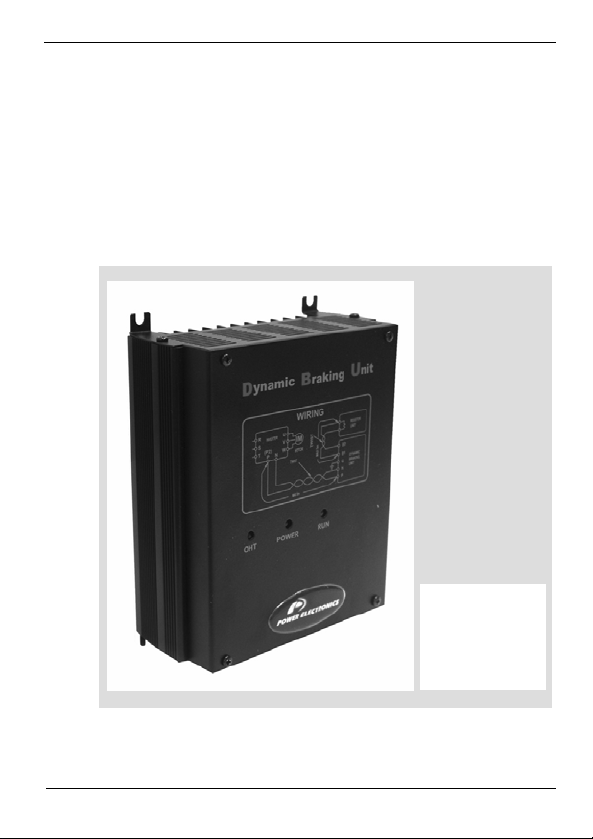

DYNAMIC
BRAKING
UNIT
GROUP 1
10 INTRODUCTION

POWER ELECTRONICS DB SERIES
INTRODUCTION 11
DYNAMIC
BRAKING
UNIT
GROUP 2

DB SERIES POWER ELECTRONICS
1.2. Standard Ratings
The following table shows the dynamic braking unit that should be
used for each drive. It will use a single braking unit or a combination of
them, according to the drive capacity.
DYNAMIC BRAKING UNIT APPLICABLE DRIVES
SD450 SD700
GROUP REFER. DESCRIP. FRAME REF. FRAME REF.
1 SD45008 SD700095xxxx
SD45012 SD700125xxxx
2 SD45016 SD700185xxxx
Dynamic braking
unit for drives from
3,7 to 11kW (400V)
DBSD4030 1
3 SD45024 SD700245xxxx
3 SD45030 SD700325xxxx
1
Dynamic braking
units for drives from
15 to 18,5kW
(400V)
DBSD4045 2
4 SD45039 SD700385xxxx
4 SD45045 2 SD700485xxxx
Dynamic braking
units for drives from
22 to 30kW (400V)
DBSD4075
5 SD45060 3 SD700605xxxx
5 SD45075 SD700755xxxx
6 SD45090 SD700905xxxx
3
SD45110 SD701155xxxx
7 SD45150 SD701505xxxx
- - 4 SD701705xxxx
2
- - SD702105xxxx
- - SD702505xxxx
Dynamic braking
units for drives from
37 to 75kW (400V)
DBSD4145
5
- - SD702755xxxx
- - SD703305xxxx
- - SD703705xxxx
6
- - SD704605xxxx
12 INTRODUCTION

POWER ELECTRONICS DB SERIES
TECHNICAL CHARACTERISTICS 13
2. TECHNICAL CHARACTERISTICS
2.1. Technical Specifications
GROUP 1 GROUP 2
REFER.
DBSD4030 DBSD4045 DBSD4075 DBSD4145
SPECIF.
Max. DC Input Voltage 750Vdc 750Vdc 750Vdc 750Vdc
Applicable Drive 11kW 15kW 18,5kW 22kW 30kW 37kW 75kW
Capacity
Power 2,5kW 3,5kW 5kW 10kW
Braking Minimum
resistor 30Ω20Ω12Ω6Ω
resistor
Average braking torque 150% 150% 150% 150%
Enable Duty (ED) 10% 10% 5% 5%
Fault output contact, Slave control
signal
Output signal Heat sink overheat
Protection Heat sink overheat Heat sink overheat, overcurrent
Ambient -10ºC to +40ºC -10ºC to +40ºC
Temp.
Humidity <90% (non-condensing) <90% (non-condensing)
Altitude <1000m above sea level <1000m above sea level
Cooling
Method Natural convection Self-cooling
Environ.
Condit.
Environment with no corrosive gas,
combustible gas, oil mist or dust.
Environment with no corrosive gas,
combustible gas, oil mist or dust.
Location
Notes:
•For drive capacities higher than 75kW up to 250kW, se section ‘4.5.4. Combination
of DB Units – Group 2’.
•For drive capacities lower than 11kW and higher than 250kW, contact with Power
Electronics.

DB SERIES POWER ELECTRONICS
2.2. Dimensions
In the following figures, you can observe external dimensions of the
dynamic braking units of groups 1 and 2:
a) Group 1 (DBSD4030 – DBSD4045).

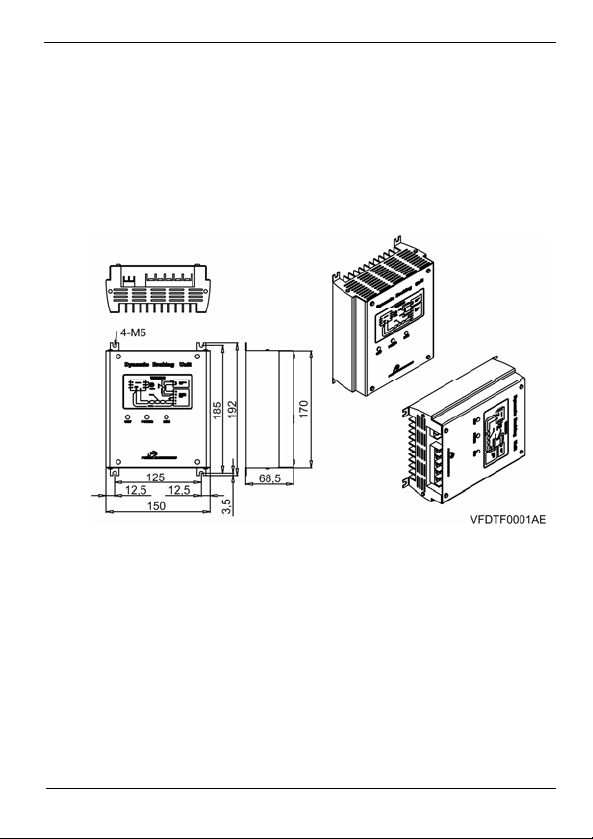

Figure 2.1 Dimensions of dynamic braking unit – Group 1
(DBSD4030 – DBSD4045)
14 TECHNICAL CHARACTERISTICS

POWER ELECTRONICS DB SERIES
TECHNICAL CHARACTERISTICS 15

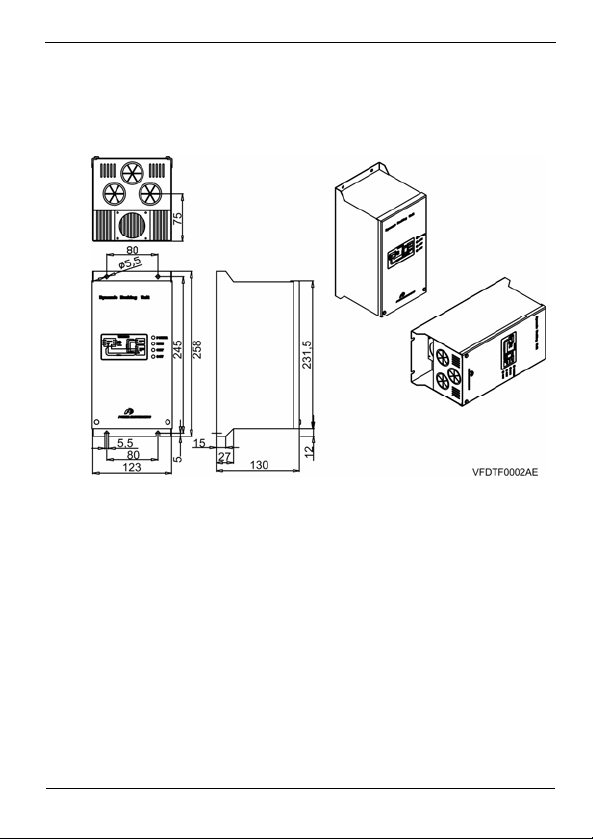

b) Group 2 (DBSD4075 – DBSD4145).
Figure 2.2 Dimensions of dynamic braking unit – Group 2
(DBSD4075 – DBSD4145)

DB SERIES POWER ELECTRONICS
3. MOUNTING OF DYNAMIC
BRAKING UNIT
Braking units must be mounted vertically with sufficient horizontal and vertical
distance between adjacent equipment.
A = Higher than 100mm.
B = Higher than 50mm.

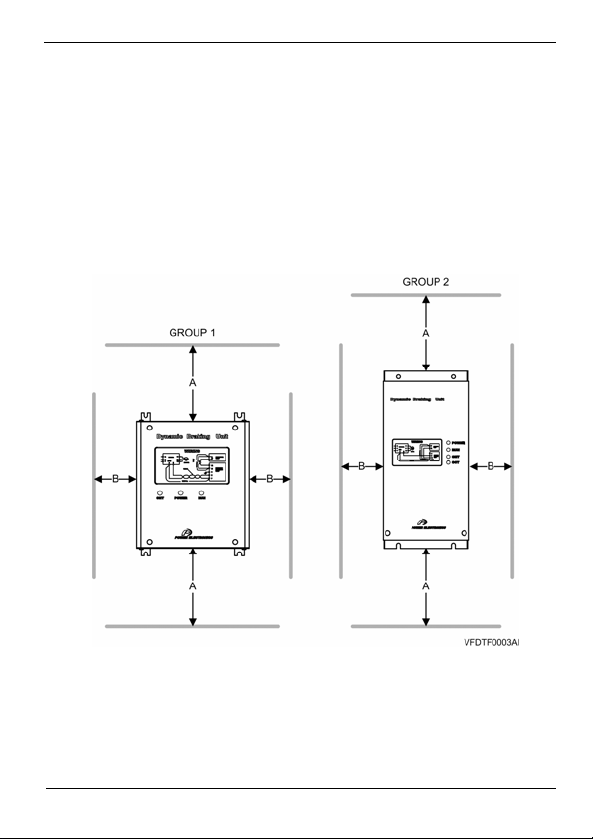

Figure 3.1 Dynamic braking unit mounting (Group 1 and Group 2)
16 MOUNTING OF DYNAMIC BRAKING UNIT

POWER ELECTRONICS DB SERIES
MOUNTING OF DYNAMIC BRAKING UNIT 17
3.1. Environmental Conditions
Do not mount the braking unit in direct sunlight. Isolate the
braking unit from excessive vibration.
Protect the braking unit from moisture, dust, metallic particles,
corrosive gasses and liquids. Install the braking unit on a non-
flammable surface and as smooth as possible.
In case of installing many braking units in a panel, consider the air
flow for power dissipation.

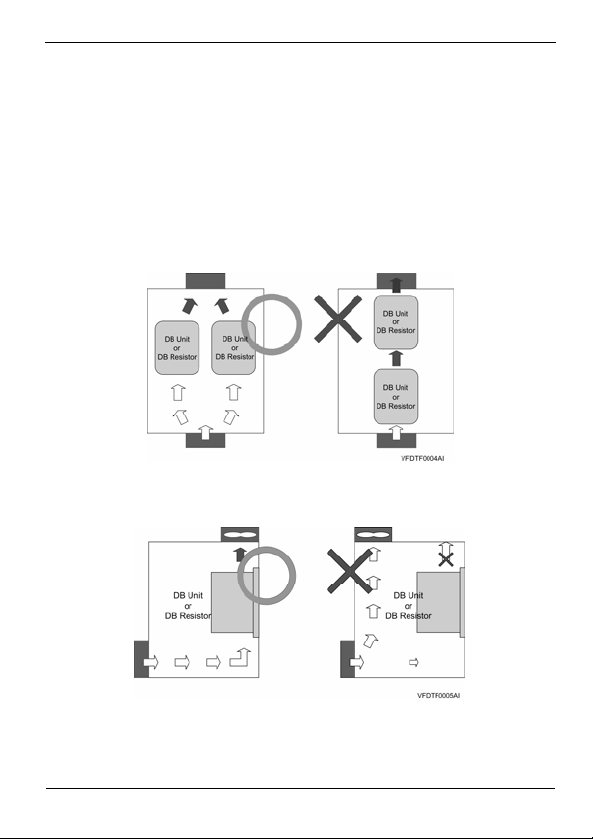

Figure 3.2 Multiple installation of braking units in a panel
Figure 3.3 Fan location in a panel

DB SERIES POWER ELECTRONICS
4. INSTALLATION OF DYNAMIC
BRAKING UNIT
4.1. Terminal Configuration
4.1.1. Dynamic Braking Unit – GROUP 1
Terminals for dynamic braking units of Group 1 are described in the
following table:
TERMINAL DESCRIPTION
CM Common terminal for the over-temperature trip (OH).
Output terminal for the over-temperature trip (Open
collector: 20mA, 27Vdc).
OH
G Ground terminal.
Connection for B2 terminal of the dynamic braking
resistor.
B2
Connection for B1 terminal of the dynamic braking
resistor.
B1
Connection for negative terminal of DC Bus of the drive
(DC Bus (-)).
N
Connection for positive terminal of DC Bus of the drive
(DC Bus (+)).
P

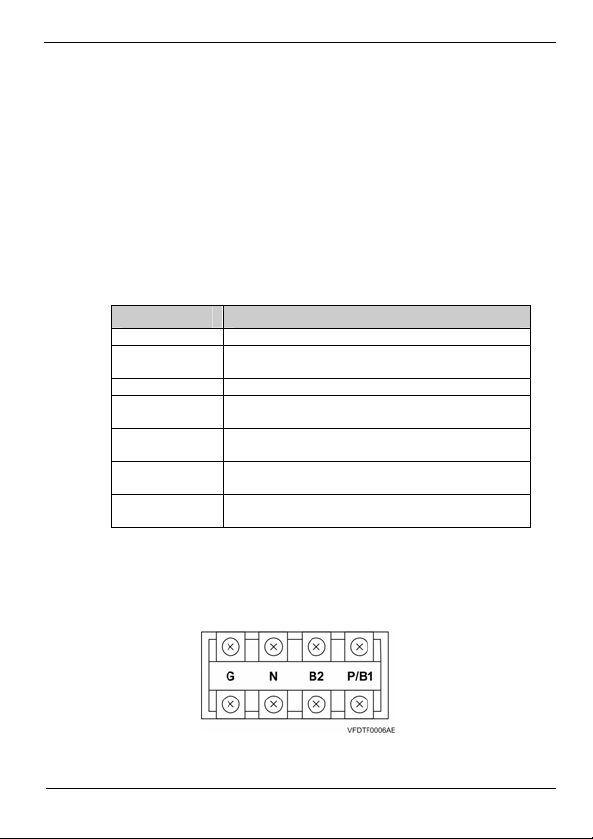

4.1.2. Dynamic Braking Unit – GROUP 2
Power Terminals
Figure 4.1 Power terminals for dynamic braking unit – Group 2
18 INSTALLATION OF DYNAMIC BRAKING UNIT

POWER ELECTRONICS DB SERIES
INSTALLATION OF DYNAMIC BRAKING UNIT 19
TERMINAL DESCRIPTION
G Ground terminal.
Connection for negative terminal of DC Bus of the drive
(DC Bus (-)).
N
Connection for B2 terminal of the dynamic braking
resistor.
B2
Connection for B1 terminal of the dynamic braking
resistor.
P / B1 Connection for positive terminal of DC Bus of the drive
(DC Bus (+)).
Control Terminals
Figure 4.2 Control terminals for dynamic braking unit – Group 2
TERMINAL DESCRIPTION
Input signal (+) to Slave. Only connected when DB Unit
is configured as ‘Slave’.
IN+ [1]
Input signal (-) to Slave. Only connected when DB Unit
is configured as ‘Slave’.
IN- [1]
Output signal (+) to Slave. In this case, DB Unit can be
configured as ‘Master’ or ‘Slave’.
OUT+ [1]
Output signal (-) to Slave. In this case, DB Unit can be
configured as ‘Master’ or ‘Slave’.
OUT- [1]
Fault Output signal (Fault Relay).
30A 30A: Normally open contact (NO).
30B 30B: Normally closed contact (NC).
30C 30C: Common terminal.
[1] Control signals IN+/- and OUT+/- are only used when multiple DB Units
are connected. See section ‘4.5.2. ‘Master / Slave’ Operation Mode’.
