Power Tec UT1002 User manual

Owner’s Manual
Model No. UT1002
QUESTION...

UNIVERSAL STAND
You will need this manual for safety instructions, operating procedures, and warranty.
Put it and the original sales invoice in a safe, dry place for future reference.
Visit us on the web at www.southerntechllc.com
15-0417

PRODUCT

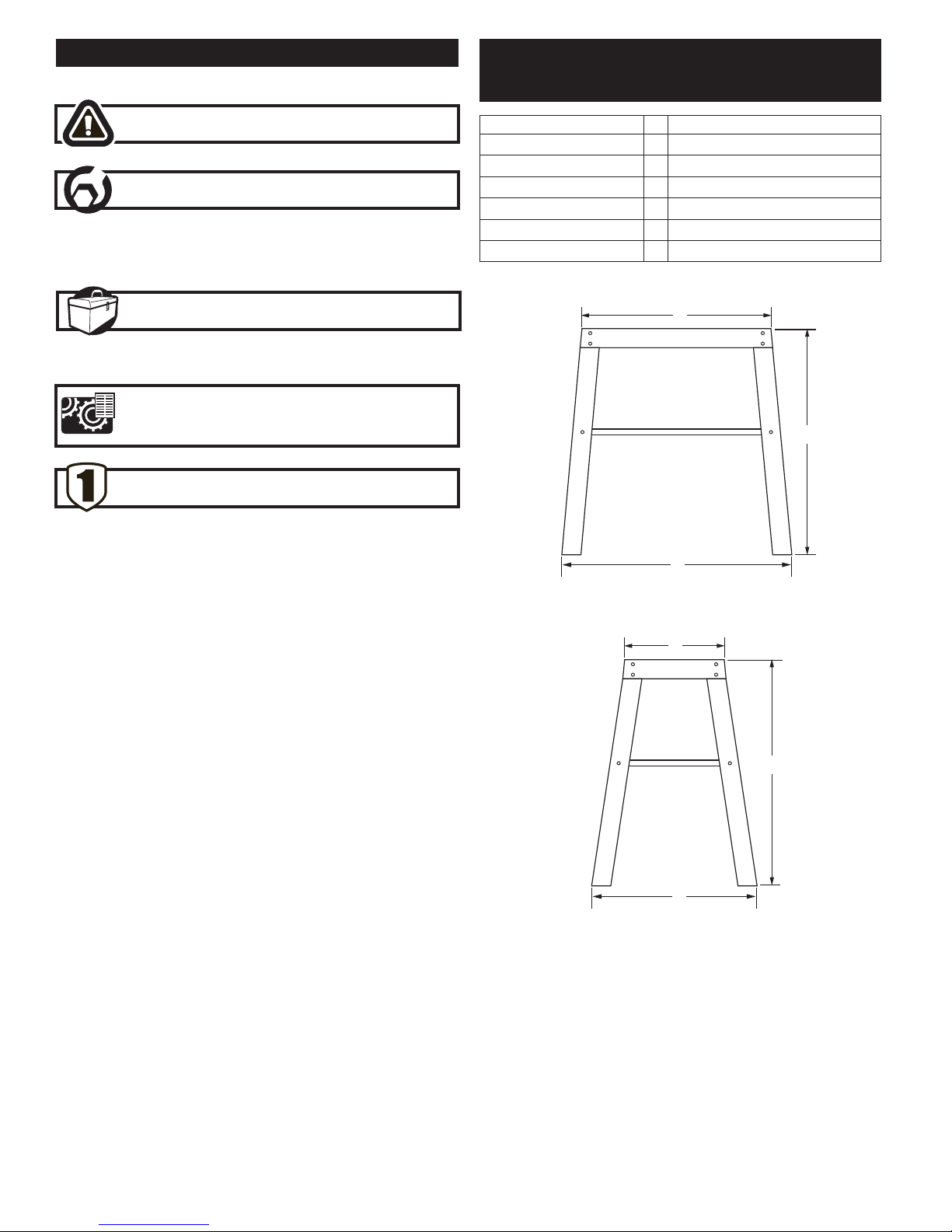

SPECIFICATIONS
Model No. UT1002
Top (with wood top) A 25" x 14" (635 x 356 mm)
Leg Spacing B 32" x 22-3/4" (813 x 578 mm)
Height (with wood top) C 32-1/8" (816 mm)
Shelf 27" x 18" (686 x 457 mm)
Shelf height 16-1/4" (413 mm)
Weight 24 lbs (10.9 kg)
TABLE OF CONTENTS
SAFETY RULES 1
ASSEMBLY 2
Unpacking
Assembly
Application
MAINTENANCE 4
General Maintenance
SECTION PAGE
A
A
B
B
C
C
Figure 1
PARTS ILLUSTRATION 4
& LIST
WARRANTY 5

SAFETY RULES 1
1
SAFETY RULES
WARNING
t %POPUVTFGPSTDBGGPMEJOHPSBTMBEEFS%POPUTUBOEPS
climb on the universal stand; it could tip over, causing
serious injury.
t %POPUPWFSMPBE5IFNBYJNVNDBQBDJUZGPSUIF
universal stand is 500 lbs (227 kg).
t %POPUBQQMZBOVOCBMBODFEMPBE5IJTDPVMEDBVTFUIF
universal stand to tip over.
t 4UPSFUIFTUBOEQSPQFSMZ%POPUTUPSFUIFVOJWFSTBM
stand outdoors or in a damp location.
t ,FFQUIFXPSLBSFBDMFBOVODMVUUFSFEBOEXFMMMJU%P
not work on or place the universal stand legs on floor
surfaces that are slippery from sawdust, oil, water or
wax.
t ,FFQDIJMESFOBOECZTUBOEFSTBXBZXIJMFPQFSBUJOHB
QPXFSUPPM%JTUSBDUJPOTNBZDBVTFZPVUPMPTFDPOUSPM
Visitors should wear the same safety equipment as the
operator.
t 8IFOVTJOHBQPXFSUPPMXJUIUIFVOJWFSTBMTUBOE
always follow the safety instructions in the power tool’s
operator’s manual.
t "MXBZTXFBSTBGFUZHMBTTFTPSFZFTIJFMETXIFO
operating power tools.
t %SFTTQSPQFSMZ%POPUXFBSMPPTFDMPUIJOHPSKFXFMSZ
,FFQZPVSIBJSDMPUIJOHBOEHMPWFTBXBZGSPNNPWJOH
parts. Loose clothes, jewelry or long hair can be caught
in moving parts. Always wear non-slip footwear. Tie
back long hair. Roll long sleeves above the elbow.
t "MXBZTVTFDMBNQTPSPUIFSQSBDUJDBMXBZTUPTVQQPSU
the work piece and secure it to a stable platform.
Holding the work piece by hand or against your body is
unstable and may lead to loss of control.
t $IFDLBMMIBSEXBSFQSJPSUPNPVOUJOHBOZCFODIUPQ
tools.
t *OTQFDUBMMIBSEXBSFQFSJPEJDBMMZBOEUJHIUFOBOZUIBU
may be loose.
t #FTVSFUPVTFUIFQSPQFSNPVOUJOHCPMUTGPSUIFVOJU
being attached to the stand.
WARNING
For your own safety, read all of the rules and precautions
before operating tool.
WARNING
%POPUNPEJGZUIJTUPPMBOEPSVTFJUGPSBOZBQQMJDBUJPO
other than that for which it was designed.
WARNING
Always follow proper operating procedures as defined in
this manual even if you are familiar with use of this tool
stand or any tool used with this stand. Remember that
being careless for even a fraction of a second can result in
severe personal injury.
You must be familiar with the use of any tool or accessory
used with this stand. The supplier cannot be held
responsible for any accident, injury or damage incurred
while using this stand with any tool.
READ AND SAVE THESE INSTRUCTIONS

UNPACKING
Refer to Figure 2
Your new universal stand is shipped complete in one
carton.
t&YBNJOFTIJQQJOHDBSUPOGPSGSFJHIUEBNBHFCFGPSF
PQFOJOH*GTIJQQJOHDBSUPOJTEBNBHFEGJMFBDMBJNXJUI
the carrier immediately.
t $BSFGVMMZVOQBDLBMMMPPTFJUFNTGSPNUIFTIJQQJOH
carton and make sure all parts are accounted for.
ITEM DESCRIPTION QTY
A Short upper cross brace 2
B Shelf (two pieces) 2
C Short lower cross brace 2
%Long lower cross brace 2
&Long upper cross brace 2
F Leg 4
G Feet 4
H Table top (two pieces) 2
*Pan head wood screw (table top) 10
J Washer (table top) 12
,Pan head screw (frame assembly) 24
L Nut (frame assembly) 24
M Pad (adjustable foot) 1
N Countersink screw (adjustable foot) 1
O Nut (adjustable foot) 2
P Washer (adjustable foot) 1

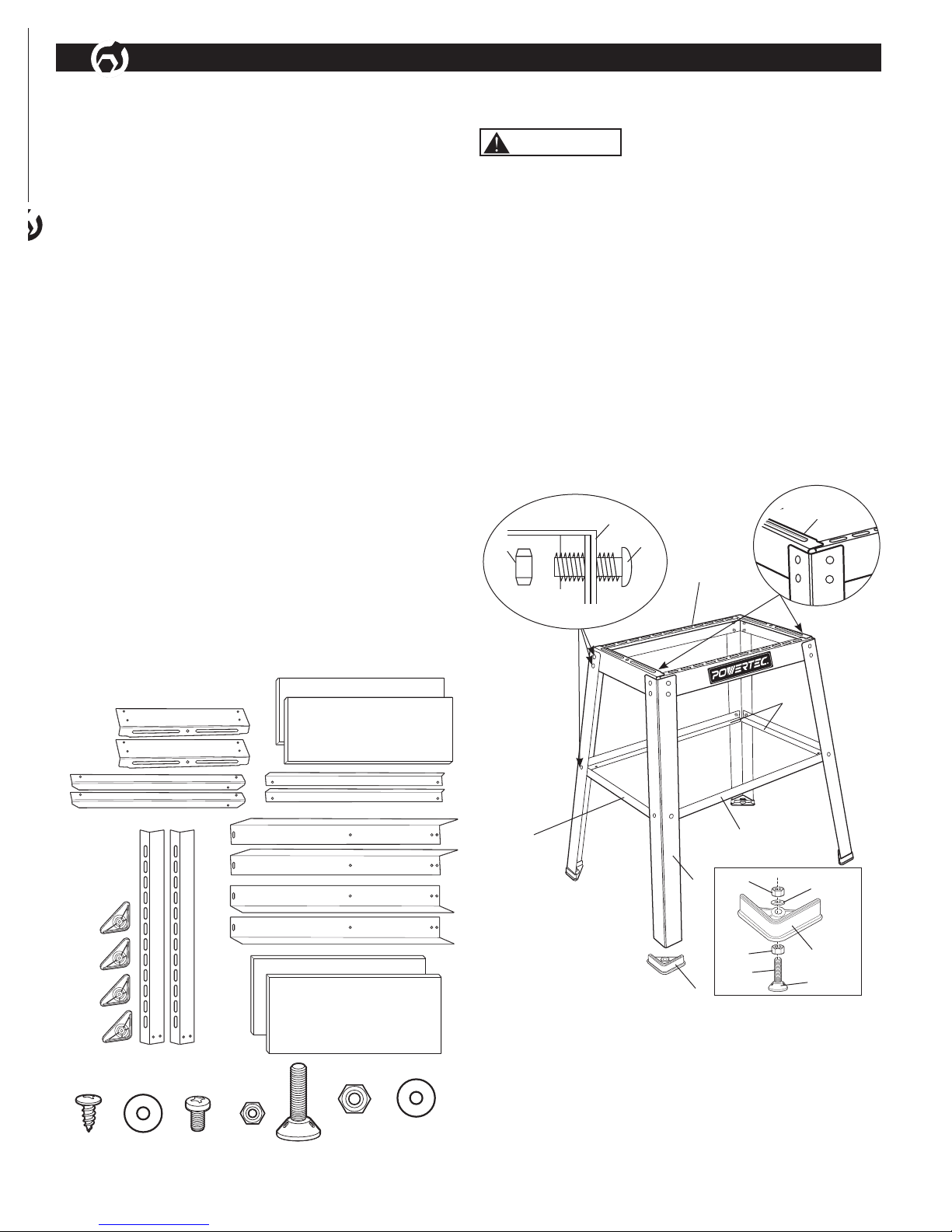

Figure 2
A
B
C
&
G
F
H
* ,
%
L (24)
J (12)
P (1)O (2)
M (1)
N(1)
2
ASSEMBLY
ASSEMBLY
Refer to Figure 3 - 5
WARNING
%POPUVTFUIJTuniversal stand for scaffolding or as a
ladder. Make sure to tighten all screws securely prior to
use. Maximum capacity is 500 lbs (227 kg).
NOTE: Use pan head screws and nuts to assembly all
components except the tabletop and leveling device.
NOTE: %POPUGVMMZUJHIUFOIBSEXBSFVOUJMUIFTUBOEJT
completely assembled. Always insert bolts from outside.
t "TTFNCMFPOFMPOHVQQFSDSPTTCSBDFUPUXPMFHTVTJOH
pan head screws and nuts.
t "TTFNCMFUIFMPOHMPXFSDSPTTCSBDFUPUIFUXPMFHT
Make sure the long lower cross brace is positioned so
the flange creates a ledge for the shelf.
t 3FQFBUBTTFNCMZPOPUIFSUXPMFHTMPOHCPUUPNBOE
top braces.
Figure 3
Frame
INSIDE OUTSIDE
Bolt
Nut
Short Upper
Cross Brace
Short Lower
Cross Brace
Long Lower
Cross Brace
Long Upper
Cross Brace
Ledge
Pad
Screw
Nut
Flat Washer
Nut
Foot
Foot
Leg
t $POOFDUUIFGPVSMFHTXJUIUIFTIPSUUPQBOECPUUPN
braces using carriage bolts and nuts. Make sure the
short upper cross braces overlap the long upper cross
braces as shown Figure 3 inset and the short lower
cross braces are positioned so the flange creates a
ledge for the shelf.
t 5JHIUFOBMMIBSEXBSF
ASSEMBLY
2

t )BSEXBSFJTTVQQMJFEUPNBLFPOFPGUIFGFFUBEKVTUBCMF
*OTFSUUIFTDSFXIFBEJOUPUIFQBEUISFBEUIFOVUPOUP
the screw, now assemble the foot, flat washer and nut,
Figure 3, inset.
NOTE: Adjust the foot by moving the nut on the screw
VQPSEPXO*GOFFEFEUIFGFFUDBOCFJOUFSDIBOHFEUP
place the adjustable foot on any leg.
t *OTUBMMGFFUUPUIFCPUUPNPGUIFMFHT'JHVSF
NOTE: The table top will adjust from 14" to 20" for
mounting larger bench tools. See Table Top Adjustment
under Applications.
t 1MBDFUIFGSPOUBOESFBSUBCMFUPQCPBSETGBDFEPXOPOB
flat surface. Make sure the ruler printed on the table top
is correct.
t 1PTJUJPOUIFBTTFNCMFEGSBNFPOUPUIFUBCMFUPQ
t "MJHOUIFQSFESJMMFEIPMFTJOUIFCPUUPNPGUIFUBCMFUPQ
with the slots in the top short braces. Attach the table
top to the short upper cross braces using the eight wood
screws and eight washers. Figure 4.
Figure 4
Wood
Screw
Flat
Washer
Top Short Brace
t "MJHOUIFDFOUFSQSFESJMMFEIPMFTJOUIFUBCMFUPQXJUIUIF
slots in the long upper cross braces and secure with two
wood screws and four washers. One additional washer
is placed between the long upper cross brace and the
table top.
t 5VSOUIFTUBOEUPUIFVQSJHIUQPTJUJPO
t 4MJEFUIFCPUUPNTIFMWFTJOUPQMBDF.BLFTVSFUIFZSFTU
on the ledge. Figure 5
Rear Table Top Front Table Top
Figure 5
Bottom Shelf
3
ASSEMBLY
NOTE: Contact the customer service center if any of these
parts are missing.
NOTE: After unit is assembled dispose of all packaging
material in an environmentally safe way.
APPLICATIONS
WARNING
%POPUVTFUIFVOJWFSTBMTUBOEGPSTDBGGPMEJOHPSBTB
ladder. Make sure to securely tighten all fasteners before
using. Maximum capacity is 500 lbs (227 kg). Power tools
on the universal stand should not exceed a combined
overall height of 60" (152.4 cm) from the floor.
When using the universal stand with a table saw, adjust
the table top to the largest opening so debris does not
accumulate.
%SJMMIPMFTBTOFFEFEJOUPUIFUBCMFUPQ.PVOUBMMQPXFS
tools with nuts and bolts (not supplied).
CAUTION
Be careful not to drill into the braces when drilling holes.
TABLE TOP ADJUSTMENT
Refer to Figure 6
NOTE: Assemble the table top in one of three positions.
For a solid surface, place the edges of the table top
boards together. For mounting larger bench tools adjust
the table top to 14" or 20".
t -PPTFOUIFFJHIUTDSFXTPOUIFTIPSUVQQFSDSPTT
braces. Remove the two screws and washers securing
the center of the long upper cross braces to the stand.
t 4MJEFUIFUBCMFUPQPVUBOEBMJHOUIFDFOUFSPGUIFMPOH
upper cross braces with the the pre-drilled holes at 14 or
20". Secure in place with the two wood screws and four
washers. One additional washer is placed between the
long upper cross brace and the table top.
t 5JHIUFOBMMPGUIFGBTUFOFST
Figure 6

GENERAL MAINTENANCE
WARNING
When servicing, use only identical replacement parts. Use
of any other parts may create a hazard or cause product
damage. To ensure safety and reliability, all repairs should
be performed by a qualified service technician.
MAINTENANCE
4
MAINTENANCE
4
WARNING
,FFQUIFVOJWFSTBMTUBOEESZDMFBOBOEGSFFGSPNPJMBOE
grease. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum based products
or any strong solvent to clean the universal stand .
Chemicals can damage, weaken or destroy plastic which
may result in serious personal injury

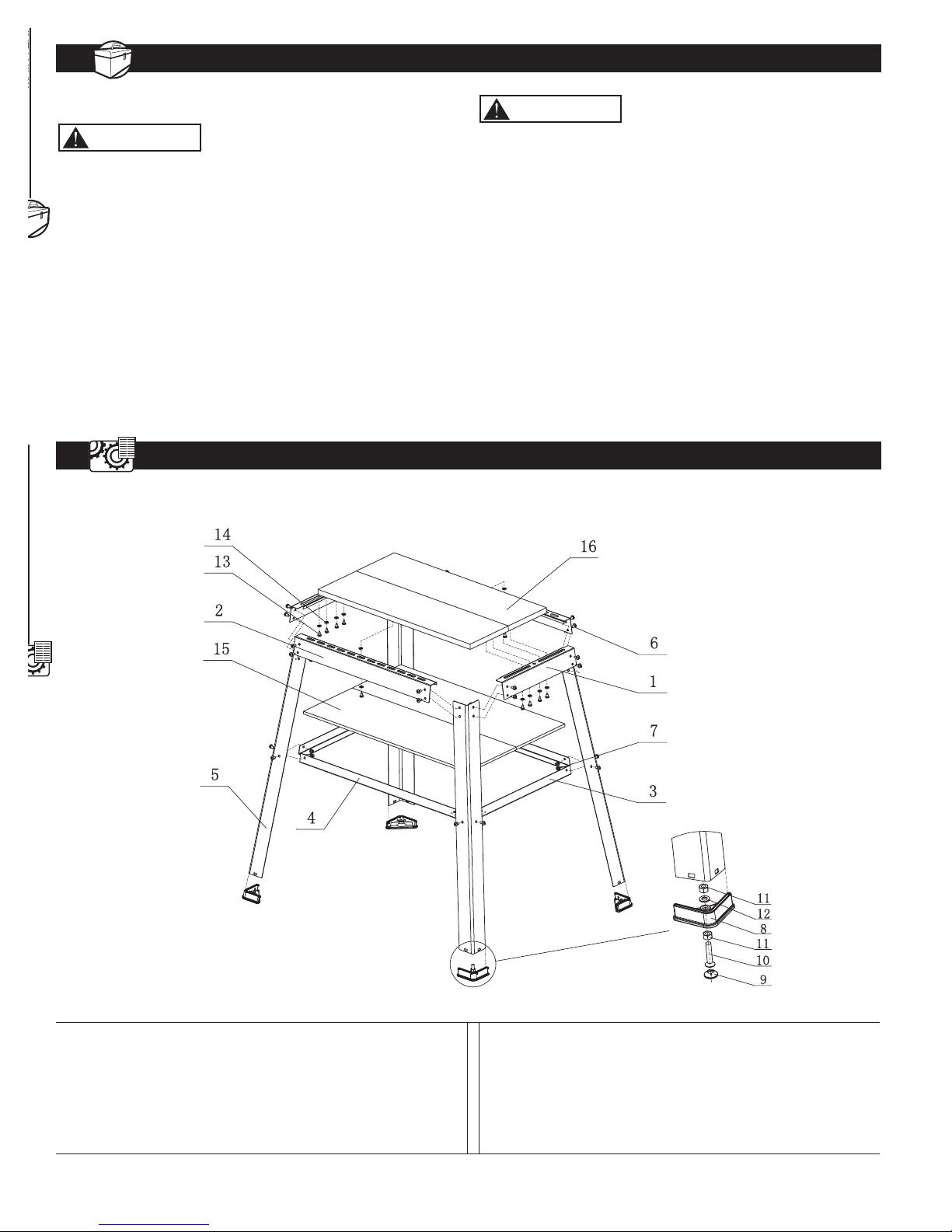

UNIVERSAL STAND PARTS ILLUSTRATION & LIST
4
PARTS LIST
4
Key No. Part No. Description Qty Key No. Part No. Description Qty
1 UT1002001 Short upper cross brace 2 9 UT1002009 Pad 1
2 UT1002002 Long upper cross brace 2 10 UT1002010 Countersink screw (M8*40) 1
3 UT1002003 Short lower cross brace 2 11 UT1002011 Nut (M8) 2
4 UT1002004 Long lower cross brace 2 12 UT1002012 Washer 8 mm 1
5 UT1002005 Leg 4 13 UT1002013 Pan head wood Nut (ST5.8x14) 10
6 UT1002006 Pan head screw (M6*10) 24 14 UT1002014 Washer 6 mm 12
7 UT1002007 Nut (M6) 24 15 UT1002015 Shelf (two pieces) 1
8 UT1002008 Feet 4 16 UT1002016 Tabletop (two pieces) 1

Thank you for investing in a POWERTEC power tool. This product has been designed and manufactured to meet high
quality standards and is guaranteed for domestic use against defects in workmanship or material for a period of 1 year
from the date of purchase. This guarantee does not affect your statutory rights.
SOUTHERN TECHNOLOGIES LLC. BENCH TOP AND STATIONARY POWER TOOL
LIMITED ONE YEAR WARRANTY AND 30-DAY SATISFACTION GUARANTEE POLICY
POWERTEC products are designed and manufactured by Southern Technologies LLC. All warranty communications
should be directed to Southern Technologies LLC.5FSSBDF%S.VOEFMFJO*-"UUOPOWERTEC technical
service; or by calling 1-877-393-7121 (toll free), 9 AM to 5 PM, Monday through Friday, US Central Time.
30- DAY SATISFACTION GUARANTEE POLICY
%VSJOHUIFGJSTUEBZTBGUFSUIFEBUFPGQVSDIBTFJGZPVBSFEJTTBUJTGJFEXJUIUIFQFSGPSNBODFPGUIJTPOWERTEC tool
for any reason, you may return the tool to the retailer from which it was purchased for a full refund or exchange. You
must present proof of purchase and return all original equipment packaged with the original product. The replacement
tool will be covered by the limited warranty for the balance of the one year warranty period.
LIMITED ONE YEAR WARRANTY
This warranty covers all defects in workmanship or materials in this POWERTEC tool for a one year period from the
date of purchase. This warranty is specific to this tool. Southern Technologies, LLC reserves the right to repair or
replace the defective tool, at its discretion.
HOW TO OBTAIN SERVICE
5PPCUBJOTFSWJDFGPSUIJT108&35&$UPPMZPVNVTUSFUVSOJUGSFJHIUQSFQBJEUP108&35&$:PVNBZDBMMUPMMGSFF
1-877-393-7121 for more information. When requesting warranty service, you must present the proof of purchase
EPDVNFOUBUJPOXIJDIJODMVEFTBEBUFPGQVSDIBTF108&35&$XJMMFJUIFSSFQBJSPSSFQMBDFBOZEFGFDUJWFQBSUBU
our option at no charge to you. The repaired or replacement unit will be covered by the same limited warranty for the
balance of one year warranty period.
WHAT IS NOT COVERED
This warranty applies to the original purchaser at retailer and may not be transferred.
This warranty does not cover consumable items such as saw blades, knives, belts, discs, cooling blocks and sleeves.
This warranty does not cover required service and part replacement resulting from normal wear and tear, including
accessory wear.
5IJTXBSSBOUZEPFTOPUDPWFSBOZNBMGVODUJPOGBJMVSFPSEFGFDUSFTVMUJOHGSPN
1) misuse, abuse, neglect and mishandling not in accordance with the owner's manual.
2) damage due to accidents, natural disasters, power outage, or power overload.
3) commercial or rental use.
4) alteration, modification or repair performed by persons not recommended by POWERTEC.
DISCLAIMER
5PUIFFYUFOUQFSNJUUFECZBQQMJDBCMFMBXBMMJNQMJFEXBSSBOUJFTJODMVEJOHXBSSBOUJFTPG.&3$)"/5"#*-*5:PS
'*5/&44'03"1"35*$6-"3163104&BSFEJTDMBJNFE"OZJNQMJFEXBSSBOUJFTUIBUDBOOPUCFEJTDMBJNFEVOEFS
state law are limited to one year from the date of purchase. Southern Technologies LLC. is not responsible for direct,
indirect, incidental or consequential damages. Some states do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Southern Technologies LLC., makes no warranties, representations, or promises as to the quality or
performance of its power tools other than those specifically stated in this warranty.
WARRANTY 5
WARRANTY
5

Southern Technologies, LLC
5FSSBDF%SJWF
.VOEFMFJO*MMJOPJT
