PowerAcoustik CPAA-70M User manual

Owner’s Manual
CPAA-70M
EN
2-Din Headunit
MP3/MP4/USB/SD/AUX
Built-in AM/FM
Supports Apple CarPlay
Supports Android Auto

INTRODUCTION
2
Clean only with a dry cloth or other similar materials.

CONTENTS
Pannel Function Introduction
................................
. 7
2
4
5
6
Remote Control Introduction........................................... . 8
Functions & Applications ................................................. .10
Basic Operation
Main Menu
Radio
Phone
External Play Device
Music
Settings Operation
Aux In
Android Auto/Carplay
Common Trouble-shooting.............................................. .19
Wiring Connection
...........................................................
.
Introduction
...........................................................
.
Installation & Accessories ................................................
.
Parking & Speaker connection
....................................... .
Specification ......................................................................20
3

4

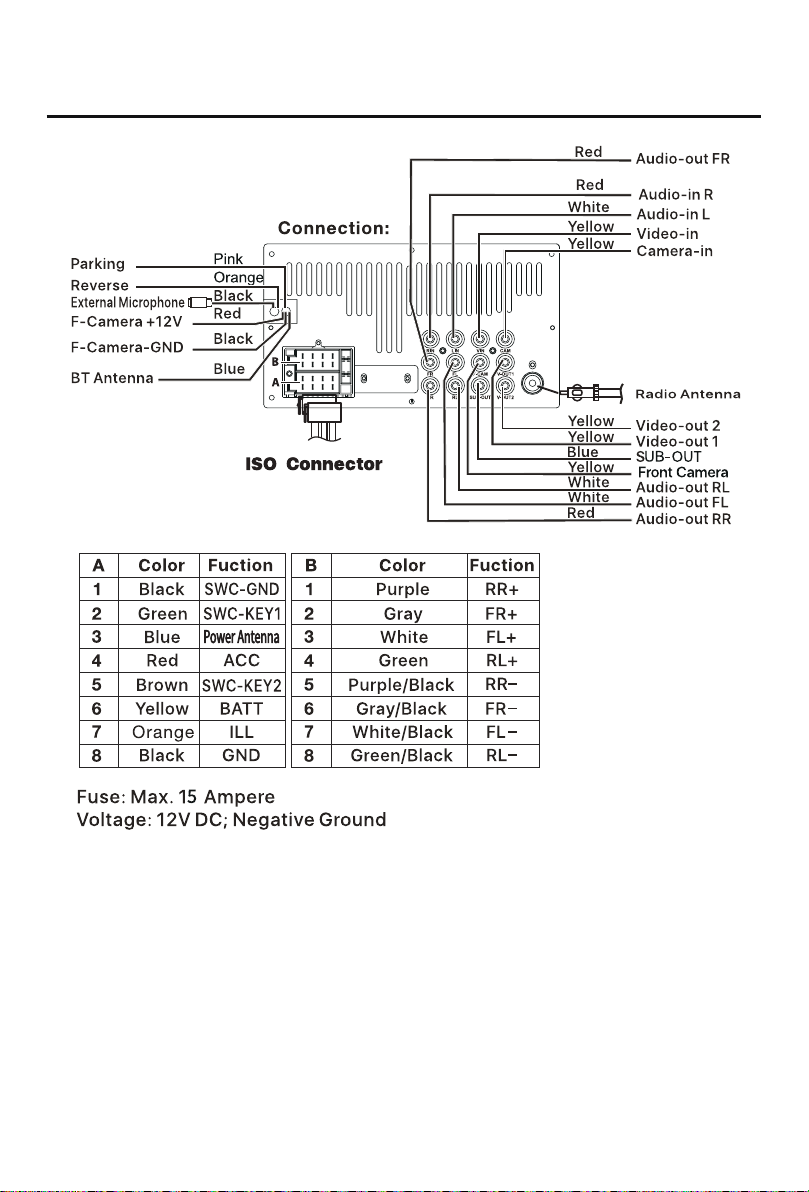

WIRING CONNECTION

INSTALLATION & ACCESSORIES
-
5
Owner’s M anual
CPAA-70M
EN
2-Din Headun it
MP3/MP4/USB/SD/AUX
Built-inAM/FM
SupportsApple CarPlay
SupportsAndroid Auto
Note:
Put the 2 brackets to the left and right side of the headunit.
Use screws to brackets to th .
1. Make sure the ignition is
turned off, and disconnect the
cable from the vehicle battery’s
negative (-) terminal. You never
want electricity running white
you install this 2-DIN car receiver.
2. Before installation, discon-
nect the wire harness and the
antenna.

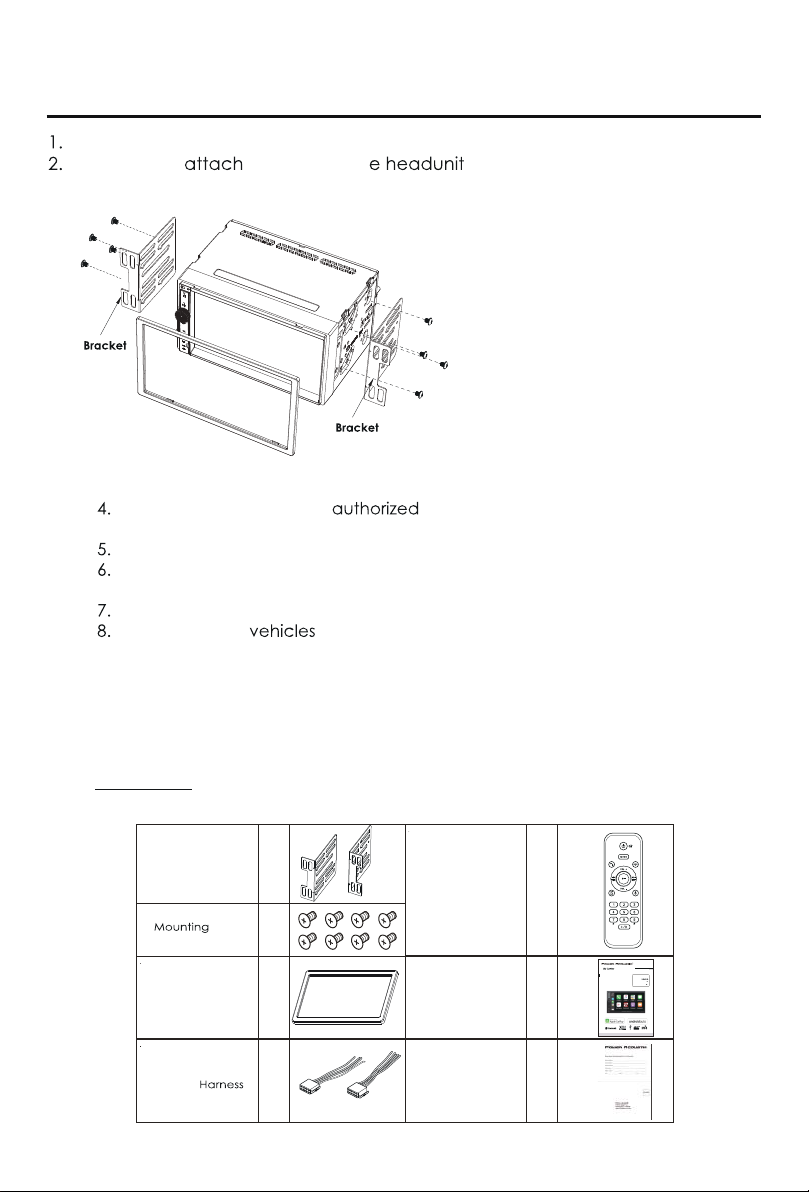

3. Attach the brackets on the
both sides of the car receiver
with screws as shown as the
figure. Please buy from your
dealer according to the drilling
of holes size.
Package contains the following for installation and operation of the unit.
Screws
User Manual
Trim Ring
Remote Control
Mounting
Brackets
Consult with your nearest dealer if installation requires the drilling
of holes or other modification of the vehicle.
Install the headunit in the dashboard.
Connect the wire harness & antenna to the car receiver being carefully
not to pinch any wires or cables.
Install the plastic outer trim ring if needed onto the headunit.
Reconnect the battery and run through all of the options on this car
receiver to ensure that everything is working correctly.
9. Resuts will vary widely depending upon the kind of your car and the car you
intend to install it in. Please choose the correct installation method according
to the actual situation of your car. Always contact the car dealer or
manufacturer if you have any questions.
ACCESSORIES
(2) 8
(1) 2
(3)
1
(4)
Warranty Card
(6) Power
1
(5)
1
(7)
1
1
ISO A ISO B

PARKING & SPEAKER CONNECTIONS:
6
Speaker Connection
Note: To watch video the parking wire should be
c o nnec t e d t o brake si gnal
Parking wire
Note: The parking wire is connected with brake
signal; for safety, the programs can be seen on
the .

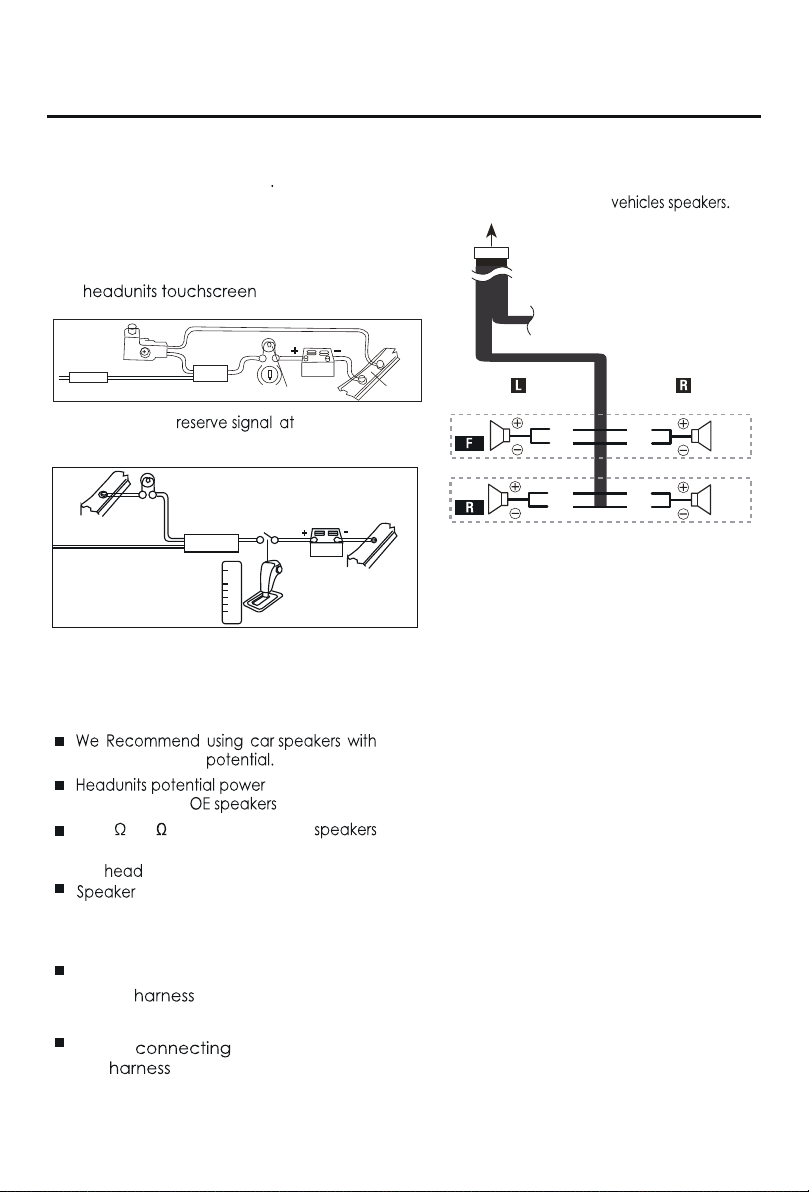

Connecting the taillight on the
car (10V+ Required for Signal)
After connecting, when you start up the reverse
gear, the unit will receive the picture from car rear
view camera.
Connect the speakers according the
following diagram, incorrect connections will
damage the unit or your
minimum 40Watt
may result in
damaging your at higher volumes.
Use 4 ~ 8 (Ohm impedance) only;
using higher or lesser impedance may damage
the unit.
cables and/or optional external power
amplifiers must always be about 30cm away
from the antenna and/or antenna extension
parts.
Do not connect the speaker leads of the
power to battery; otherwise, the
unit will be seriously damaged.
Before the speaker leads of
the to the speakers, check the
speaker wiring in your car.
White
Green
Grey
Purple
2A
Parki ng brake lead
Brown wir e
Brake light
12 V
batter y
Car frame
12V
Car frame
Battery
Reverse driving light
Car frame
Pink wire
Rear view video camera lead
P
R
N
D
L
2
Gearbox

7

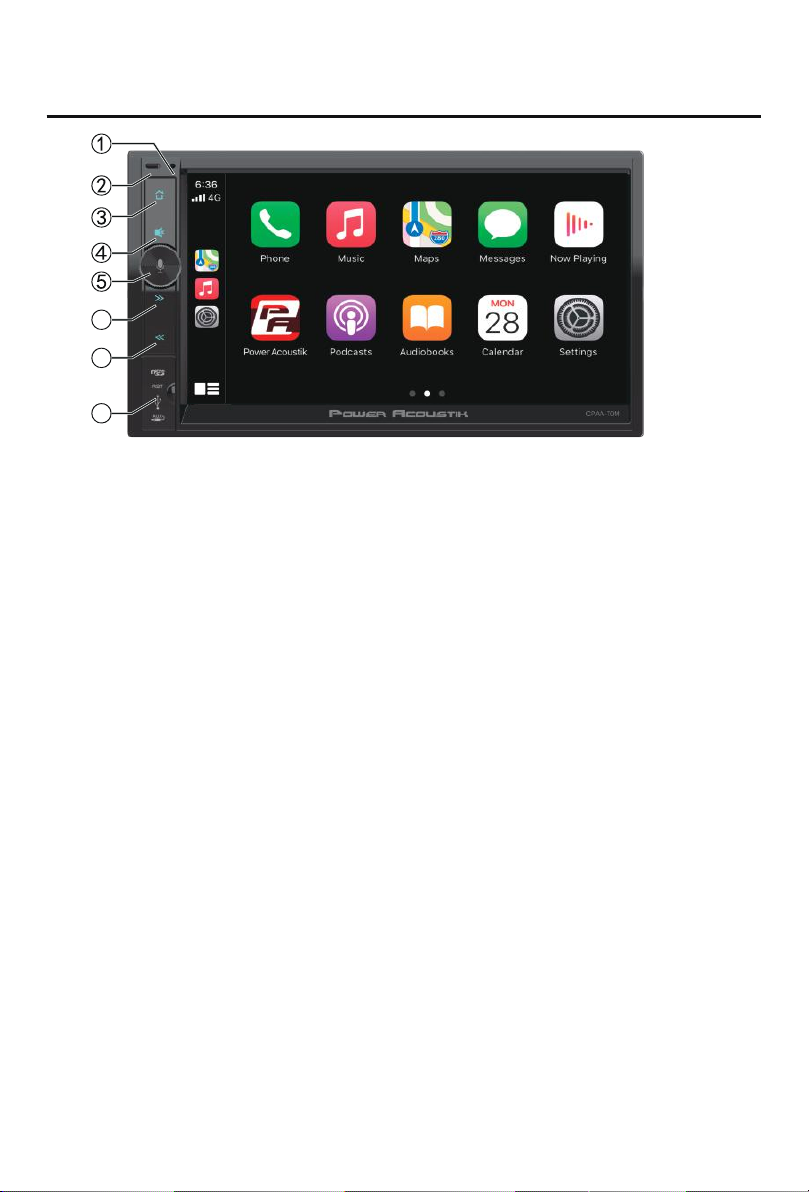

PANNEL FUNCTION INTRODUCTION
Reset:
USB:
AUX:
If the unit or the connected unit fails to operate properly,
the unit returns to factory settings when this button is pressed.
4. Mute: Press to Mute / Unmute.
When the unit is power off, short press to Power ON
When the unit is working, long Press to Power Off.
Rotate to adjust the headunit’s volume.
Short Press to active Siri/AA voice function .
5. Rotary Knob:
8. Micro SD:
6. NEXT: Short Press: [Radio] Switch to the next preset.
[USB/SD] Select next track.
[CP/AA/BT Phone] Select next track.
Long Press: [Radio] - Automatic seek (upward).
[USB/SD] - Fast forward.
7. Previous: Short Press: [Radio] Switch to the previous preset.
[USB/SD] Select previous track.
[CP/AA/BT Phone] Select previous track.
Long Press: [Radio] - Automatic seek (downward).
[USB/SD] - Fast rewind.
1. Microphone: Built-in Microphone.
3. Home: Press to enter main menu.
2. Remote Sensor: Receive the remote signal.
Insert Micro SD for Music/Video Playback.
Insert USB for Music/Video Playback.
Insert 3.5mm AUX for Audio Playback.
6
7
8

When the unit is power off, short press to Power ON
When the unit is working, long Press to Power Off.
6. NEXT: Short Press: [Radio] Switch to the next preset.
[USB/SD] Next track.
[CP/AA/BT Phone]Next track.
Long Press: [Radio] - Automatic seek (upward).
[USB/SD] - Fast forward.
7. Previous: Short Press: [Radio] Switch to the previous preset.
[USB/SD] Select previous track.
[CP/AA/BT Phone] Previous track.
Long Press: [Radio] - Automatic seek (downward).
[USB/SD] - Fast rewind.
REMOTE CONTROL INTRODUCTION
1. Power On/Off:
3. Answer button:
[CP/AA/BT Phone] - Call out /Answer a call.
2. Mode: Press to switch mode.
4. Reject button: [CP/AA/BT Phone] - Reject an incoming call /Hang up
the calling.
5. VOL+: Increase volume.
Short Press: When the unit is working, short press to Mute / Unmute.
8
11
12

Press to active Siri/AA voice function (When the iPhone/Android
phone is connected).
Press to enter CarPlay / Android Auto directly (When the
iPhone/Android phone is connected).
Short Press: Play or Pause.
Long Press: Confirm the selection.
Decrease volume.
9. VOL-:
10. Siri:
11. CP/AA: TM TM
REMOTE CONTROL INTRODUCTION
12. Number:
Note: BT Phone - Long press the button “7” to input the content
" ";
Long press button "9" to input the content "#";
Long press "0" to input the content "+".
9
8. Play/Pause:
[1-6] (AM/FM) , press any one of the number key 1-6 to
select a station that had been stored in the preset
memory number key 1-6 for broadcasting.
[0-9] (USB/SD) , press directly to input the number of
track for playback.
[0-9,*,#]
(Phone) , press directly to input the number for
dial out.

will show the languages setting
During initial power on, the unit
interface, select the required
country and language, then press
“√” to enter the main menu.
Radio: Shows the Radio interface.
Phone

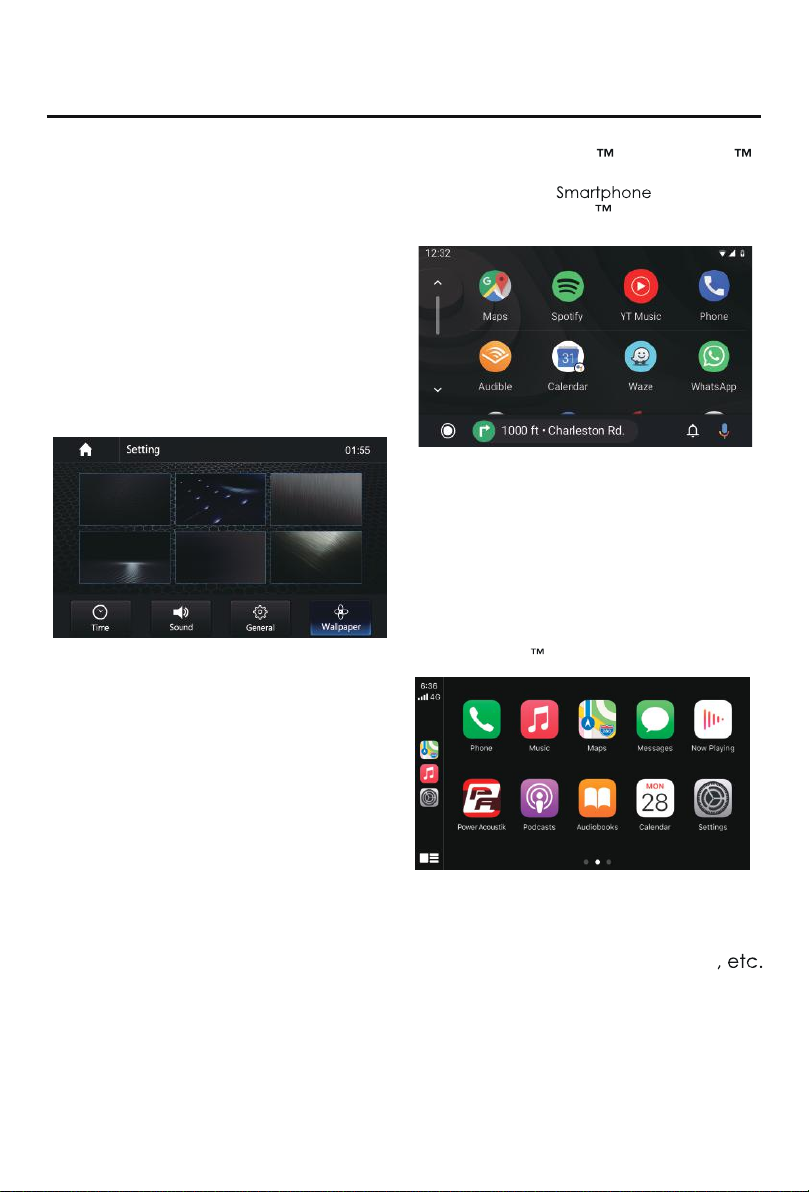

Android Auto /CarPlay :
: Shows the Bluetooth interface.
TM TM
Shows the relevant interface based
on your connected device.
USB: Shows the USB playback
interface for compatible files.
BTMusic: Shows the BT music
playback interface.
Card : Shows the TF Card interface,
enabling playback for compatible files.
FUNCTIONS APPLICATION
Basic Operations
Main Menu
Please refer to the actual menu
display for reference.
Radio
Touch “Radio” in the main menu to
enter the AM/FM radio interface.
【】To return to the main menu.
【】Switch between FM1/FM2/FM3
/AM1/AM2.
【】Enter the EQ settings interface.
【】Switch LOCAL or DX.
Seting : Shows the Settings interface.
F-camera: Turn on the front camera.
AV-In: Shows the AV-IN interface.
10
【 】
Shows the Radio tuning
input interface, input the
frequency directly or selected
preset stations to start playing.
Short press to browse the stored
Preset stations.
Long press to automatically search
and save stations with the strongest
signals into the presets.
【】

Short press to search backward
for stations
press to step back.
automatically,Long
Short press to search forward
for stations
press to step.
automatically,Long
【】
【】
RDS Function
RDS will allow you to display
information such as traffic status,
radio station name and more.
The unit can automatically
switch to the strongest station
based on the similar program.
TA: "TA" is displayed during a
switched-through traffic
announcement.
PTY: Shows program types, and
allows you to search for stations
according to different programs
as below:
FUNCTIONS APPLICATION
11
: Keyboard, enter call mode.
: History, show the call record,
missed, received and dialed
calls
: Phone book, show the phone-
book connected phone
: Setup
Pair/Connect
Phone
This unit allows for hands free
calling, using your phone’s
Bluetooth connection to the unit,
you’ll be able to dial, answer,
access phone book and
playback music.
Enter the Bluetooth interface
using the Bluetooth button.
Connect your phone to the unit
using the below steps.
1. Access the Bluetooth
connection interface in your
phone.
2. Search for Bluetooth devices
from either the unit or phone.
3. The device will pop up the pairing
code and click "pairing" to complete
the connection.
CPAA-70M

FUNCTIONS APPLICATION
12
Dial
Receive an incoming call
Touch to make a call.
Once the phone and unit are
connected successfully, you’ll be
able to make calls from the unit.
No Pair:
Paired:
Search the available devices.
Manage the connected device. Answer the incoming call.
Reject the incoming call.
Set auto answerand load phone
book.
CPAA-70M
CPAA-70M
CPAA-70M
Touch to delete numbers one
by one, long press to delete all
inputted numbers.
Touch to show the numbers
keyboard, touch again to exit.
Touch to hang up the call.
Touch to switch call audio
to phone or AV receiver.
Touch to mute.
CPAA-70M
CPAA-70M

FUNCTIONS APPLICATION
13
Note: You can also manage
calls through your phone.

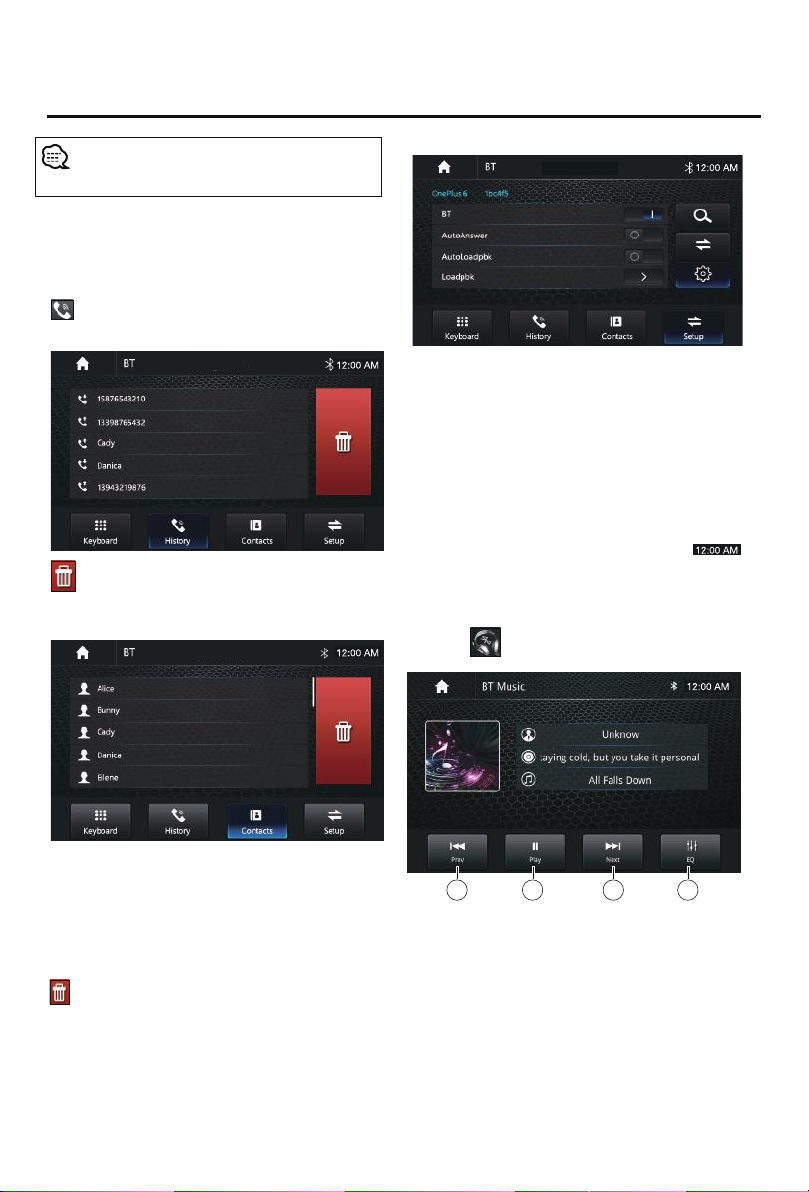

Calling Record
Check for dialed/answered/
missed calls history. Touch
icon to enter calling record
interface:
: Delete desired calls.
Phone Book
BT Setup
:Delete Contacts.
When your phone and unit are
paired, the unit can automatically
reach contacts from your phone
and store them within the unit.
(selected phones only)
VRCPAA-70M
VRCPAA-70M
4. EQ settings
Bluetooth Audio Playback
Touch to enter music interface.
1. Play previous song.
2. Play/pause current song.
3. Play next song.
BT Switch the BT function is On
or Off .
“Auto Answer”, Incoming call auto
answer.
“Auto Loadpbk”, On /OFF, when
connect phone auto load
phonebook on or off. “Loadpbk”,
Manually load phonebook.
1 2 3 4
CPAA-70M
CPAA-70M

FUNCTIONS APPLICATION
14

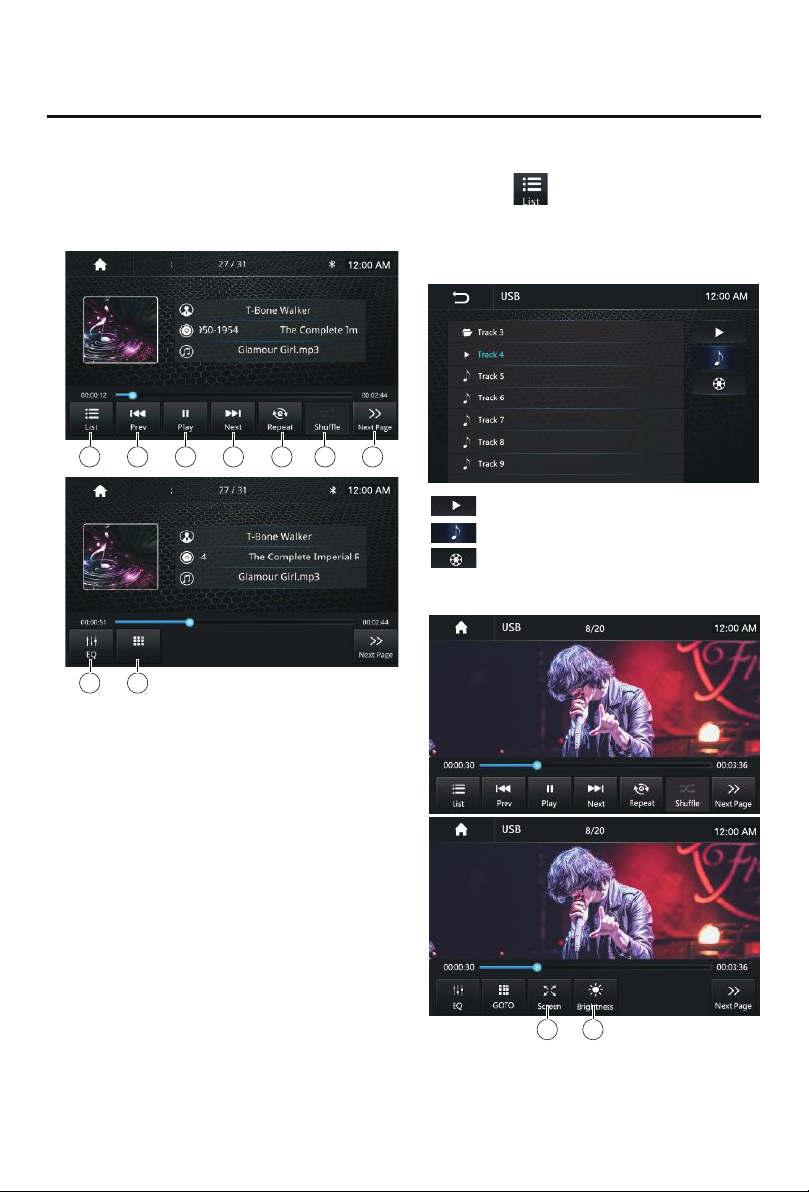

File List browsing
Video playback
Touch to browse the folder
and file list of the USB device.
You can select the multi-media
type
External Play Device
:
1 2 3 4 5 6 7
8 9
When you connect a compatible
data device to your unit, the
following interface will appear.
Return to playing previous file.
Select Audio or Music files.
Select Movie or Video files.
USB
USB
GOTO
5. Repeat mode
Repeat all - Repeat off - Repeat
single
6. Random playback on/off
7. Next page
8. EQ settings
9. Numbers selection playback 1. Magify the display screen.
2.Adjust the display brightness.
1. USB List Menu
2. Short press: Play previous song/
media.
Long press: Fast reverse.
3. Play/pause current song/media
4. Short press: Play next song/
media.
Long press: Fast forward.
1 2

FUNCTIONS APPLICATION
15

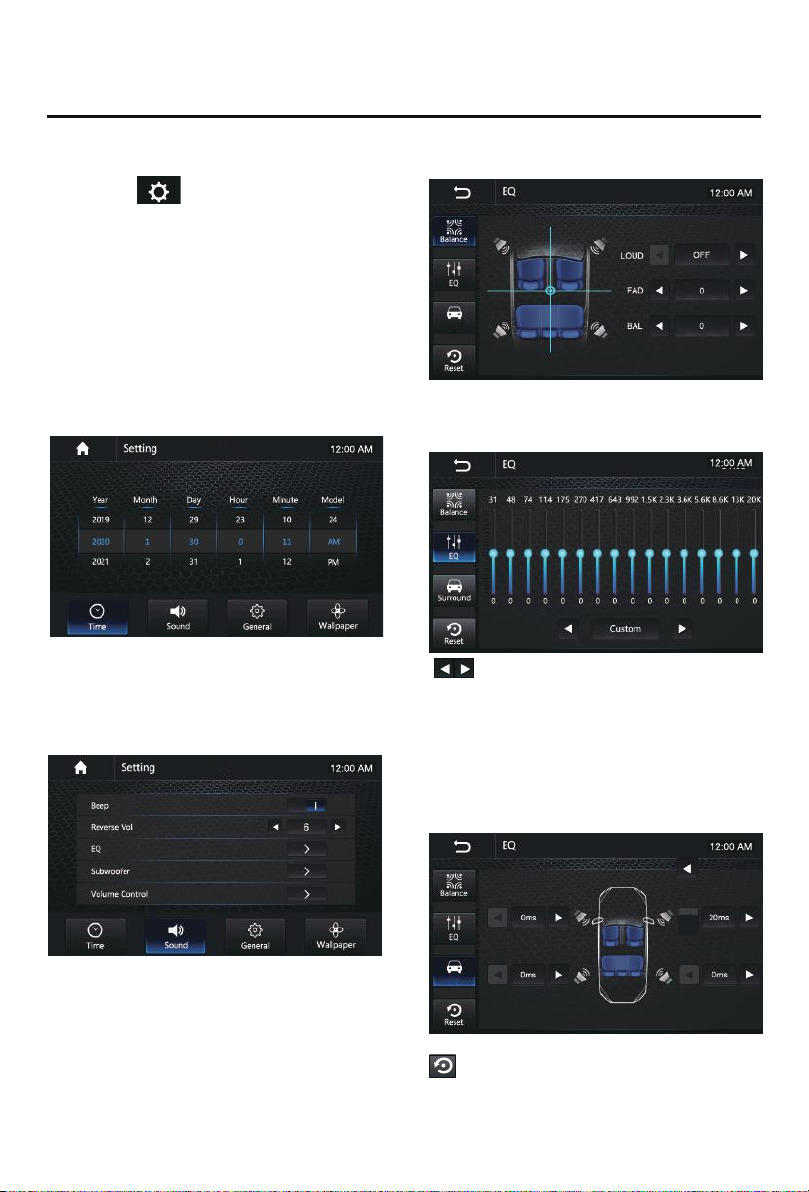

Settings Operation
Touch “ ” icon from main
menu to enter the settings
interface.
Time Setting
Touch “time” to enter time setting
Up/down sliding can set Year/
Month/Day/Hour/Minute/Model.
Up/Down sliding to select the
desired selection.
Sound Setting
Touch “Sound Setting” to enter
sound setting interface:
: Select desired equalizer:
Standard>Custom>Classic>
Rock>Jazz>Electric>Pop>Soft
In Custom, can adjust the 16-band
frequency gain -7 - +7.
: Reset to default settings.
Surround
Surround
Surround
BEEP: Switch the Beep is On /Off.
LOUD: Switch the Loud is On /Off.
Fader: Adjust the fader F7-R7.
Balance: Adjust the balance L7-R7.
Reverse Vol: Adjust the Vol 0-20.
Fader / Balance:
EQ:
Surround:

:Adjust the screen’s brightness
from 1-10.
Contrast
Reset
FUNCTIONS APPLICATION
General Setting
Brightness
Touch the icon to set the brightness
and contrast of the screen.
Touch Reset to default settings.
Video Control:
16
Subwoofer: Switch the Subwoofer
is On /Off.
RDS: Switch the RDS is On /Off.
Subwoofer Frequency: Select
50Hz>80Hz>120Hz>160Hz
Subwoofer Level: Adjust the value
-12-+12.
Set the Main / BT Talking /Navi /
Voice default volume value.
Subwoofer:
Subwoofer
Subwoofer Frequency
Subwoofer Level
80Hz
Volume Control:
Main
Voice
BT Talking
Navi
46
46

FUNCTIONS APPLICATION
17
Touch
the icon to turn ON/OFF the Driver
Forbidden Watch video
Driver Forbidden Watch video:
Touch the icon
to adjust the brightness mode and
relevant functions.
Seven Colour Light:
LED Panel-Light:
Driver Position:
MIC Switch
Note: External Microphone is
exclude.
Note: If you select right driver
position, the Apple CarPlay UI
will be change to right mode.
: Touch icon to
Touch icon to
Touch icon to
select required LED light color:
RED/ YELLOW/GREEN/BLUE/PURPLE
/CYAN/WHITE.
change front or rear external mic.
select the driver position is Left or
Right.

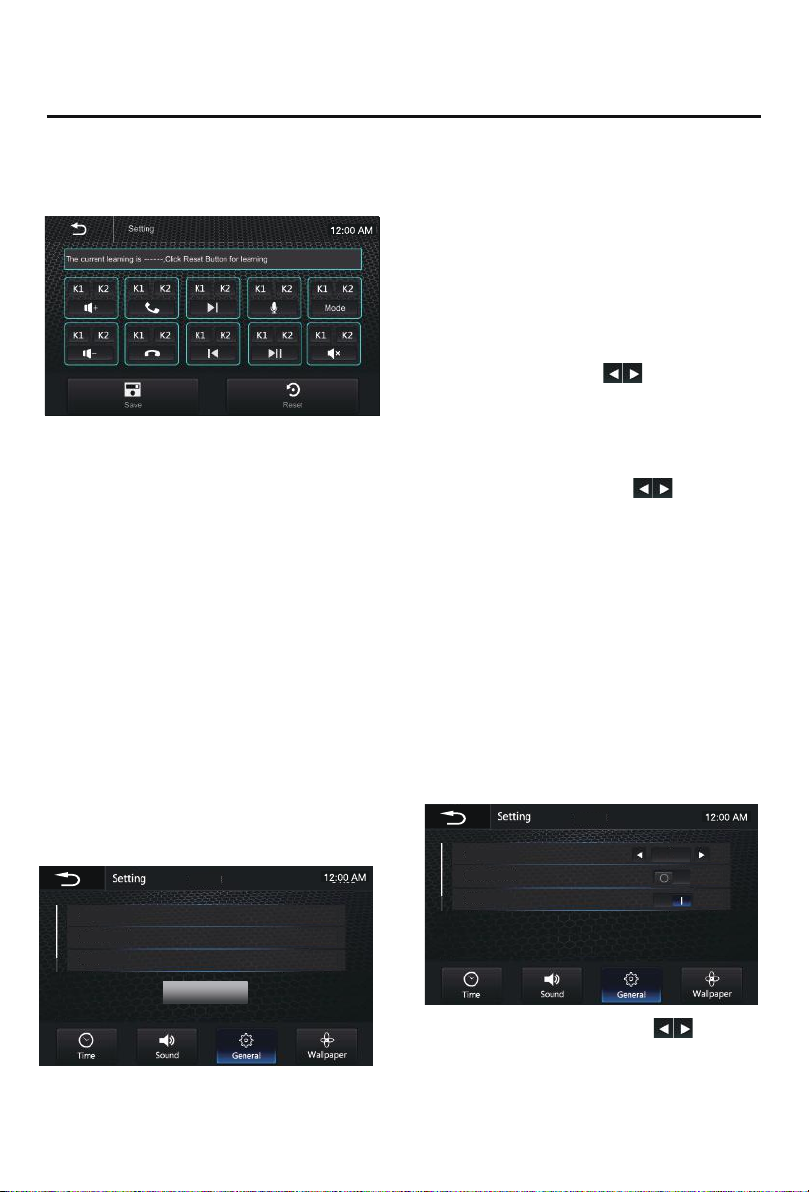

SWC: Touch “SWC” icon to enter
the steering wheel control menu.
wheel control menu.
Short time press the key of the car
radio SWC screen first and then long
time press corresponding button of
car steering wheel for learning and
setting .
Note: Press the “Reset” before you
start the setting.
Radio Area: Choose the required
radio region.
America / Europe / Eastern Europe
/ Japan / Southeast Asia /Latin
America / South America / Asia/
Australia.
Serial/Version: Touch the icon to
enter serial number and version
number interface,to check the
needed information.
Language: Touch the icon to enter
language setting interface,
select the required language.
Reset Factory Data
Once selected, the unit will
prompt to confirm reset to factory
settings. Once confirmed the
system will automatically reboot.
Demo Mode
LED Panel-Light
LED Switch
SW Version(APP):
SW Version(MCU):
Bluetooth MAC:
System upgrade
Blue

FUNCTIONS APPLICATION
18
Demo Mode:
LED Switch:
Touch to switch
Touch to switch
Demo Mode is On or Off.
The panel Led will change
automatically cycling.
the panel Led is On or Off.
Wallpapers Setting
Choose the required wallpaper,
touch “wallpaper setting” icon
to enter the setting interface.
AV In
Insert video input connector to
input video’s input jack, audio
input conencto to input audio’s
input jack, touch “AV-IN” icon
from main menu to enter the AV IN
interface.
AUX In
Insert AUX input connector to
AUX jack onto front panel.
Touch “AUX-IN” icon from main
menu to enter the AUX IN interface.
Android Auto /CarPlay
Connect Android to the unit to
enter the Android Auto interface.
The unit can be used to call,
play music, view maps, check
traffic information, return to the unit’s
main interface, listen to Podcasts,
read Audiobooks and so on.
Connect iPhone to the unit to enter
the CarPlay interface.
The
headunit can be used to make
calls, play music, view maps, check
traffic information,return to the unit’s
main interface, listen to Podcasts

19
COMMON TROUBLE-SHOOTING
Problem Cause Correct action
Cannot power on
Check fuse Replace fuse
Other factors
causing MPU to
malfunciton
Press RES button on the
panel using a sharp point
then power on
After ignition
switch off, setting
information are lost
Change battery or
fuse Reset information and save
Poor performance
of radio station Weak signal Move the car to another place, then try again
No Picture/Image
Other factors
causeing MPU to
malfunction
Press RES button on the
panel by penpoint, then,
power on
Cannot watch
video during
driving
Video viewing is
not allowed during
driving.driving
Park the car in,put the car in
“P” position, pull up the
hand brake, parking brake
wire must be grounded.

General
Power Supply............................................................................DC10-16V
Grounding System......................................................Negative Ground
Current Drain............................................................................15A(Max.)
Speaker Impedance...............................................4 ohm per channel
Frequency Response............................................................20Hz~20kHz
Operating Temperature..........................................................-20~+60℃
Dimensions.......................................178mm(W)x125mm(D)x100mm(H)
TFT Display
TFT Screen Size.................................................................................7 inch
Resolutionn.......................................................................1024x600 Pixels
FM Radio
Frequency Range(USA)..................................................87.5~107.9MHz
Frequency Range(Europe)............................................87.5~108.0MHz
Enable Sensitivity (S/N=30dB)........................................................≤15dB
SN Ratio...........................................................................................≥55dB
Stereo Separation..........................................................................≥30dB
AM Radio
Frequency Range(USA).....................................................530~1710KHz
Frequency Range(Europe)...............................................522~1620KHz
Enable Sensitivity (S/N=20dB)........................................................≤40dB
SN Ratio...........................................................................................≥45dB
Line-out / Subwoofer Output
Maximum Output Level (10Kohms load).................................≥4V rms
Subwoofer Output Level............................................................≥4V rms
SPECIFICATION:
20
