INSTRUCTION MANUAL
EN 22" 3-in-1 Self Propelled Lawn Mower
FR 22" 3-in-1 Tondeuse autopropulsée
ES 22" 3-en-1 Cortadora de césped autopropulsado
Model # DB2322S
Have product questions or need technical support? Please feel free to contact us!
Website: www.Amerisuninc.com
www.powersmartusa.com
Toll free: 1-800-791-9458 Mon-Fri 9-5 EST
Email: [email protected]

2

3
CONTENTS
Technical data…...………………………………………………………... 3
Introduction………………………………………………………………. 4
Safety information…….………………………………………………... 4
General safety procedures ……....……………………………………… 5
Important safety instructions……………………………………………. 6
Knowing your lawn mower……………………………………………… 8
Lawn mower preparation………………………………………………... 9
Operation……………………....………………………………………… 12
Maintenance……………………………………………………………... 16
Storage……………………………………………………………………. 19
Troubleshooting…………………………………………………………. 20
Exploded view & parts list……………………………………………… 21
Warranty………………………………………………………………… 28
TECHNICAL DATA
22" 3-in-1 Self Propelled Lawn Mower Model # DB2322S
Engine type: 4 stroke, OHV, single cylinder with forced air cooling system
Displacement: 196 cc
Fuel tank capacity: 0.9 Gallon
Oil capacity: 18 fl.oz
Cutting width: 22 inch
Cutting height: 1.2 – 3. 5 inch
Height adjustment: 5 Position
Drive type: Rear- wheel drive
Grass catcher capacity: 1.5 Bushels
Wheel: Front: 8 inch / Rear: 11.5 inch
Package dimensions (L x W x H): 37.6 x 24.4 x 18.1 inches
Weight: 80.5 lb
EN

4
INTRODUCTION
Thank You for Purchasing a PowerSmart
®
Product. This manual provides information regarding the safe
operation and maintenance of this product. Every effort has been made to ensure the accuracy of the
information in this manual. PowerSmart
®
reserves the right to change this product and specifications at
any time without prior notice.
Please keep this manual available to all users during the entire life of the lawn mower.
This manual contains special messages to bring attention to potential safety concerns, lawn
mower damage as well as helpful operating and servicing information. Please read all the
information carefully to avoid injury and machine damage.
QUESTIONS? PROBLEMS?
Please contact our Customer Service Dept. with any questions and/or comments, either by Email:
[email protected], or Toll Free at [phone]. We are available Mon-Fri 9am-5pm EST to
help solve any issues that you might encounter.
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road
Equipment), are certified to operate on regular unleaded gasoline, and may include the following
emission control systems: (EM) Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
SAFETY INFORMATION
Before operating this lawn mower, read and observe all warnings, cautions, and instructions on the lawn
mower and in this Owner’s Manual.
NOTE: The following safety information is not meant to cover all possible conditions and situations that
may occur. Read the entire Owner’s Manual for safety and operating instructions. Failure to follow
instructions and safety information could result in serious injury or death.
This safety alert symbol is used to identify safety information about hazards that can result in personal
injury.
A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to
indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may
be used to represent the type of hazard.
DANGER indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION when used without the alert symbol, indicates a situation that could result in damage to the
engine.

5
GENERAL SAFETY PROCEDURES
For any questions regarding the hazard and safety notices listed in this manual or on the product, please
call [phone] Mon-Fri 9-5 EST before using the engine.
DANGER: CARBON MONOXIDE
Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon
monoxide (CO). This is a poison gas you cannot see or smell. If you can smell the engine exhaust, you are
breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.
NEVER use an engine inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan, or opening windows and/or doors will NOT
properly vent CO nor supply adequate fresh air. ONLY use an engine outside and far away from windows,
doors, and vents. These openings can pull in engine exhaust.
Even if you use an engine correctly, CO may leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the engine has been
running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING: The exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING: This engine may emit highly flammable and explosive gasoline vapors, which can cause
severe burns or even death if ignited. A nearby open flame can lead to explosion even if it isn’t directly in
contact with gasoline.
• Do not operate near an open flame.
• Do not smoke near the engine.
• Always operate on a firm, level surface.
• Always turn engine off before refueling. Allow engine to cool for at least 2 minutes before
removing fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank.
Allow for expansion.
• Always check for spilled fuel before operating.
• Empty fuel tank and carburetor bowl before storing or transporting the engine.
WARNING: This engine produces heat when running. Temperatures near exhaust can exceed 150
0
F
(65
0
C).
Do not touch hot surfaces. Pay attention to warning labels on the engine identifying hot parts of the
machine.
Allow engine to cool down after use before touching engine or areas of the engine that become hot during
use.
CAUTION: Misuse of this engine can damage it or shorten its life.
Only use engine for its intended purposes.

6
IMPORTANT SAFETY INSTRUCTIONS
General Operation
Read, understand, and follow all instructions on the machine and in the manual(s) before starting.
1. Do not put hands or feet near or under the machine. Keep clear of the discharge opening at all times.
2. Only allow responsible adults, who are familiar with the instructions, to operate this machine.
3. Clear the area of objects such as rocks, wire, toys, etc., which could be thrown by the blade. Stay
behind the handle when the engine is running.
4. Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.
5. Do not operate machine barefooted or while wearing sandals. Always wear substantial footwear.
6. Do not pull machine backward unless absolutely necessary. Always look down and behind before and
while moving backward.
7. Never direct discharged material toward anyone. Avoid discharging material against a wall or
obstruction. Material may ricochet back toward the operator. Stop the blade when crossing gravel
surfaces.
8. Do not operate machine without the entire grass catcher, discharge guard, rear guard, or other safety
protective devices in place and working.
9. Never leave a running machine unattended.
10. Stop the engine and wait until the blade comes to a complete stop before cleaning the machine,
removing grass catcher, or unclogging the discharge guard.
11. Operate machine only in daylight or good artificial light.
12. Do not operate machine while under the influence of alcohol or drugs.
13. Never operate mower in wet grass. Always be sure of your footing; walk; never run.
14. Disengage the drive system, if so equipped, before starting the engine.
15. If the machine should start to vibrate abnormally, stop the engine and check for the cause
immediately. Vibration is generally a warning of trouble.
16. Always wear eye protection when operating machine.
17. See manufacturer's instructions for proper operation and installation of accessories. Only use
accessories approved by the manufacturer.
Slope Operation
Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on
all slopes require extra caution. If you feel uneasy on a slope, do not mow it.
1. Mow across the face of slopes; never up and down. Exercise extreme caution when changing
direction on slopes.
2. Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could cause a slip and
fall accident. Tall grass can hide obstacles.
3. Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall
accident.
4. Do not mow near drop-offs, ditches, or embankments. You could lose your footing or balance.
Children
Sever injury can occur if the operator is not alert to the presence of children in the immediate area.
Children are often attracted to the mowing activity. Never assume that children will remain where you
last saw them.
1. Keep children out of the mowing area and under the watchful care of a responsible adult other than
the operator.
2. Be alert and turn mower off if a child enters the area.
3. Never allow children under the age of 16 to operate the lawn mower.

7
4. Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your
view of a child.
Service
1. Safe Handling of Gasoline
2. To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
3. Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
4. Only use a US EPA approved compliant portable fuel container.
5. Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.
6. Never attempt to refuel the lawn mower while indoors.
7. Never store the machine or fuel container where there is an open flame, spark, or pilot light such as on
a water heater or on other appliances.
8. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle before filling.
9. Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment with a portable container, rather than from a gasoline dispenser
nozzle.
10. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling
is complete. Do not use a nozzle lock-open device.
11. If fuel is spilled on clothing, change clothing immediately.
12. Never overfill fuel tank. Replace gas cap and tighten securely.
General Service
1. Never operate machine in a closed area.
2. Keep all nuts and bolts tight to be sure the equipment is in safe working condition.
3. Never tamper with safety devices. Check their proper operation regularly.
4. Keep machine free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove
any fuel-soaked debris. Allow machine to cool before storing
5. If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before starting.
6. Never make any adjustments or repairs with the engine running. Disconnect the spark plug wire to
prevent unintended starting.
7. Check grass catcher components and the discharge guard frequently and replace with manufacturer's
recommended parts, when necessary.
8. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
9. Do not change the engine governor setting or overspeed the engine.
10. Maintain or replace safety and instruction labels, as necessary.

8

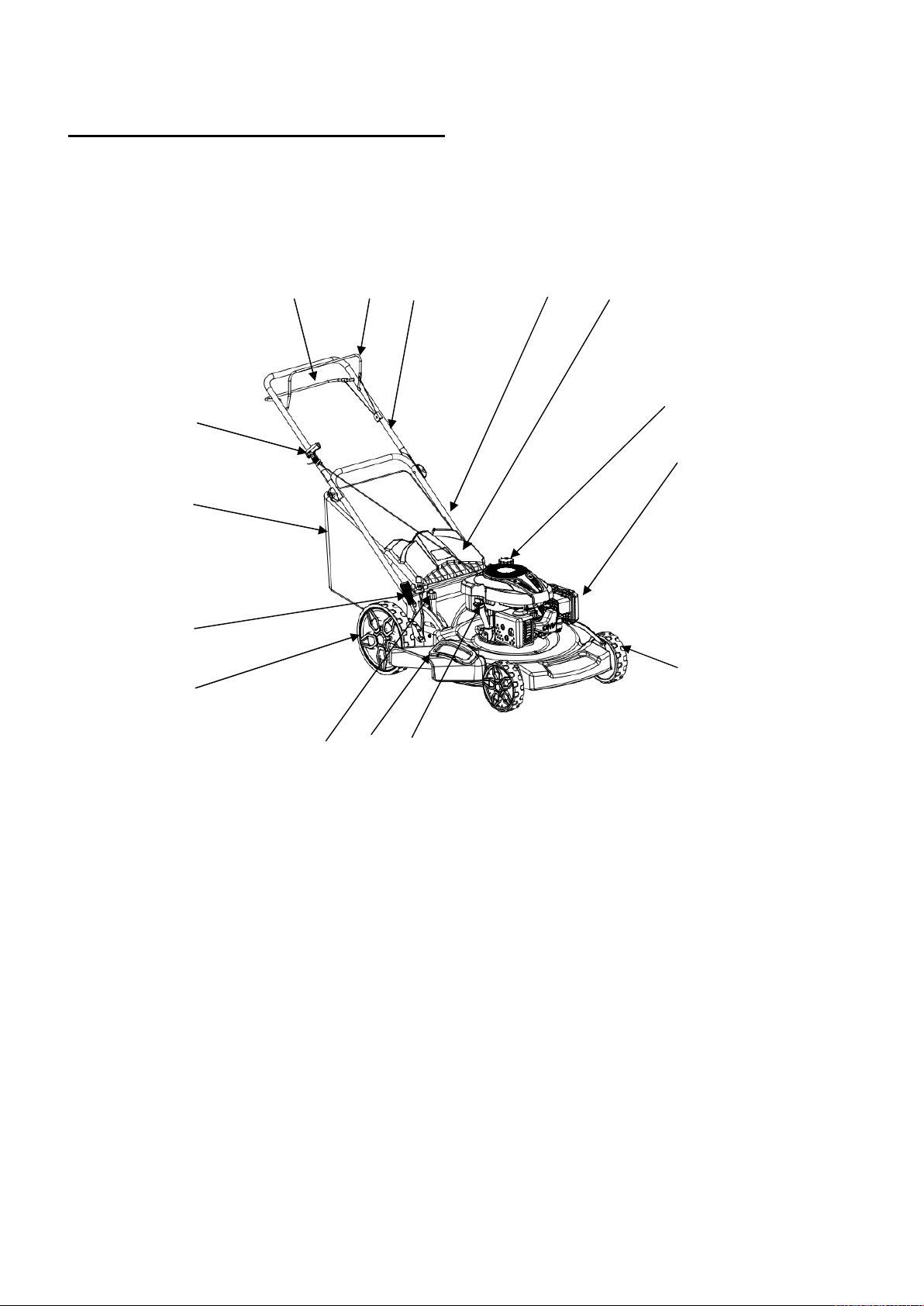

KNOWING YOUR LAWN MOWER
Please use the illustration below to familiarize yourself with the location and function of the components
that control of your lawn mower.
1 Recoil Starter handle 9 Air Filter
2 Grass catcher 10 Fuel tank cap
3 Cutting height adjustment lever 11 Rear discharge door
4 Rear wheel 12 Lower handle
5 Mulching control lever 13 Upper handle
6 Side discharge cover 14 Engine start/stop lever
7 Oil dipstick 15 Drive control bar
8 Front wheel
15 14 13 12 11
5 6 7
10
9
8
1
2
3
4

9
LAWN MOWER PREPARATION
The following section describes steps necessary to prepare the lawn mower for use. If after reading this
section, you are unsure about how to perform any of the steps please call [phone] Mon-Fri 9-5
EST for customer service. Failure to perform these steps properly can damage the lawn mower or shorten
its lifespan.
UNPACKING
Unpack the lawn mower and all its parts, and compare against the list below. Do not discard the carton or
any packaging until the engine is completely assembled.
1 Lower handle 6 Washer (4)
2 Grass Catcher 7 Nut M8 (2)
3 Side discharge chute 8
Screw M8×45 (2)
4 Lawn mower with upper handle 9 Spark plug wrench
5 Knob (2) 10
Screw M8×35 (2)
11 Cable clip
1 2 3 4 5 6 7
8 11 9 10

10

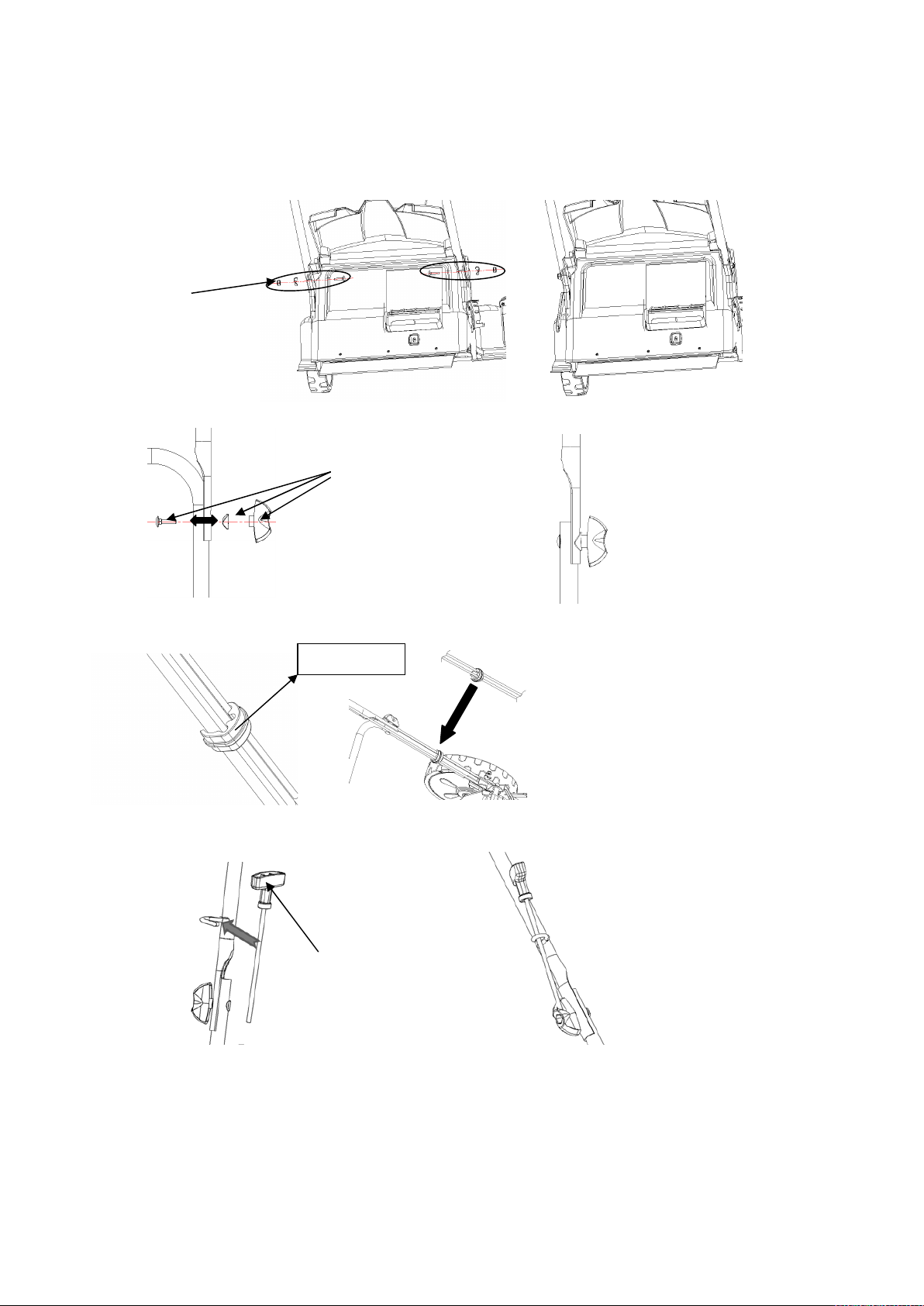

ATTACH LOWER & UPPER HANDLE
1. Take lower handle and line up the hole in the lower handle with the hole on the handle bracket.
2. Secure the lower handle with handle bracket with provided M8 screw (1) ，M8 nut (1) and Saddle
washer on each side.
3. Pull upper handle up and lock it in position with bolts，washer and knob on both side.
4. Lock the cable to the handle using cable clip
5. Insert the recoil starter handle cable into the hook provided on the upper handle.
Knob，washer and screw
M8 Screw， Nut
and washer
Recoil starter handle
Cable Clip

11

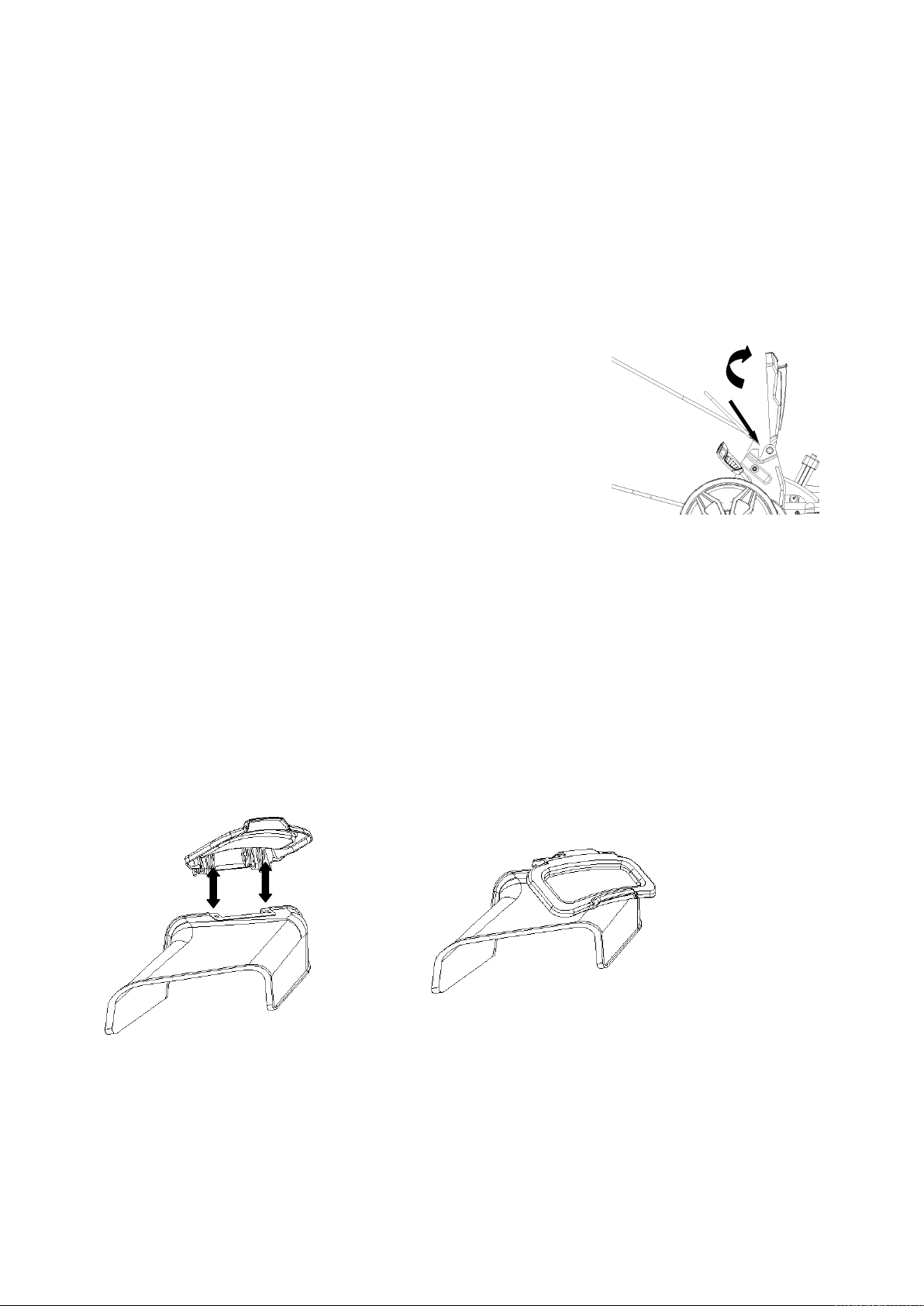

GRASS CATCHER
Attach grass catcher
1. Lift mower rear discharge door.
2. Place grass catcher into the slots in the handle brackets.
3. Release the rear discharge door so that it rests on the grass catcher.
Caution: Make sure that the Mulching Control Lever is in the bagging position
Remove grass catcher
1. Lift mower rear discharge door.
2. Lift grass catcher up and off the slots in the handle bracket.
3. Move the Mulching Control lever to the mulching position .
4. Release mower rear discharge door to allow it to close rear opening of
mower.
SIDE DISCHARGE CHUTE
To convert mower for side discharge, ensure that the mulching control lever is in the mulching position,
the grass catcher has been removed and that the rear discharge door is closed.
1. Lift the spring-loaded discharge cover located on the side of the mower.
2. Slide two hooks of the side discharge chute under the hinge pin and lower the spring on the side
discharge cover.
Caution: Do not attempt to remove the permanently mounted spring loaded side discharge cover at any
time.

12
ADJUSTING THE CUTTING HEIGHT
Warning! Cutting height adjustments should only be performed after the engine and blades
have come to a complete stop!
It is always best to begin cutting your lawn with a higher deck height to prevent scalping your lawn.
The cutting height is adjusted with a single lever.
Actuate the adjustment lever and pull it to the required position. Please make sure that the lever locks into
position.
OPERATION
GAS AND OIL FILL-UP
The engine comes shipped without oil or gasoline. Be sure to add oil and gasoline before starting the
engine.
1. Add oil before starting mower for the first time.
2. Service the engine with gasoline as instructed.
Warning: Use extreme care when handling gasoline. Gasoline is extremely flammable and
its vapors are explosive. Never fuel the machine indoors or while the engine is hot or running.
Extinguish all cigarettes, cigars, pipes and other potential sources of ignition.
ADD OIL
The engine is shipped without oil. User must add the proper amount of oil before operating the engine for
the first time .The oil capacity of the engine crankcase is 18fl.oz. For general use (above 40 °F),we
recommend 30W,4-stroke engine oil.
ENGINE OIL RECOMMENDATIONS
Oil is a major factor effecting performance and service life. We recommend the use of a good detergent
automotive oil.30W is recommended for most applications. Other viscosity grades shown below may be
acceptable for use in these engines.
Cutting height adjustment lever

13

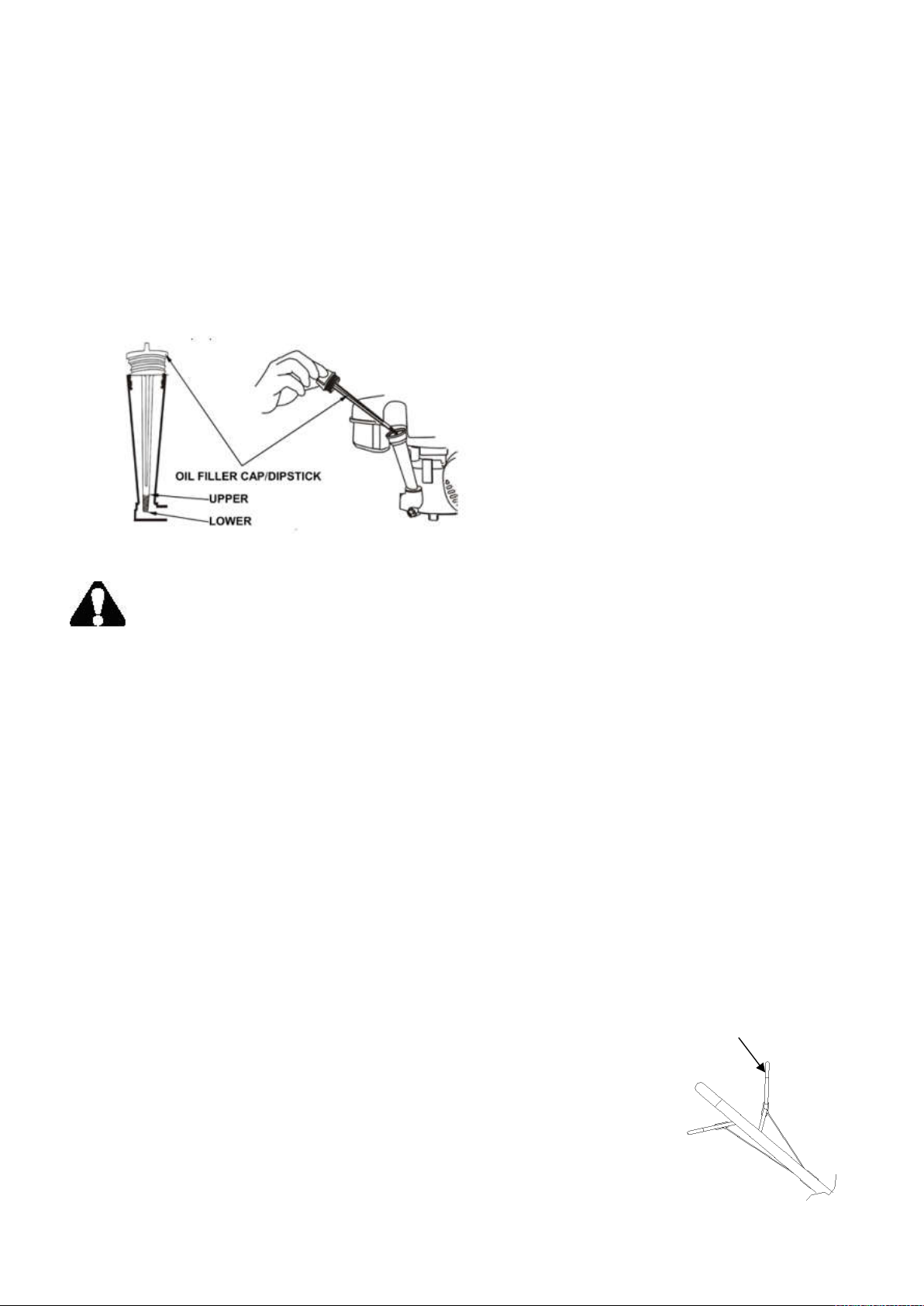

To add oil, follow these steps:
1. Make sure the engine is on a travel surface. Tilting the engine to assist in filling will cause oil to flow
into engine areas and will cause damage.
2. Remove the dipstick form the engine.
3. Add oil slowly .Do not overfill.
4. To check the oil level, wipe the dipstick with a clean rag. Insert the dipstick into the oil fill opening
without screwing it in. Remove the dipstick to check the oil mark.
5. Slowly add more oil and repeat step 4 until the oil mark reached to the upper mark of the dipstick. Do
not overfill the crankcase.
6. Check for oil leaks. Tighten dipstick firmly.
ADD GASOLINE
WARNING: This engine may emit highly flammable and explosive gasoline vapors, which
can cause severe burns or even death if ignited. A nearby open flame can lead to explosion
even if not directly in contact with gasoline.
Use fresh (within 30 days from purchase), lead-free gasoline with a minimum of 87 octane rating. Do not
mix oil with gasoline.
To add gasoline, follow these steps:
1. Make sure the engine is on a travel surface.
2. Unscrew fuel cap and set aside. NOTE: The fuel cap may be tight and hard to unscrew.
3. Slowly add unleaded gasoline to the fuel tank be careful not to overfill. The capacity of the fuel tank
is 0.9Gallon.NOTE: Do not fill the fuel tank to the very top. Gasoline will expand and spill over
during use even with the fuel cap in place.
4. Reinstall fuel cap and wipe clean any spilled gasoline with a dry cloth.
IMPORTANT:
 Never use an oil/gasoline mixture.
 Never use old gasoline.
 Avoid get dirt or water into the fuel tank
 Gasoline can age in the tank and make starting difficult. Never store engine for extended periods of
time with fuel in the tank or the carburetor.
ENGINE START/STOP LEVER
This lawn mower comes equipped with an engine start/stop lever to prevent
unintentional starting and to ensure safe operation. Releasing this lever will
quickly stop the blade in case of danger. The lever must be actuated before the
Engine start/stop lever

14
lawn mower is started. When the engine start/stop lever is released, it must return to its initial position.
Before you start mowing, you should run through this process several times in order to ensure that the
lever and actuator cables are working properly. Repeat the test several times after the engine has started
up. When the engine start/stop lever is released, the engine must stop within a few seconds. If not, contact
Customer Service.
Warning: The blade begins to rotate as soon as the engine is started.
START THE ENGINE
1. Ensure that the ignition cable is connected to the spark plug.
2. Stand behind the lawn mower. Actuate the engine start/stop lever with one hand. The other hand must
be on the starter handle.
3. Start the engine using the starter handle. To do this pull out the handle approx. 4 –6 inches (until you
feel a resistance) and then start the engine with a sharp tug. If the engine does not start, tug the handle
again.
Caution: Never allow the actuator cable to snap back.
Caution: In cold weather, it may be necessary to repeat the starting process several times.
STOP THE ENGINE
Release the engine start/stop lever to stop the engine.

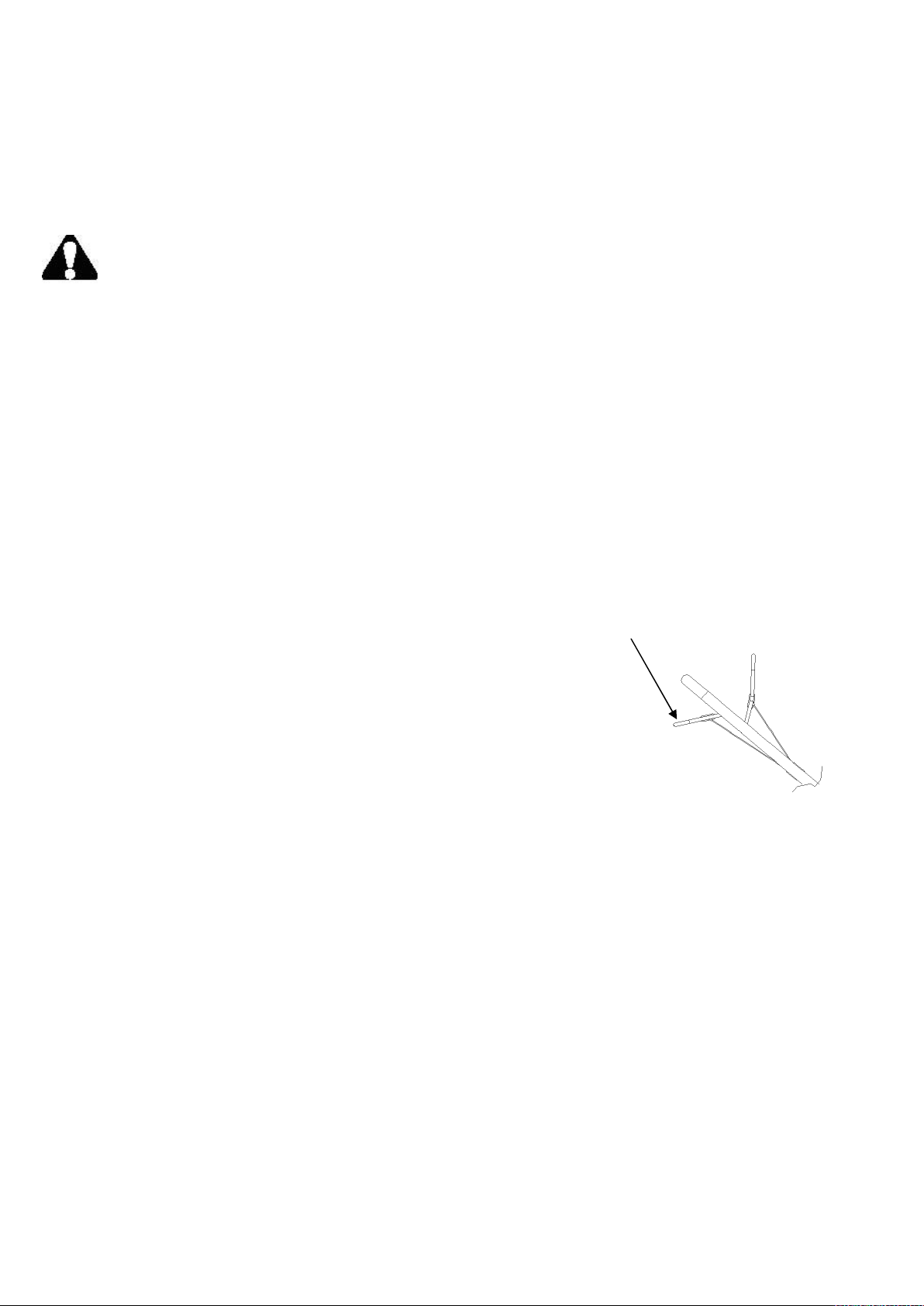

DRIVE CONTROL BAR
If you press drive control bar the clutch for the drive will be closed and the
lawnmower will start to move with the engine running. Release the drive
control bar in good time to stop the moving lawnmower.
Practice starting and stopping before you use the mower for the first time until
you are familiar with controlling the mower.
MOWING
The engine throttle on your mower has been preset to provide optimum bagging and mulching
performance for years to come.
Only use a sharp blade that is in good condition. This will prevent the grass blades from becoming frayed
and the lawn from turning yellow.
Mow in straight lines for a nice, clean look. The swaths should overlap each other by a few inches in
order to avoid stripes.
It’s import to keep the underside of the mower deck clean and remove grass build-up. This buildup will
decrease mulching quality, and make it harder for the equipment to bag the grass.
Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by
holding a position at an angle upwards. Select the cutting height according to the length of the grass. If
necessary, mow a number of times so that you never cut more than 2 inches of grass in one go.
Drive control bar

15
Turn off the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate
for a few seconds after the engine has been turned off. Never attempt to manually stop the blade.
Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary
is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately turn
off the lawn mower and wait for the blade to come to a complete stop. Then inspect the condition of the
blade and the blade mount. Replace any parts that are damaged.

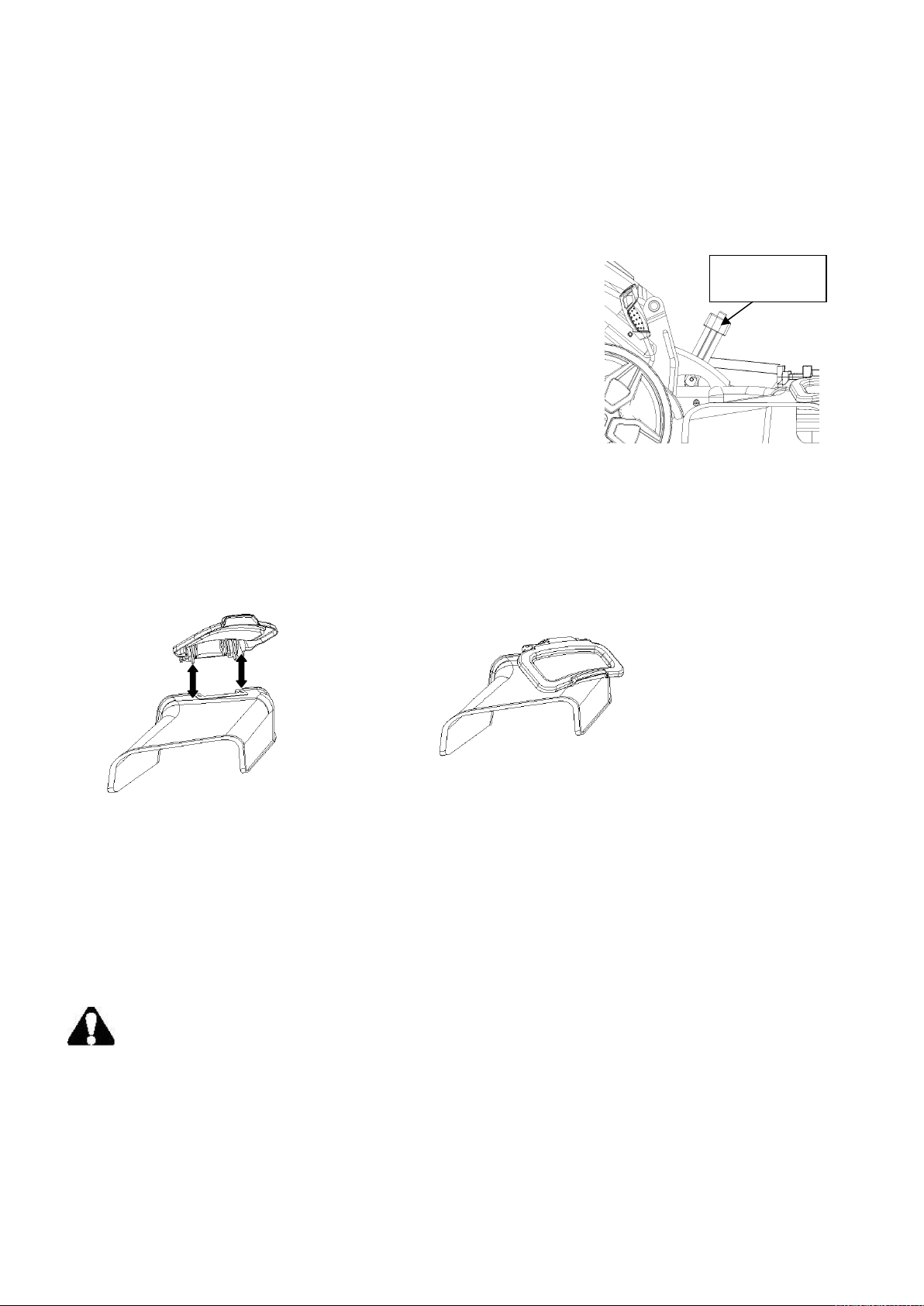

USING AS MULCHING CONTROL LEVER
If the Grass Catcher is on the mower, and the Mulching Control Lever is
in the bagging position, move the lever to the mulching position before
mulching the clippings.
If the Side-discharge Chute is on the mower, remove it before mulching
the clippings.
USING AS SIDE DISCHARGE
You should fit the mulching adapter in order to use the side discharge.
1. On the side of the mower, lift the side discharge cover.
2. Slide two hooks of side discharge chute under hinge pin on the side discharge cover. Lower the side
discharge cover.
Caution: Do not remove side discharge cover at any time.
USING AS A REAR BAGGER
To use the grass catcher to collect clippings while you are operating the mower.
1. Attached grass catcher following instruction in the lawn mower preparation. Grass clippings will
automatically collect in bag as you run the mower. Operate mower until grass catcher is full.
2. Stop engine completely by releasing the engine start/stop lever. Make sure that the engine has come
to a complete stop.
3. Lift rear discharge door and pull grass catcher up and away from the mower to remove the grass
catcher. Dispose of the grass clippings and reinstall the grass catcher when complete.
Warning: If you strike a foreign object, stop the engine. Remove spark plug wire, thoroughly
inspect mower for any damage, and repair damage before restarting and operating. Excessive
vibration of the mower during operation is an indication of damage. The mower should be
promptly inspected and repaired.
Mulching
control lever

16
MAINTENANCE
Proper routine maintenance of this mower will help prolong the life of the machine.
Always observe safety rules when performing any maintenance.
The warranty on this lawn mower does not cover items that have been subjected to operator abuse or
negligence. To receive full valve from warranty, operator must maintain the lawn mower as instructed
here.
Changing of engine-governed speed will void engine warranty.
All adjustments should be checked at least once each season.
Periodically check all fasteners and make sure these are tight.
Warning: Always stop engine, allow engine to cool, disconnect spark plug wire before
performing any type of maintenance on your machine.
DECK CARE
It is important to clean underside of the mower deck after use to prevent the build-up of grass clippings or
other debris. Follow steps below for proper cleaning.
1. Allow the engine to run until it is out of fuel. Do not attempt to pour fuel from the engine.
2. Disconnect spark plug wire. Refer to engine operator’s manual.
3. Slowly tip mower so that it rests on the housing.
4. To prevent oil spills, always tip the mower so that the Air Filter is facing up.
5. Hold mower firmly and scrape and clean the underside of the deck with a suitable tool.
6. Gently lower the mower back on its wheels on the ground.
Warning: Never tip the mower more than 90° in any direction and do not leave the mower tipped for any
length of time. Oil can drain into the upper part of the engine causing a starting problem.
MOWER BLADE
To ensure safe operation, have all blade sharpening, balancing and mounting work carried out by an
authorized service center. To achieve optimal results, we recommend having the blade checked once a
year.
If, in spite of all caution, the blade comes into contact with an obstacle, switch off the engine immediately
and pull off the spark plug connector. Tilt the lawn mower to the rear and check the blade for damage.
Always keep the side with the air cleaner facing up. Damaged or bent blades must be replaced. Never
straighten a bent blade. Never work with bent or heavily worn blades as this will result in vibrations,
causing further damage to the mower.
Warning: Risk of injury when working with a damaged blade.

17
CHECKING THE OIL
The oil capacity of the engine crankcase is 18 fl. oz.
Check the oil level of the engine according to the Recommended Maintenance Schedule.
The lawn mower should be checked before each use for proper oil level. This is a critical step for proper
engine starting.
To check the oil level:
1. Make sure the lawn mower is on a level surface.
2. Clean around oil fill. Remove dipstick and wipe the dipstick with a clean rag. Insert the dipstick into
the oil fill opening without screwing in. Remove the dipstick to check the oil mark. Add oil if the oil
mark covers less than one half of the dipstick.
3. Slowly add more oil and repeat step 2 until the oil mark reaches to the top of dipstick. Do not over fill
the crankcase.
4. Reinstall oil dipstick.
CHANGING/ADDING OIL
Change the oil according to the Recommended Maintenance Schedule. Change the oil when the engine is
warm. This will allow for complete drainage. Change oil more often if operating under heavy load or high
ambient temperatures. It is also necessary to drain the oil from the crankcase if it has become
contaminated with water or dirt. The oil capacity of the engine is 18 fl.oz. Add oil when the oil level is
low. For proper type and weight of oil refer to “GAS AND OIL FILL-UP” portion of the “OPERATION”
section.
To refill the crankcase with oil, follow these steps:
1. Make sure the lawn mower is on a level surface. Tilting the lawn mower to assist in filling will cause
oil to flow into engine areas and will cause damage. Keep lawn mower level!
2. Remove the dipstick from the engine.
3. Using a funnel or appropriate dispenser, add the correct amount of oil (18 fl.oz) into the crankcase.
4. Reinstall dipstick.
NOTE: Never dispose of used motor oil in the trash or down a drain. Please call a local recycling center
or auto garage to arrange oil disposal.
AIR CLEANER MAINTENANCE
Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occasionally
check that the air cleaner is free of excessive dirt. Refer to Recommended Maintenance Schedule. For air
cleaner detail:
1. Open the air cleaner cover.
2. Remove the sponge-like element from the casing.
3. Wipe the dirt from inside the empty air cleaner casing.
4. Wash the sponge-like element in household detergent and warm water. Small amount of oil in the
element is normal and necessary for the engine to work properly.
5. If necessary, replace the paper element.
6. Reinstall the sponge-like element in the air cleaner casing and reinstall the cover.
CAUTION: running the engine with dirty, damaged or missing air cleaner element will cause the engine
to wear out prematurely.
SPARK PLUG MAINTENANCE
The spark plug is important for proper engine operation. A good spark plug should be intact, free of
deposits, and properly gapped. Refer to Recommended Maintenance Schedule. To inspect the spark plug:
1. Remove spark plug boot. Be careful not to tear insulation or wire.

18
2. Unscrew the spark plug from the engine using the spark plug wrench provided. There is limited space
for the wrench to turn. Use both rows of holes in the spark plug wrench to gain leverage to loosen the
plug.
3. Visually inspect the spark plug for cracks or excessive electrode wear. Replace as necessary.
4. Measure the plug gap with a wire gauge. The gap should be 0.7 to 0.8 mm (0.028-0.031 in).
5. If re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base then
re-gap the spark plug.
6. Screw the spark plug back into the spark plug hole using the spark plug wrench. Do not over-tighten
spark plug. Recommended tightening of spark plug is ½ to ¾ of a turn after spark plug gasket contacts
spark plug hole. Reinstall the spark plug boot.
Maintenance Schedule
Item Action Before
each use
5 Hours of
use or first
month
First 25
hours of
use
50 hours of
use or
every 6
months
100 hours
of use or
every year
150
hours of
use or
every
two
years
Blade Inspect x
Blade
mounting bolt Inspect x
Engine oil Check x
Change x x
2
x x
Air filter
Check x
Clean x
1
x
1
x
1
Replace x
Grass bag Check x
Blade control
operation Check x x
Spark plug Check
x
Replace x
Fuel tank Clean x
Flywheel brake
pad Check x
Valve
clearance Check-adjust
x
Fuel line Check Check every 2 years and replace if necessary
1. Service more frequently when used in dusty areas.
2. Change engine oil every 25 hours when used under heavy load or in high outside air temperatures.

19
STORAGE
CAUTION: Never place any type of storage cover or tarp on the MOWER while it is still hot.
If the MOWER is being stored for extended periods of time (30 days or more), drain fuel tank and
carburetor bowl.
NOTE: Keeping the fuel tank full, reduces the amount of air and vapor and helps reduce deterioration of
the fuel. This will also help minimize moisture accumulation common with ethanol blended fuels.
When storing the mower for extended periods of time:
1. Start the engine and run it until the tank and fuel line are completely empty and the engine stalls.
2. Change the oil after each season.
3. Remove the spark plug. Use an oil-can to fill the cylinder with approx. 2 ml of oil. Slowly pull back
the starter handle, which will bathe the cylinder wall with oil. Screw the spark plug back in.
4. Clean the cooling fins of the cylinder and the housing.
5. Be sure to clean the entire equipment to protect the paint.
6. Store the equipment in a well-ventilated place.
NOTE: LIMITED WARRANTY does not cover fuel system damage or engine performance
problems resulting from neglected storage preparation.

20
TROUBLESHOOTING
Problem Cause Solution
Engine fails to start
Engine start/stop lever
disengaged. Engage engine start/stop lever.
Spark plug wire disconnected. Connect spark plug wire.
Fuel tank empty or stale fuel. Fill tank with clean, fresh gasoline.
Engine not primed. Press primer bulb.
Faulty spark plug. Clean, adjust gap, or replace.
Blocked fuel line. Clean fuel line.
Engine flooded. Wait a few minutes to restart, do not prime.
Engine runs erratic.
Spark plug wire loose. Connect and tighten spark plug wire.
Blocked fuel line or stale fuel.
Clean fuel line. Fill tank with clean, fresh
gasoline.
Water or dirt in fuel system. Drain fuel tank. Refill with fresh fuel.
Dirty air filter Please refer to engine manual.
Engine overheats. Engine oil lever low. Fill crankcase with proper oil.
Air flow restricted. Clean area around and on top of engine.
Idles poorly.
Spark plug fouled, faulty, or
gap too wide. Reset gap or replace spark plug.
Dirty air cleaner. Please refer to engine manual.
Excessive
vibration/noise
Blade loose or unbalanced. Tighten and balance blade.
Bent/damaged blade. See an authorized service dealer.
Mower will not mulch
grass. Wet grass. Do not mow when grass is wet, wait until dry to cut.
Uneven cut. Excessively high grass.
Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting path.
Dull blade. Sharpen or replace blade.
