PowerWise Renew User manual

Renew
Standard Alkaline Battery Charger
Instruction Manual
PW-BC002

Renew Alkaline Charger Instruction Manual
A) Brief Introduction
•Welcome to join our environment protection project. Together, we can make a difference in
the volume of wasted batteries and helping our earth.
•[ Alkaline Battery Charger ] is applicable to charge used Alkaline / Oxyride / Carbon / Zing/Ni
Zing/Ni-CD /Ni-MH batteries.
•[ Alkaline Battery Charger ] has obtained the patent authorization in Taiwan, China, Japan,
America, Germany, and Australia, with patent applications in other major markets in progress.
•Please read through and follow the instructions before using the product. We offer one year
warranty under your normal use. Free repair service will be provided within the one year of
warranty period.
•Exceptional situations: the one year warranty is NOT applicable to the following situations.
Mis-use of [ Alkaline Battery Charger ] : For example, the product is damaged by the leak of
batteries chemical substances due to the product to charge used batteries that are broken,
damaged, rusted or not active for long period of time.
Damages to or malfunction of the product are caused by natural disaster, such as fire,
earthquakes, typhoons or hurricanes, floods, lightening, abnormal power pressure, and
damages made by mice and insects, or storage in improper environment surroundings.
Damages or malfunctioning is caused by the following situation, such as that the product is
dropped, soaked, scratched after purchase.
Damages or malfunctioning is caused by the following situation, such as the product is
disassembled, modified, maintained, or repaired by an unauthorized parties.
B) Functions and Features
•Applicable to AA and AAA Alkaline/Oxyride/Carbon Zing/Ni Zing/Ni-CD/Ni-MH batteries.
(3500mAH max rated capacity of each battery that can be charged)
•Individual charge circuit for each battery to be charged ( Single Battery Charge is compatible).
And it is able to charge up to Four Batteries at the same time. The four batteries could be
mixed by any AA, AAA size of battery with different material, size and capacity.
•Controlled by highly intelligence Micro-programmed Control Unit.
•High precision 0ΔV and –ΔV detection
•Constant current output. Over-charge and short-circuit protection. Maximum time, capacity
and voltages control.
•High density of integration and high stability control circuit.
•Safety charging timer: Max 3.5 hours auto cut-off for 4 pcs of Alkaline batteries: Max 7.2 hours
for 4 pcs of Rechargeable batteries.
•Intelligent Failure Recognition Technology can identify Alkaline battery safety reliability are
guaranteed .

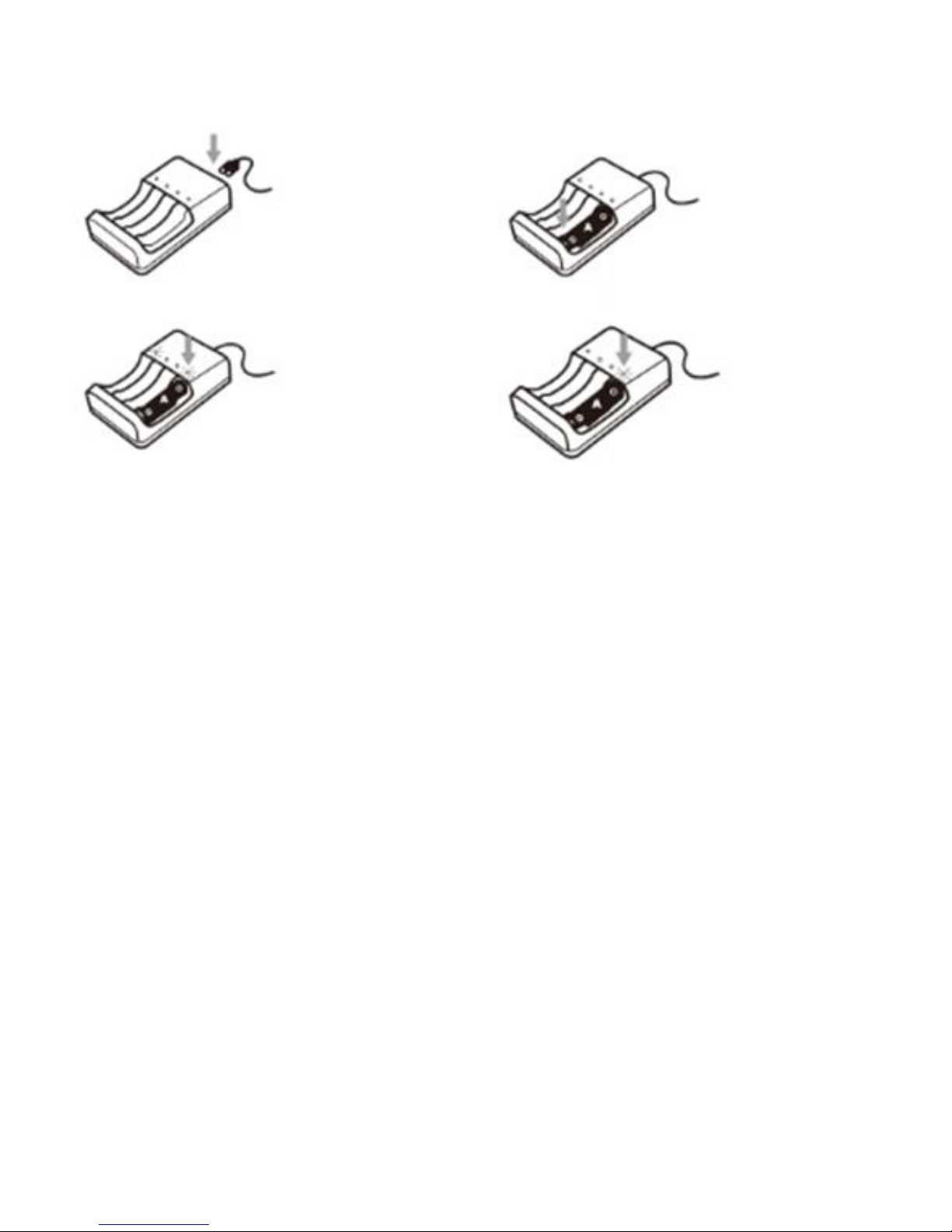

C) How to Use
1. Plug in the power cord to the socket 2. Put the battery into the charger
Channel according to the
appropriate poles
3. Re-activating or Charging
Battery : Light stays Red
4. Charging complete:
Light stays Green
•Plug in the power cord to the socket (AC 100-240V)
•Connect the power cord to the Alkaline Battery Charger, and the LED indicator will flash GREEN and
Red for a second.
When the LED light off, this means the device is in standby mode.
Stow the batteries into the charger and connect them to the appropriate poles.
Low voltage or aged batteries: RED LED flashing.
It is a normal phenomenon if the temperature of the batteries rises slightly during charging process.
•LED indicator Status:
When placing the battery into the slots the LED will be RED, GREEN flashing once then No light in
Standby mode.
When the battery is re-activating or charging, the corresponding LED is long RED
When the battery is fully re-activated or charged, the corresponding LED is GREEN
When the battery has poor contact or defective, it will not be charged and the corresponding RED LED
flashing.
When charger detects the battery is dead or leaking then the LED will be OFF. (no light)

D) Charging / Activating Time
Battery
Size
Specification
Time’s
1 Battery
Time’s
2 Battery
Time’s
3 Battery
Time’s
4 Battery
AA
LR6
3.0
3.0
3.0
3.0
AAA
LR03
3.0
3.0
3.0
3.0
Battery
Size
Rated Capacity
(mAh)
Time’s
1 Battery
Time’s
2 Battery
Time’s
3 Battery
Time’s
4 Battery
AA
2700
2.0
4.0
6.0
8.0
AA
2500
1.6
3.2
4.8
6.5
AA
2300
1.5
3.0
4.5
6.0
AAA
900
1.2
2.4
3.6
4.8
Activating Time of Alkaline Battery
Charging Time of Ni-MH Battery
Self
Adaptable
Recharger
E) Caution
•Please read through and follow the instructions and cautions
•It is recommended to use the charger with quality batteries which are newly produced and
discharged. We suggest not to charge the giveaway batteries of lower quality that usually comes
along with electronic devices.
•Alkaline batteries have a “Inertia Memory” feature. The Alkaline battery is suggested to be used in
the same electronic device after re-activated which will drive battery performance.
•The charger is working in impulse state, the circuit normally makes a little “sizzling” sound.
•Alkaline battery should be activated when the remaining electricity is around 20%so as to avoid
over-discharge for a better effect.
•DO NOT charge the deformed, damaged, rusted or leaking batteries altogether, and prevent
contact between negative and positive poles of batteries.
•It is recommended to take off the batteries and pull off the plug from socket when charger is not in
use.
•It is recommended to store used batteries in containers, to avoid mixing batteries together, and
prevent contact between negative and positive poles of batteries.
•The charger is applicable for charging indoors. Please keep it away from extreme temperatures and
direct exposure to sunlight, rain and snow.
•DO NOT disassemble the charger for fear of a short circuit.
•This appliance is not intended for use by persons (including Children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instructions concerning use of the appliance by a person responsible for their safety.
•Children should be supervised by an adult to ensure that they do not play with the appliance.
•The colour of product maybe different from the picture on website, and it’s subject to practical
products.
•New alkaline batteries of purchasing and haven’t be used, please don’t use in the charger to
activate them, or else it would damage batteries.
F) Product Specifications
SAA
Model No:
PW-BC002
Input Voltage
AC 100-240V 50/60 Hz
Fuse Rating
250V EA
Output
Alkaline Battery: 1.5 ~ 1.7VDC
Ni-MH/Ni-CD: 1.4VDC
Dimensions (L*W*H) mm
112 x 70 x 30.8mm

Made in China
Alkaline battery Charger
Re-activate Alkaline battery & Recharge Ni-MH/Ni-CD battery
•The number 1 alkaline battery charger.
•The shortage charging time: 4 x AA batteries could be fully
charged in 3 hours.
•Advanced technology to re-activate the used alkaline and the
other ordinary disposal battery patent registering.
•20 recharge times guaranty
•Saving cost for buying the battery and protect the circumstance.
•1. Applicable to 4 x AA and AAA Alkaline, Oxyride, Carbon Zing,
Ni Zing and NI MH/Ni cd batteries. (3500mAH max rated capacity
of each battery that can be charged).
•2. Individual charge circuit for each battery to be charged (Single
battery charge is compatible), and it is able to charge up to Four
batteries at the same time.
•3. Simple LED indicators.
•4. Smart battery charger, Micro-processor chip controlled system
to automatically detect charge process to prevent over charging.
•5. Detects charging situation, automatically cut off system after
charging completes.
For detailed instructions please visit www.powerwise.co.nz/support
“Energy conservation and Carbon Emission Reduction”
Product Name
Alkaline/Universal Battery Charger
Origin of product
CHINA
Model
PW-BC002
Input Voltage
AC100V-240V 50 /60Hz
Output
Alkaline Battery: 1.5 –1.7VDC
Ni-MH/Ni-CD: 1.4VDC
Battery Type
Ni-CD, Oxyide, Carbonzing
AA, AAA Size, Alkaline, Ni-MH
International Patents: *UK *USA *France *Japan *Italy *China *Spain *Germany *Holland
