PPS RPS125S User manual

OWNER’S MANUAL
Dirt Bike
No one under the age of 16 should operate this Dirt bike without adult supervision.
Parents should consider child’s age, size, maturity and ability before allowing to ride.
Always wear a helmet; It could save your Life!
This manual should be considered as a permanent part of the vehicle and should remain with
the vehicle when resold or otherwise transferred to a new user or operator. The manual
contains important safety information and instructions which should be read carefully before
operating the vehicle.
Please obtain, review, and follow the municipal, provincial and government acts and
regulations pertaining to owning and operating an off-road vehicle.
This manual is applicable to RPS110S, RPS110DLX, RPS125S and RPS125DLX models.

Congratulations on your purchase of the Ricky Power Sports LLC. Dirt Bike. Your bike is
warranted to be free of manufacturing defects in the material and workmanship for a period
of 90 days from the date of purchase. During the warranty period Ricky Power Sports LLC.
will at its option, repair, provide replacement parts or replace your Ricky Power Sports LLC.
Dirt bike at no charge. This warranty does not cover normal wear items or damage caused by
neglect or misuse of the product.
Engine Warranty – 90 days
Frame Warranty – 90 days
Warranty is void if:
Frame is bent or broken due to abuse
Wheels are bent or broken
Fender bent or broken due to abuse
Any sign of impact, accident, jumping, spin-outs or roll over.
Ricky Power Sports LLC. is not liable for any damage claim or liability claim person or
otherwise resulting from the operation of this product in any way.
Should you experience a problem with your vehicle, please call Ricky Power Sports
LLC. .customer service line toll free at 1- 844-250-2199. You will be instructed how to
proceed.
A COPY OF THE SALES RECEIPT IS REQUIRED.
WARING
This manual should be considered as a permanent part of the vehicle and
should remain with the vehicle when resold or otherwise transferred to a new
user of operator. The manual contains important safety information and
instructions which should be read carefully before operating the vehicle.

1
TABLE OF CONTENTS
Notice to User’s ................................................................................................................ 2
Safe Operation.................................................................................................................. 3
Pre-Ride Checklist ............................................................................................................. 3
Safty Gear ........................................................................................................................ 4
Location of Warning Lables................................................................................................ 5
Main Data......................................................................................................................... 5
Parts & Subassembles ....................................................................................................... 7
Components Locations ...................................................................................................... 8
OPERATION.................................................................................................................... 10
Fuel Valve ...................................................................................................................... 10
Engine Starting ............................................................................................................... 11
Breaking in the Engine .................................................................................................... 12
Switches on Right Handlebar ........................................................................................... 12
Gear Shifting .................................................................................................................. 13
Check-ups, Adjustment and Maintenance ......................................................................... 14
Lubricating Oil Recommended.......................................................................................... 14
Changing the oil, cleaning oil filter screen......................................................................... 15
Check-up of Spark Plug ................................................................................................... 15
Valve Inspection ............................................................................................................. 15
Checking & Cleaning the Air Filter .................................................................................... 16
Adjusting the Throttle Cable ............................................................................................ 16
Adjusting the Carburetor ................................................................................................. 17
Inspection of Front Hydraulic Disk Brake .......................................................................... 17
Clutch Adjustment........................................................................................................... 18
Adjustment of Chain........................................................................................................ 19
Greasing procedures to the driving chain.......................................................................... 19
Troubleshooting.............................................................................................................. 19
Fuel Supplying Check ...................................................................................................... 20
Ignition System Check..................................................................................................... 20
Vehicle Washing ............................................................................................................. 21
Instructions for Storage................................................................................................... 21
Resumption of Service after Storage ................................................................................ 22
Table OF Torque of Fasteners.......................................................................................... 23
Resumption of Service..................................................................................................... 24
Maintenance Routine Diagram ......................................................................................... 24
Inspection and Maintenance ............................................................................................ 24
MAINTENANCE SCHEDULE .............................................................................................. 25
Serial Number Location ................................................................................................... 26
Wire Diagram ................................................................................................................. 27
KT Powersports LLC– EMISSION-RELATED WARRANTY ..................................................... 29

2
NOTICE TO USER’S
Important notes:
This manual includes four models RPS110DLX, RPS110S, RPS125DLX and RPS125S. The
pictures in the manual are quoted as RPS110DLX. The positions of parts of other models are
the same, so it will not be repeated. Please refer to the real vehicle.
Please read this manual and follow all instructions carefully. To emphasize special
information, the symbol and the words WARNING or CAUTION have some special
meanings. Pay great attention to the messages.
WARING

Indicates a potential hazard that could result in death or injury.
CAUTION

Indicates a potential hazard that could result in vehicle damage.
NOTE: Indicating special information which is to make maintenance easier or
instructions clearer.
WARNING and CAUTION are arranged like this:
WARING -or-CAUTION
The first part will identify a POTENTIAL HAZARD.
The second part will describe WHAT COULD HAPPEN if you ignore the WARNING or
CAUTION.
The third part will describe HOW TO AVOID THE HAZARD.
This user’s manual contains important safety and maintenance information.
Read it carefully before riding. Failing to follow the warnings contained in this manual could
result in INJURY or DEATH.
It is important that this manual remain with the vehicle when you transfer it to another user
or owner.
All information, illustrations, photographs and specifications contained in this manual are
based on the latest product information available at the time of publication. Due to
improvements or other changes, there will be some discrepancies in this manual. We reserve
the right to make product changes at any time, without notice and without incurring any
obligation to make the same or similar changes to the vehicle previously built or sold.

3
SAFE OPERATION
A pre-operation check must be conducted before starting the engine.
This check will insure safety, prevent mishaps, and prevent damage to components.
It is strongly suggested that all operators take a certified motorcycle rider’s course prior to
operating the vehicle.
Full attention is required during driving; paying close attention to the following points to avoid
any injury to you by other motorized vehicles:
Do not drive too close to other vehicles.
Never carry a passenger. This dirt bike is for one operator only.
Never operate this dirt bike at night. Night is defined as the period of time 30 minutes
before sunset to 30 minutes after sunrise.
Driving at high speeds is the cause of many accidents; do not drive at a speed that the
actual situation does not permit.
Always avoid operating this dirt bike on paved surfaces, including; sidewalks, paths,
parking lots, driveways, streets, roads, and highways.
Never operated this or any Off-Road Vehicle on a public street, road or highway where motor
vehicles are in operation.
PRE-RIDE CHECKLIST
1. Engine oil level
a) Check for leaks
b) Tighten filler cap securely.
c) Add oil if required.
2. Fuel level
a) Add fuel as necessary.
b) Do not overfill (no fuel in the filler neck).
c) Do not mix oil with gas.
d) Replace cap tightly.
e) Do not refuel a hot engine. Allow engine to cool before adding fuel.
3. Warning decals
a) Make sure all warning decals are legible and securely attached.
b) Replace as necessary.
4. Tires
a) Ensure that both tires are in safe riding condition.

4
b) Properly inflate both tires. We recommend that you inflate the front tire to 15 psi and
the rear tire to 20 psi. Do not exceed 32 psi.
5. Drive chain
a) Check condition and tension.
b) Lubricate and adjust tension as necessary.
6. Throttle
a) Check for smooth operation. Make sure the throttle “snaps” back to idle.
b) Check for frayed cable or damaged cable housing. Replace damaged cable.
c) Check for mud, debris and ice in the throttle cable/mechanism.
Clean out any contamination.
SAFTY GEAR
A DOT approved motorcycle helmet is the most important part of you safety gear. A DOT
approved motorcycle helmet can help prevent a serious head injury. Choose a helmet that fits
snugly. Motorcycle dealers can help in selecting a good quality helmet which fits properly.
WARING
Operating this Dirt bike without waring an approved DOAT motorcycle helmet, eye
protection, and protective clothing could be hazardous.
Operating without an approved DOT motorcycle helmet or eye protection increases your
chances of severe head injury or death in an accident. Operating without protective
clothing also increases your chances of severe injury in as accident.
Always wear an approved DOT motorcycle helmet which fits properly. Always wear eye
protection (goggles or face shield). You should also wear gloves, boots, long sleeve shirt
or jacket, and long pants.
You should wear eye protection when you ride. If a rock or a branch hits your eyes, you
could be severely injured. Wear goggles or a face shield.
Wear proper clothing when you ride. The proper clothes can protect you from injury. Wear a
good pair of gloves, strong boots that are over the ankle, long pants, and a long sleeve shirt.

5

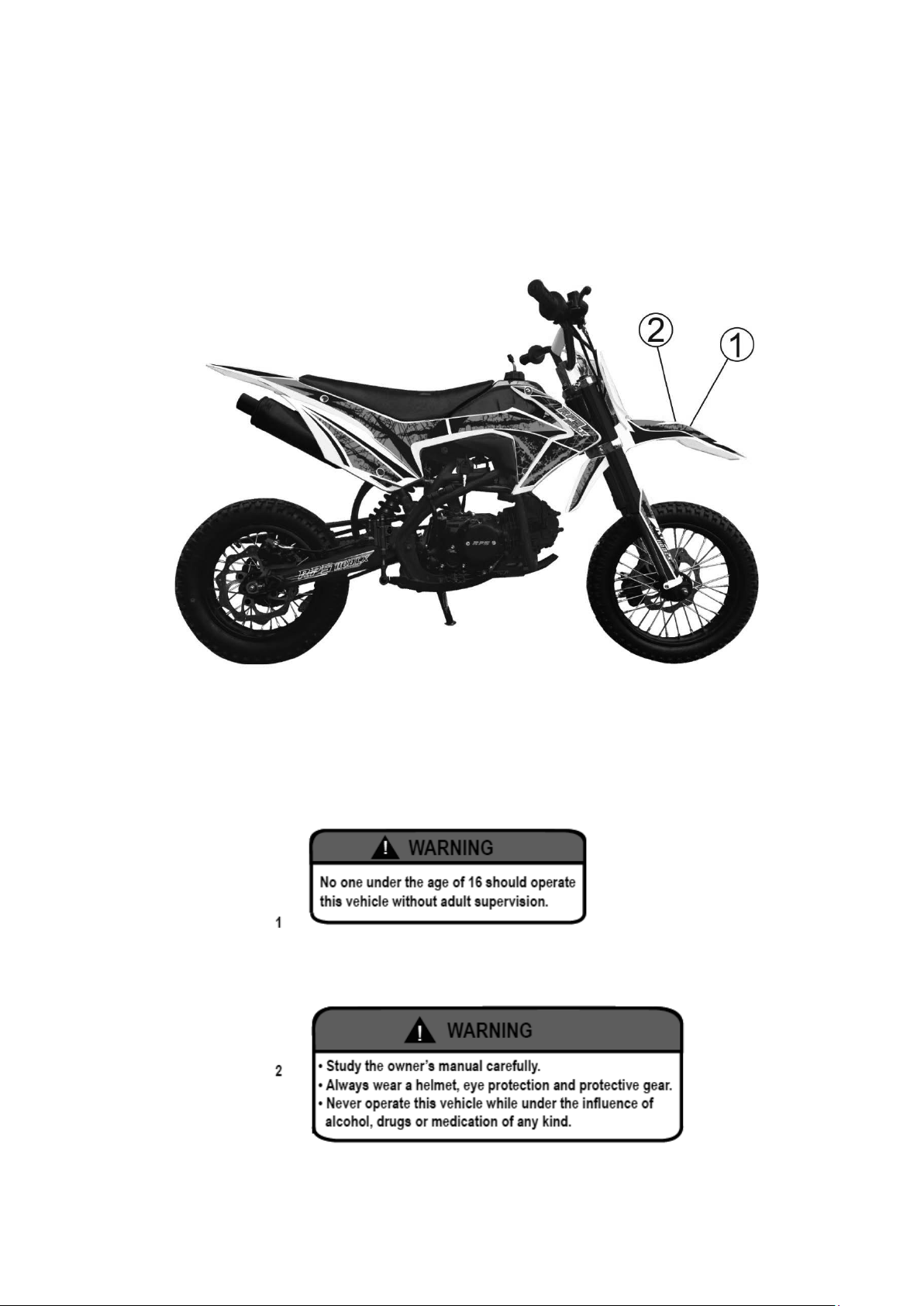

LOCATION OF WARNING LABLES
Read and follow all of the warnings labels on your Dirt bike. Make sure you understand all the
labels. Keep the labels on the Dirt bike. Do not remove them for any reason. If a label come
off or become difficult to read, you
should get a replacement by contacting Ricky Power Sports LLC.
NOTE: RPS110DLX model is quoted in the following contents. The pictures of other models
are the same and will not be repeated.

6
MAIN DATA
ENGINE
DESCRIPTION 110 series 125 series
Engine Type Single cylinder, air cooled, four stroke, horizontal machine
Displacement (ml) 106.693 124
Bore×Stroke (mm) 52.4×49.5 54×54
Compression Ratio 9:0:1 9:0:1
Max. Power (kw/r/min) 5.0kW/7500rpm 6.0kW/7500rpm
Max. Torque (N.m/r/min) 7.5N.m/5500rpm 9.5N.m/5500rpm
Max. Speed (Km/h) 80 80
Lubrication Pressure, splash
Clutch Type Manual / wet
Ignition CDI
Starting System Kick Start
Transmission System Chain
CHASSIS
DESCRIPTION 110 series 125 series
Front Brake Disk
Front Brake Disc
Front Tire 2.50-14 70/110-17
Rear Tire 3.00-12 90/100-14
DIMENSIONS
DESCRIPTION 110 series 125 series
L*W*H (mm) 1625*780*1030 1770*780*1065
Seat Height (mm) 775 810
Wheelbase (mm) 1210
Min. Ground Clearance
(mm)
150 190
Max. Permissionable Weight
(kg)
75 80
Engine Oil (L) 0.9 1.0
Fuel Tank Capacity (L) 6.1 6.1

7
PARTS & SUBASSEMBLES
NOTE: RPS110DLX model is quoted in the following contents. The pictures of other models
are the same and will not be repeated.

8

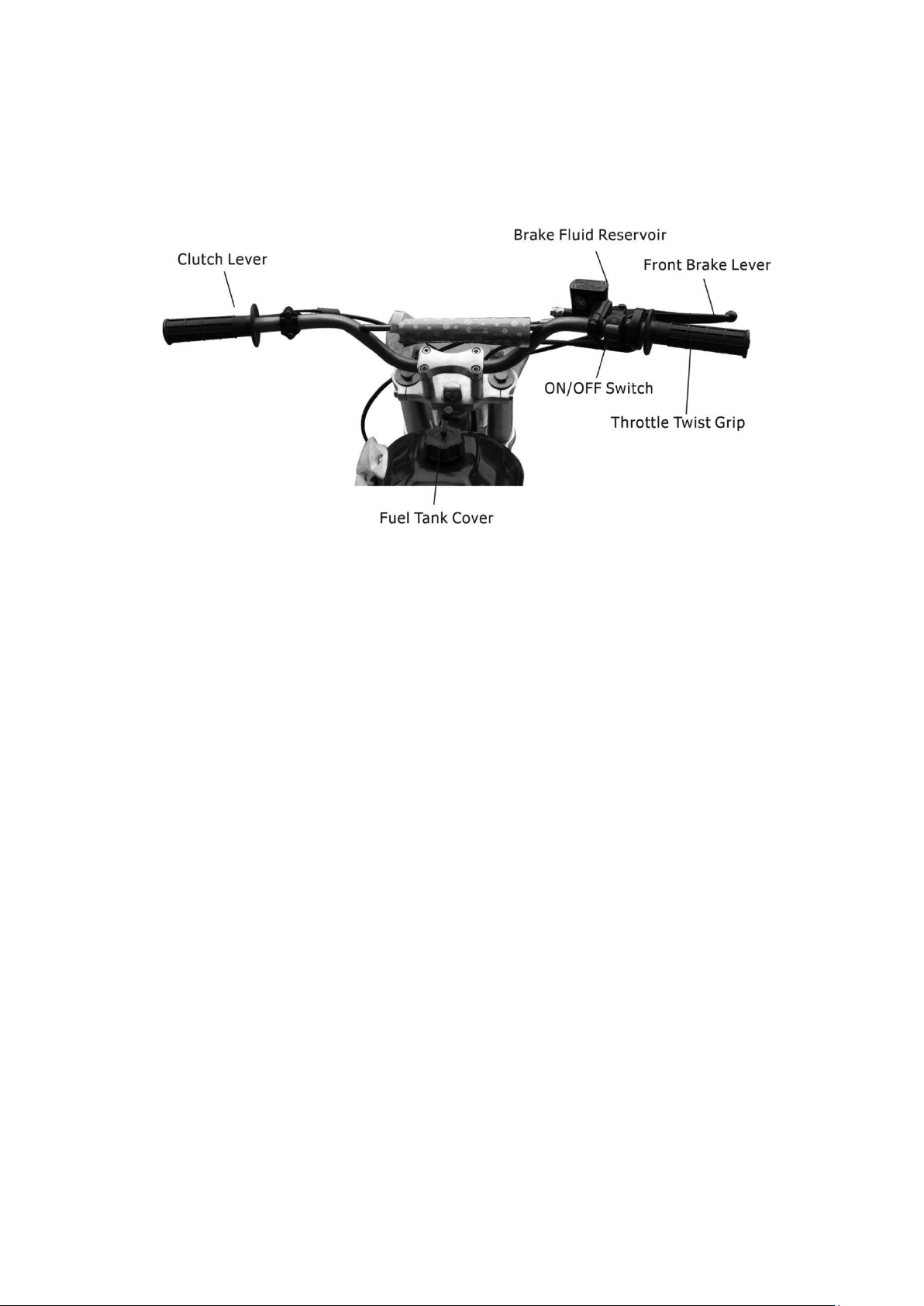

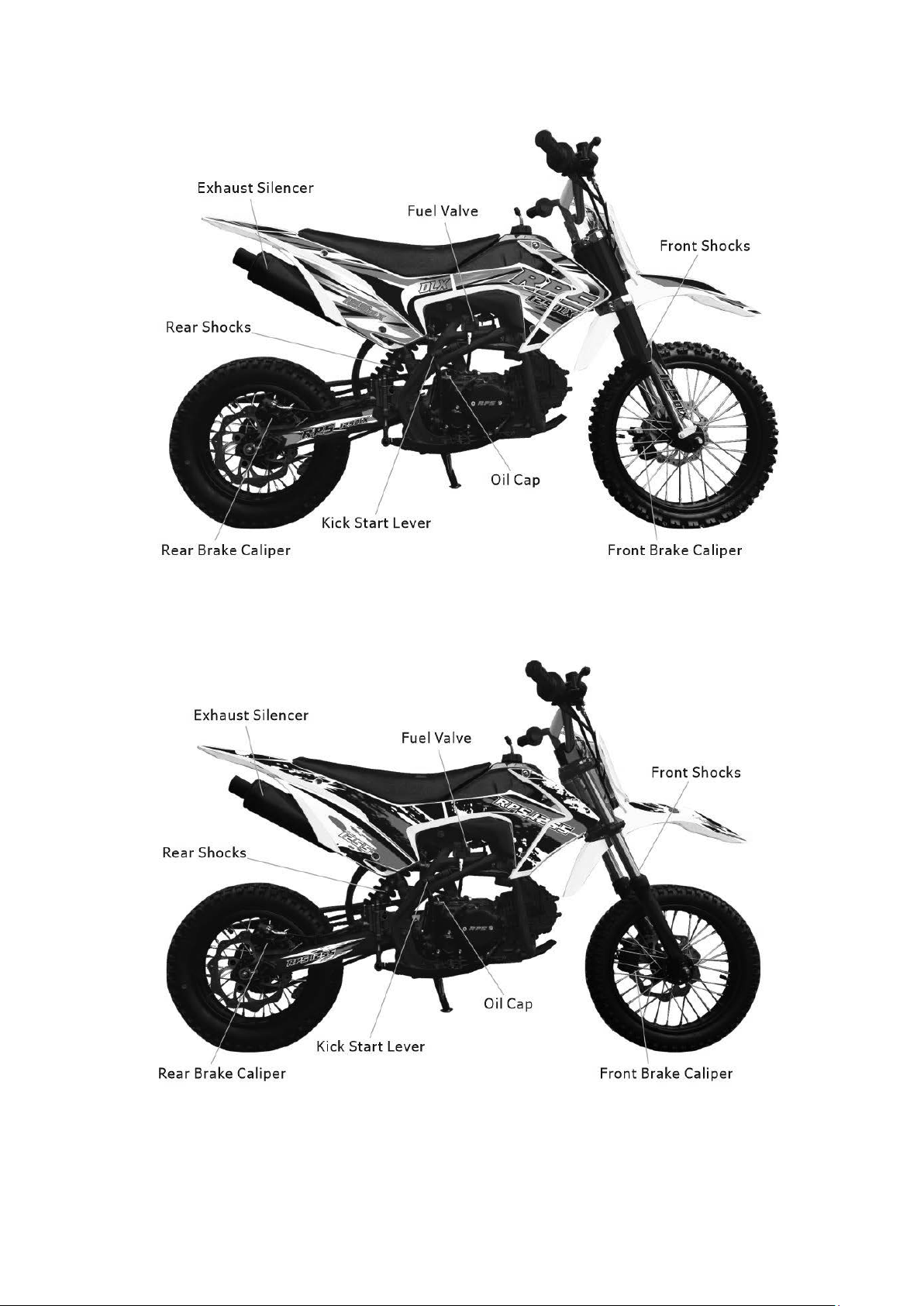

COMPONENTS LOCATIONS
Model 110DLX
Model 110S
NOTE: The panel decal may not match the actual vehicle, please refer to the actual vehicle.

9
Model 125DLX
Model 125S
NOTE: The panel decal may not match the actual vehicle, please refer to the actual vehicle.

10
OPERATION
FUEL VALVE
Fuel filling
The capacity of the fuel tank is 6.0L. Unscrew the gas cap by turning it counter clockwise and
carefully fill the tank with unleaded gasoline through the opening. DO NOT MIX GAS AND OIL
TOGETHER, THIS IS A 4-STROKE ENGINE. Replace the gas cap by carefully aligning the
threads on the cap and the tank and turning the cap clock wise. Wipe any spilled fuel from
the dirt bike using a cloth and dispose of the cloth properly. DO NOT SMOKE OR REFUEL THE
VEHICLE NEAR OPEN FLAMES OR NEAR HEATING UNITS.
ONLY REFUEL THE VEHICLE IN OPEN AREAS TO REDUCE THE LIKELIHOOD
OF THE BUILD UP OF GASOLINE FUMES.
Operation of the fuel valve (the valve under the fuel tank)
ON: With the handle of the fuel valve at “ON” position, the fuel supply will flow to the
carburetor.
OFF: With the handle of the fuel valve at “OFF” position, the fuel supply will not flow to the
carburetor.
RES: If fuel level in the fuel tank becomes too low for engine to stay running while fuel valve
is at “ON” position, turn fuel valve to “RESERVE”. Turning fuel valve to “RESERVE” will allow
engine to begin using reserve fuel supply.
You will need to re-fuel as soon as possible. There is approximately 1L of fuel left in tank
when fuel valve is placed at “RESERVE”. Once re-fueled, turn fuel valve back to the “ON
“ Position

11
ENGINE STARTING
CAUTION
Verify oil level prior to starting.
Starting the engine with low or no oil will damage the engine.
WARING
Never start the engine in a closed place as the exhausted gas from the vehicle contains
toxic carbon monoxide.
1. Set the key of the ignition switch to position.
2. Put the dirt bike in the neutral gear.
3. Ensure that there is fuel in the tank.
4. Set the fuel valve handle to “ON” or “RES” position.
To start a cold engine:
1. Pull up the choke lever of the carburetor (to close the choke).
2. Start the engine with kick lever.
3. Slightly turn the throttle twist grip to increase the speed of the engine so as to warm up
the engine.
4. Turn the carburetor choke bar downward to fully open the choke when the engine is
sufficiently warmed up.
CAUTION
Unnecessarily increasing RPM’s to a high level while the dirt bike is in neutral is harmful to
the engine.
Procedures for stopping the engine:
1. Release the throttle twist grip to slow down the engine.
2. Shift to the neutral position.
3. Set the ignition switch key to “ ” position.
4. Set the fuel valve handle to “OFF” position.

12
BREAKING IN THE ENGINE
The first 600 Miles of operation should be considered the “Break-in” period and special
attention shall be paid to the following points:
1. Take special care not to increase the RPM’s of the engine while climbing steep slopes.
Never drive your dirt bike continuously for more than 50km (30 miles) without increasing
and decreasing the throttle.
2. The engine shall be warmed up for 3-5 minutes prior to operation so all components are
lubricated sufficiently.
3. The driving speed shall not be over 40 kmph (25 MPH) maximum during the first 500 km
(300 miles) of operation and not over 65 kmph (40 MPH) maximum during the remaining
500 km (300 miles) of the “Break-In” period.
SWITCHES ON RIGHT HANDLEBAR
Ignition switch
The ignition switch is Located on the right handlebar.
When the switch is turned to “ ” (off) position, the engine will not start. If the engine is
running and the Off button is pushed the engine will turn off.
When the switch is turned to “ ” (on) position, the engine can start by using the kick
start lever.

13
GEAR SHIFTING
Reduce throttle before shifting. Never increase the throttle while shifting
gears.
Pull in the clutch lever, located on the left hand grip.
Depress the Shift lever to place the gear in 1st, lift up the lever to shift to 2nd, 3rd, 4th and
5th.
Do not place your foot on the gear-shifting pedal while operating the dirt bike to avoid clutch
damage caused by accidental gear shifting.
Model 110 Series
Shifting sequence
(N) Neutral
(1) 1st gear
(2) 2nd gear
(3) 3rd gear
(4) 4th gear
Model 125 Series
Shifting sequence
(1) 1st gear
(N) Neutral
(2) 2nd gear
(3) 3rd gear
(4) 4th gear
Points for Attention during Drive
1. To warm the engine let engine idle. Do not rev the engine to prevent damage to the
engine components.
2. The clutch will wear out quickly if the dirt bike is operated with the clutch in a semi-
engaged position.
3. Shift to the low speed gears when you feel that there is insufficient power to climb hills or
continue forward.

14
4. Do not use the front brake only or coast using the neutral gear especially when
descending or driving at a high speed.
5. Decrease the throttle when braking.
CHECK-UPS, ADJUSTMENT AND MAINTENANCE
Checking the Oil
Check the engine oil each time prior to operating the dirt bike.
The oil level should be between the upper and lower lines of the oil sight gauge located on
the right cover of the crankcase. The level can also be checked on the dip stick.
1. Set the motorcycle on level ground, look at the sight gauge for current oil level. Remove
the oil gage plug, wipe the oil gage rod clean and then insert the gage plug into the
crankcase again to check the oil level. There is no need to completely install the oil gage
plug in the crankcase fill hole.
2. Add lubricating oil up to the upper line when needed, but do not overfill.
3. Finally screw on the oil gage plug tightly.
CAUTION
Never start the engine when there is in sufficient
lubricating oil. Otherwise, it will cause harm to the
engine.
LUBRICATING OIL RECOMMENDED
The lubricating oil is an important factor
affecting the performance and service
life of the engine. Please refer to the
chart for the correct grade of engine oil
based on the environmental conditions
in your area. Do not use any other type
of oil other than what is recommended
in the chart. DO NOT MIX OIL WITH
THE GASOLINE.
Lubricating oils of different viscosity
shall be employed in different regions
and at different temperatures.

15
CHANGING THE OIL, CLEANING OIL FILTER SCREEN
1. of the engine and let the oil drain into an approved collection container.
DO NOT PERFORM THIS PROCEDURE WHILE THE ENGINE IS HOT.
SERIOUS BURNS COULD RESULT FROM CONTACT WITH HOT OIL.
2. Dispose of the used oil properly. For proper
disposal procedures, contact your local oil recycling
center.
3. Clean oil screen and spring with solvent.
4. Clean and replace the oil drain plug making sure
it is secure.
oil in the engine by using the oil gauge plug and/or
sight gauge.
CHECK-UP OF SPARK PLUG
1. Remove the cap of spark plug and screw off the spark plug
using the plug wrench.
2. Clean the spark plug all around or replace it if it is corroded
or there is too much deposit on it.
3. Regulate the gap of the spark plug to 0.6-0.8mm. (.024
inches - .032 inches)
The spark plug of the designated type should be used. The
applicable type of spark plug: D8RTC (Torch) or equivalent
VALVE INSPECTION
Refer to maintenance schedule in this owner’s manual for valve adjustment inspection
intervals .
Valve clearance should be:
Intake: 0.02-0.03mm
Exhaust: 0.03-0.05mm
The engine will make excess noise if the gap is too large in air valve. If gap is too small valve
operation will be hindered which could result in valve malfunction and failure. Therefore, air
valve gap must be checked periodically.
If you have the proper tools and are mechanically proficient, instructions on adjusting the
valve clearance are given in the service manual. If assistance is needed please contact Ricky
Power Sports LLC. to find your local service center.

16
CHECKING & CLEANING THE AIR FILTER
Air filter is located under left side plastic cowling.
Cowling will need to be removed.
Take the air filter out and check to see if it is dirty or
torn.
Remove foam element and wash with water and allow
it to dry per instructions below.
Apply a few drops of machine oil. Squeeze it with a dry
cloth to remove excess oil.
Recommended oil:
SAE 15W-40
CAUTION
The air filter element must be intact or the engine will suck in dust and dirt, resulting in a
shorter service life of the engine.
Water should be prevented from entering into the filter when washing the vehicle.
The filter element shall be cleaned gently without twisting to prevent it from cracking.
Never wash it with gasoline or any acid, alkaline or organic volatile oil to avoid its aging,
which will result in reducing the effect of the air filter oil to catch particles before they enter
the engine. Replace the element with a new one if it is broken or cracked.
ADJUSTING THE THROTTLE CABLE
Make sure the throttle works normally.
Check if the throttle twist grip has the required free operating movement.
The required free operating movement: 2-6mm (0.078 inches - 0.24 inches) If the grip
cannot be moved freely, turn the adjusting nut located on top of the throttle twist grip to
ensure proper operating movement.
After adjustment, start the engine and check for the operating movement again. Repeat the
adjustment if necessary until the desired operating movement is obtained.

17
ADJUSTING THE CARBURETOR
When the vehicle leaves the factory, the idle speed has been
optimized and the user does not need to adjust it. If the idle speed
is indeed unstable, please go to the local dealer for treatment.
CAUTION
The vehicles have no adjustable operating parameter. Idle
screw is within 1500±100 rpm, so the range is within 100
rpm of default idle speed. The idle screw is covered by a
chock plug to prevent tampering by the consumer. OEM
guarantees all production vehicles will be installed with
prevent tampering device on idle screw to ensure idle screw
non-adjustable.
INSPECTION OF FRONT HYDRAULIC DISK BRAKE
1. Inspect the front disk brake caliper for leakage. If brake fluid leaks, the safety of riding
could be affected.
2. Inspect the brake hose for cracks, and the joint for leakage.
3. Check the brake fluid level in the brake fluid reservoir, if level is at or below the LOWER
mark, inspect brake pads for wear and hydraulic system for leaks.
4. To add brake fluid, unscrew the 2 screws on top of the bake fluid container. Add DOT3 or
DOT4 brake fluid. Do not mix brake fluid types.
FRONT HYDRAULIC DISK BRAKE INSPECTION REAR HYDRAULIC DISK BRAKE
INSPECTION
1. Inspect the rear disk brake caliper for leakage. If brake fluid leaks, the safety of riding
could be affected.
2. Inspect the brake hose for cracks, and the joint for leakage.
3. Check the brake fluid level in the brake fluid reservoir, if level is at or below the LOWER
mark, inspect brake pads for wear and hydraulic system for leaks.

18
4. To add brake fluid, unscrew cap on top of brake fluid container. Add DOT3 or DOT4
brake fluid. Do not mix brake fluid types.
CLUTCH ADJUSTMENT
To adjust the clutch lever play:
1. Remove the adjuster cover (slide back
on cable).
2. Loosen adjuster nut and move
adjuster in or out to obtain the correct
play.
3. Tighten adjuster nut
4. Recheck the clutch lever free
distance.
Readjust it if it is not within the correct
limits.
To adjust the clutch:
1. Loosen adjuster nut and move
adjuster in or out to obtain the
correct tension.
2. Tighten adjuster nut
3. Recheck the clutch lever free
distance.
Readjust it if it is not within the
correct limits.
